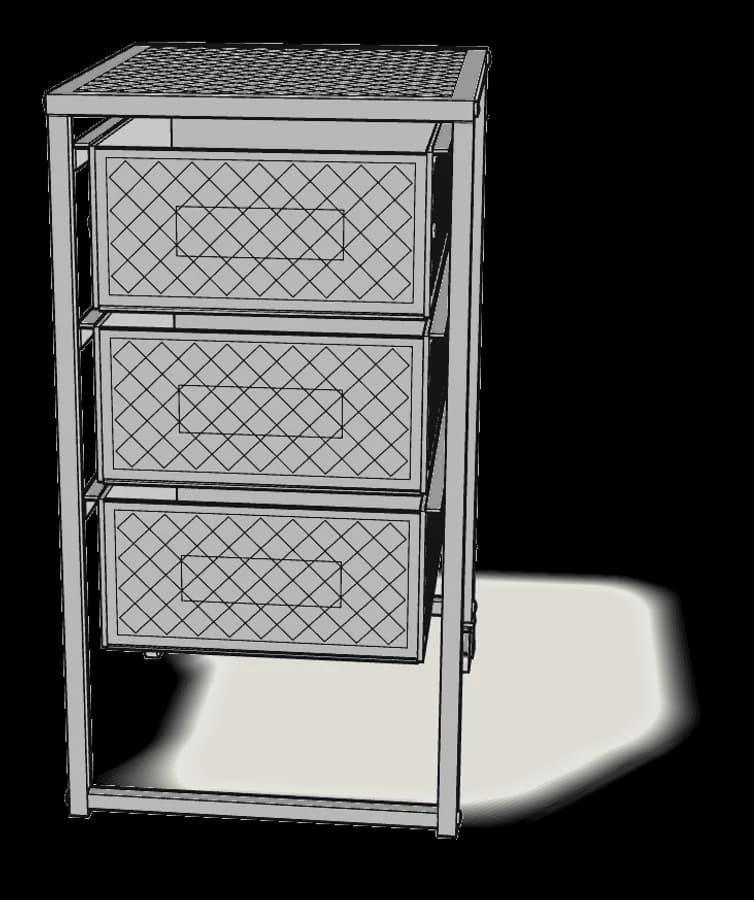

How to Assemble IKEA LENNART Drawer Unit

Step-by-step assembly

1.

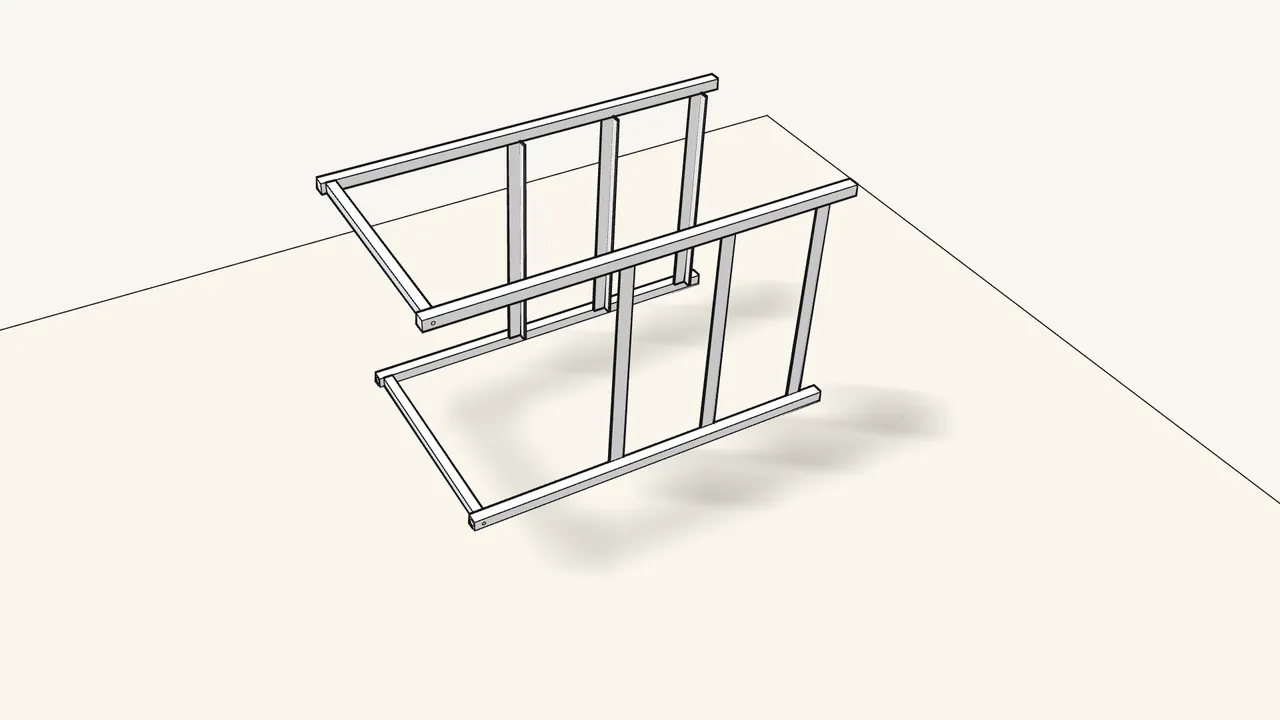

   Step 1

   Join the two side frames with the 2 cross bars.

   The cross bars go at the bottom ends of the posts.

   ▶ Watch this step (0:16)

2.

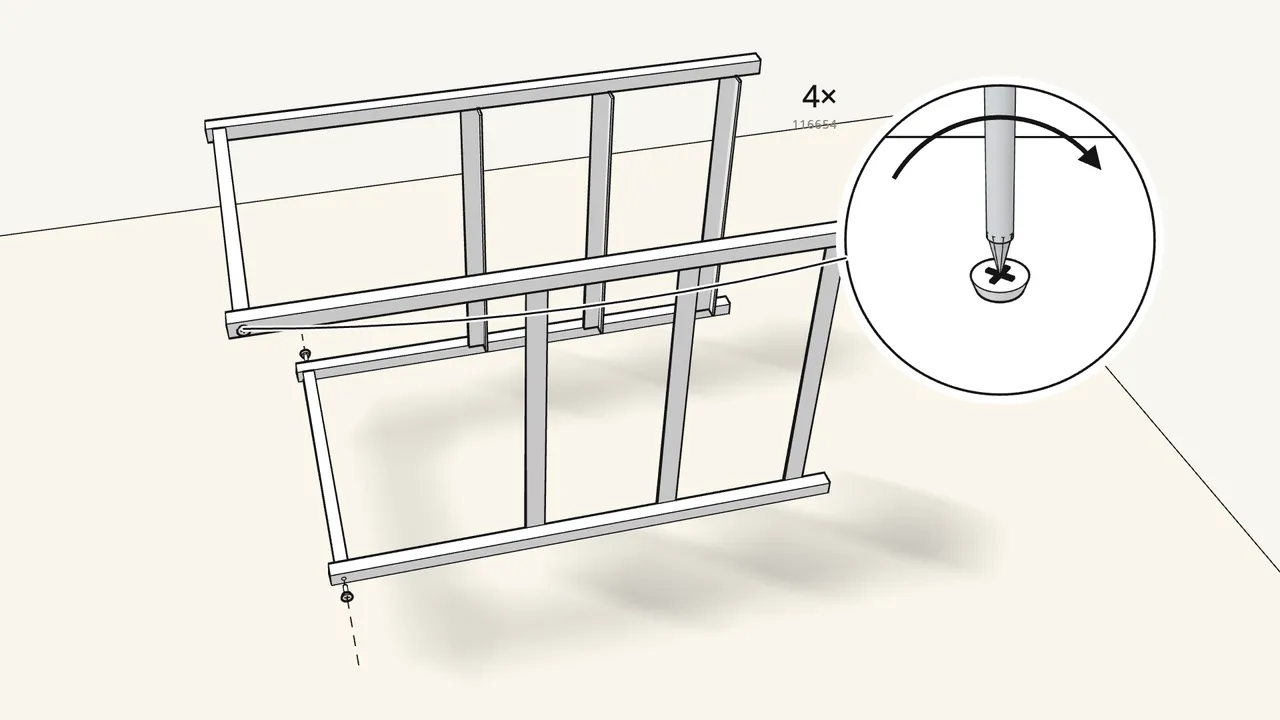

   Step 2

   Fix the cross bars with 4 screws (116654).

   One screw through each post into the cross bar.

   ▶ Watch this step (0:23)

3.

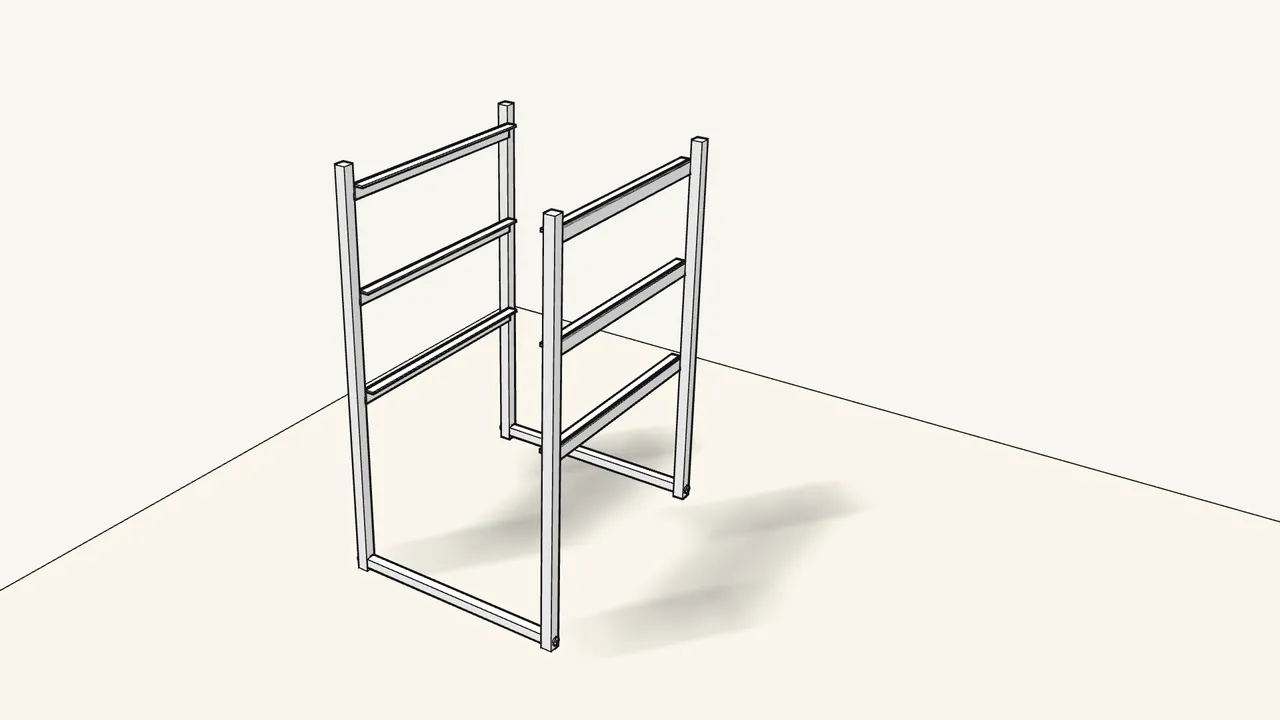

   Step 3

   Stand the frame upright.

   ▶ Watch this step (0:30)

4.

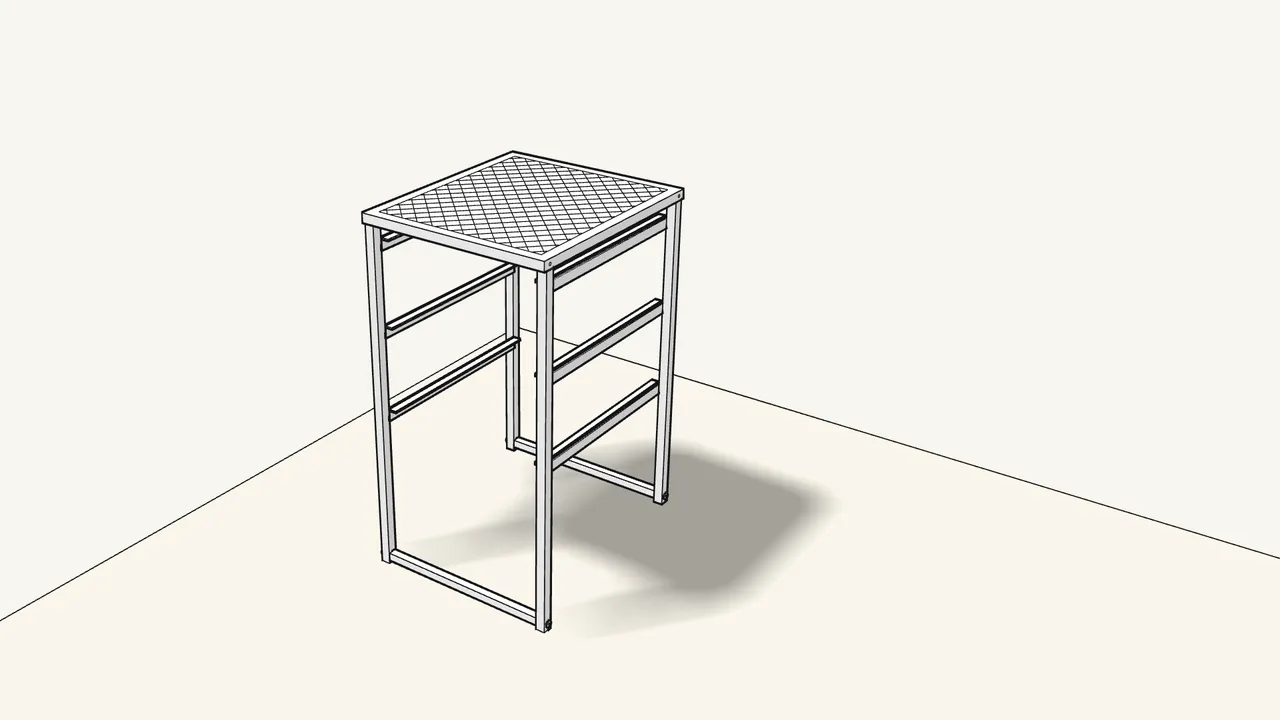

   Step 4 · manual step 3

   Press the top down onto the 4 posts.

   ▶ Watch this step (0:35)

5.

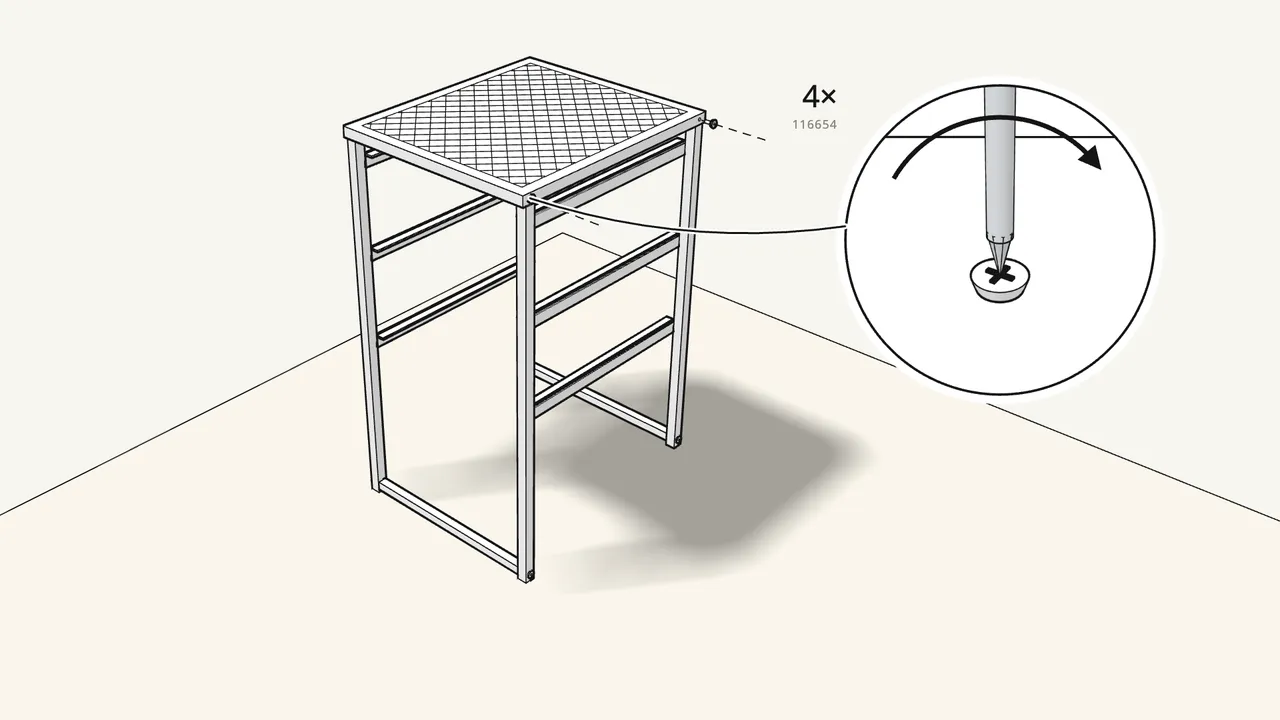

   Step 5 · manual step 4

   Screw the top to the posts with 4 screws (116654).

   2 on each side.

   ▶ Watch this step (0:40)

6.

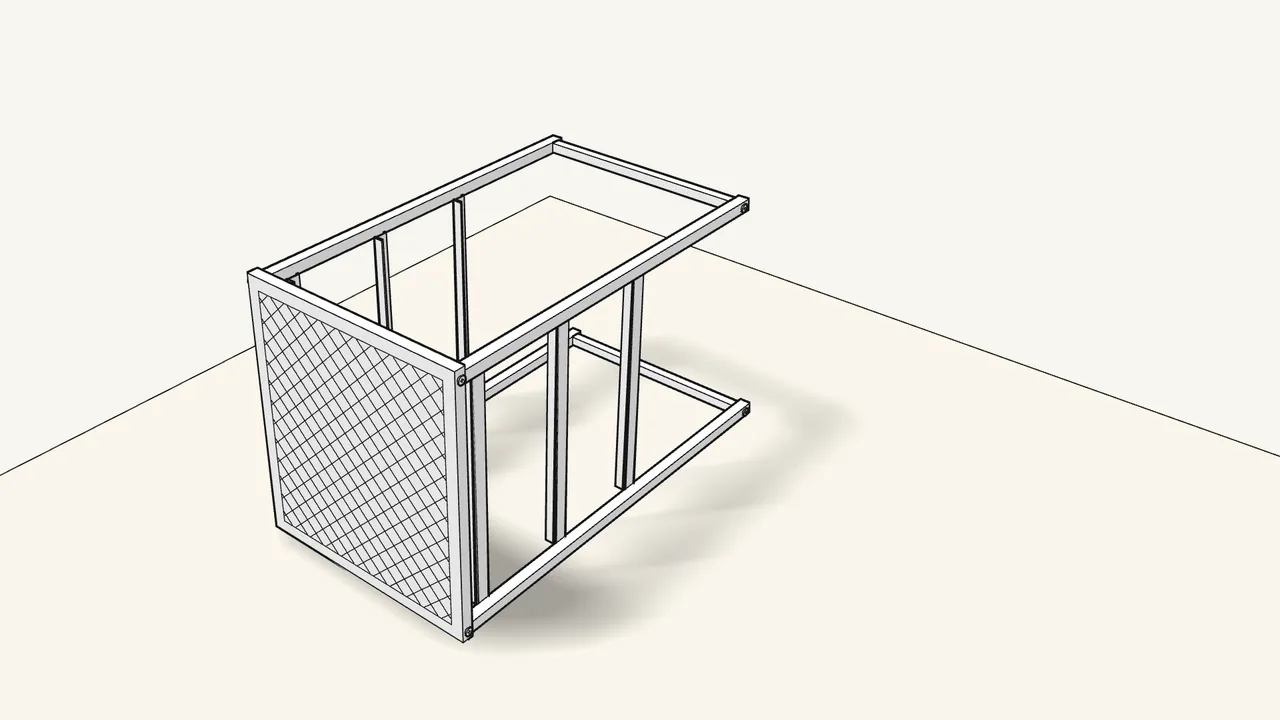

   Step 6 · manual step 5

   Lay the unit down on its front.

   ▶ Watch this step (0:48)

7.

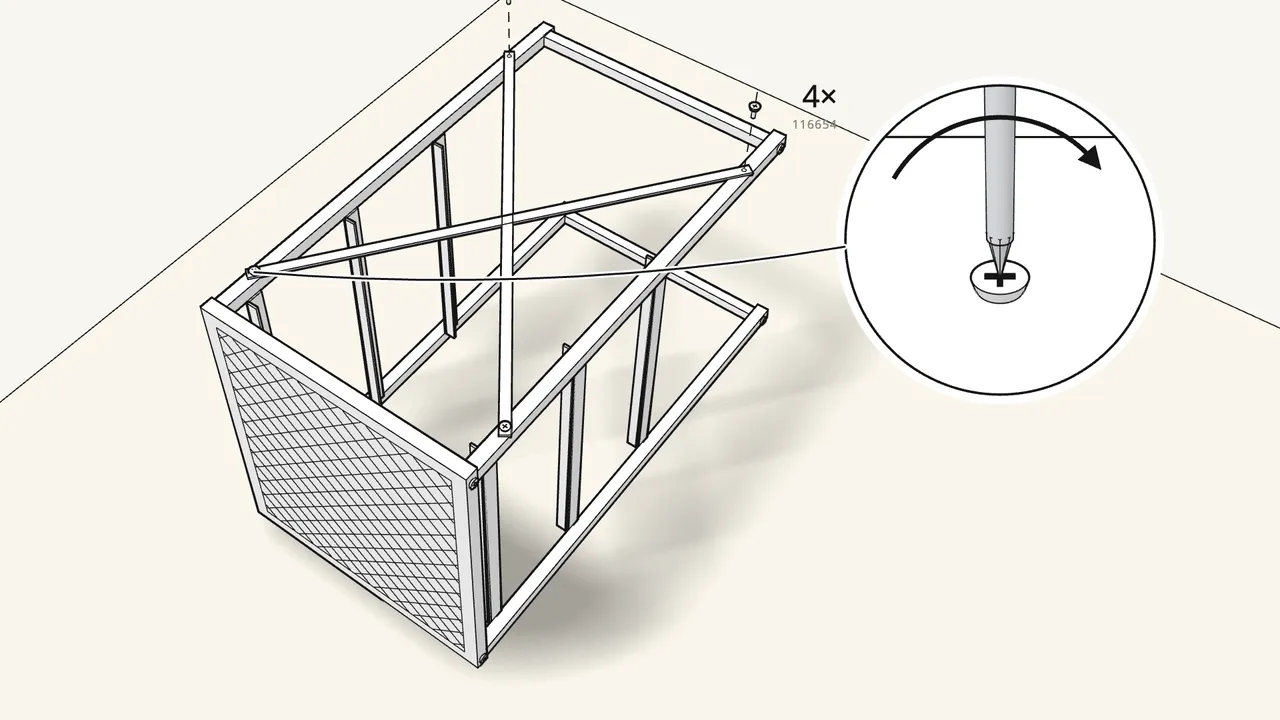

   Step 7 · manual step 5

   Screw the 2 cross braces to the back posts — 4 screws.

   The braces cross over each other in an X.

   ▶ Watch this step (0:53)

8.

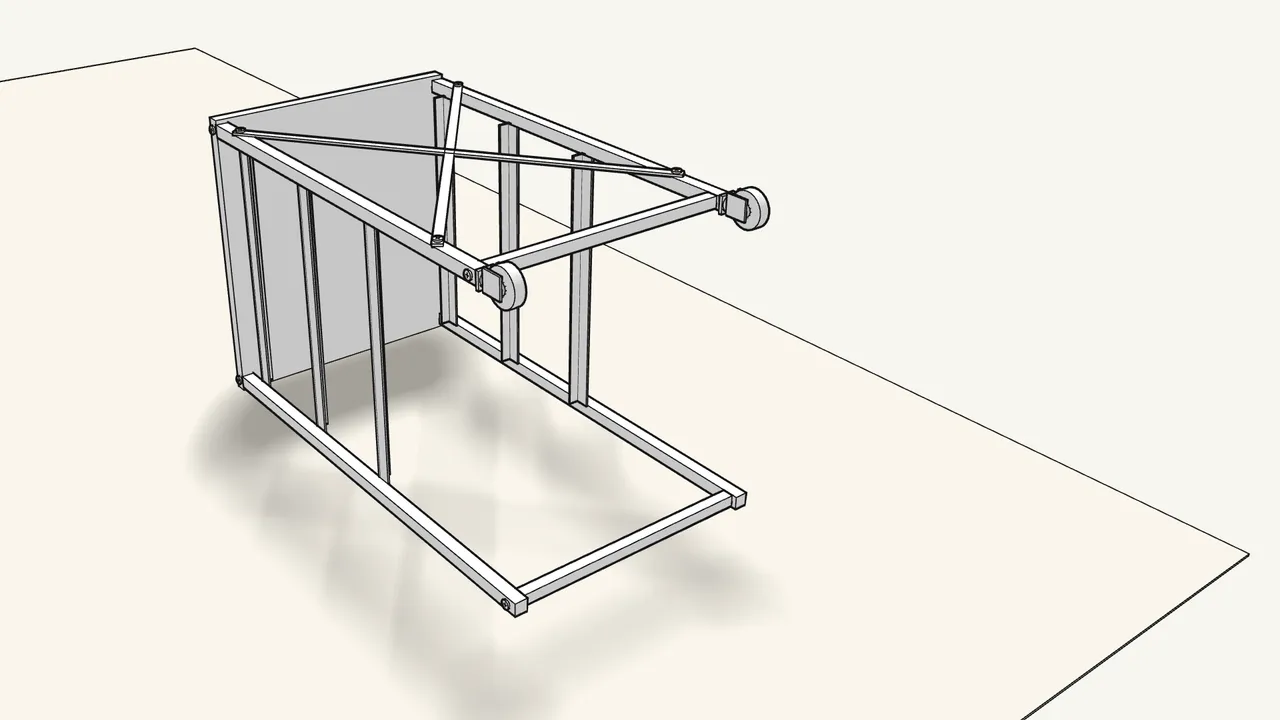

   Step 8 · manual step 6

   Push a castor (122567) into the end of each back post.

   Press until it sits fully in the tube. 2 castors.

   ▶ Watch this step (1:01)

9.

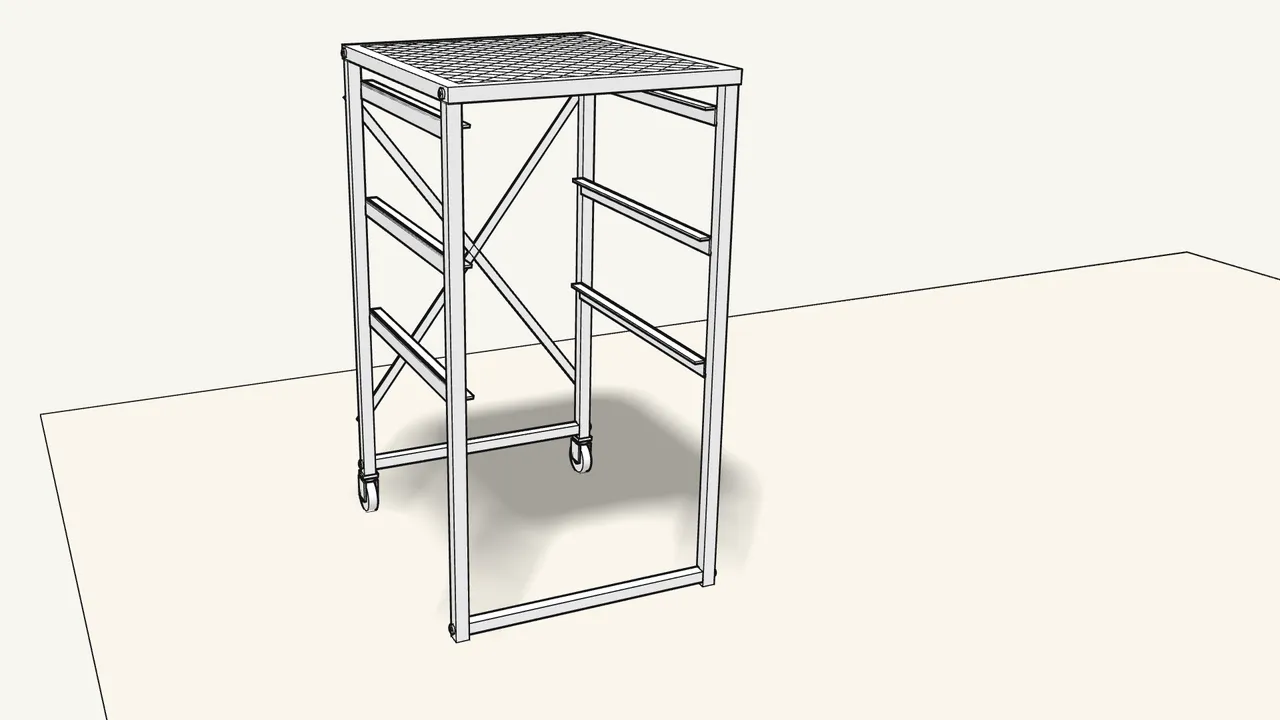

   Step 9 · manual step 6

   Stand the unit upright.

   The castors are at the back.

   ▶ Watch this step (1:08)

10.

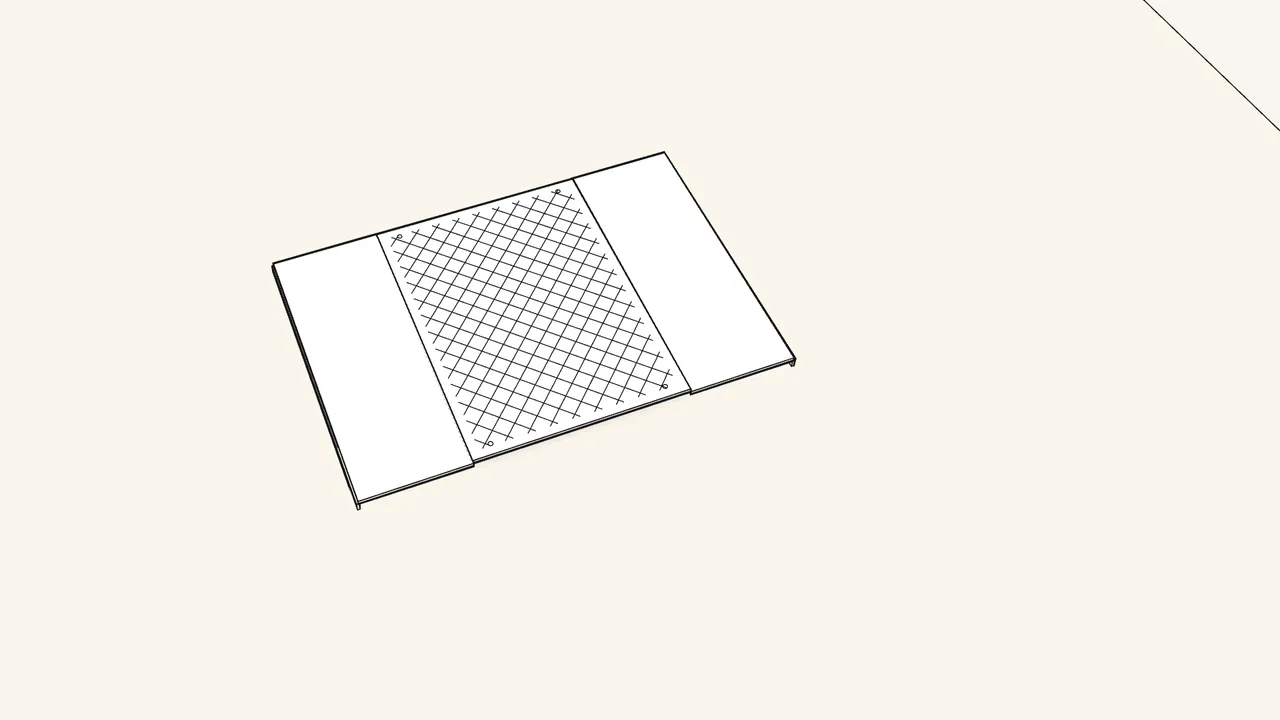

    Step 10

    Now the drawers.

    There are three. We’ll build one step by step.

    ▶ Watch this step (1:12)

11.

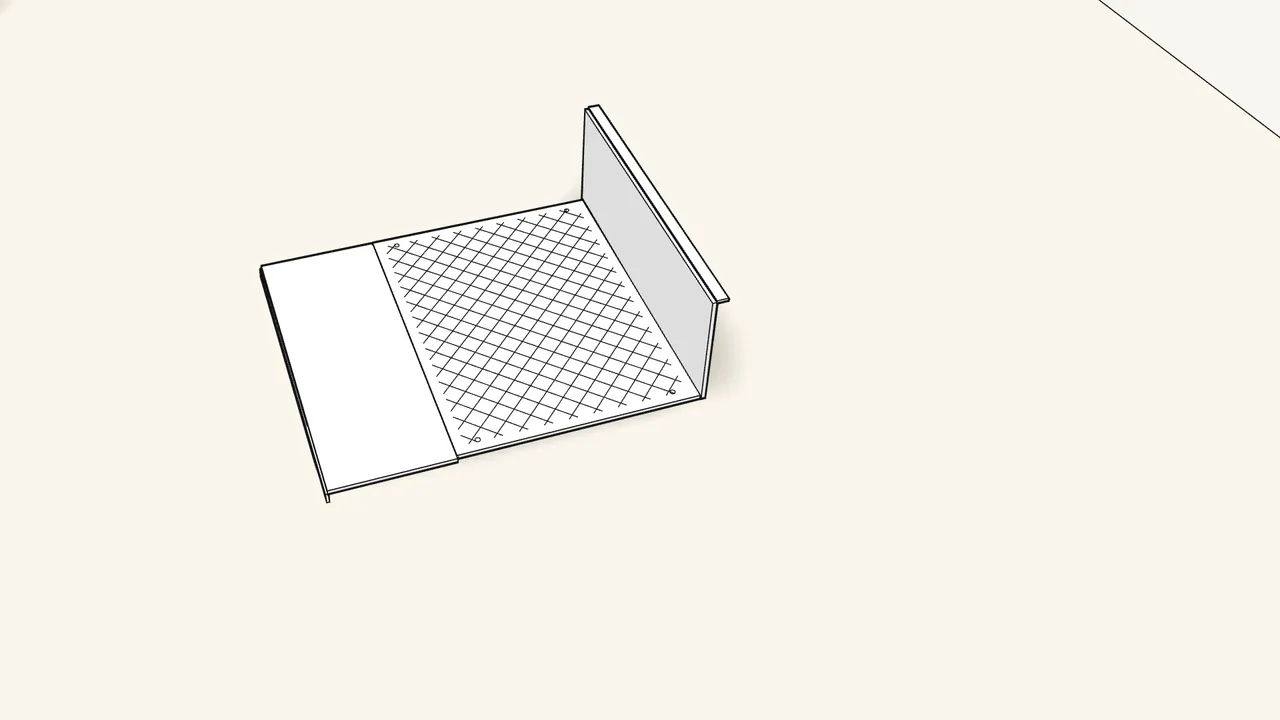

    Step 11 · manual step 7

    Fold up one side of the drawer.

    Check which way the edge flange points — see the manual, step 7.

    ▶ Watch this step (1:16)

12.

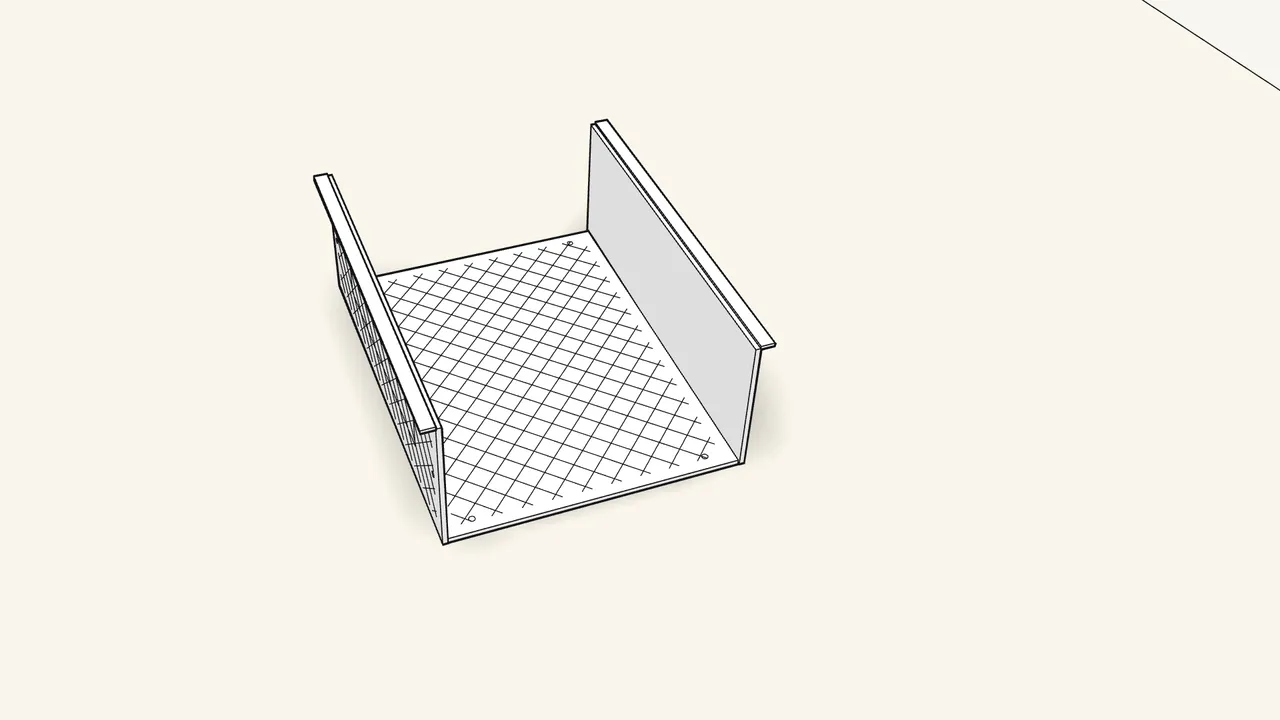

    Step 12 · manual step 8

    Fold up the other side.

    ▶ Watch this step (1:22)

13.

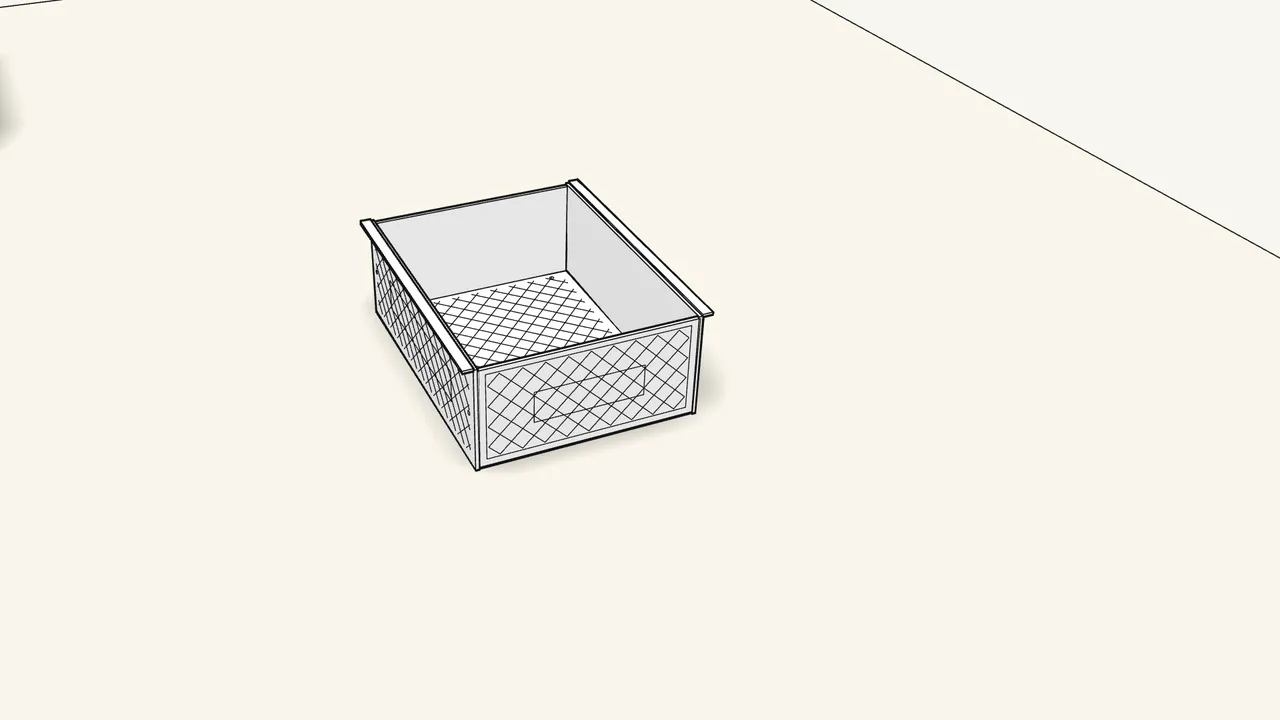

    Step 13 · manual step 9

    Slide the front and back panels into the grooves.

    Push them in from the ends until they sit flush.

    ▶ Watch this step (1:27)

14.

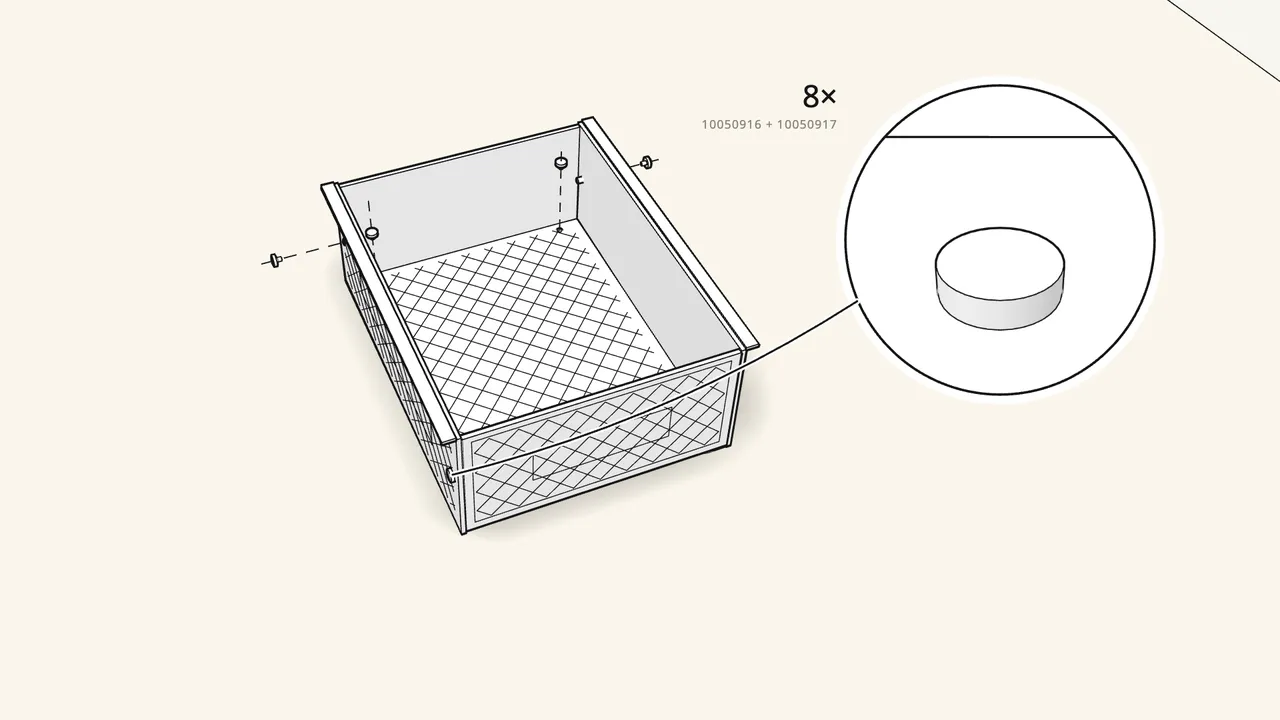

    Step 14 · manual step 10

    Lock the drawer with 8 push rivets — click!

    Sleeve 10050916 first, then pin 10050917. 4 in the sides, 4 down into the floor.

    ▶ Watch this step (1:33)

15.

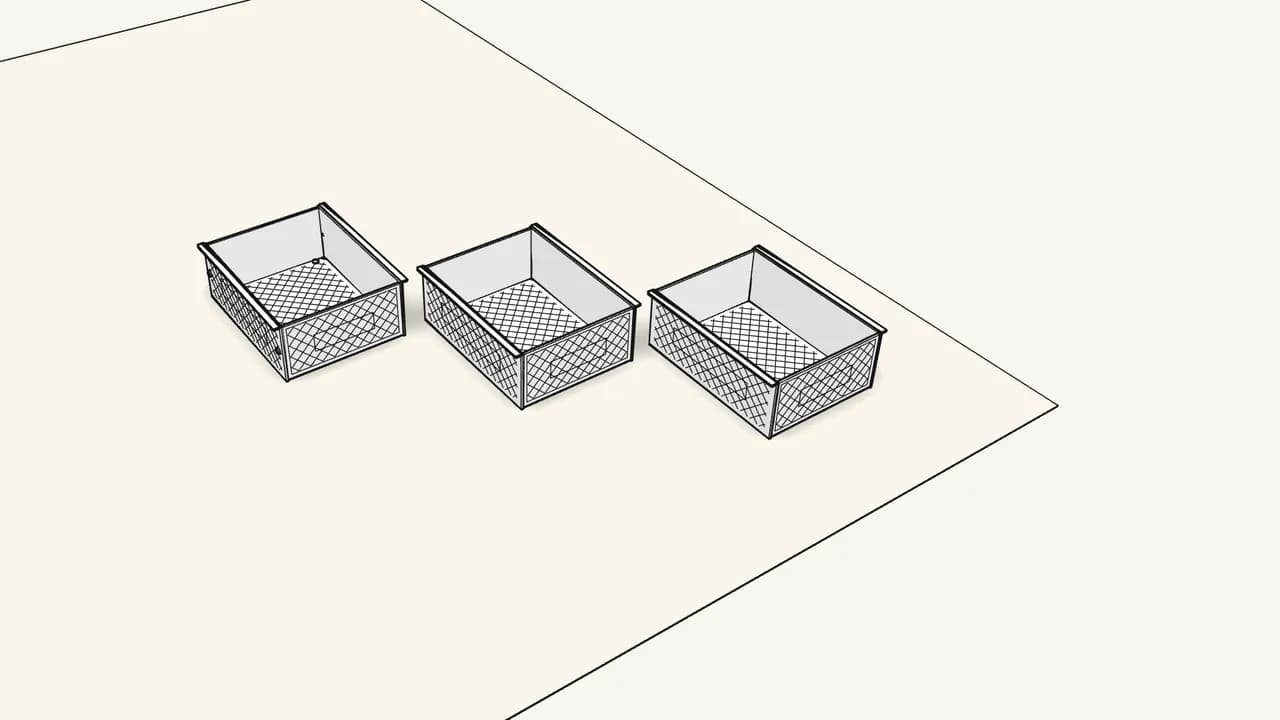

    Step 15 · manual step 7–10

    Build the other two drawers the same way.

    ▶ Watch this step (1:42)

16.

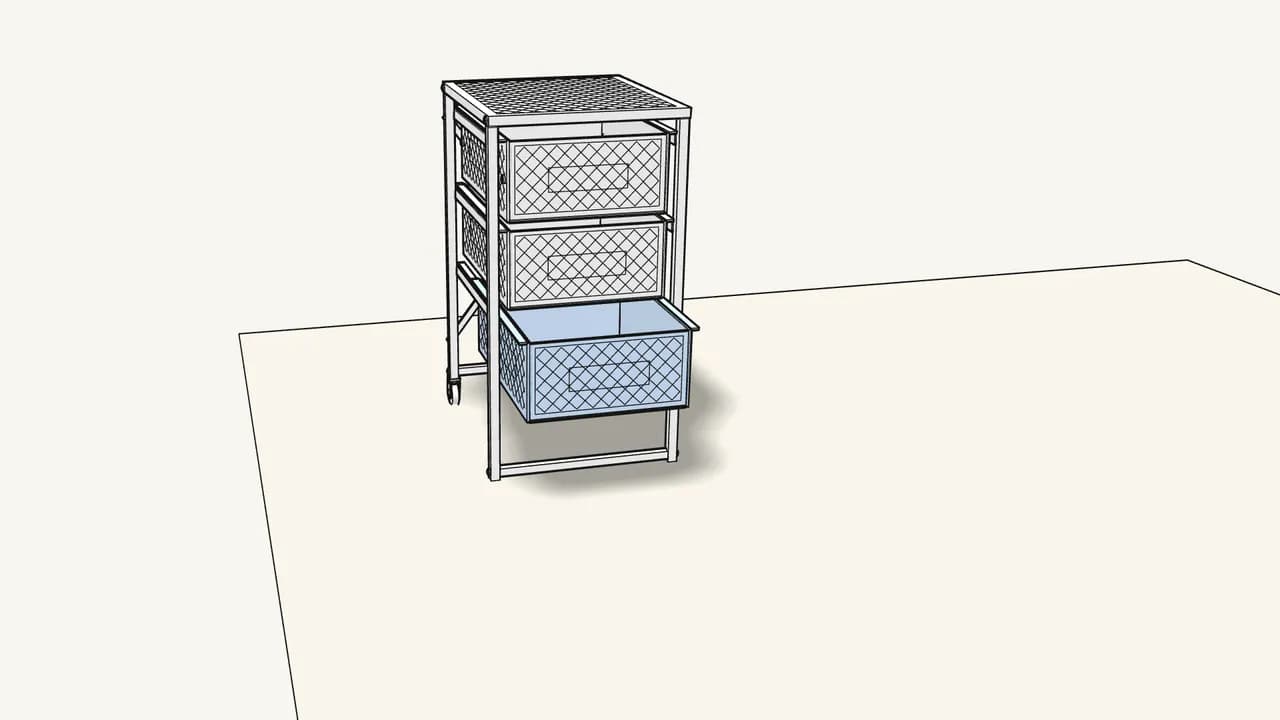

    Step 16 · manual step 11

    Rest the drawer lips on the runners and slide the drawers in.

    ▶ Watch this step (1:47)
