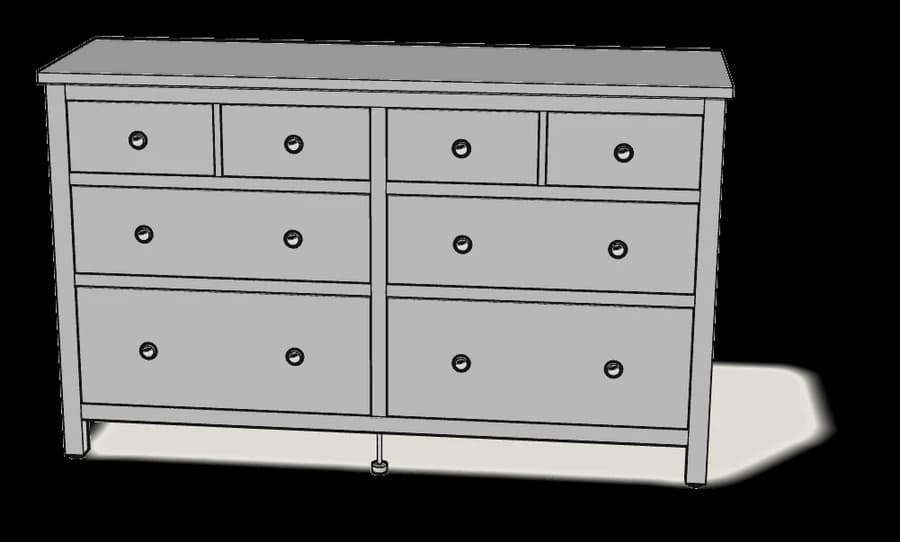

How to Assemble IKEA HEMNES 8-Drawer Dresser

Step-by-step assembly

1.

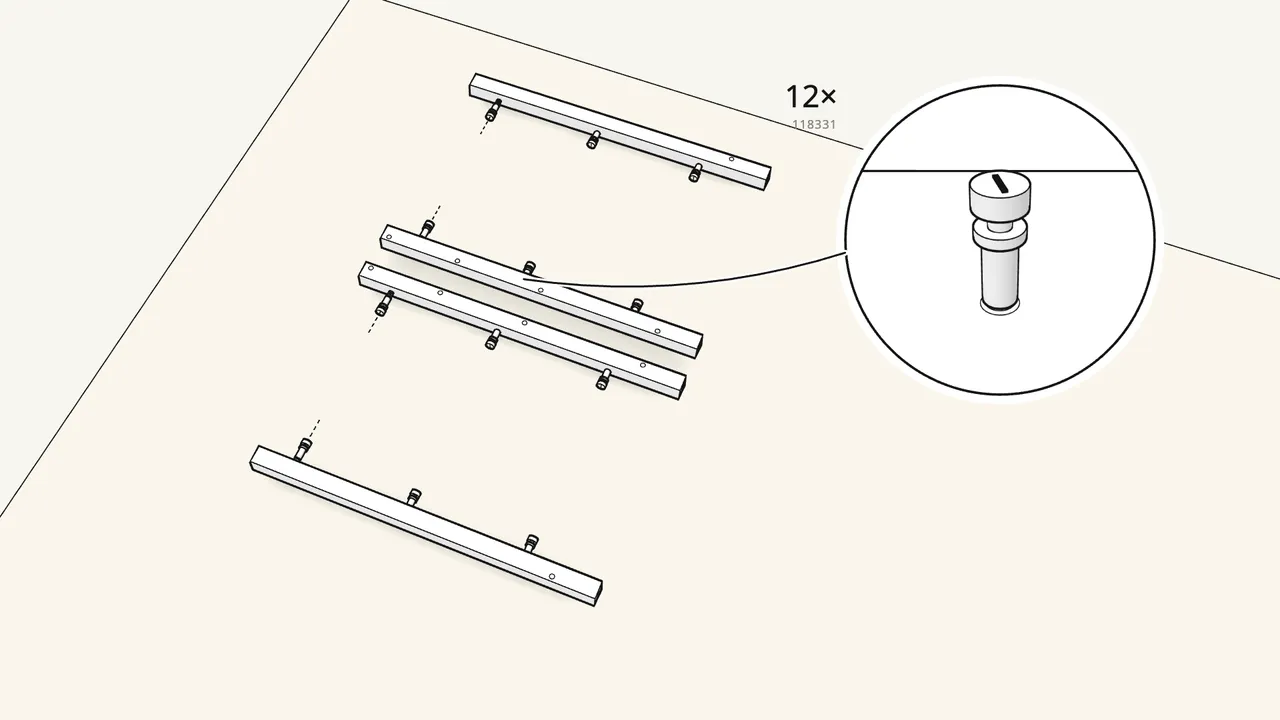

   Step 1

   Screw 12 cam bolts (118331) into the four legs.

   Legs are marked L1, L2, R1, R2. Screw each bolt in fully — no gap under the collar.

   ▶ Watch this step (0:24)

2.

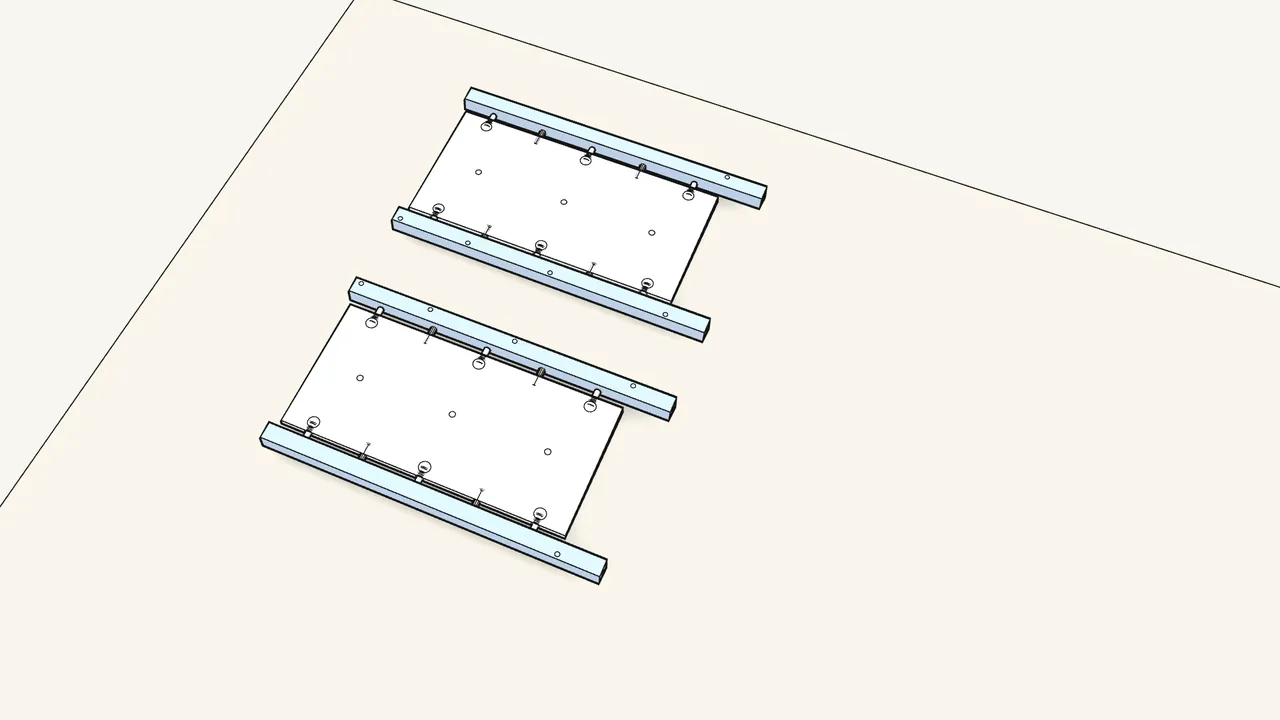

   Step 2

   Push 8 short dowels (101350) into the side panels, then fit the legs.

   Don’t mix them up with the long 101353 dowels.

   ▶ Watch this step (0:29)

3.

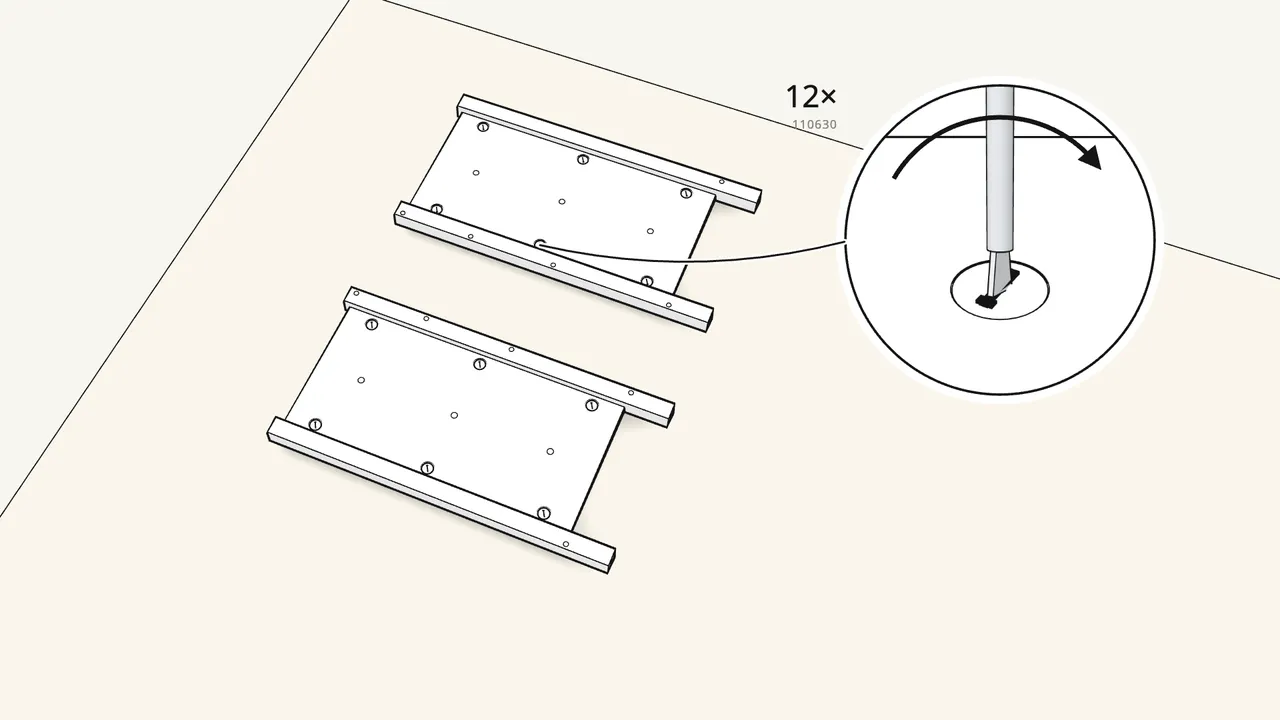

   Step 3

   Insert 12 cam locks (110630) and turn them clockwise.

   ▶ Watch this step (0:36)

4.

   Step 4

   Push 6 long dowels (101353) in and press the centre batten onto them.

   ▶ Watch this step (0:41)

5.

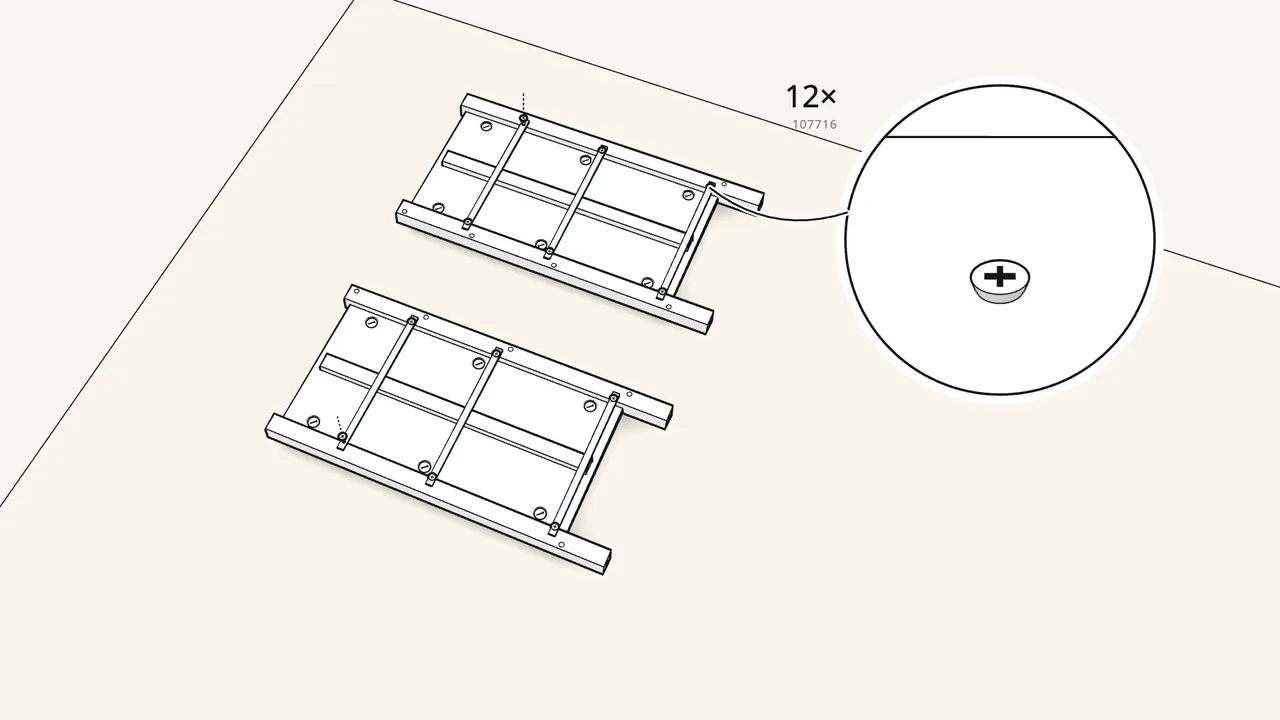

   Step 5 · manual step 5–7

   Screw the runners to both frames: 6 screws (107716) each.

   Runners marked IKEA CR go on one frame, IKEA CL on the other. Then press the 4 floor pads onto the leg ends.

   ▶ Watch this step (0:46)

6.

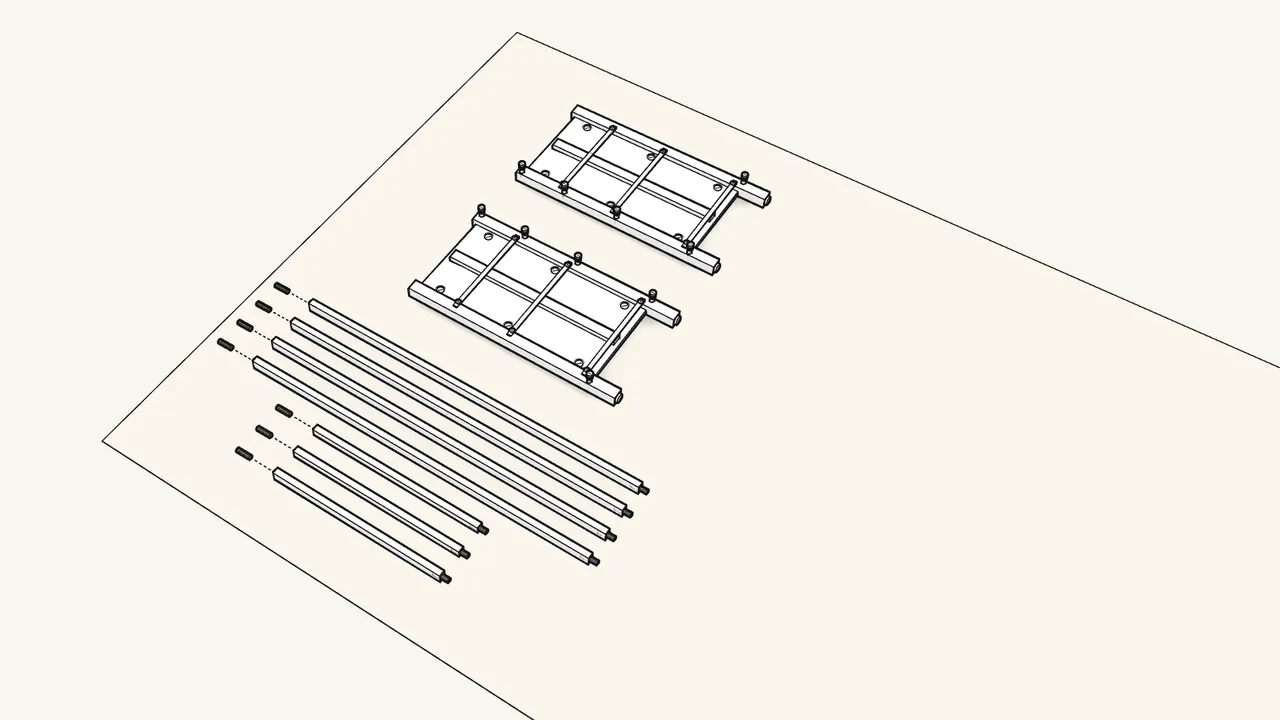

   Step 6 · manual step 8–9

   Screw 10 cam bolts (118331) into the legs. Push 14 dowels into the rails.

   The rails get a dowel (101350) in each end.

   ▶ Watch this step (0:53)

7.

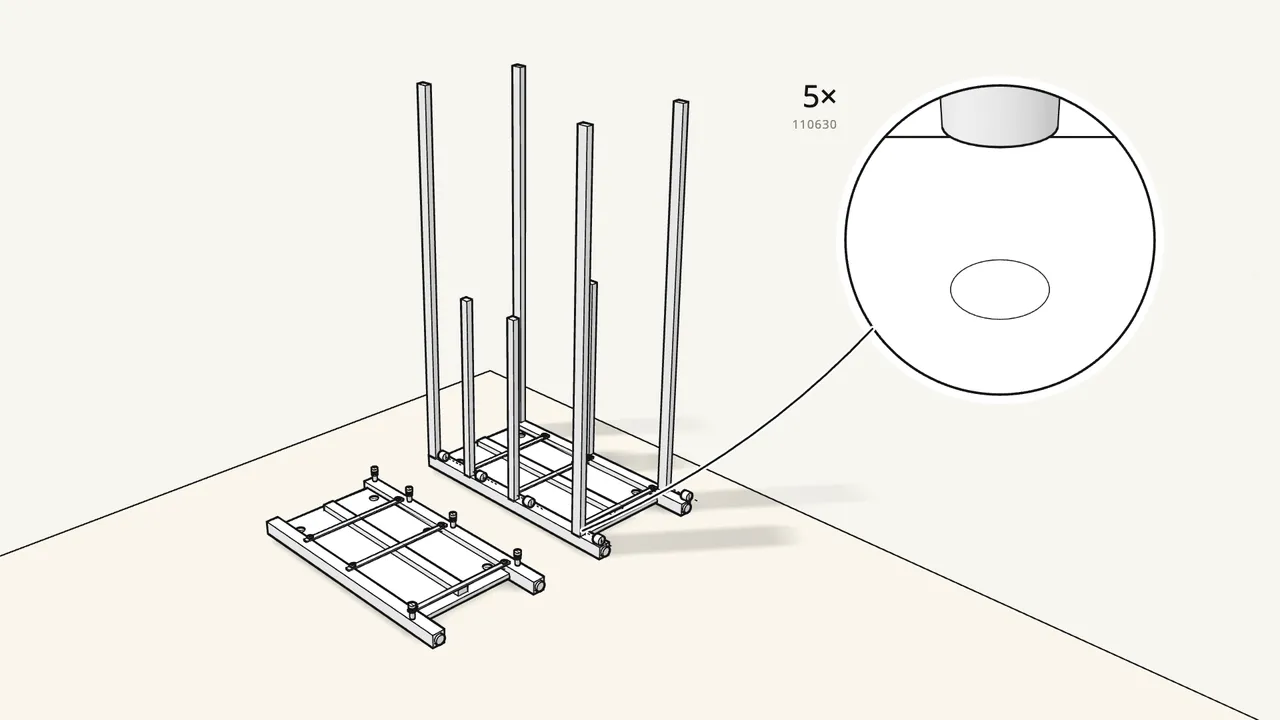

   Step 7 · manual step 10–13

   Stand the rails in the left frame and lock with 5 cam locks.

   The frame lies on its outer face; the rails point straight up.

   ▶ Watch this step (0:59)

8.

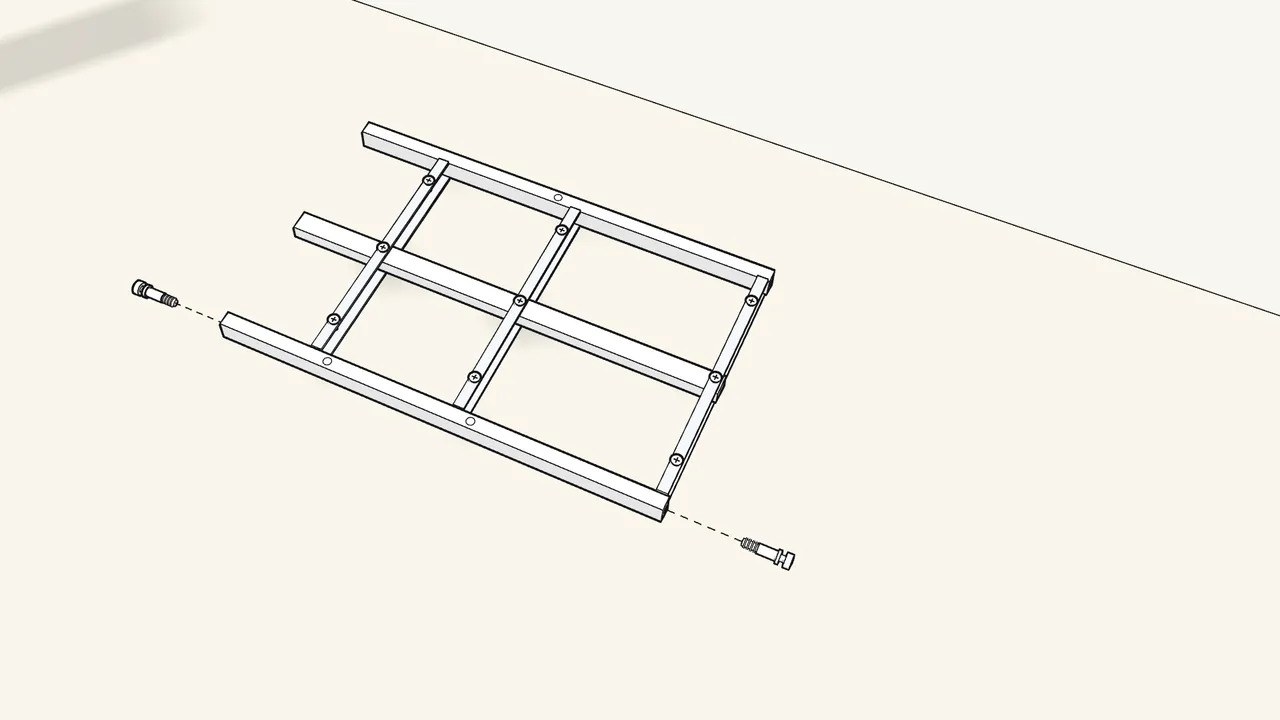

   Step 8 · manual step 14–18

   Centre divider: screw runners to both sides, 9 screws (108462) per side.

   Then screw in the 4 bolts from the separate bag (603440).

   ▶ Watch this step (1:07)

9.

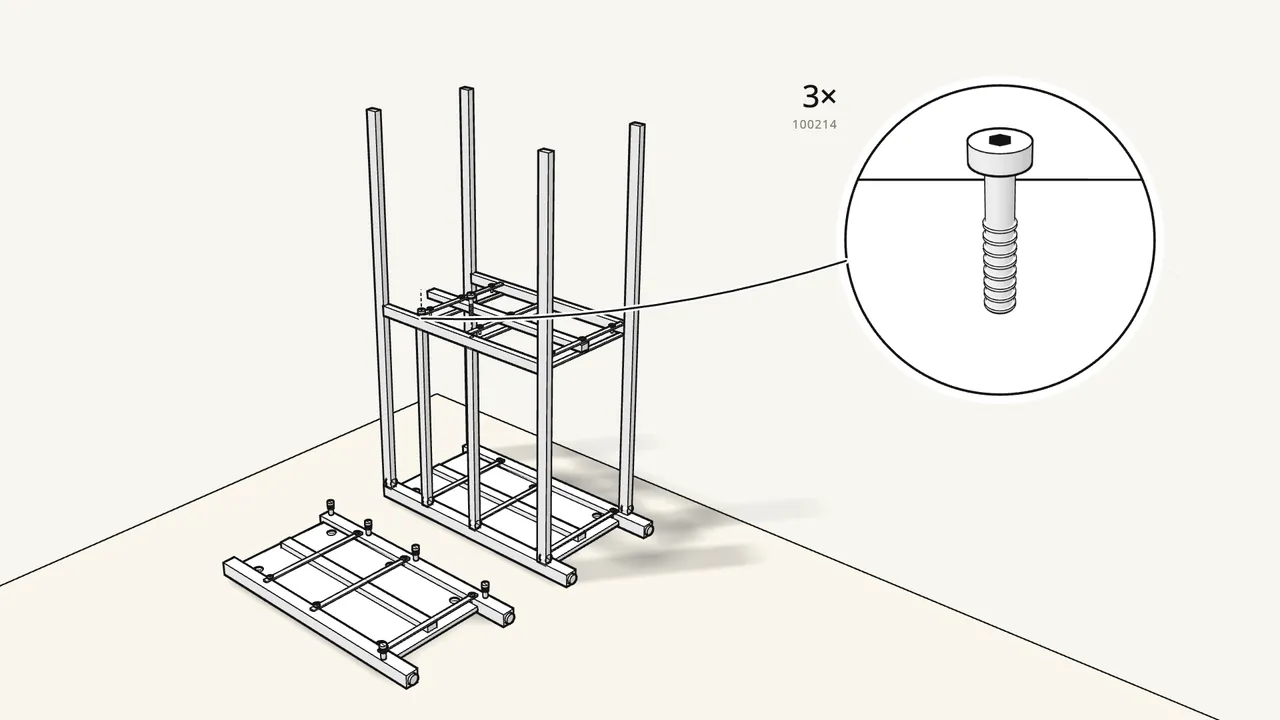

   Step 9 · manual step 19–20

   Lower the divider onto the rails. Fix with 3 screws (100214).

   Use the Allen key 100001.

   ▶ Watch this step (1:14)

10.

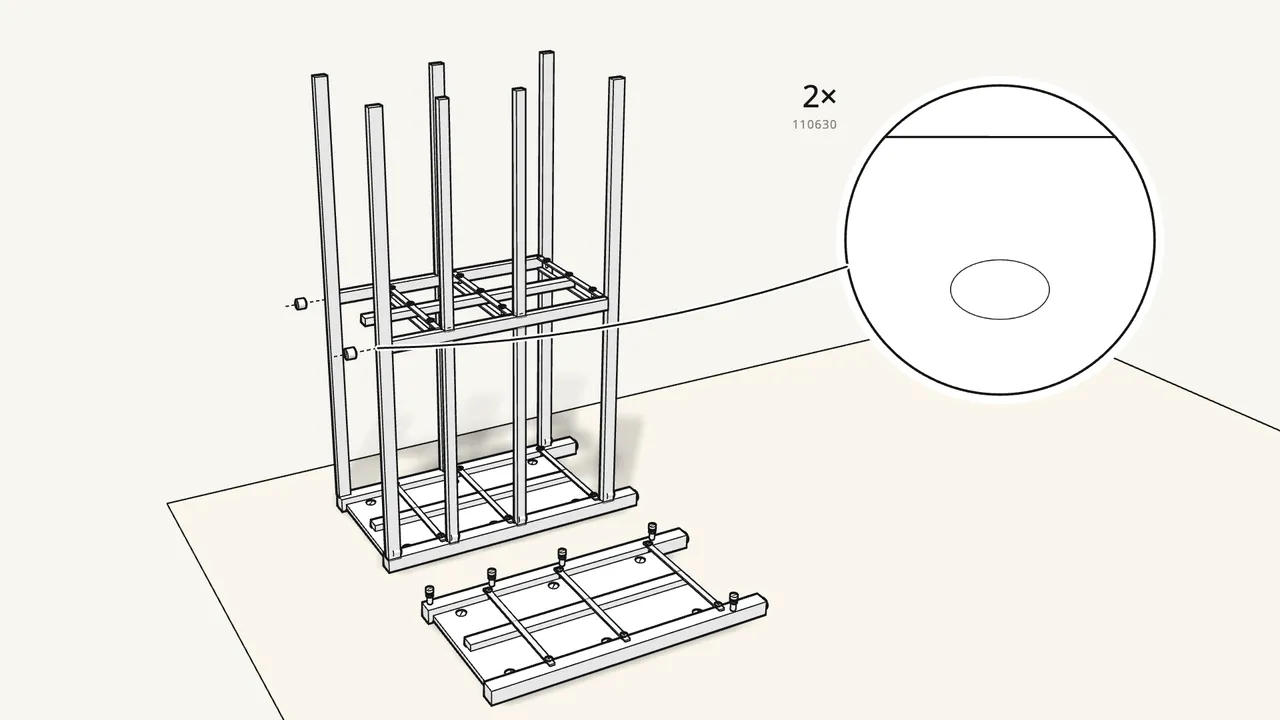

    Step 10 · manual step 21–22

    Fit the three remaining short rails. Lock with 2 cam locks.

    ▶ Watch this step (1:21)

11.

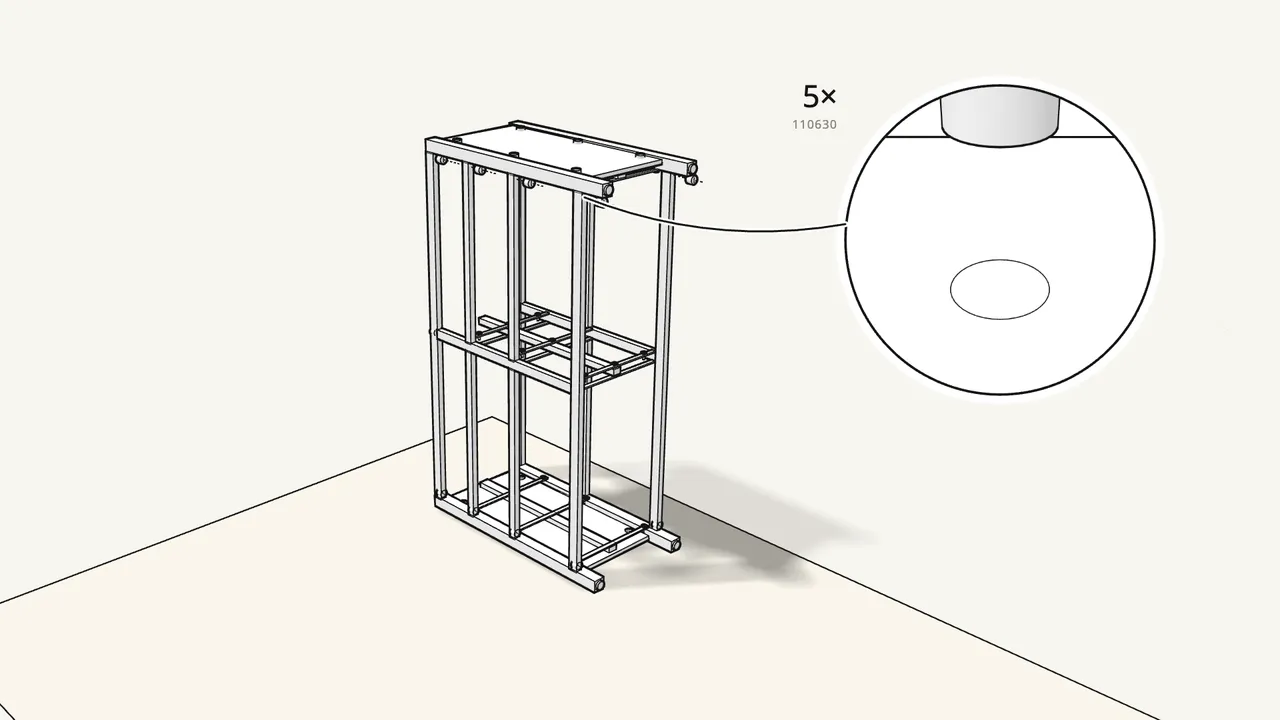

    Step 11 · manual step 23–24

    Lay the second frame on top. Lock with 5 cam locks.

    ▶ Watch this step (1:29)

12.

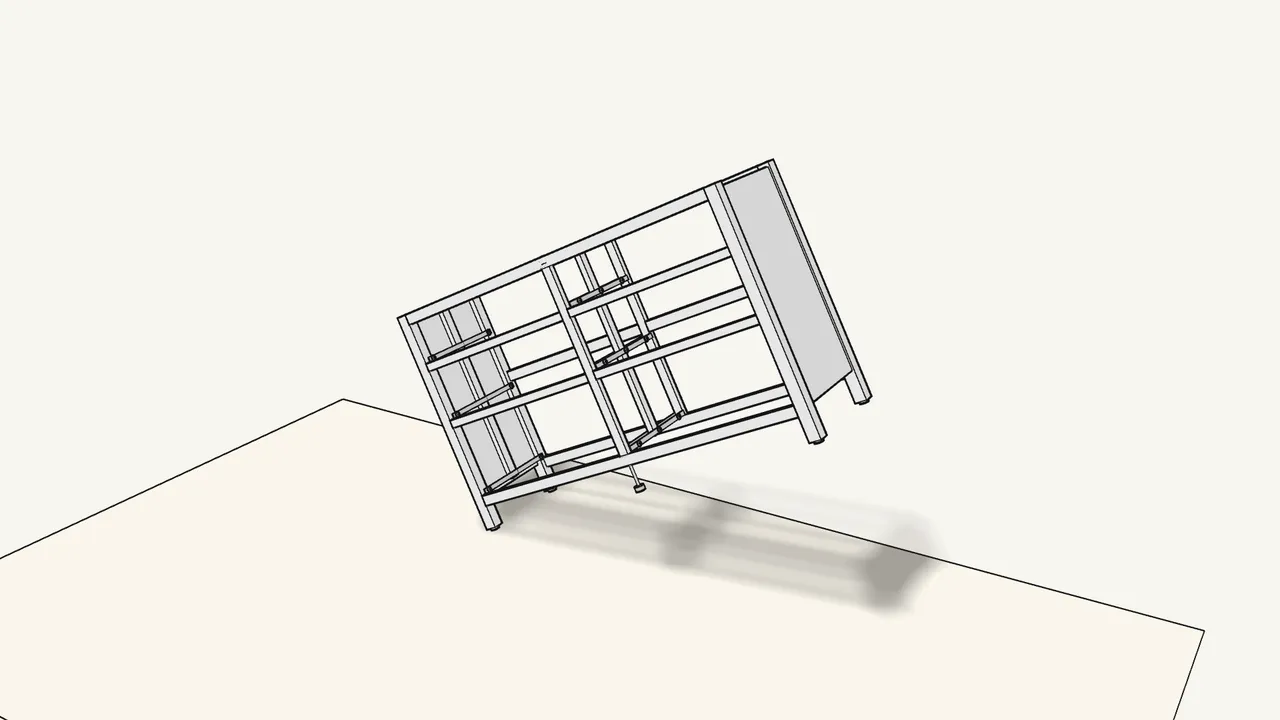

    Step 12 · manual step 25–26

    Screw in the adjustable foot (107862), then stand the dresser up.

    ▶ Watch this step (1:37)

13.

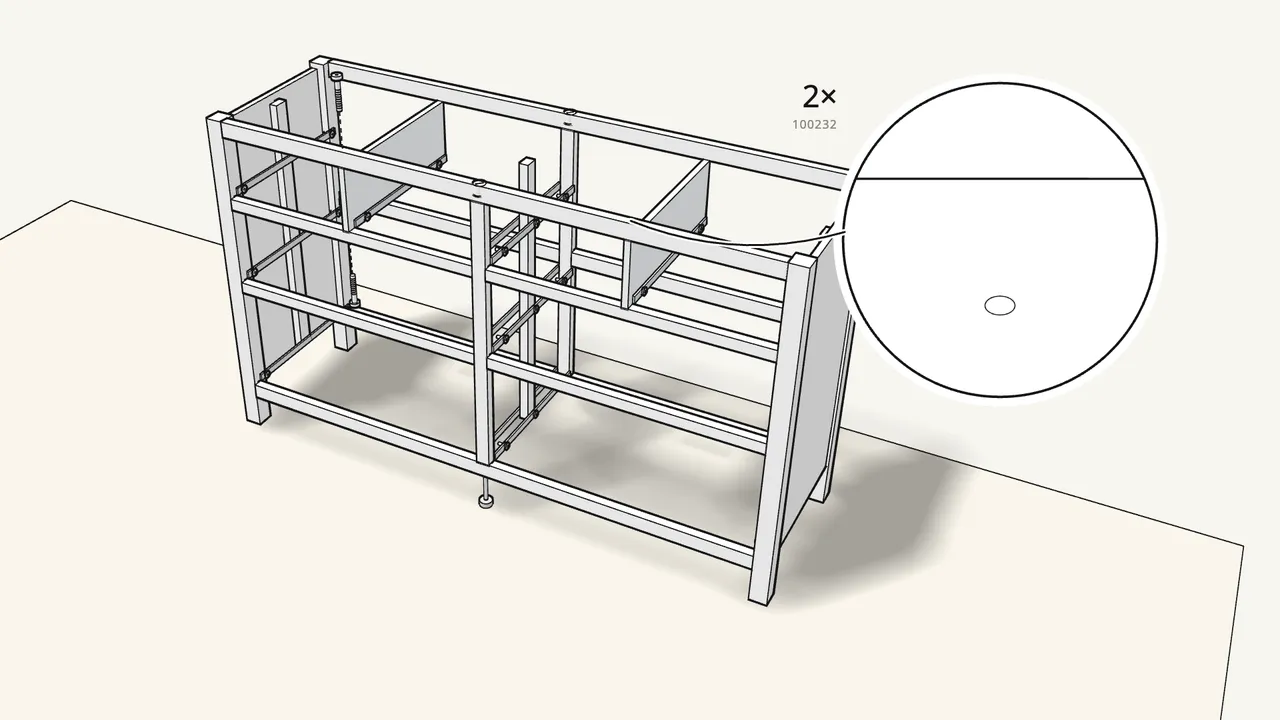

    Step 13 · manual step 27–30

    Fit the two top-row dividers with their runners.

    Screw 100232 in from the top (Allen key 100006), 100214 from below (100001).

    ▶ Watch this step (1:43)

14.

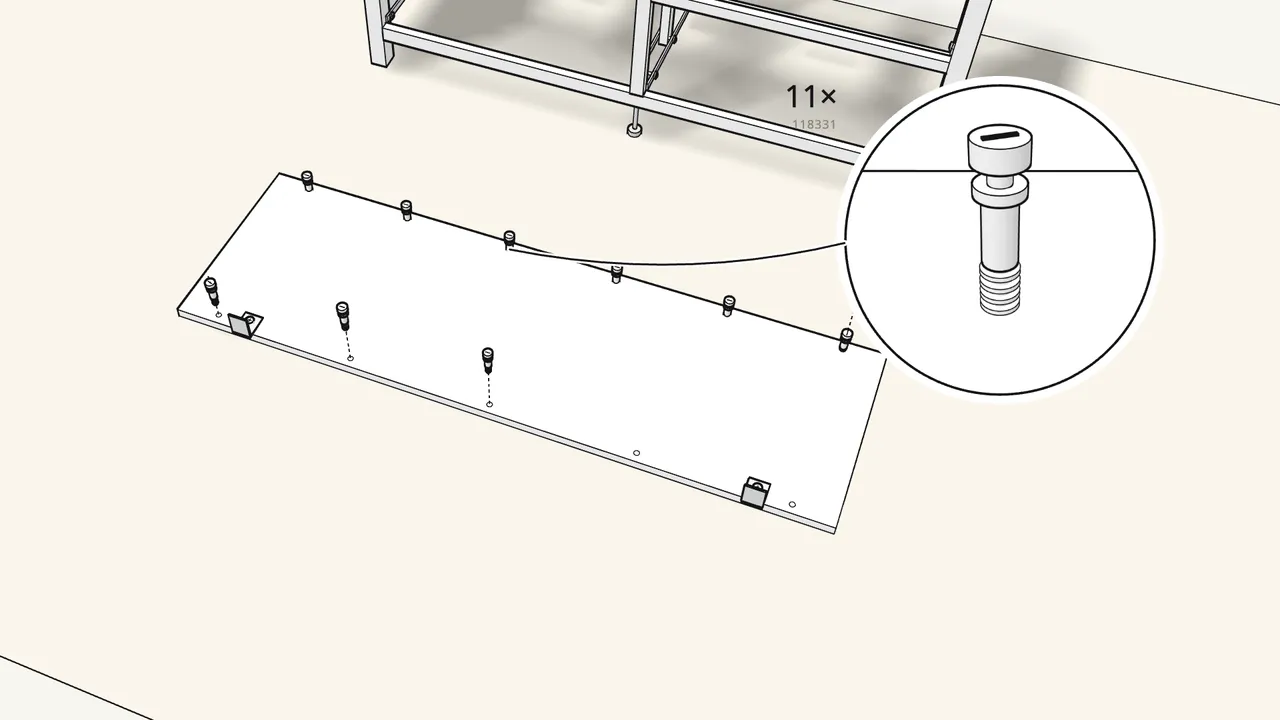

    Step 14 · manual step 31–32

    Top, upside down: fit the 2 wall brackets and 11 cam bolts.

    Brackets 106989 with screws 109049 and washers 100823.

    ▶ Watch this step (1:51)

15.

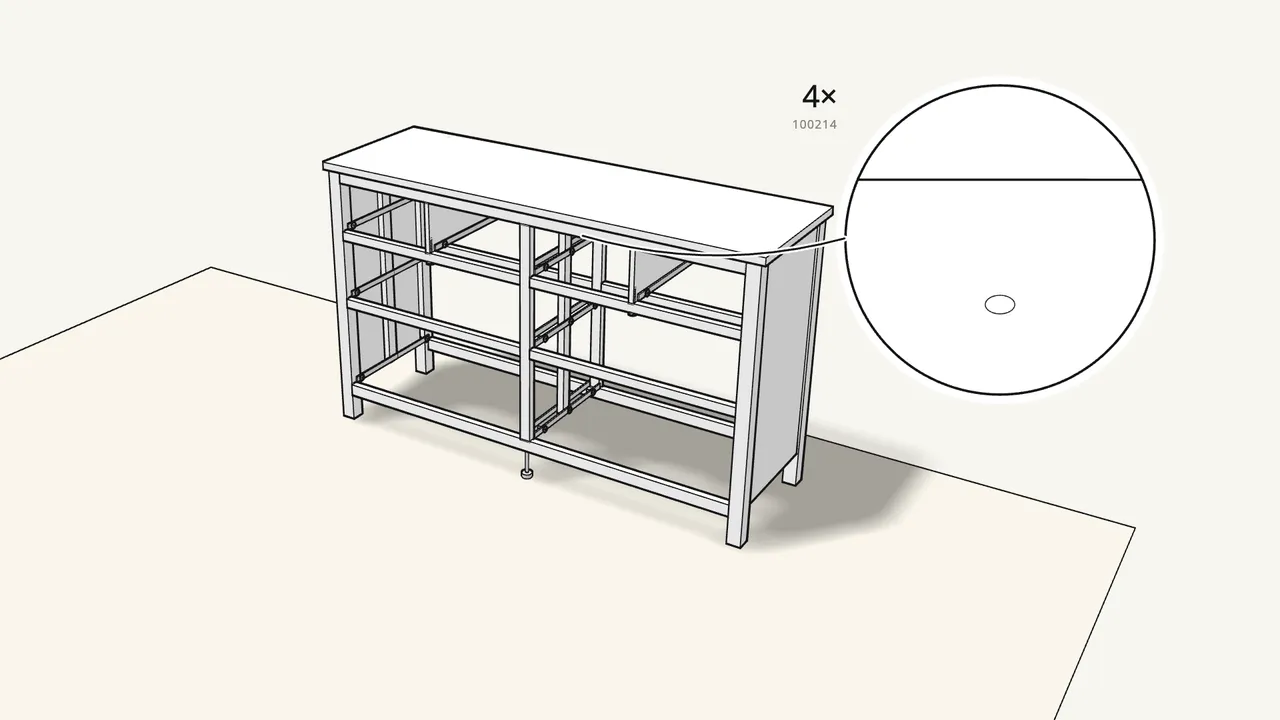

    Step 15 · manual step 33–35

    Push in 6 dowels, lower the top on and screw it from below.

    4 screws 100214 with the Allen key 100001.

    ▶ Watch this step (1:58)

16.

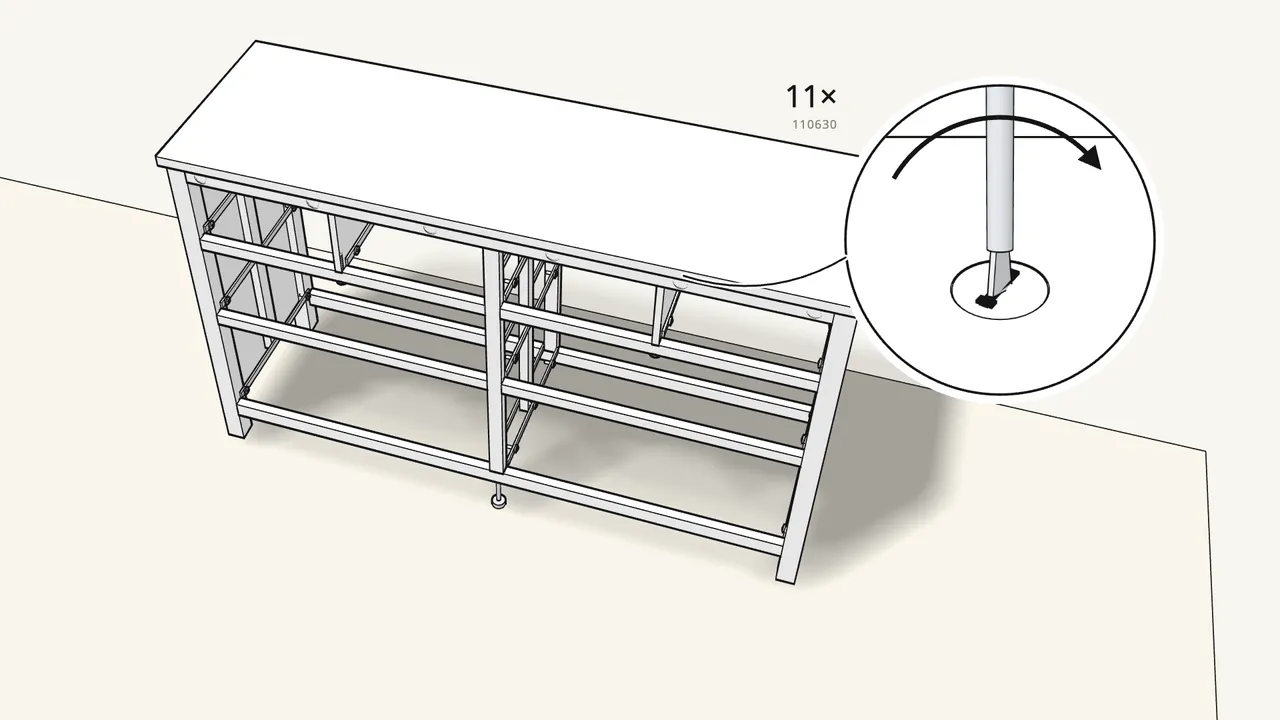

    Step 16 · manual step 36

    Insert 11 cam locks (110630) and turn them clockwise.

    ▶ Watch this step (2:06)

17.

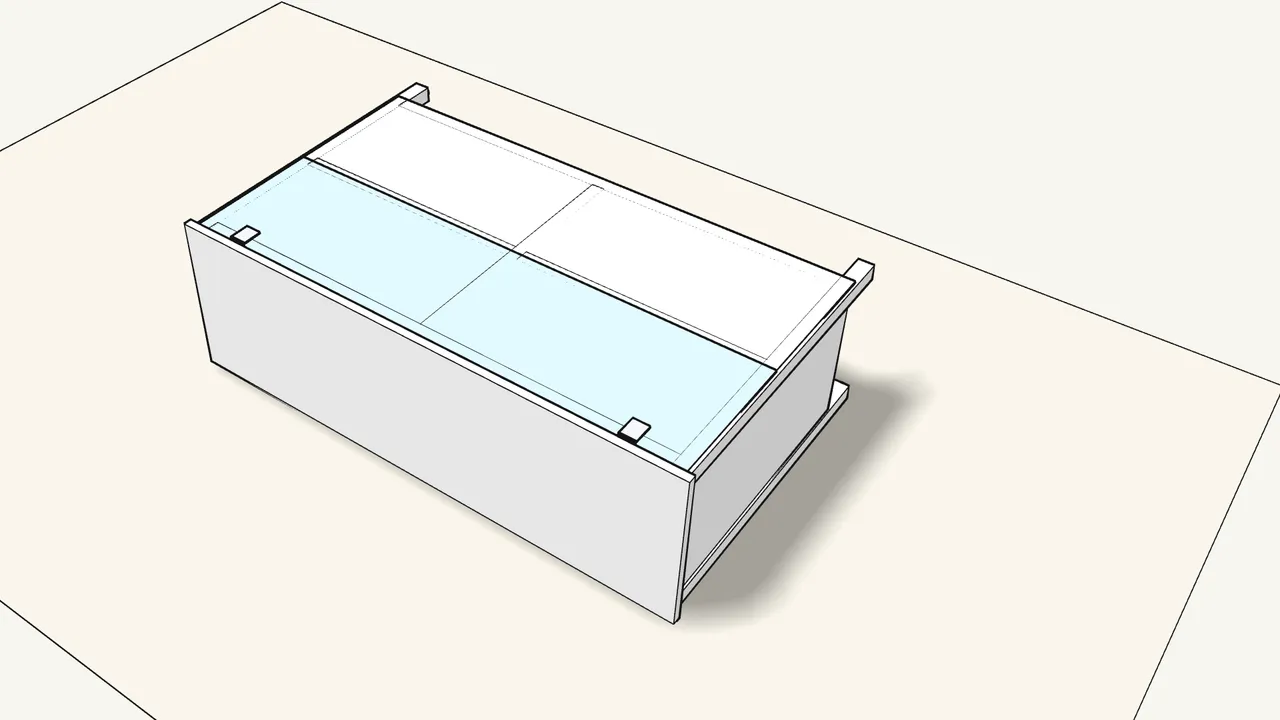

    Step 17 · manual step 37–38

    Lay the dresser on its front. Fit the two back panels.

    Mark the centre lines of the rails on the panels with a pencil.

    ▶ Watch this step (2:11)

18.

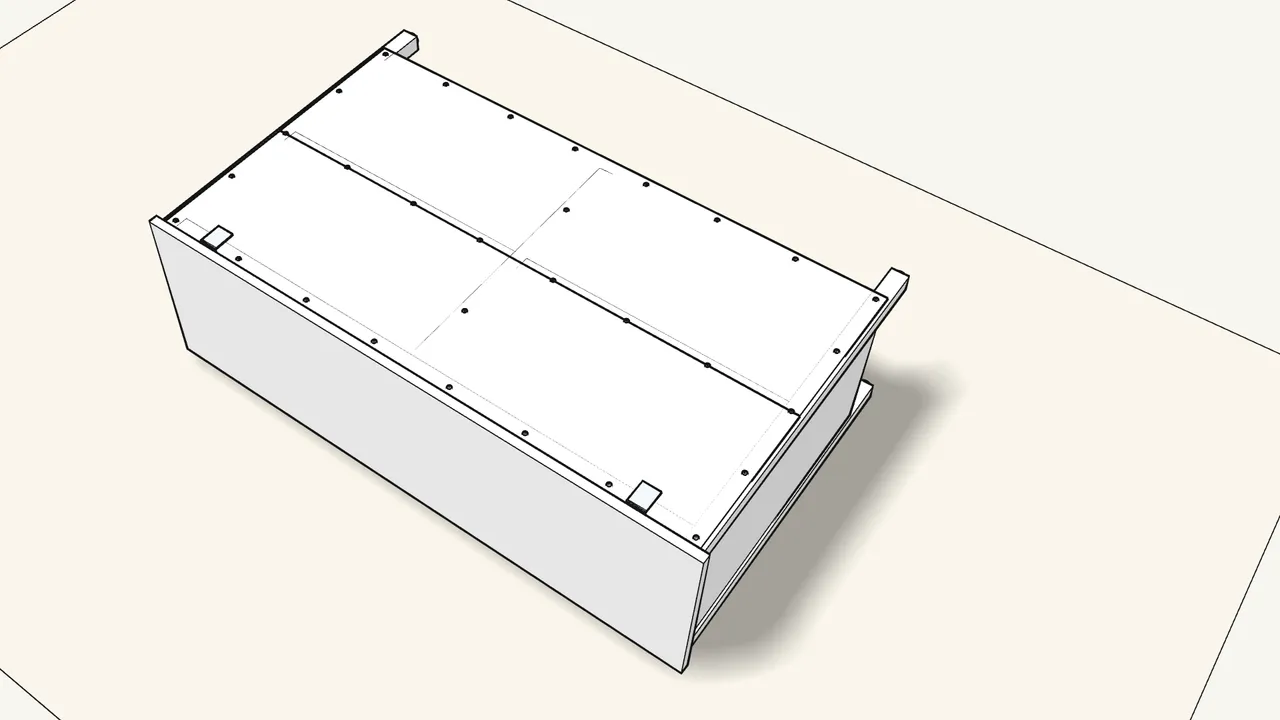

    Step 18 · manual step 39–42

    Nail the back panels on with 30 nails (101221).

    Nail along the rails and legs, then stand the dresser up again.

    ▶ Watch this step (2:17)

19.

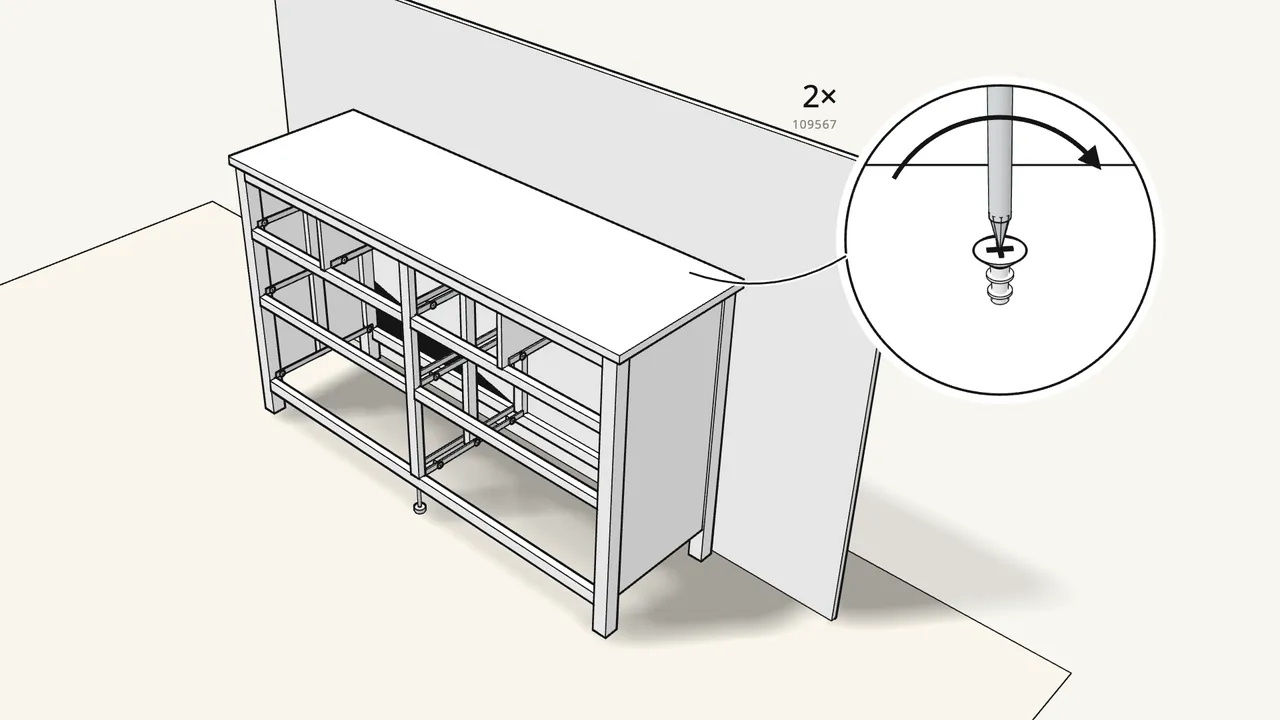

    Step 19 · manual step 43–46

    Fix the dresser to the wall through both brackets.

    Screws 109567 with washers 100823. Drill Ø 8 mm holes and use the plugs — in solid wood, screws only (Ø 3 mm).

    ▶ Watch this step (2:24)

20.

    Step 20

    Now the drawers.

    There are 8: four small, two medium and two large. We’ll build a small one step by step.

    ▶ Watch this step (2:31)

21.

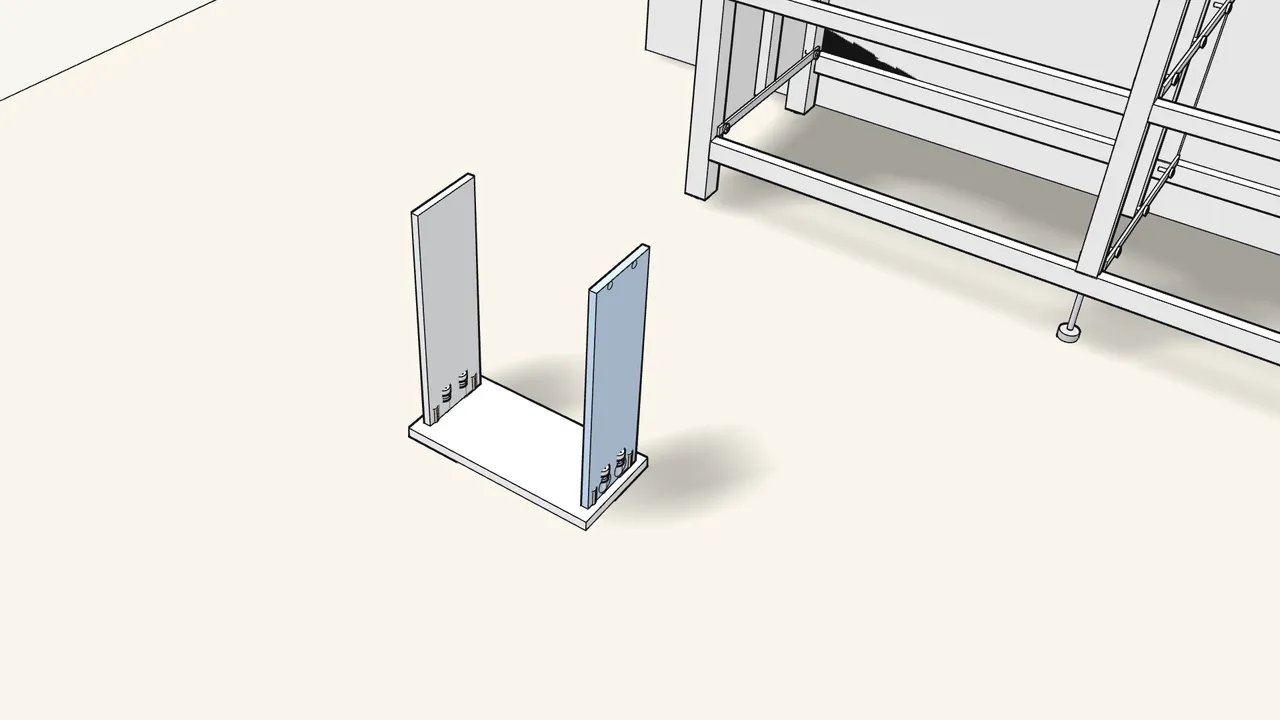

    Step 21 · manual step 47–50

    Drawer front: 4 cam bolts (123492). Sides: 4 dowels (101345).

    Stand the sides on the front and lock with 4 cam locks (110630).

    ▶ Watch this step (2:34)

22.

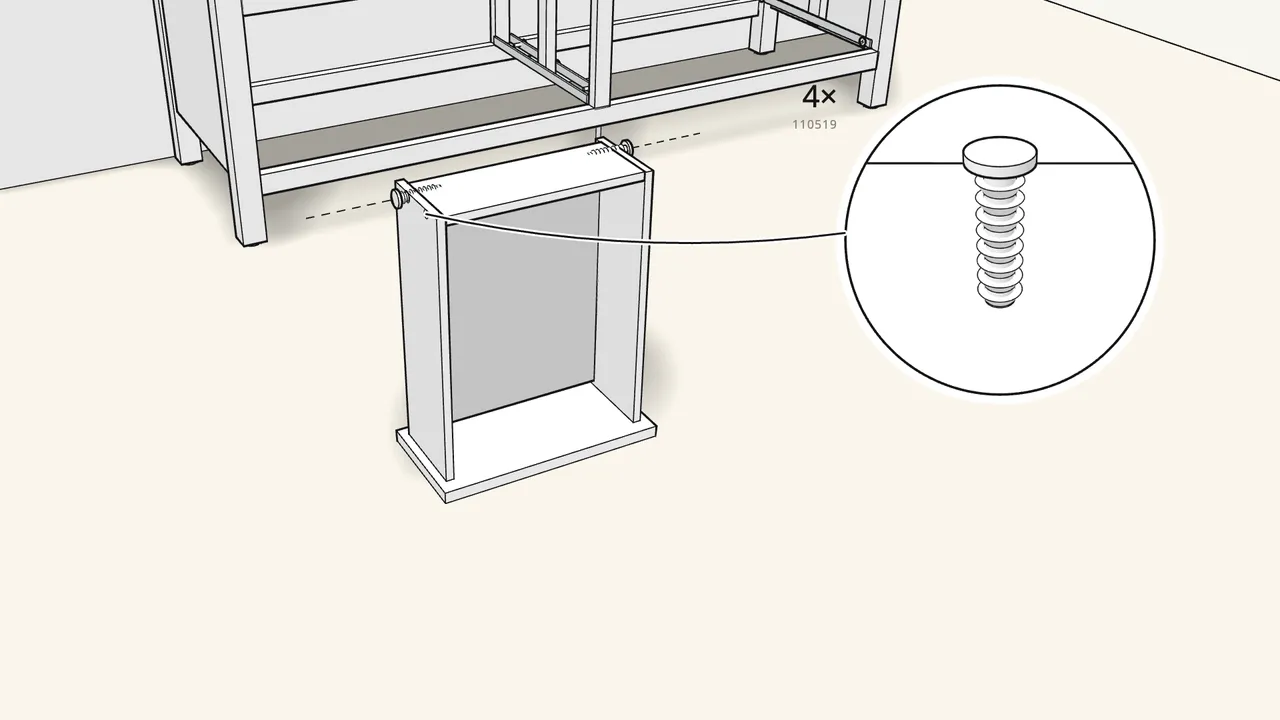

    Step 22 · manual step 51–52

    Slide the bottom into the grooves. Add the back and tap in 4 screw-dowels.

    Screw-dowels 110519, with the hammer.

    ▶ Watch this step (2:42)

23.

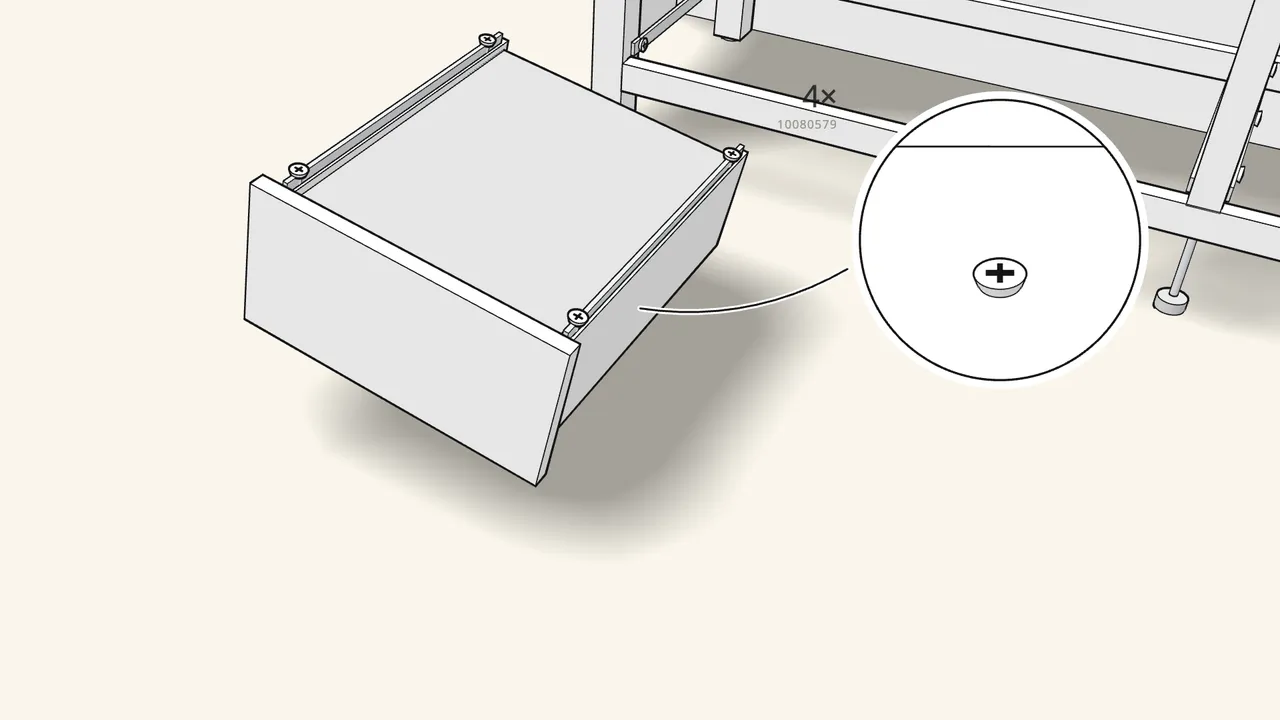

    Step 23 · manual step 53–54

    Turn it over and screw on the 2 runners (4 screws 10080579).

    Then turn it upright and fit the knob (117615) with screw 119976.

    ▶ Watch this step (2:49)

24.

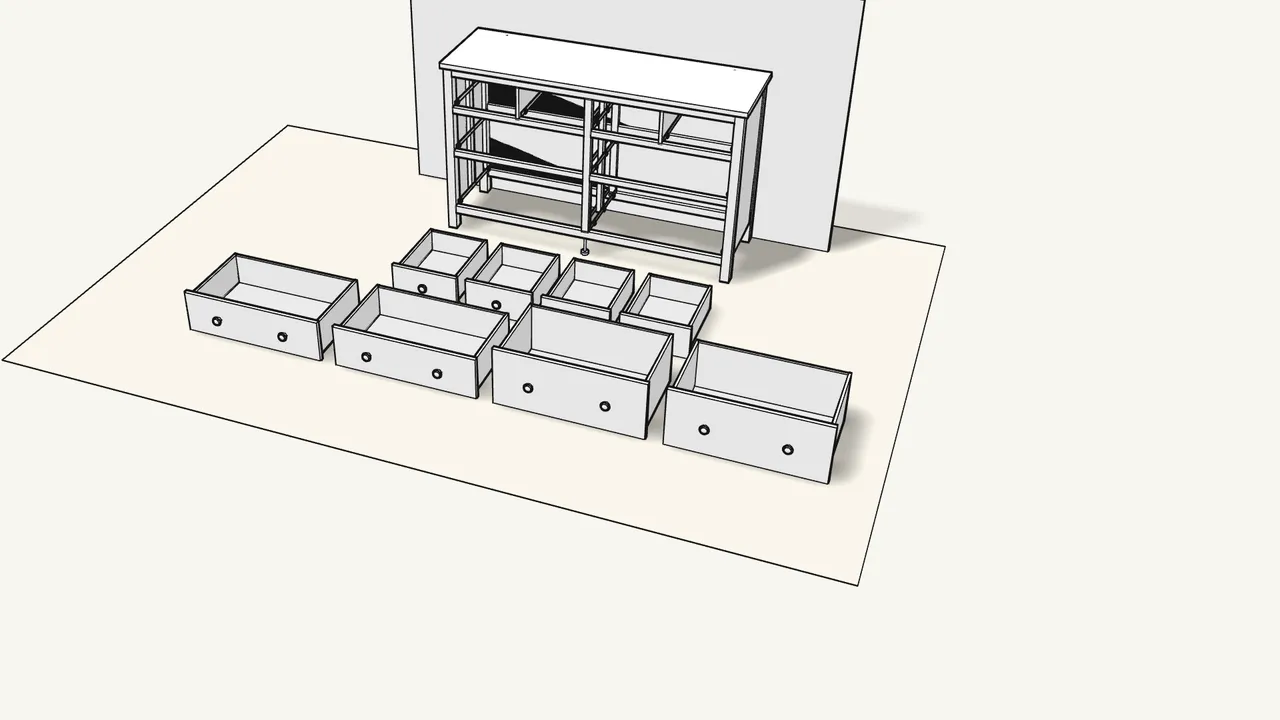

    Step 24 · manual step 55–64

    Build the other 7 drawers the same way.

    The 4 large ones get a support bar under the bottom (10054466, screws 105344) and 2 knobs each.

    ▶ Watch this step (2:56)

25.

    Step 25 · manual step 65–68

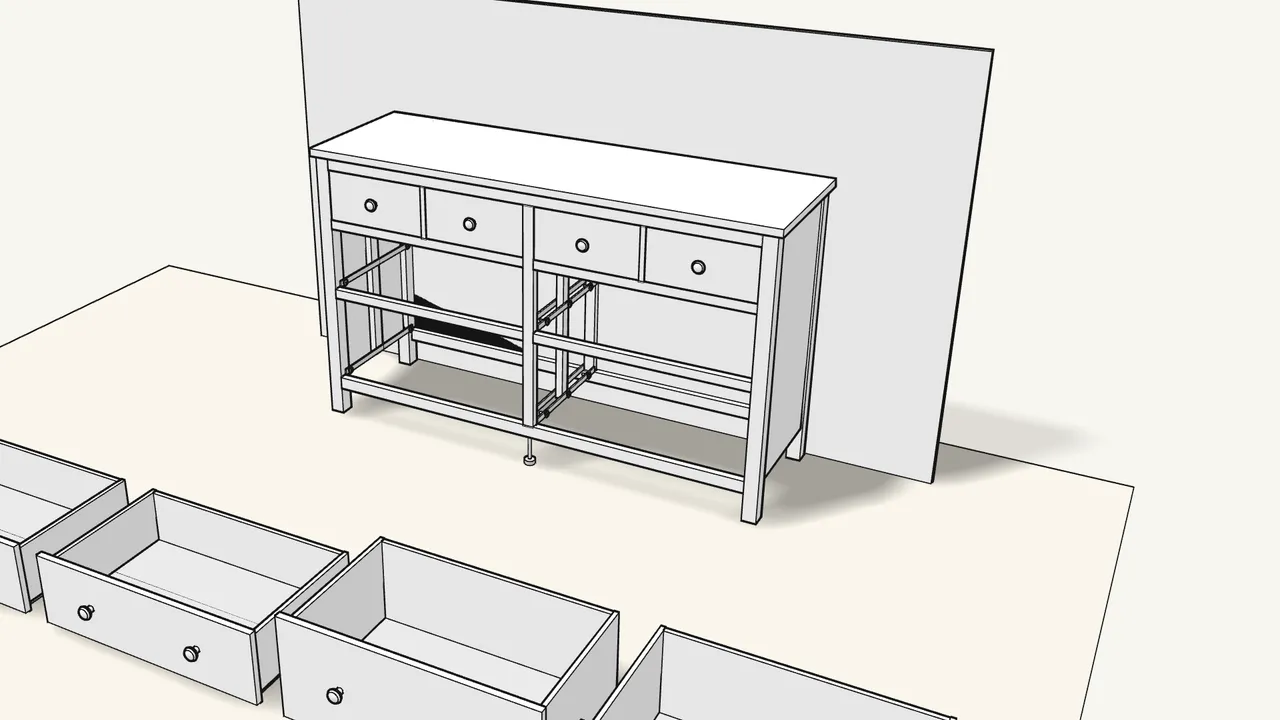

    Flip the interlock catch as shown, then slide in the small drawers.

    The catches on the vertical rails let only one drawer open at a time.

    ▶ Watch this step (3:01)

26.

    Step 26 · manual step 69–74

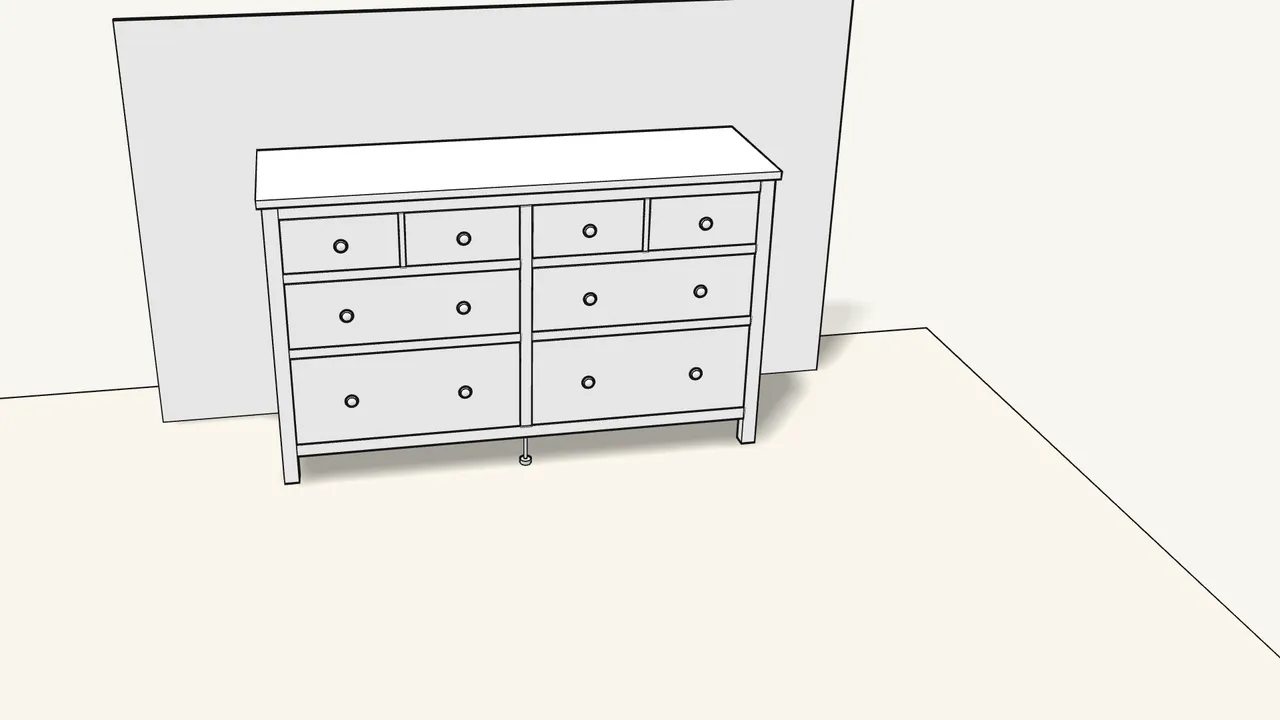

    Then the two medium drawers, and the two large ones at the bottom.

    ▶ Watch this step (3:09)
