How to Assemble IKEA STRANDMON Wing Chair

Step-by-step assembly

1.

   Step 1

   Screw 2 threaded studs (114509) into the base of the back.

   Lay the back face-up on a soft surface. Screw them in by hand.

   ▶ Watch this step (0:16)

2.

   Step 2

   Lower the seat onto the 2 studs.

   Seat upside down, underside facing you.

   ▶ Watch this step (0:24)

3.

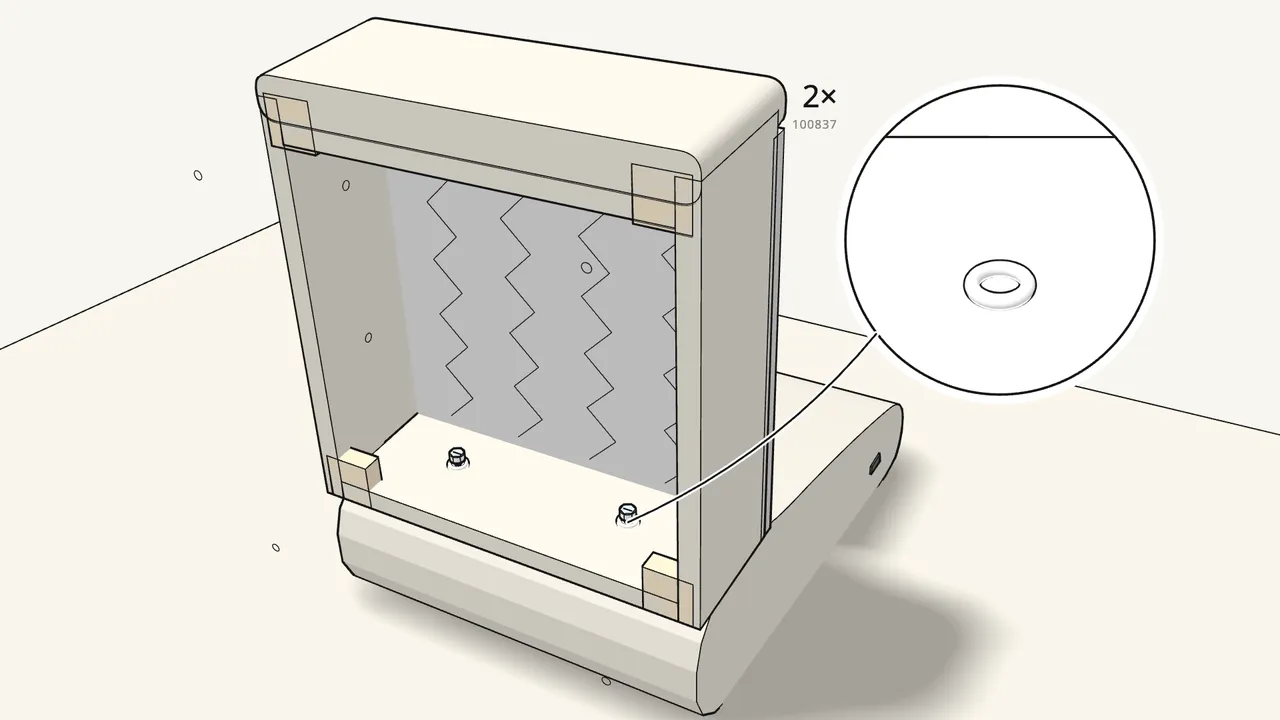

   Step 3

   Fit a washer (100837) and a nut (100712) on each stud.

   Tighten the nuts with the box spanner (120202).

   ▶ Watch this step (0:30)

4.

   Step 4 · manual step 3

   Turn the chair onto its side.

   ▶ Watch this step (0:38)

5.

   Step 5 · manual step 4

   Screw on the 2 rear legs (131290) with a large washer (108014).

   Screw them in straight, by hand. The rear legs are the smaller pair.

   ▶ Watch this step (0:43)

6.

   Step 6 · manual step 5

   Screw on the 2 front legs (131289) with a large washer (108014).

   ▶ Watch this step (0:52)

7.

   Step 7 · manual step 5

   Stand the chair on its legs.

   ▶ Watch this step (1:00)

8.

   Step 8 · manual step 6

   Screw a hook (150022) onto each side unit with screw 101084.

   One hook and one screw per side. Use the Phillips screwdriver.

   ▶ Watch this step (1:05)

9.

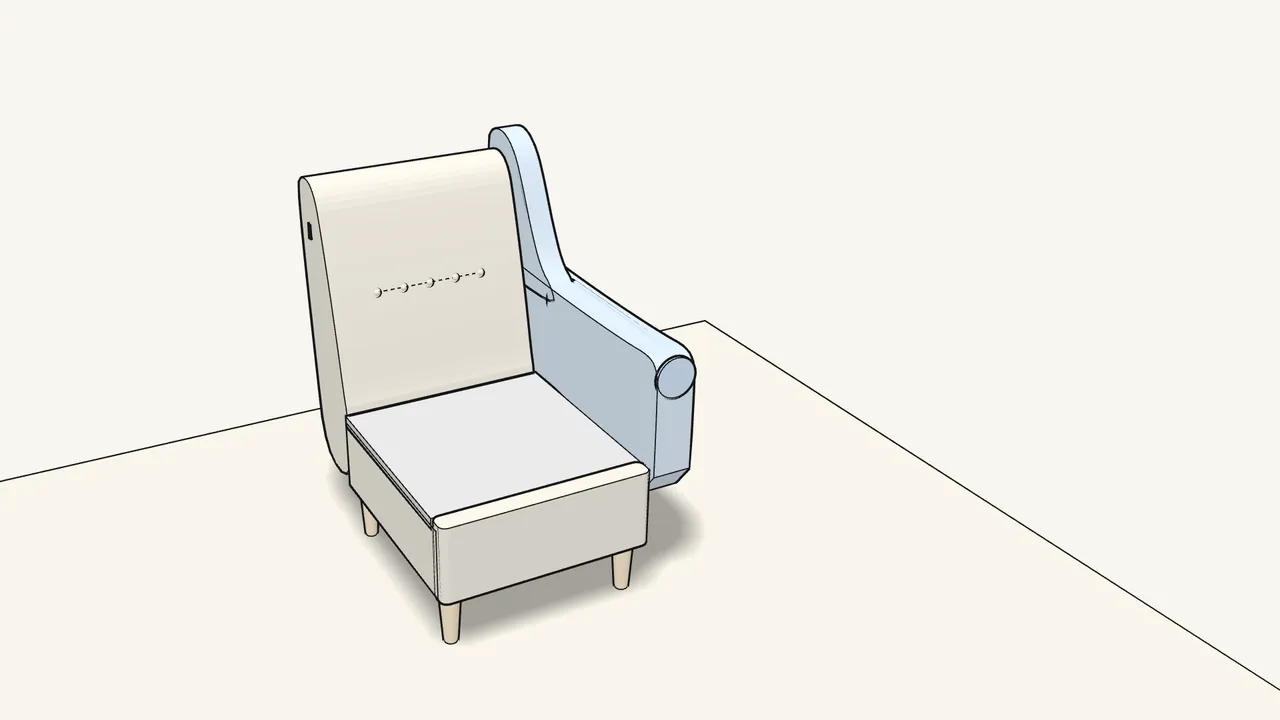

   Step 9 · manual step 7

   Hook the first side unit into the slot on the back.

   ▶ Watch this step (1:13)

10.

    Step 10 · manual step 8

    Press the side down until its top is level with the back.

    ▶ Watch this step (1:20)

11.

    Step 11 · manual step 9

    Tip the chair over so the fitted side is on top.

    ▶ Watch this step (1:26)

12.

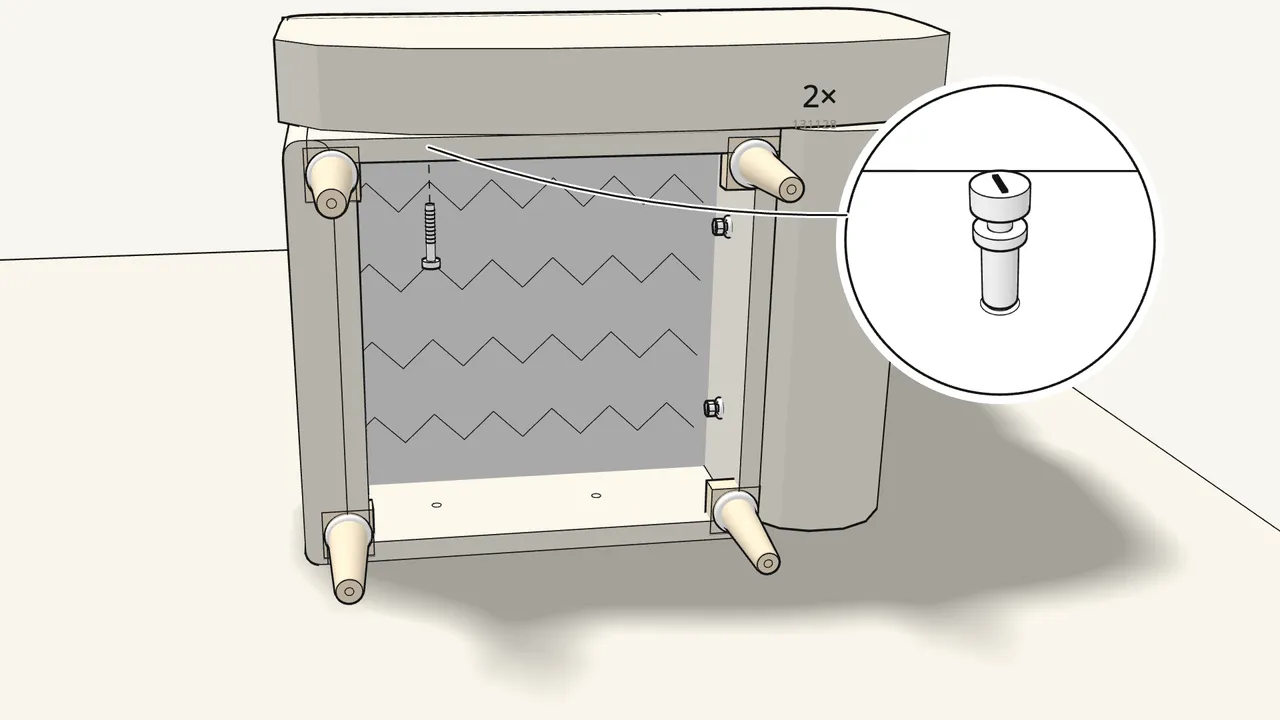

    Step 12 · manual step 9

    Fit 2 bolts (131128) with washers (100837) through the seat frame.

    Tighten by hand. The side must sit flush with the seat.

    ▶ Watch this step (1:31)

13.

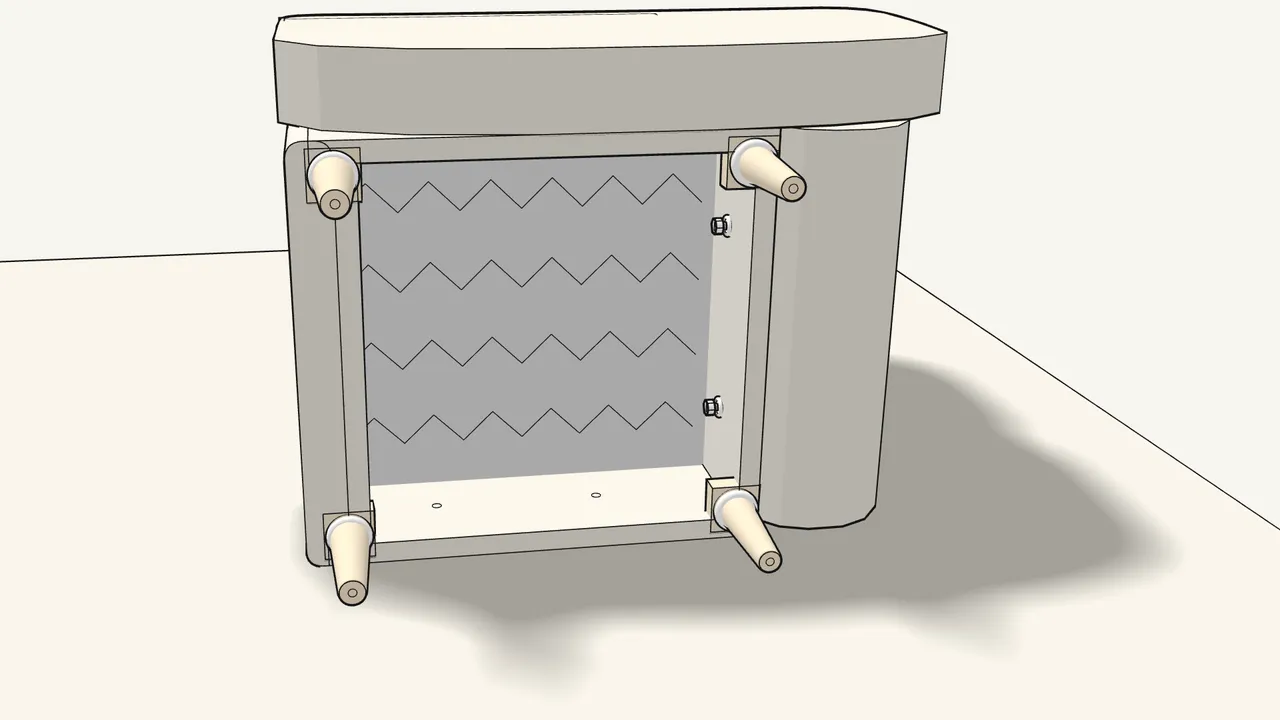

    Step 13 · manual step 10

    Tighten both bolts with the box spanner (120202).

    ▶ Watch this step (1:40)

14.

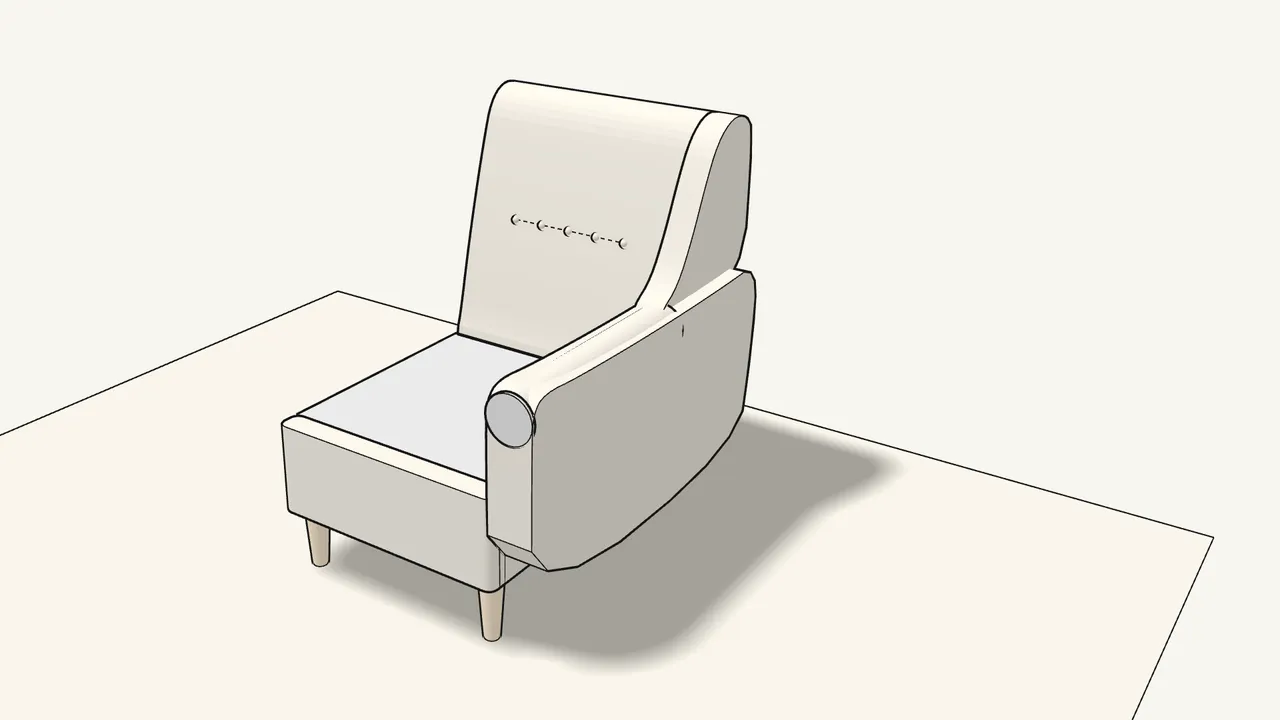

    Step 14 · manual step 10

    Stand the chair up again.

    ▶ Watch this step (1:46)

15.

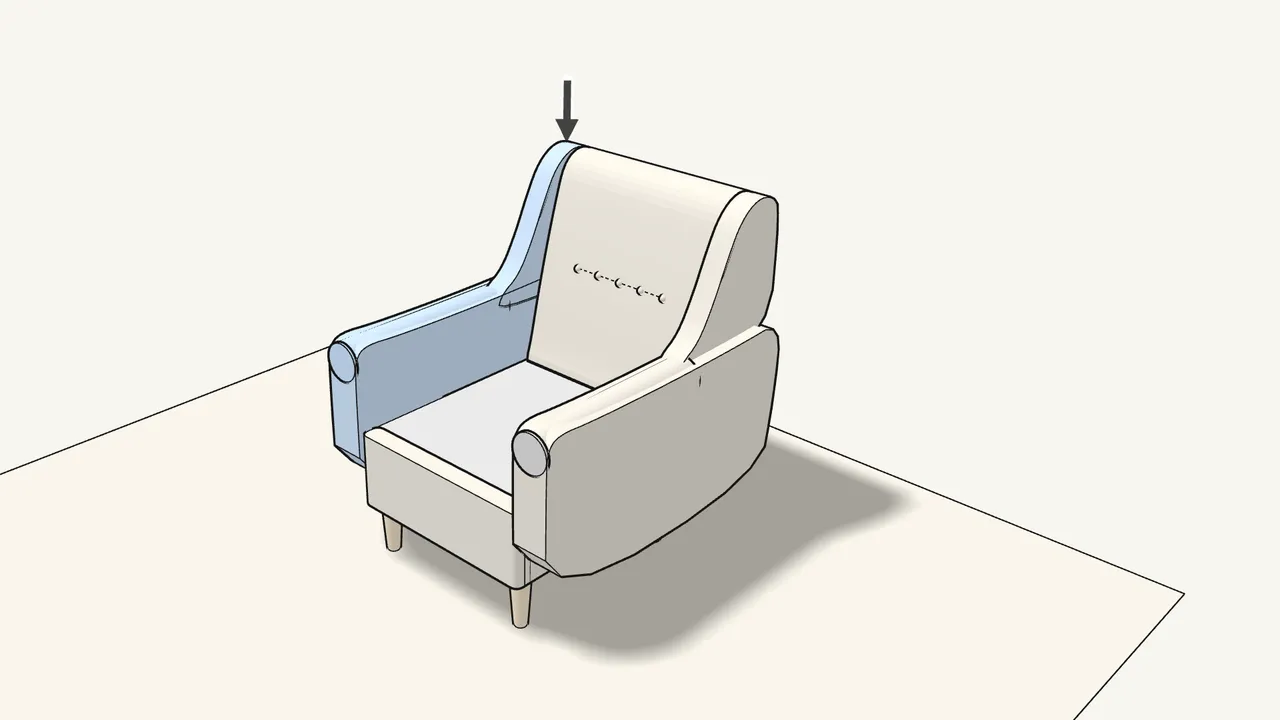

    Step 15 · manual step 11–12

    Hook the second side unit into the back, then press it down.

    Its top must be level with the top of the back.

    ▶ Watch this step (1:51)

16.

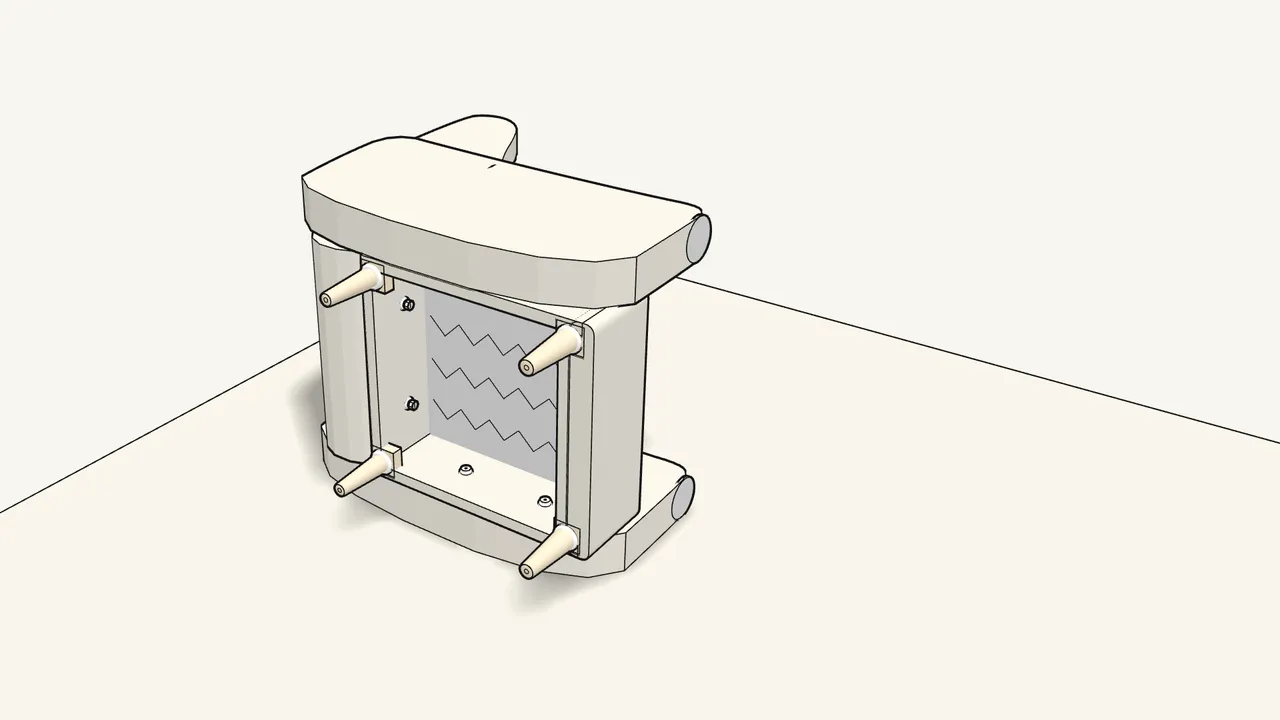

    Step 16 · manual step 13

    Tip the chair onto its other side.

    ▶ Watch this step (1:59)

17.

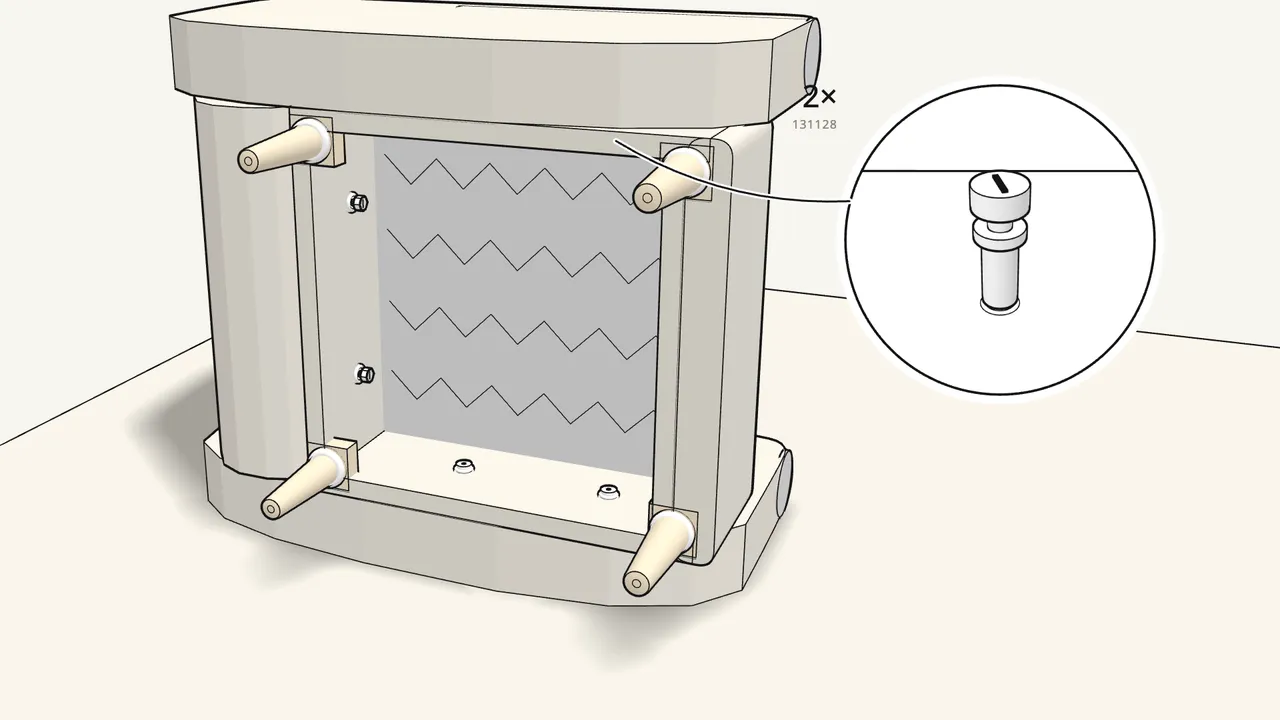

    Step 17 · manual step 13–14

    Fit 2 bolts (131128) with washers (100837), then tighten.

    Hand-tight first, then use the box spanner (120202).

    ▶ Watch this step (2:04)

18.

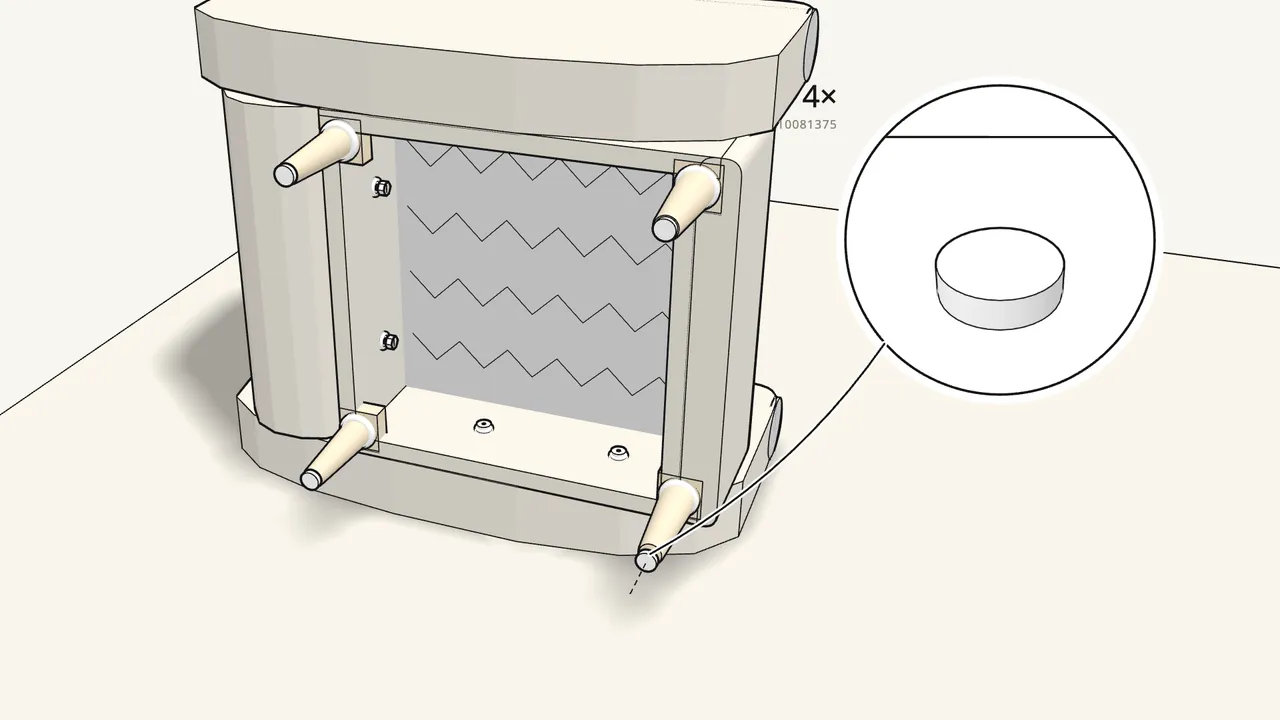

    Step 18 · manual step 15

    Press a felt pad (10081375) under each of the 4 legs.

    ▶ Watch this step (2:13)

19.

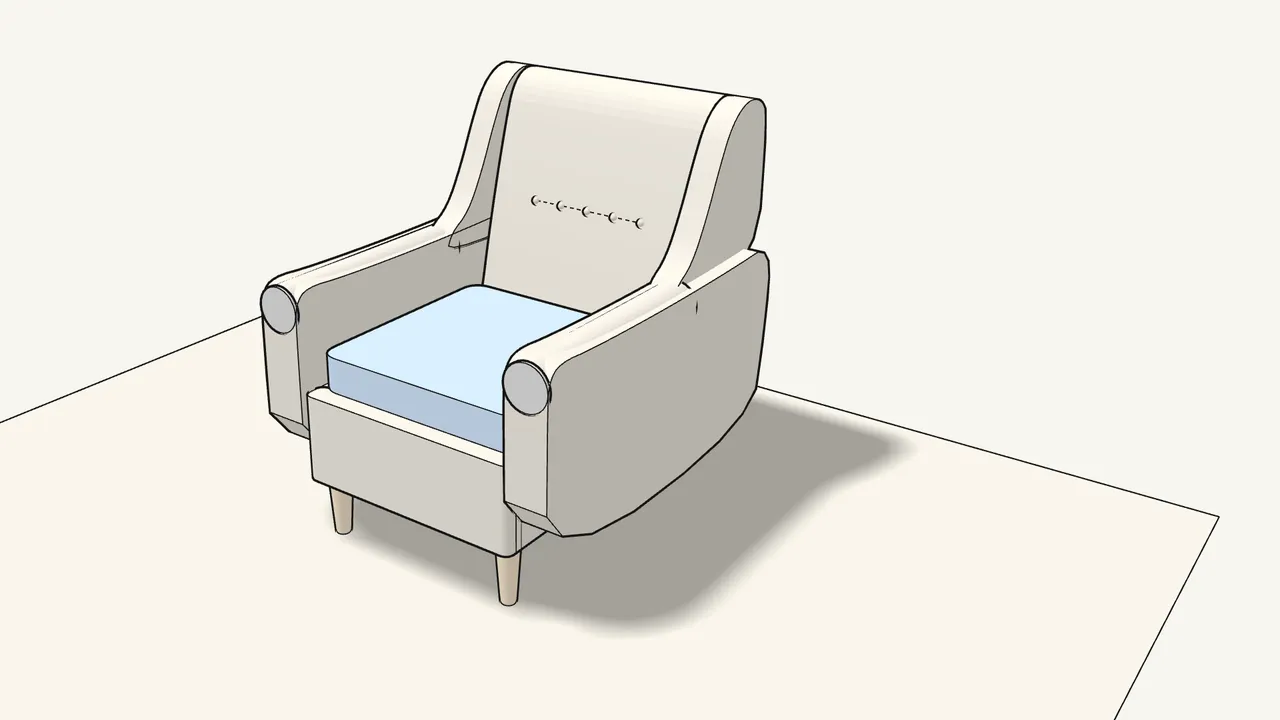

    Step 19 · manual step 16

    Stand the chair up and push the seat cushion into place.

    ▶ Watch this step (2:20)
