How to Assemble IKEA BEKVÄM Step Stool
Step-by-step IKEA BEKVÄM step stool assembly: 8 illustrated steps, an animated video, the hardware list and the tools you need — following the official instructions (AA-2559719-3).
- 8 illustrated steps
- 7 steps in the manual
- 1:29 video
- 43×39×50 cm
What you need
Tools
- Allen key (included)
You’ll need: the Allen key (100092) and the key handle (121030).
Hardware in the box
| Part no. (as printed in the manual) | Qty |
|---|---|
| 105251 | 8× |
| 105111 | 3× |
| 101350 | 2× |
Step-by-step assembly

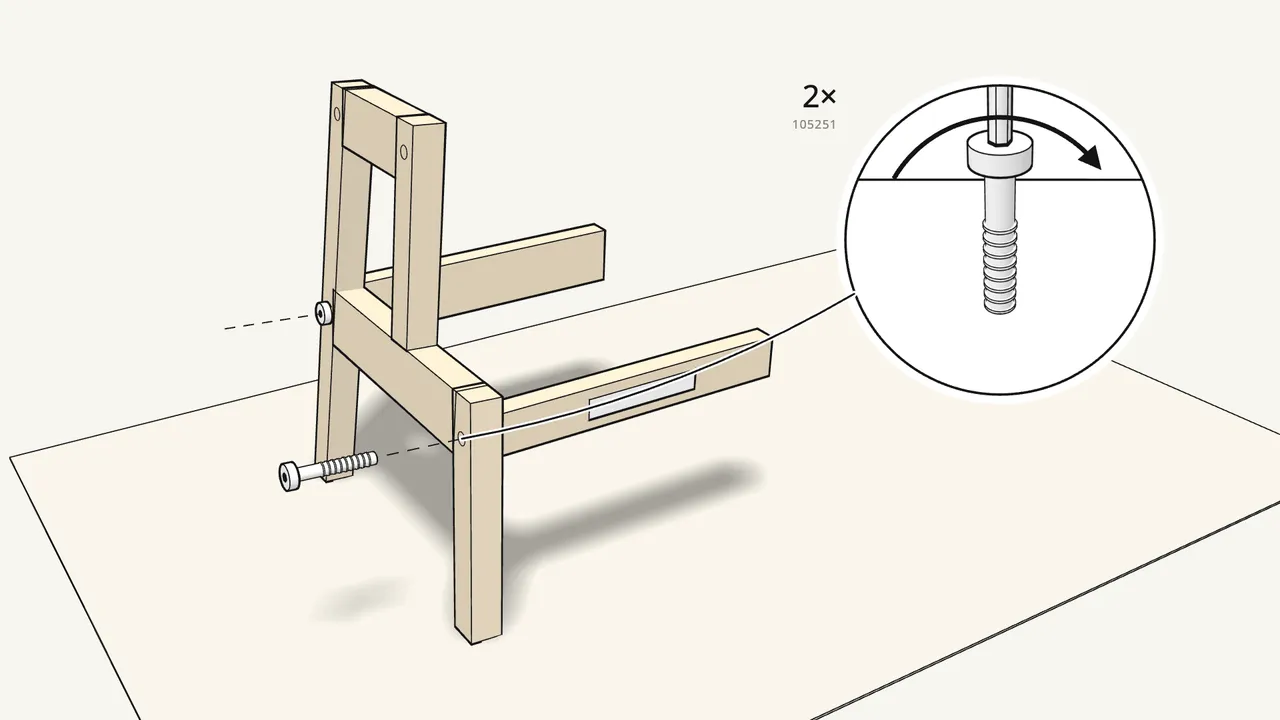

Step 1
Bolt the two lower rails to one side frame.
The rail with the label goes at the front. 2 bolts — don’t tighten them fully yet.

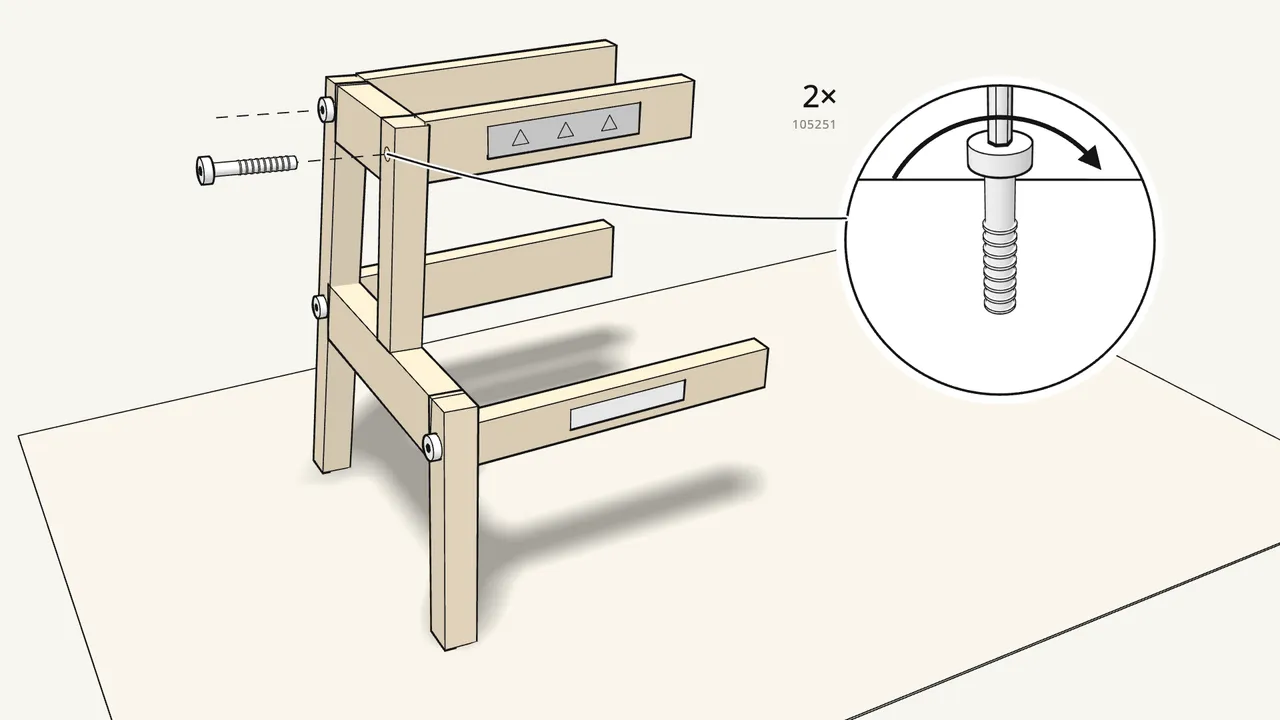

Step 2
Bolt the two upper rails on the same way.
The rail with the warning labels goes at the front, labels facing out. Don’t tighten fully yet.

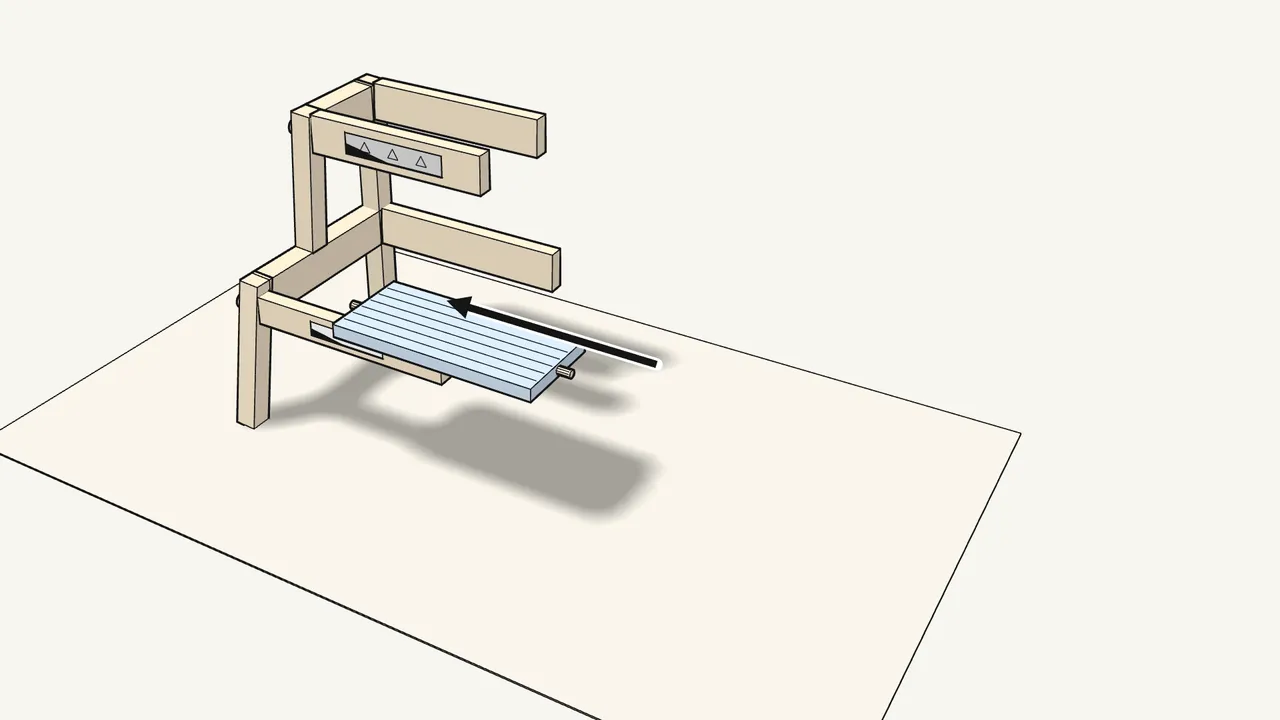

Step 3
Push 2 dowels into the ends of the lower step.
Then slide the step in until its dowel goes into the side frame.

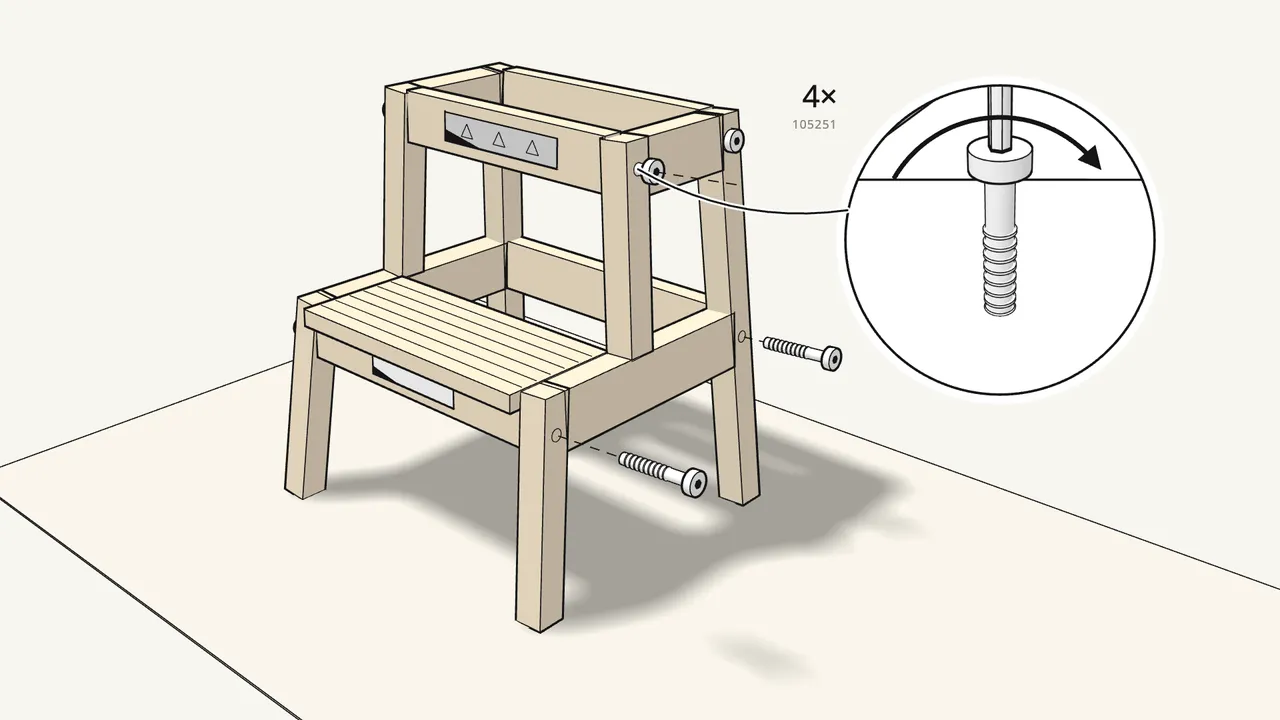

Step 4
Fit the second side frame and fix it with 4 bolts.
Rails and dowel go into its holes. Don’t tighten fully yet.

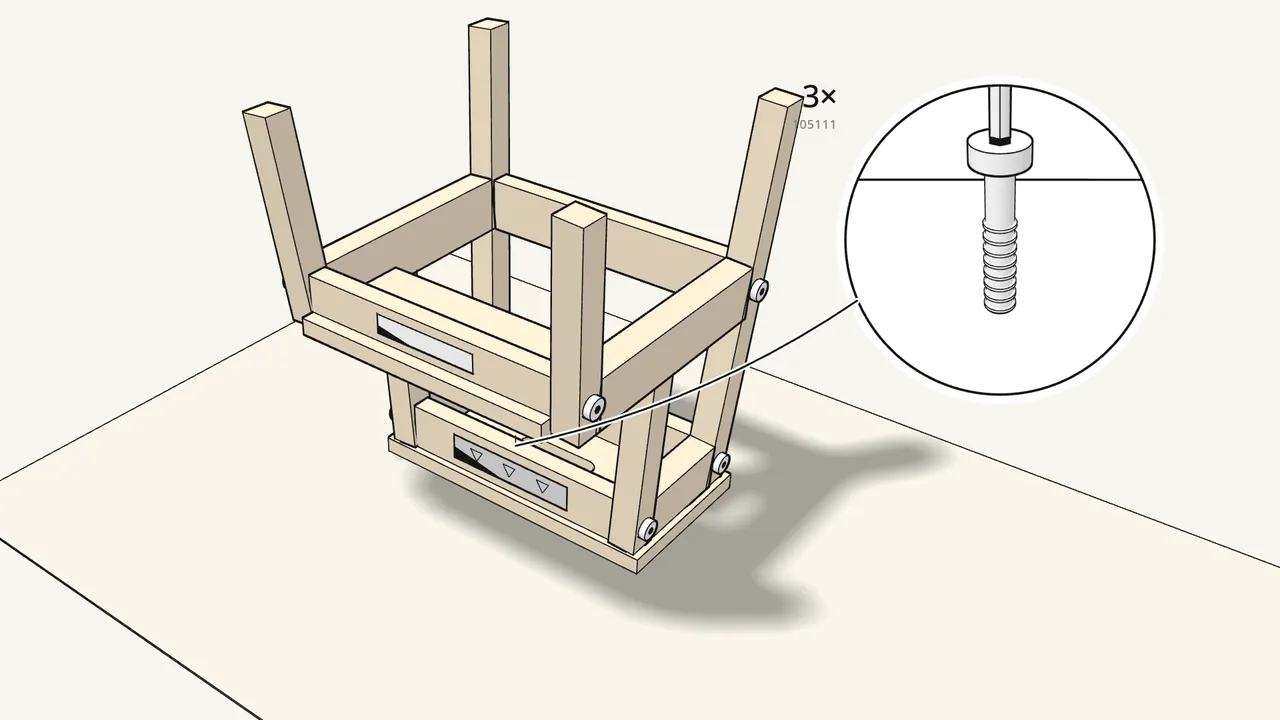

Step 5
Turn the stool upside down onto the top step.
Lay the top step face down first. Fix it with 3 bolts (105111) and the Allen key.

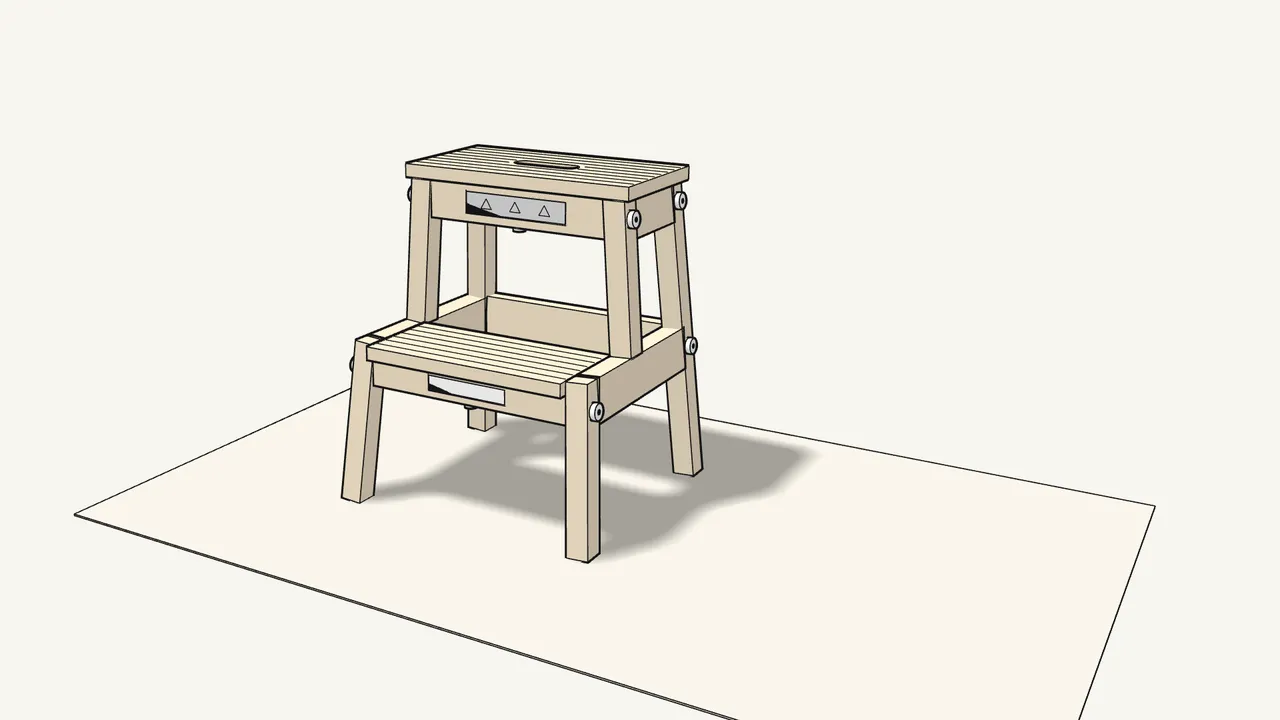

Step 6 · manual step 5
Turn the stool the right way up.

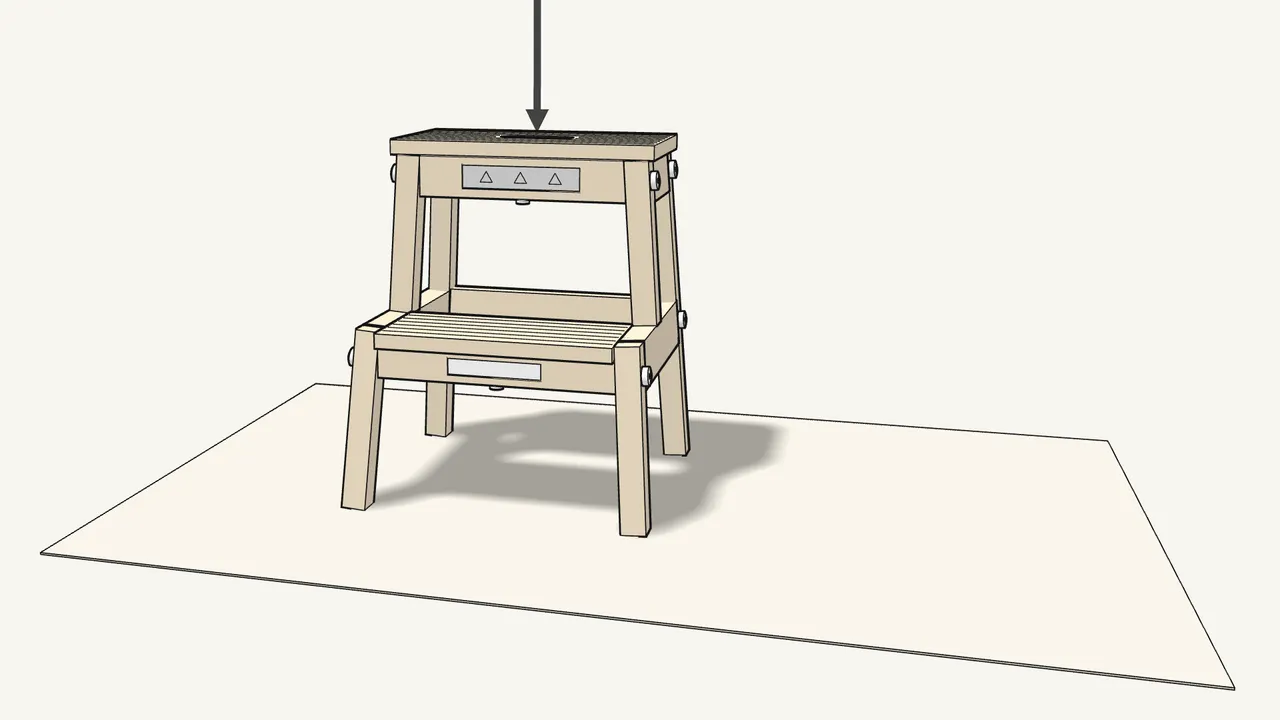

Step 7 · manual step 6
Stand it on the floor and press down on the top step.
All four legs must touch the floor — it must not wobble.

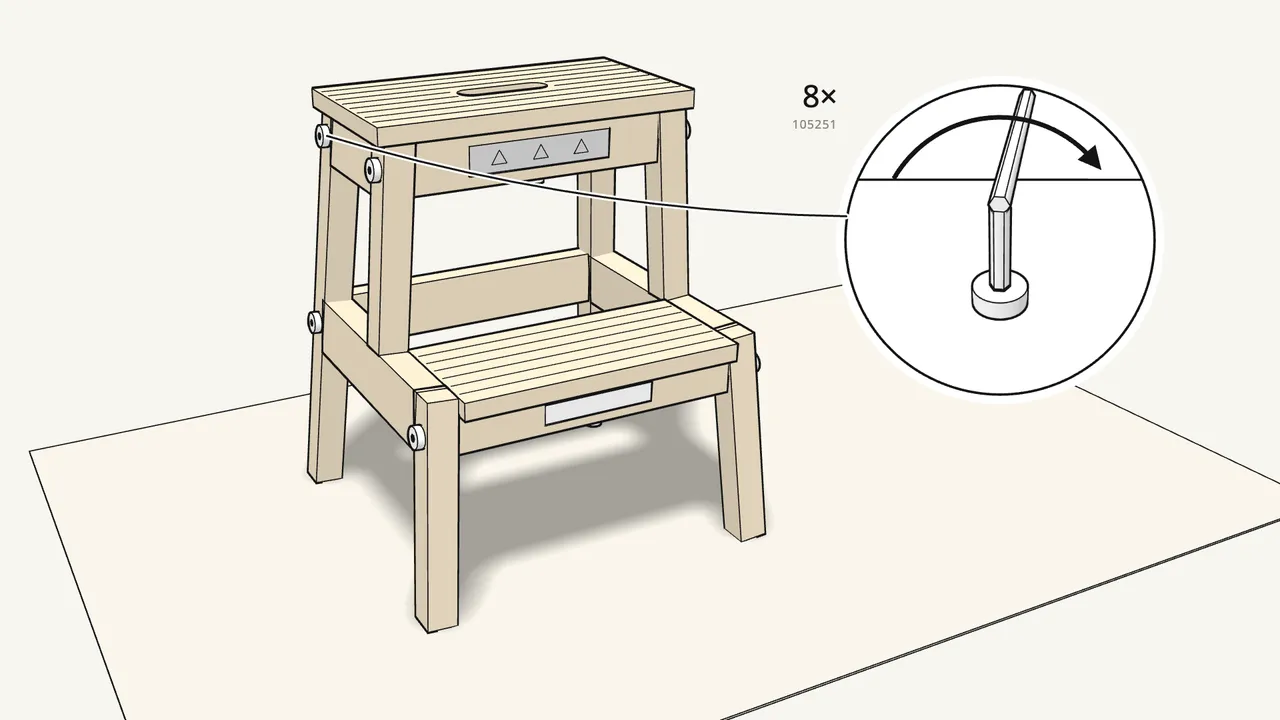

Step 8 · manual step 7
Now tighten all 8 bolts firmly.
Use the Allen key in the key handle (121030).
Tips & safety
- Mind the labels on the front rails. The manual points them out once the stool is finished — read them before use.
Official instructions
This guide follows IKEA's official assembly instructions (AA-2559719-3). Keep the printed manual to hand — if anything differs, the manual is right.
