How to Assemble IKEA STIG Bar Stool with Backrest

Step-by-step assembly

1.

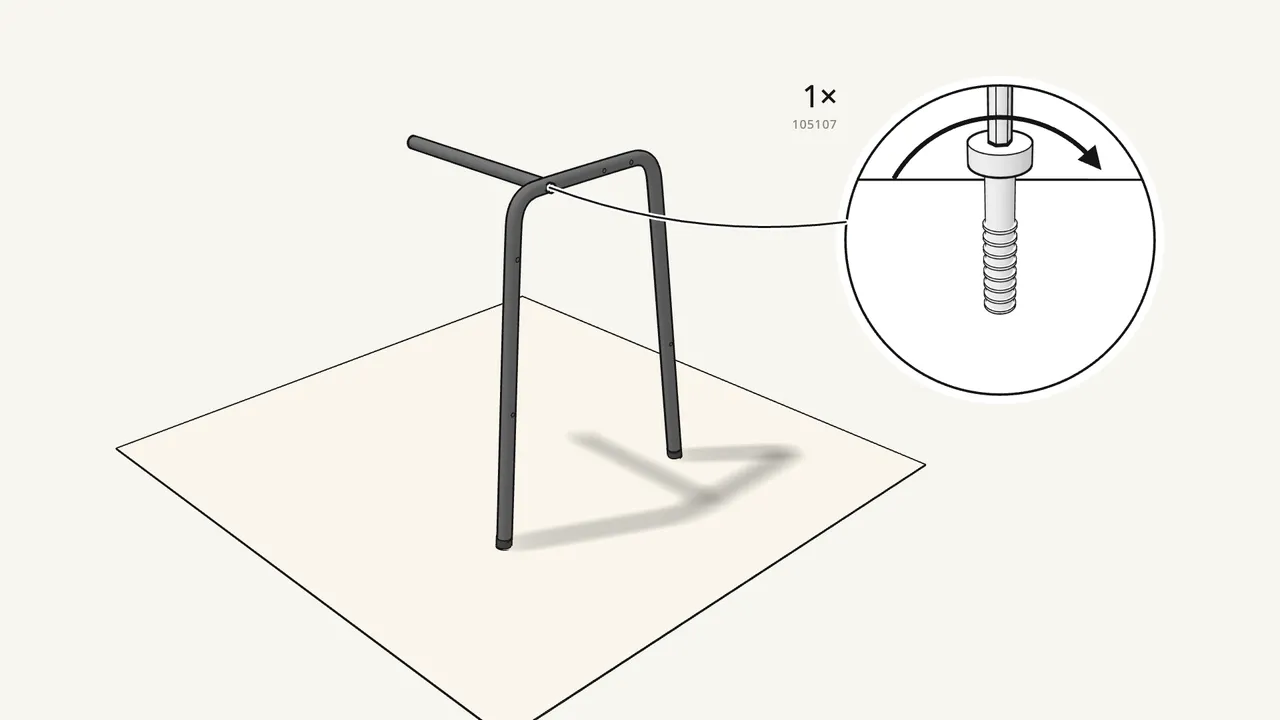

   Step 1

   Fix the straight rail to one leg frame with a bolt (105107).

   Use the rail with one hole mark. Turn the bolt in by hand only.

   ▶ Watch this step (0:16)

2.

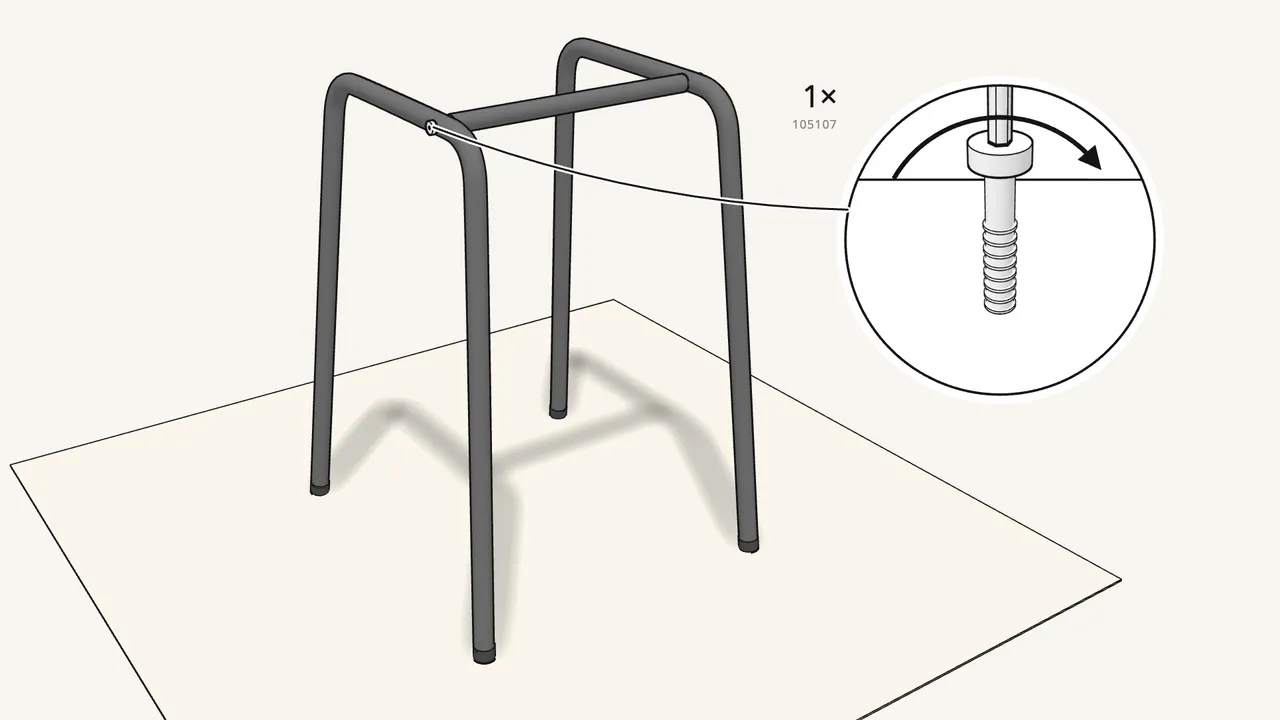

   Step 2

   Fit the second leg frame onto the rail — 1 bolt (105107).

   Hand-tight for now; the bolts are tightened in steps 12–14.

   ▶ Watch this step (0:23)

3.

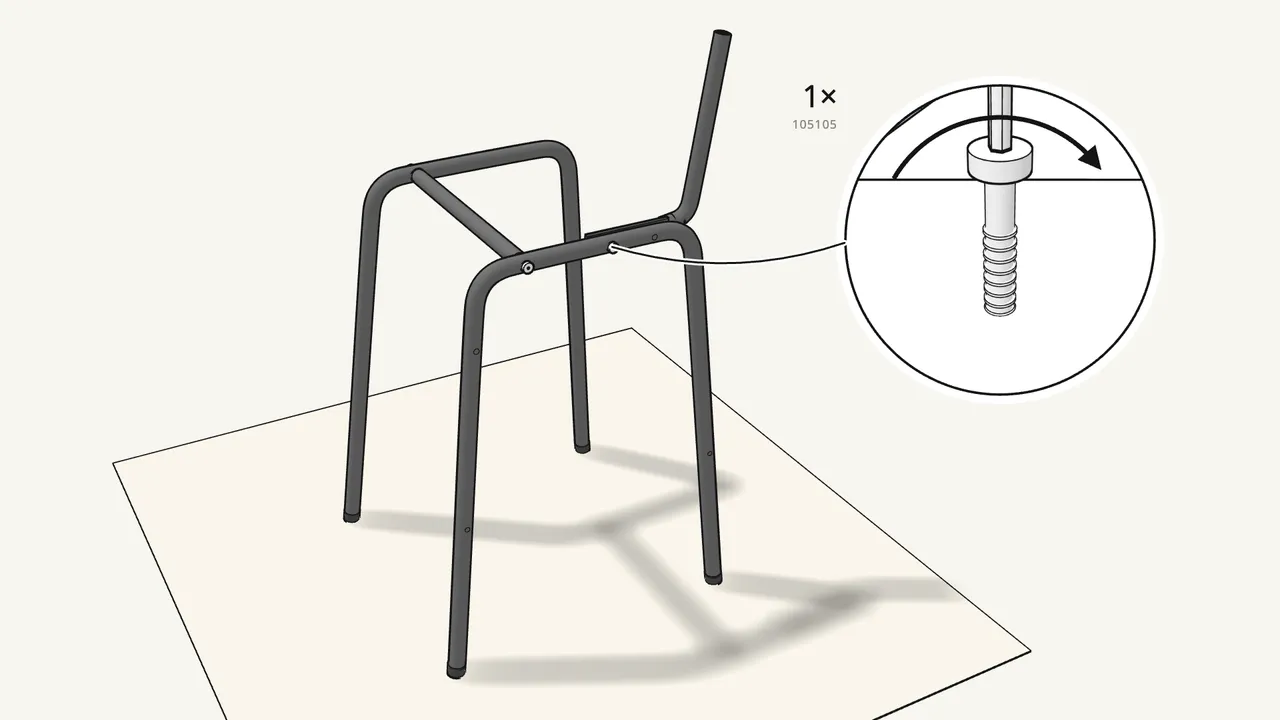

   Step 3

   Fit a backrest upright inside the frame — bolt 105105 and nut 100716.

   The flat end goes on the inside of the frame. Hand-tighten — no wrench yet.

   ▶ Watch this step (0:31)

4.

   Step 4

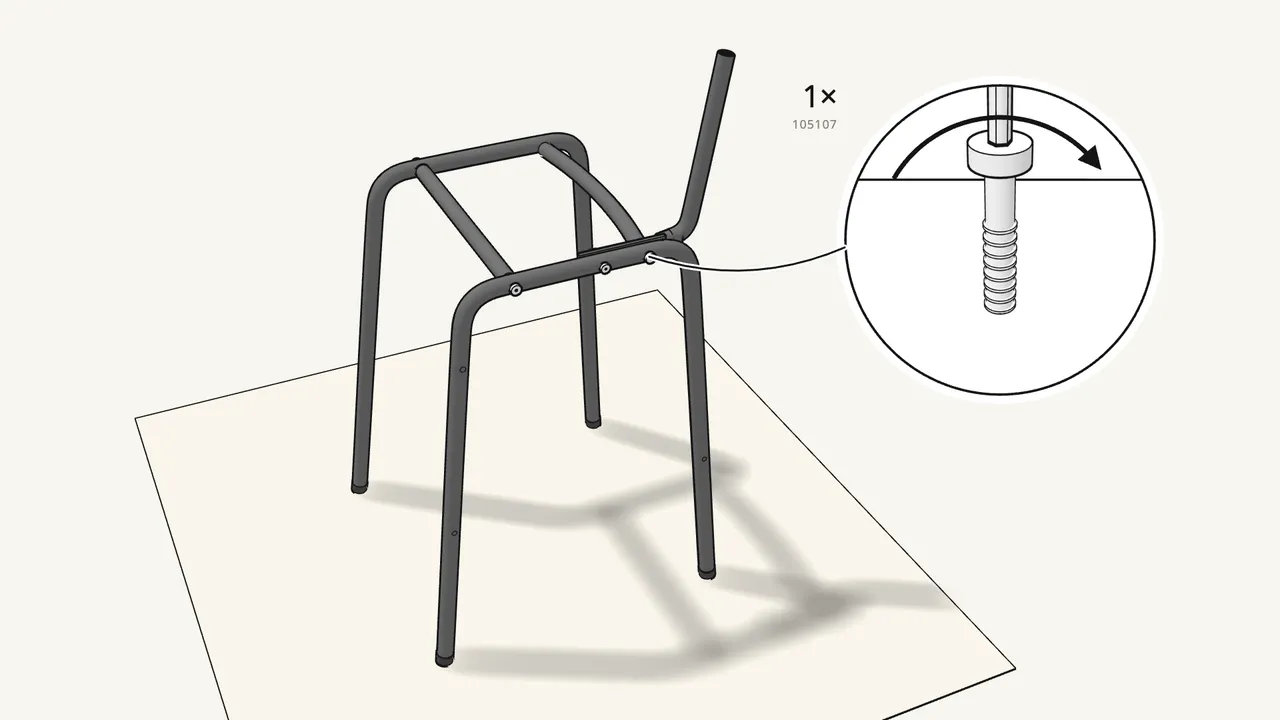

   Fit the curved rail at the back — 1 bolt (105107).

   Use the curved rail with two hole marks.

   ▶ Watch this step (0:39)

5.

   Step 5

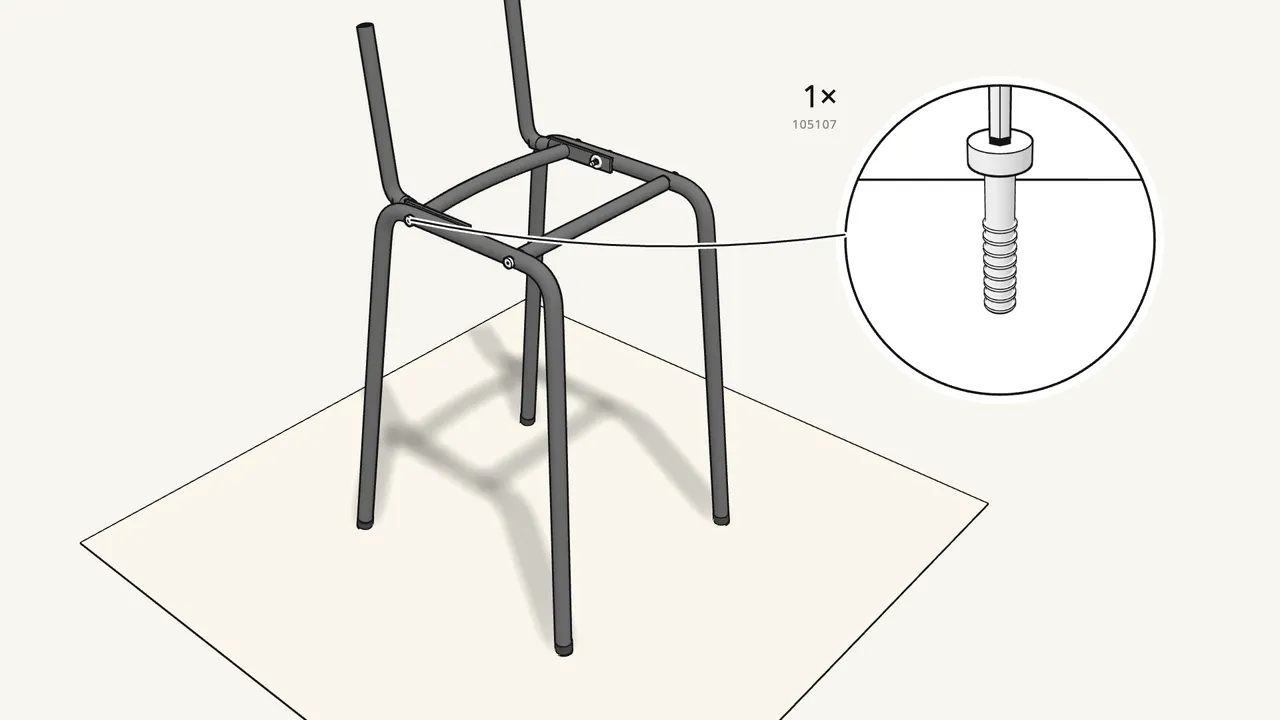

   Fit the second upright, then bolt the rail end (105107).

   Its flat end goes between the frame and the end of the back rail.

   ▶ Watch this step (0:47)

6.

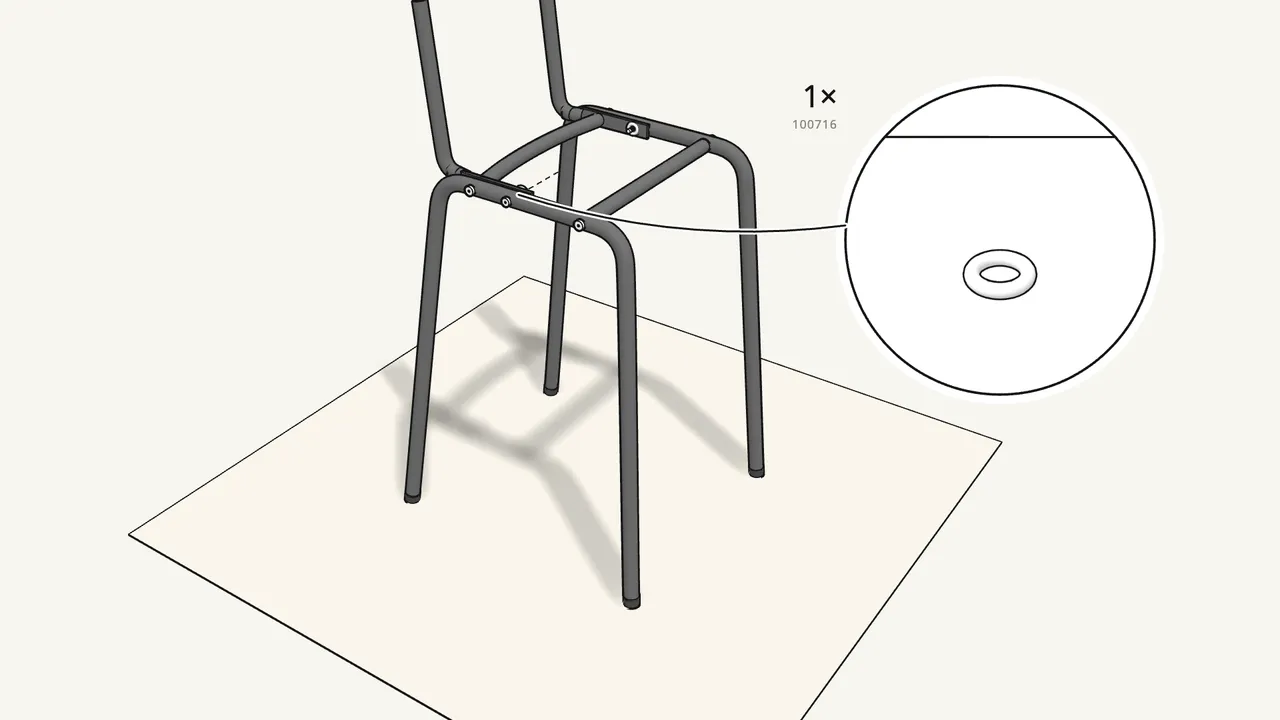

   Step 6

   Fix this upright with bolt 105105 and nut 100716.

   Hand-tight for now.

   ▶ Watch this step (0:55)

7.

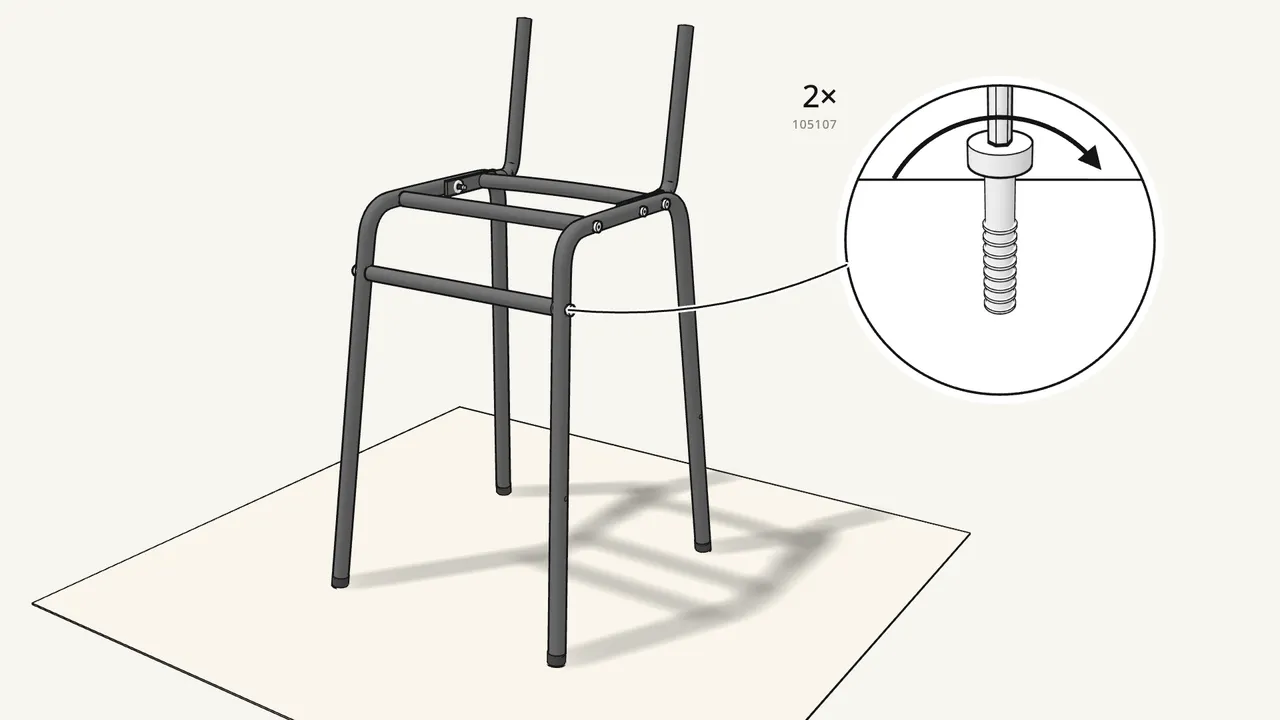

   Step 7

   Fit the lower front rail between the front legs — 2 bolts (105107).

   Use the rail with three hole marks; check the marks as the manual shows.

   ▶ Watch this step (1:02)

8.

   Step 8

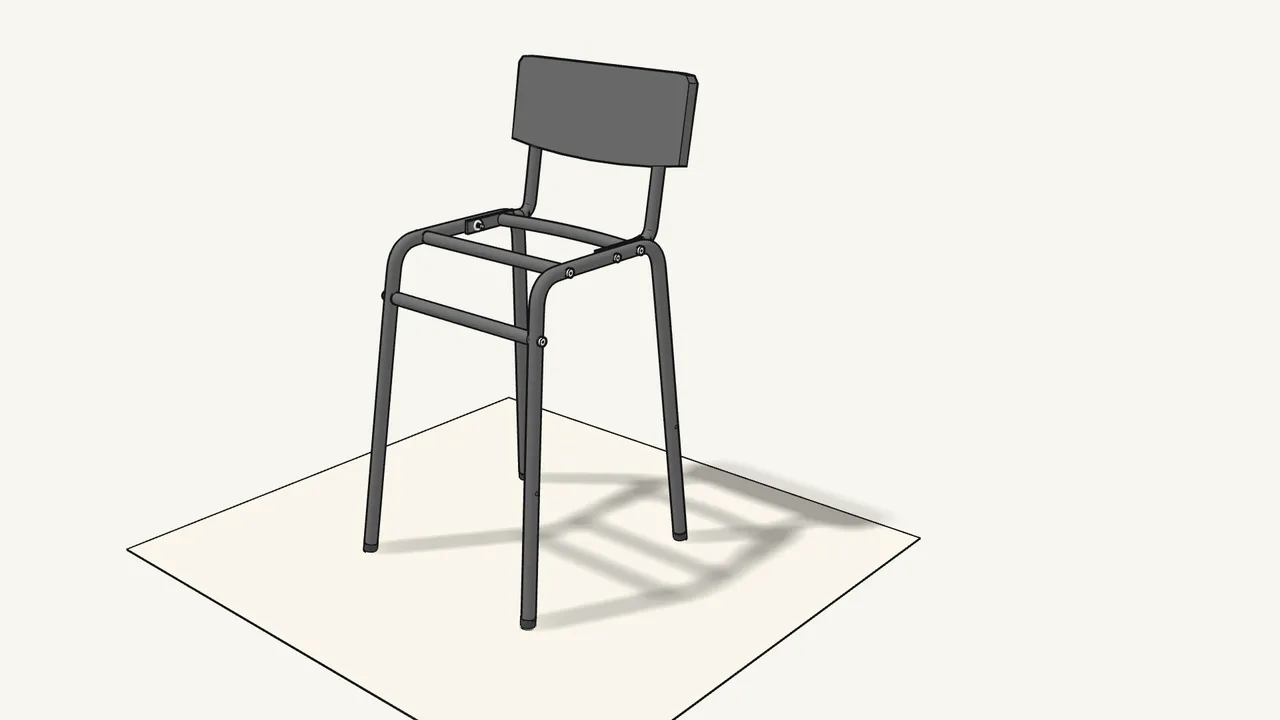

   Push the backrest down onto both uprights.

   ▶ Watch this step (1:10)

9.

   Step 9

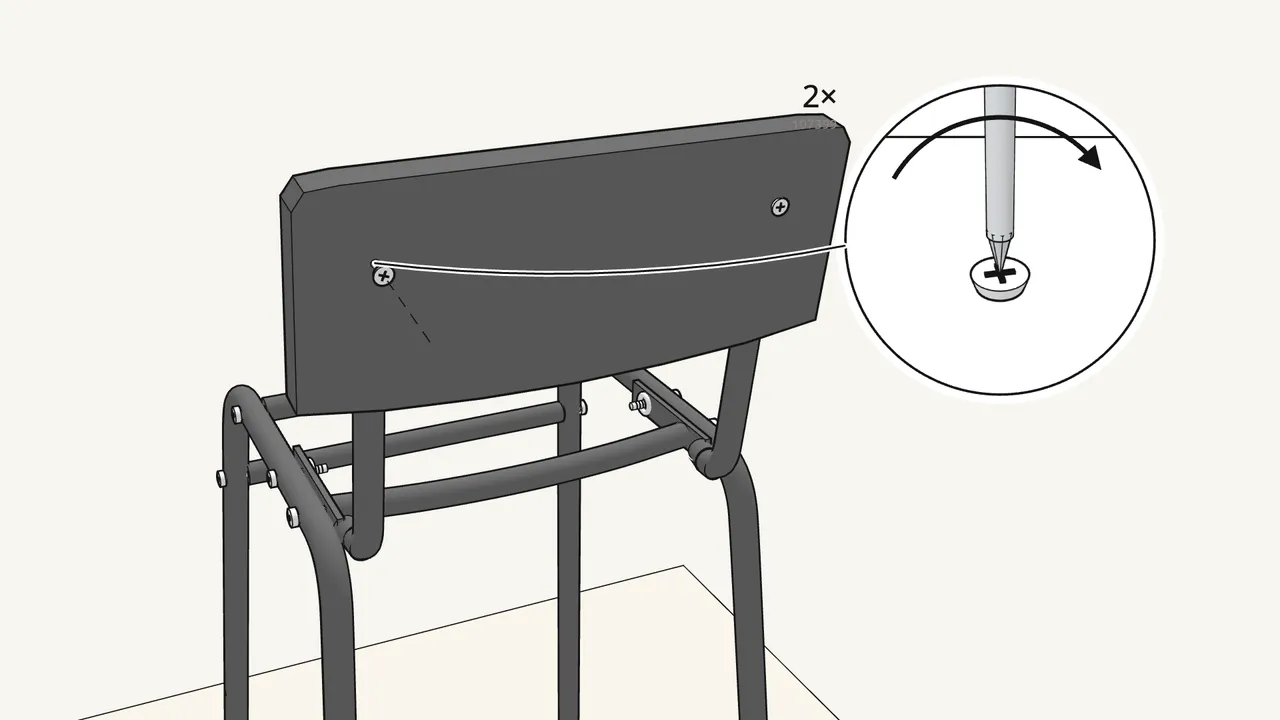

   Fix the backrest with 2 screws (107399) from the back.

   Use the Phillips screwdriver.

   ▶ Watch this step (1:16)

10.

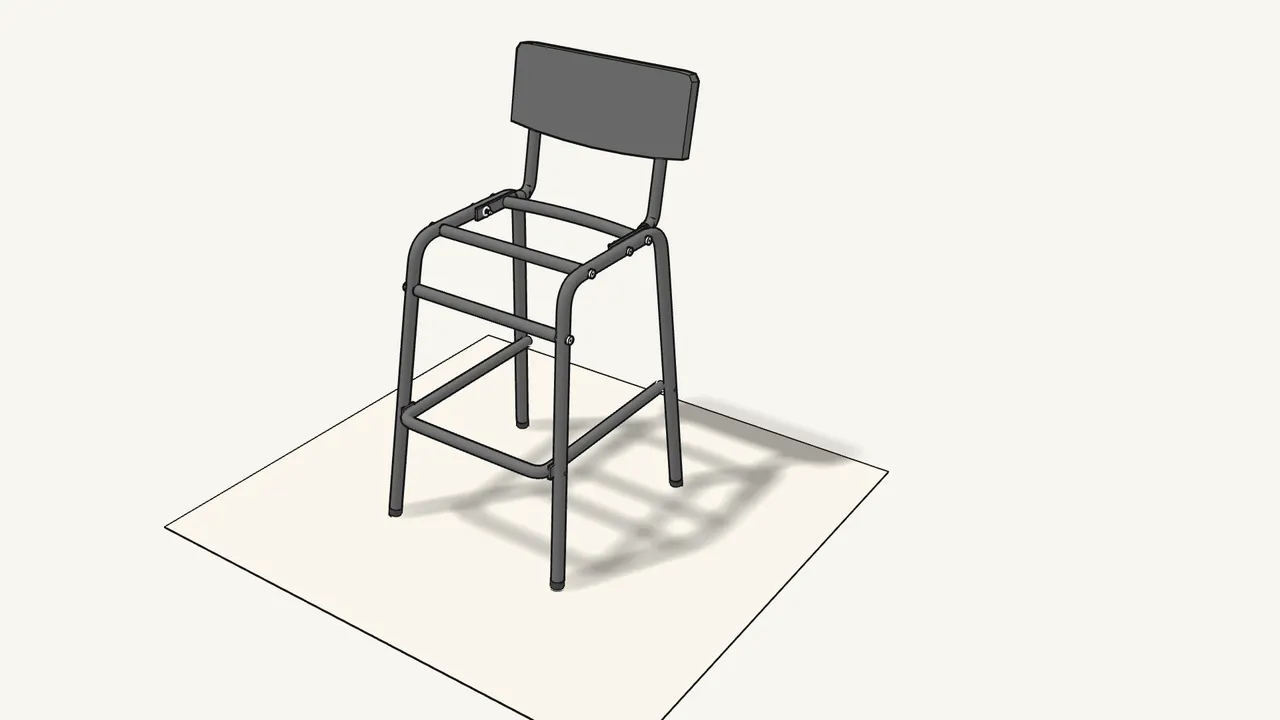

    Step 10

    Hold the footrest between the legs.

    The bent front goes at the front of the stool.

    ▶ Watch this step (1:23)

11.

    Step 11 · manual step 10

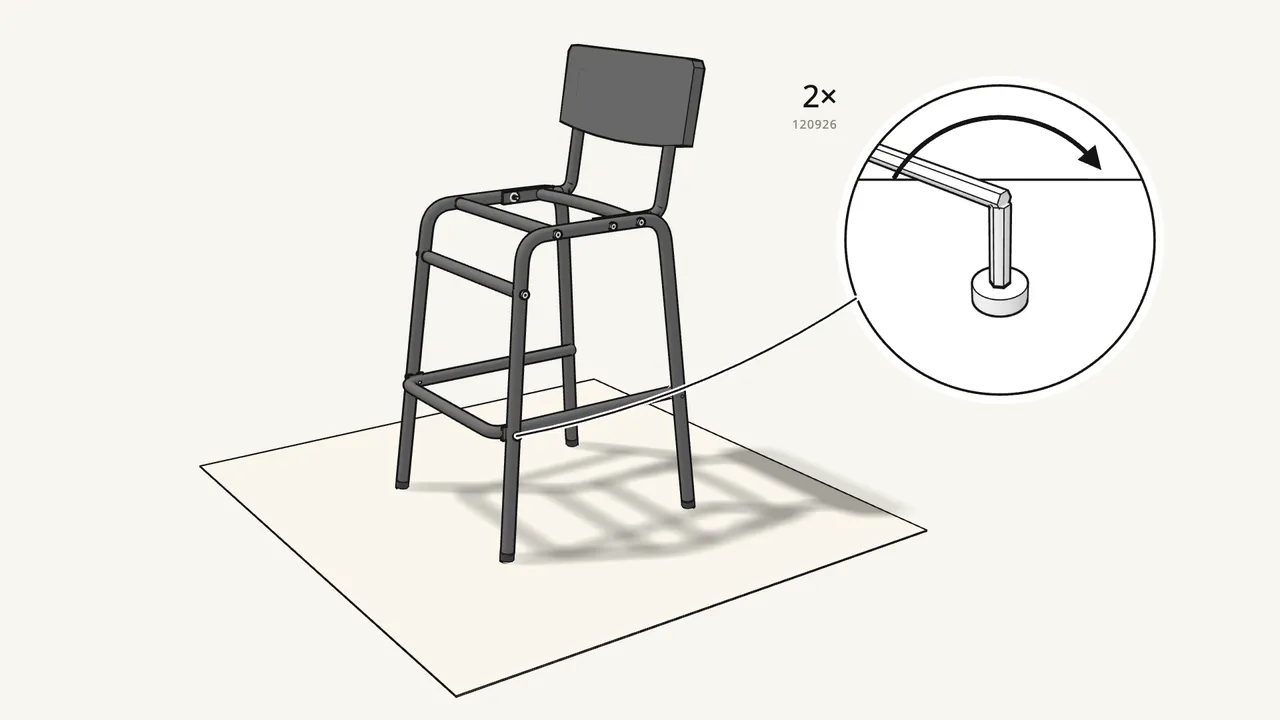

    Fix the footrest to the front legs — 2 bolts (120926).

    The short bolts go through the legs into the footrest tabs.

    ▶ Watch this step (1:29)

12.

    Step 12 · manual step 11

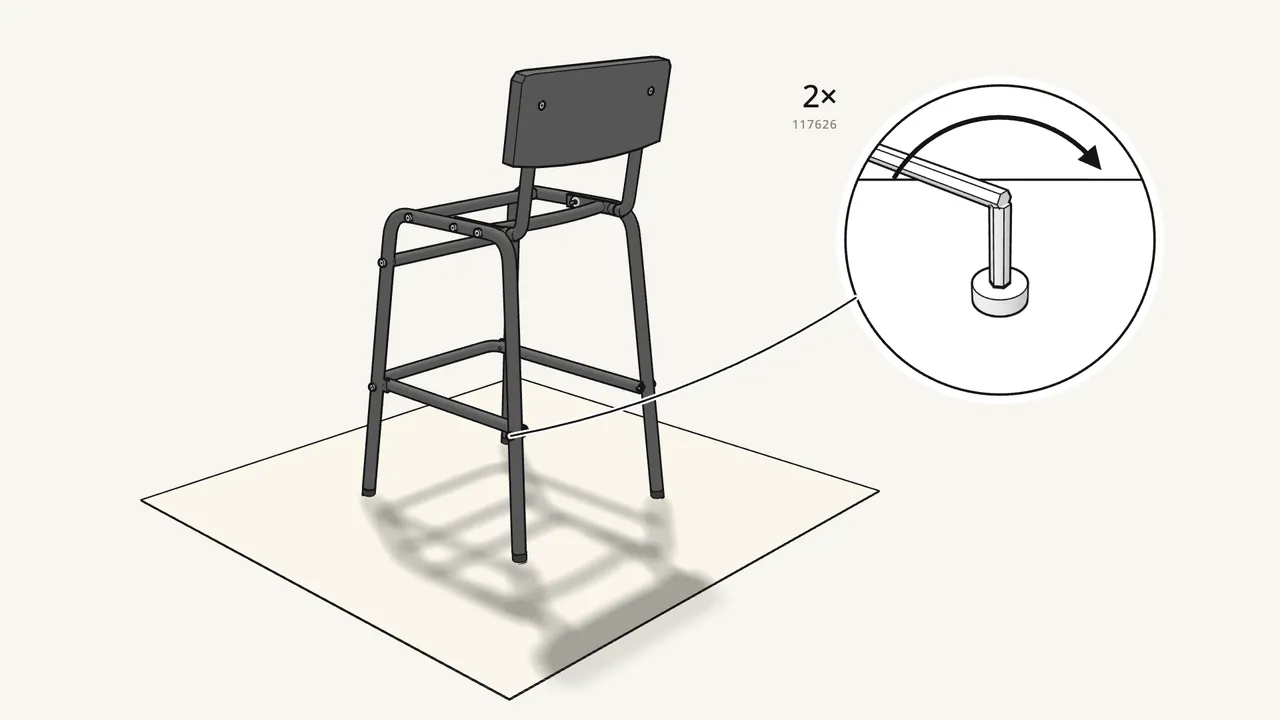

    Fix the footrest to the back legs — 2 bolts (117626).

    ▶ Watch this step (1:36)

13.

    Step 13 · manual step 12

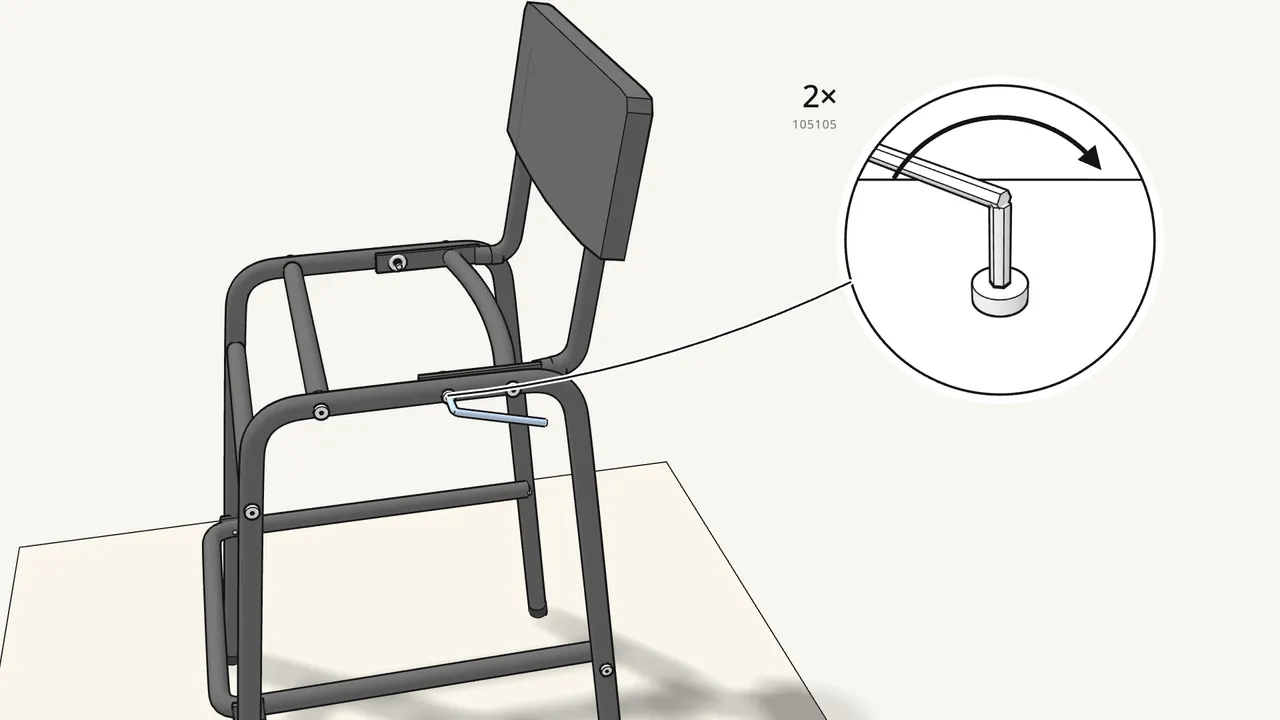

    Tighten the 2 bolts 105105 with the Allen key.

    Hold the nut on the inside with the wrench while you turn.

    ▶ Watch this step (1:43)

14.

    Step 14 · manual step 13

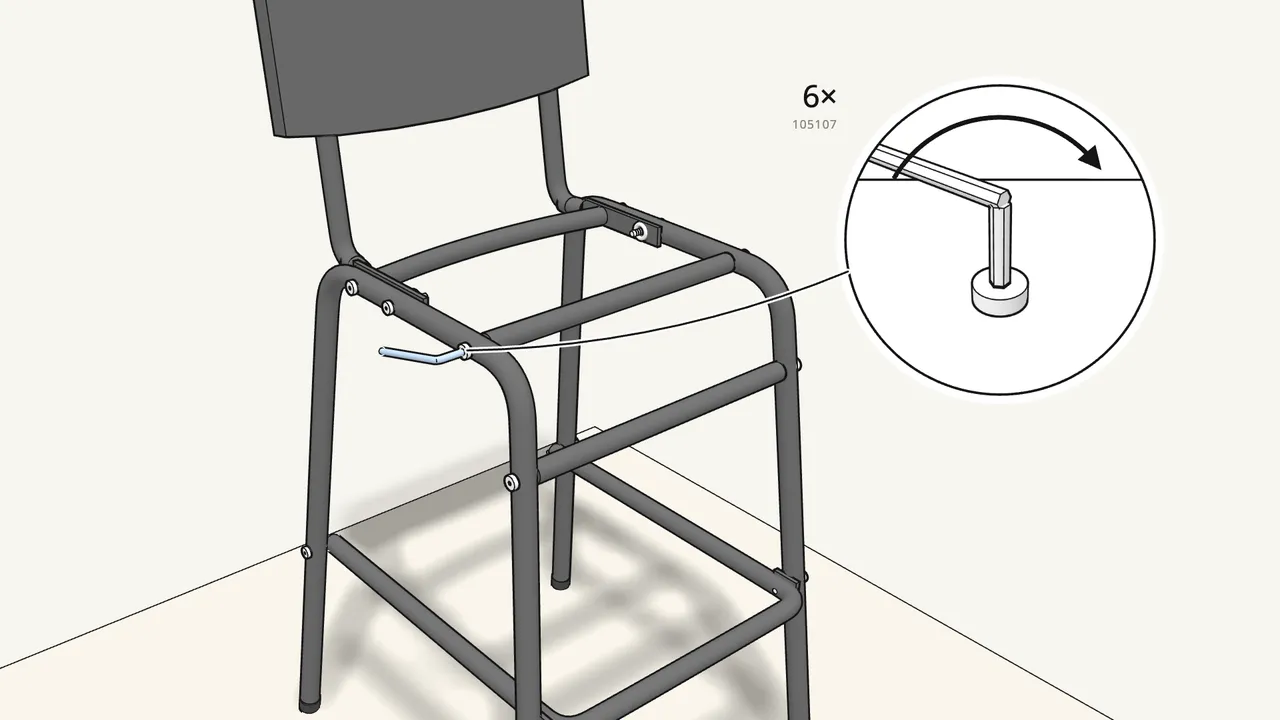

    Tighten all 6 bolts 105107 with the Allen key.

    ▶ Watch this step (1:51)

15.

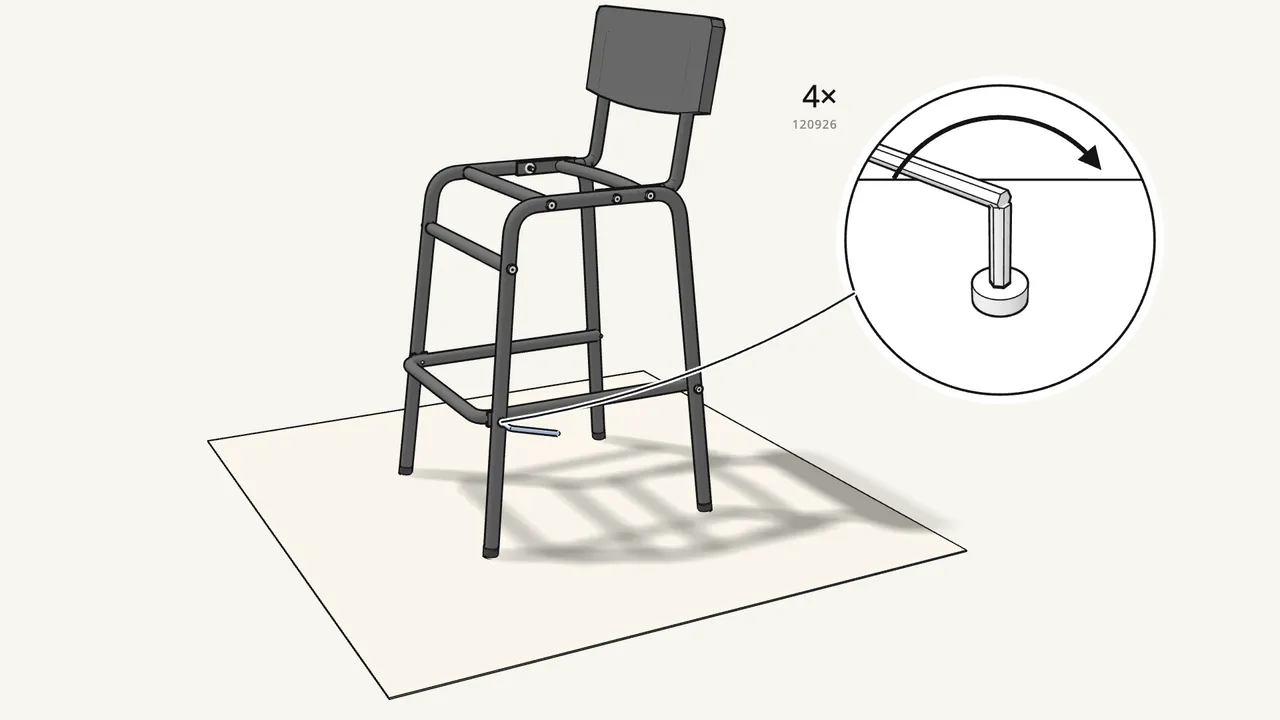

    Step 15 · manual step 14

    Tighten the 4 footrest bolts with the Allen key.

    2 × 120926 at the front, 2 × 117626 at the back.

    ▶ Watch this step (1:58)

16.

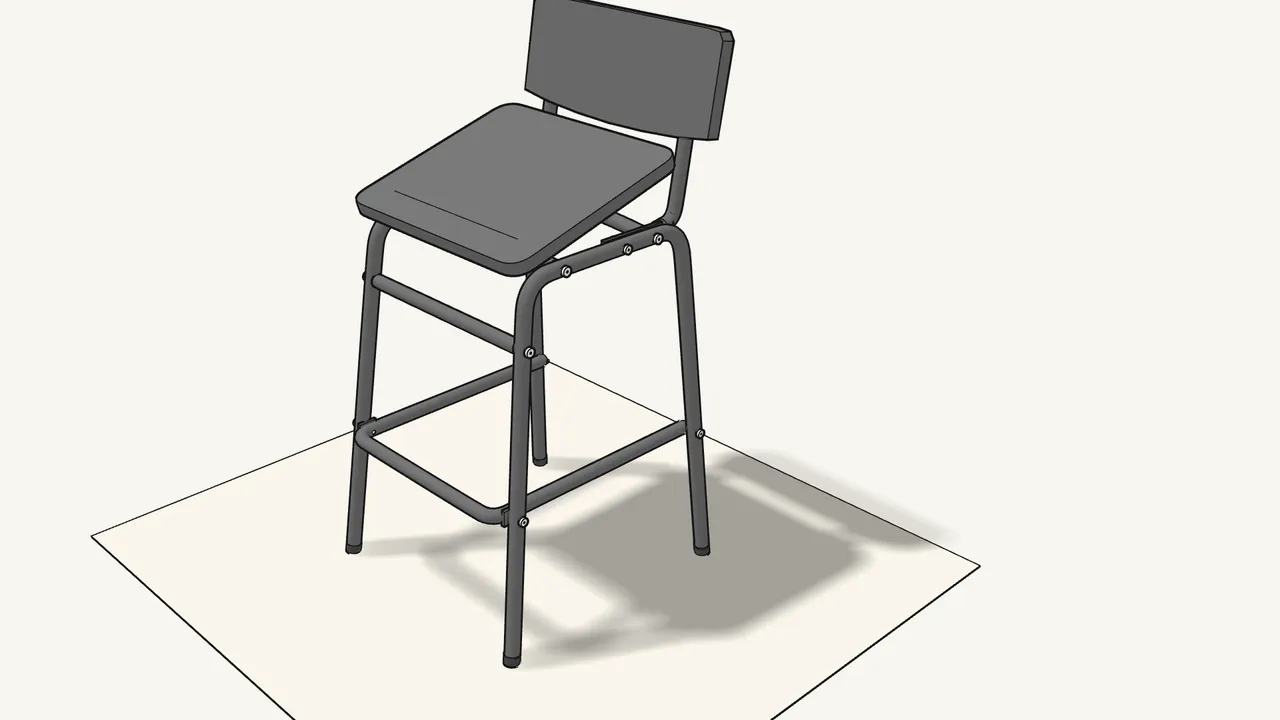

    Step 16 · manual step 15

    Hook the front of the seat onto the frame.

    Tilt the back of the seat up and push it forward, as the manual shows.

    ▶ Watch this step (2:05)

17.

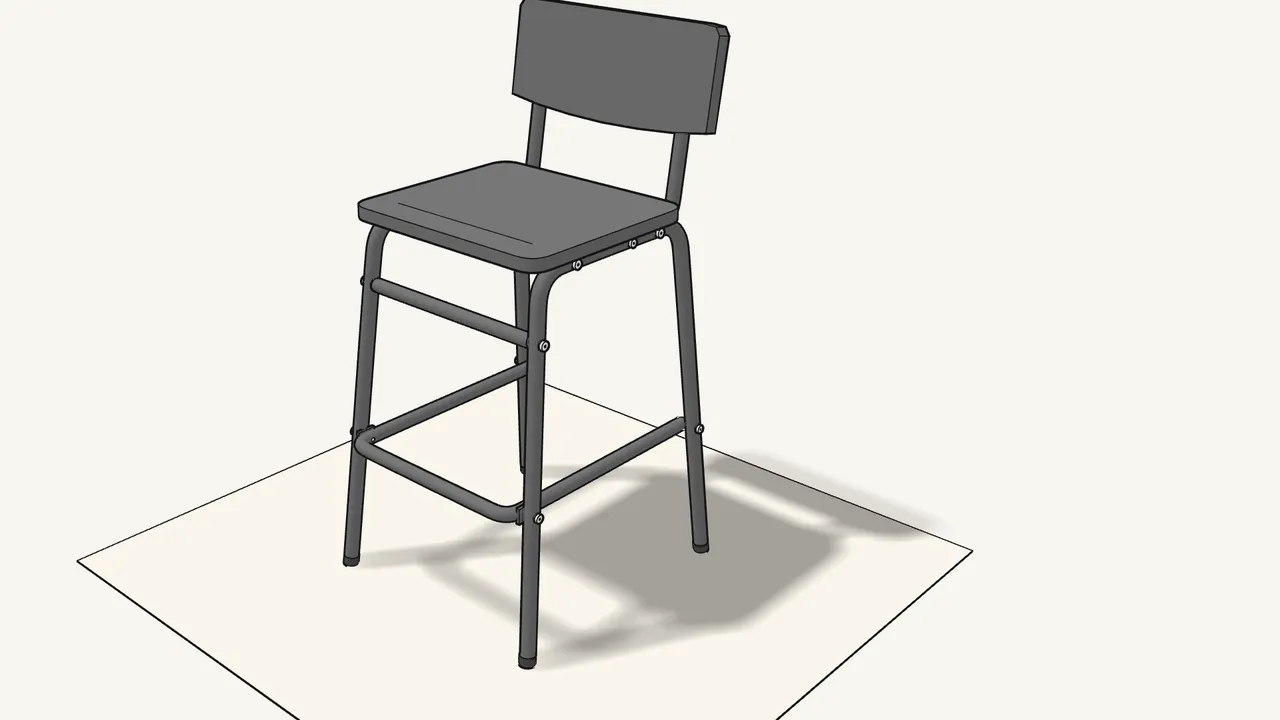

    Step 17 · manual step 16

    Press the back of the seat down until it clicks.

    You should hear a click on both sides.

    ▶ Watch this step (2:12)
