How to Assemble IKEA LISABO Chair
Step-by-step IKEA LISABO chair assembly: 12 illustrated steps, an animated video, the hardware list and the tools you need — following the official instructions (AA-2174482-8).
- 12 illustrated steps
- 7 steps in the manual
- 1:56 video
- 46×51×78 cm
What you need
Tools
- Allen key (included)
No tools needed — the Allen key (100001) is included.
Hardware in the box
| Part no. (as printed in the manual) | Qty |
|---|---|
| 123595 | 6× |
| 100212 | 4× |
| 10087753 | 4× |
| 100001 | 1× |
Step-by-step assembly

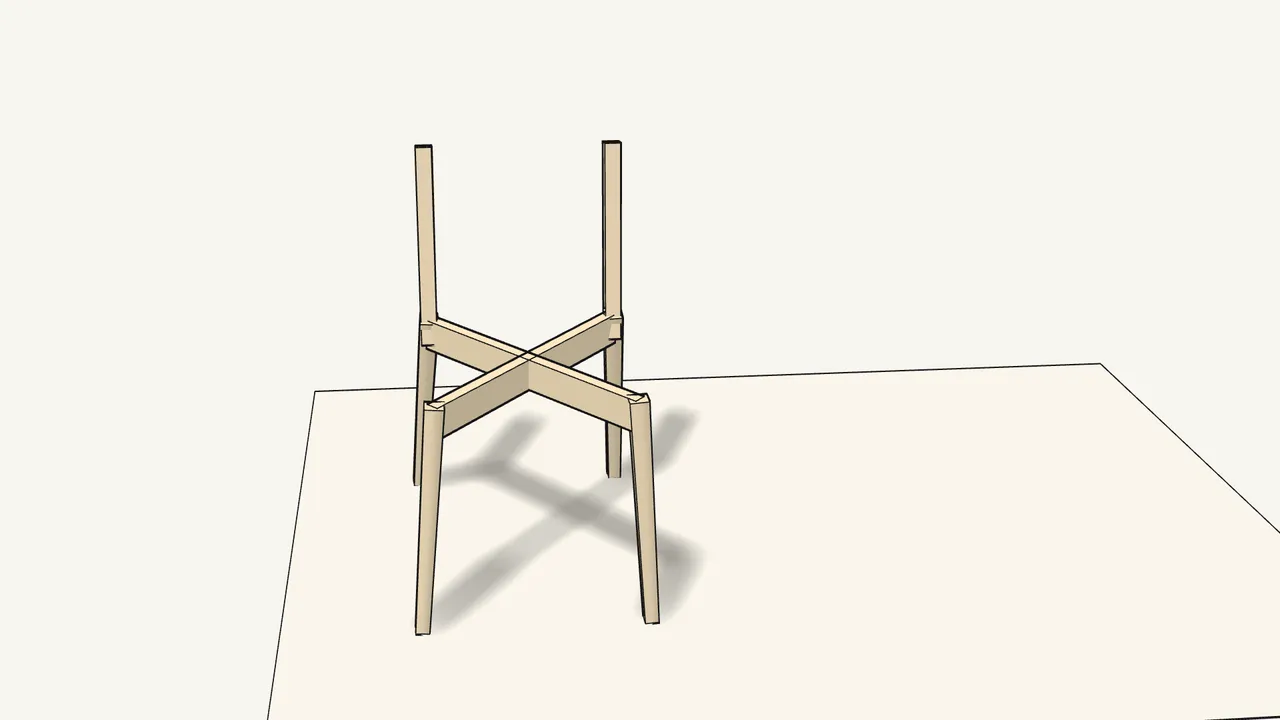

Step 1
Slot the two leg frames together at the cross joint.
Check which frame goes on top — see the manual, step 1.

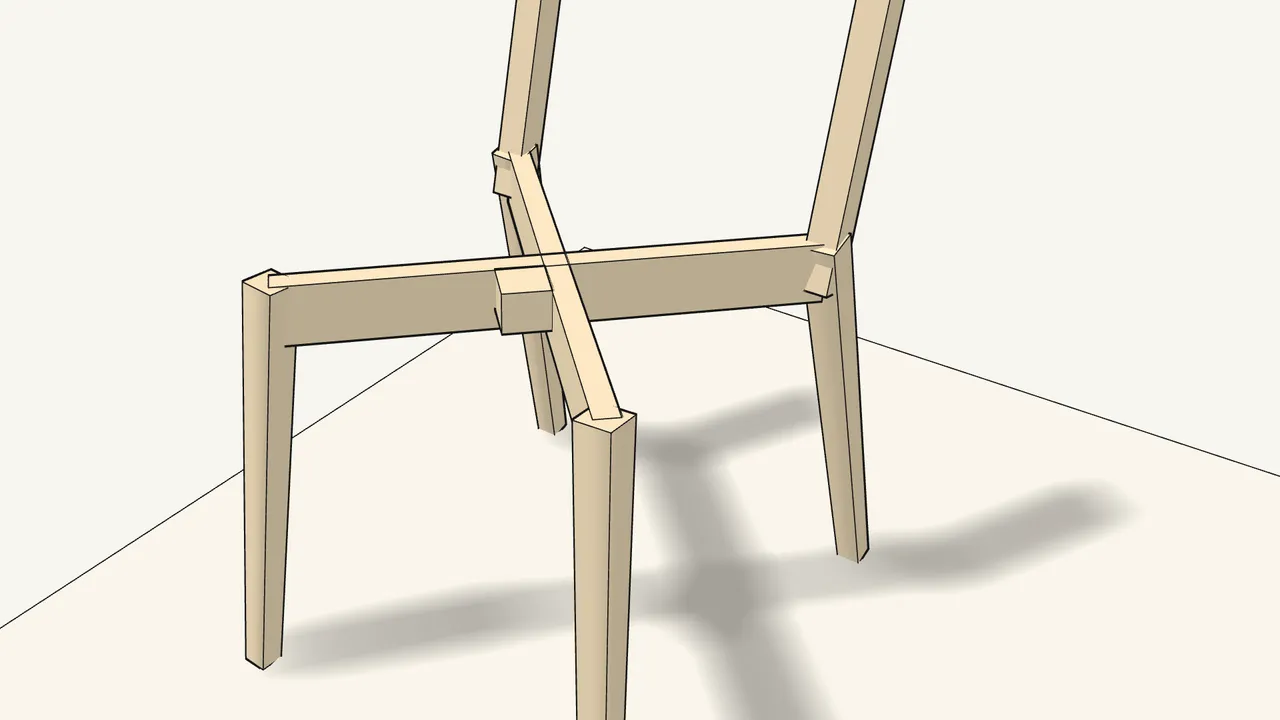

Step 2
Push the small block into the front of the cross joint.
Press it in flat, as shown in the manual, step 2.

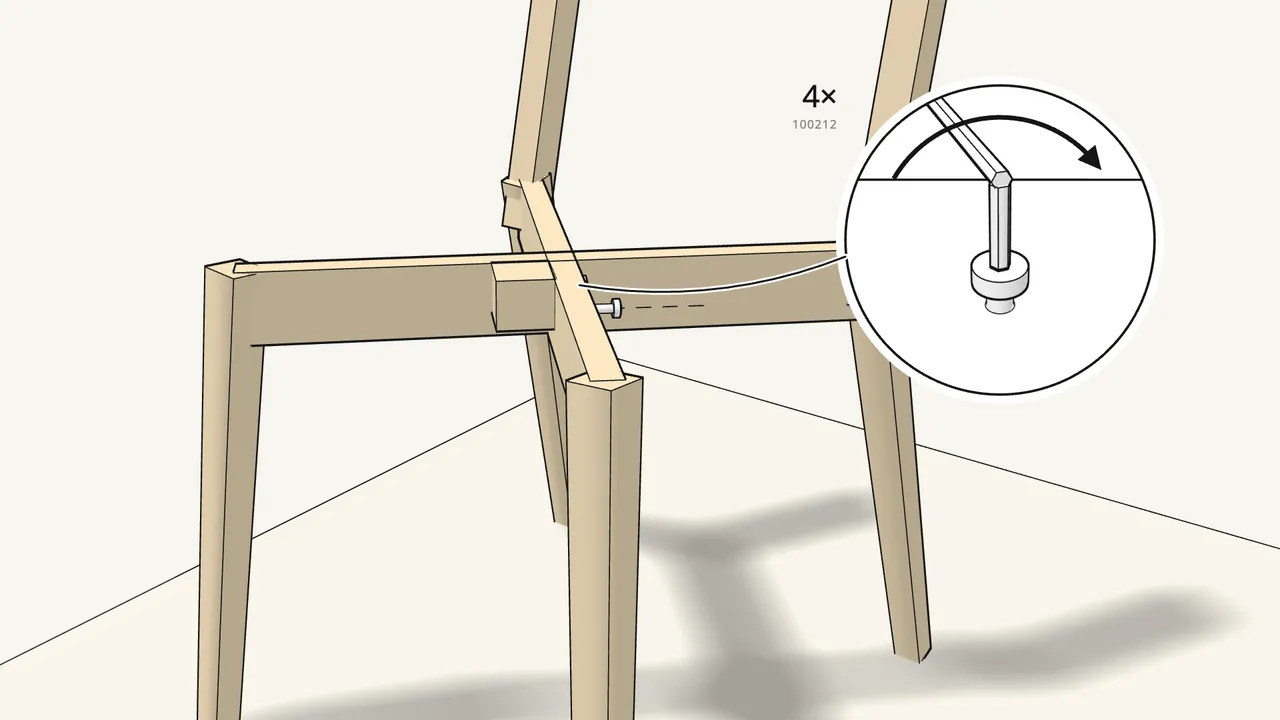

Step 3 · manual step 2
Insert 4 screws (100212) with the Allen key — not tight yet.
2 through each rail into the block. Leave a small gap under the heads.

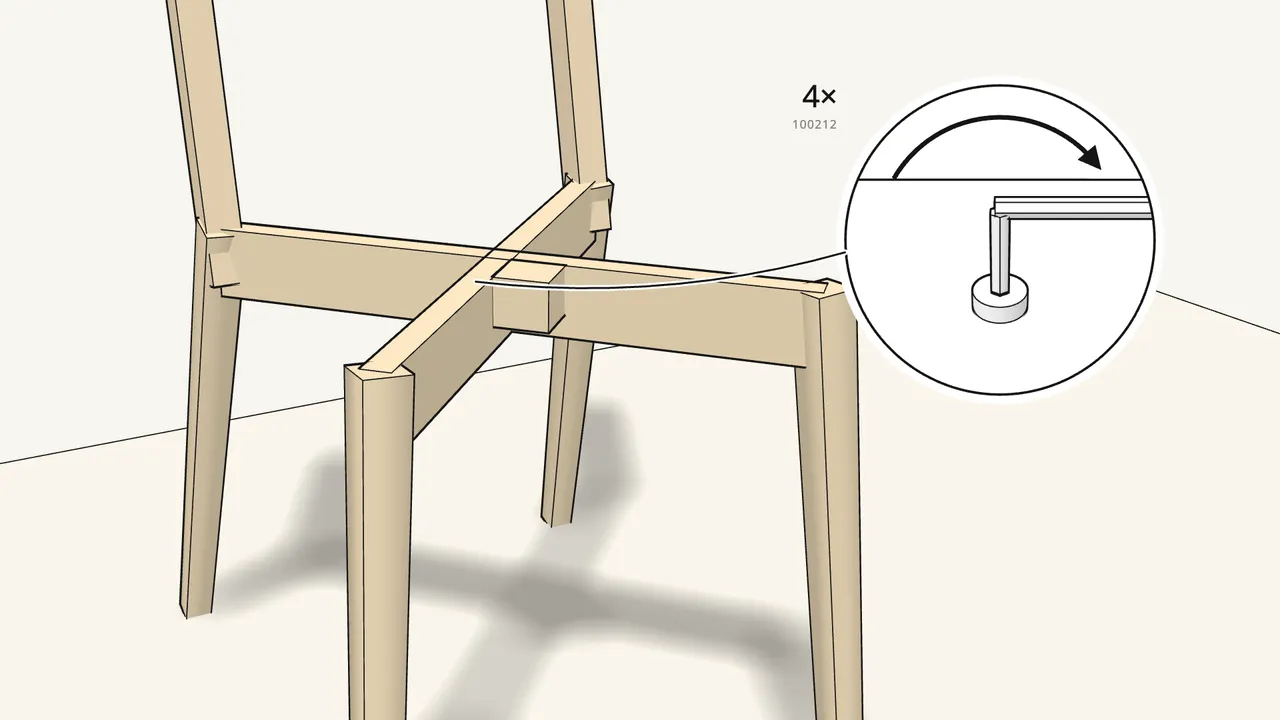

Step 4 · manual step 3
Now tighten the 4 screws.
The heads must sit flush with the wood.
Step 5 · manual step 4
Hold the backrest against the front of the back posts.

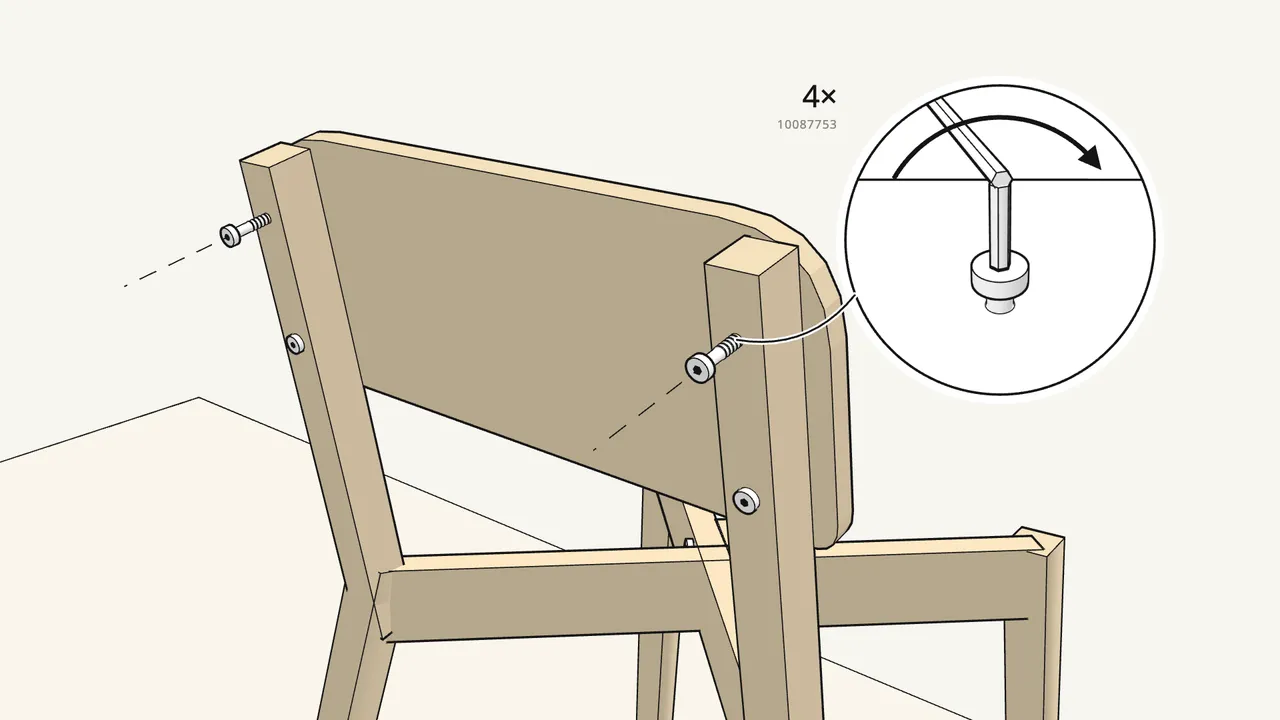

Step 6 · manual step 4
Fit 4 bolts (10087753) from behind — not tight yet.
2 through each back post. Leave a small gap under the heads.

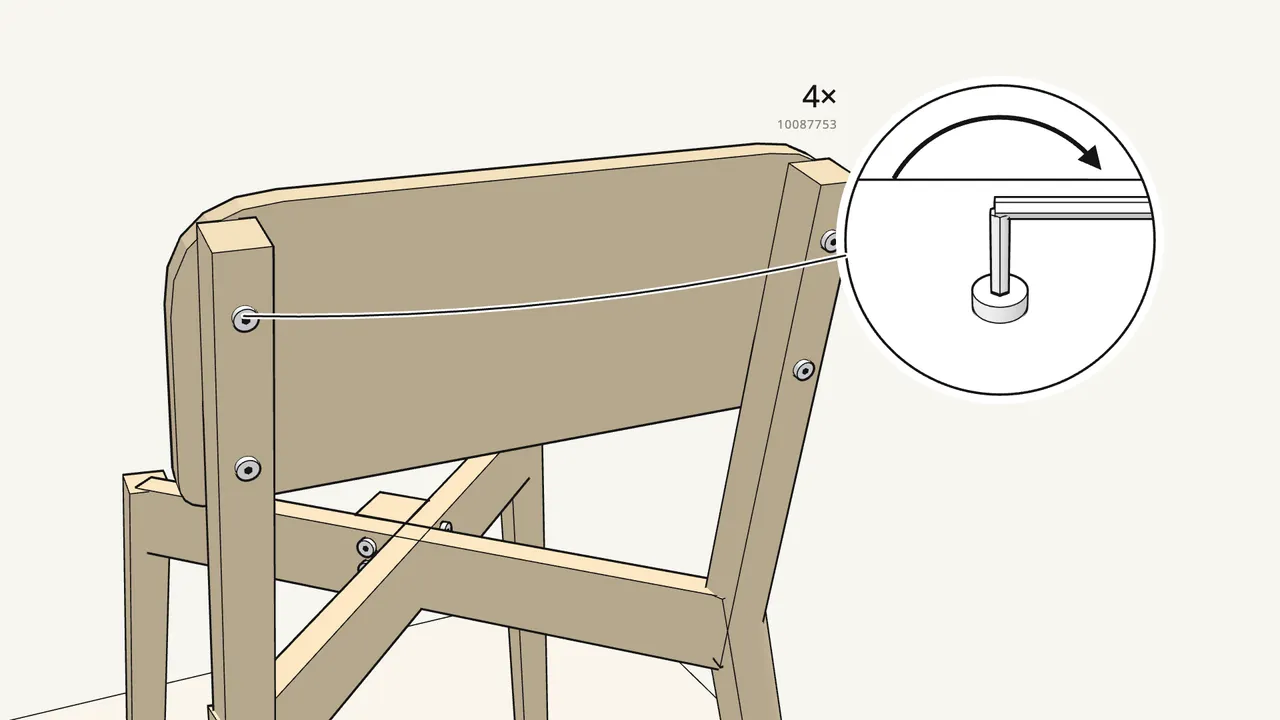

Step 7 · manual step 5
Tighten the 4 backrest bolts.
The heads must sit flush against the posts.

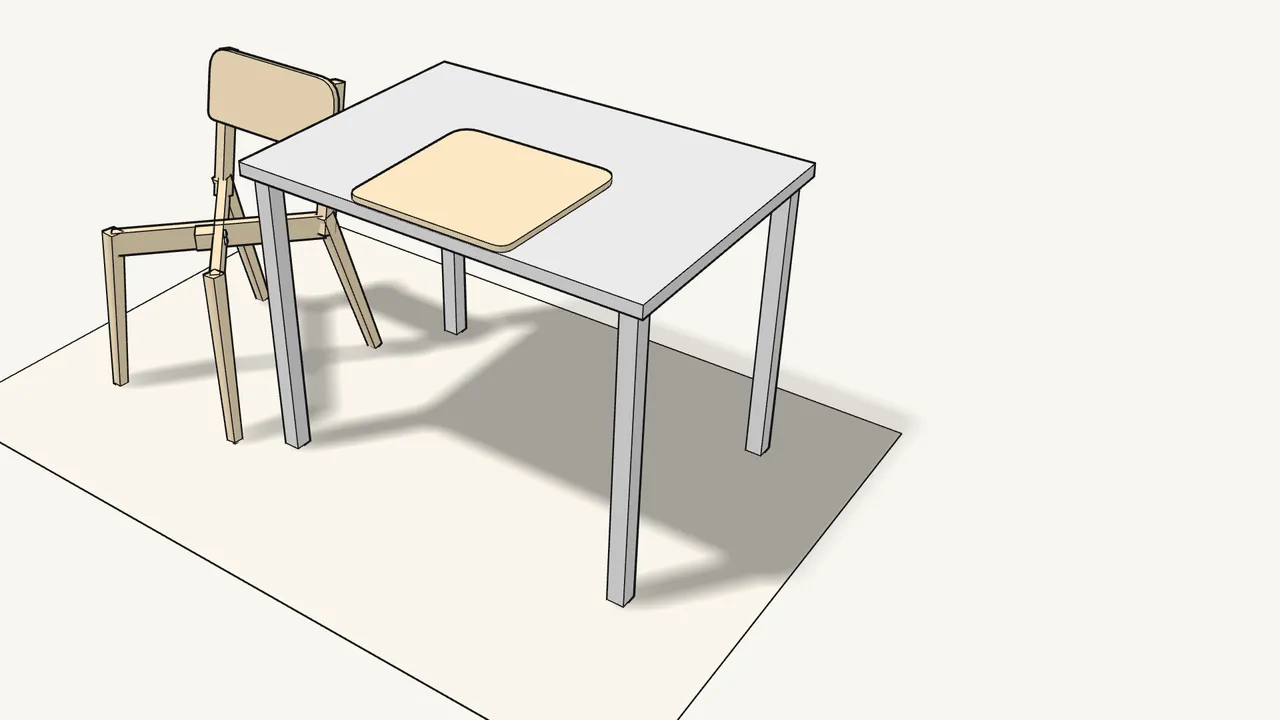

Step 8 · manual step 6
Lay the seat face down on a table.

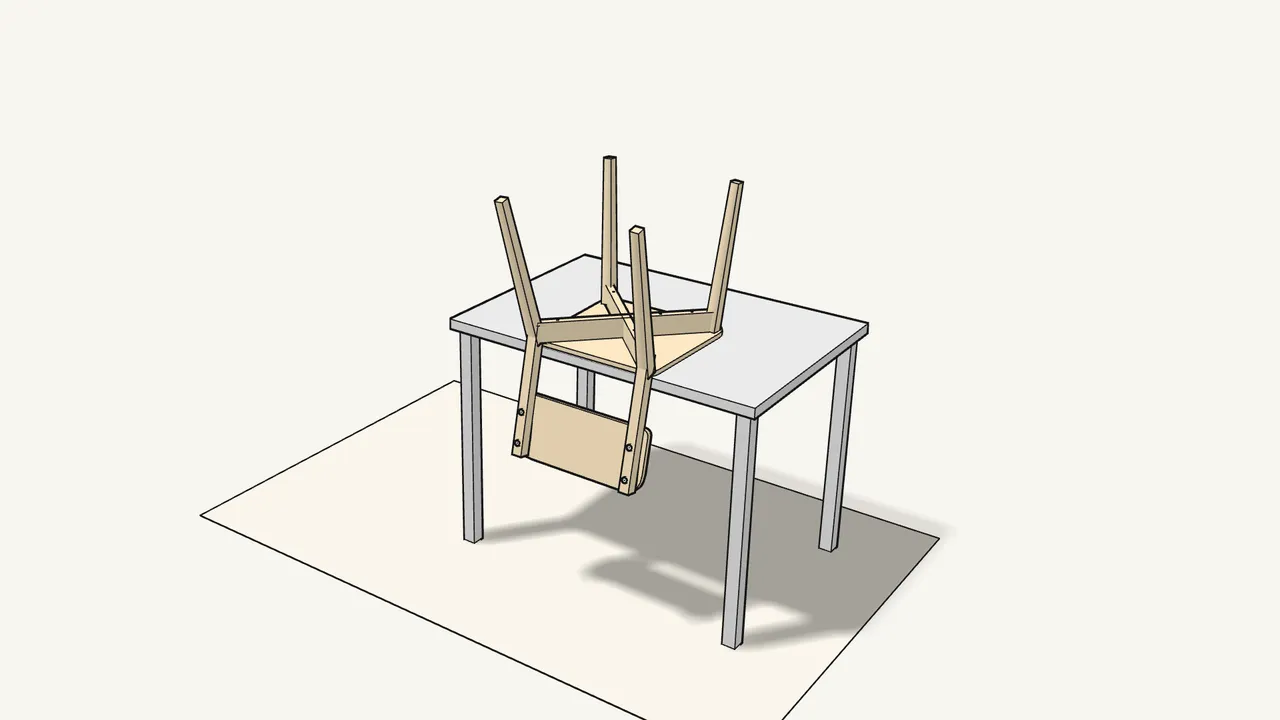

Step 9 · manual step 6
Turn the frame over and set it on the seat.
The backrest hangs over the edge of the table.

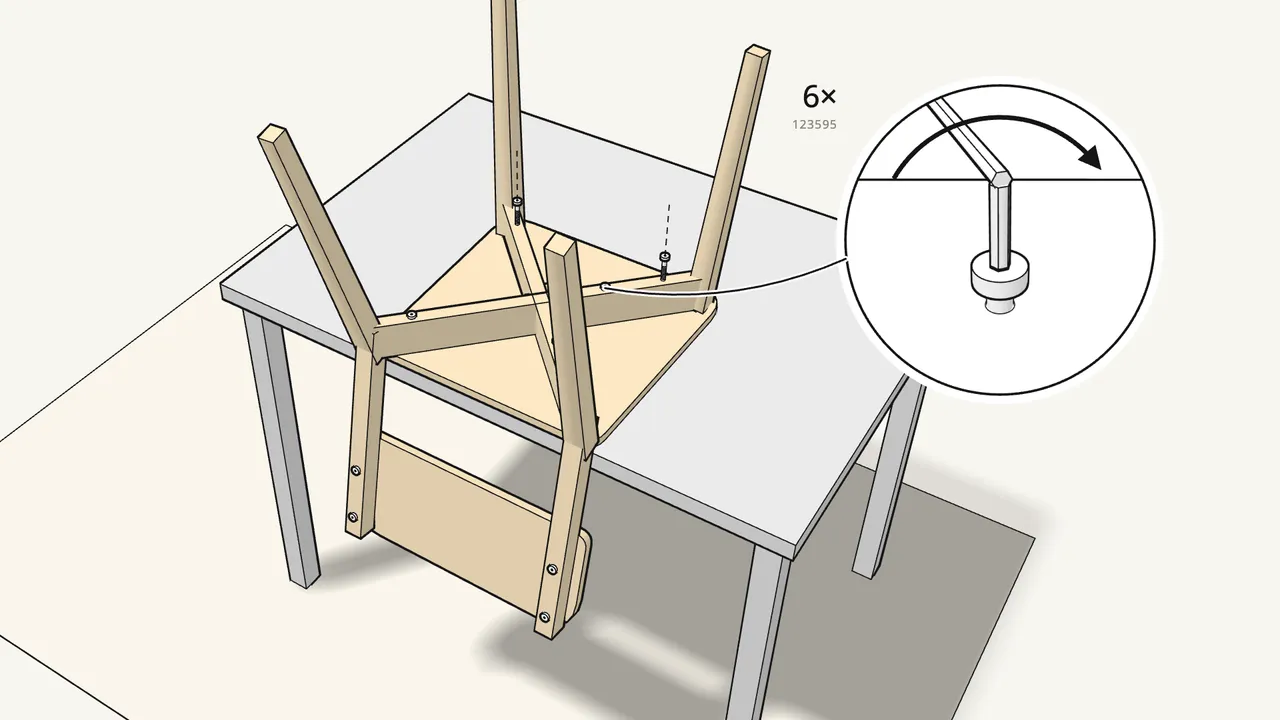

Step 10 · manual step 6
Insert 6 bolts (123595) through the frame into the seat.
Use the Allen key. Don’t tighten them yet.

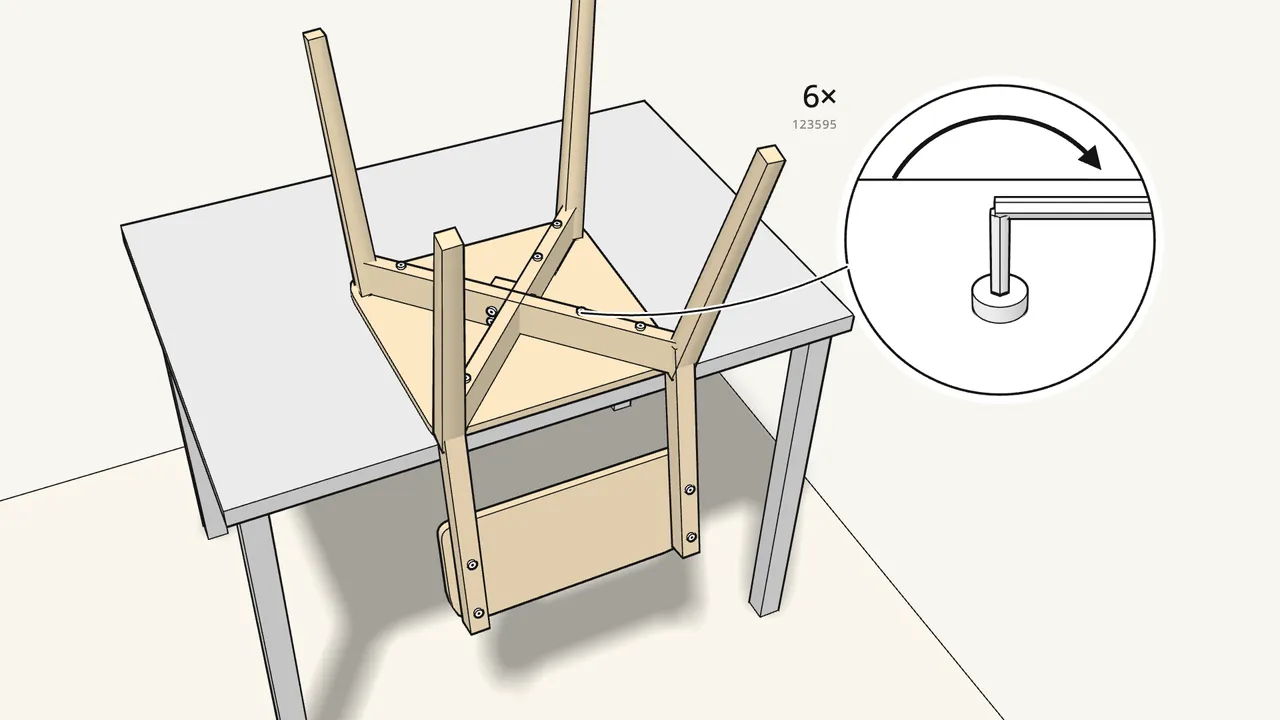

Step 11 · manual step 7
Now tighten all 6 bolts.
Every head must sit flush with the rail.

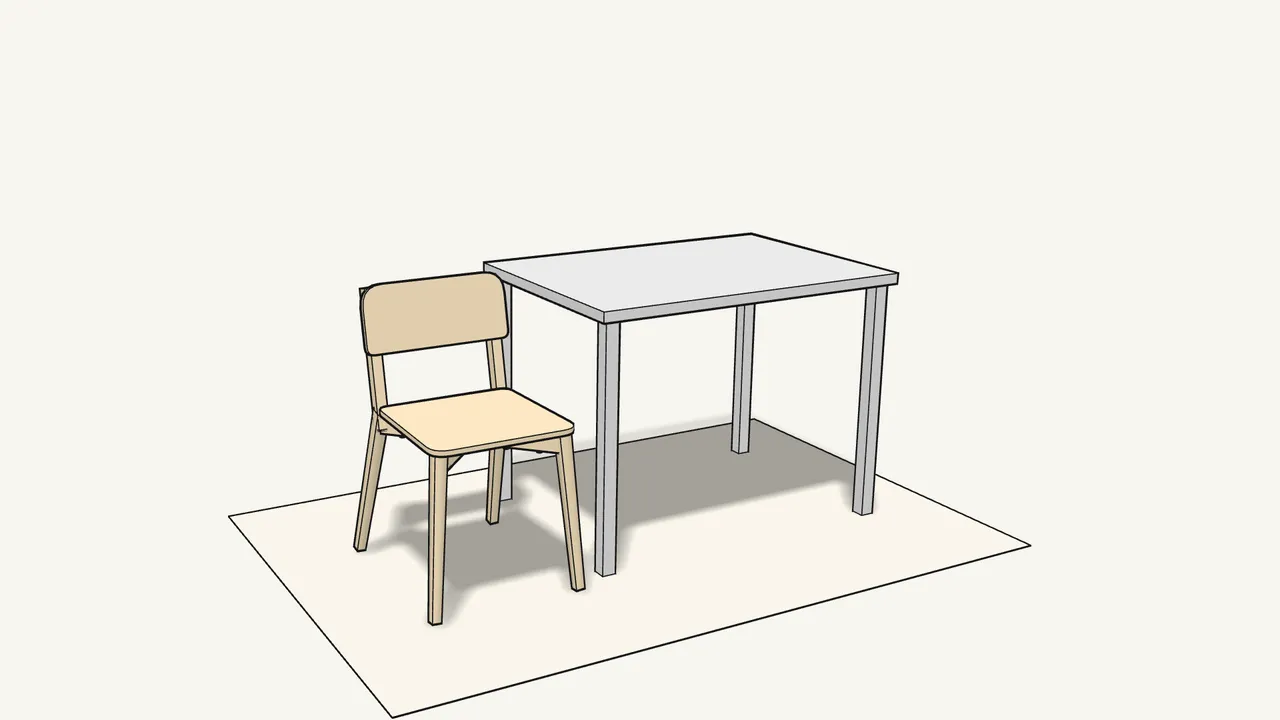

Step 12 · manual step 7
Turn the chair upright.
Tips & safety
- Check that every bolt sits flush. The manual shows no gap under any head once tightened (steps 3, 5 and 7).
- Missing a part or unsure? The manual says: contact your IKEA store for help.
Official instructions
This guide follows IKEA's official assembly instructions (AA-2174482-8). Keep the printed manual to hand — if anything differs, the manual is right.
