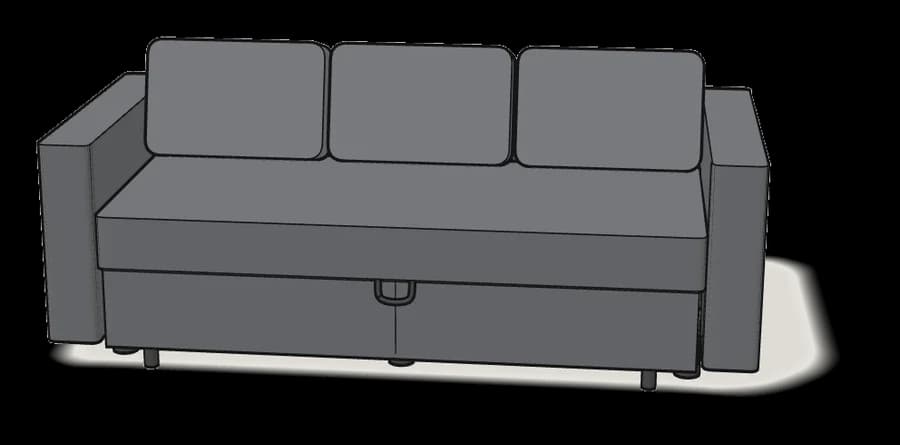

How to Assemble IKEA FRIHETEN Sleeper Sofa

Step-by-step assembly

1.

   Step 1

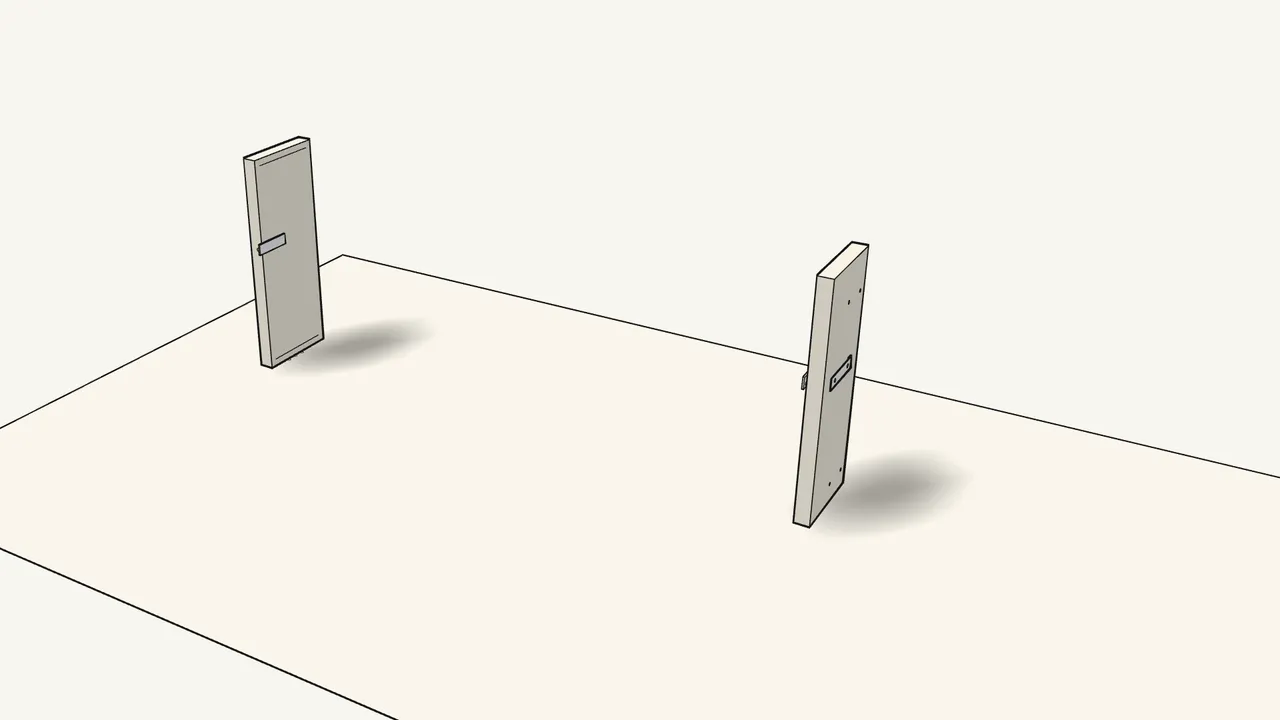

   Stand the 2 end frames upright, keyhole fittings facing out.

   ▶ Watch this step (0:16)

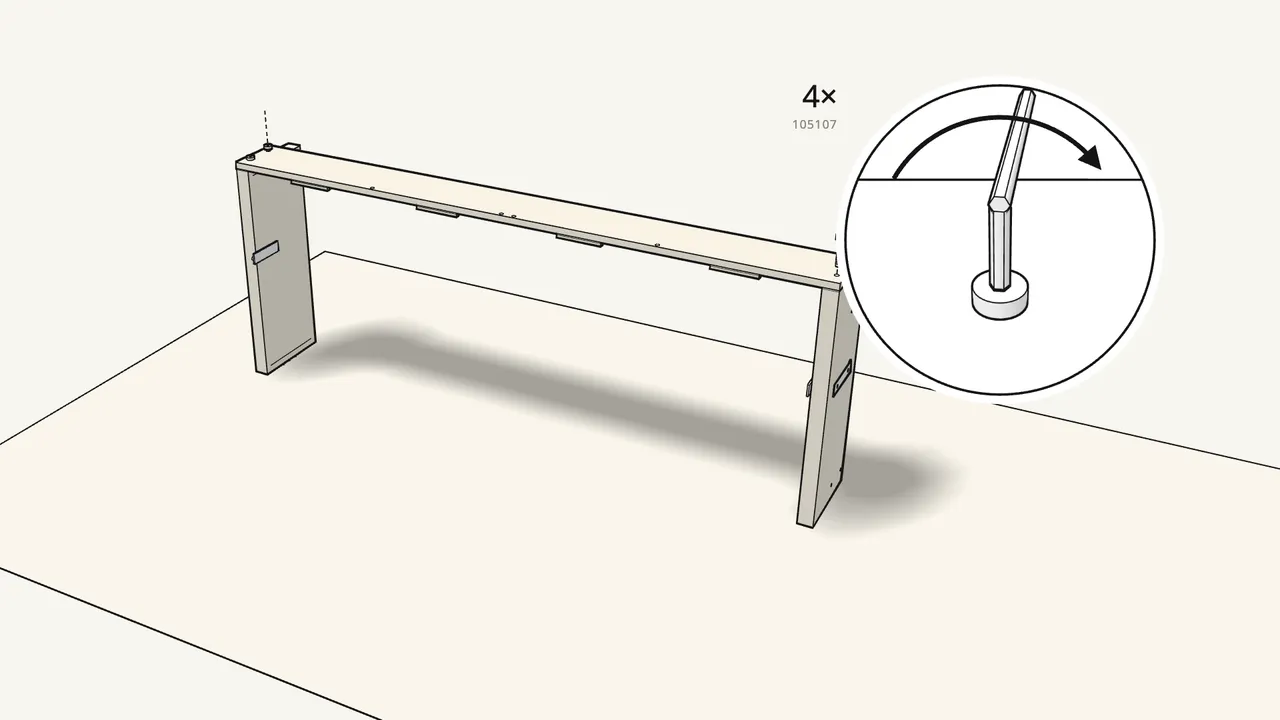

2.

   Step 2

   Lay the rail on top and fix it with 4 bolts (105107).

   Allen key 152057. Check the hole pattern as in the manual.

   ▶ Watch this step (0:22)

3.

   Step 3 · manual step 3–4

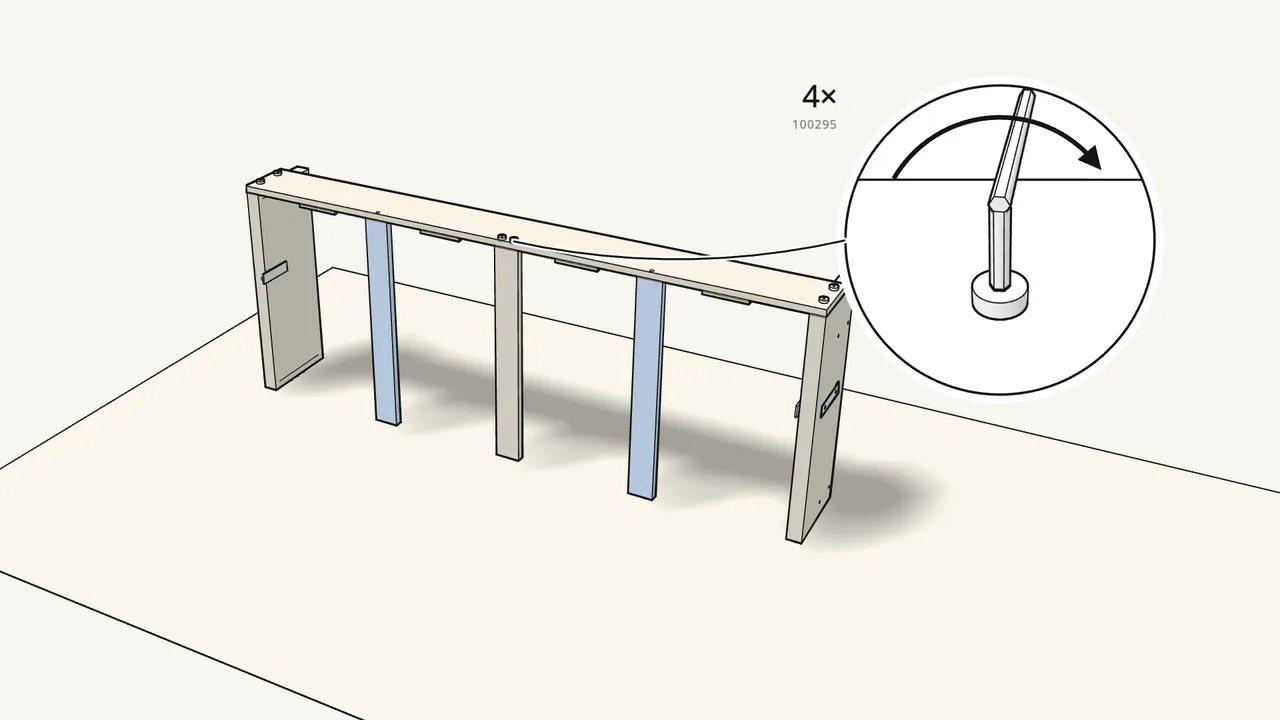

   Fit the 3 slats under the rail, screws 100295 from the top.

   Middle slat 2 screws, outer slats 1 each. Allen key 100006.

   ▶ Watch this step (0:29)

4.

   Step 4 · manual step 5

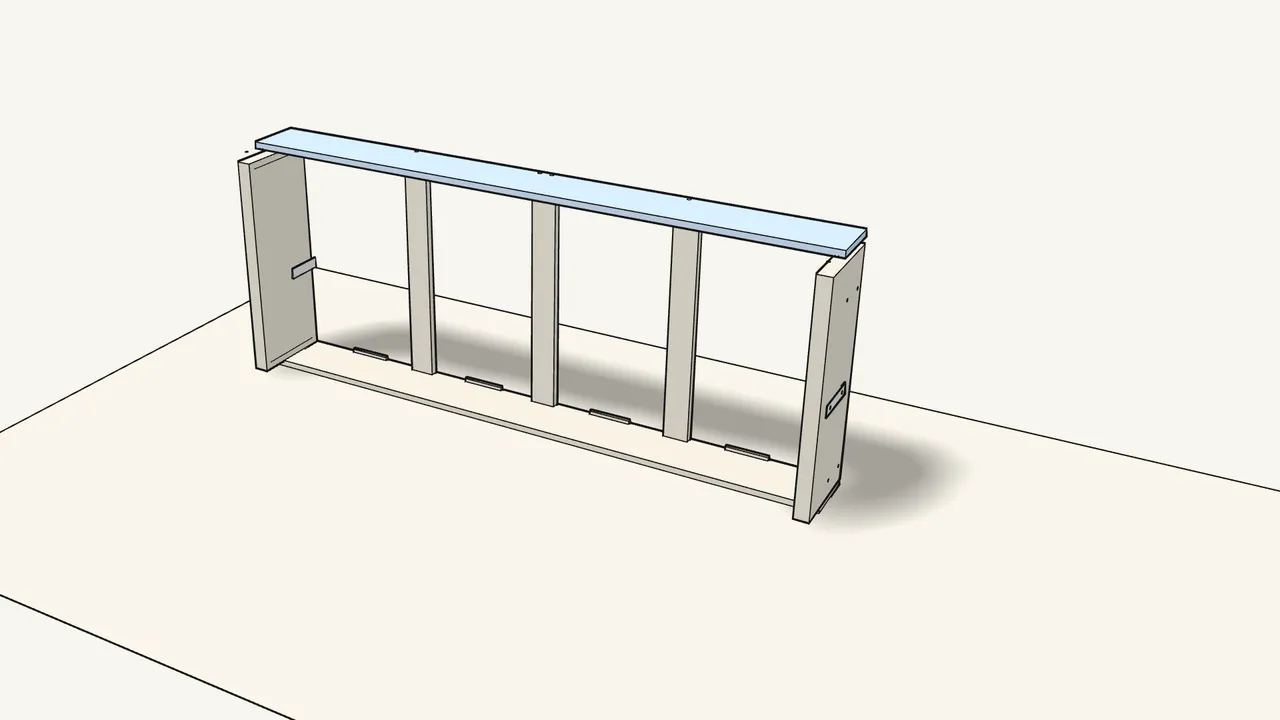

   Turn the frame over — 2 people.

   Hold it at the end frames. From step 6 the manual shows the 2nd rail on top.

   ▶ Watch this step (0:36)

5.

   Step 5 · manual step 6

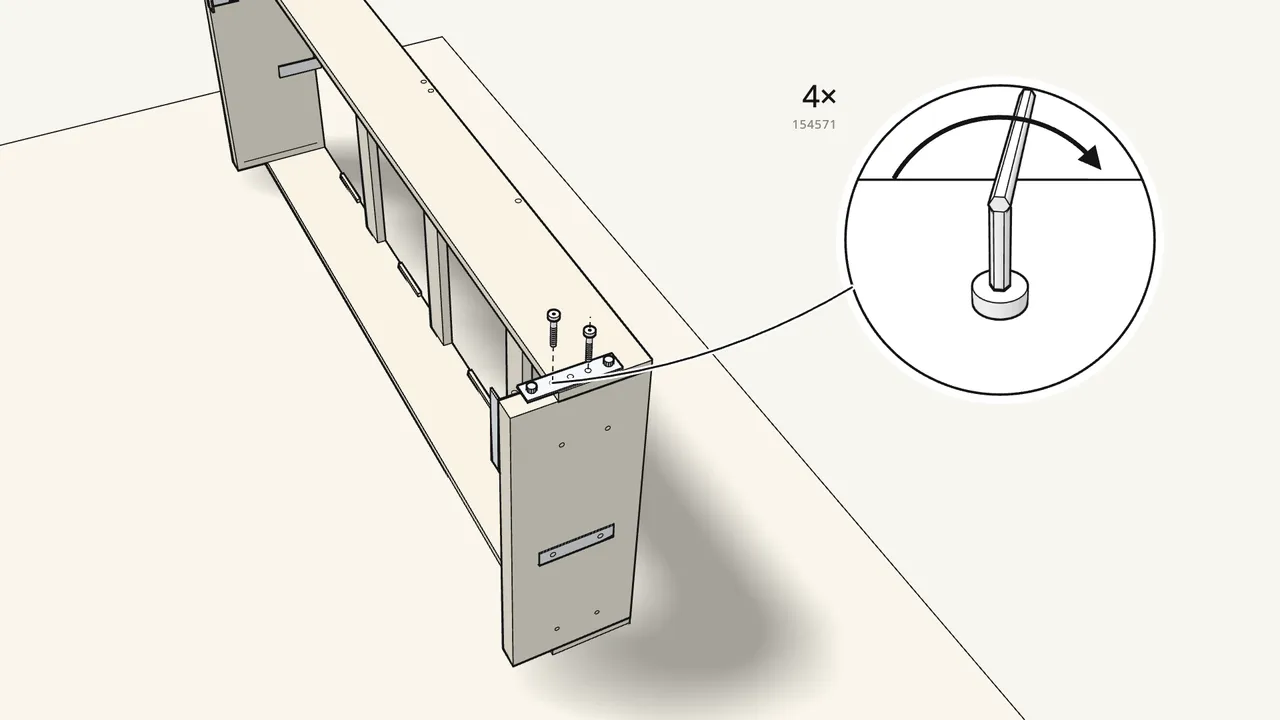

   Screw a plate (152096) and a bracket (152124) to each end.

   2 bolts (154571) each — the long ones. Allen key 152057.

   ▶ Watch this step (0:43)

6.

   Step 6 · manual step 7

   Screw in 2 bolts (105107) by hand — leave a gap under the head.

   ▶ Watch this step (0:50)

7.

   Step 7 · manual step 8

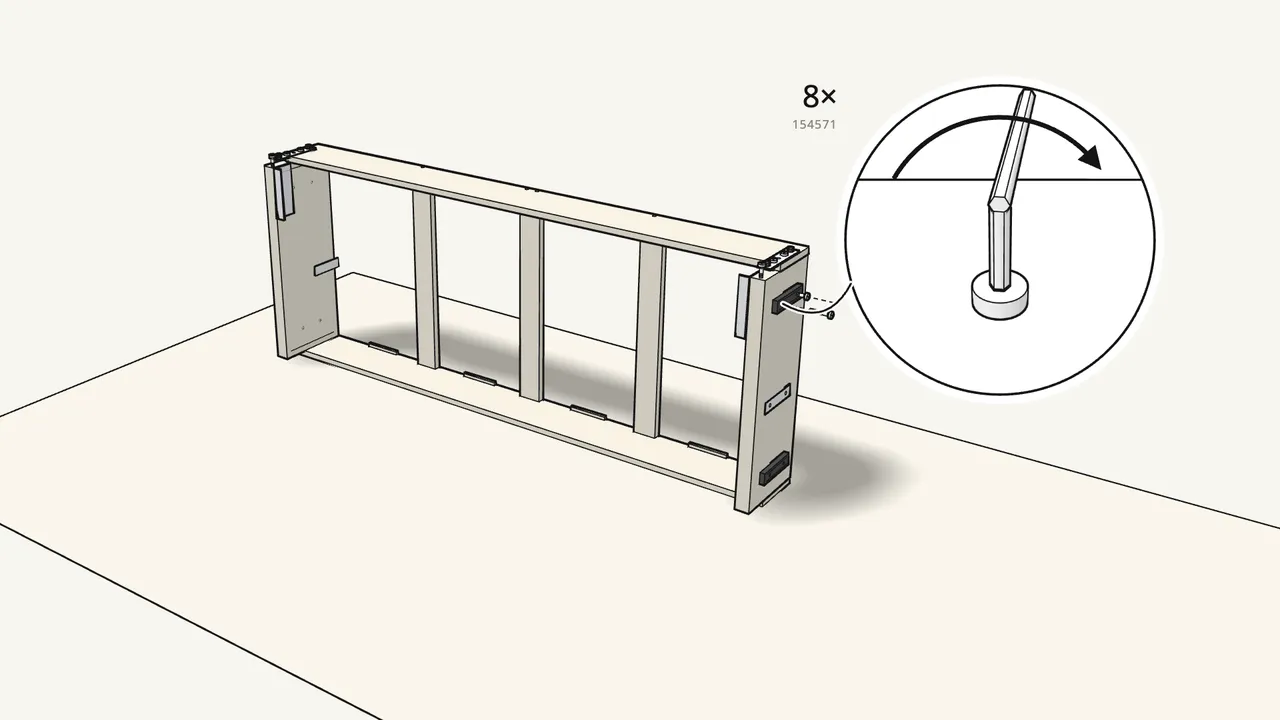

   Fix the 4 fittings (128843) to the end frames.

   2 bolts (154571) each. Wide end as shown in the manual.

   ▶ Watch this step (0:56)

8.

   Step 8 · manual step 9–10

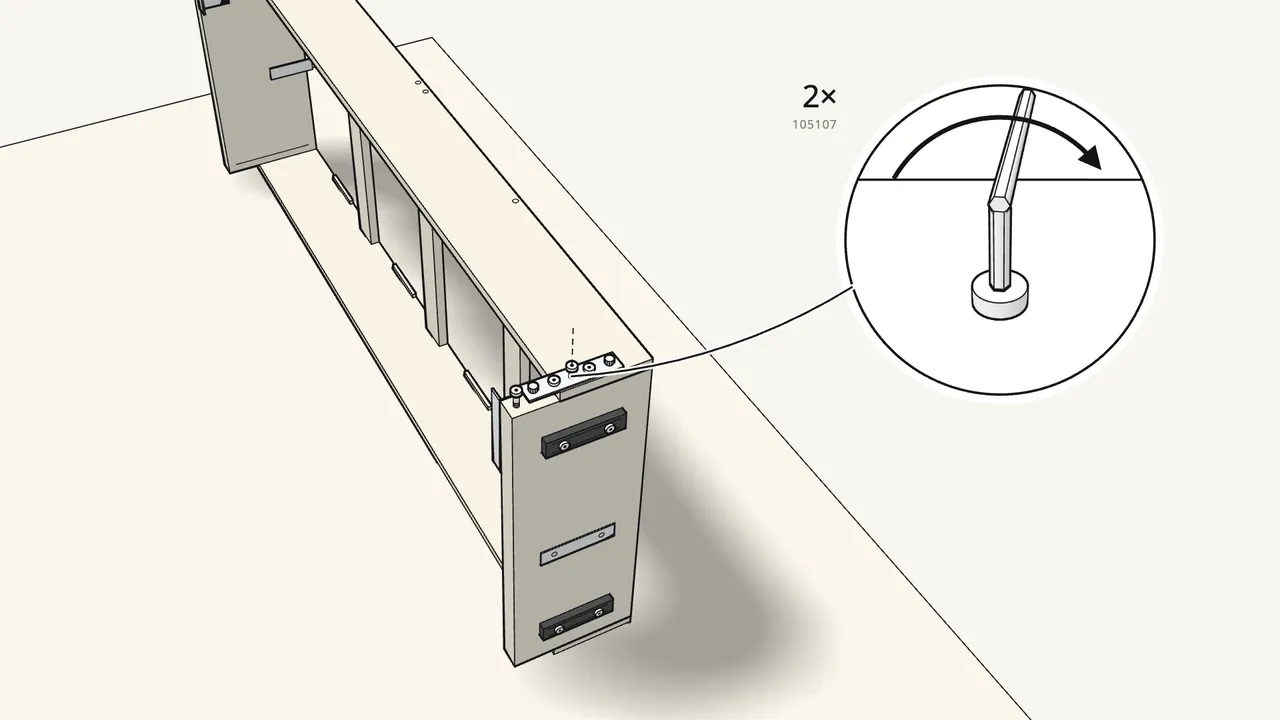

   Screw a bolt (105107) into each plate and tighten.

   Allen key 152057. See the manual, steps 9–10.

   ▶ Watch this step (1:03)

9.

   Step 9 · manual step 11

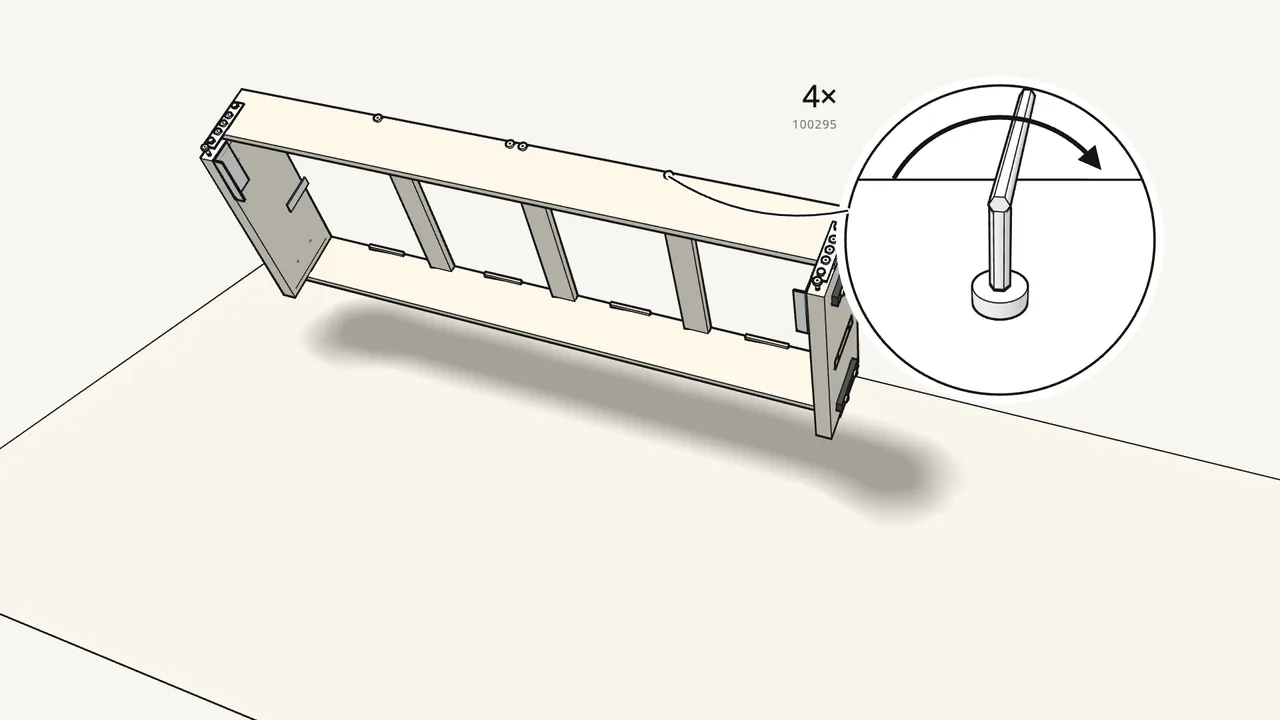

   Screw 4 screws (100295) into the slats, then lay the frame down.

   Allen key 100006. Face down, as in the small picture.

   ▶ Watch this step (1:09)

10.

    Step 10 · manual step 12

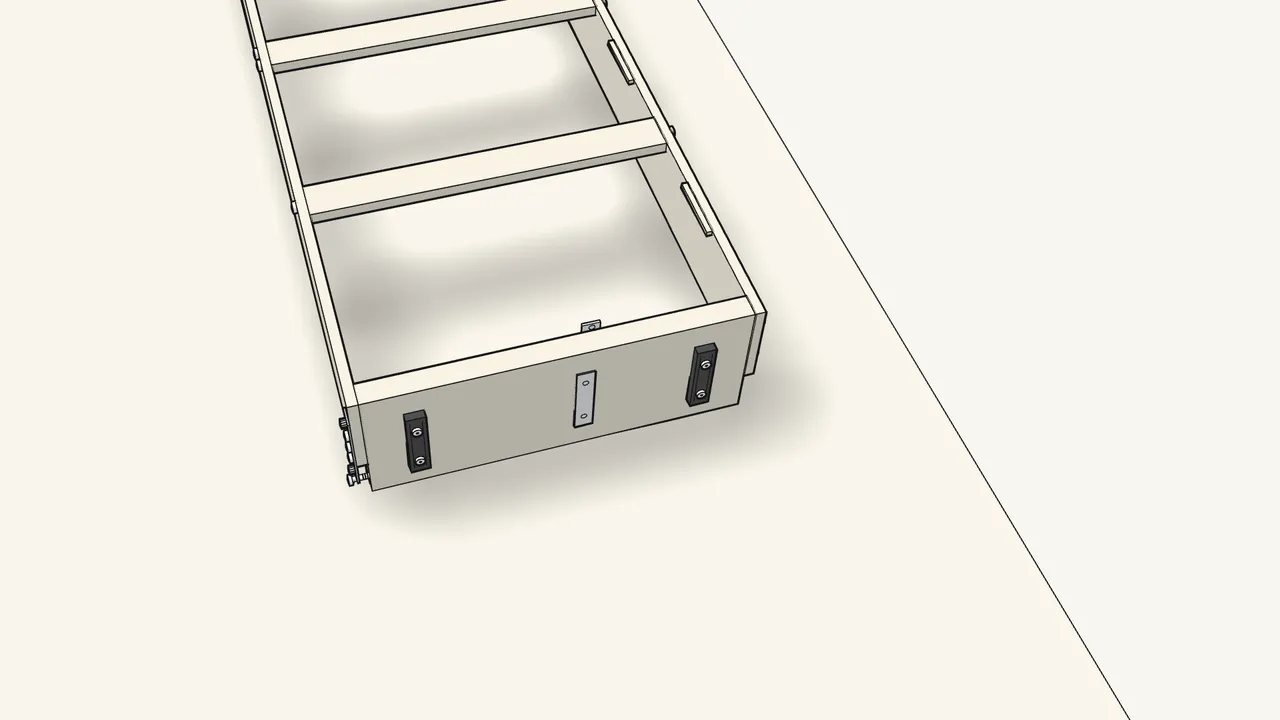

    Cut off the 2 transport ties and throw them away.

    ▶ Watch this step (1:17)

11.

    Step 11 · manual step 13

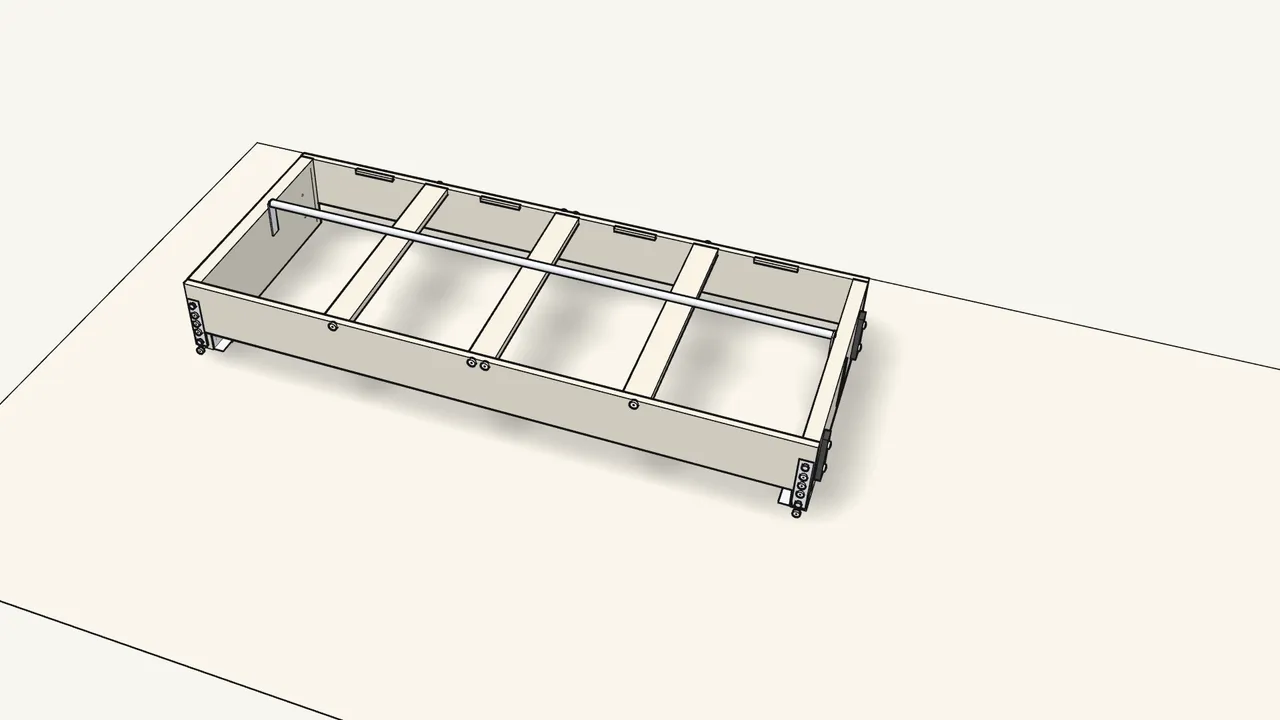

    Lay the long bar into the mechanism at both ends.

    ▶ Watch this step (1:22)

12.

    Step 12 · manual step 14

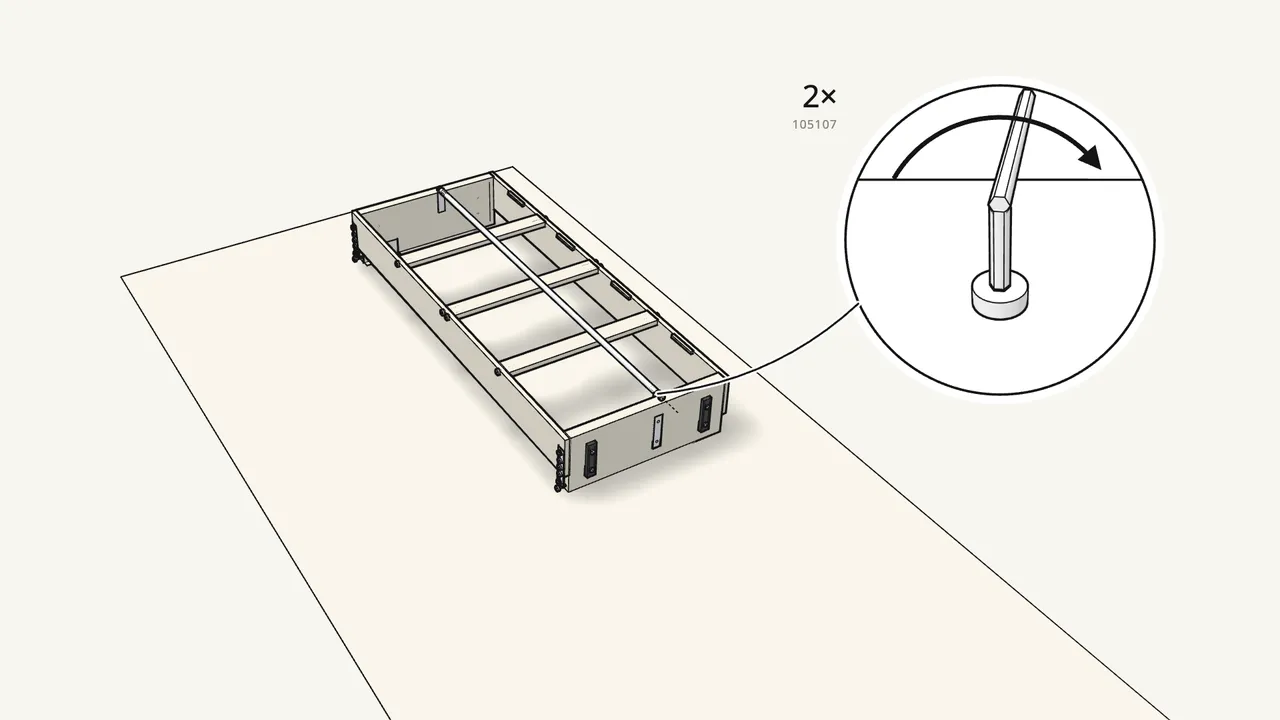

    Fix the bar at each end with a bolt (105107).

    Allen key 152057.

    ▶ Watch this step (1:28)

13.

    Step 13 · manual step 15

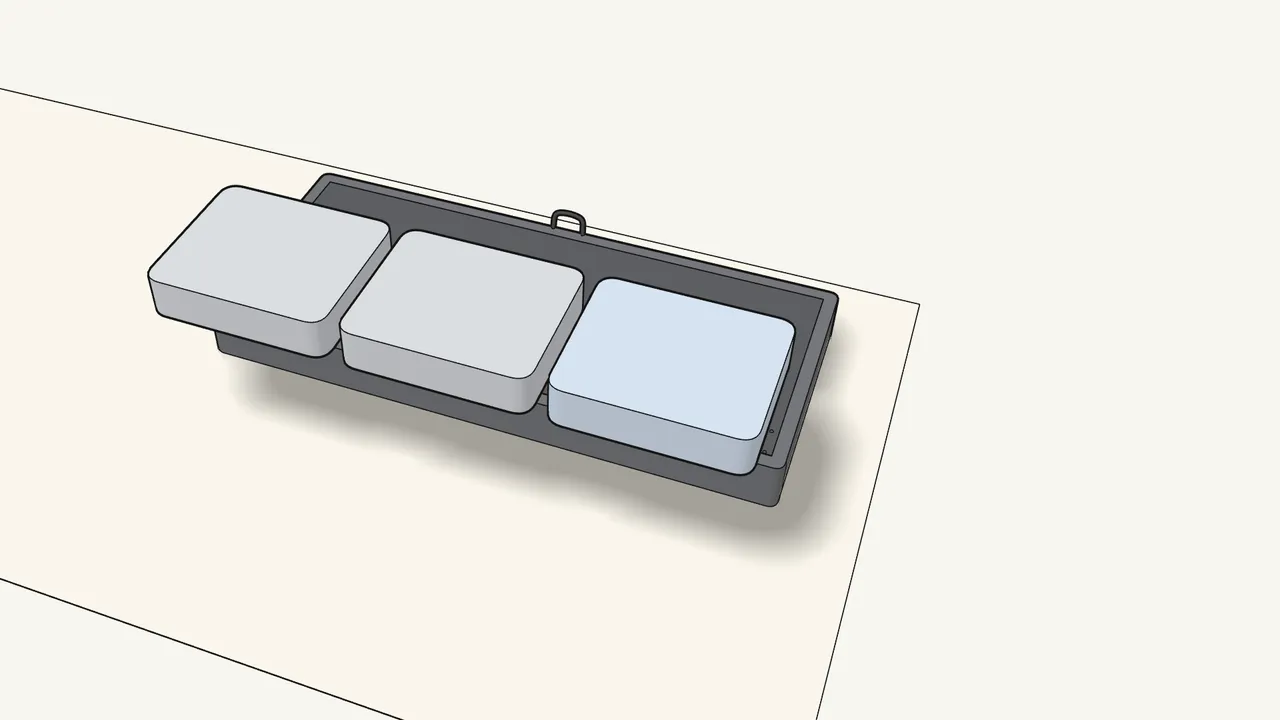

    Turn the seat upside down and take out the packed parts.

    ▶ Watch this step (1:33)

14.

    Step 14 · manual step 16–17

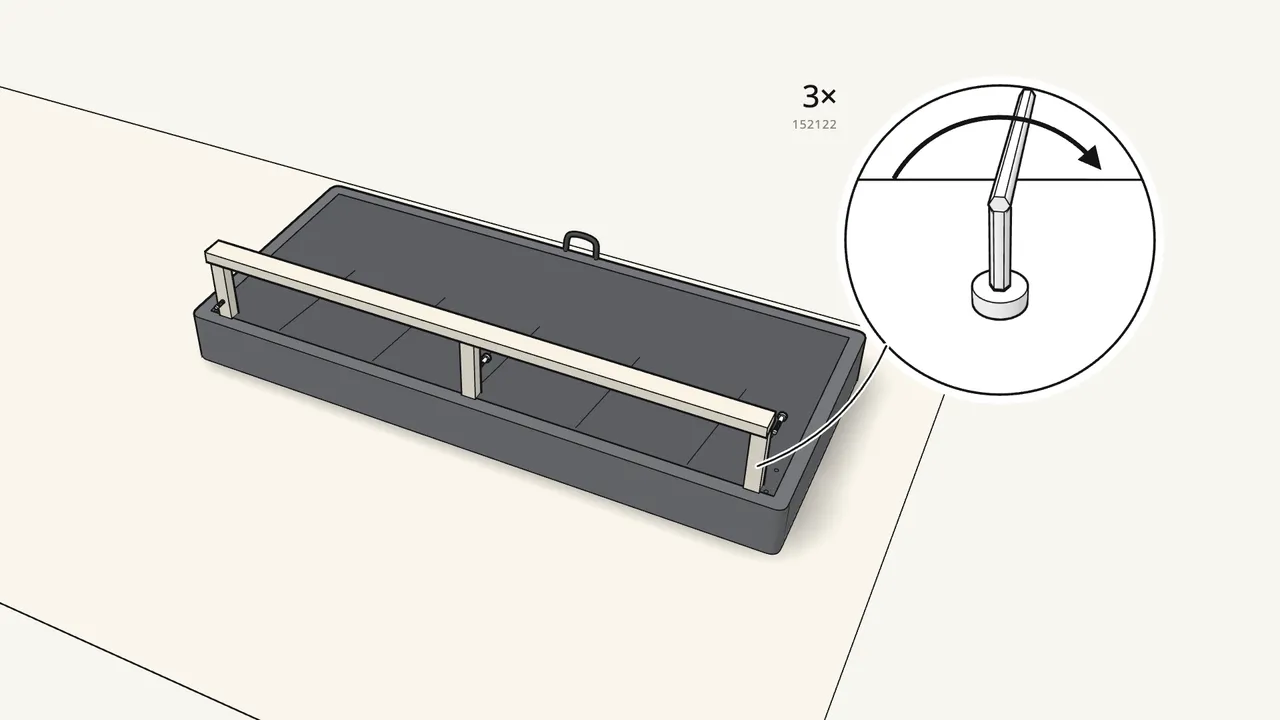

    Place the back brace on the seat and fix it with 3 bolts (152122).

    Allen key 152056.

    ▶ Watch this step (1:39)

15.

    Step 15 · manual step 18

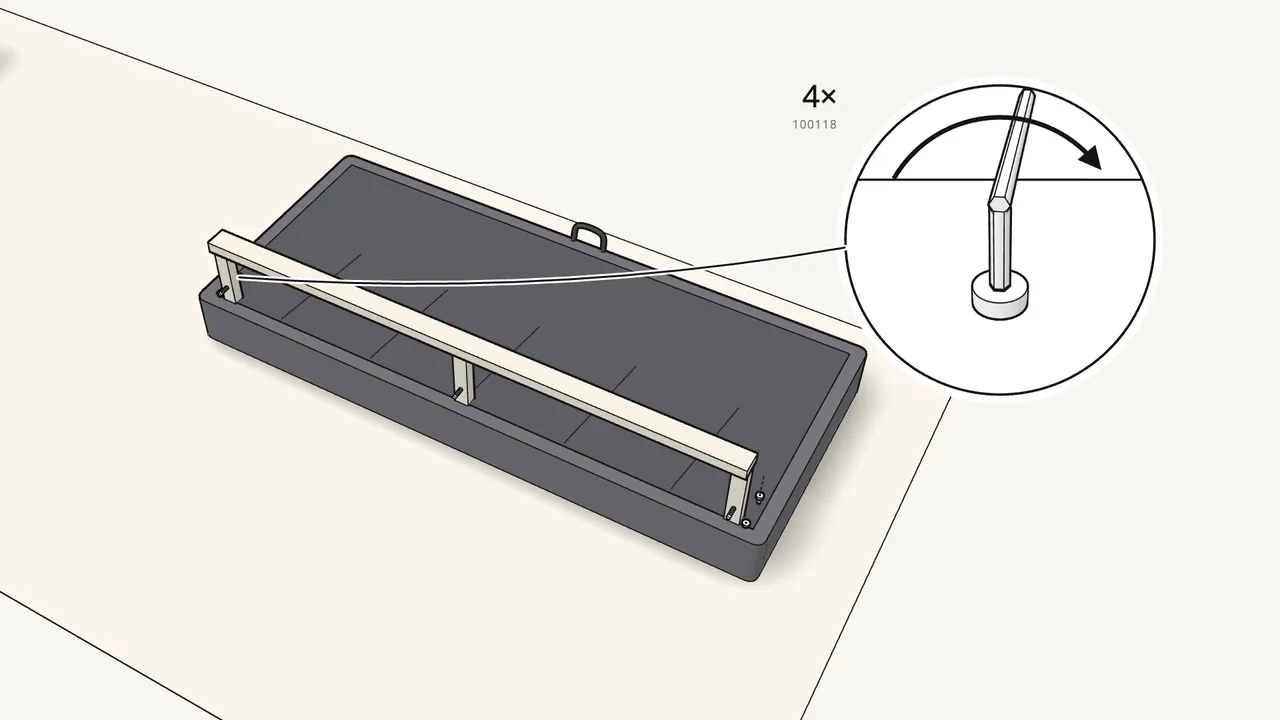

    Screw in 4 bolts (100118) by hand — leave a gap under the head.

    ▶ Watch this step (1:46)

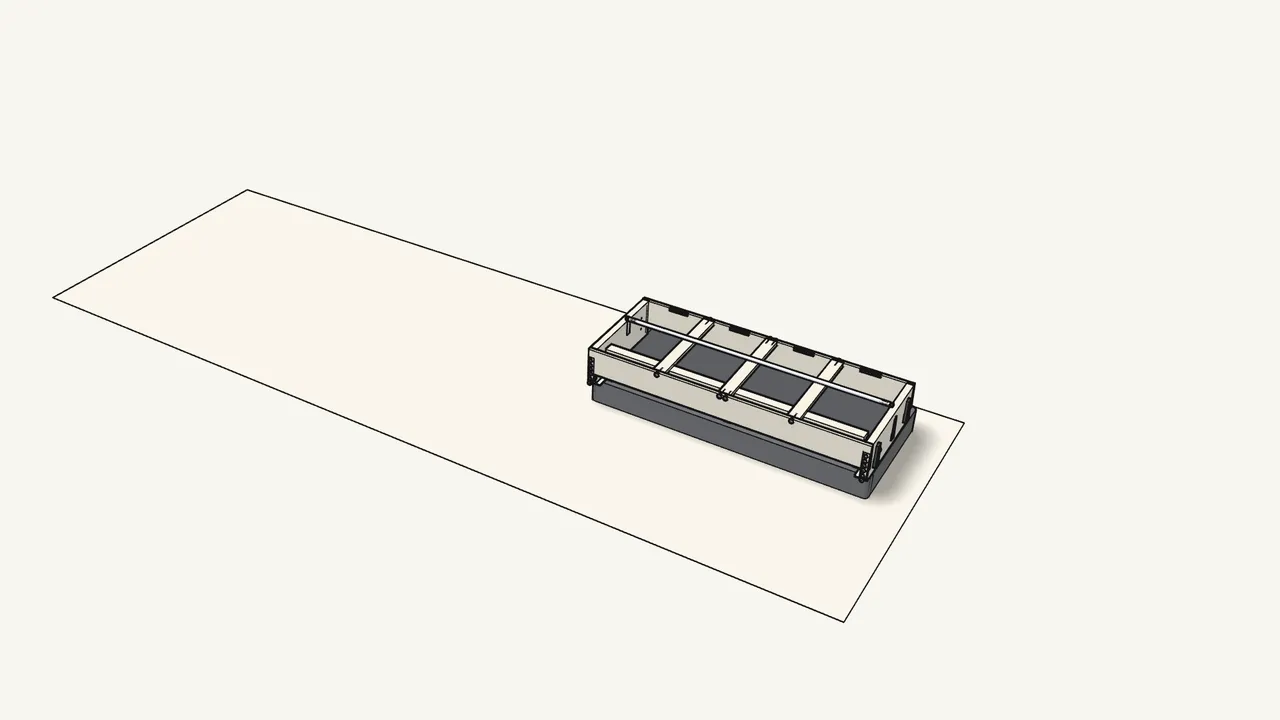

16.

    Step 16 · manual step 19

    Lower the frame onto the seat — 2 people.

    The keyholes of the 2 brackets go over the bolt heads.

    ▶ Watch this step (1:51)

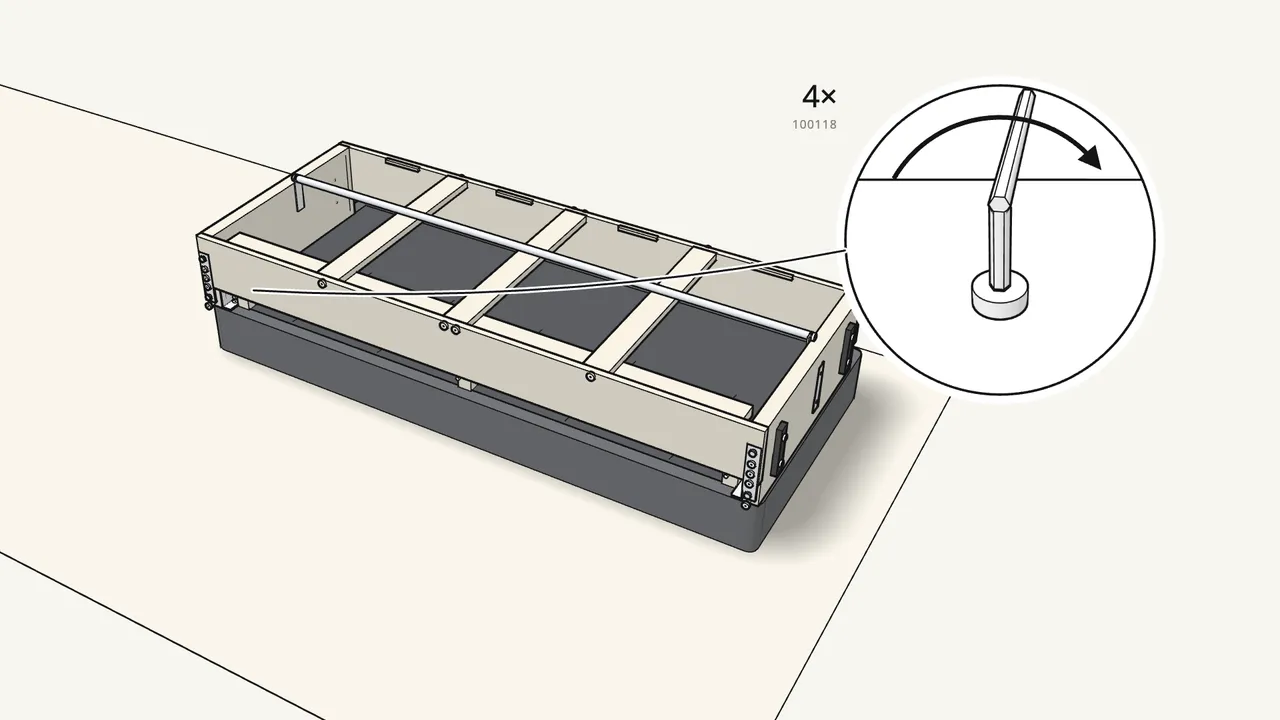

17.

    Step 17 · manual step 20–21

    Slide the frame to lock the 4 bolts, then tighten them.

    Allen key 152056.

    ▶ Watch this step (1:58)

18.

    Step 18 · manual step 22

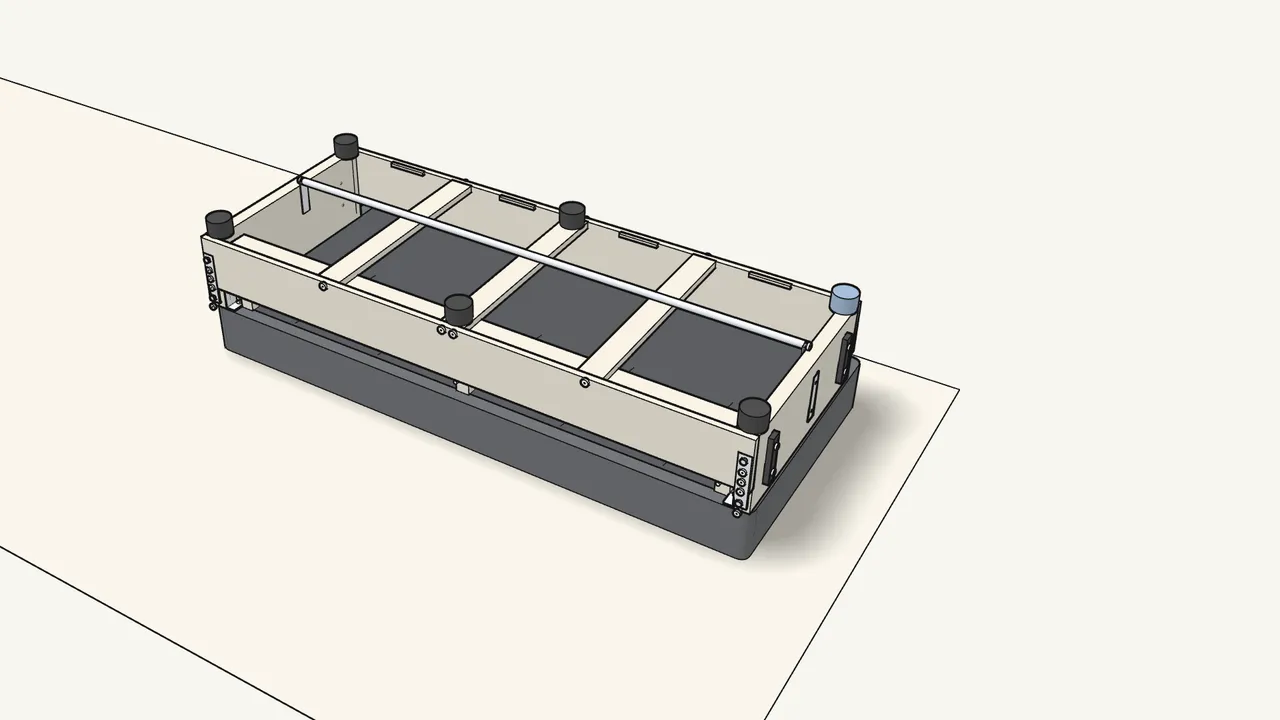

    Screw in the 6 legs (141454) by hand.

    ▶ Watch this step (2:05)

19.

    Step 19 · manual step 23

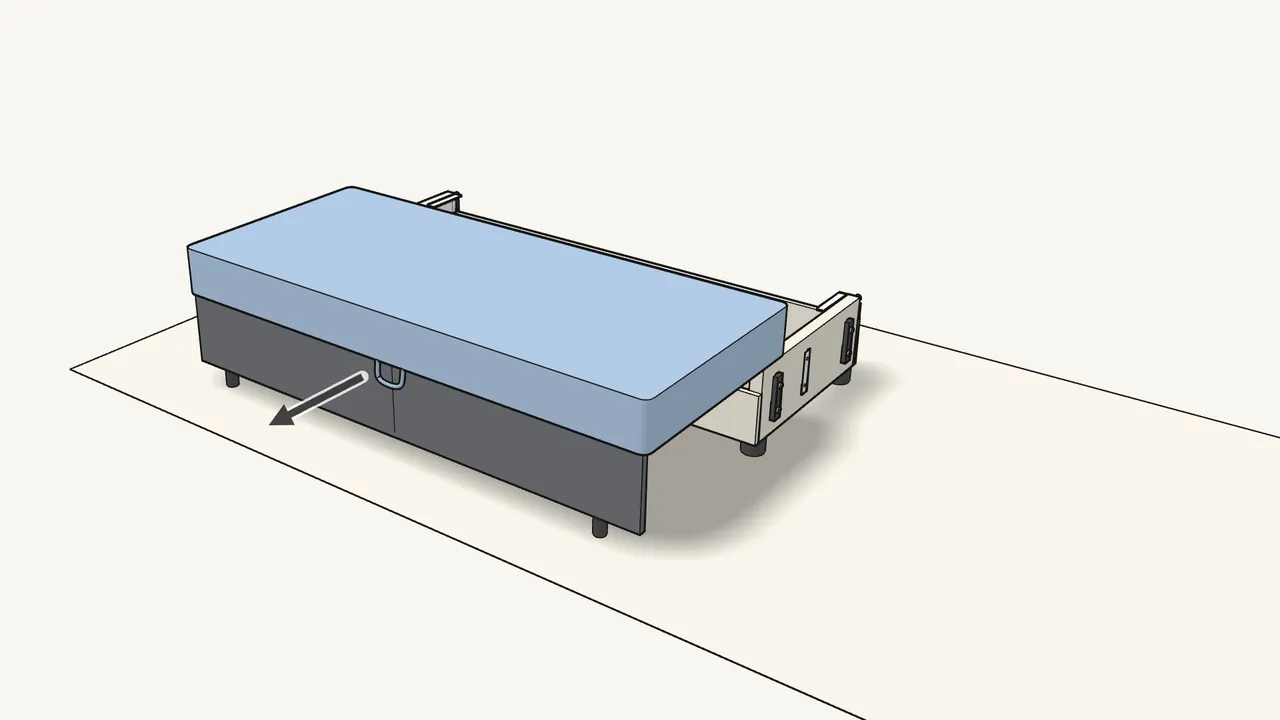

    Turn the sofa over (2 people) and pull the seat out by the strap.

    ▶ Watch this step (2:11)

20.

    Step 20 · manual step 24–25

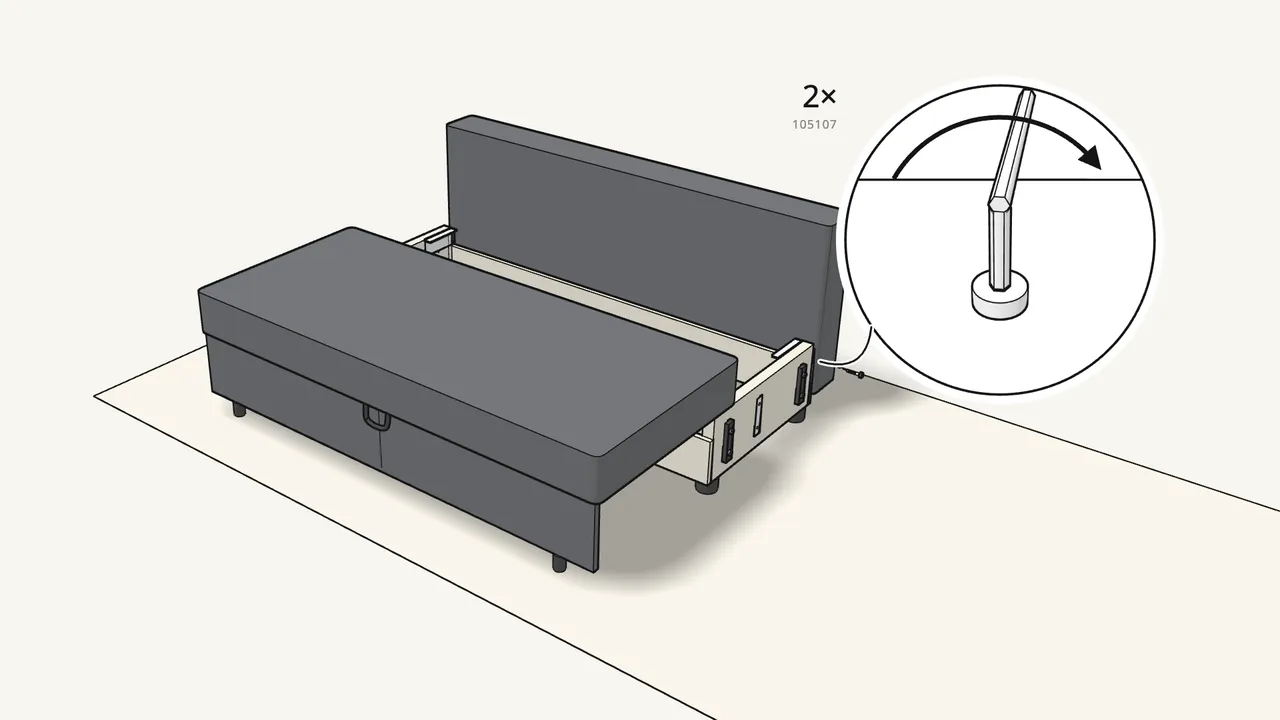

    Hang the backrest on the frame, then fix it with 2 bolts (105107).

    The manual does this with the backrest folded down.

    ▶ Watch this step (2:20)

21.

    Step 21 · manual step 26

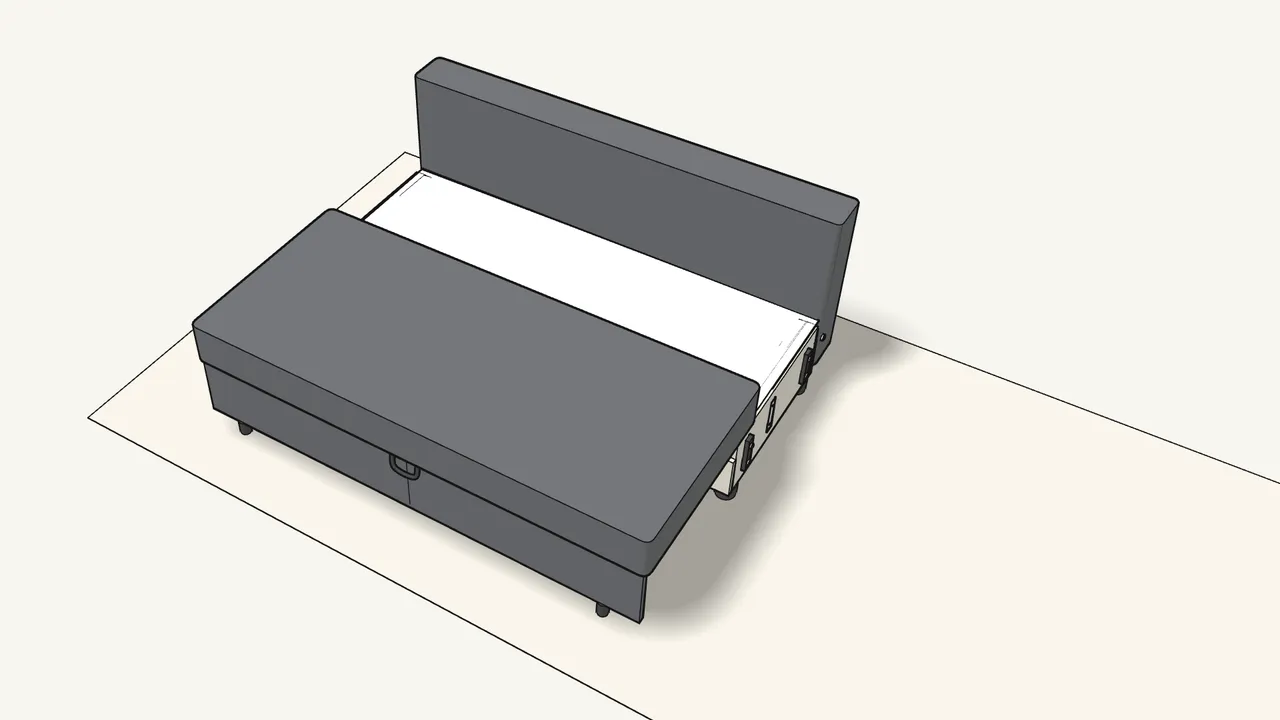

    Lay the board in behind the seat, white side up.

    Slide its back edge under the strip, as in the manual.

    ▶ Watch this step (2:28)

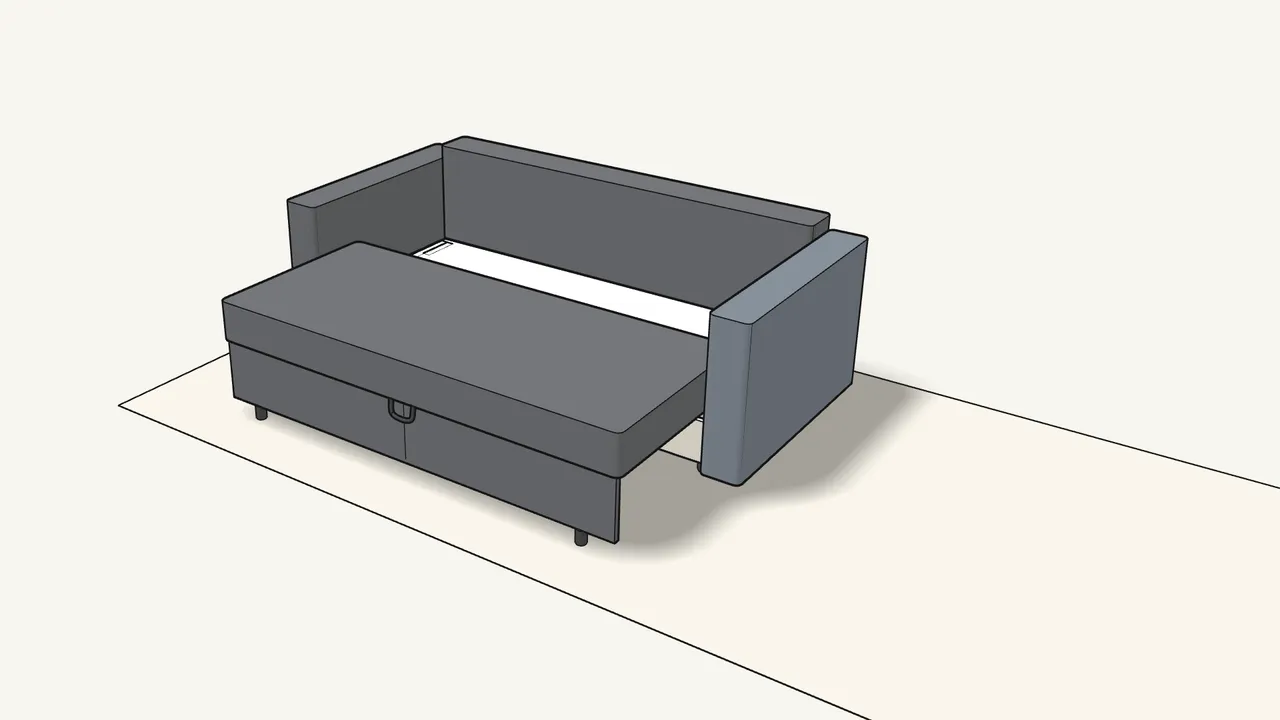

22.

    Step 22 · manual step 27

    Slide the armrests down onto the 4 fittings (128843).

    Keep them upright — do not tilt them on.

    ▶ Watch this step (2:34)

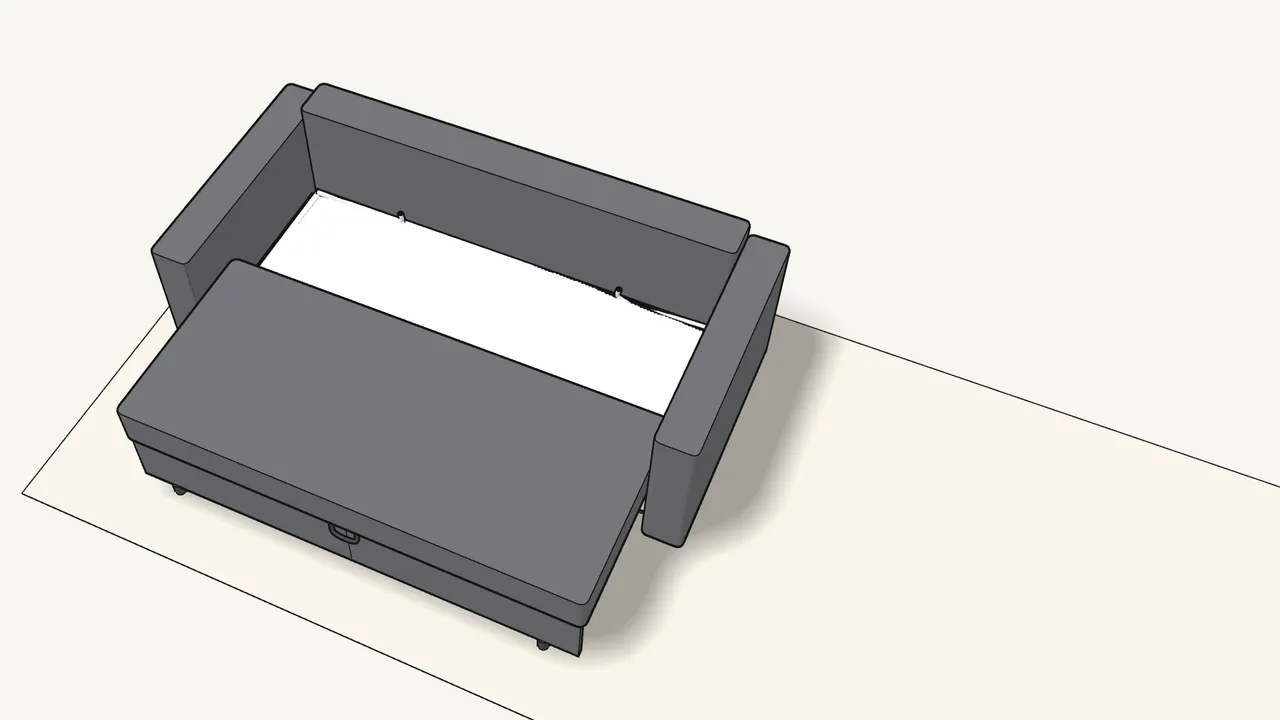

23.

    Step 23 · manual step 28

    Fit the 2 rods at the back, one at each end.

    See the manual, step 28, for where the rods hook in.

    ▶ Watch this step (2:41)

24.

    Step 24 · manual step 28

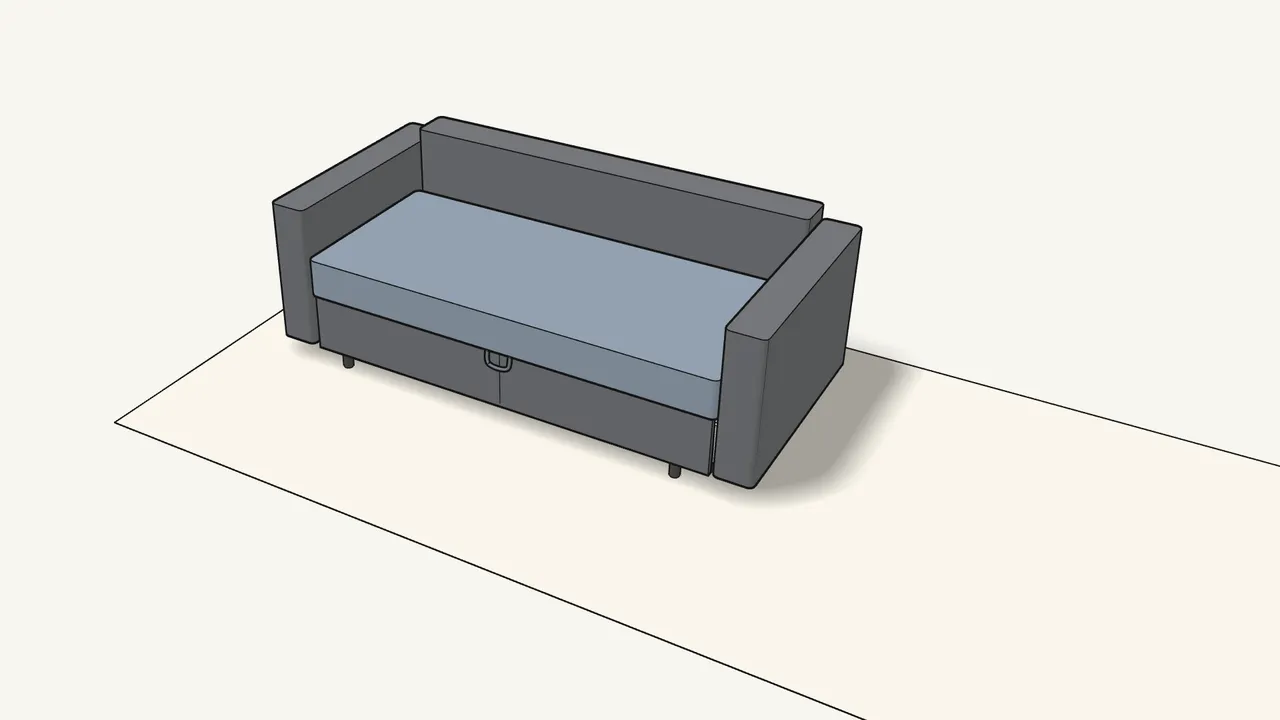

    Then push the seat back in.

    ▶ Watch this step (2:47)

25.

    Step 25 · manual step 29

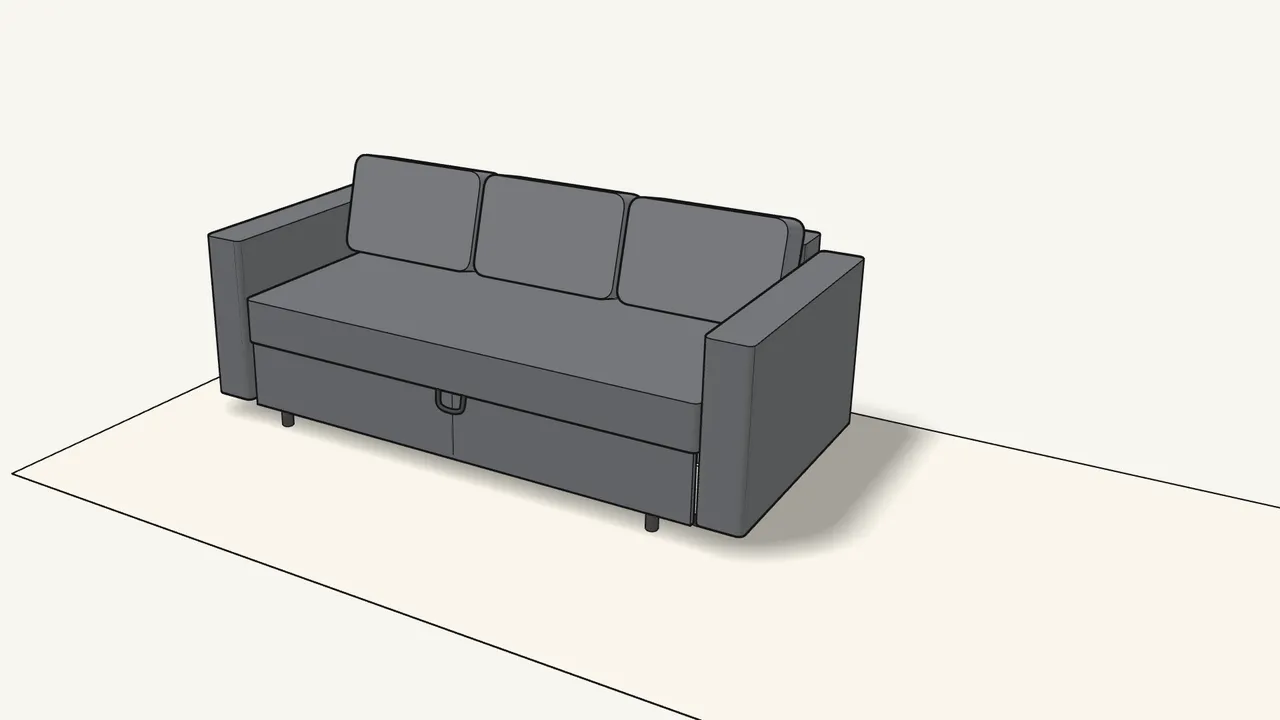

    Put the covers on the 3 back cushions and place them.

    ▶ Watch this step (2:52)
