How to Assemble IKEA ALEFJÄLL Office Chair
Step-by-step IKEA ALEFJÄLL office chair assembly: 16 illustrated steps, an animated video, the hardware list and the tools you need — following the official instructions (AA-2023992-10).
- 16 illustrated steps
- 14 steps in the manual
- 2:30 video
- 64×66×95 cm
What you need
Tools
- Allen key (included)
You’ll need: only the two Allen keys (124345 and 100092), included. A table helps in steps 12–13.
Hardware in the box
| Part no. (as printed in the manual) | Qty |
|---|---|
| 100130 | 4× |
| 128633 | 8× |
| 122898 | 10× |
Step-by-step assembly
Step 1

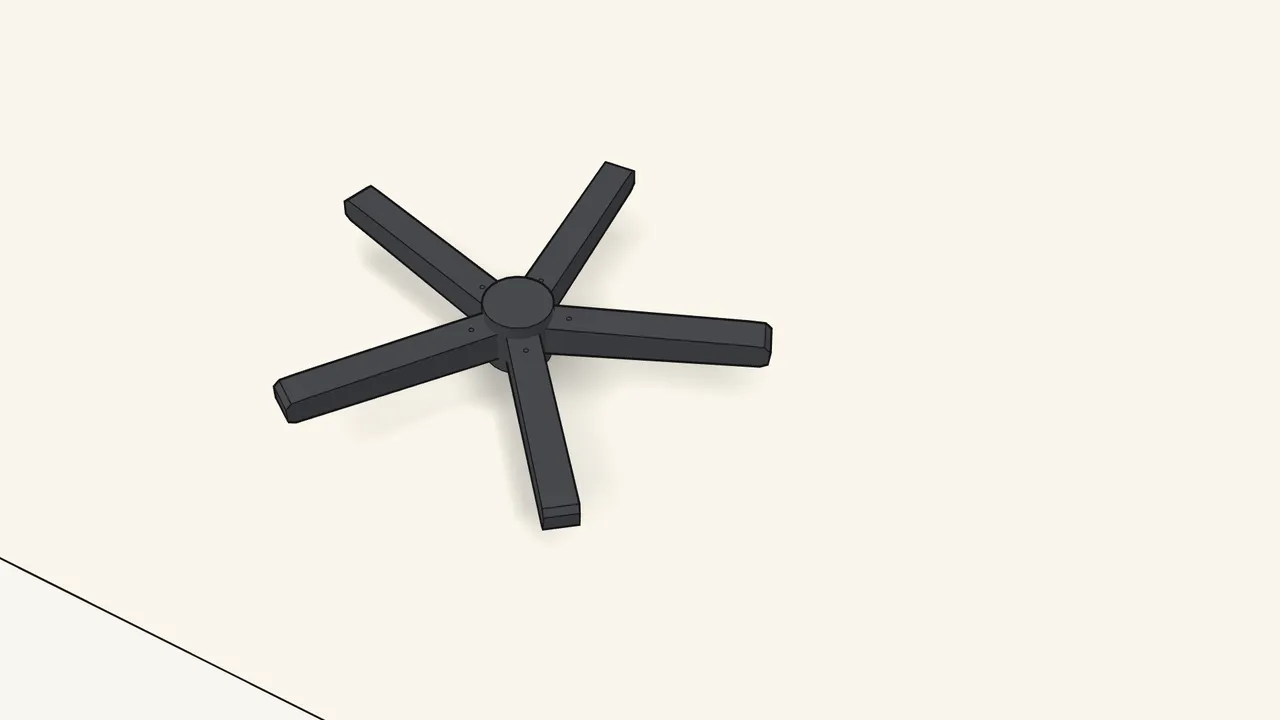

Lay the base upside down and slide the loose leg into the hub.
Work on a rug or the box to avoid scratches.
Step 2

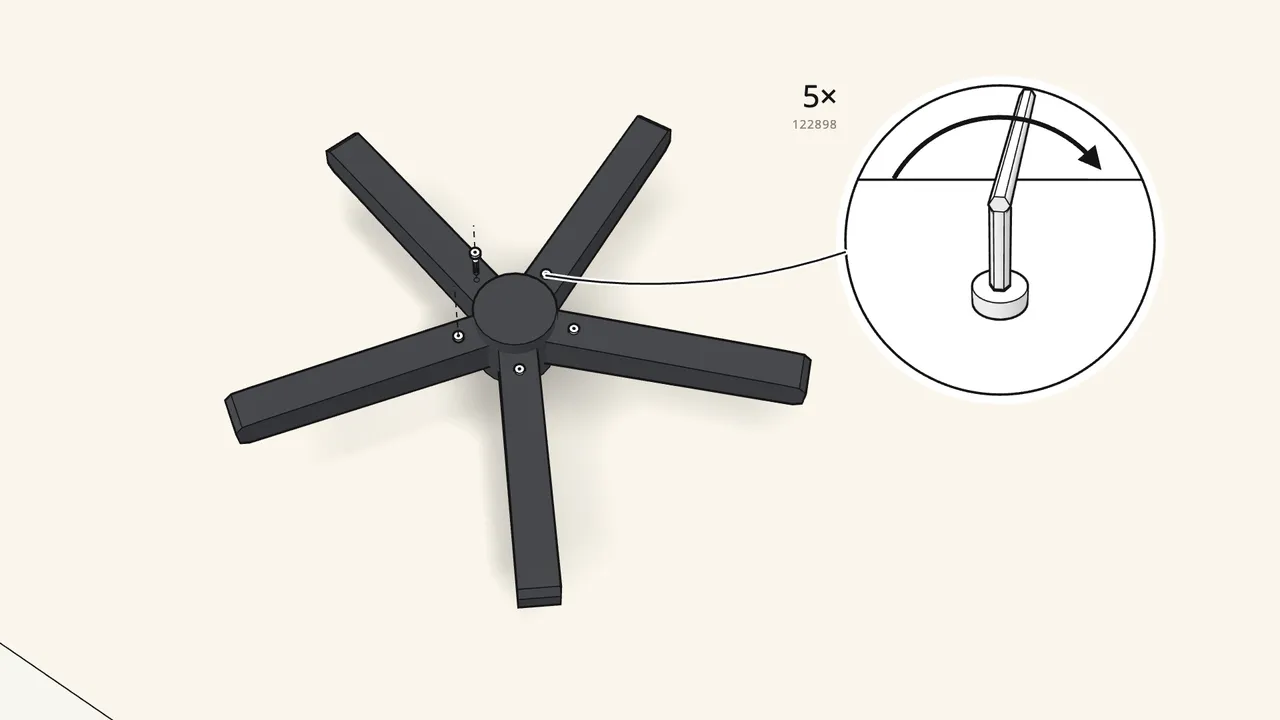

Fix the base with 5 short bolts (122898) and the Allen key.
Use the 122898 bolts here — not 128633.

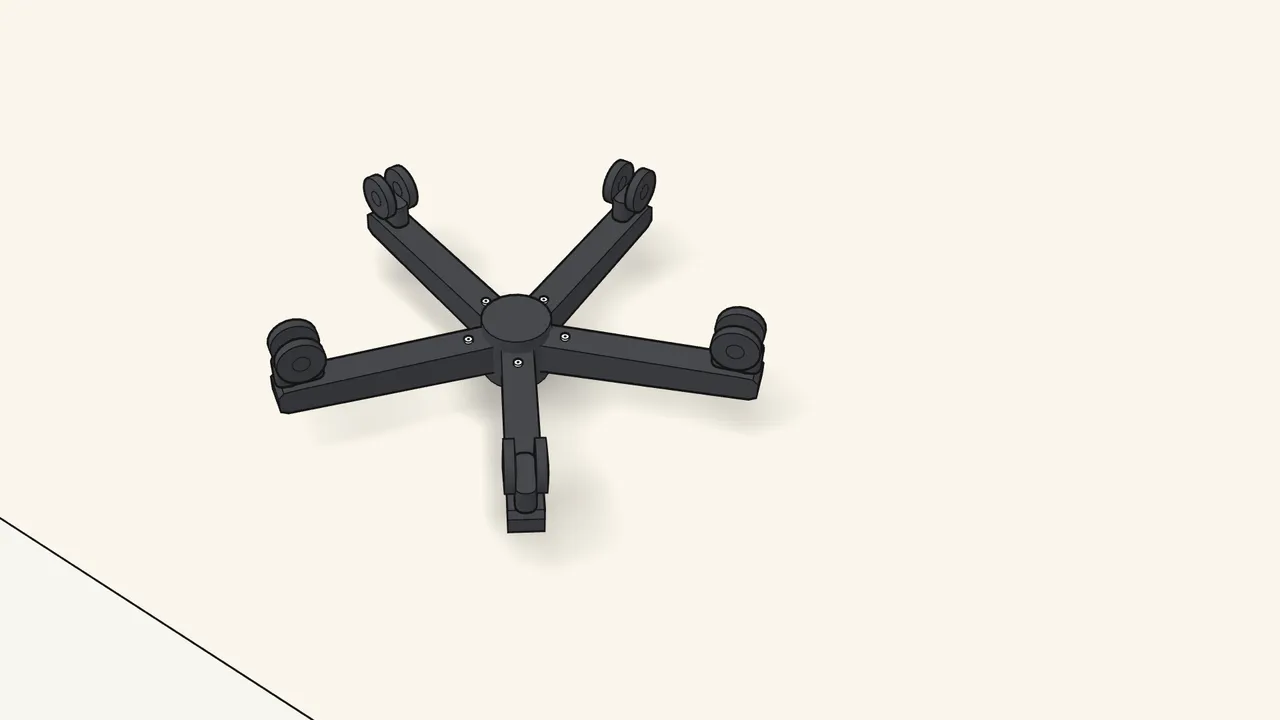

Step 3
Press the 5 casters (10048929) into the ends of the legs.
Push each one straight in — not at an angle.

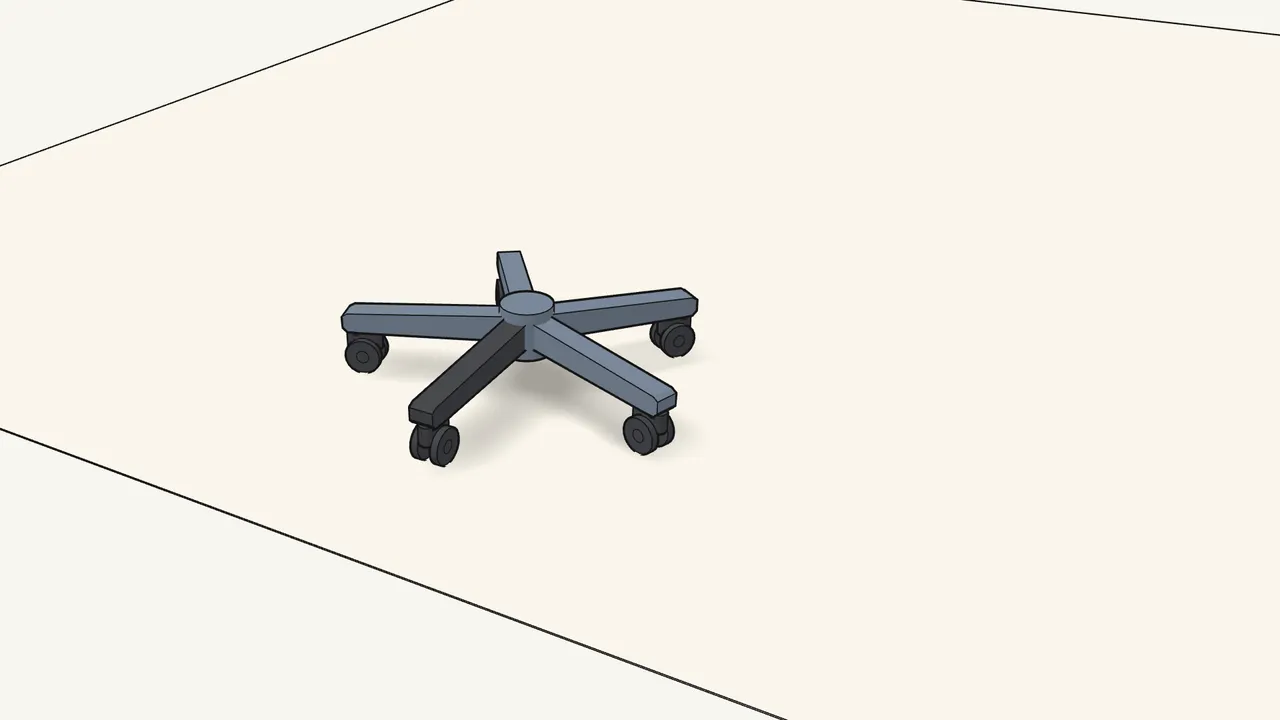

Step 4
Turn the base over onto its casters.

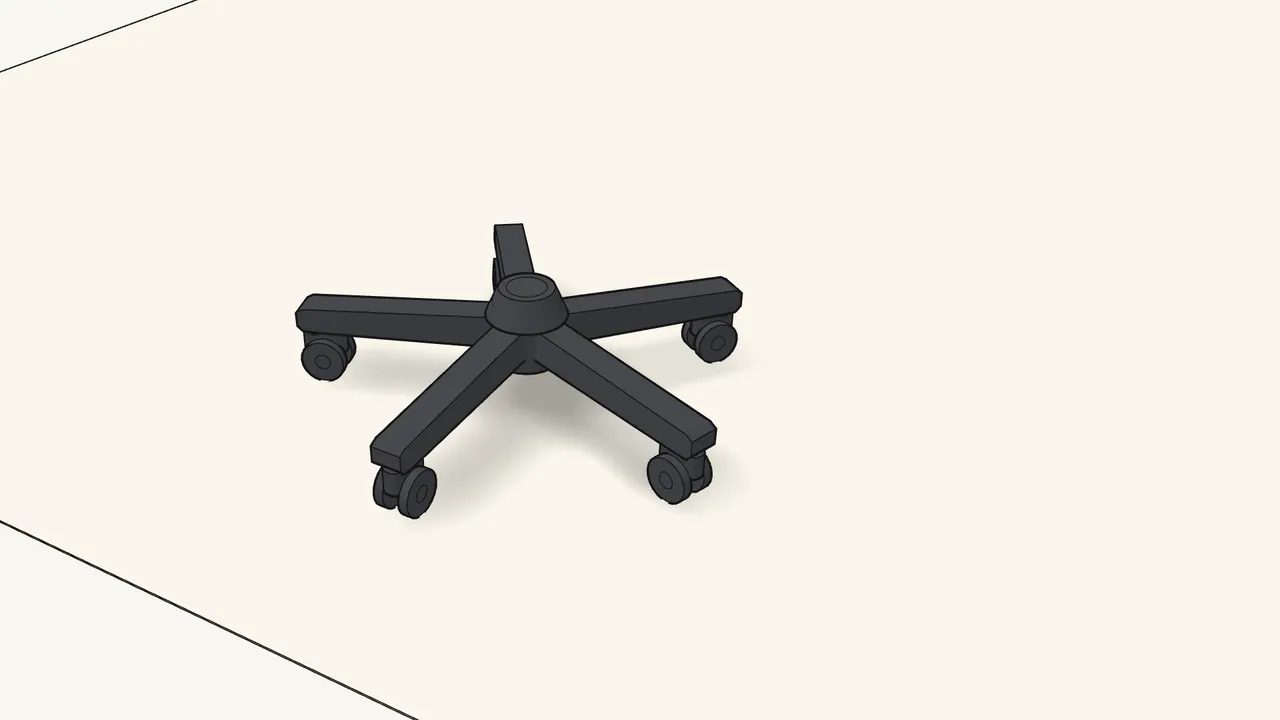

Step 5 · manual step 4
Press the cover down onto the centre of the base.

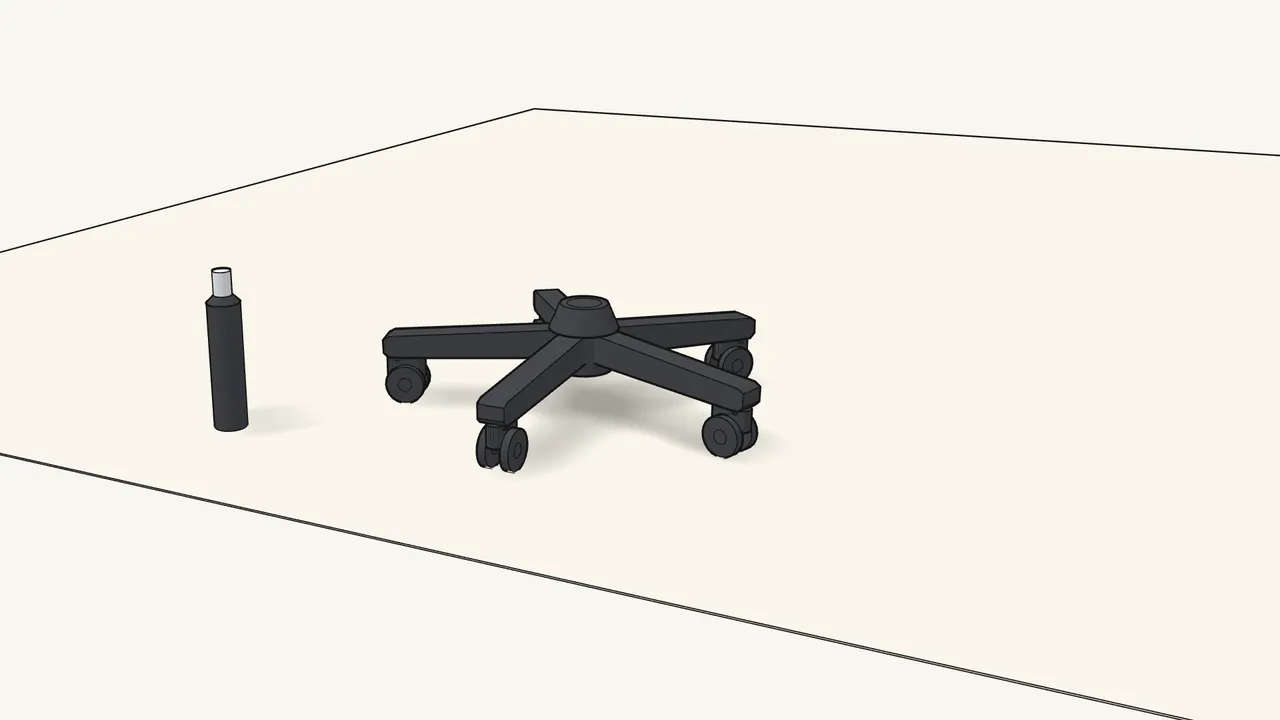

Step 6 · manual step 5
Pull the protective cap off the gas cylinder.
Recycle the cap.
Step 7 · manual step 6

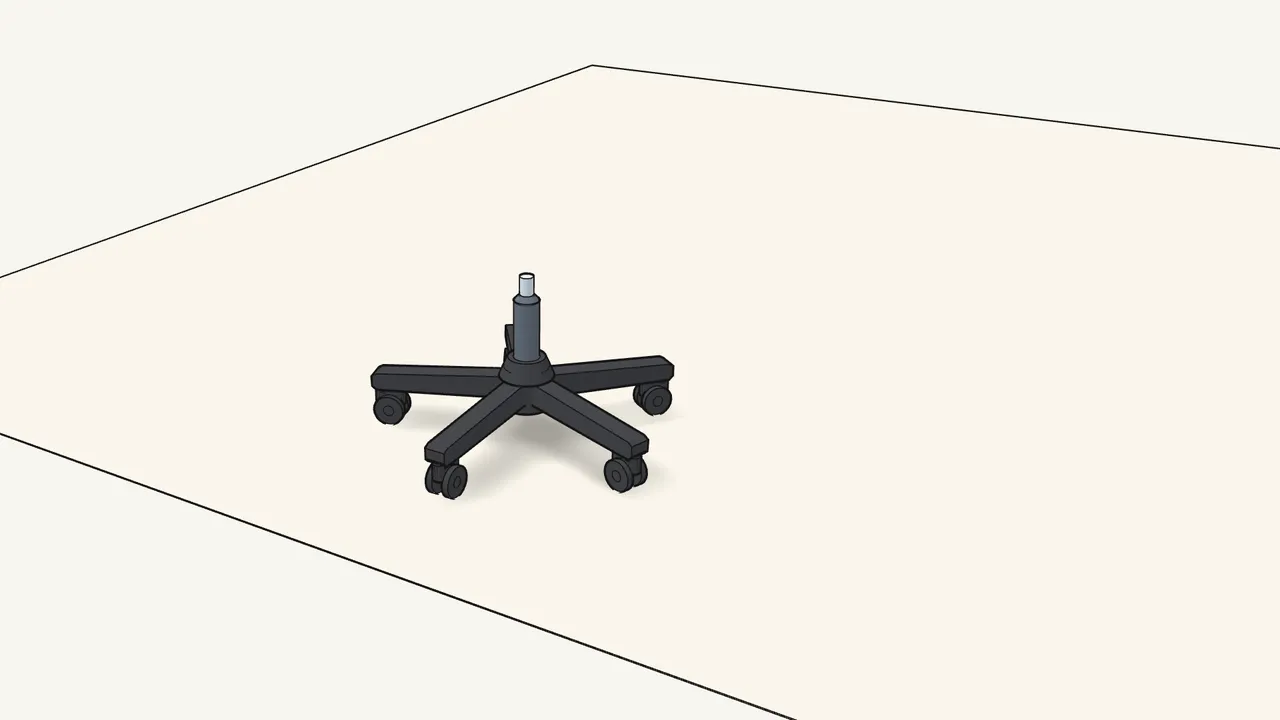

Put the gas cylinder into the hole in the centre of the base.

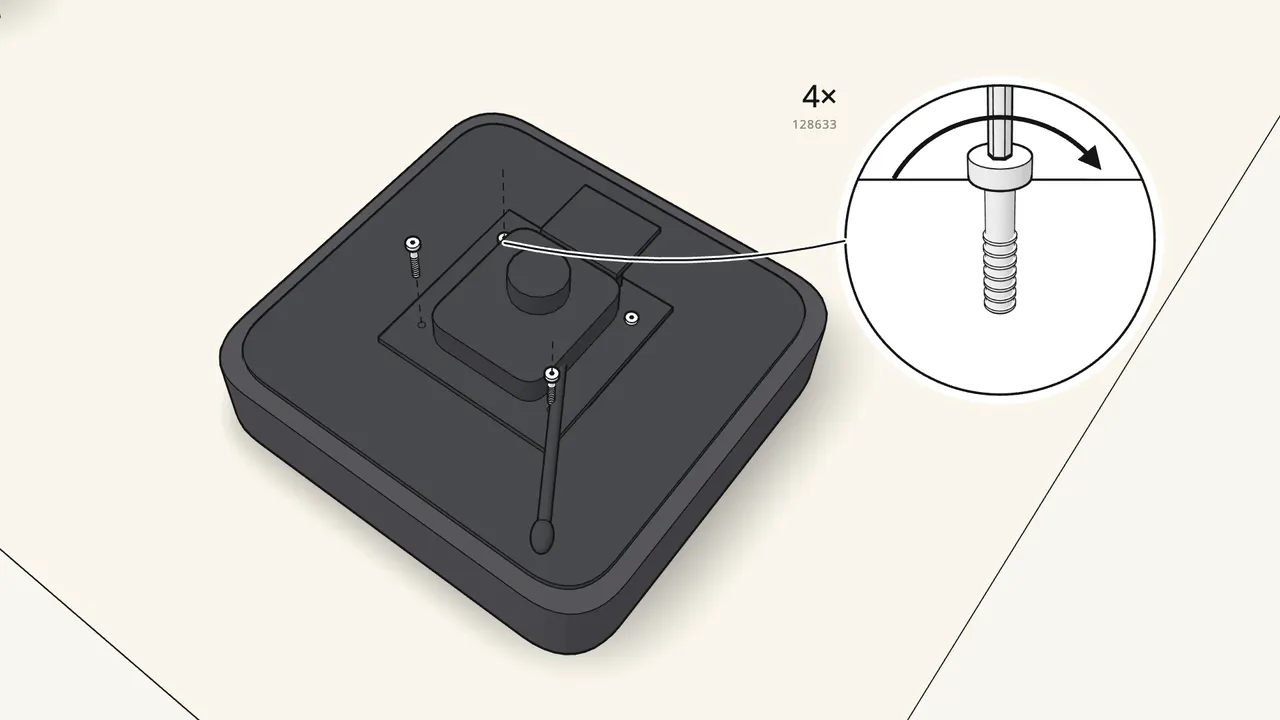

Step 8 · manual step 7
Lay the seat upside down and place the mechanism on it.
Insert 4 bolts (128633) by hand.

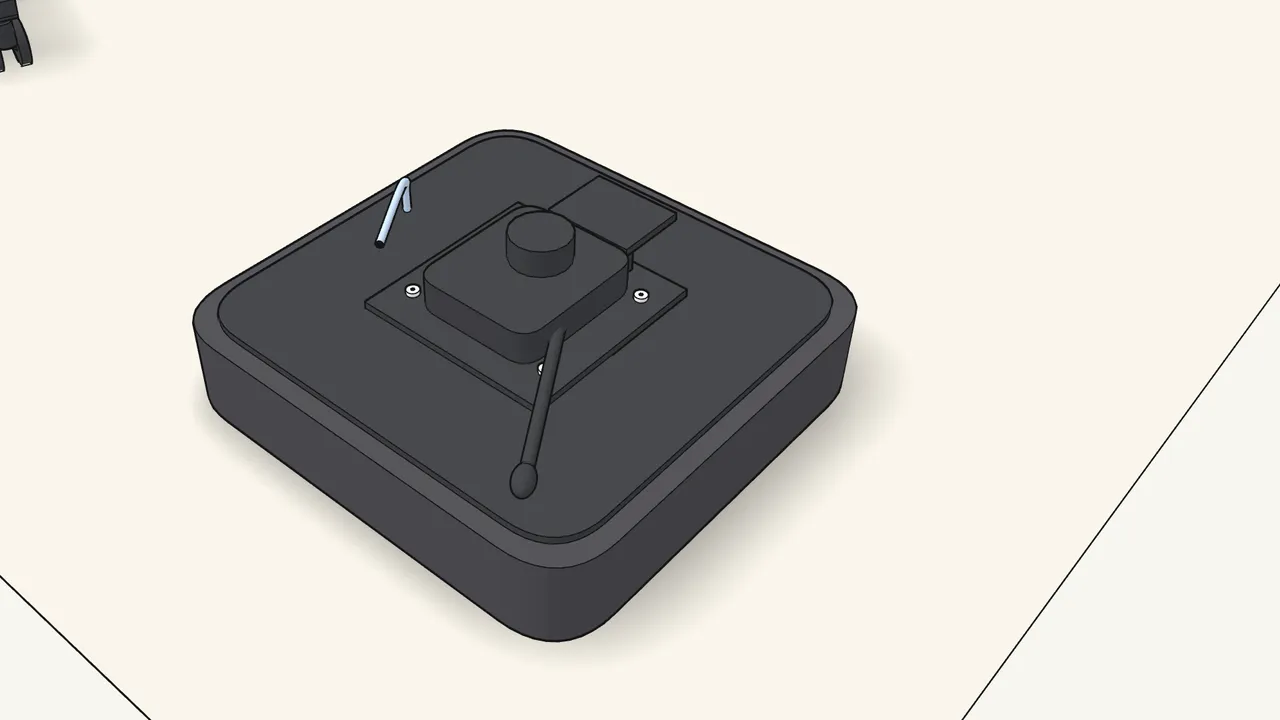

Step 9 · manual step 8
Tighten the 4 bolts with the Allen key (124345).
Step 10 · manual step 9

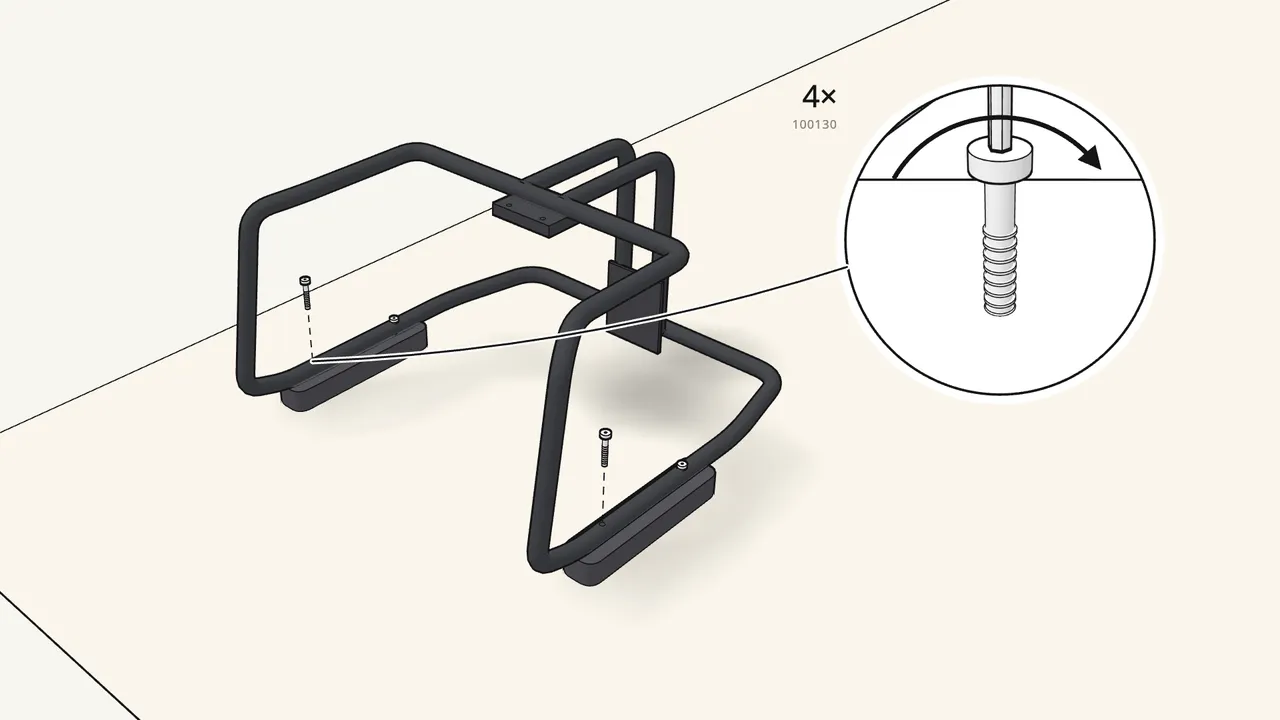

Place the frame upside down on the armrests.
Fix each armrest with 2 bolts (100130) and the Allen key (100092).

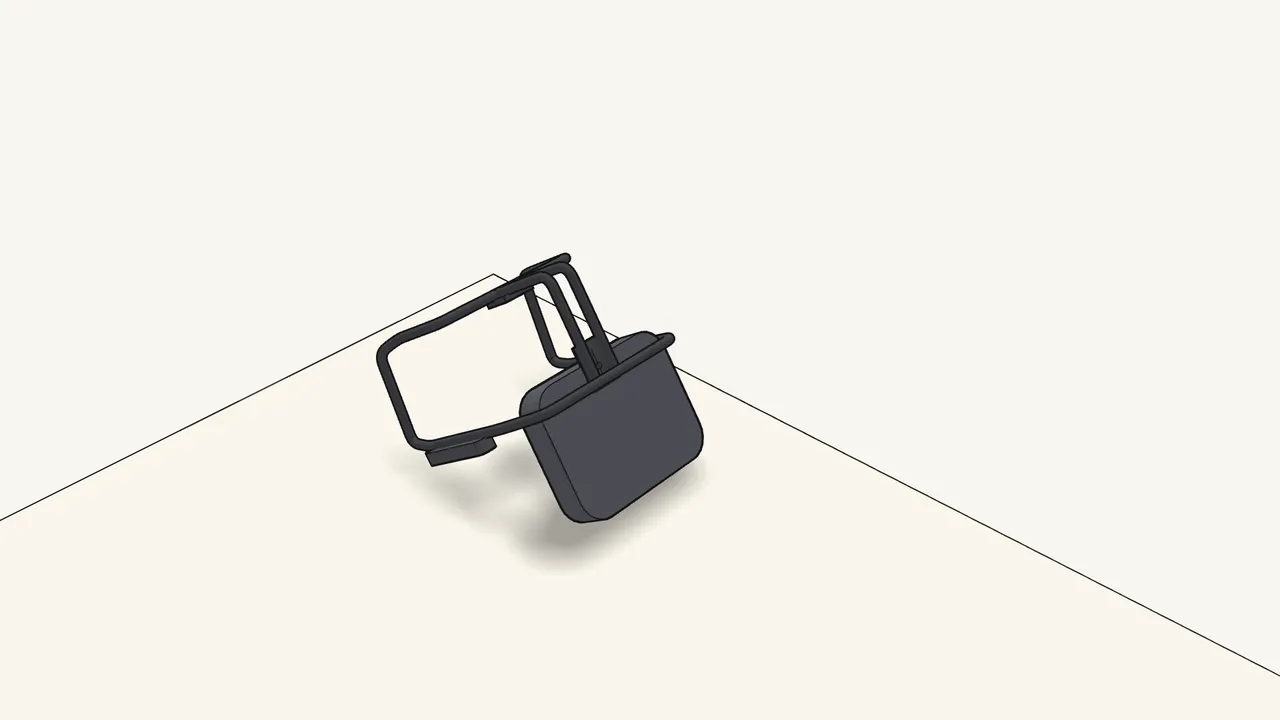

Step 11 · manual step 10
Tip the frame over and slide it onto the backrest.
The plate on the frame slides into the back of the backrest.
Step 12 · manual step 11

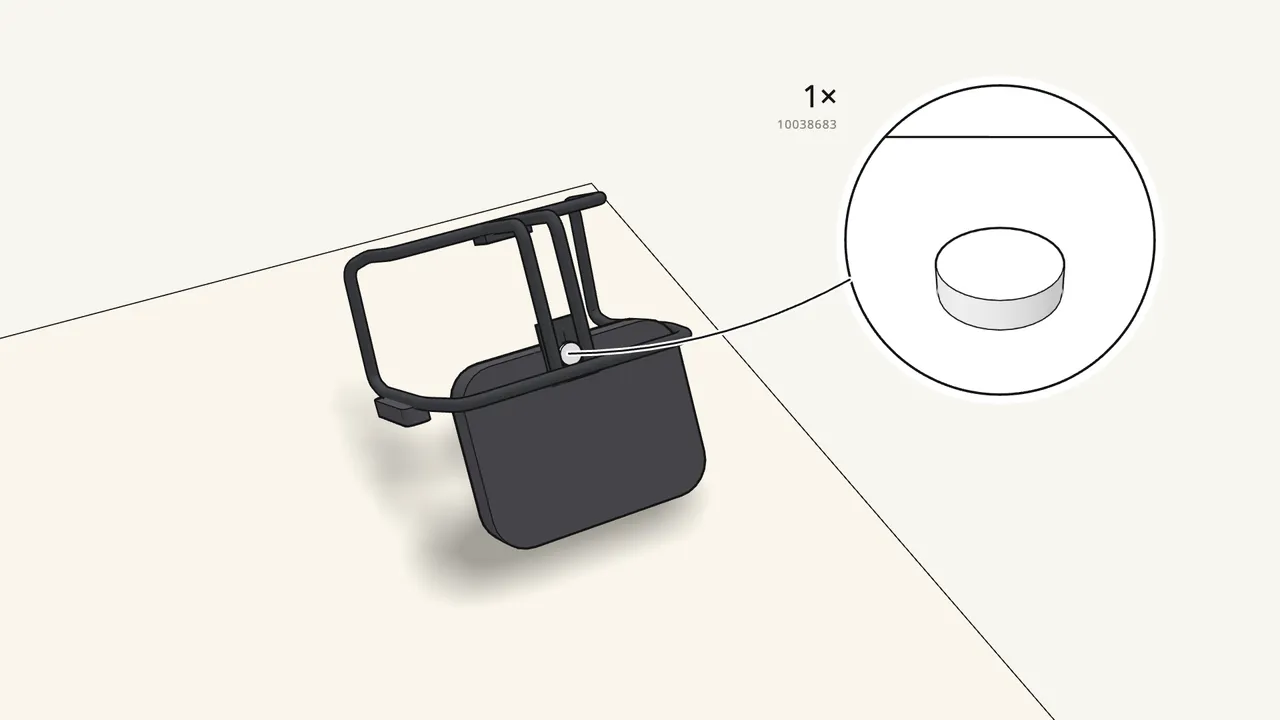

Screw the knob (1×) through the slot into the backrest.
Tighten it by hand. The knob holds the backrest in place.
Step 13 · manual step 12

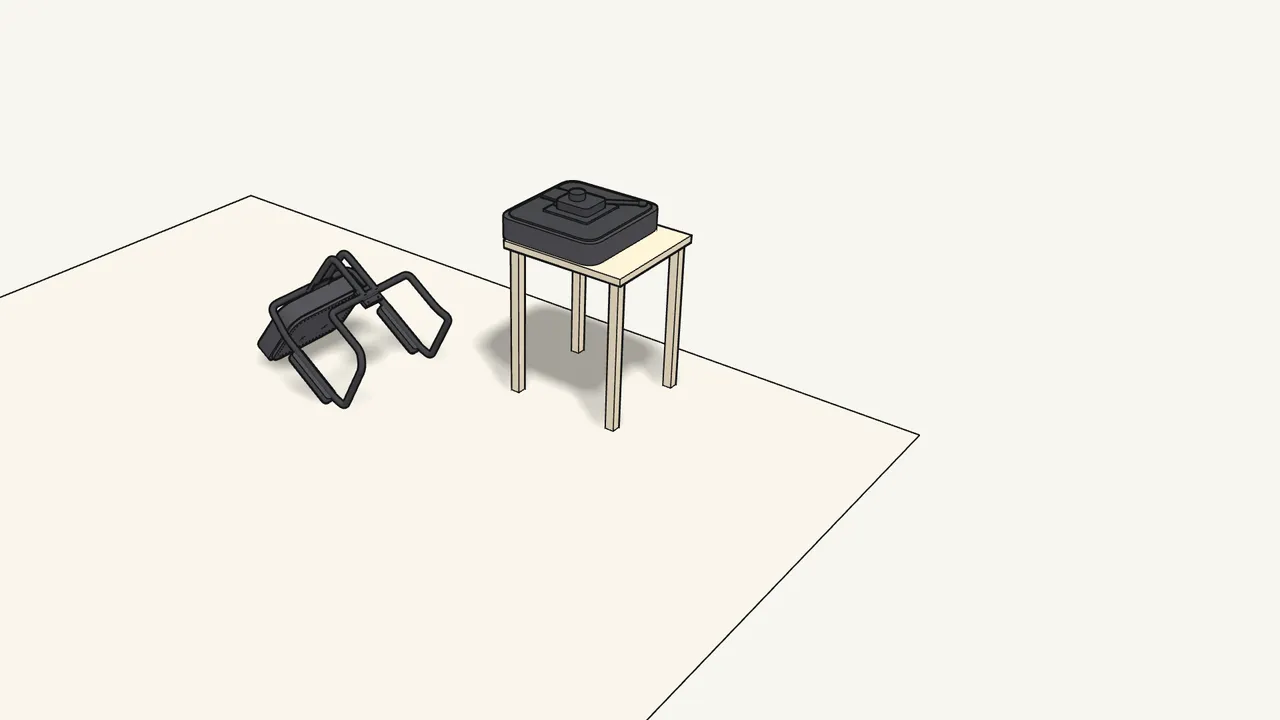

Place the seat upside down on a table.
Step 14 · manual step 12

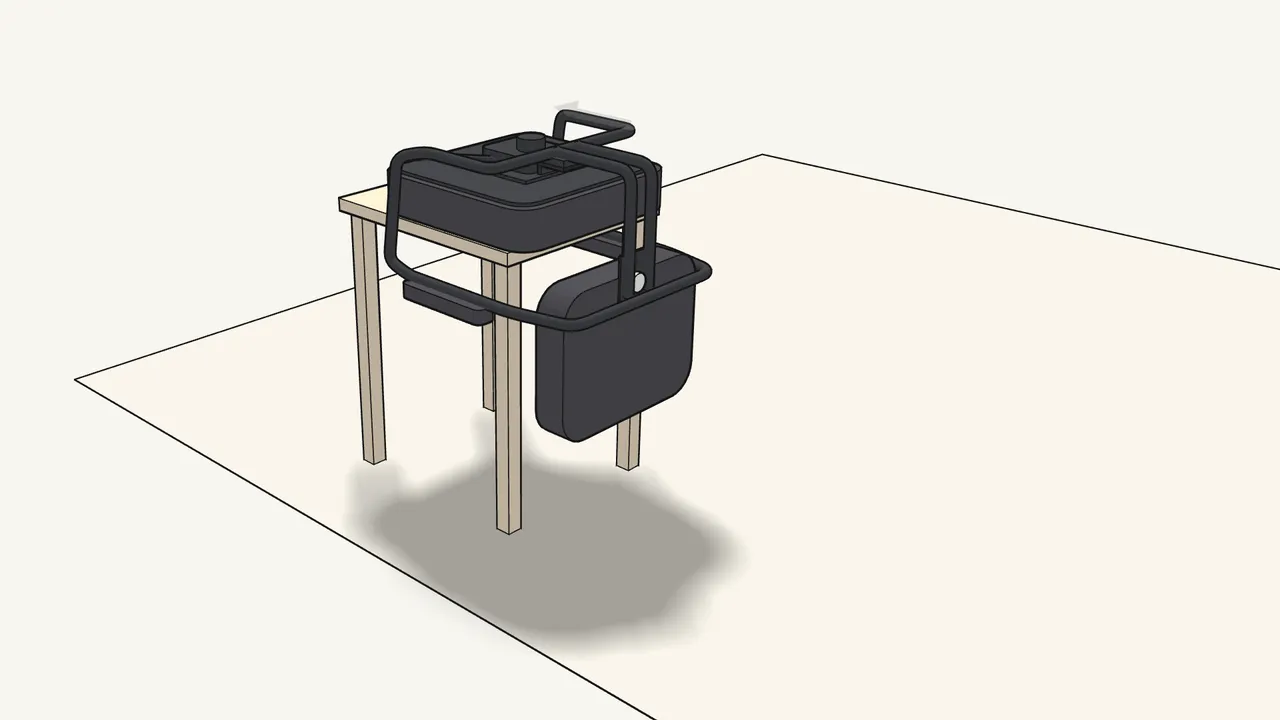

Slide the frame bracket onto the plate on the mechanism.
The backrest hangs over the edge of the table.

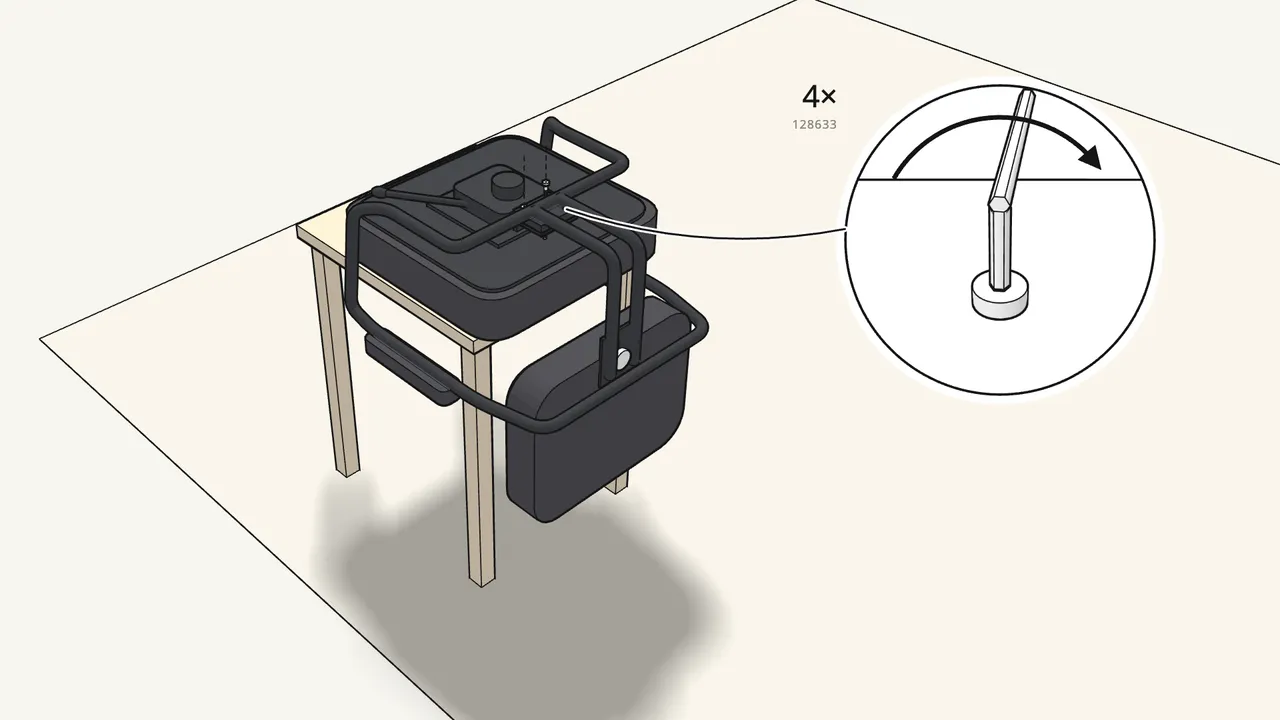

Step 15 · manual step 13
Fix the frame to the mechanism with 4 bolts (128633).

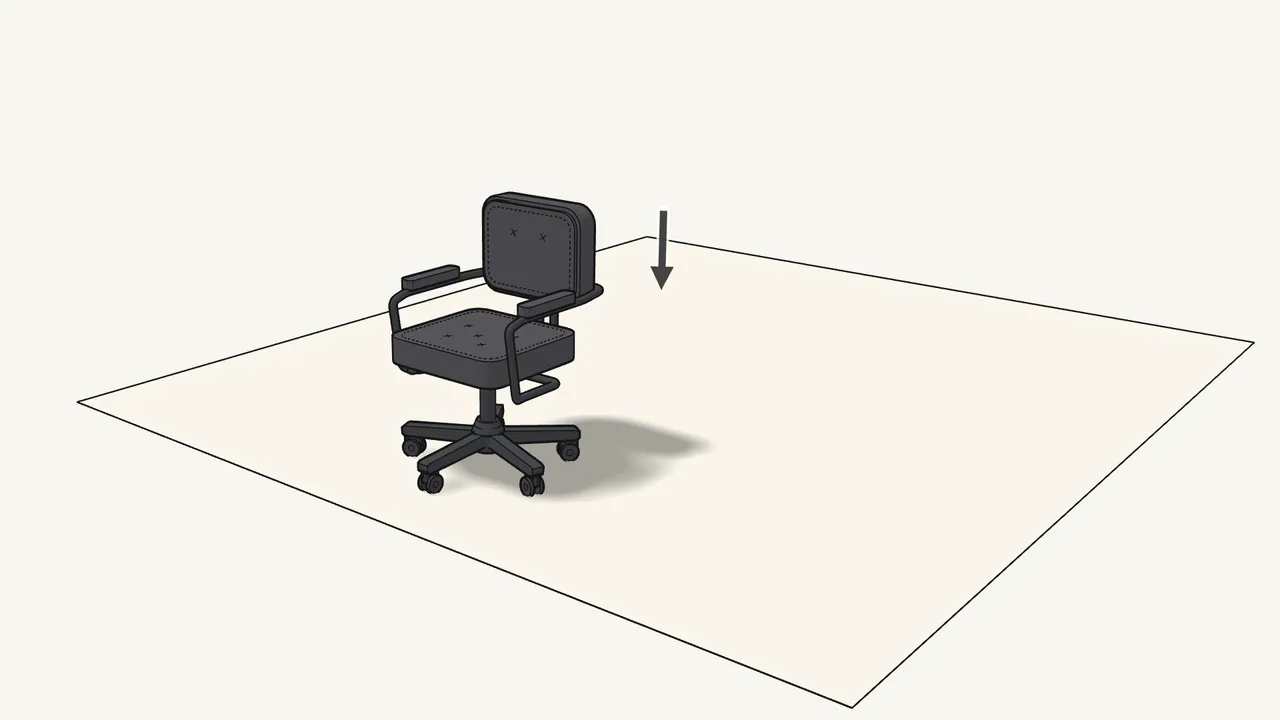

Step 16 · manual step 14
Turn the chair over and put it onto the gas cylinder.
The top of the cylinder goes into the hole under the mechanism.
Tips & safety
- Warning: gas cylinder Only trained personnel may replace or repair the seat height adjustment parts (manual p. 7).
- Adjust the chair to fit you Lift the lever to change the seat height; pull it out or push it in to unlock or lock the tilt. Loosen the knob on the back to move the backrest up or down (manual p. 18–19).
Official instructions
This guide follows IKEA's official assembly instructions (AA-2023992-10). Keep the printed manual to hand — if anything differs, the manual is right.
