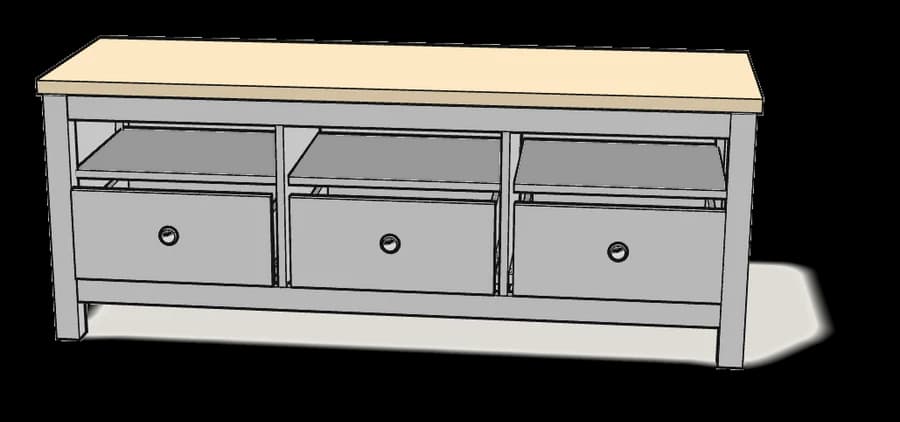

How to Assemble IKEA HEMNES TV Unit

Step-by-step assembly

1.

   Step 1 · manual step 1–2

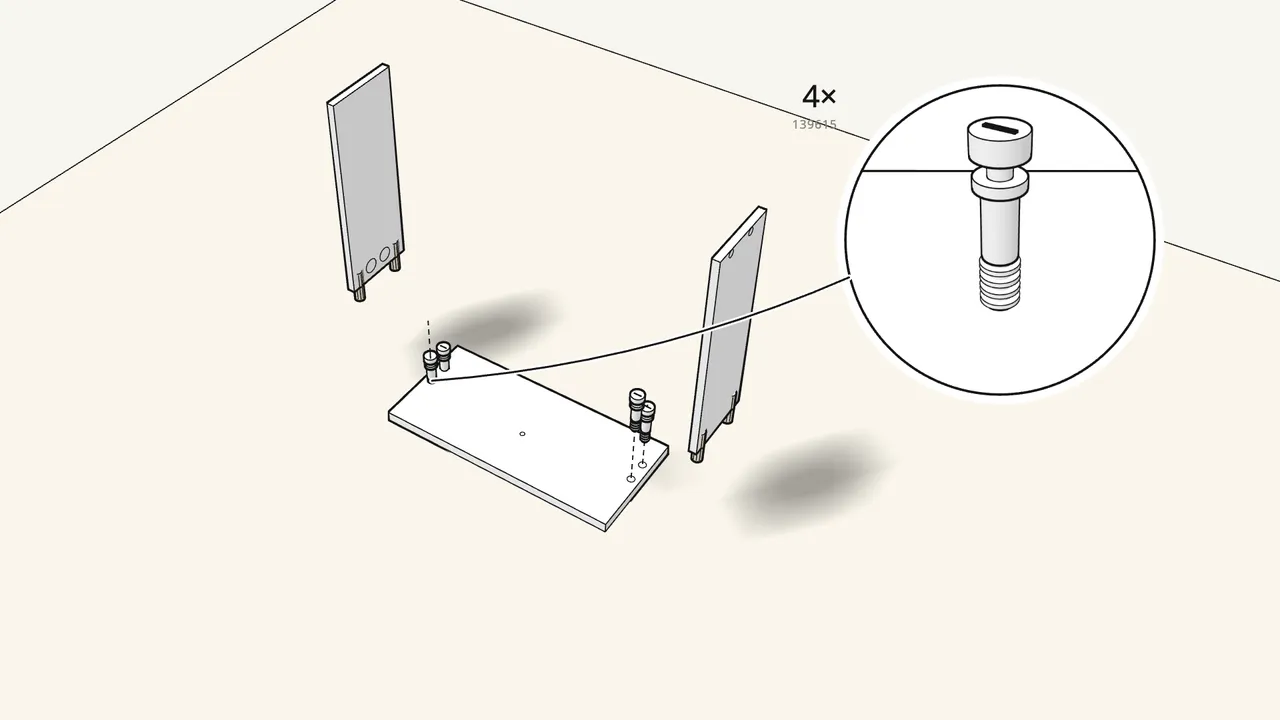

   Drawer: push 4 dowels (101345) into the sides.

   Screw 4 cam bolts (139615) into the back of the front — lay it face down.

   ▶ Watch this step (0:20)

2.

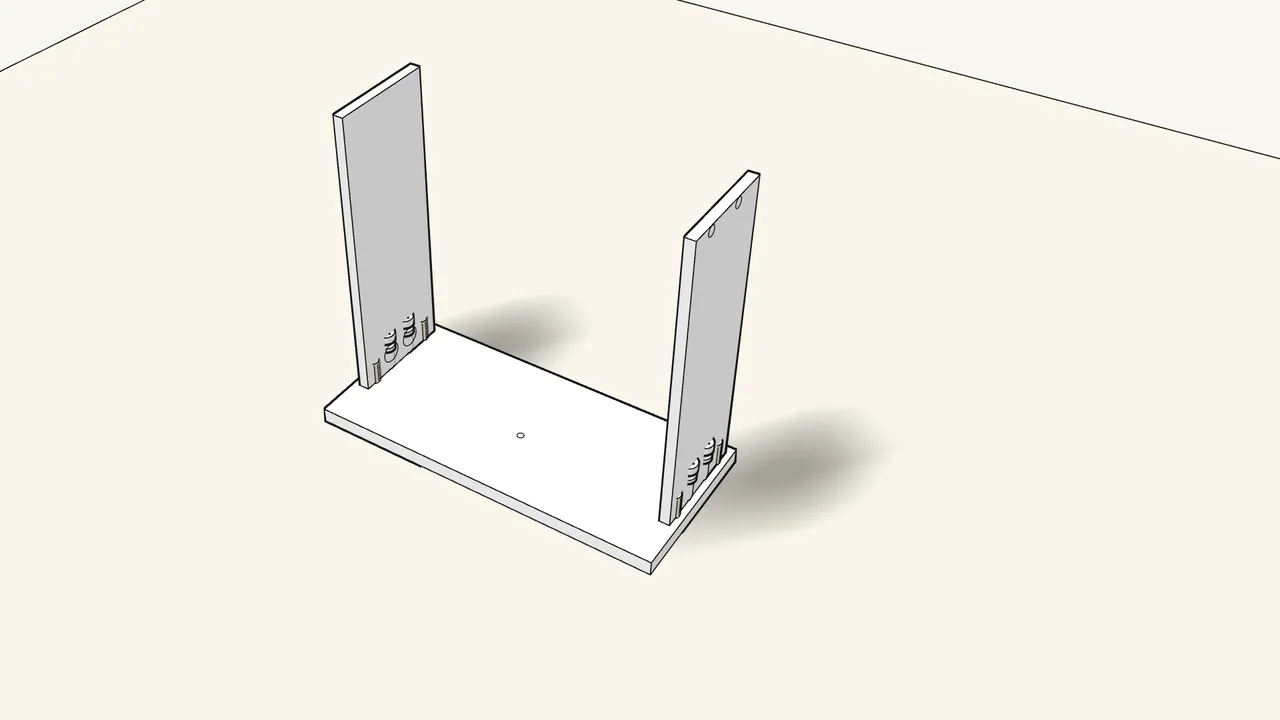

   Step 2 · manual step 3

   Press both sides onto the front.

   ▶ Watch this step (0:27)

3.

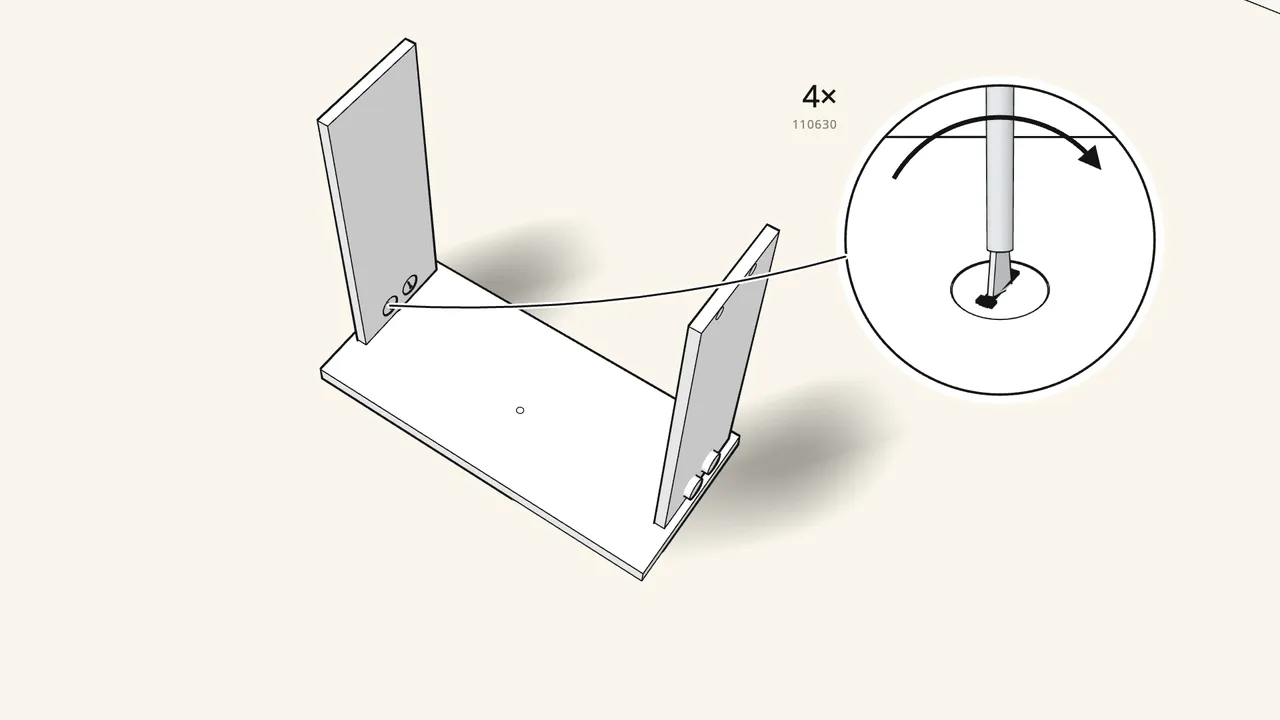

   Step 3 · manual step 4

   Insert 4 cam locks (110630) and turn them clockwise.

   Use the flat-head screwdriver.

   ▶ Watch this step (0:32)

4.

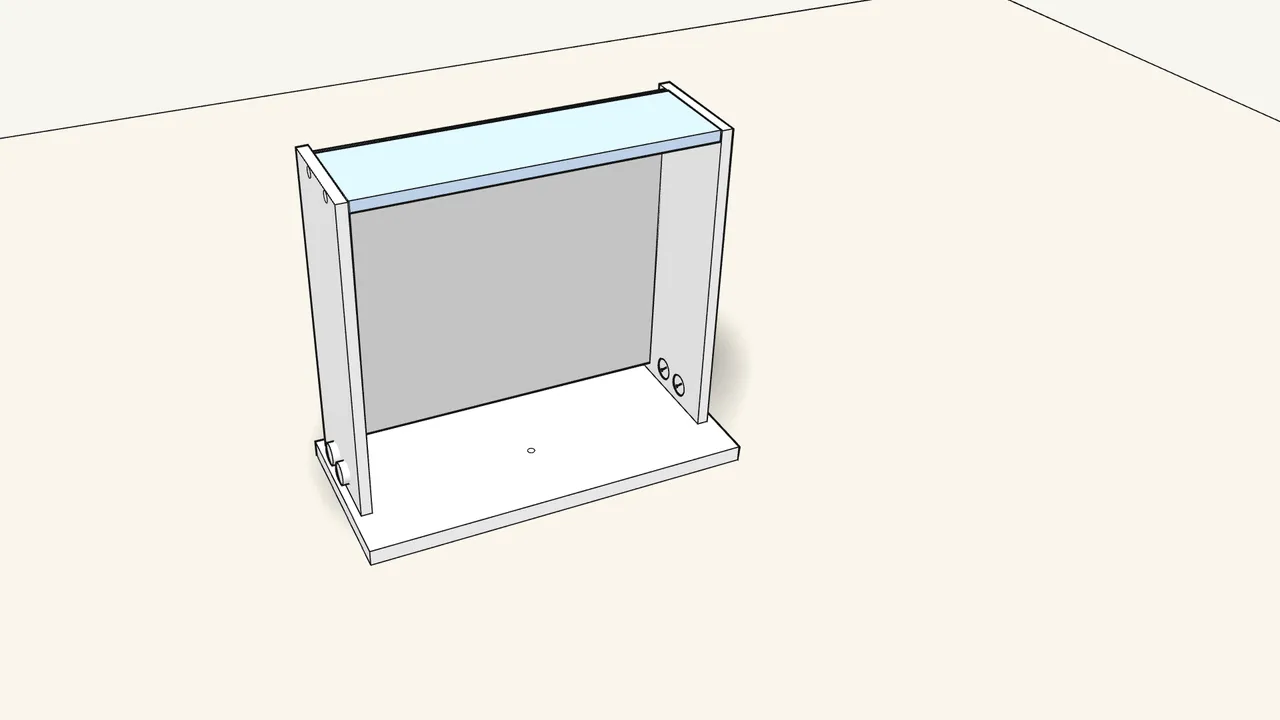

   Step 4 · manual step 5–6

   Slide the bottom into the grooves, then fit the back.

   ▶ Watch this step (0:38)

5.

   Step 5 · manual step 7

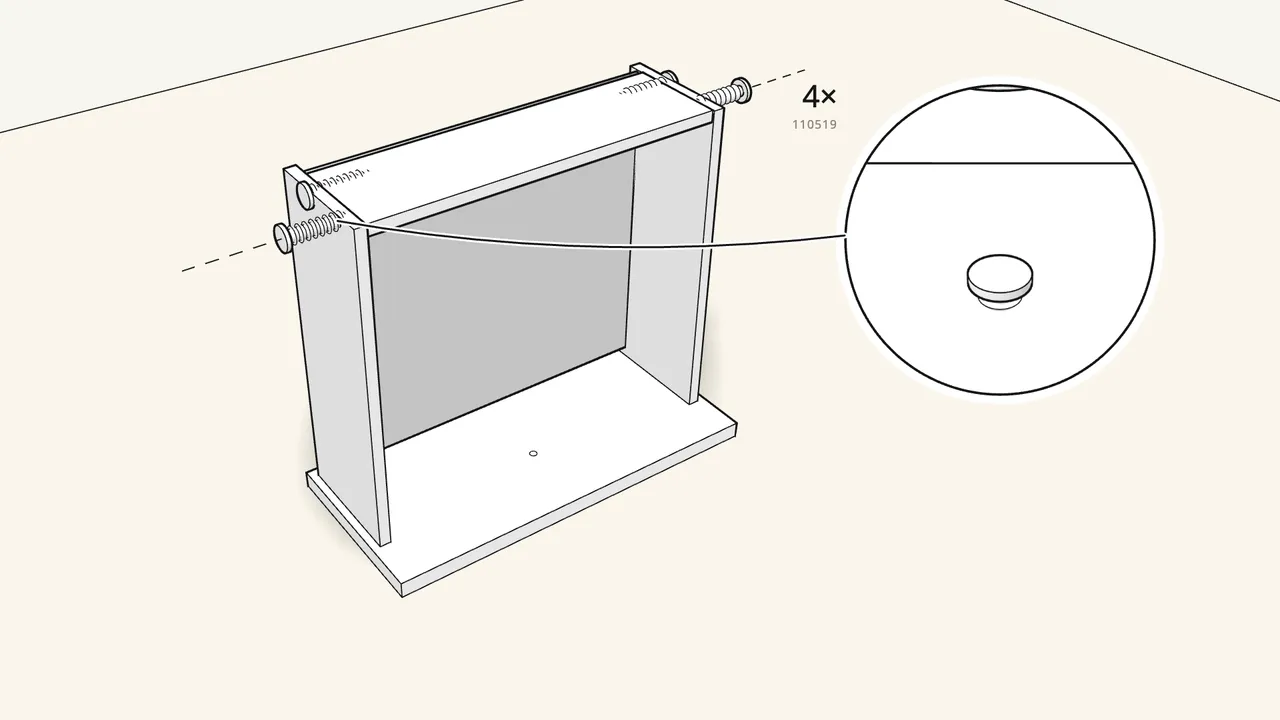

   Tap in 4 screw dowels (110519) with a hammer.

   ▶ Watch this step (0:44)

6.

   Step 6 · manual step 8

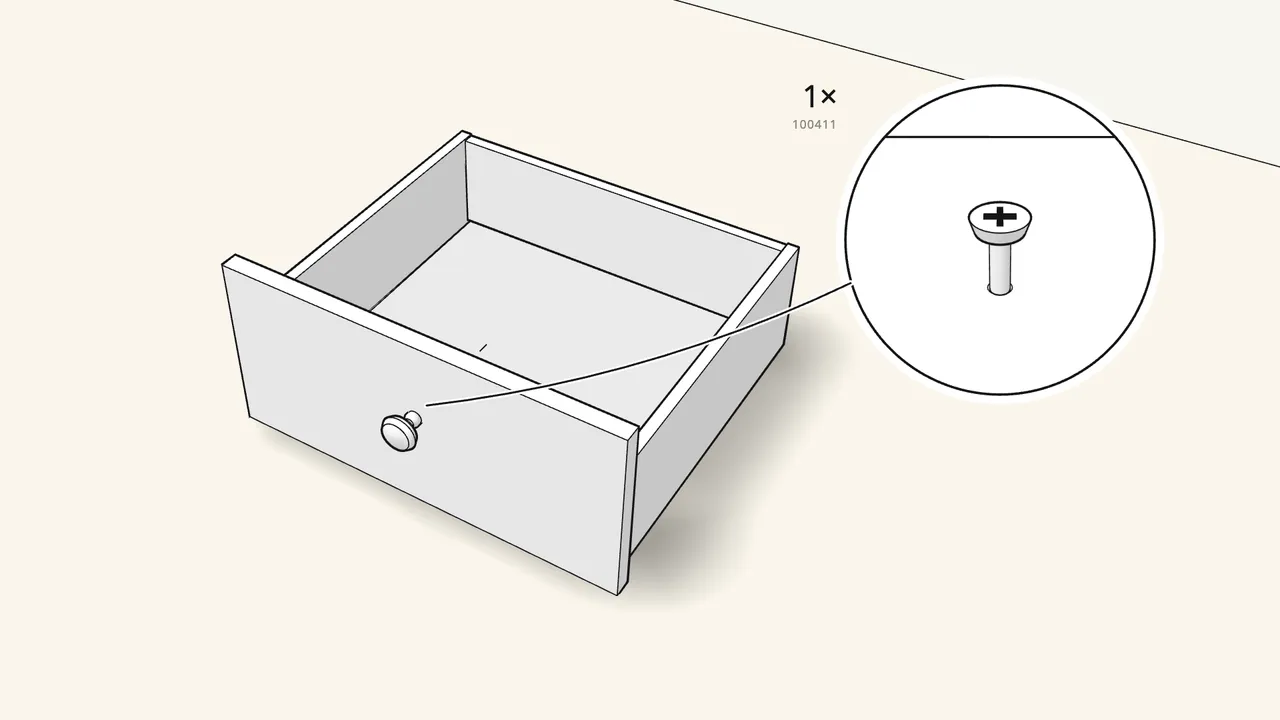

   Turn the drawer over. Fit the knob (117615) with screw 100411.

   The screw goes in from the inside of the front.

   ▶ Watch this step (0:50)

7.

   Step 7 · manual step 9–10

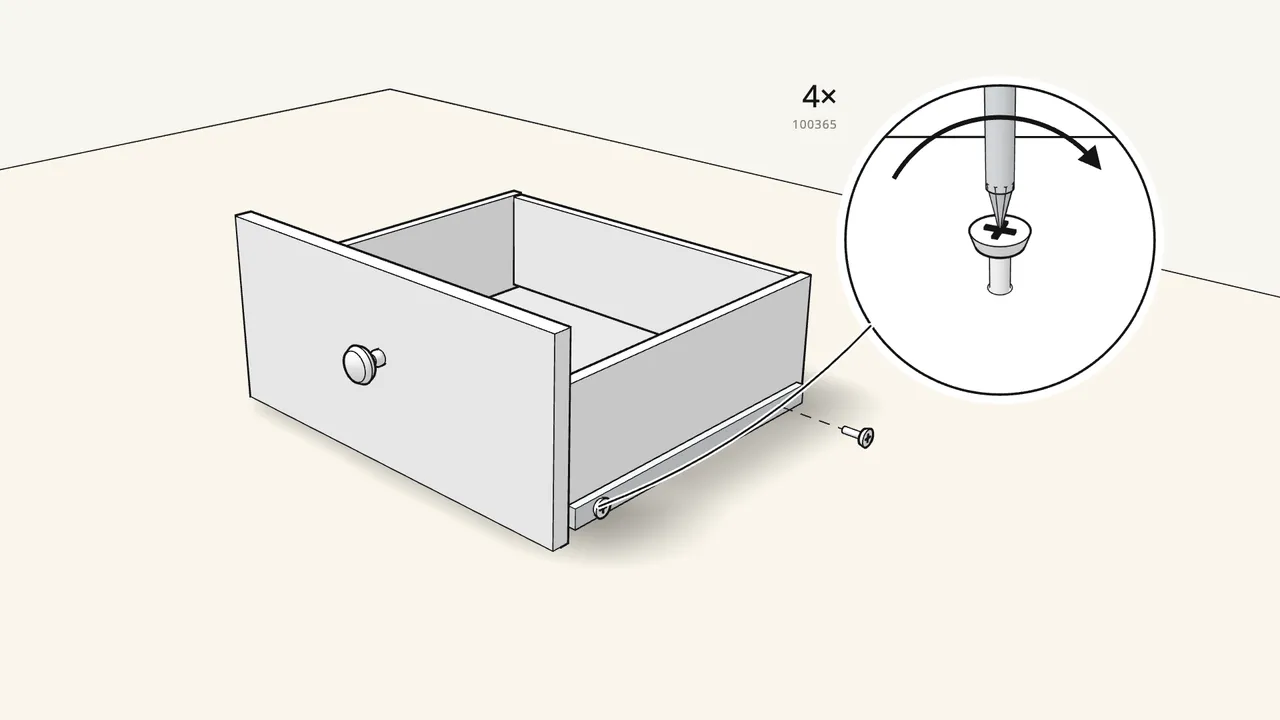

   Clip on the 2 drawer runners (112482). Fix with 4 screws (100365).

   ▶ Watch this step (0:57)

8.

   Step 8 · manual step 1–10

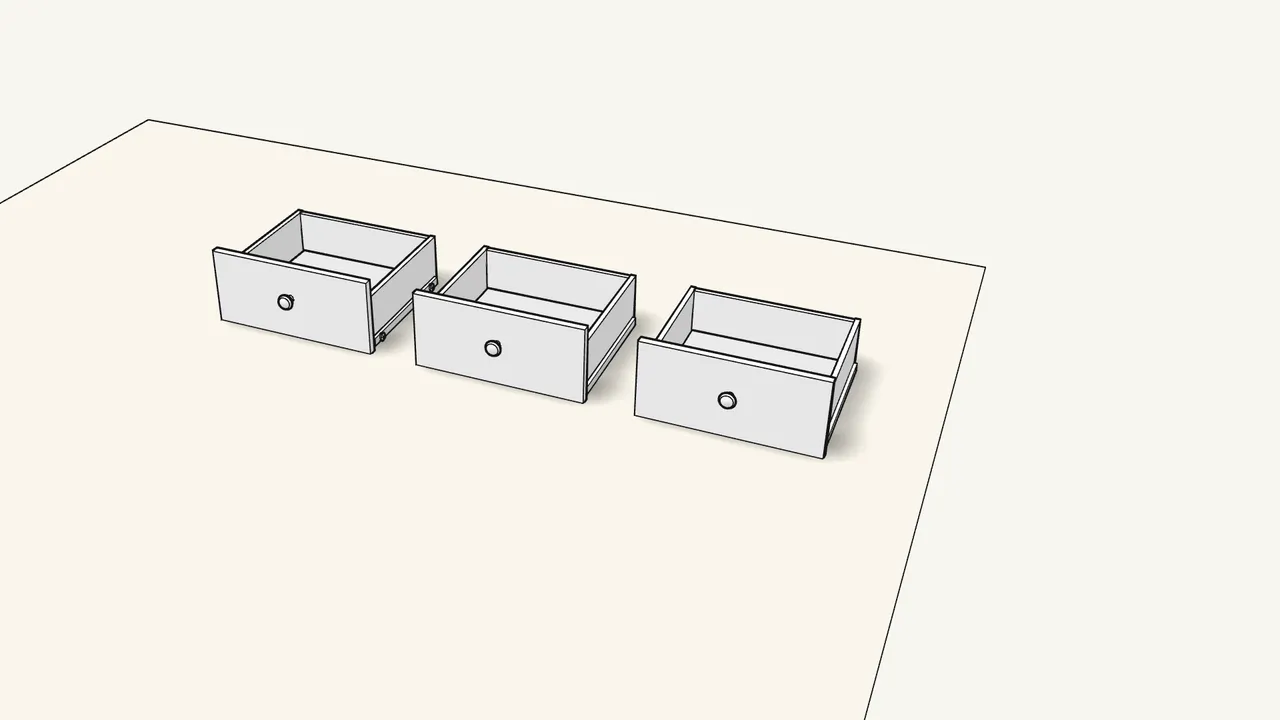

   Build all 3 drawers the same way.

   ▶ Watch this step (1:04)

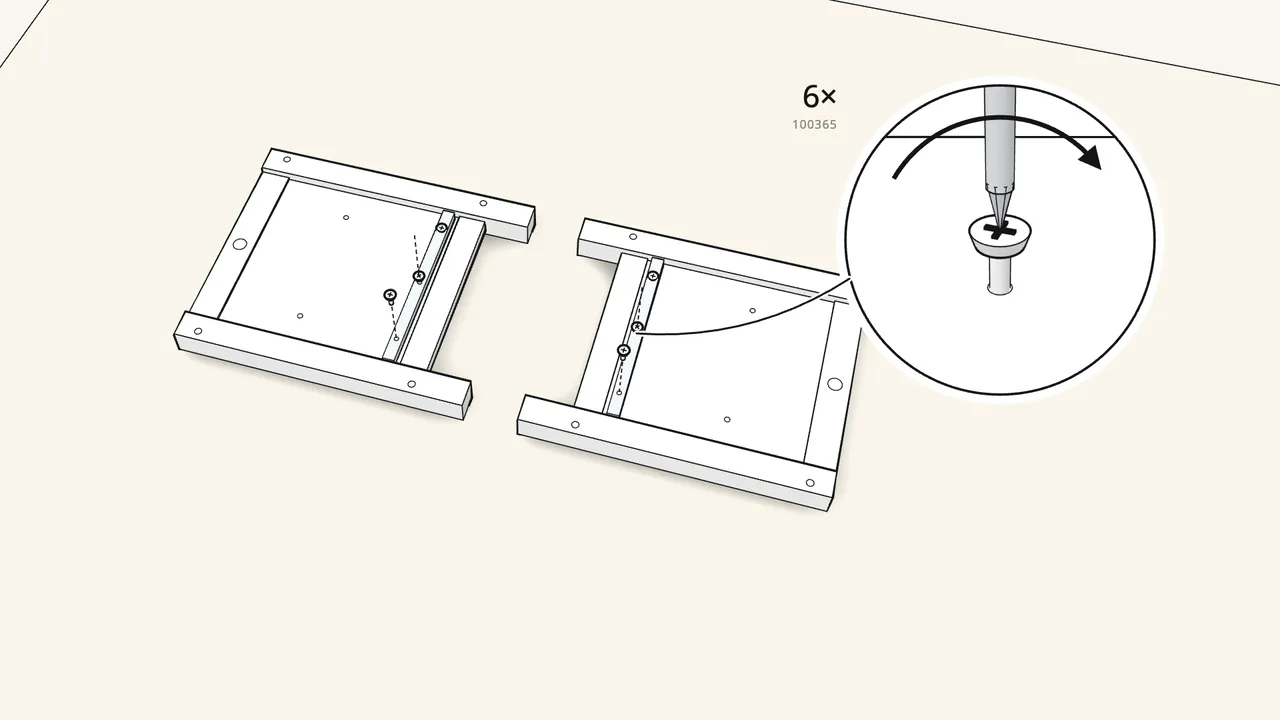

9.

   Step 9 · manual step 11

   Screw a runner (112482) onto each end frame: 3 screws (100365) each.

   Lay both frames inner side up. The runners are marked L and R.

   ▶ Watch this step (1:08)

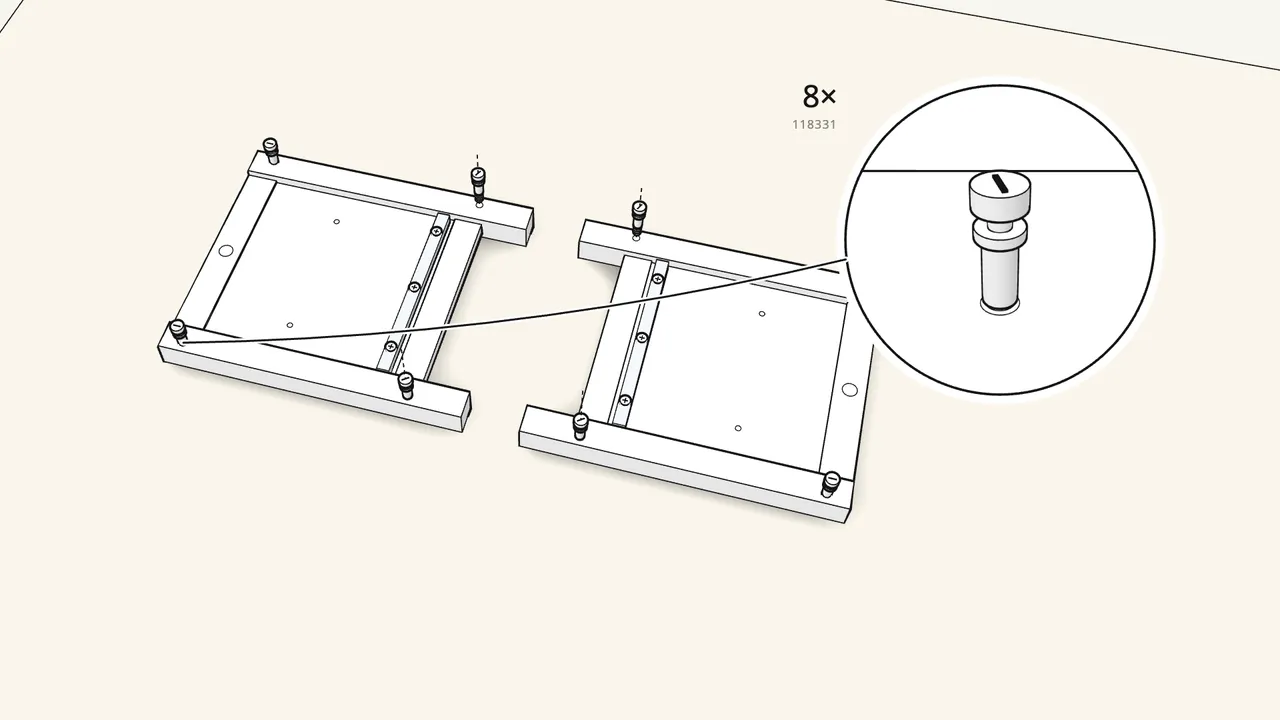

10.

    Step 10 · manual step 12

    Screw 8 cam bolts (118331) into the legs.

    ▶ Watch this step (1:15)

11.

    Step 11 · manual step 13–14

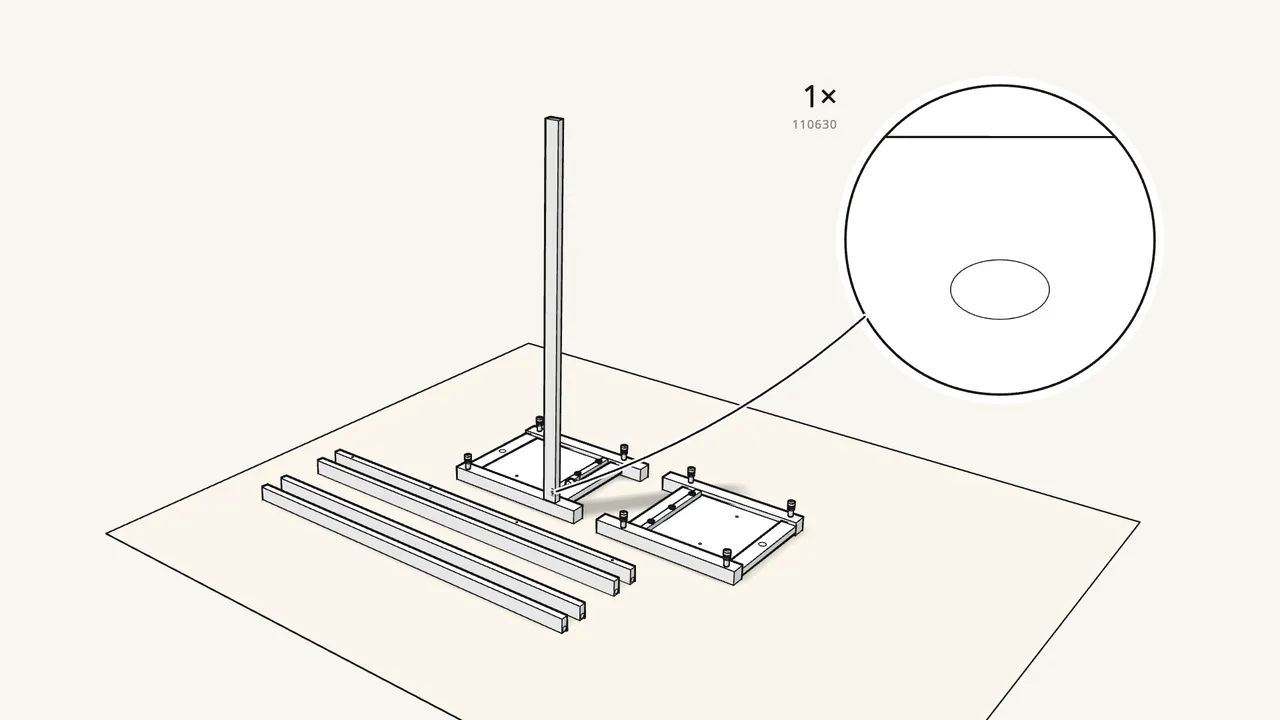

    Push a dowel (101350) into a rail and stand it on the end frame.

    Lock it with a cam lock (110630), turned clockwise.

    ▶ Watch this step (1:21)

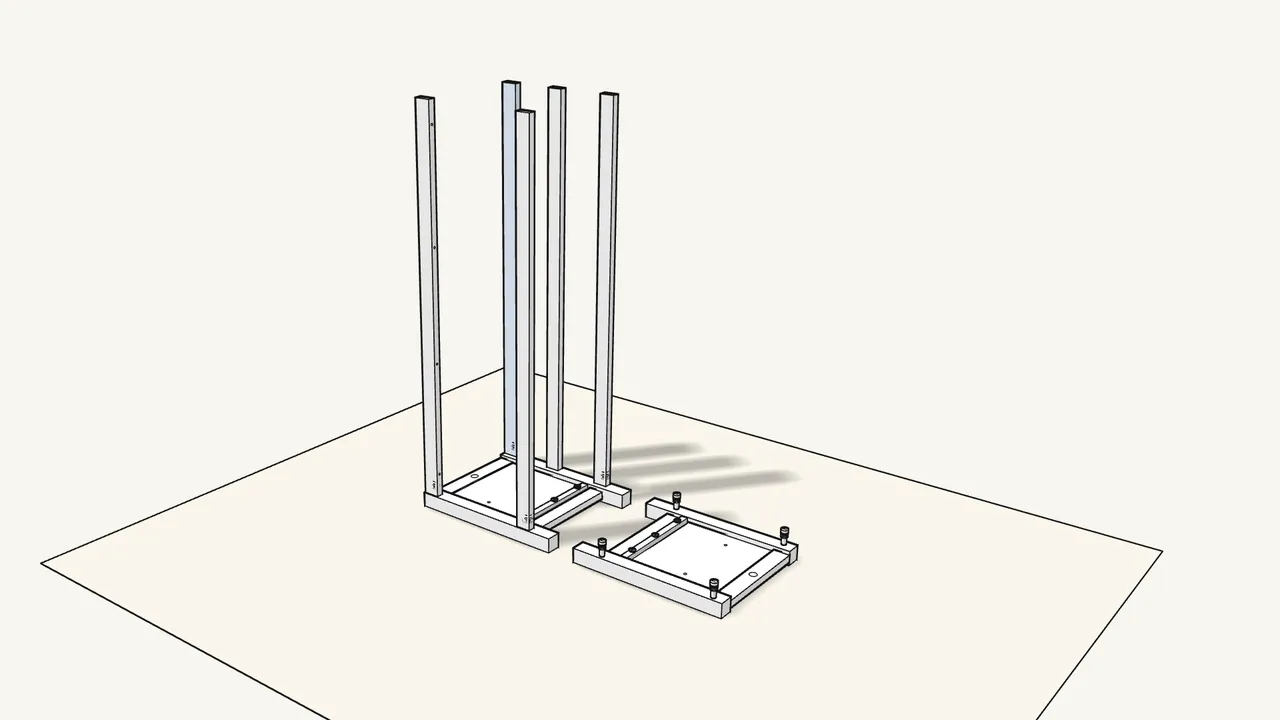

12.

    Step 12 · manual step 15–16

    Stand the other 4 rails in the same way. Lock with 3 cam locks.

    ▶ Watch this step (1:29)

13.

    Step 13 · manual step 17–18

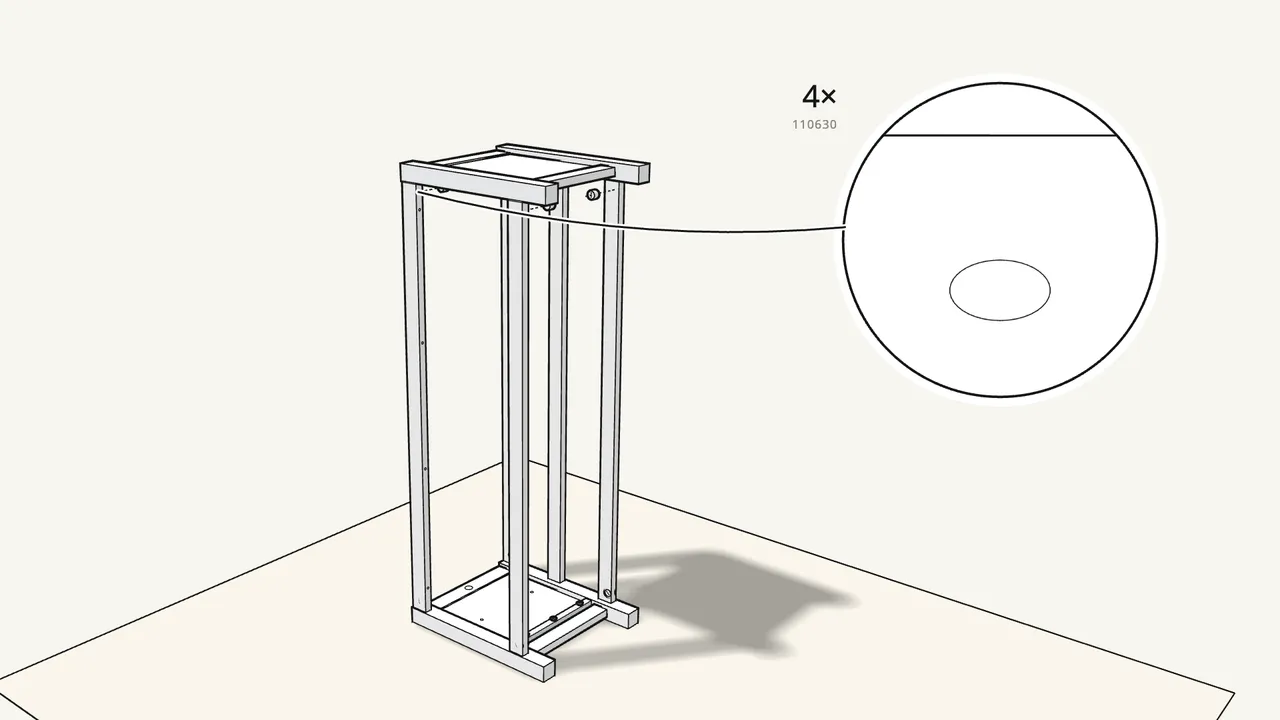

    Add 4 dowels and lower the second end frame on top.

    Lock it with 4 cam locks.

    ▶ Watch this step (1:37)

14.

    Step 14 · manual step 19–21

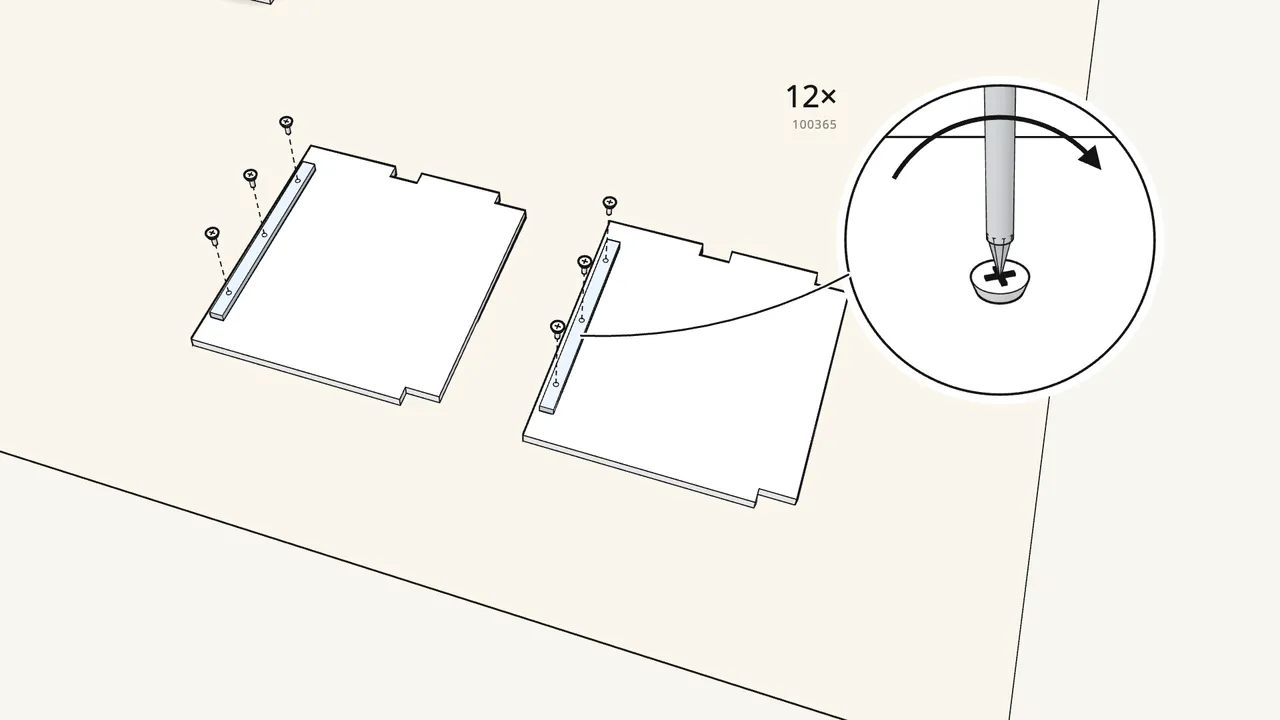

    Screw a runner onto each side of both dividers.

    3 screws (100365) per runner. Then push 1 dowel (101350) into each divider.

    ▶ Watch this step (1:45)

15.

    Step 15 · manual step 22

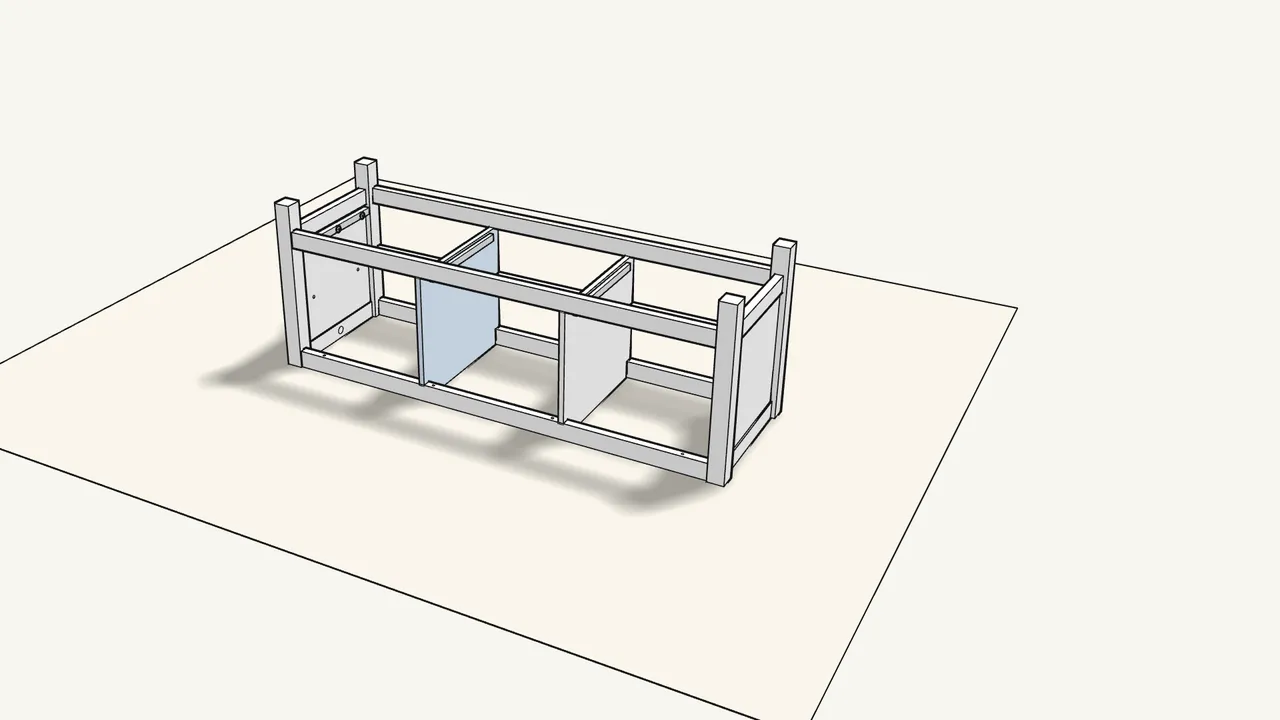

    Turn the frame upside down. Fit both dividers.

    Push each divider’s dowel into its hole, then swing it in.

    ▶ Watch this step (1:53)

16.

    Step 16 · manual step 23

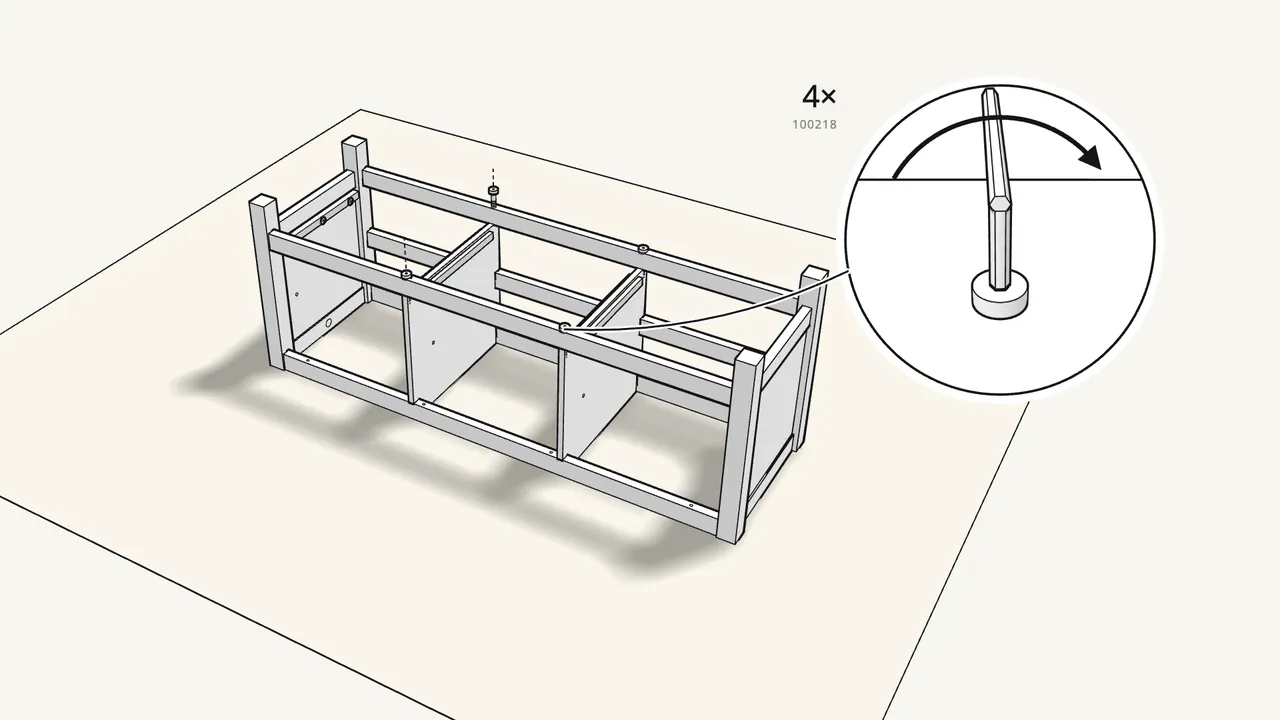

    Screw 4 screws (100218) through the rails into the dividers.

    Use the Allen key in its holder (121030).

    ▶ Watch this step (2:01)

17.

    Step 17 · manual step 24

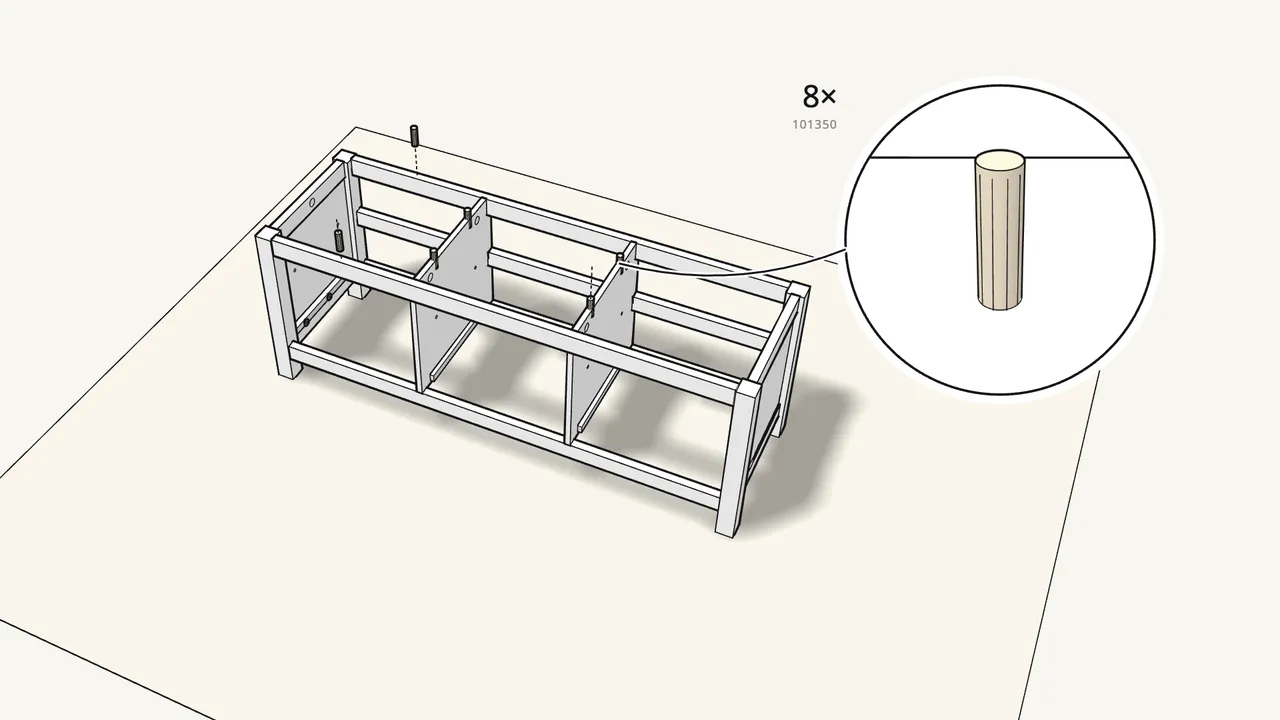

    Turn it the right way up. Push 8 dowels (101350) into the top edges.

    ▶ Watch this step (2:08)

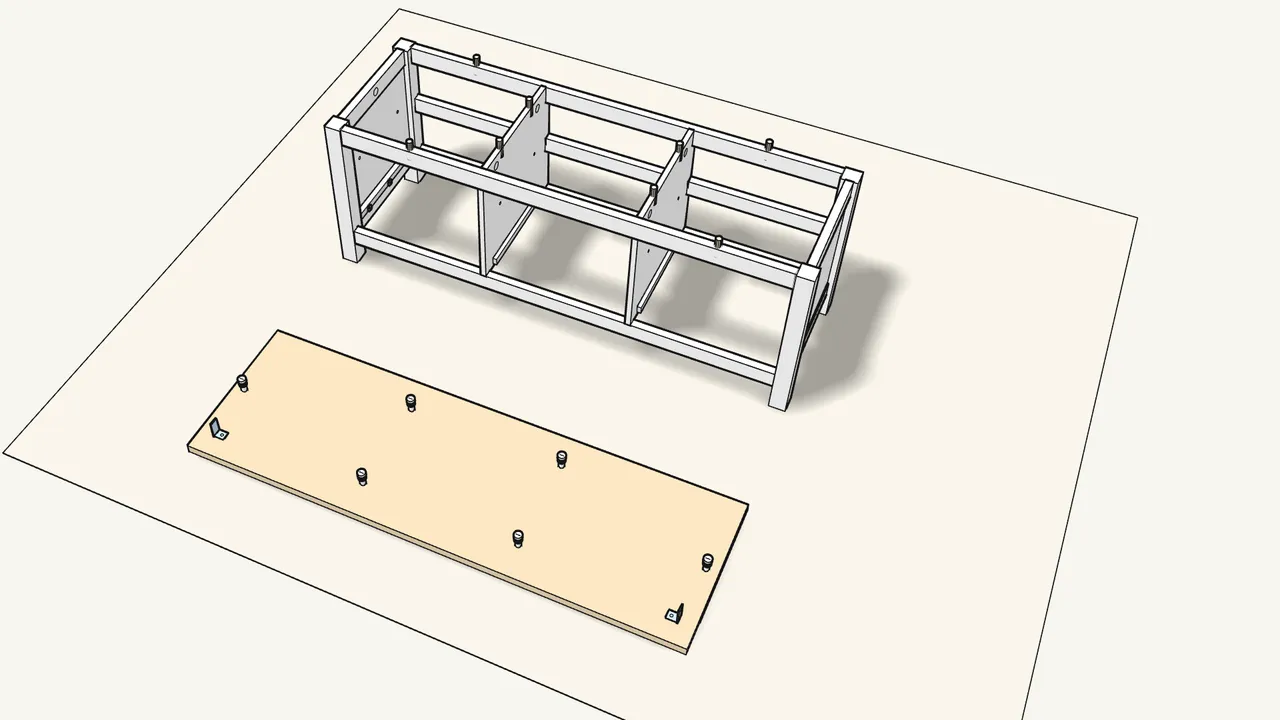

18.

    Step 18 · manual step 25–26

    Top, face down: 6 cam bolts (118331) and 2 brackets (119256).

    Each bracket: screw 109560 with washer 100823 — leave it loose so it can slide.

    ▶ Watch this step (2:14)

19.

    Step 19 · manual step 27

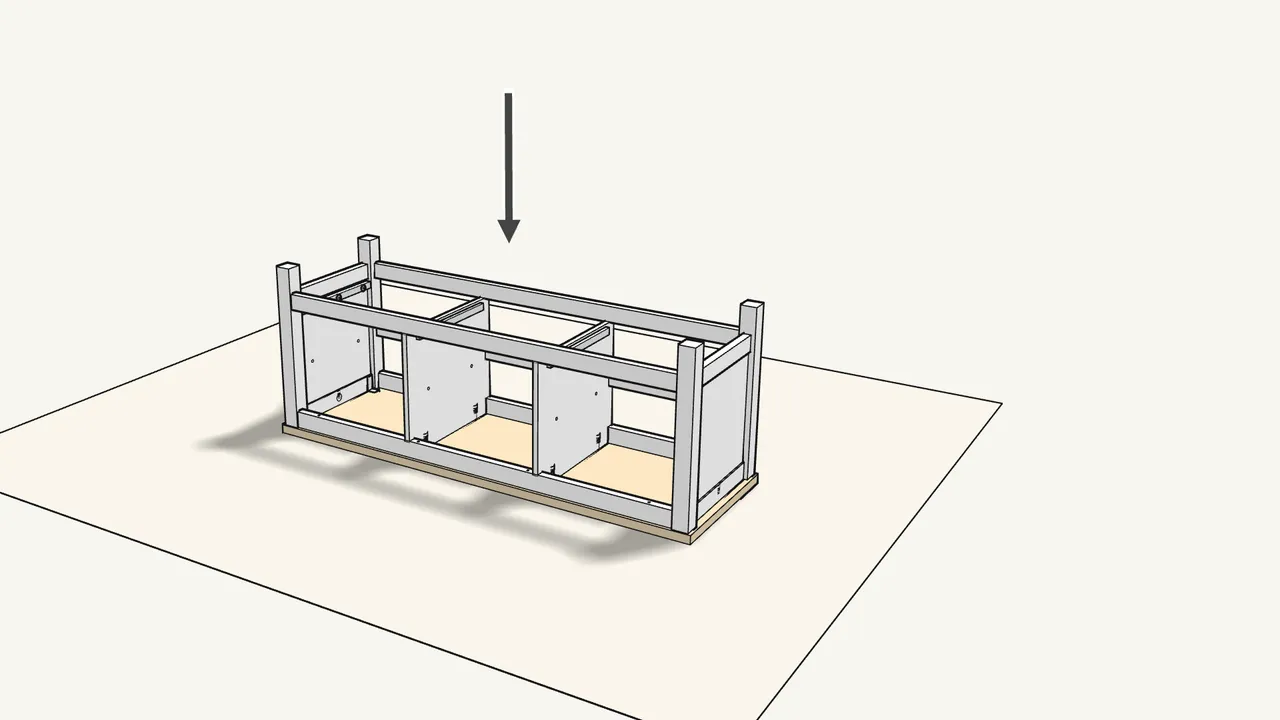

    Turn the frame upside down onto the top.

    ▶ Watch this step (2:22)

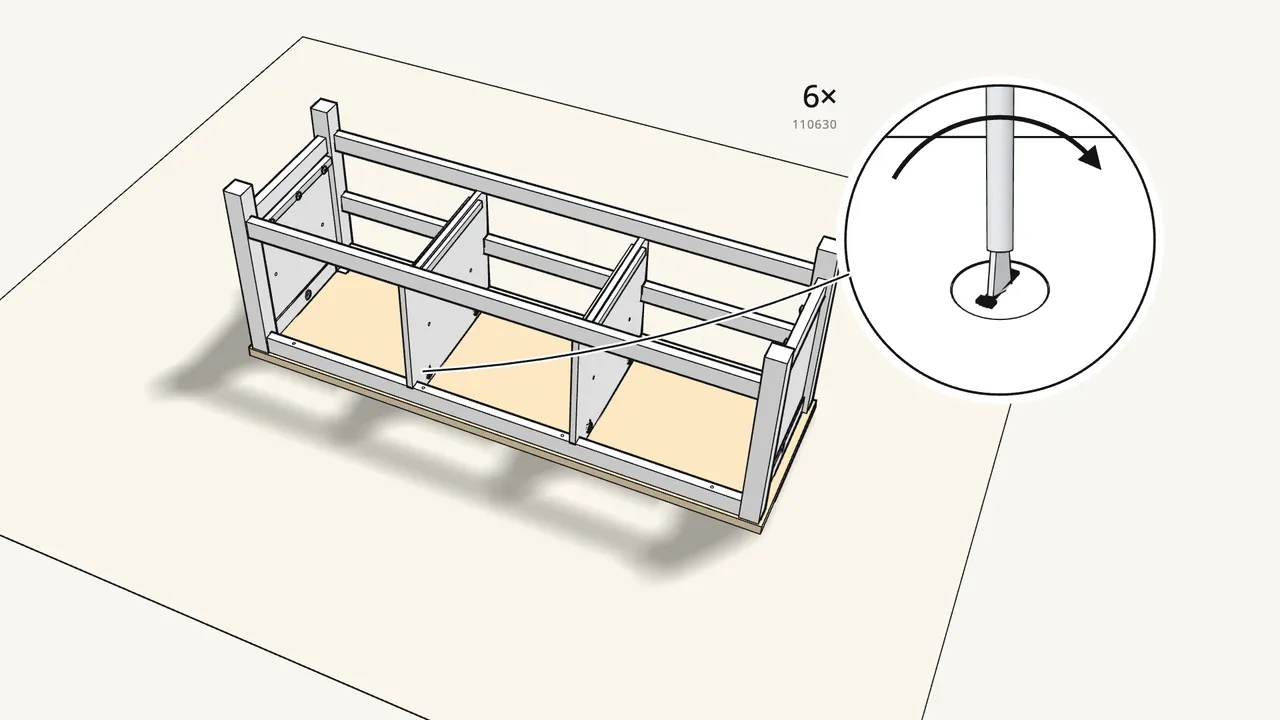

20.

    Step 20 · manual step 28

    Insert 6 cam locks (110630) and turn them clockwise.

    ▶ Watch this step (2:29)

21.

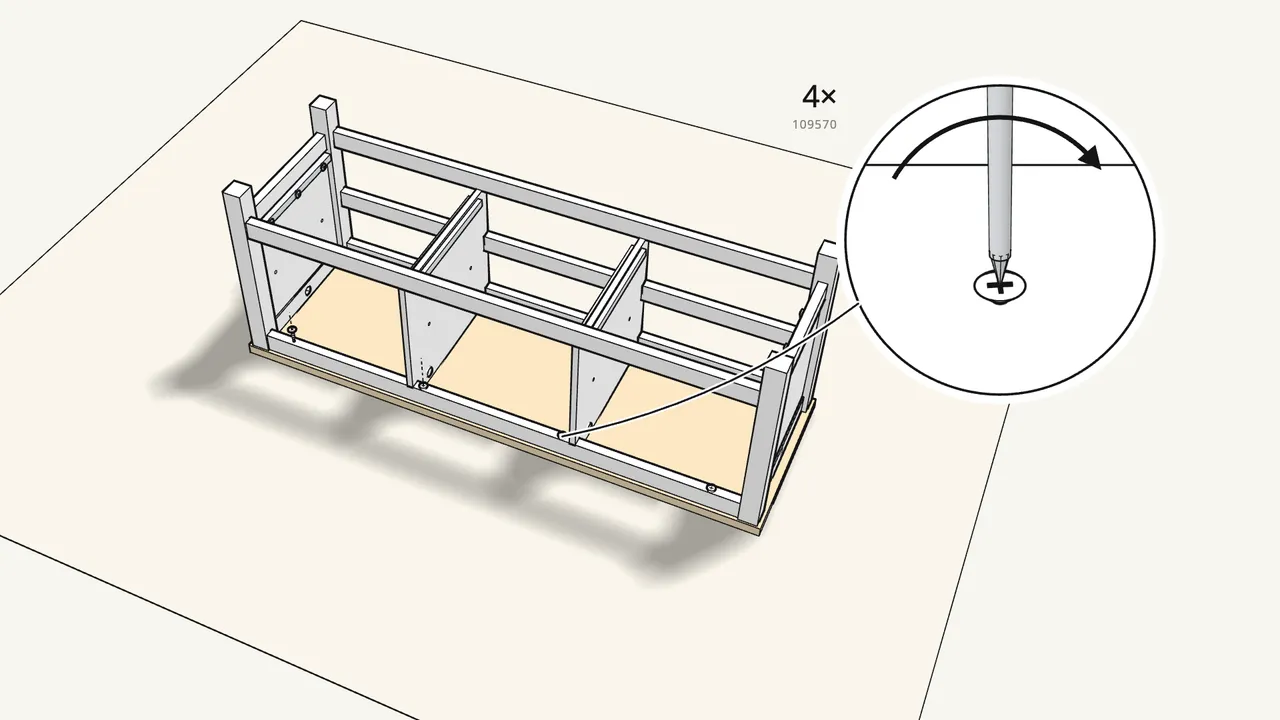

    Step 21 · manual step 29

    Drive 4 screws (109570) into the top.

    The heads must sit flush — don’t over-tighten.

    ▶ Watch this step (2:35)

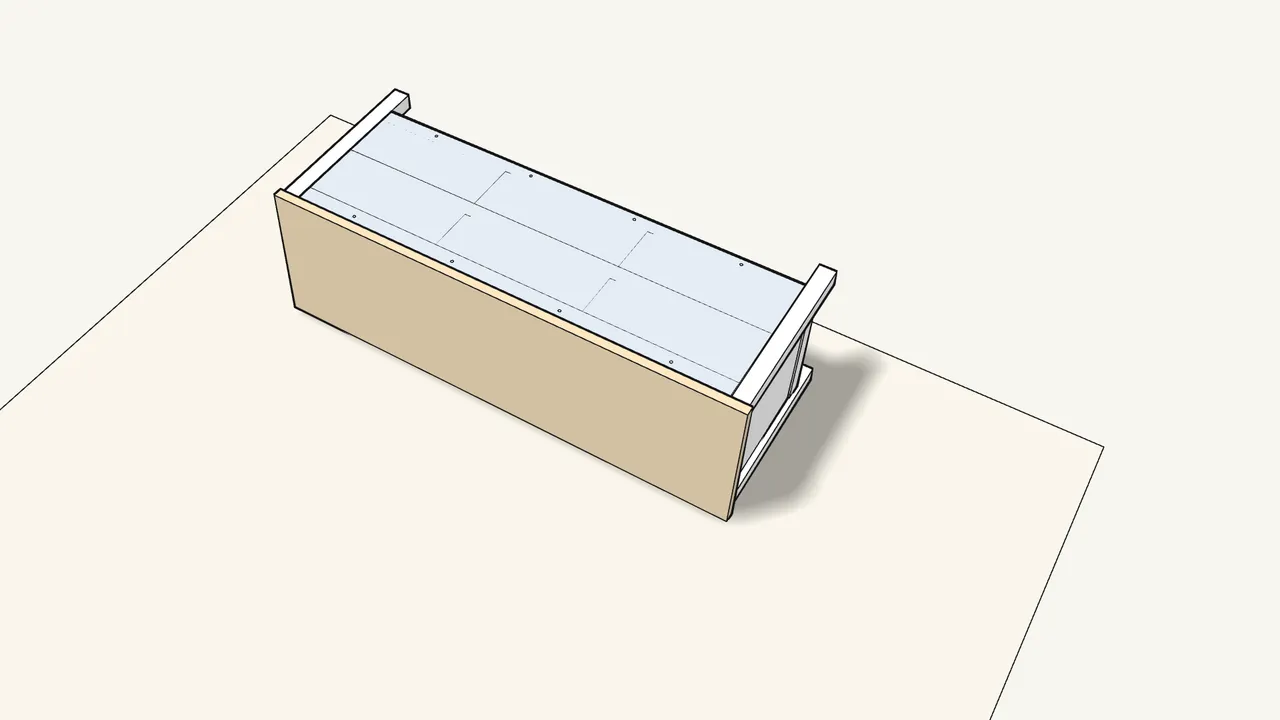

22.

    Step 22 · manual step 30

    Lay the unit on its front. Place the back panel on it.

    ▶ Watch this step (2:41)

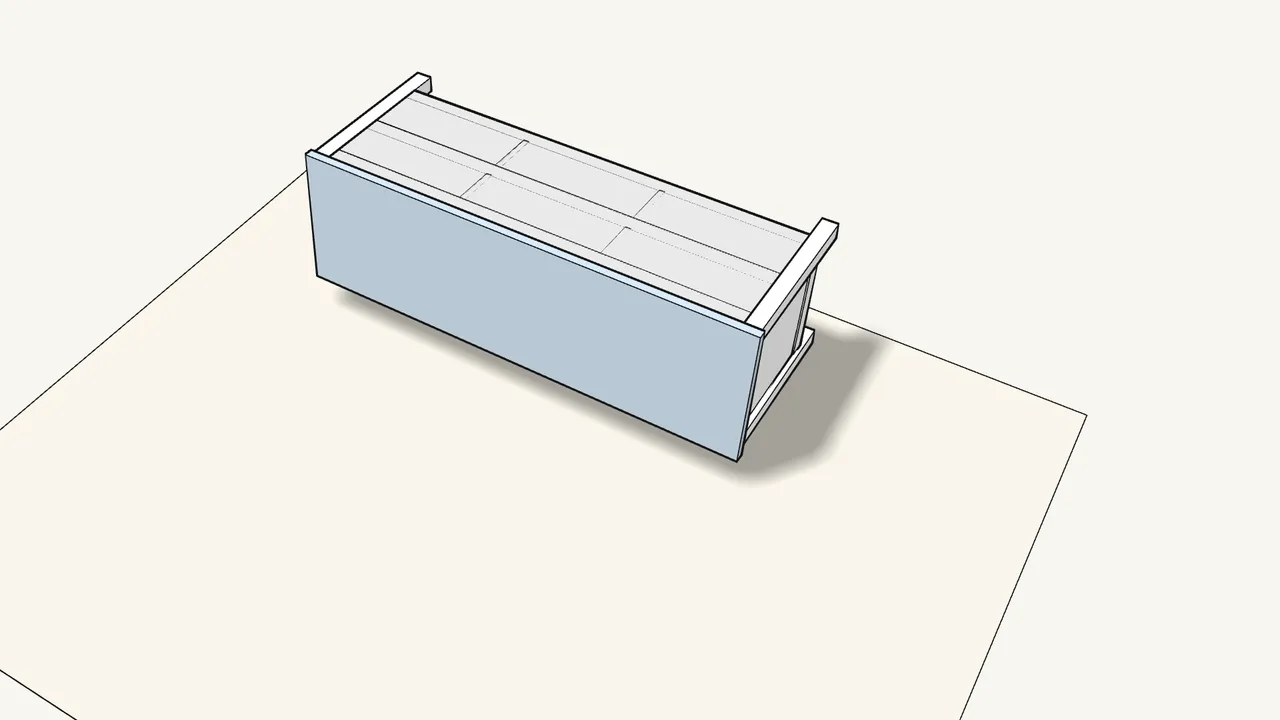

23.

    Step 23 · manual step 31

    Fix the back with 8 clips (122723) and screws (109560).

    Then stand the unit up.

    ▶ Watch this step (2:47)

24.

    Step 24 · manual step 32

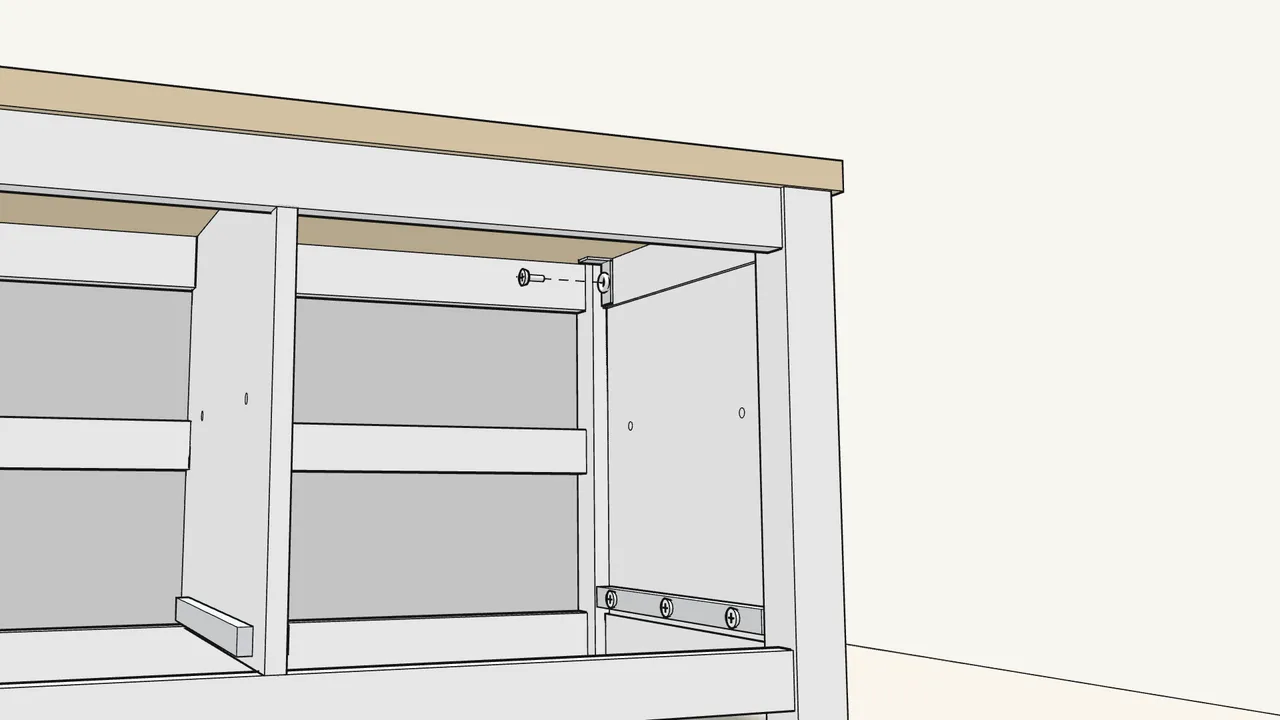

    Slide each bracket out and screw it to the end frame.

    2 brackets, each with a washer (100823). Then tighten the bracket screws.

    ▶ Watch this step (2:55)

25.

    Step 25 · manual step 33

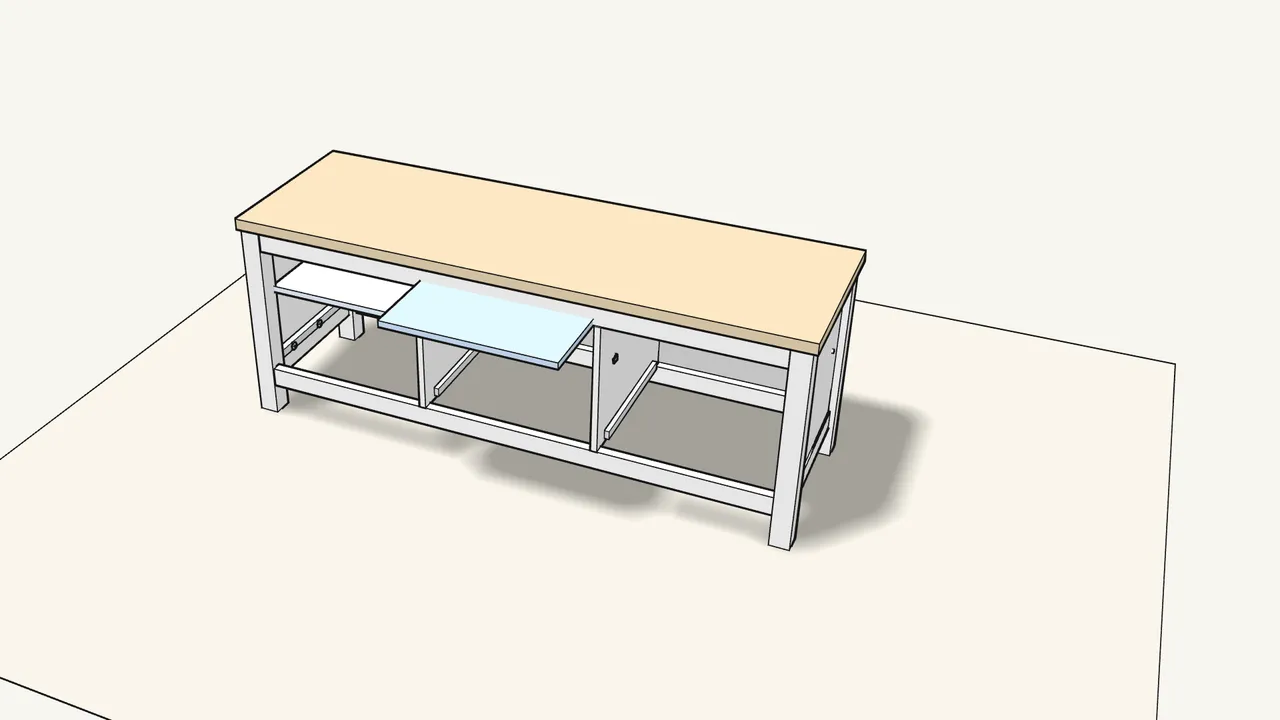

    Press in 12 shelf supports (121762). Lay the 3 shelves on them.

    ▶ Watch this step (3:02)

26.

    Step 26 · manual step 34

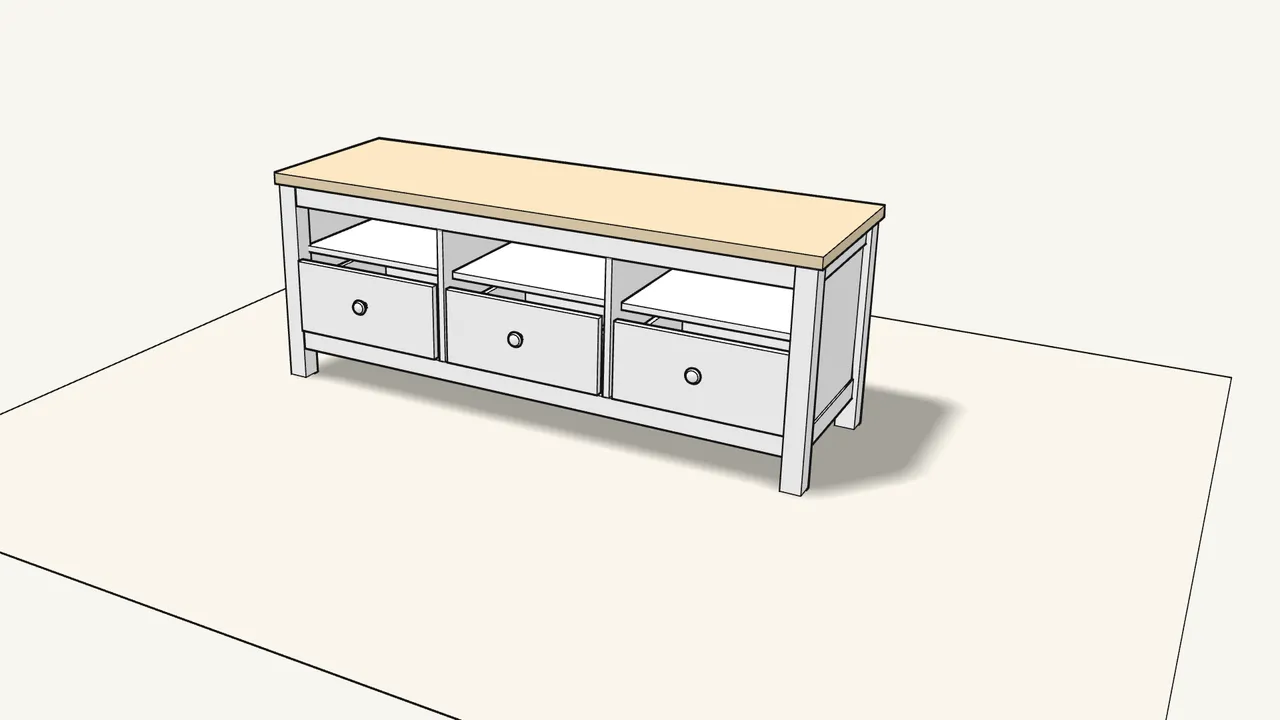

    Slide the 3 drawers onto the runners.

    ▶ Watch this step (3:09)
