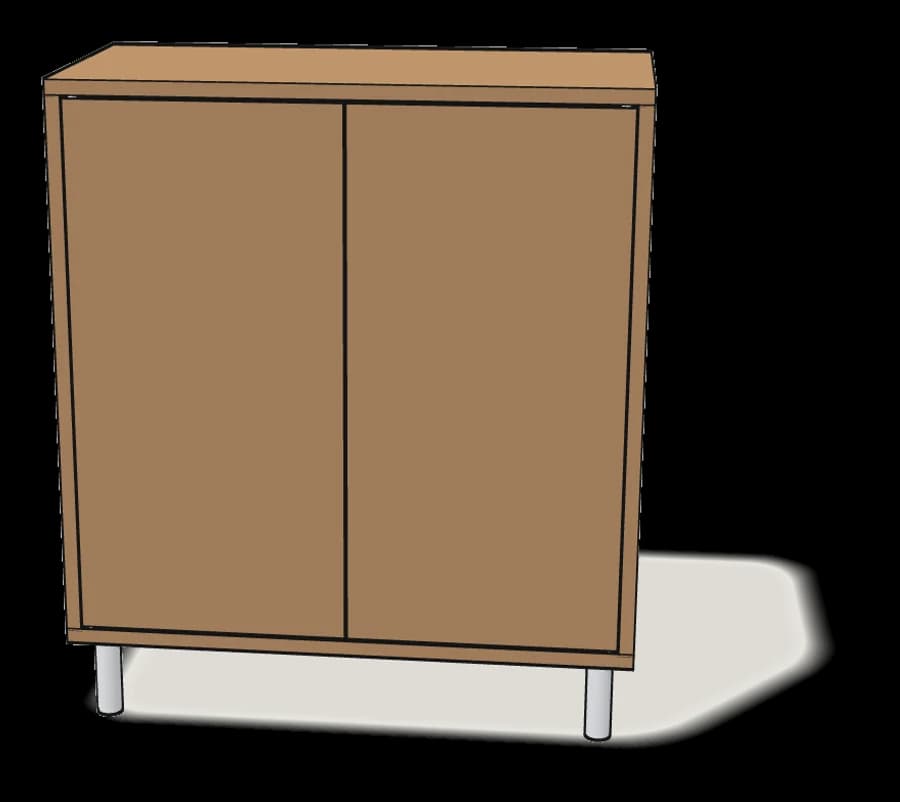

How to Assemble IKEA EKET Cabinet with 2 Doors and Shelf

Step-by-step assembly

1.

   Step 1

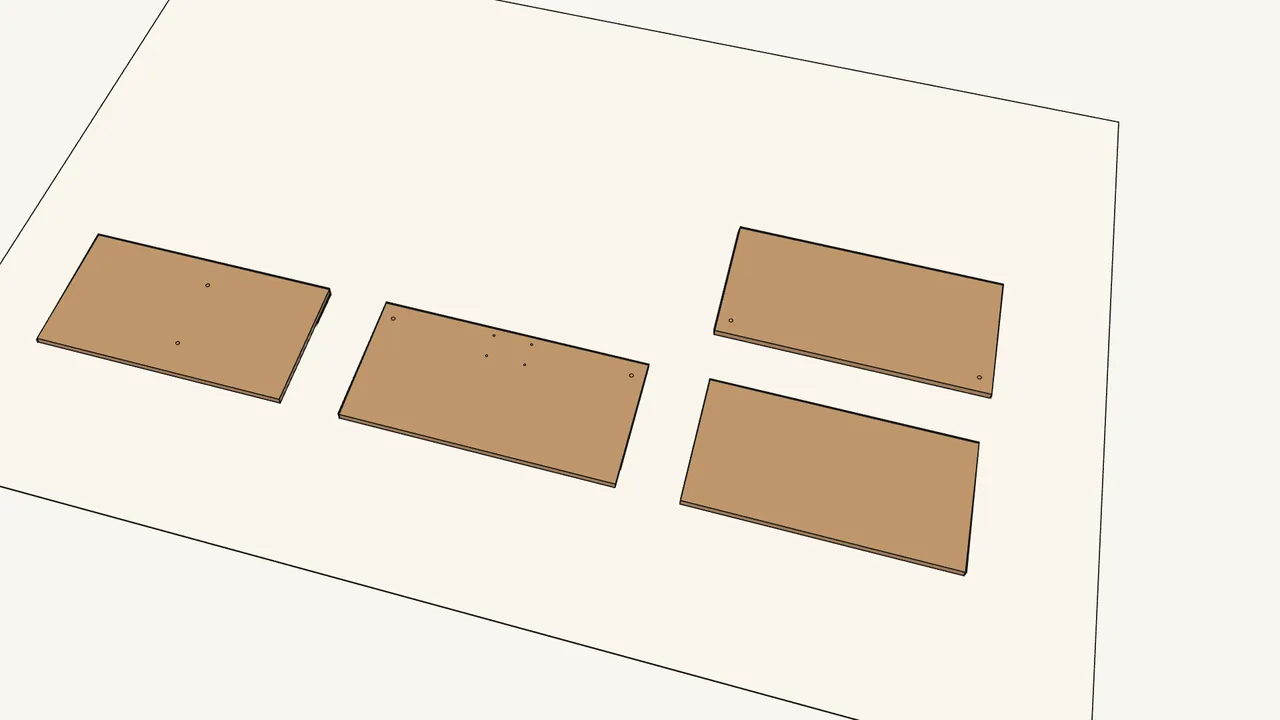

   Sort the four frame panels.

   Two have pegs, two have keyhole slots. The panel marked 1 is the top.

   ▶ Watch this step (0:20)

2.

   Step 2

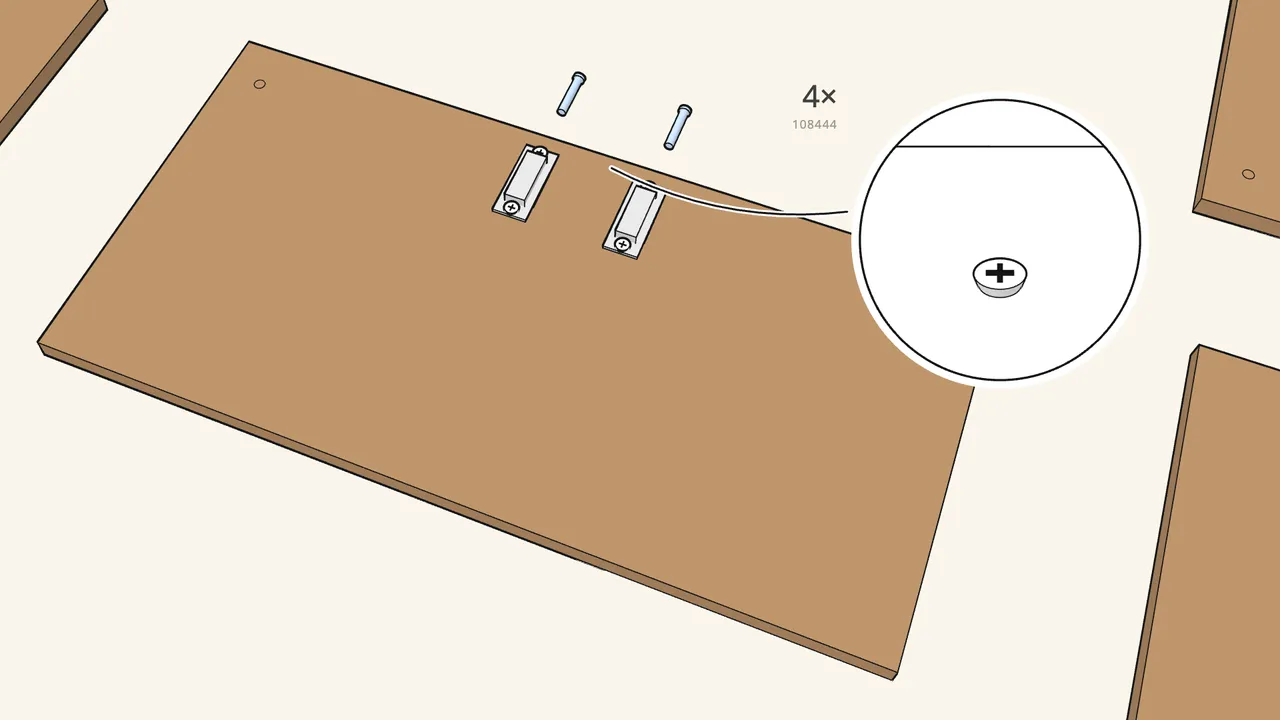

   Screw 2 push-openers (139468) to the top panel, 2 screws (108444) each.

   Then push a plunger (139467) into each housing until it clicks.

   ▶ Watch this step (0:26)

3.

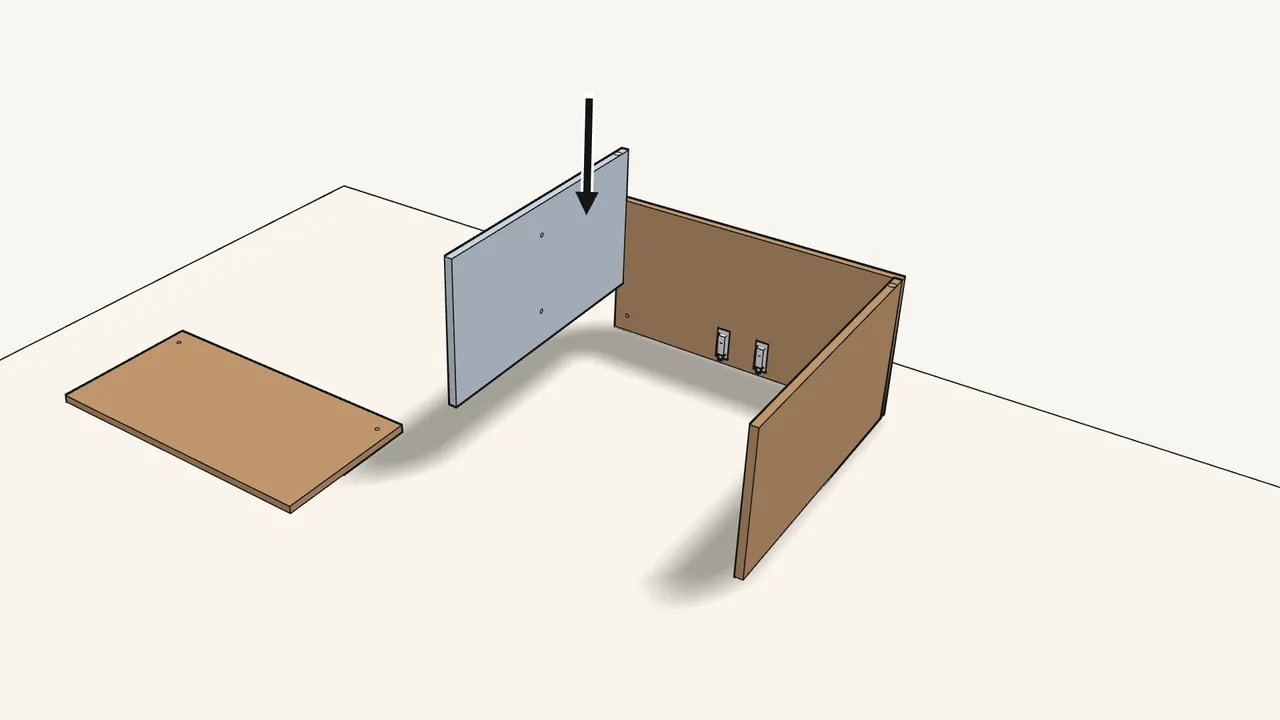

   Step 3 · manual step 3–4

   Stand the top panel on edge and slide the side panels down onto it.

   The pegs drop into the keyhole slots (3 per joint) — press down firmly.

   ▶ Watch this step (0:34)

4.

   Step 4 · manual step 5

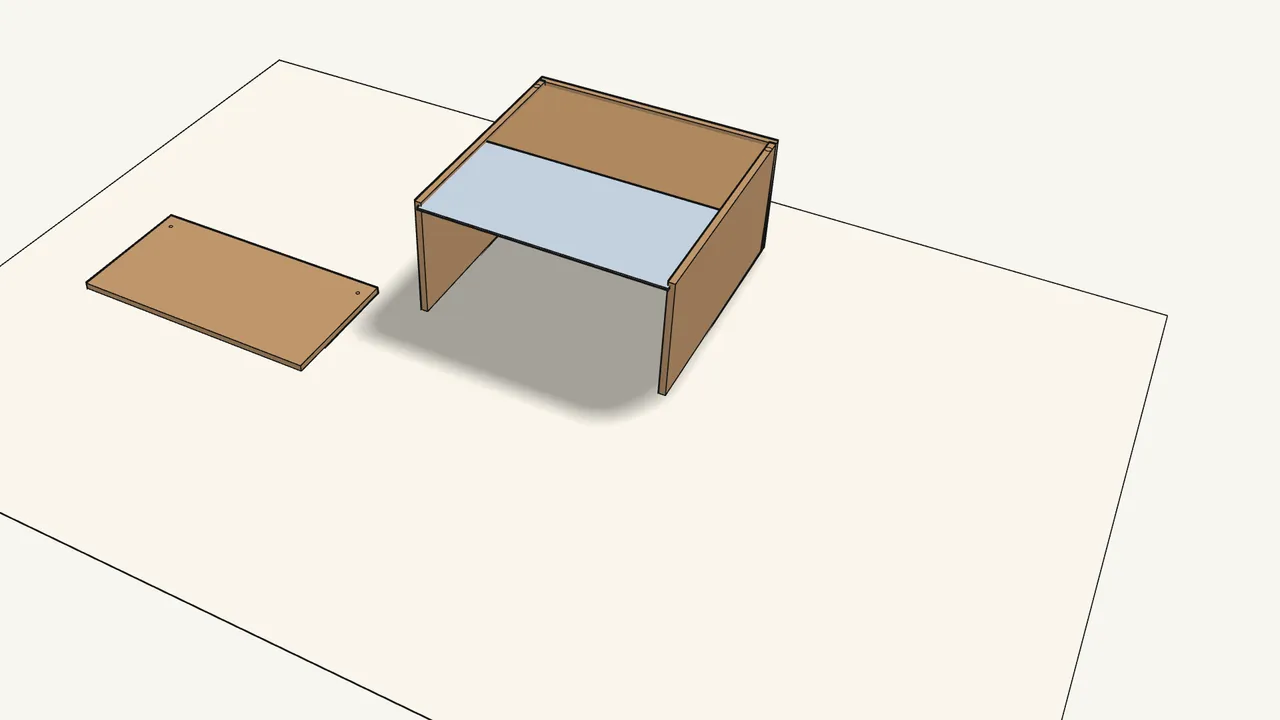

   Unfold the back panel and slide it into the grooves.

   Push it all the way in, up to the top panel.

   ▶ Watch this step (0:44)

5.

   Step 5 · manual step 6

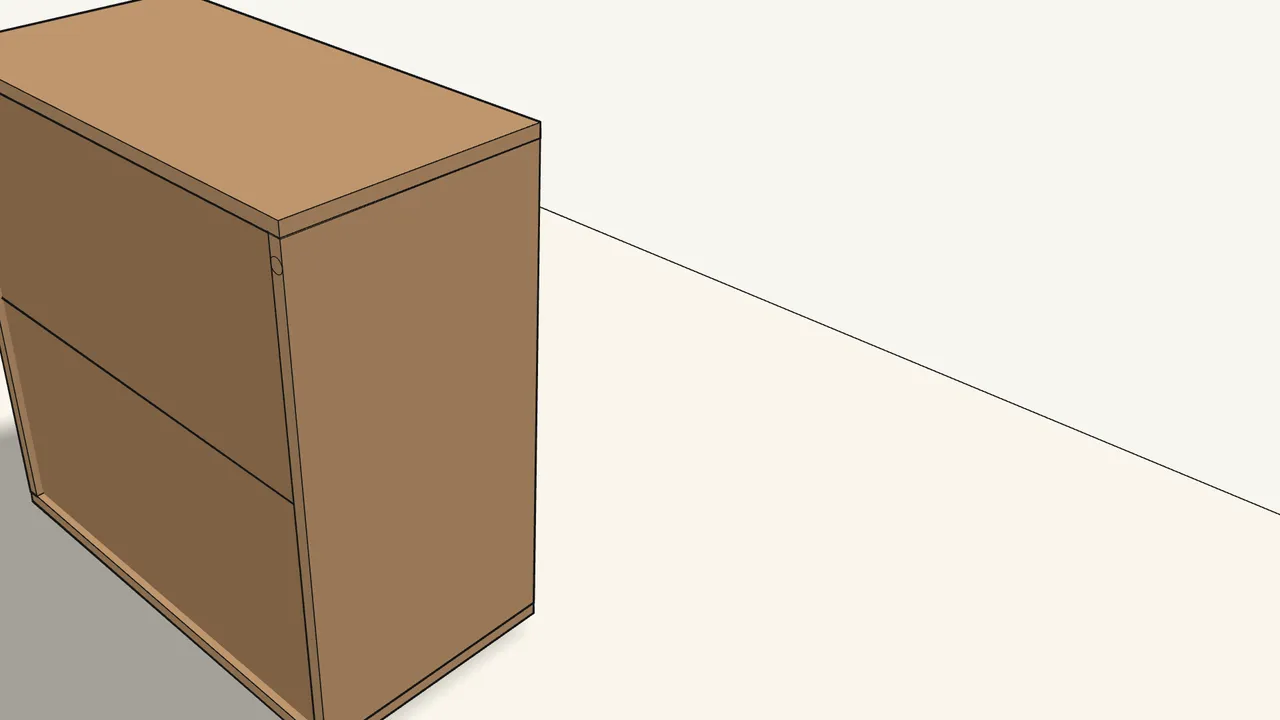

   Slide the bottom panel down to close the frame, then stand it upright.

   ▶ Watch this step (0:51)

6.

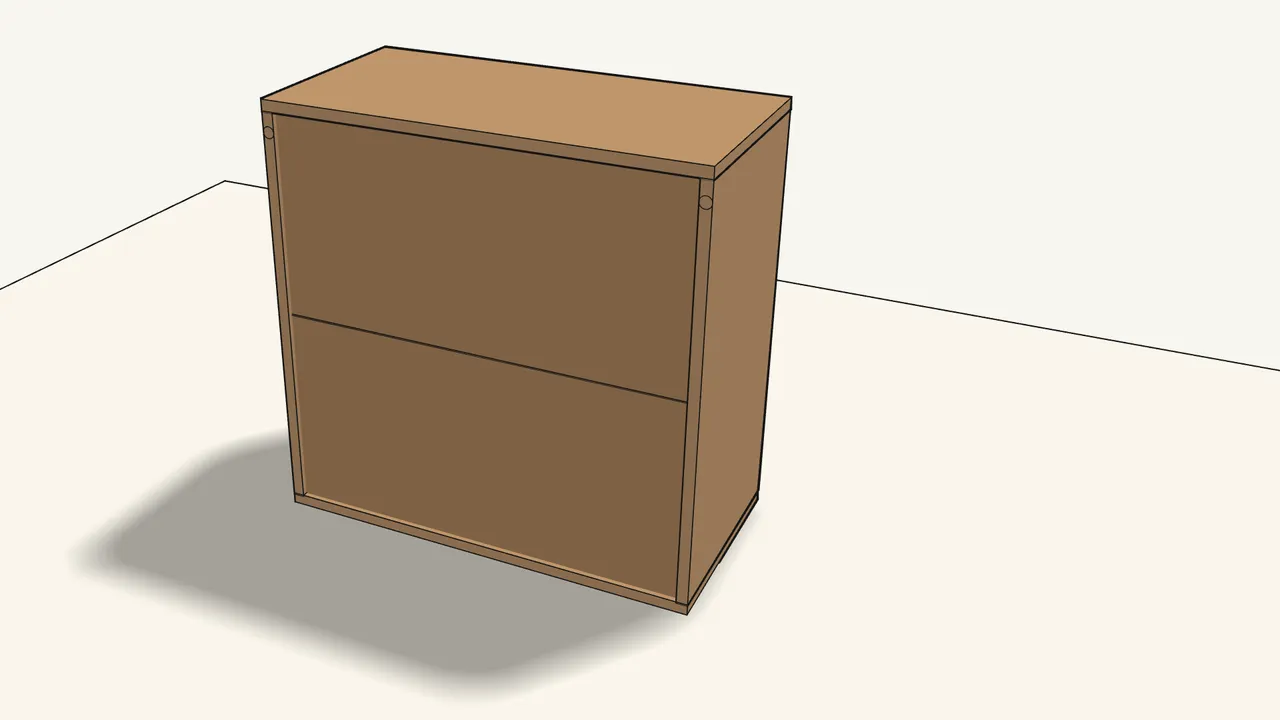

   Step 6 · manual step 7

   Panel 1 is at the top. Check the back sits fully in the bottom groove.

   Push the back panel down if needed.

   ▶ Watch this step (1:00)

7.

   Step 7 · manual step 8–9

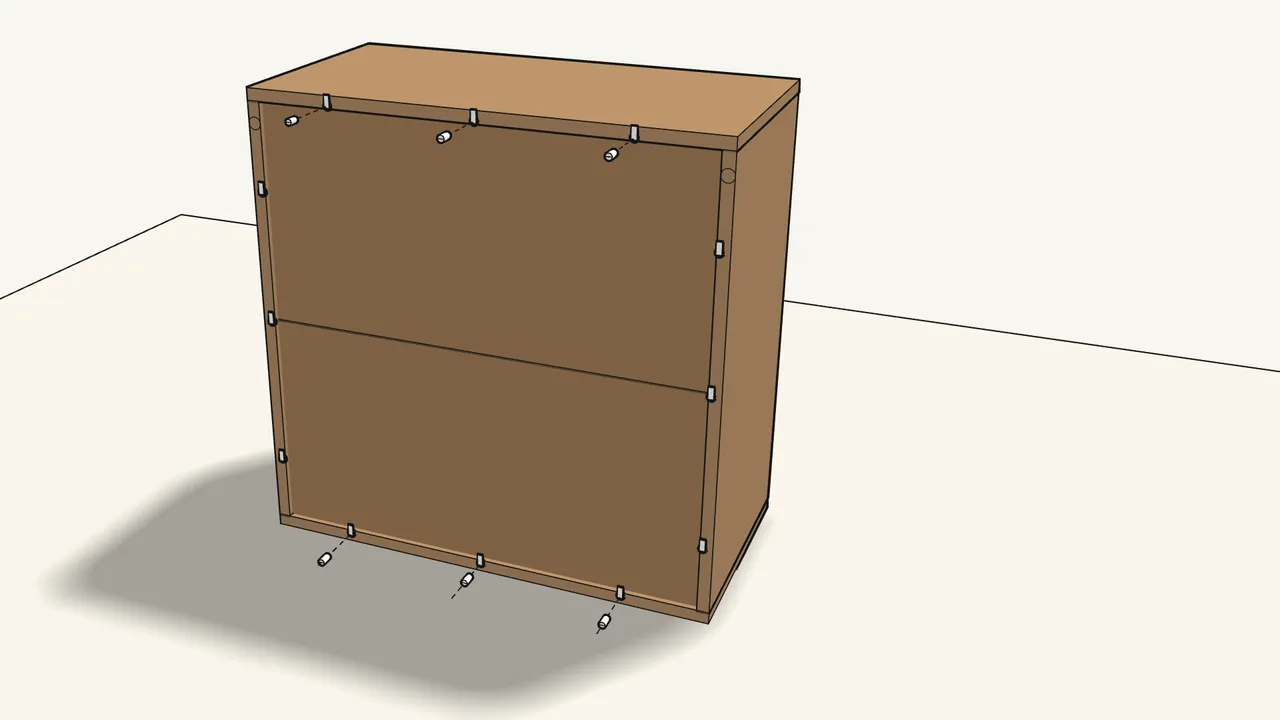

   Fit 12 clips (10093081) around the back panel.

   Start at the bottom centre. Press a wedge (10093082) into each clip.

   ▶ Watch this step (1:05)

8.

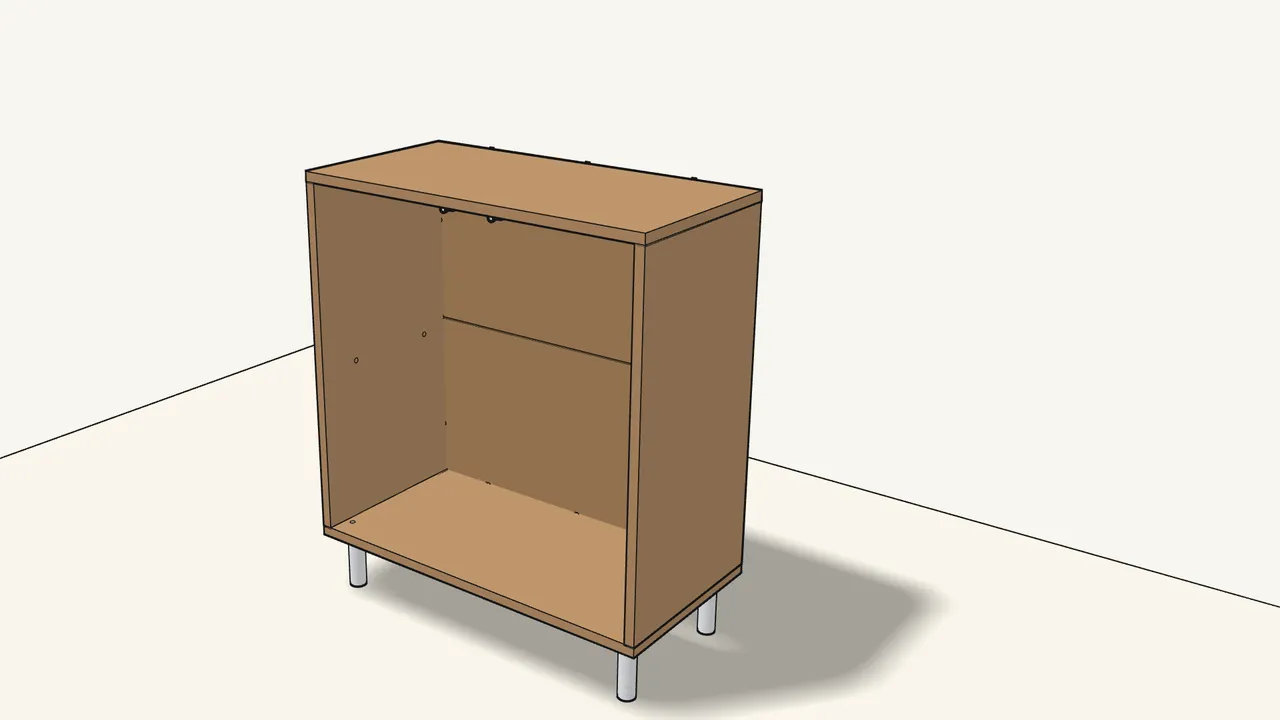

   Step 8 · manual step 10

   Fit legs or another base — follow its own manual.

   Legs and suspension rail are sold separately.

   ▶ Watch this step (1:14)

9.

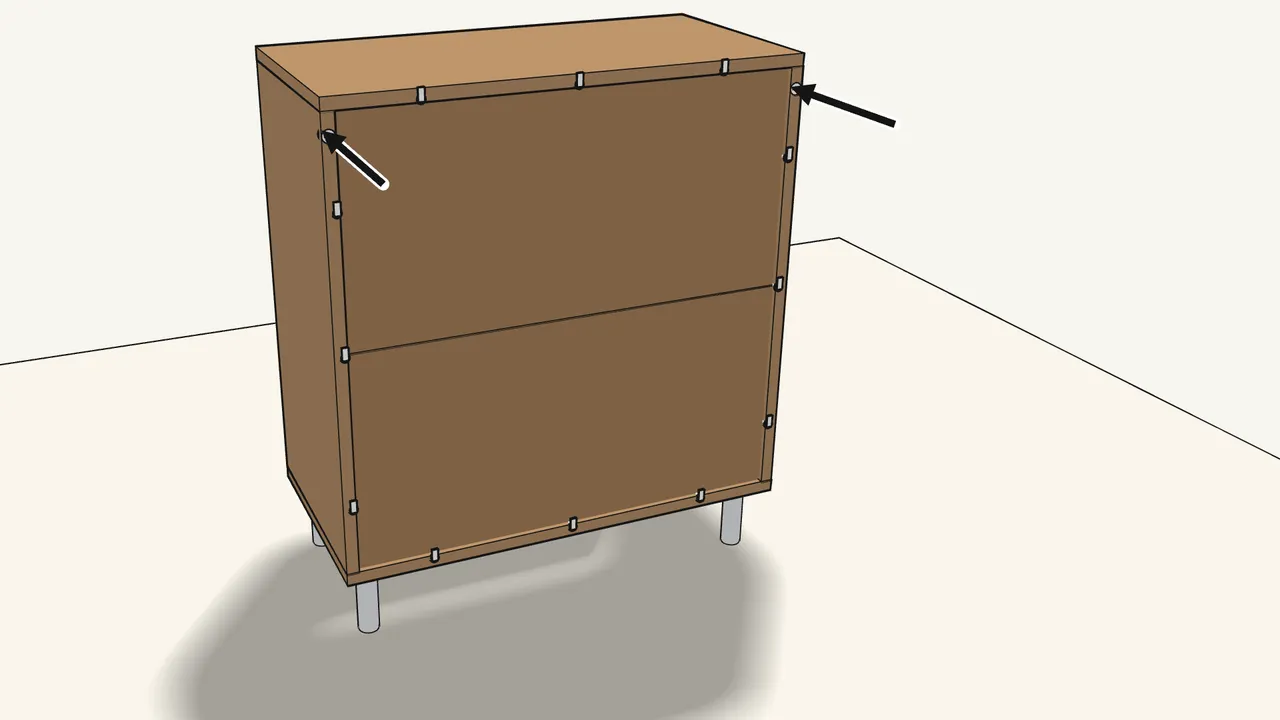

   Step 9 · manual step 11–12

   Press 2 wall connectors (141413) into the back edges.

   Then drill with the Ø 8 mm (5/16") bit at each connector, as shown in step 12.

   ▶ Watch this step (1:21)

10.

    Step 10 · manual step 13

    Turn a knob (141414) onto each connector.

    Turn it clockwise.

    ▶ Watch this step (1:29)

11.

    Step 11 · manual step 14

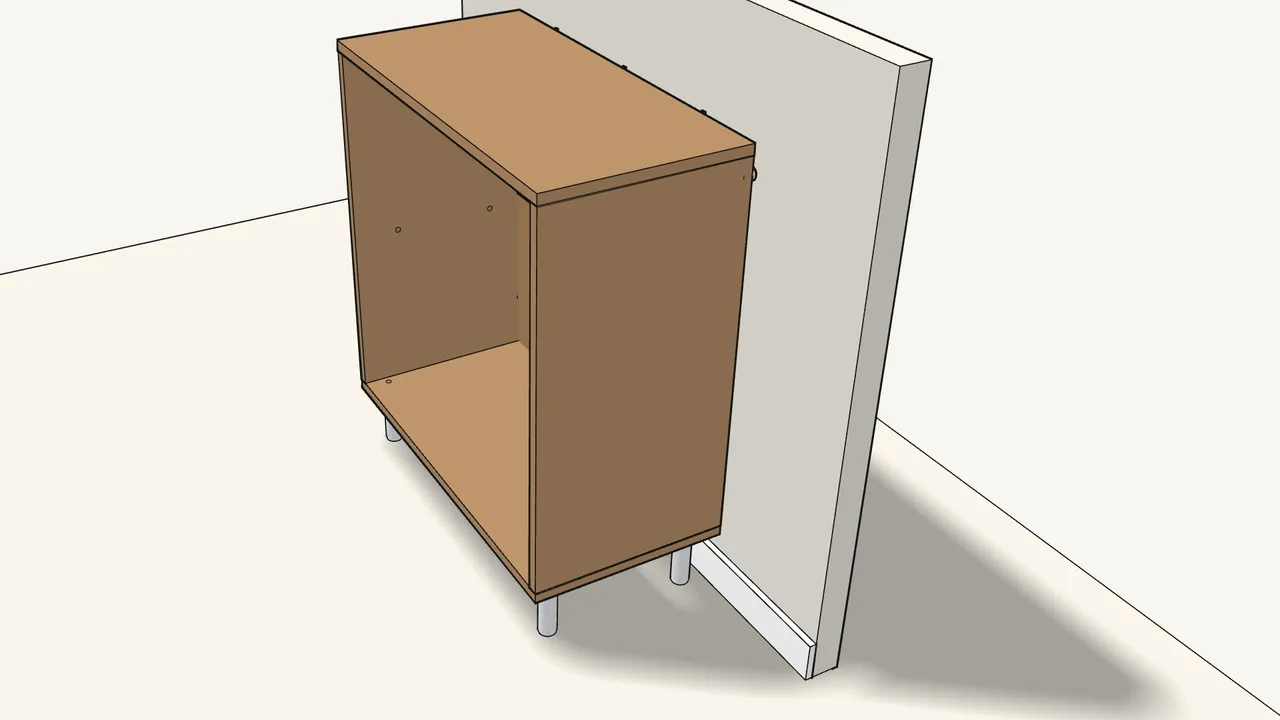

    Move the cabinet to the wall.

    Turn both knobs until they touch the wall, clear of the skirting board.

    ▶ Watch this step (1:35)

12.

    Step 12 · manual step 15–16

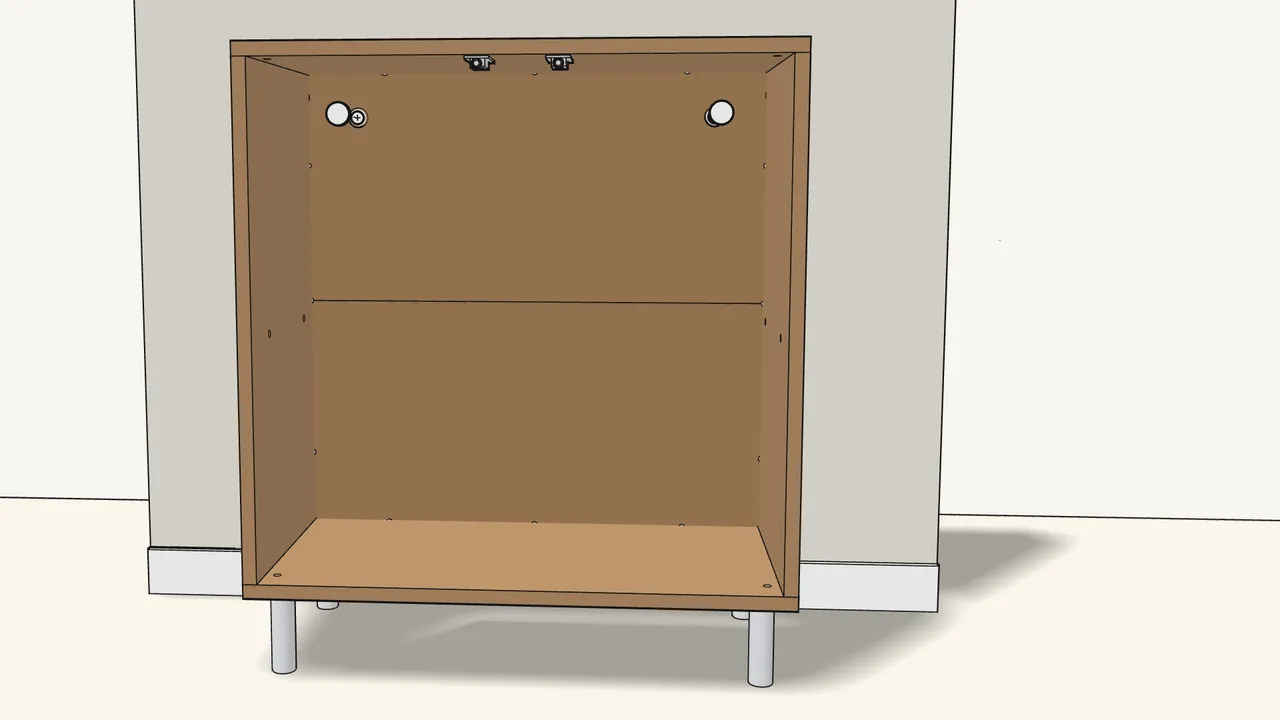

    Fix the cabinet to the wall through 2 plates (152651).

    Wall screws are not included. Then turn a cover cap (152650) onto each plate.

    ▶ Watch this step (1:41)

13.

    Step 13 · manual step 17–18

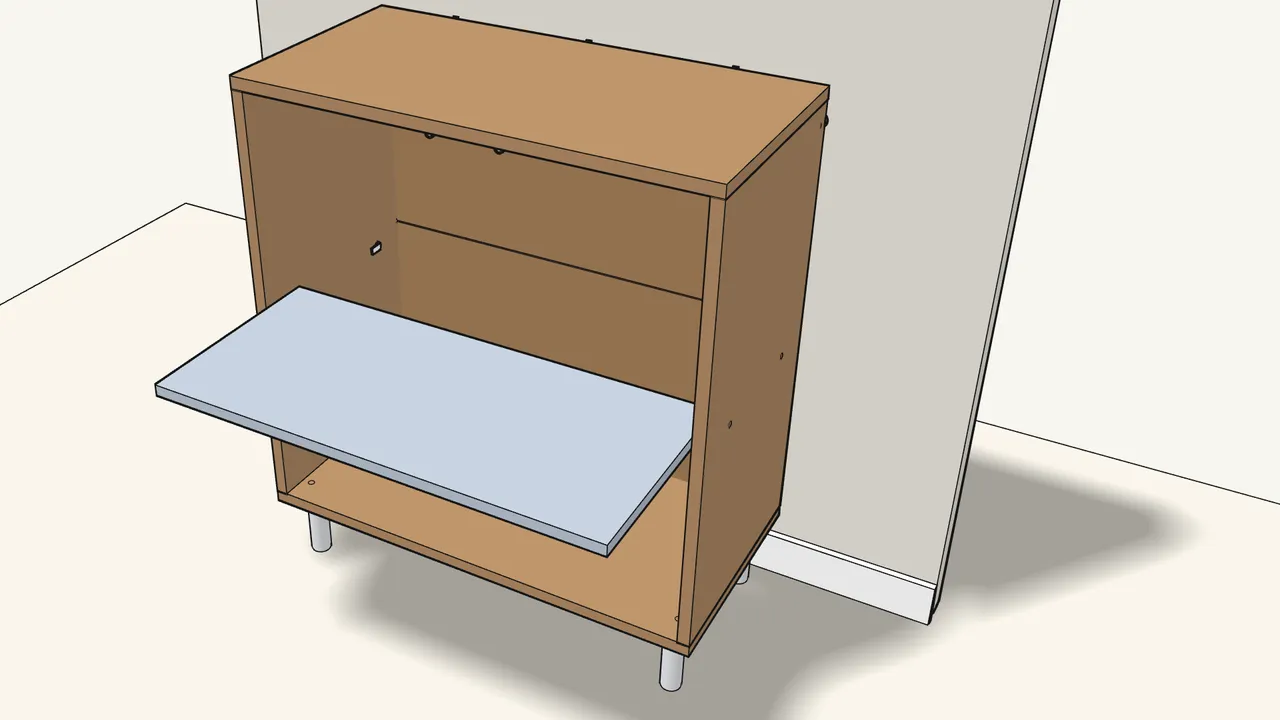

    Push in 4 shelf pins (131372) and lay the shelf on them.

    Check the shelf edge faces the right way (manual step 18).

    ▶ Watch this step (1:51)

14.

    Step 14 · manual step 19

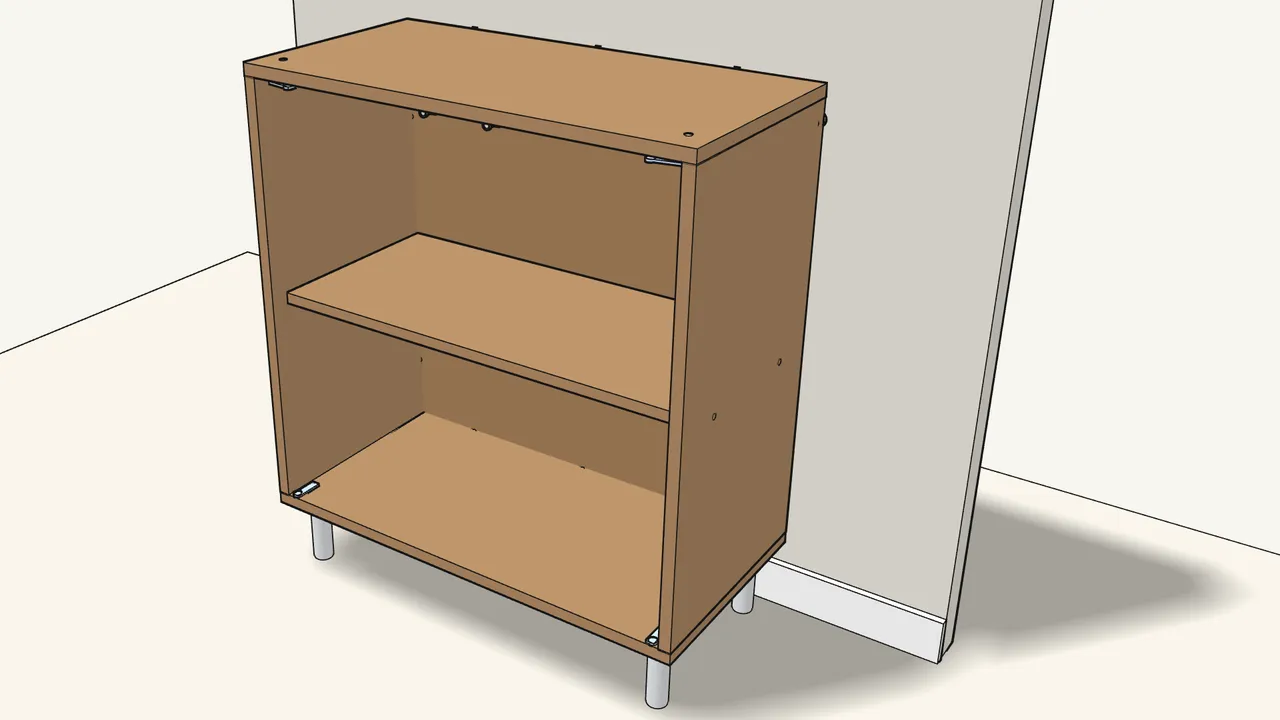

    Press 4 hinge bushings (10119600) into the top and bottom.

    Then click the 4 hinge arms (10119658/10119673) into them.

    ▶ Watch this step (1:59)

15.

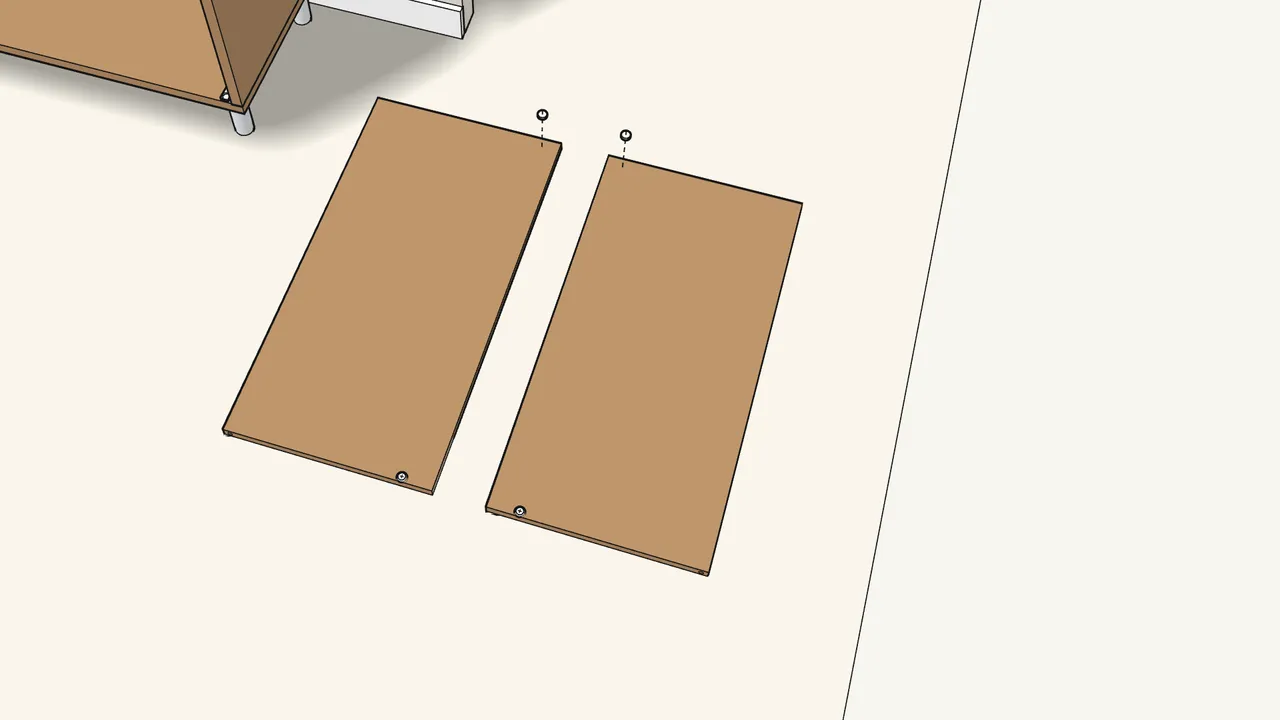

    Step 15 · manual step 20–21

    Screw a washer (101313) and screw (108444) into each door.

    Then stick on 2 bumpers from sheet 152470.

    ▶ Watch this step (2:07)

16.

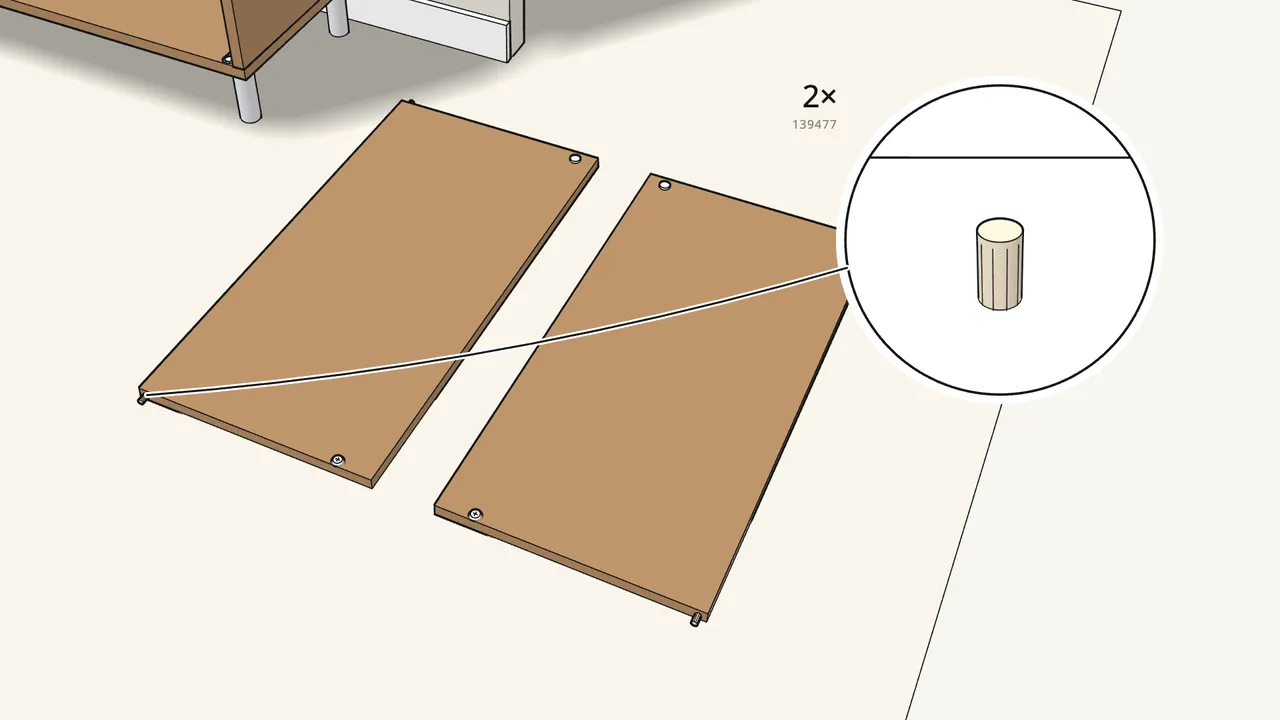

    Step 16 · manual step 22

    Push the hinge pins into each door: 139477 on top, 133127 below.

    ▶ Watch this step (2:16)

17.

    Step 17 · manual step 23–24

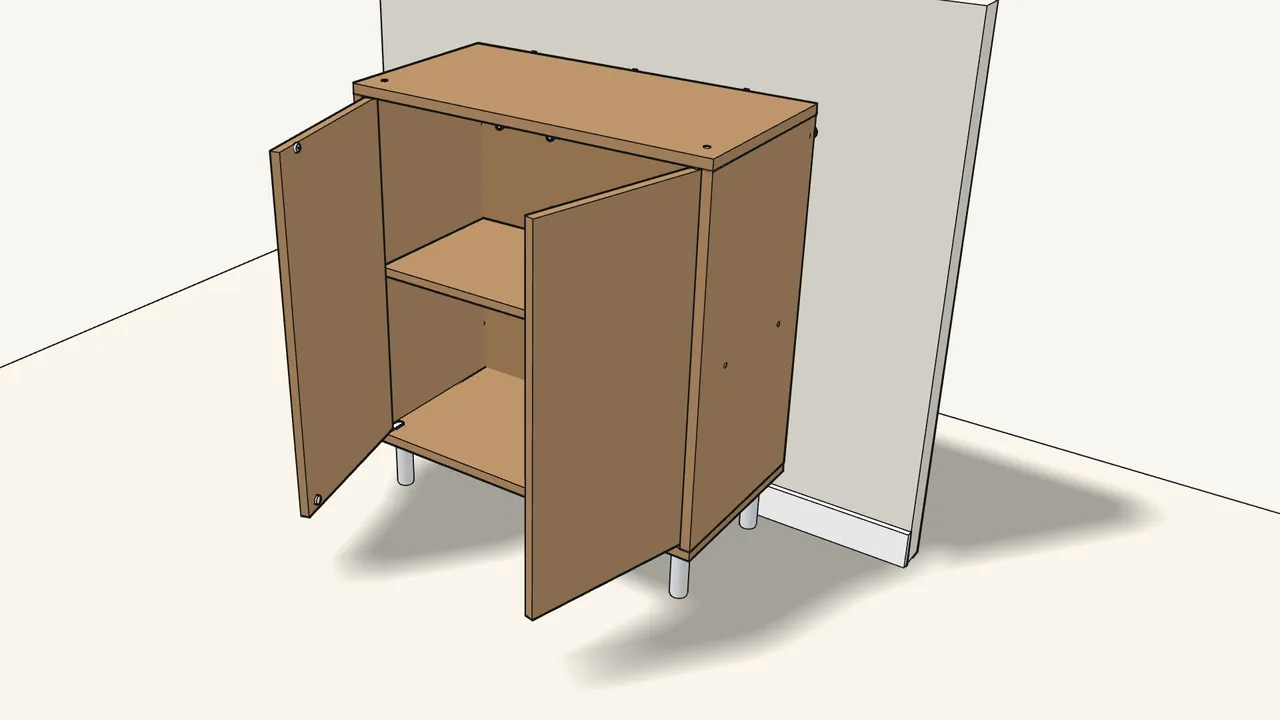

    Set each door onto its lower hinge arm, then click the top arm over the pin.

    2 doors, 2 hinges each.

    ▶ Watch this step (2:22)

18.

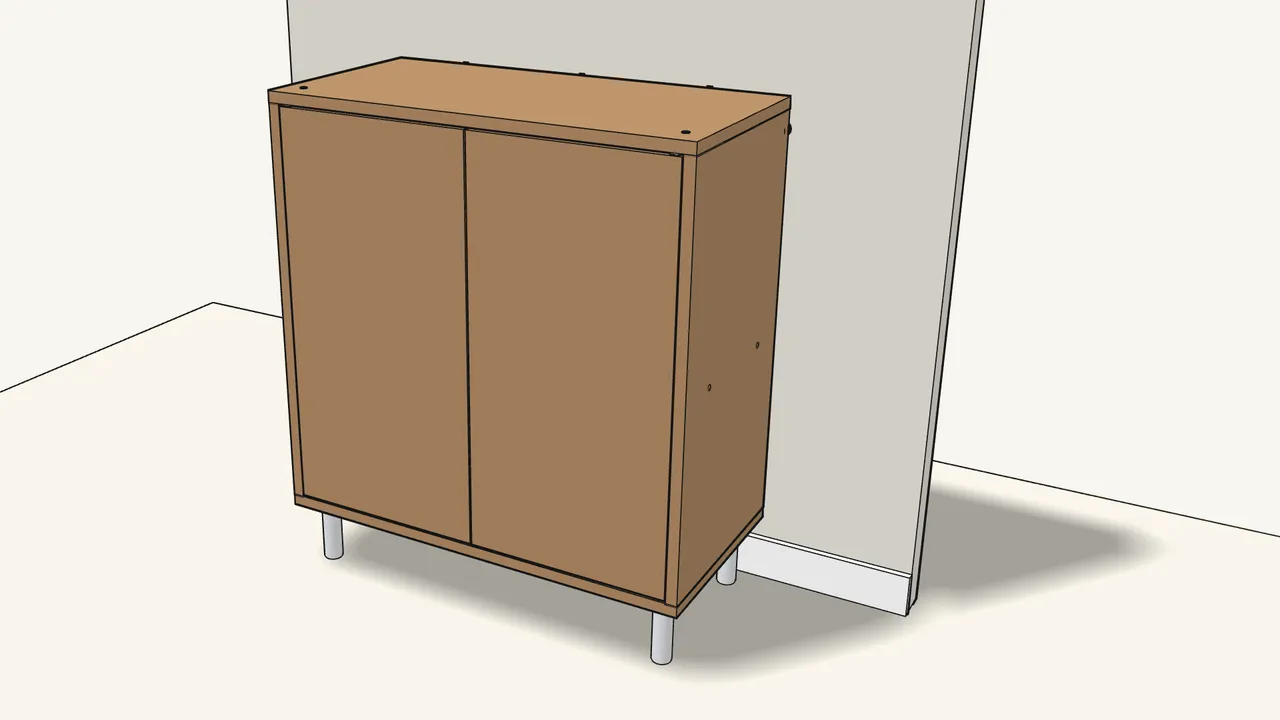

    Step 18 · manual step 24

    Close the doors.

    ▶ Watch this step (2:32)
