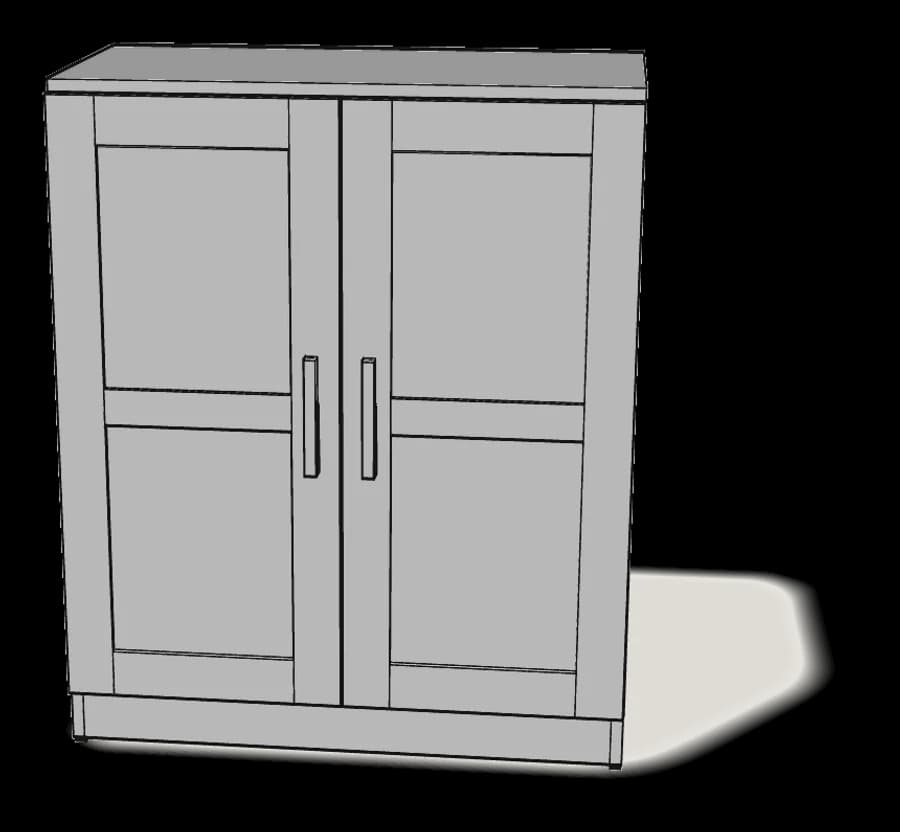

How to Assemble IKEA BRIMNES Cabinet with Doors

Step-by-step assembly

1.

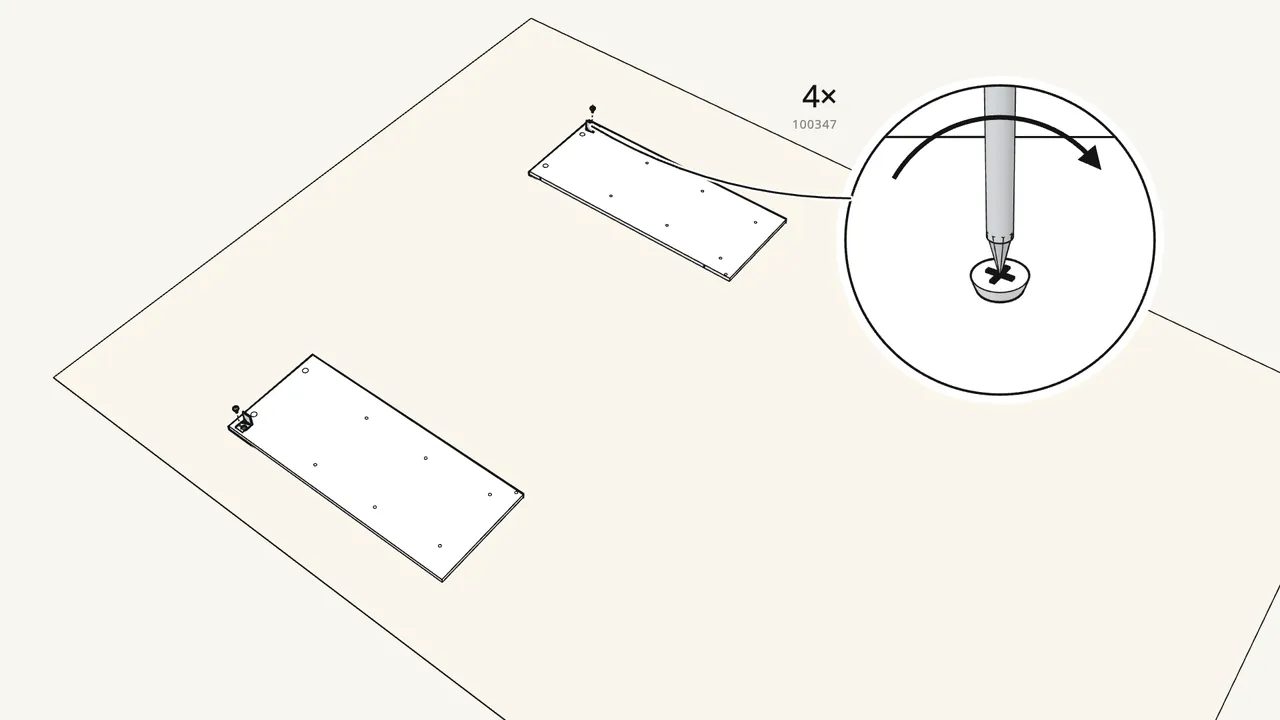

   Step 1

   Screw a bracket (115753) onto each side panel.

   2 screws (100347) each — not the 113287 screws.

   ▶ Watch this step (0:18)

2.

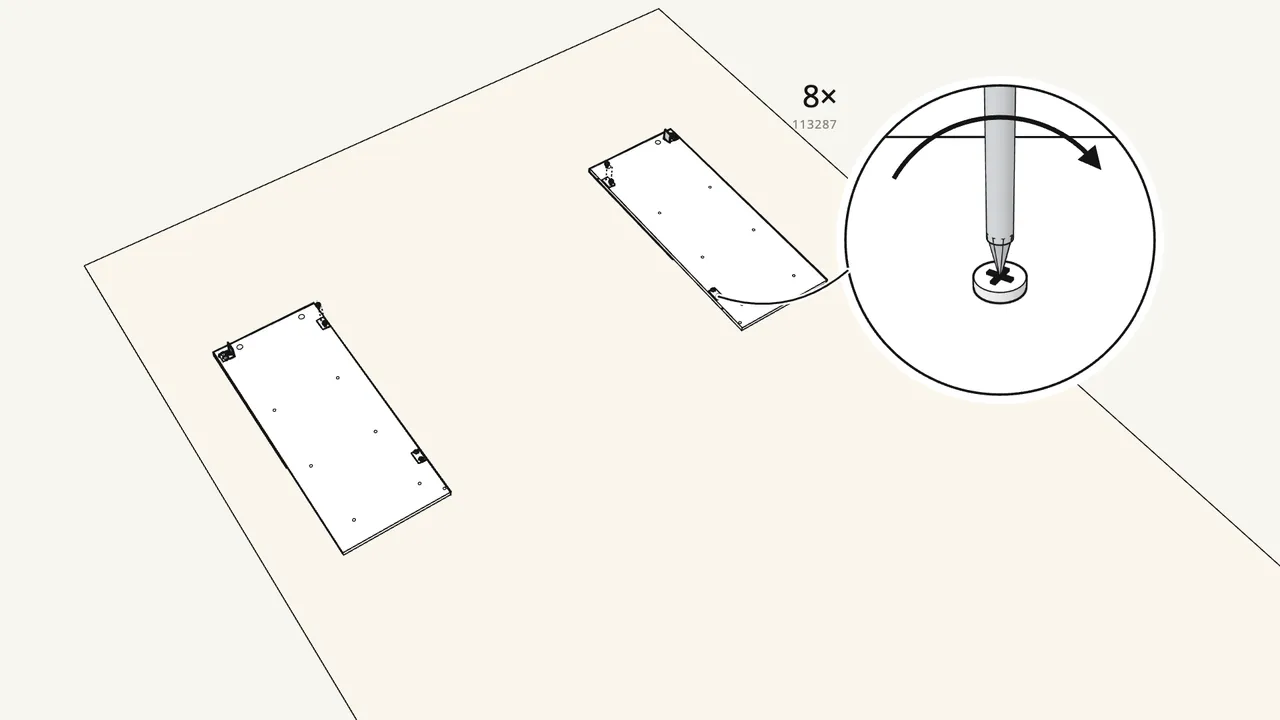

   Step 2

   Screw the 4 hinge plates (117878) onto the side panels.

   2 screws (113287) per plate.

   ▶ Watch this step (0:26)

3.

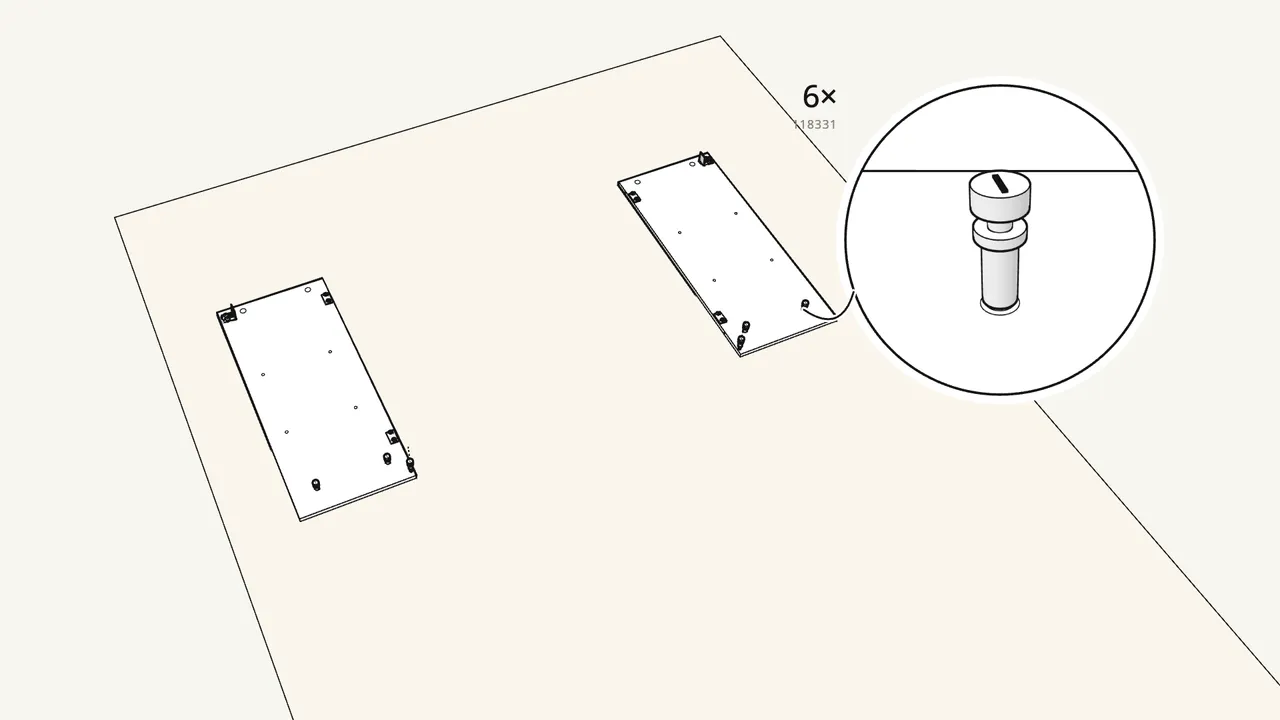

   Step 3

   Screw 6 cam bolts (118331) into the side panels by hand.

   3 in each side, at the bottom end.

   ▶ Watch this step (0:33)

4.

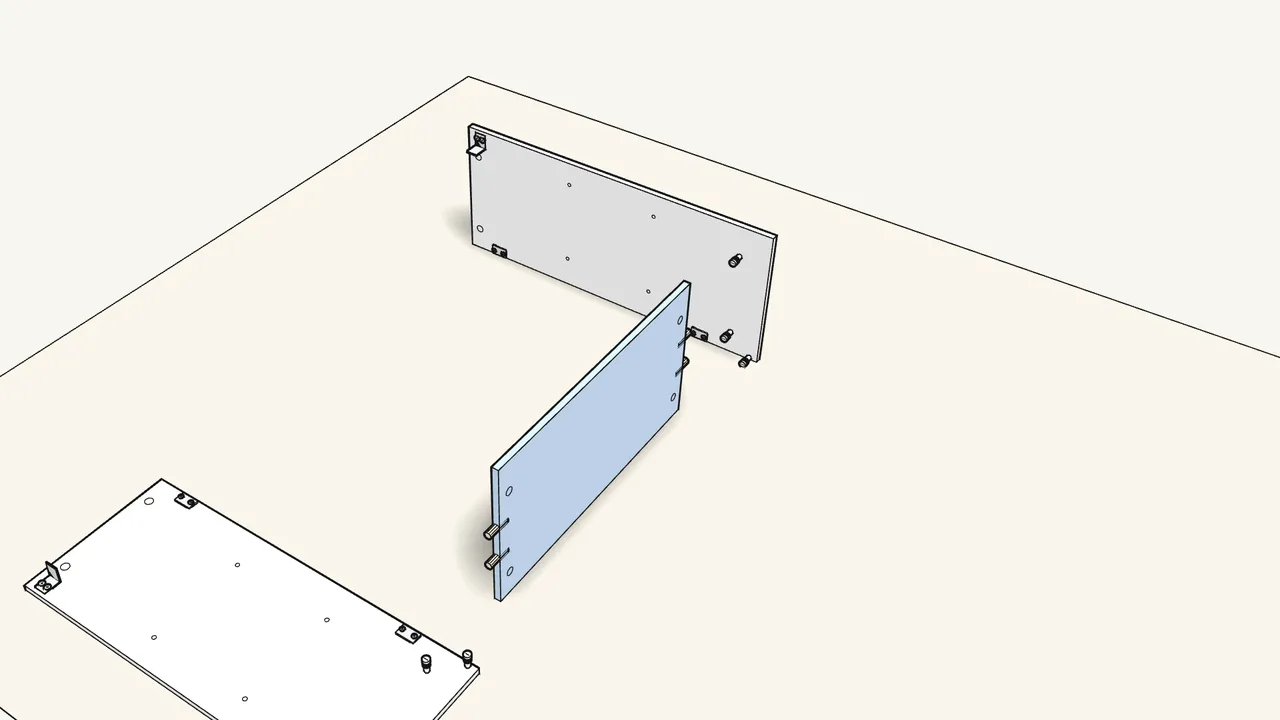

   Step 4

   Push 4 dowels into the bottom panel and fit it to one side.

   Stand the side panel on its front edge.

   ▶ Watch this step (0:40)

5.

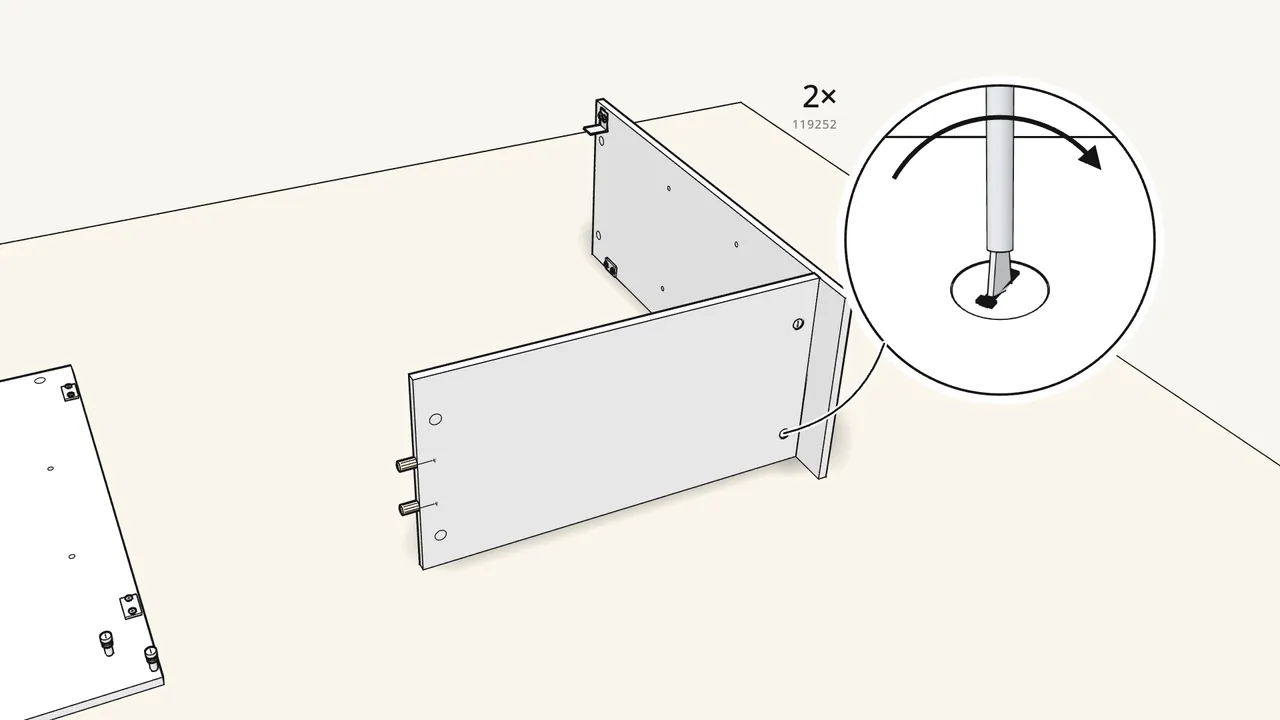

   Step 5

   Insert 2 cam locks and turn them clockwise to lock.

   Use a flat-head screwdriver.

   ▶ Watch this step (0:48)

6.

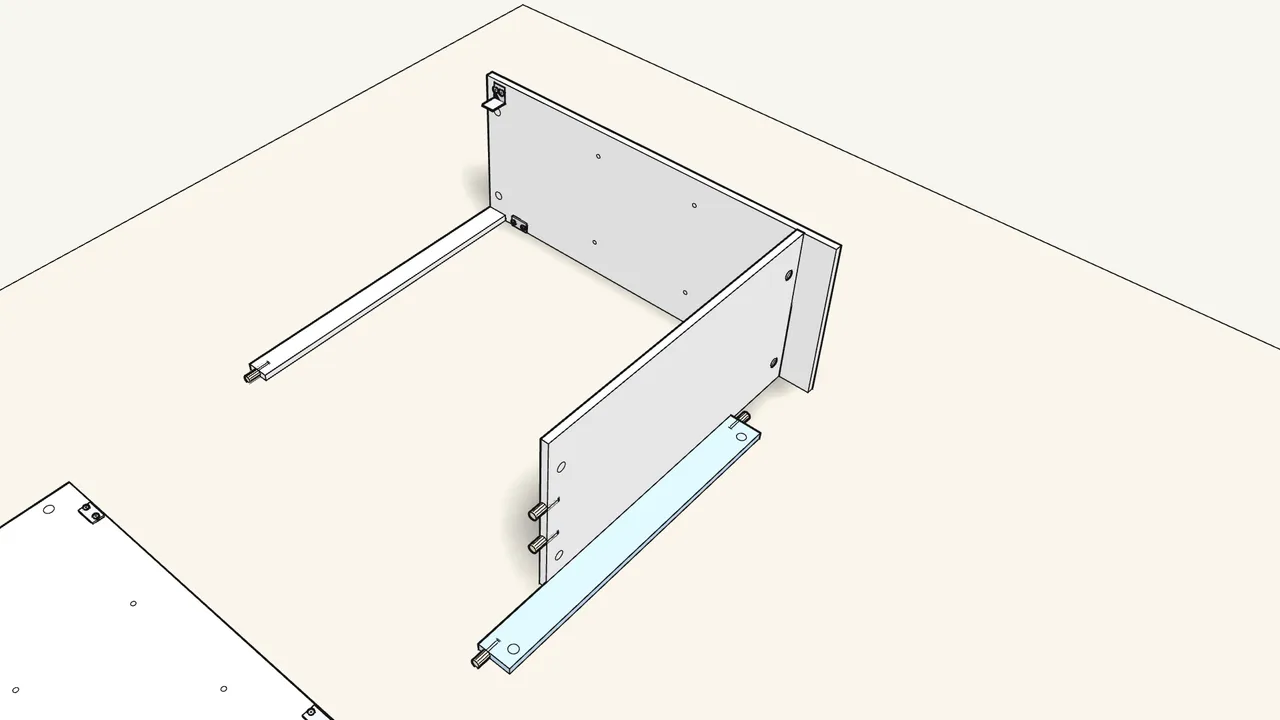

   Step 6 · manual step 6–7

   Fit the top rail and the plinth to the side panel.

   Push 2 dowels (101345) into each first.

   ▶ Watch this step (0:55)

7.

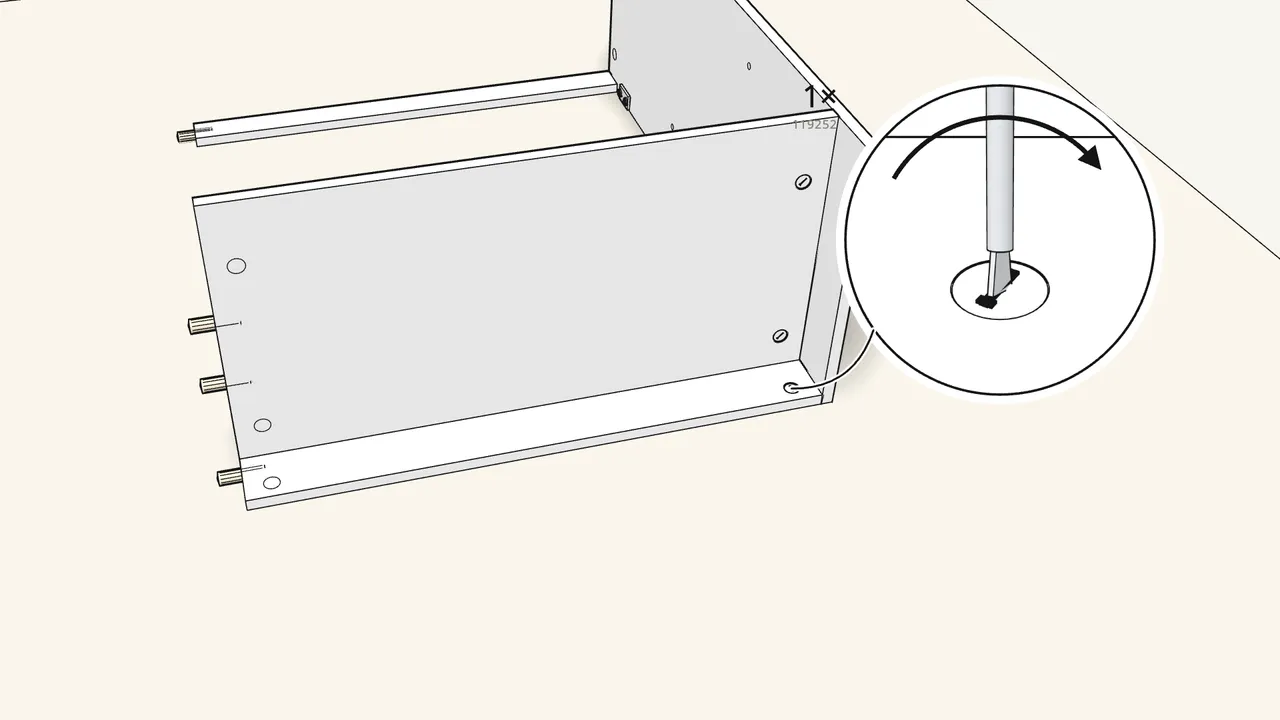

   Step 7 · manual step 8

   Lock the plinth with 1 cam lock.

   Turn it clockwise.

   ▶ Watch this step (1:03)

8.

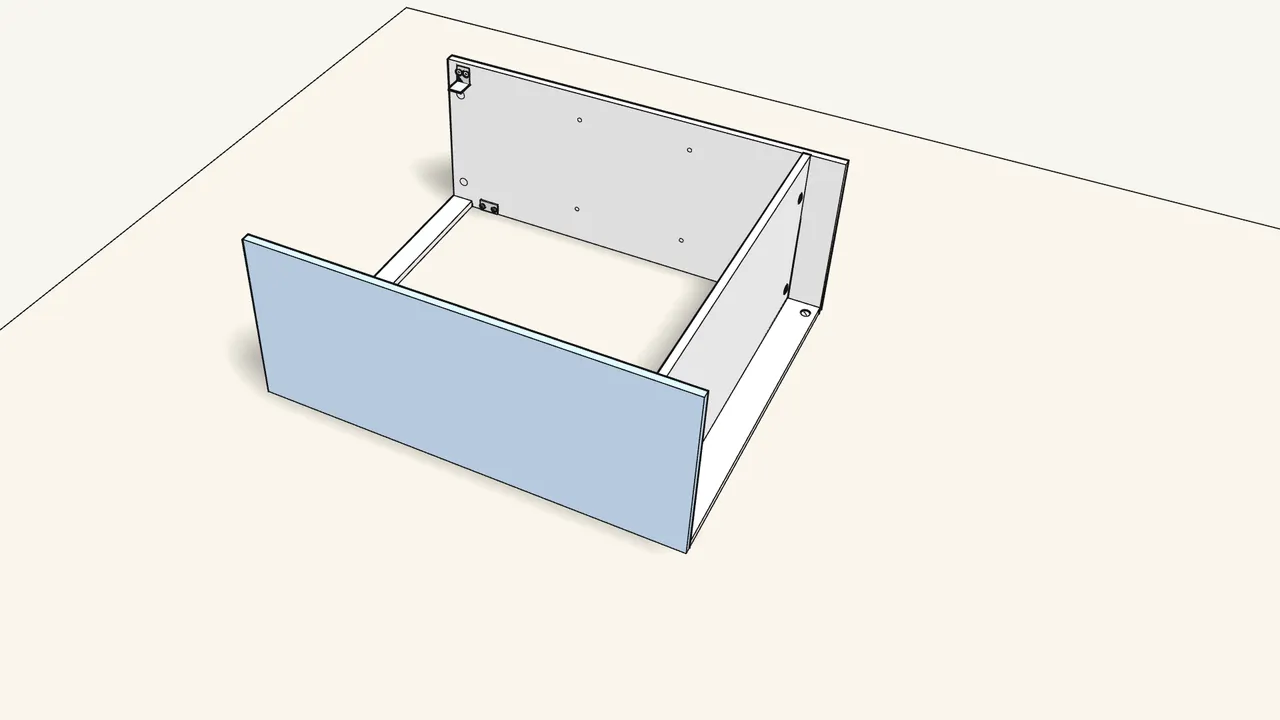

   Step 8 · manual step 9

   Fit the second side panel onto the dowels and bolts.

   ▶ Watch this step (1:09)

9.

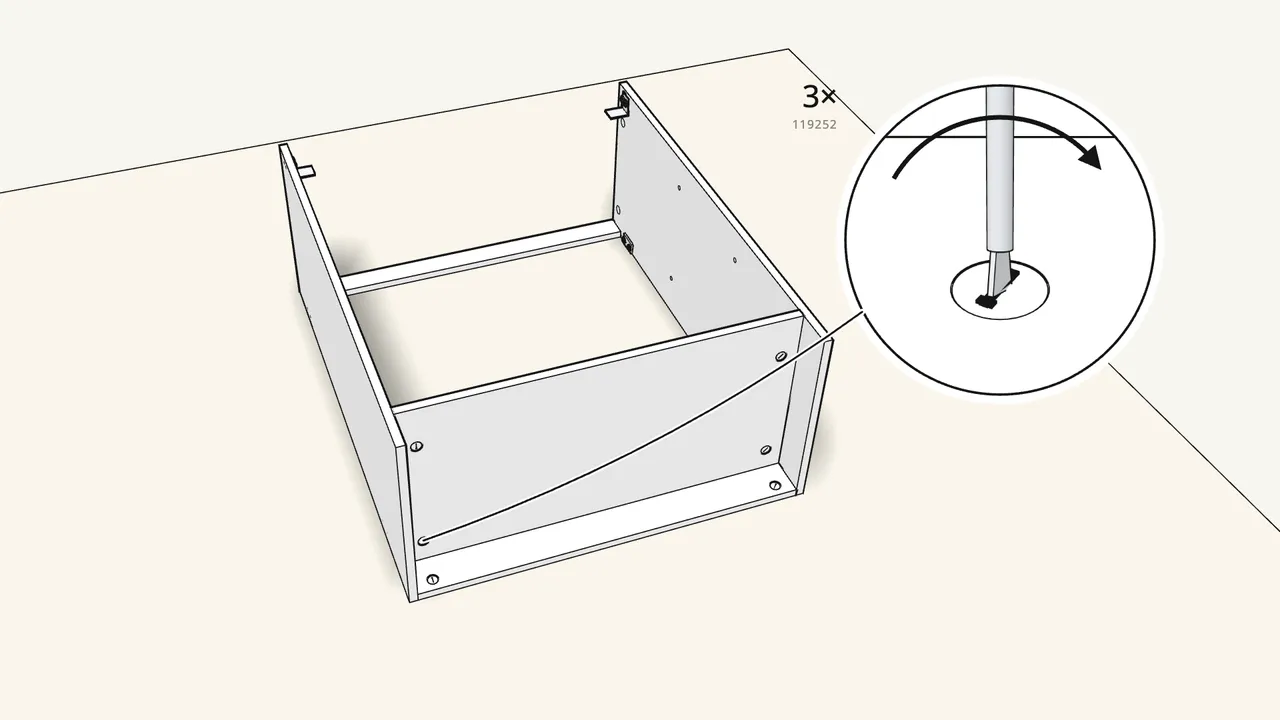

   Step 9 · manual step 10

   Insert 3 cam locks and turn them clockwise.

   2 in the bottom panel, 1 in the plinth.

   ▶ Watch this step (1:16)

10.

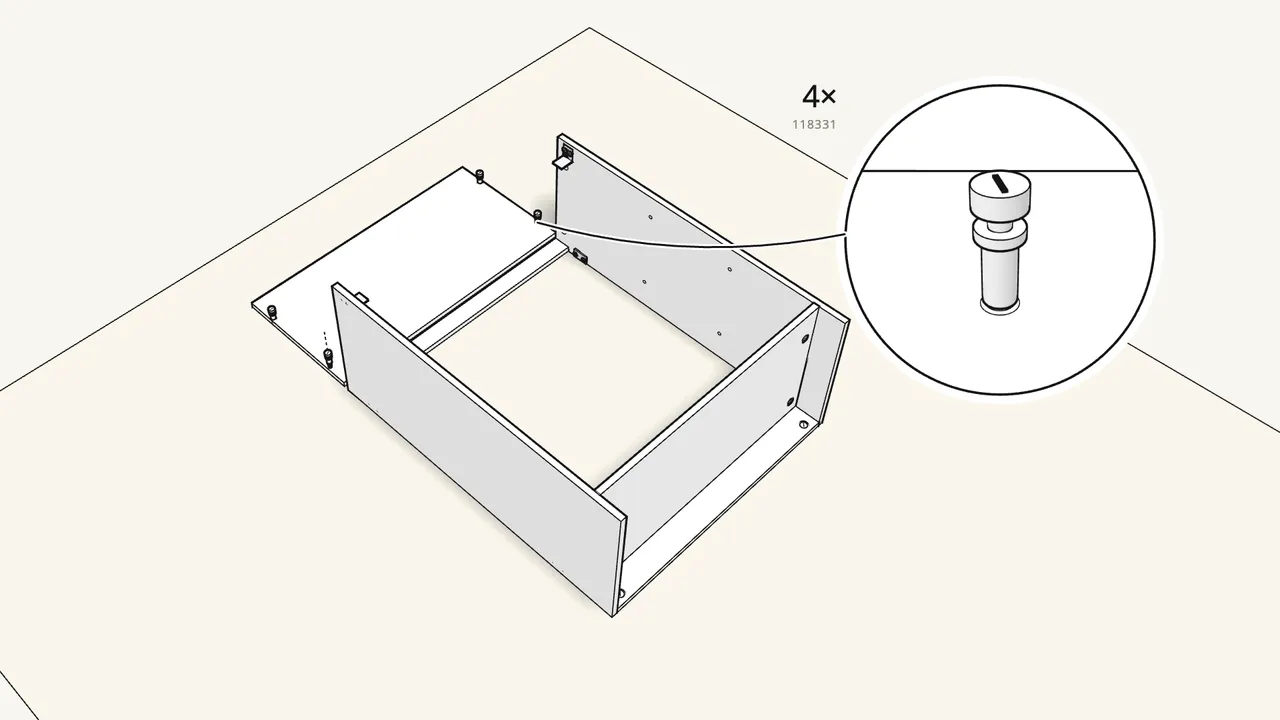

    Step 10 · manual step 11

    Screw 4 cam bolts (118331) into the top panel.

    ▶ Watch this step (1:23)

11.

    Step 11 · manual step 12

    Push 4 dowels into the side panels and fit the top.

    ▶ Watch this step (1:29)

12.

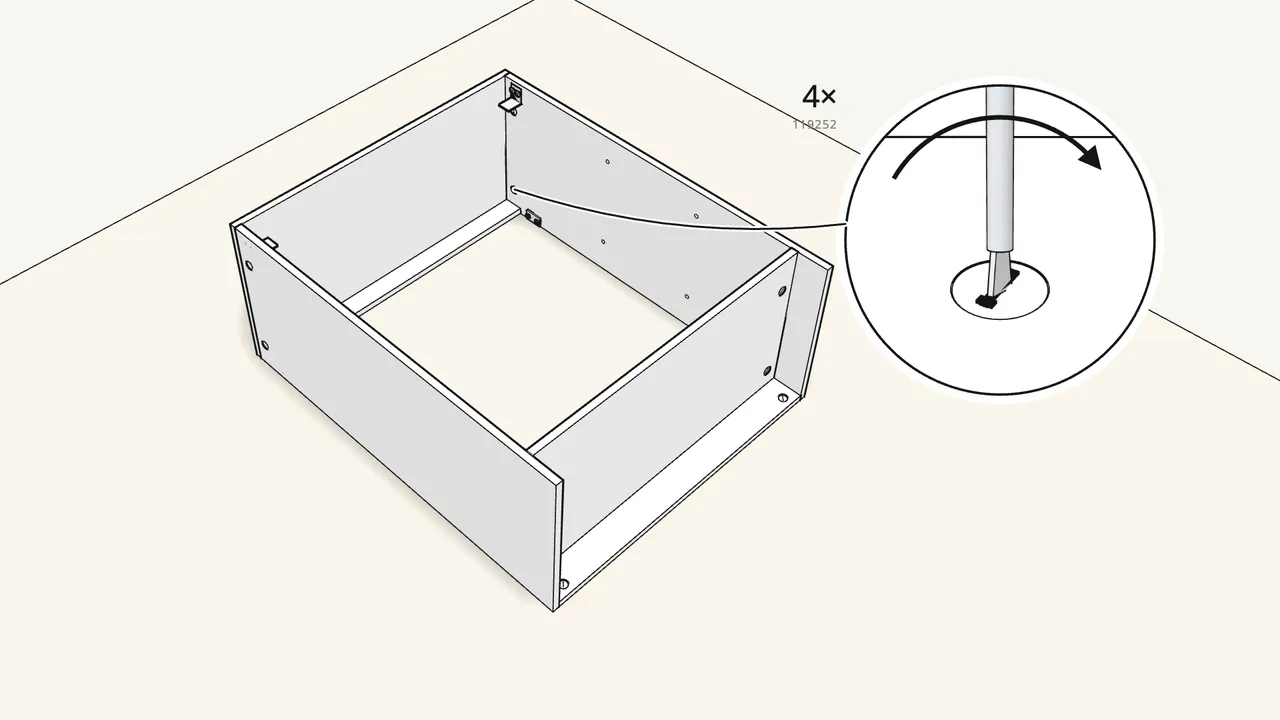

    Step 12 · manual step 13

    Insert 4 cam locks and turn them clockwise.

    2 in each side panel, near the top.

    ▶ Watch this step (1:37)

13.

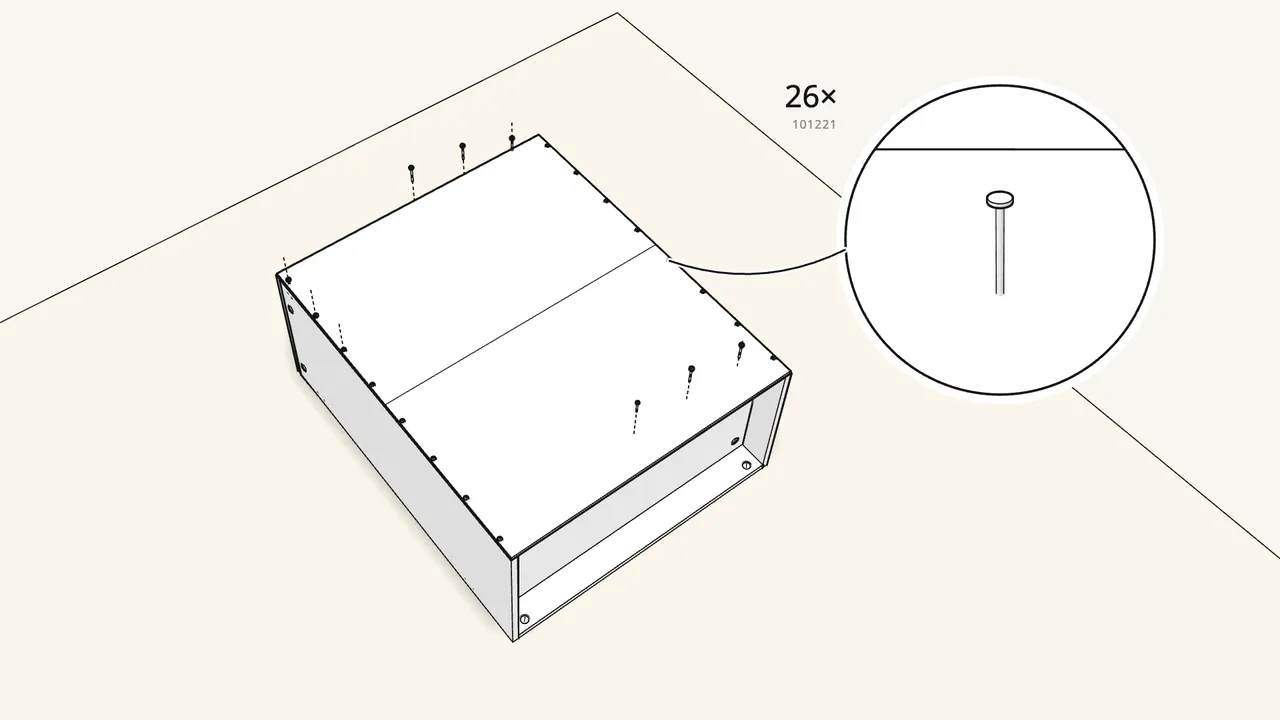

    Step 13 · manual step 14–15

    Lay the back panel on and nail it down.

    Line it up with the edges first. Hold the nails (101221) in the nail guide (105494).

    ▶ Watch this step (1:43)

14.

    Step 14 · manual step 16

    Tap the 4 feet (158568) into the bottom edges of the sides.

    Use a hammer.

    ▶ Watch this step (1:53)

15.

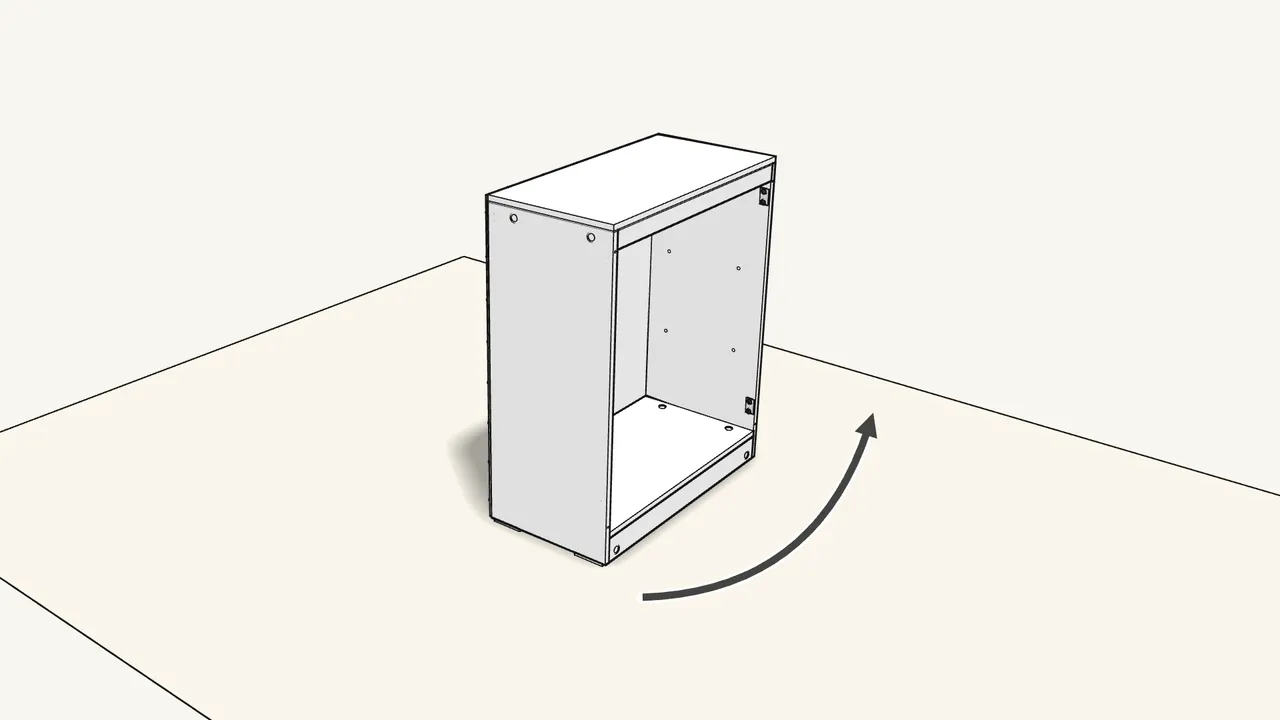

    Step 15 · manual step 17

    Tip the cabinet upright and turn it around.

    Get help — it’s easier with two people.

    ▶ Watch this step (1:59)

16.

    Step 16 · manual step 18–20

    Fix the cabinet to the wall with the 2 wall fittings.

    Mark through the brackets, fit screws suited to your wall (not included), hook on the plates (103693), then snap on the covers.

    ▶ Watch this step (2:07)

17.

    Step 17 · manual step 21

    Screw 2 hinges (117877) onto each door.

    Doors face-down. 2 screws (113287) per hinge.

    ▶ Watch this step (2:16)

18.

    Step 18 · manual step 22

    Clip the door hinges onto the hinge plates.

    Then tighten the screw on each hinge.

    ▶ Watch this step (2:24)

19.

    Step 19 · manual step 23

    Screw a handle onto each door.

    2 screws (109567) per handle, from the inside.

    ▶ Watch this step (2:33)

20.

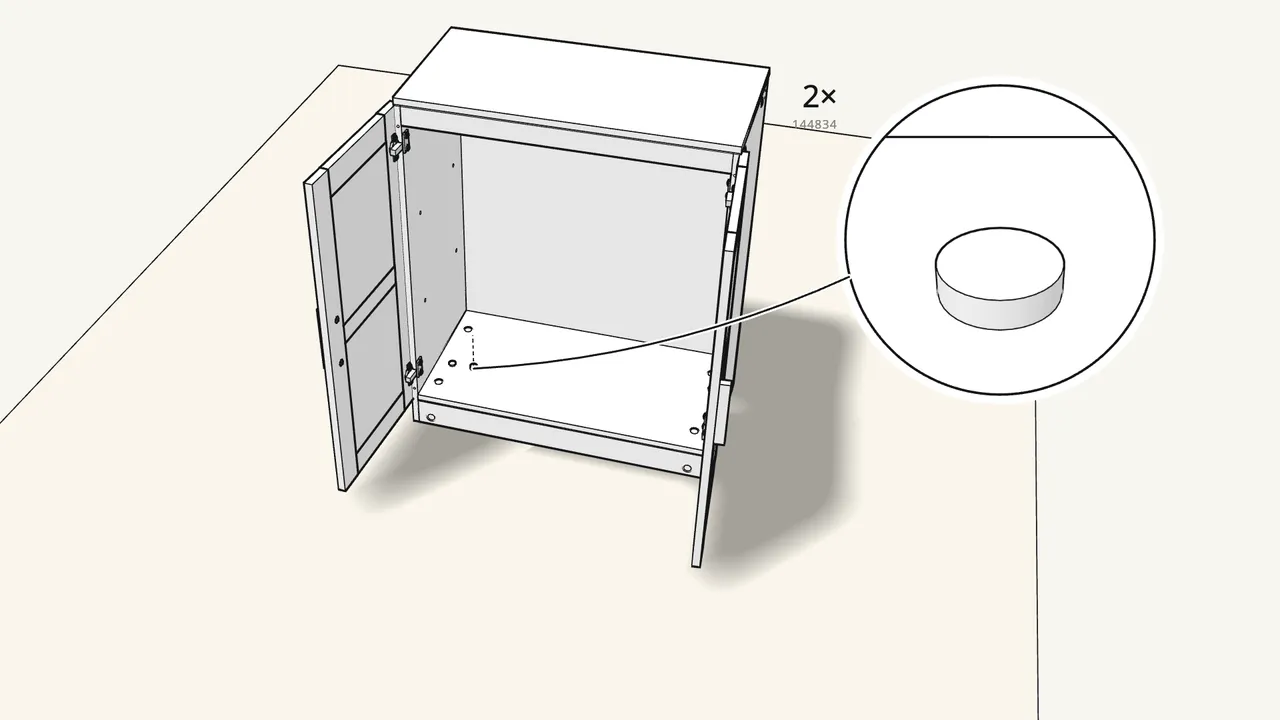

    Step 20 · manual step 24

    Press 2 cover caps into the holes in the bottom panel.

    The bag (344833) holds two colours — use the matching pair.

    ▶ Watch this step (2:40)

21.

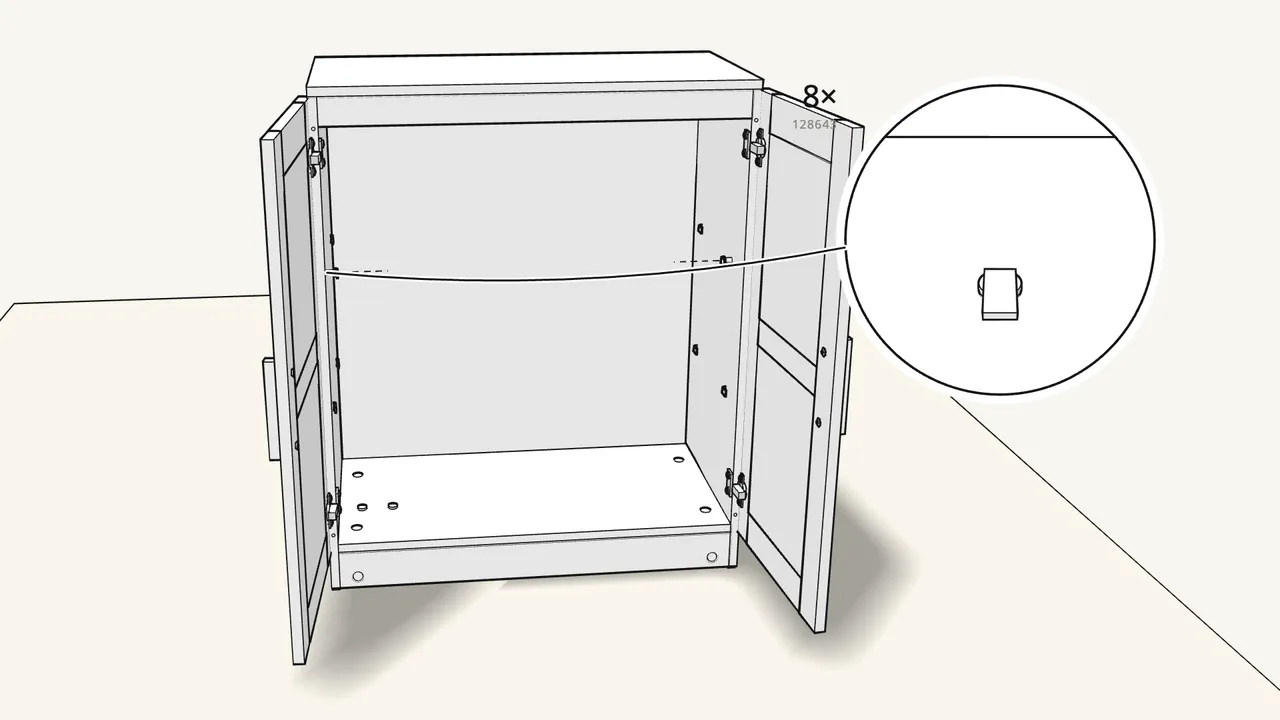

    Step 21 · manual step 25

    Push 8 shelf pins (128643) into the side panels.

    4 per shelf, at the heights you want.

    ▶ Watch this step (2:46)

22.

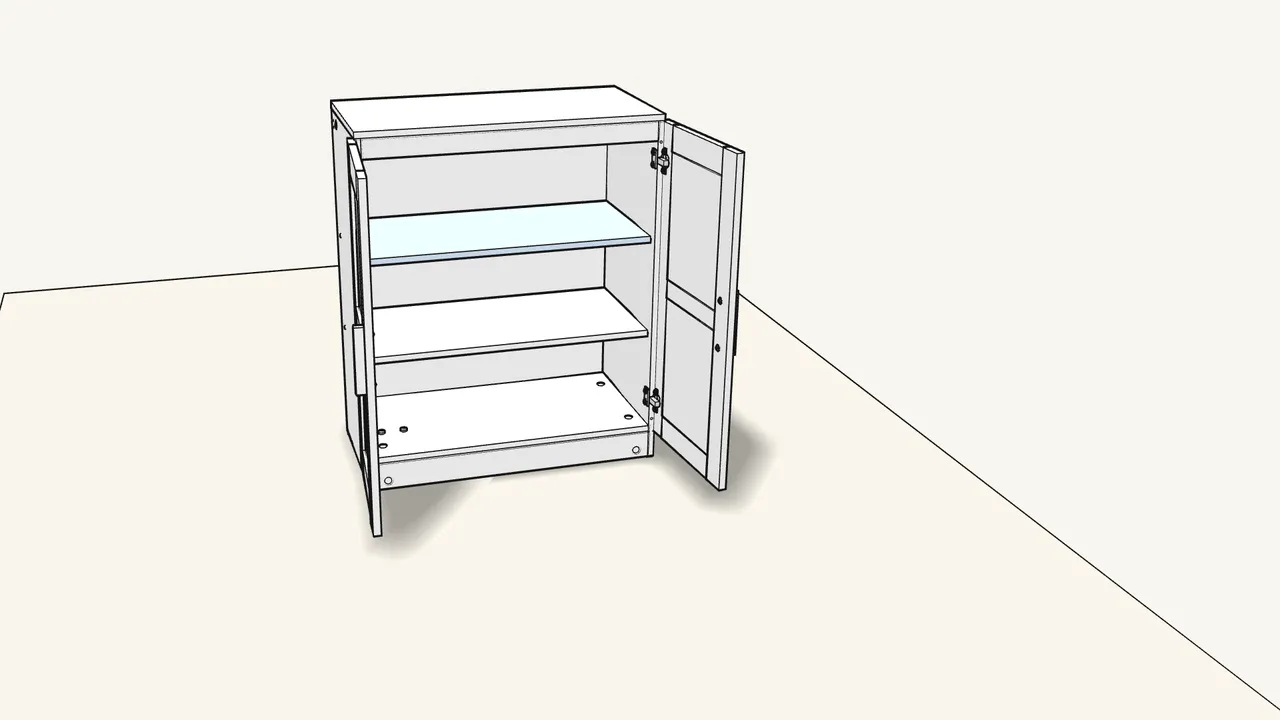

    Step 22 · manual step 26

    Lay the 2 shelves on the pins.

    ▶ Watch this step (2:52)

23.

    Step 23 · manual step 27

    Stick the 4 bumpers (107091) on, then close the doors.

    They go on the front edges of the side panels.

    ▶ Watch this step (2:58)
