How to Assemble IKEA BRIMNES Wardrobe with 3 Doors

Step-by-step assembly

1.

   Step 1

   Screw 2 cam bolts (118331) into the divider by hand.

   Lay the divider on the rug.

   ▶ Watch this step (0:20)

2.

   Step 2 · manual step 2–3

   Push in 2 dowels and fit the fixed shelf. Lock 2 cam locks.

   Turn the cam locks clockwise with a flat-head screwdriver.

   ▶ Watch this step (0:26)

3.

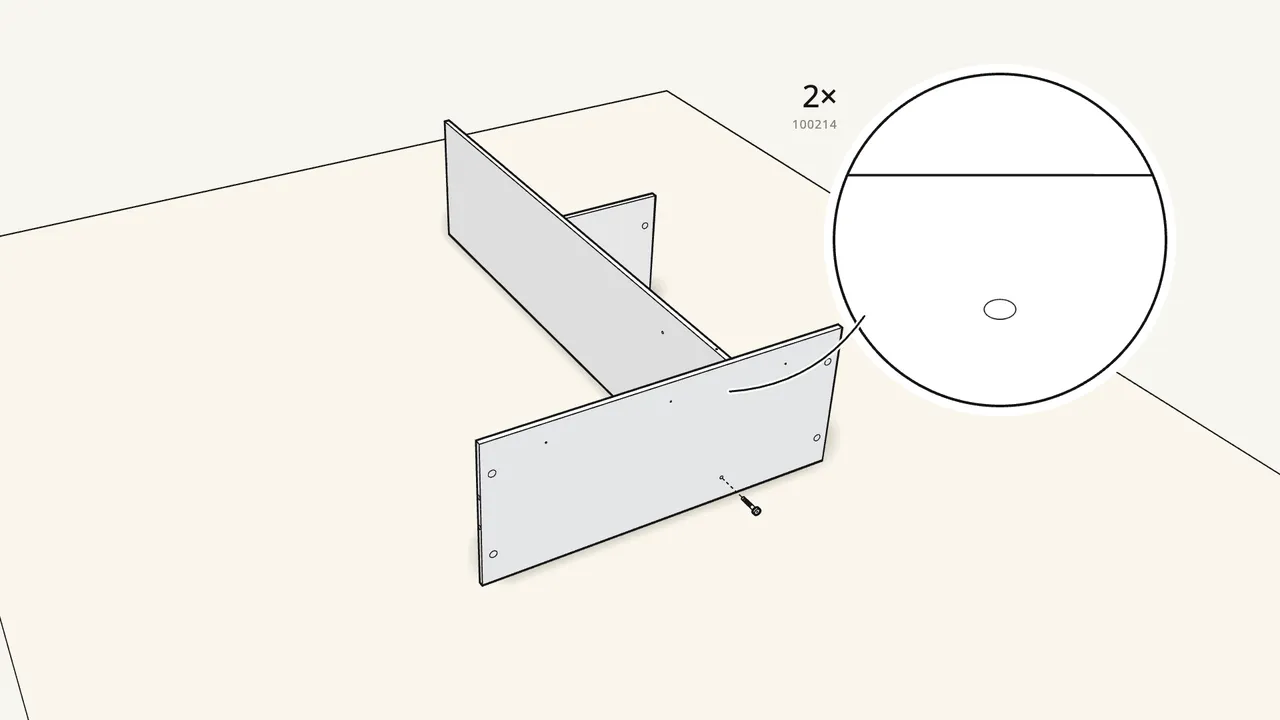

   Step 3 · manual step 4–5

   Turn it over and fit the bottom panel on 2 dowels.

   Fix it with 2 screws (100214) and the Allen key (100001).

   ▶ Watch this step (0:33)

4.

   Step 4 · manual step 6–7

   Screw 3 hinge plates (109220) onto each side, then 8 cam bolts.

   2 screws (105248) per plate. 4 cam bolts (118331) per side, by hand.

   ▶ Watch this step (0:41)

5.

   Step 5 · manual step 8–9

   Push in 6 dowels, then fit the right side panel.

   The bolts and dowels go into the holes in the panel edges.

   ▶ Watch this step (0:50)

6.

   Step 6 · manual step 10

   Insert 4 cam locks and turn them clockwise.

   2 in the bottom panel, 2 in the fixed shelf.

   ▶ Watch this step (0:58)

7.

   Step 7 · manual step 11–13

   Fit 2 brackets (10038685) and 2 feet to the plinth, then fix it to the right side.

   2 screws (105248) per bracket, 1 more into the side.

   ▶ Watch this step (1:04)

8.

   Step 8 · manual step 14–16

   Push 6 dowels into the 2 rails, slide them in, and fit the left side.

   Two people: tip the left side panel on.

   ▶ Watch this step (1:12)

9.

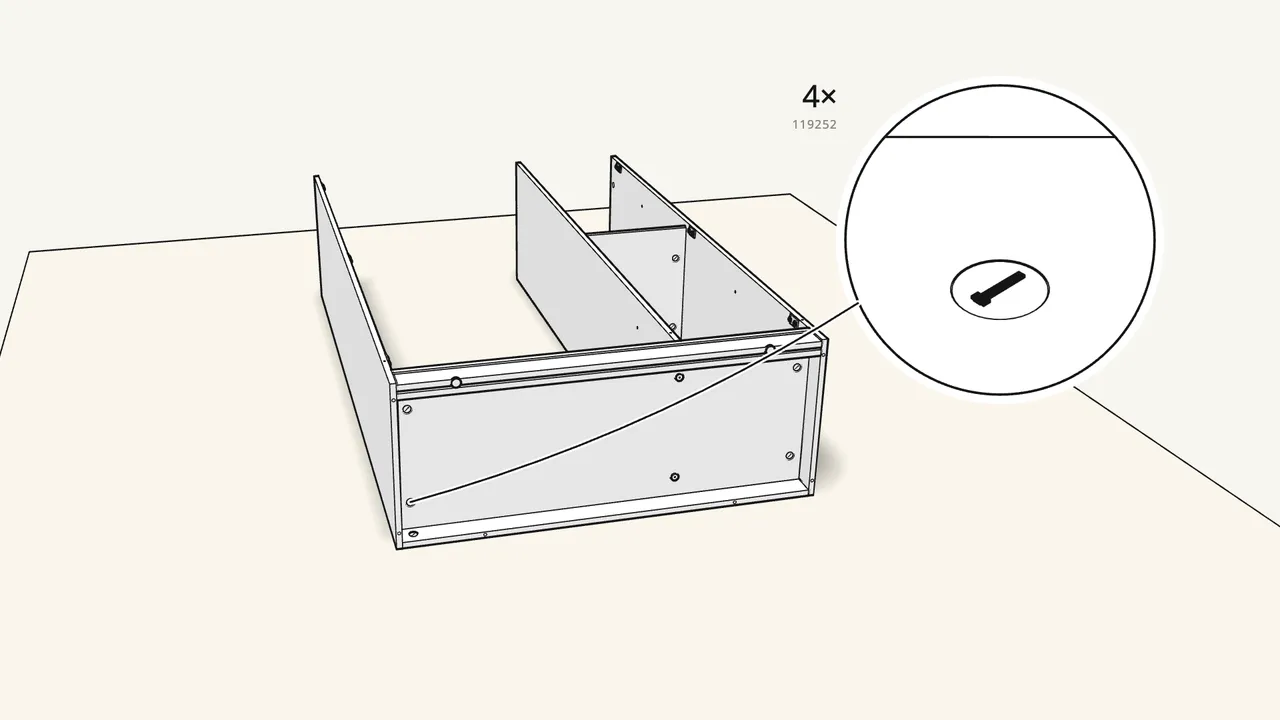

   Step 9 · manual step 17–18

   Lock 4 cam locks, then screw the plinth to the left side.

   1 screw (105248) through the bracket.

   ▶ Watch this step (1:20)

10.

    Step 10 · manual step 19–20

    Fix 3 angle brackets (102553) between the rail and the bottom.

    Into the rail: 105248. Into the bottom: 109049 — not the longer 109567.

    ▶ Watch this step (1:27)

11.

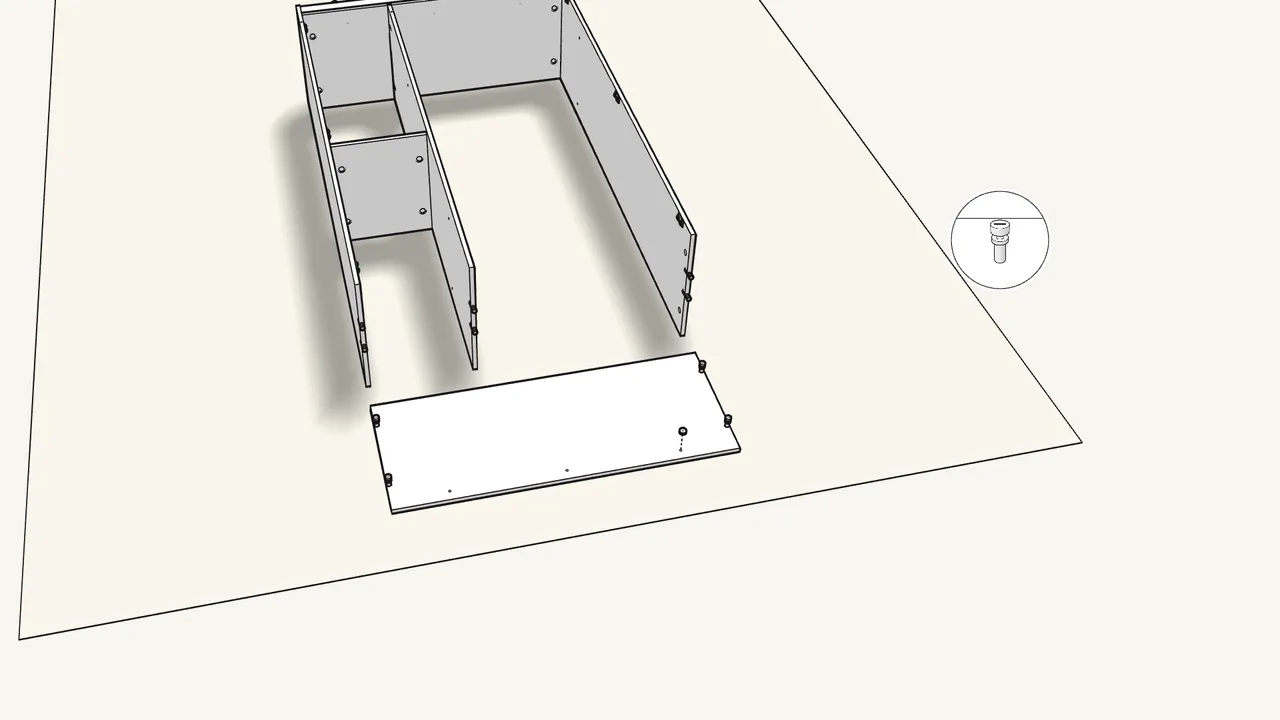

    Step 11 · manual step 21–23

    Push in 6 dowels. Screw 4 cam bolts into the top panel.

    Then tap the 3 fittings (123840) into the top panel with a hammer.

    ▶ Watch this step (1:35)

12.

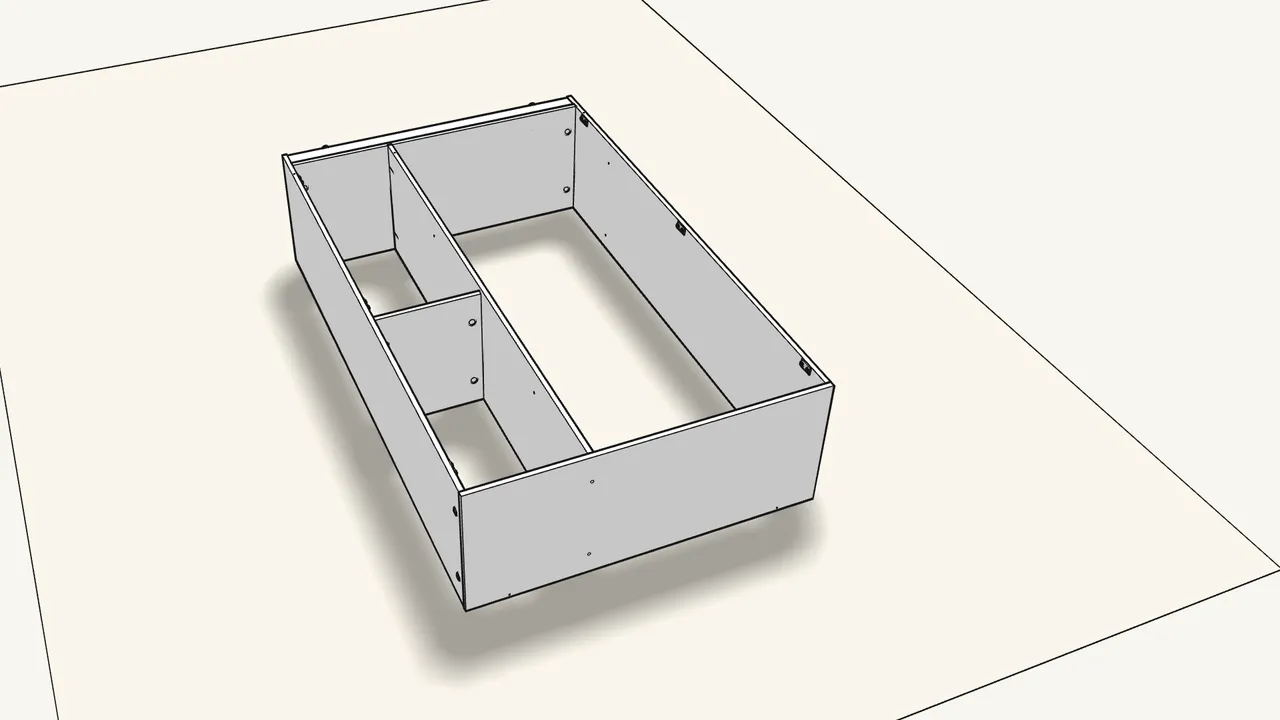

    Step 12 · manual step 24–26

    Fit the top panel. Lock 4 cam locks and add 2 screws (100214).

    The 2 screws go through the top into the divider — use the Allen key.

    ▶ Watch this step (1:43)

13.

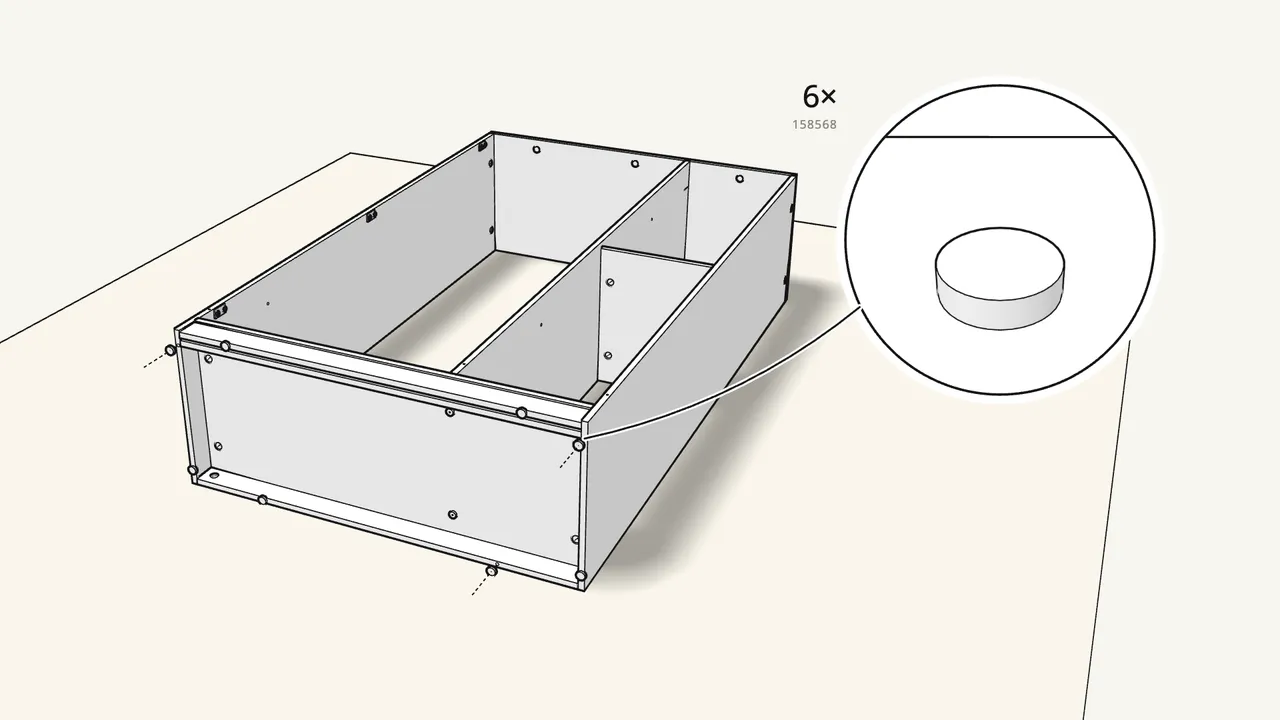

    Step 13 · manual step 27

    Tap 6 feet (158568) into the bottom edges with a hammer.

    ▶ Watch this step (1:51)

14.

    Step 14 · manual step 28

    Turn the wardrobe over onto its front.

    This needs two people.

    ▶ Watch this step (1:57)

15.

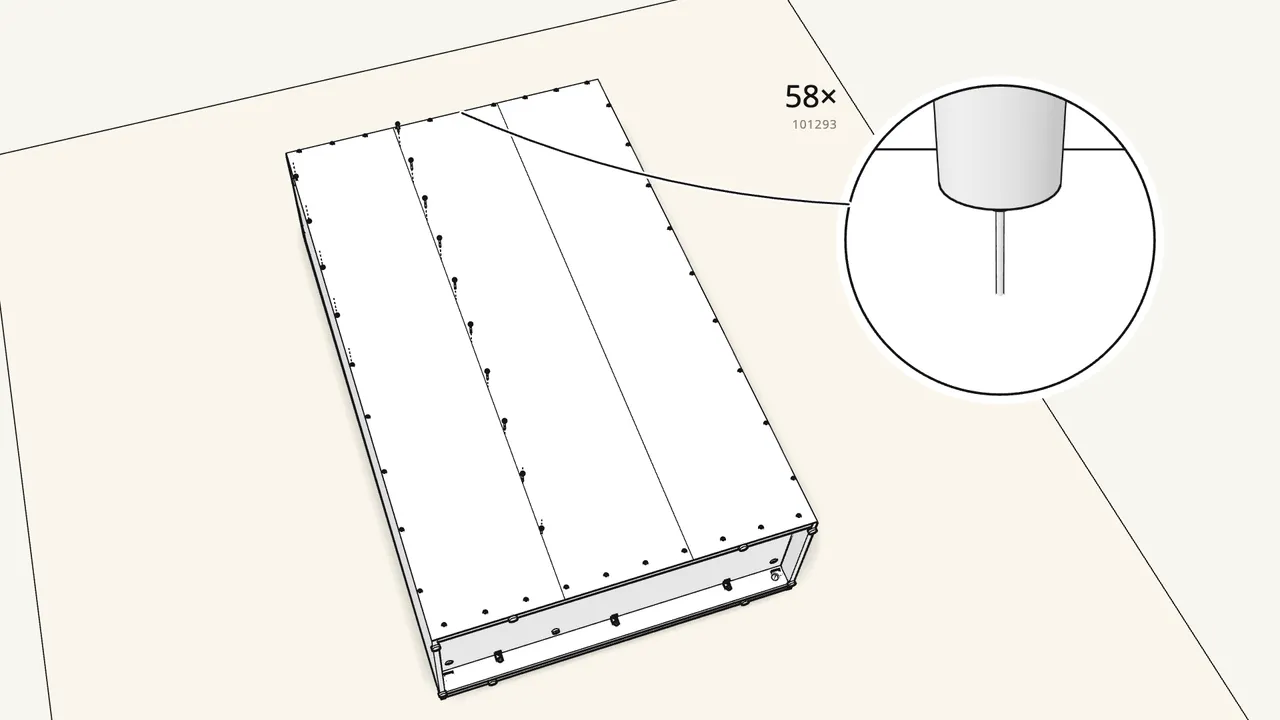

    Step 15 · manual step 29–34

    Lay on the back panel, square it up and nail it on.

    Hold the nails (101293) in the nail guide (105494). Use all 58.

    ▶ Watch this step (2:02)

16.

    Step 16 · manual step 35

    Screw the 2 wall brackets (106989) onto the top. Then stand it up.

    Screw 109049 with washer 100823. Two people tip it upright.

    ▶ Watch this step (2:10)

17.

    Step 17 · manual step 36–39

    Turn it round, push it against the wall and fix it to the wall.

    Screw 109567 + washer 100823 through each bracket. Use plugs suited to your wall.

    ▶ Watch this step (2:19)

18.

    Step 18 · manual step 40

    Screw 3 hinge plates (109220) onto the divider.

    2 screws (105248) per plate.

    ▶ Watch this step (2:27)

19.

    Step 19 · manual step 41

    Screw 3 hinges (109336) onto each door.

    Doors face-down. 2 screws (105248) per hinge — 9 hinges.

    ▶ Watch this step (2:33)

20.

    Step 20 · manual step 42

    Clip the hinges onto the hinge plates.

    Then tighten the screw on each hinge.

    ▶ Watch this step (2:40)

21.

    Step 21 · manual step 43

    Screw a handle onto each door.

    2 screws (109567) per handle, from the inside.

    ▶ Watch this step (2:48)

22.

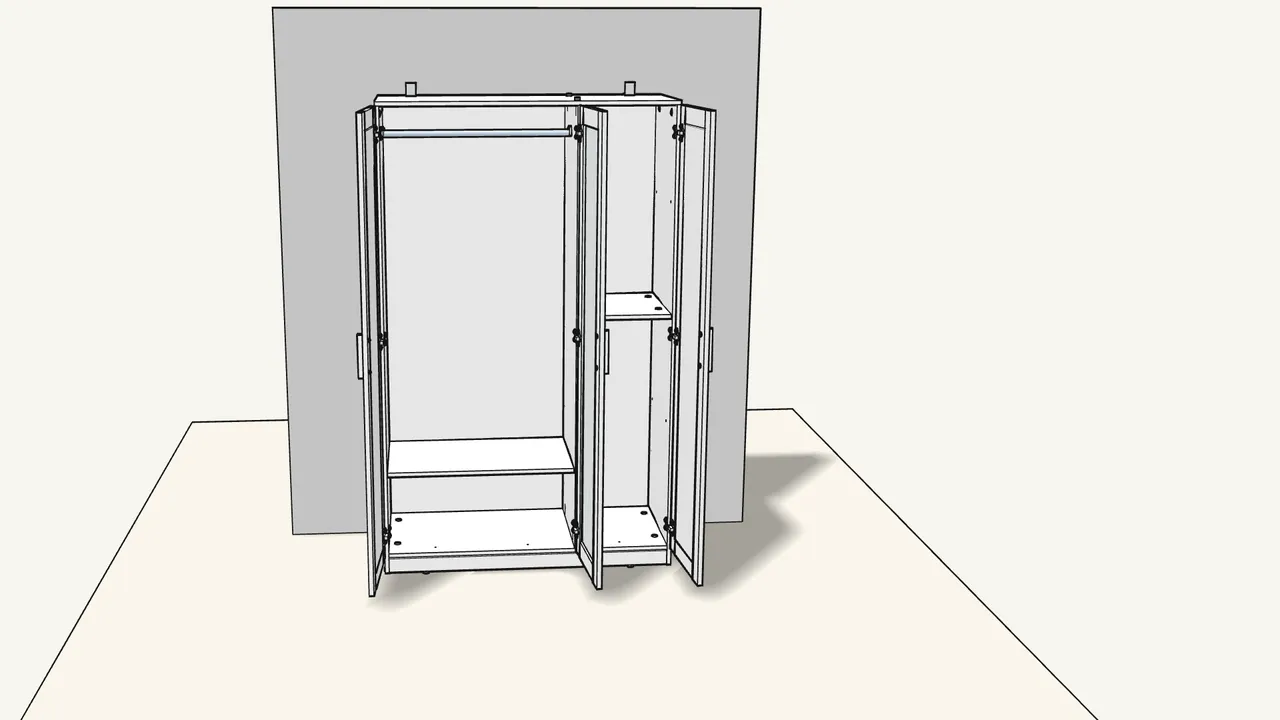

    Step 22 · manual step 44–46

    Add the shelves and the clothes rail.

    Shelf pins (101532), 4 per shelf. Rail holders: 2 screws (105248) each.

    ▶ Watch this step (2:55)

23.

    Step 23 · manual step 47

    Press on the 3 bumpers (107091), then close the doors.

    ▶ Watch this step (3:06)
