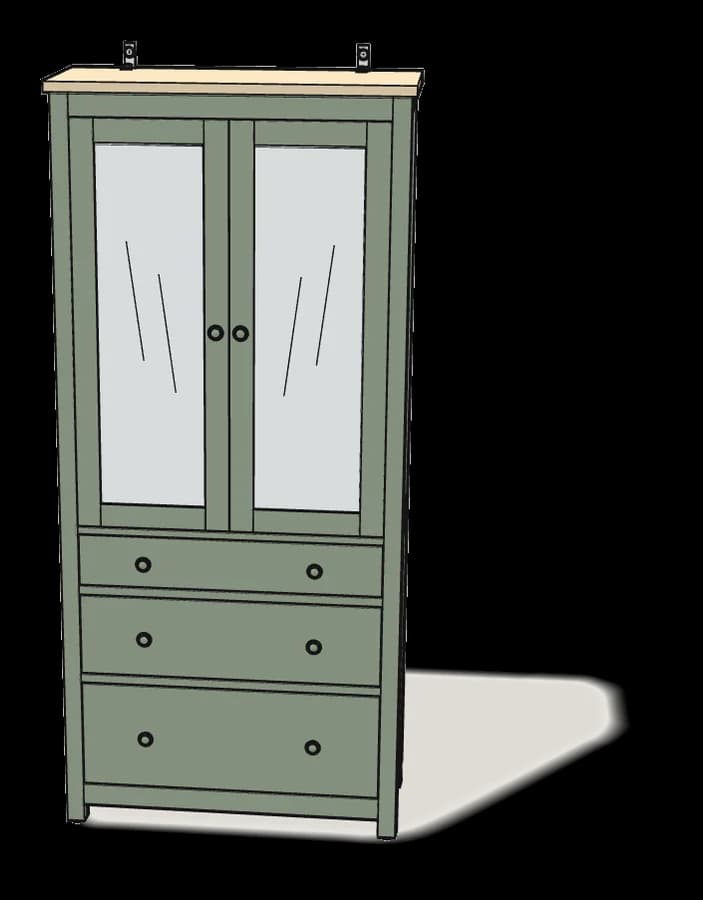

How to Assemble IKEA HEMNES Glass-Door Cabinet with 3 Drawers

Step-by-step assembly

1.

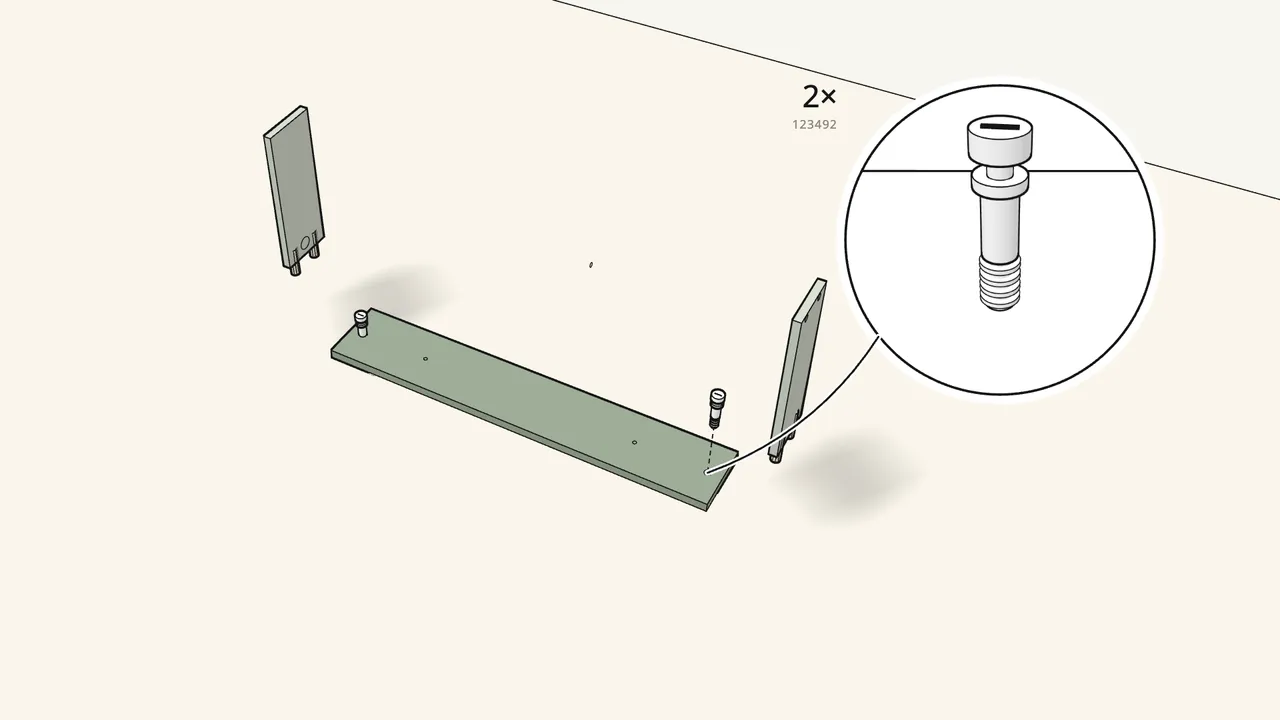

   Step 1 · manual step 1–2

   Drawer: push 4 dowels (101345) into the sides.

   Lay the front face down and screw in 2 cam bolts (123492).

   ▶ Watch this step (0:23)

2.

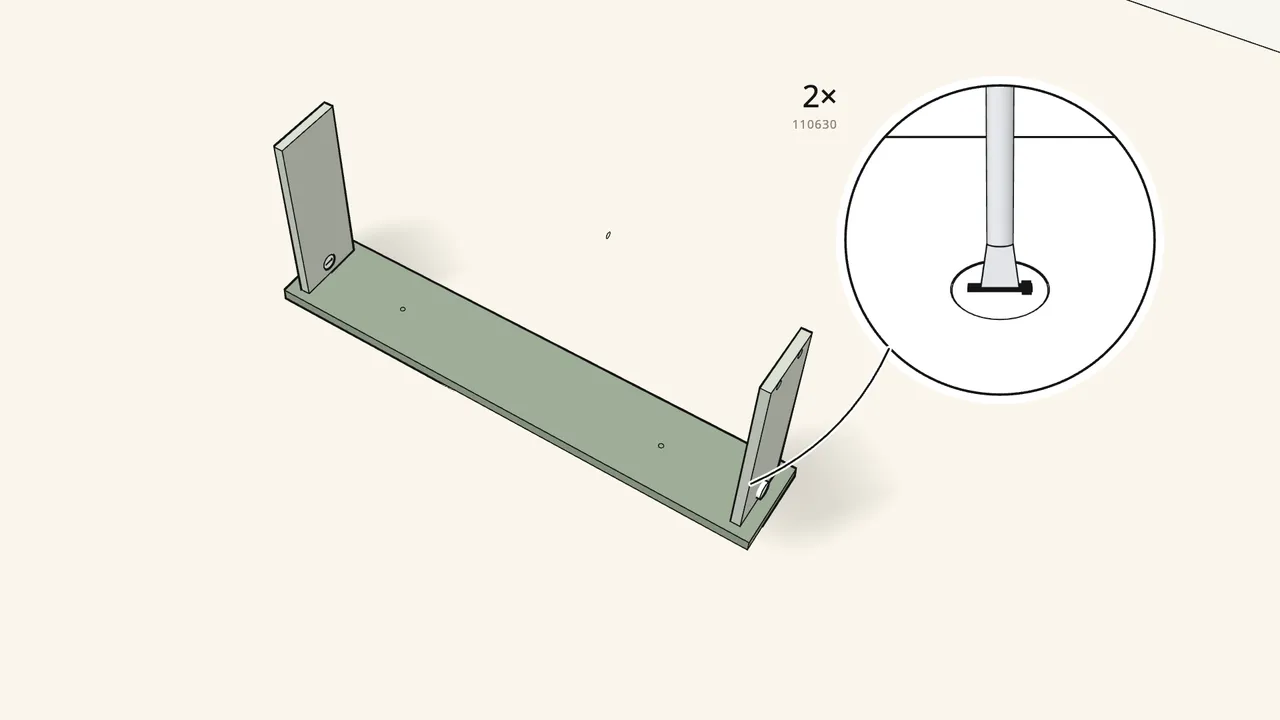

   Step 2 · manual step 3–4

   Press both sides onto the front. Lock with 2 cam locks.

   Cam locks 110630, turned clockwise with the flat-head screwdriver.

   ▶ Watch this step (0:29)

3.

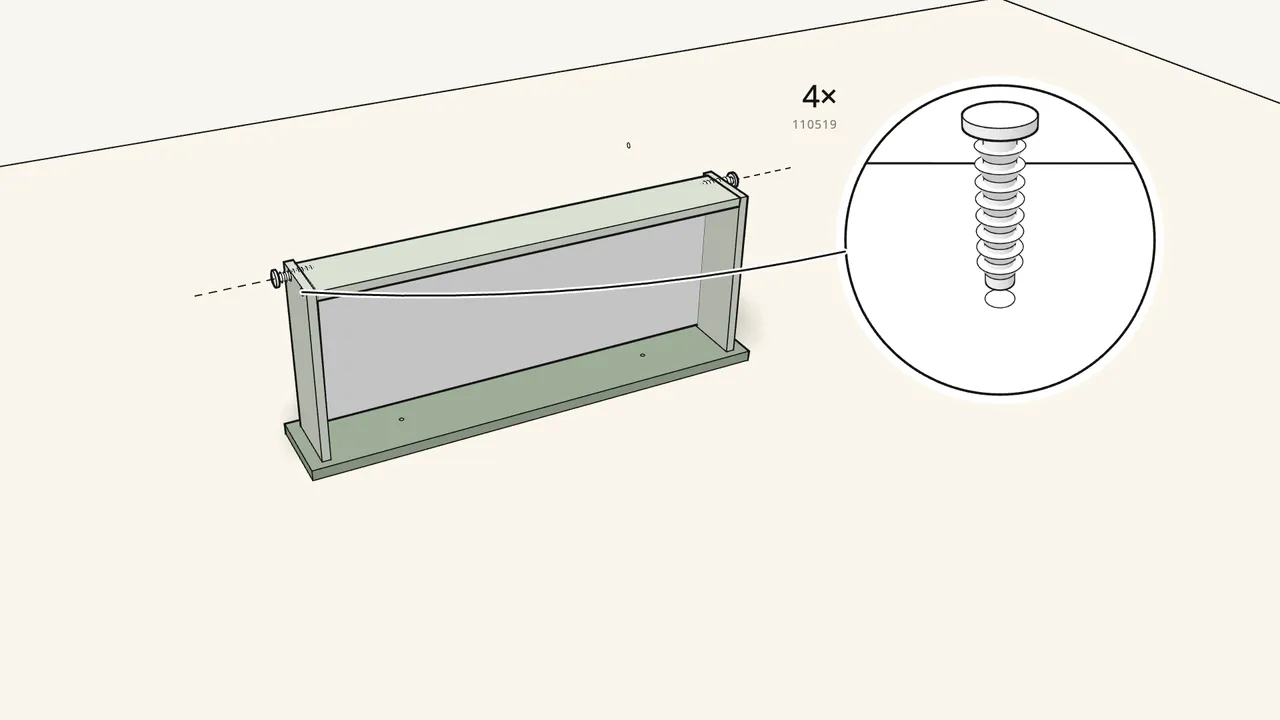

   Step 3 · manual step 5–7

   Slide in the bottom, fit the back and tap in 4 screw dowels.

   Screw dowels 110519 — use the hammer.

   ▶ Watch this step (0:36)

4.

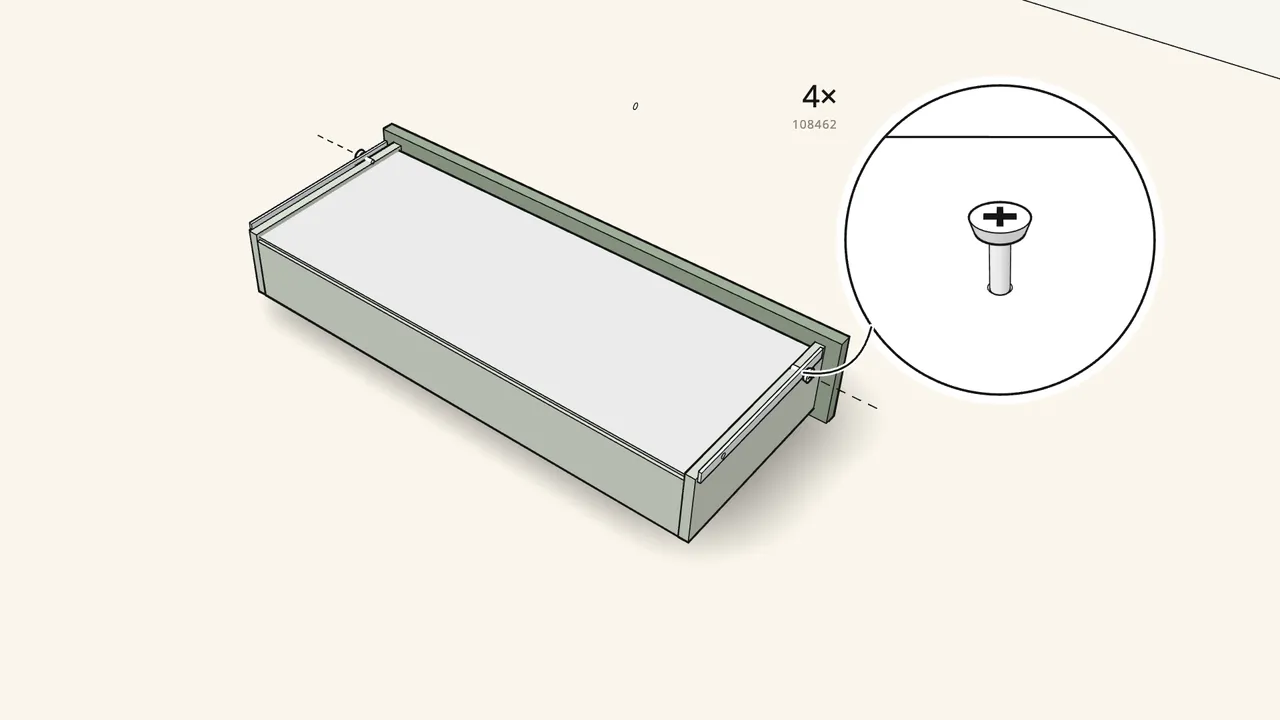

   Step 4 · manual step 8

   Turn the drawer over. Screw on 2 runners (130501).

   4 screws (108462) — 2 in each runner.

   ▶ Watch this step (0:43)

5.

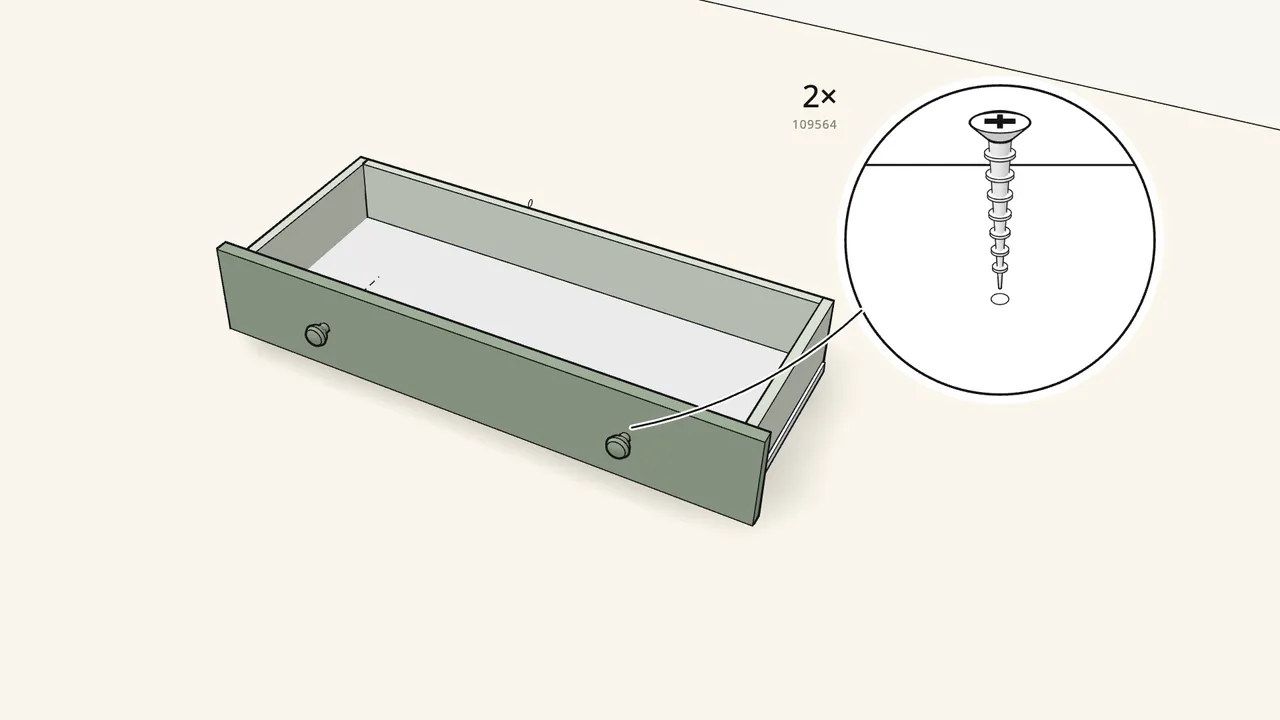

   Step 5 · manual step 9

   Turn it upright. Fit 2 knobs (10122514) with screws 109564.

   The screws go in from the inside of the front.

   ▶ Watch this step (0:49)

6.

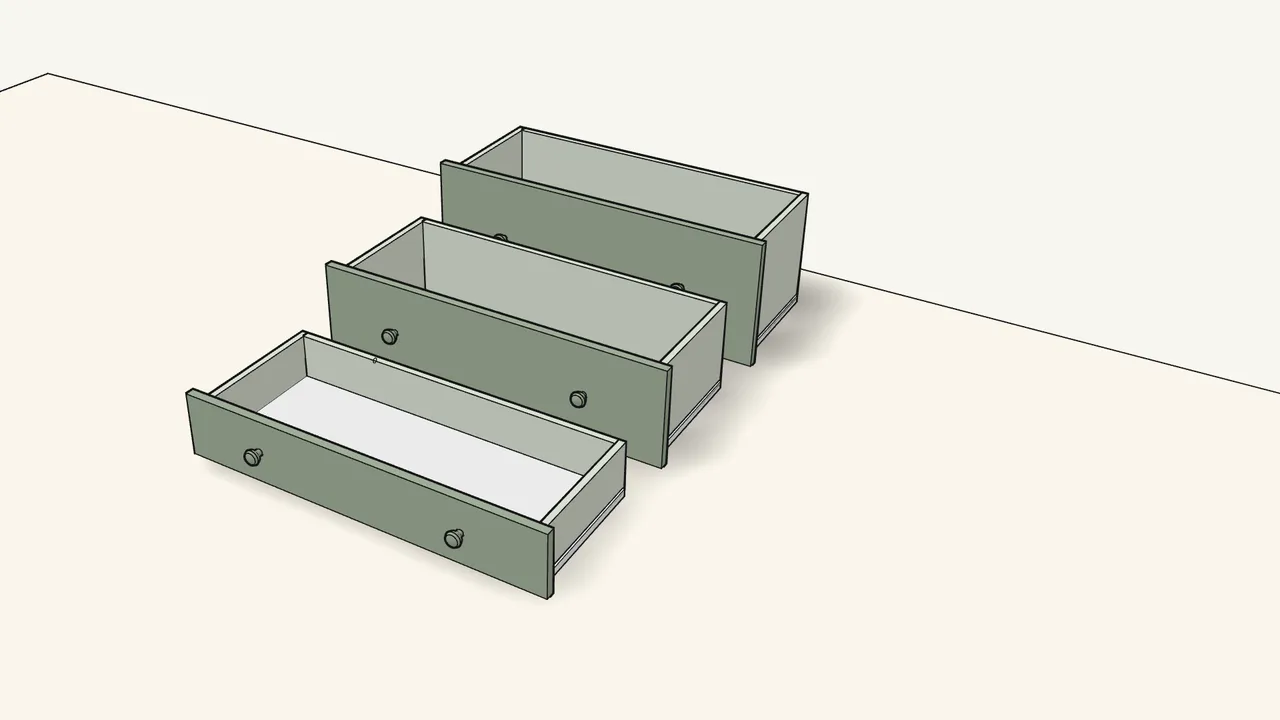

   Step 6 · manual step 10–27

   Build the other 2 drawers the same way.

   Middle drawer: steps 10–18. Bottom drawer: steps 19–27 (6 screw dowels).

   ▶ Watch this step (0:54)

7.

   Step 7 · manual step 28–29

   Lay both side frames flat. Screw on the 2 foot blocks.

   2 screws (100211) each, with the Allen key. Then screw in the 4 feet (102728).

   ▶ Watch this step (0:59)

8.

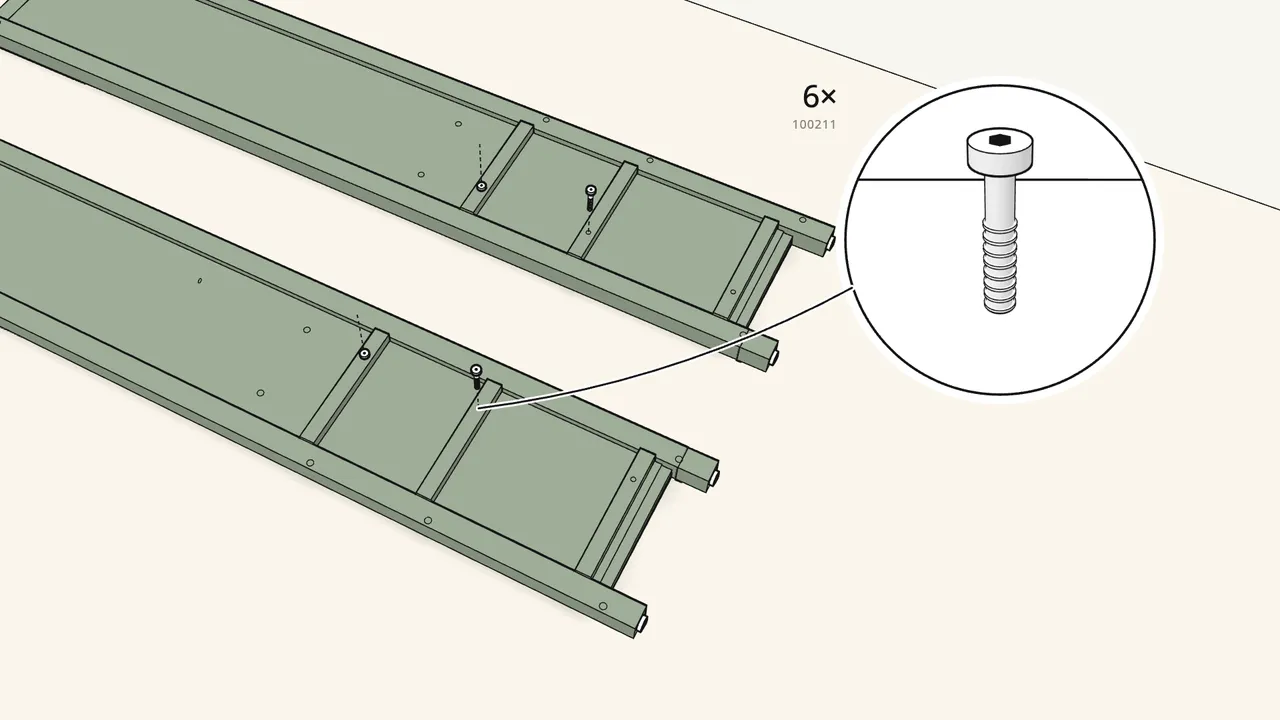

   Step 8 · manual step 30–31

   Fit 6 runner supports with dowels (101350).

   Fix each one with a screw (100211) and the Allen key.

   ▶ Watch this step (1:06)

9.

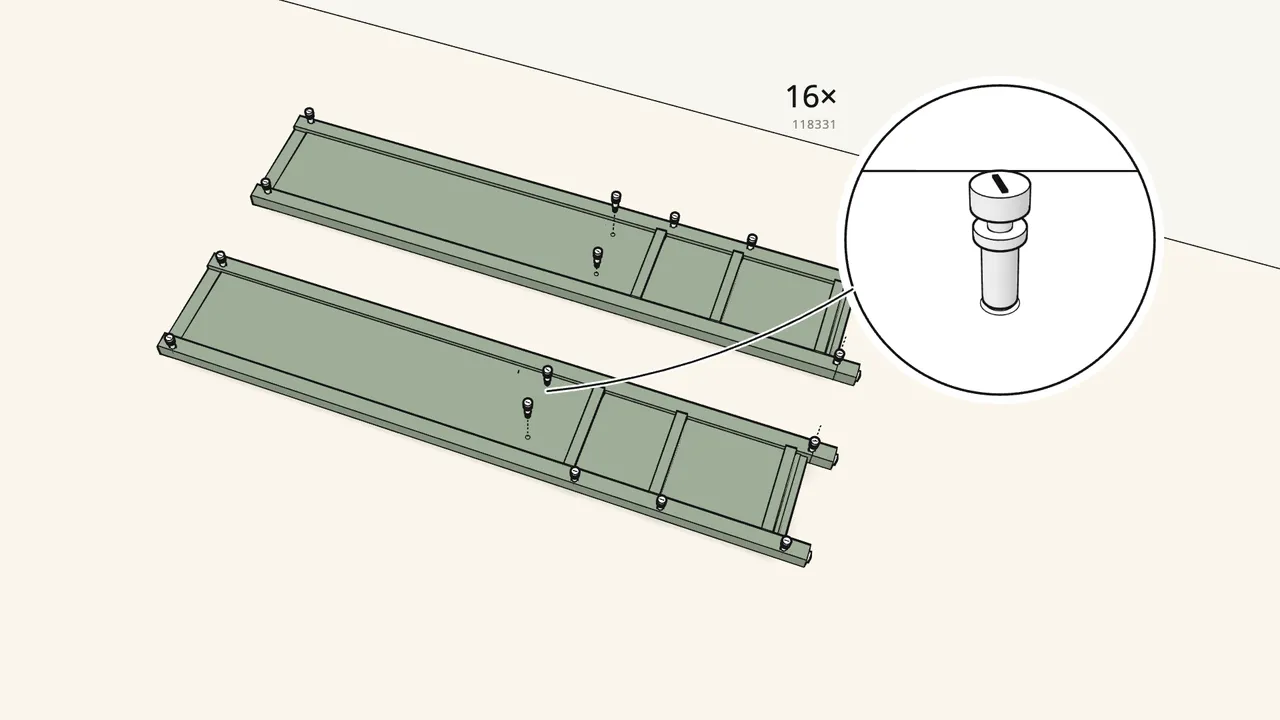

   Step 9 · manual step 32

   Screw 16 cam bolts (118331) into the side frames.

   8 in each frame.

   ▶ Watch this step (1:13)

10.

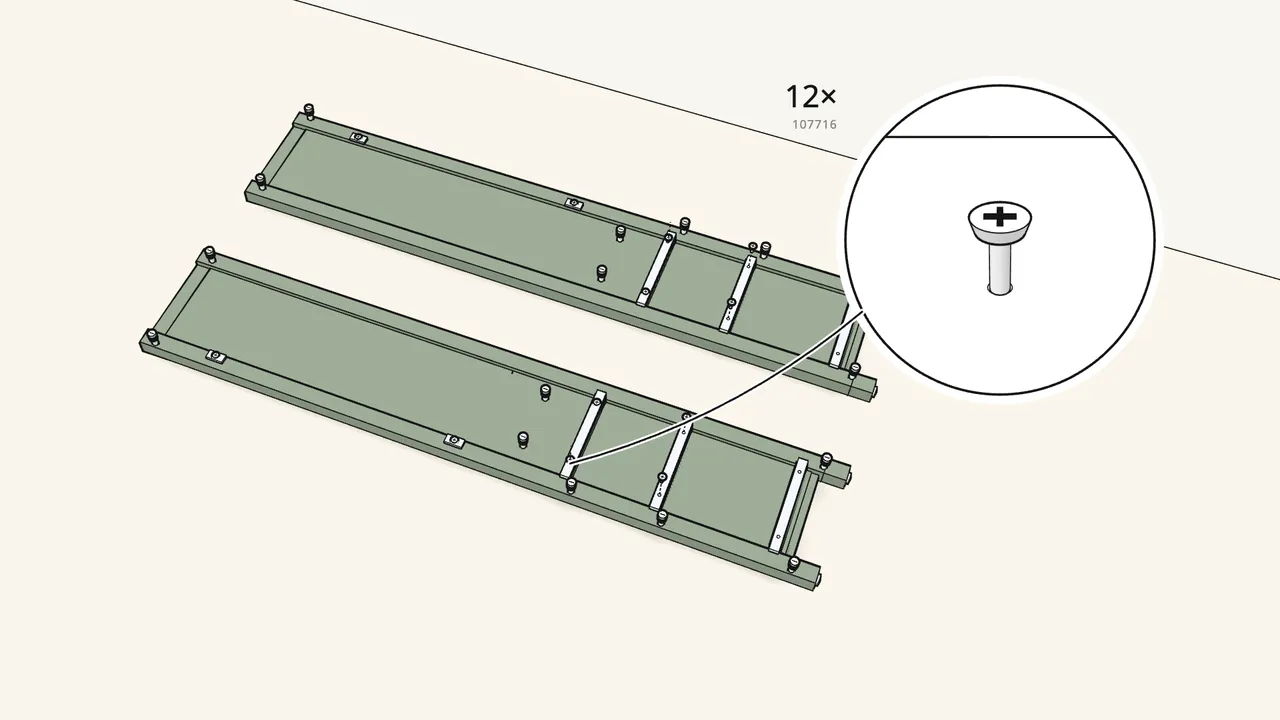

    Step 10 · manual step 33–34

    Fit 4 hinge plates (128711), then 6 runners (130501).

    Tighten the plate screws. Each runner: 2 screws (107716).

    ▶ Watch this step (1:18)

11.

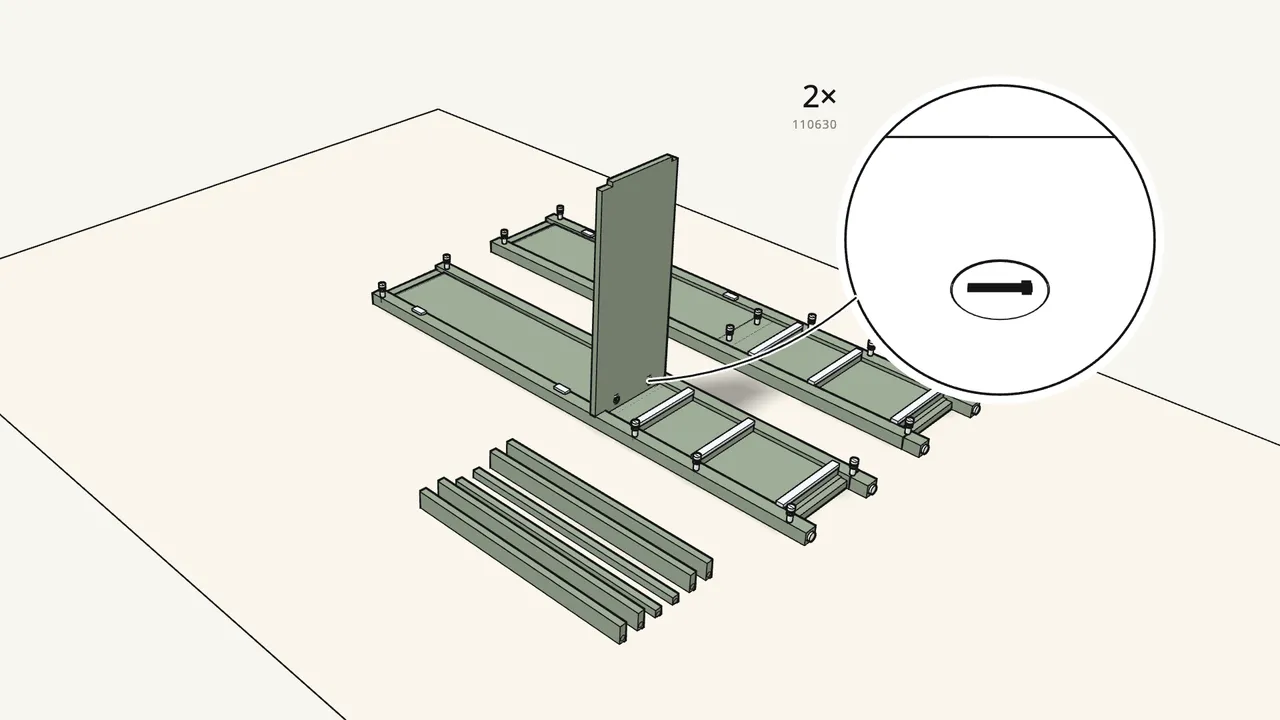

    Step 11 · manual step 35–36

    Stand the fixed shelf on the left side frame.

    Lock it with 2 cam locks (110630), turned clockwise.

    ▶ Watch this step (1:25)

12.

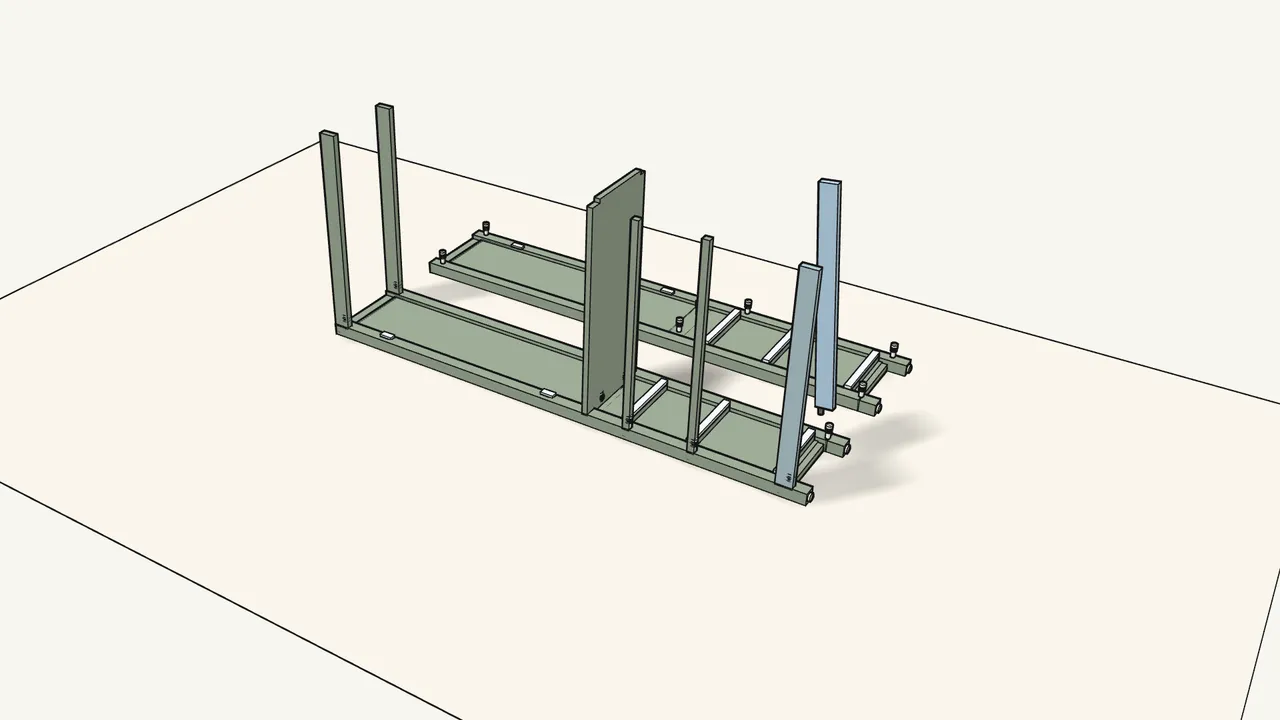

    Step 12 · manual step 37–42

    Push a dowel (101350) into each rail. Stand the 6 rails on the frame.

    Lock each with a cam lock. Check which rail goes where — see the manual, steps 37–42.

    ▶ Watch this step (1:31)

13.

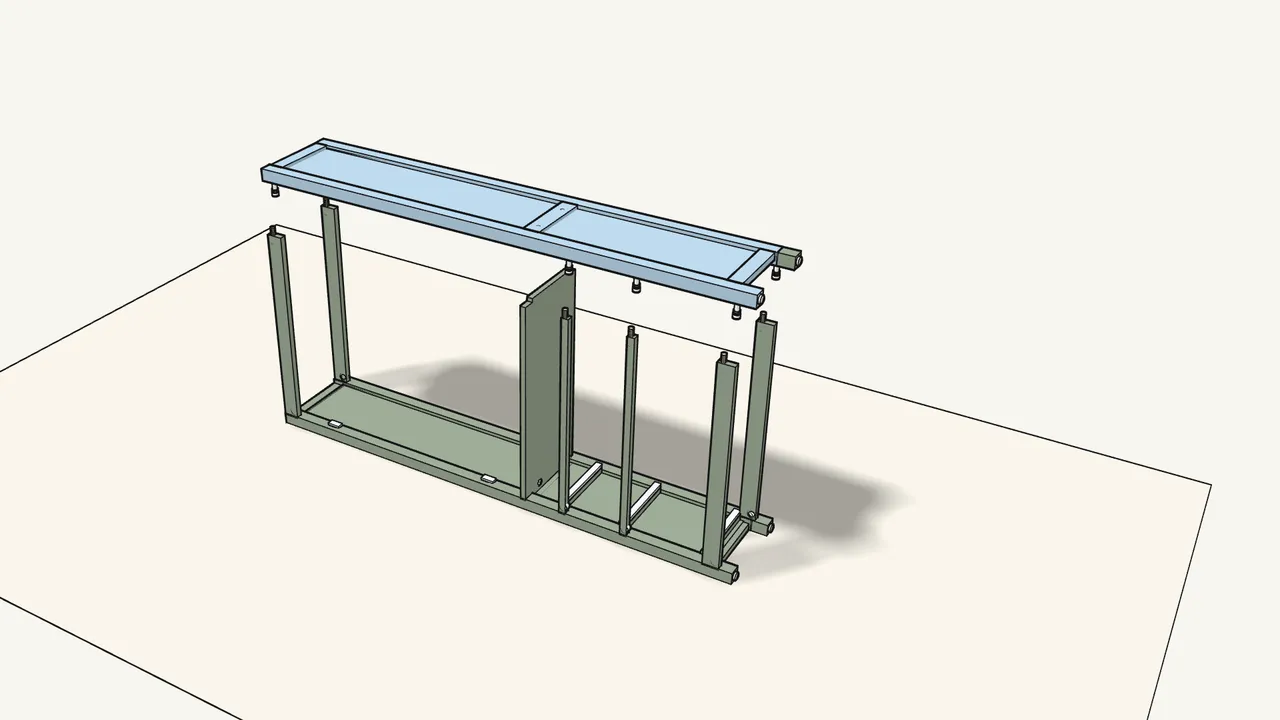

    Step 13 · manual step 43–44

    Push 6 dowels into the rail tops. Lower the other side frame on.

    Two people. The bolts and dowels go into the rails and the fixed shelf.

    ▶ Watch this step (1:40)

14.

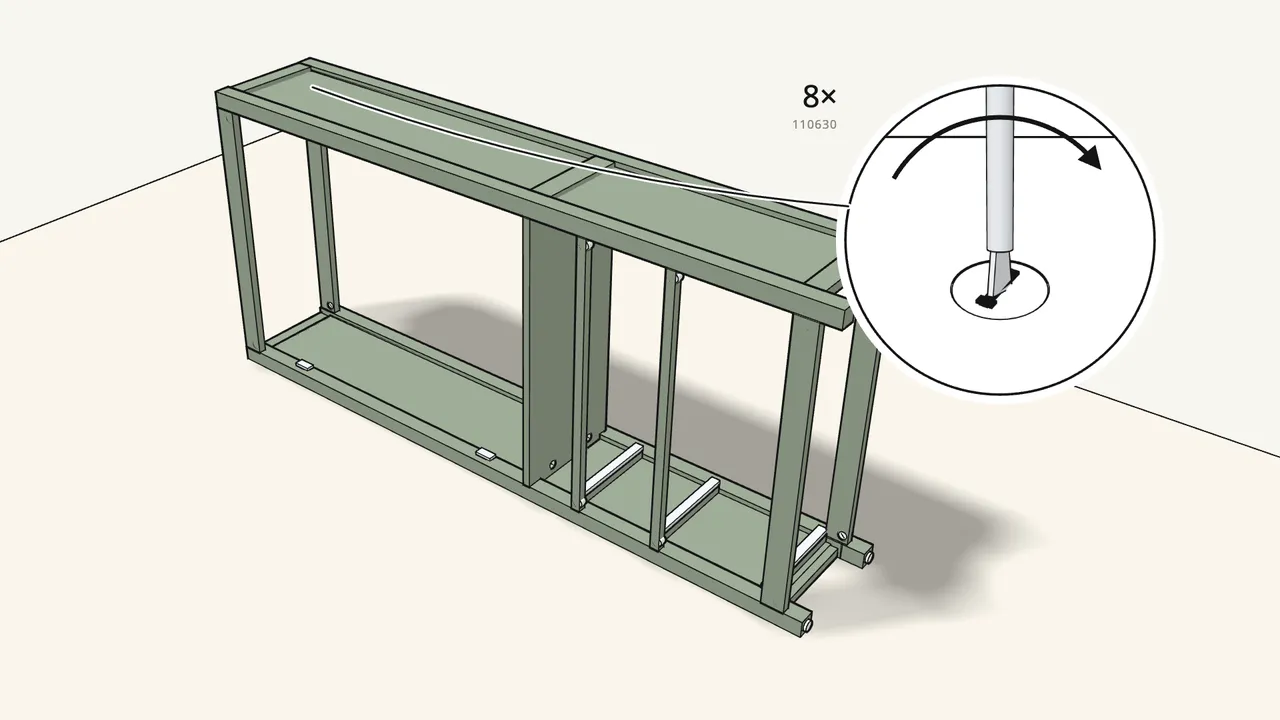

    Step 14 · manual step 45

    Insert 8 cam locks (110630) and turn them clockwise.

    Six in the rails and two under the fixed shelf.

    ▶ Watch this step (1:48)

15.

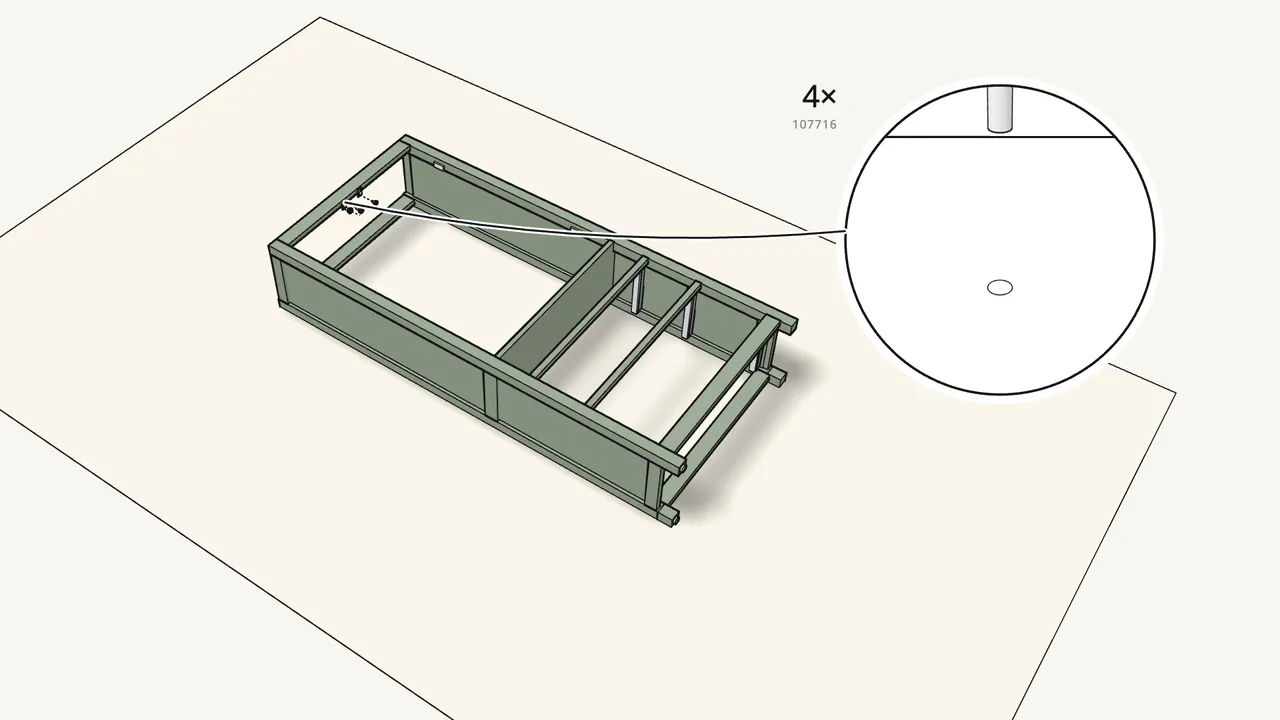

    Step 15 · manual step 46

    Lay the frame on its back. Fit the 2 door stops (121360).

    2 screws (107716) each, under the top front rail — see the manual, step 46.

    ▶ Watch this step (1:54)

16.

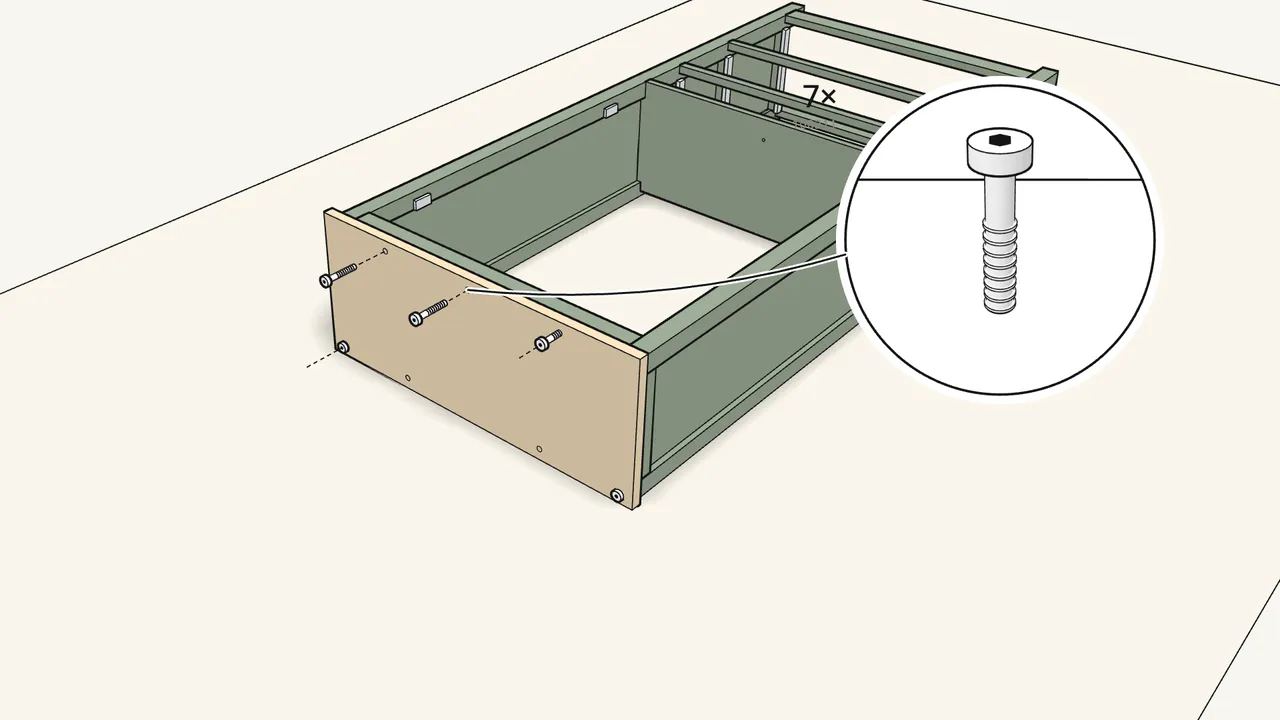

    Step 16 · manual step 47–48

    Push 2 dowels (101350) into the frame. Fit the top.

    Fix it with 7 screws (100211) and the Allen key.

    ▶ Watch this step (2:01)

17.

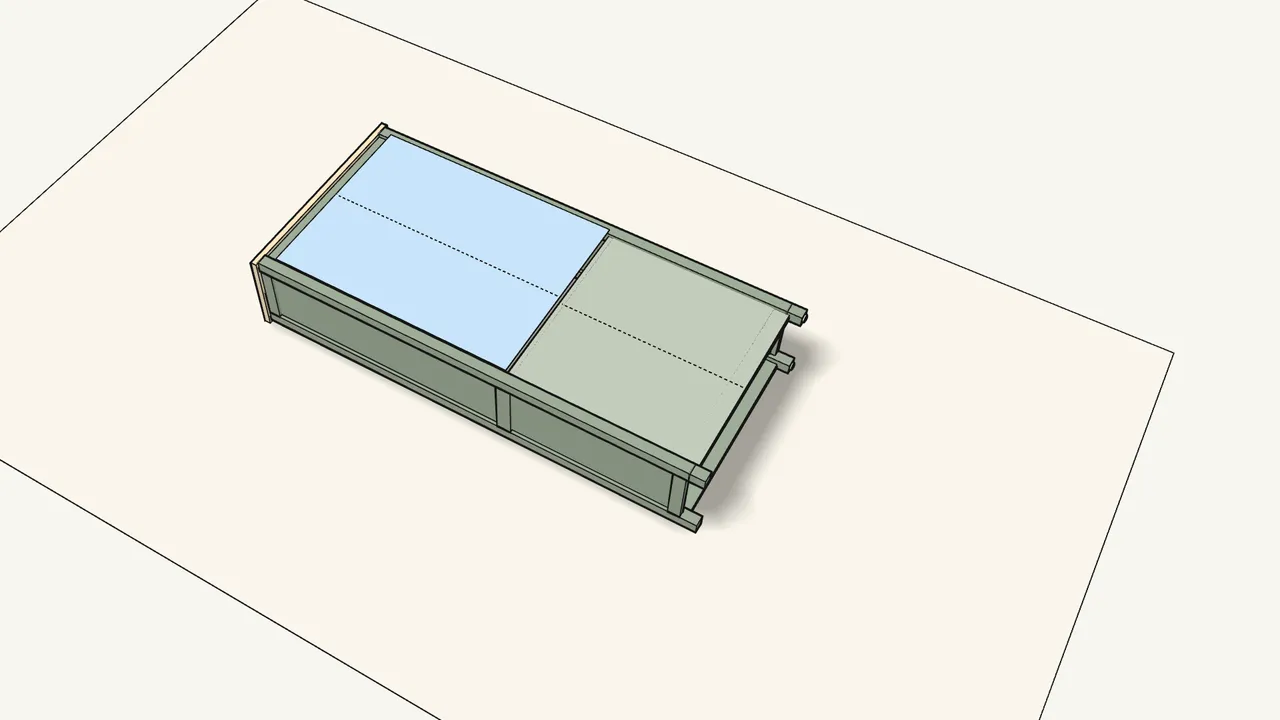

    Step 17 · manual step 49–52

    Turn the frame onto its front. Fit the 2 back panels.

    Push each panel into the grooves — see the manual, steps 49–52.

    ▶ Watch this step (2:08)

18.

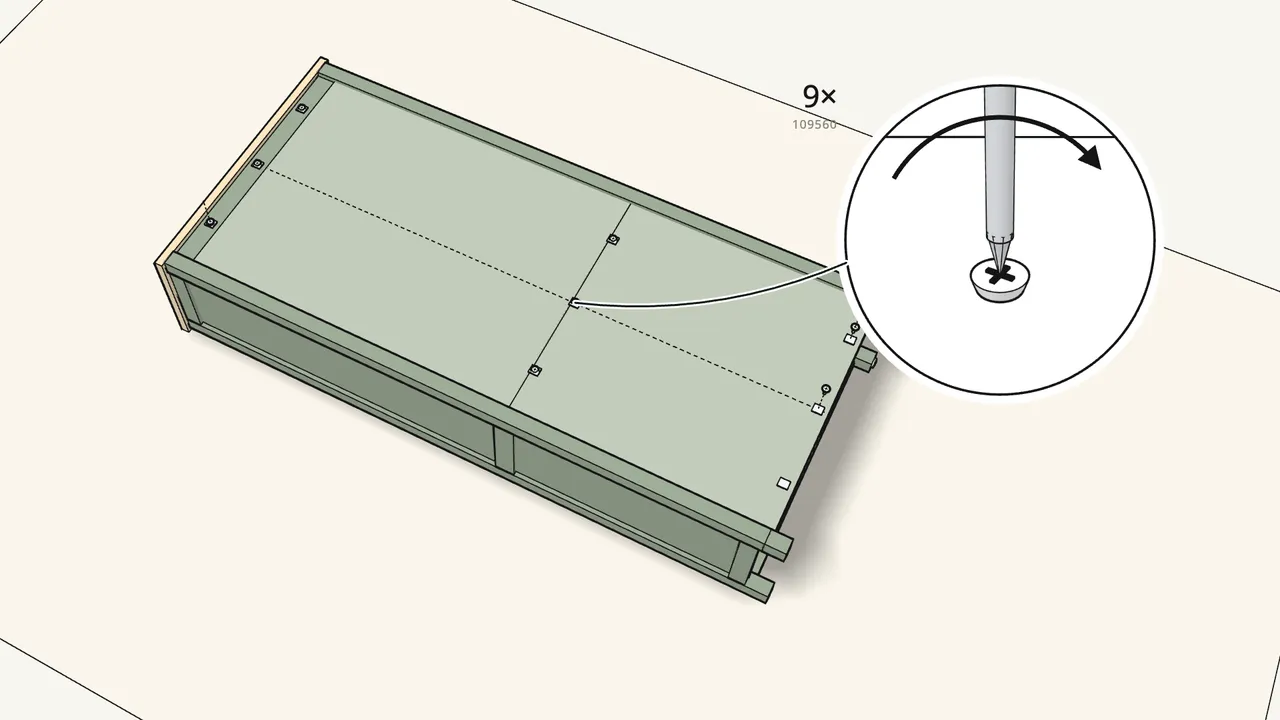

    Step 18 · manual step 53–54

    Fix the back with 9 clips (122723) and screws (109560).

    3 along the fixed shelf, 3 at the top and 3 at the bottom.

    ▶ Watch this step (2:16)

19.

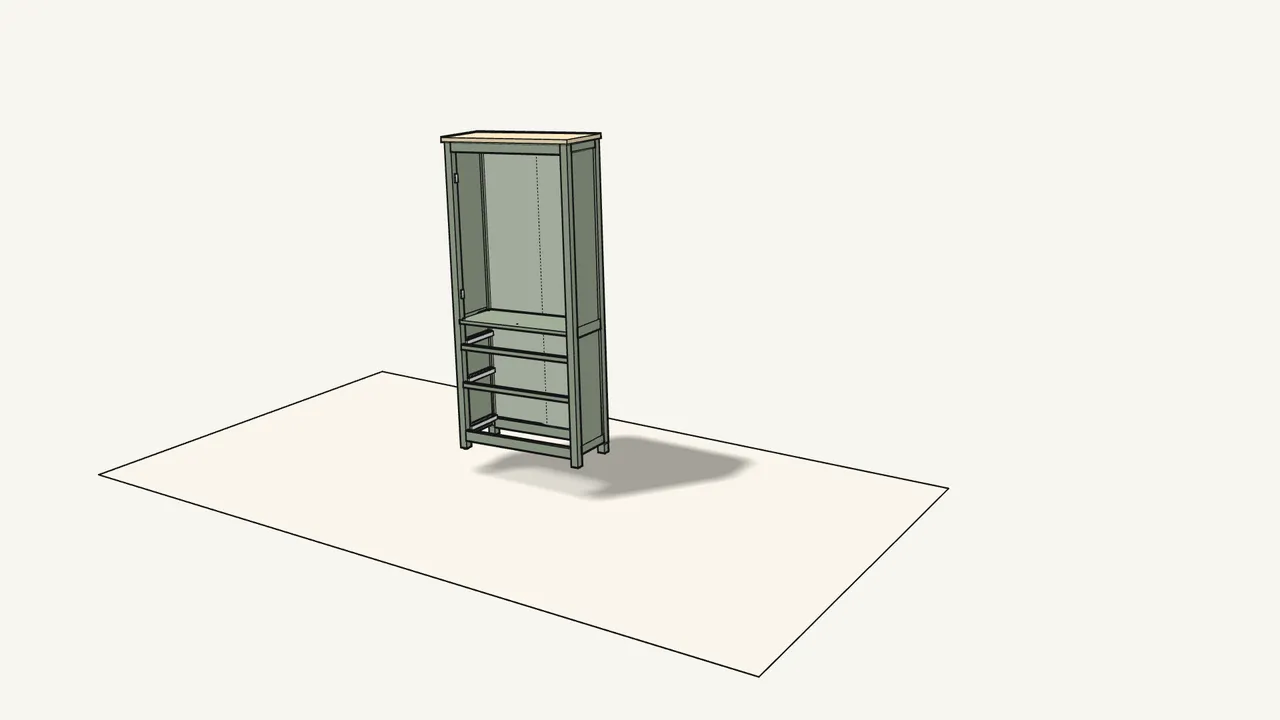

    Step 19 · manual step 55

    Stand the cabinet up. Turn the feet until it stands level.

    Two people. Check with a spirit level.

    ▶ Watch this step (2:23)

20.

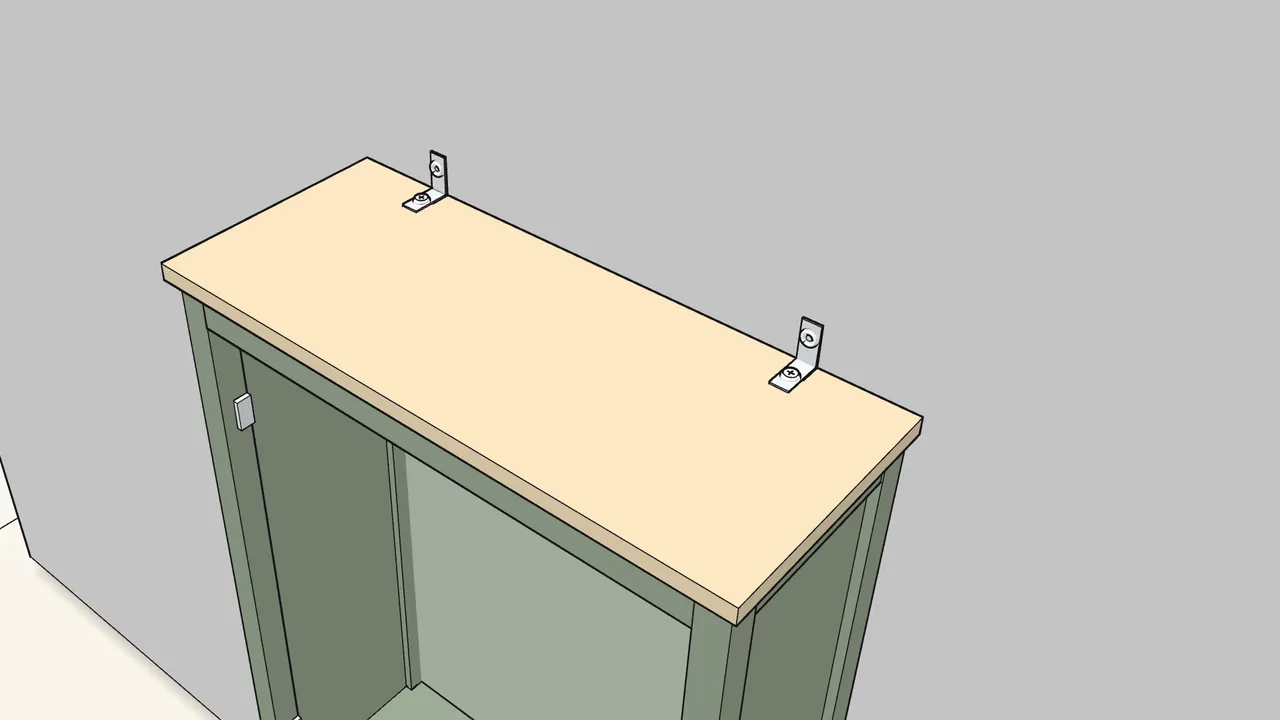

    Step 20 · manual step 56

    Screw 2 wall brackets (119256) onto the top, then fix them to the wall.

    Screw 109560 + washer 100823 into the top. Wall screws and plugs are not included.

    ▶ Watch this step (2:30)

21.

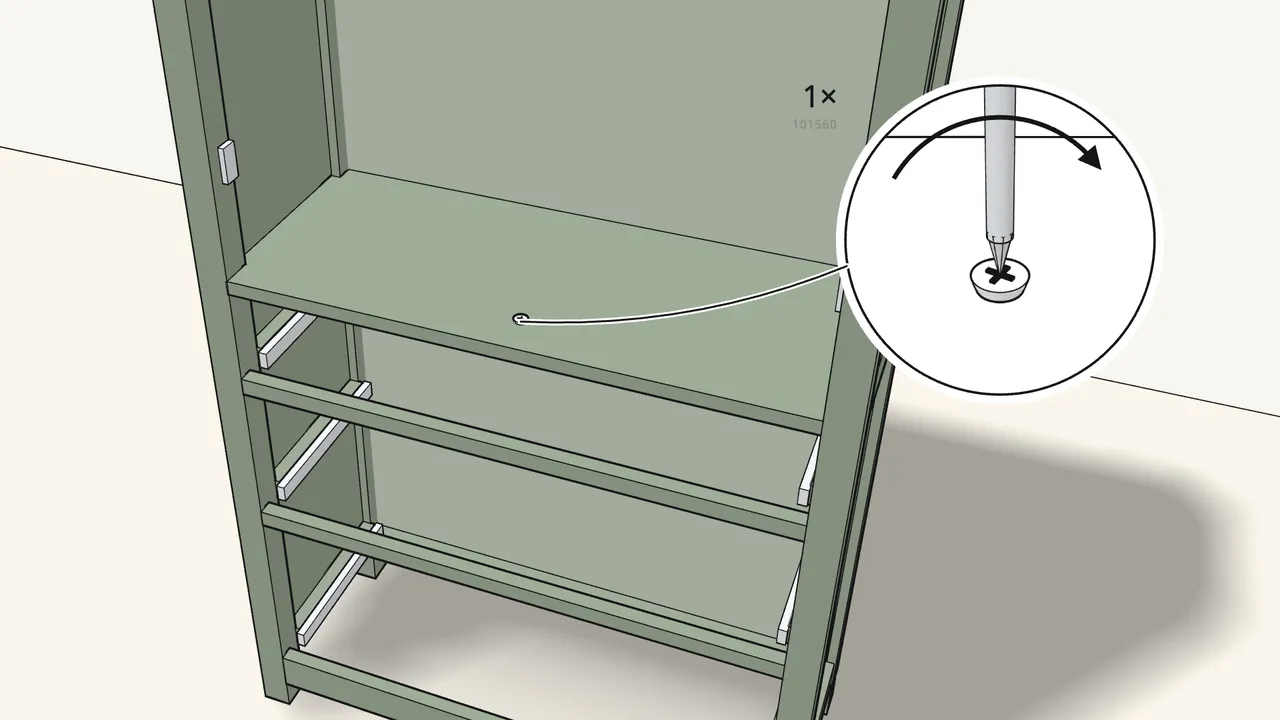

    Step 21 · manual step 57

    Screw 1 screw (101560) into the fixed shelf.

    See the manual, step 57, for the hole.

    ▶ Watch this step (2:38)

22.

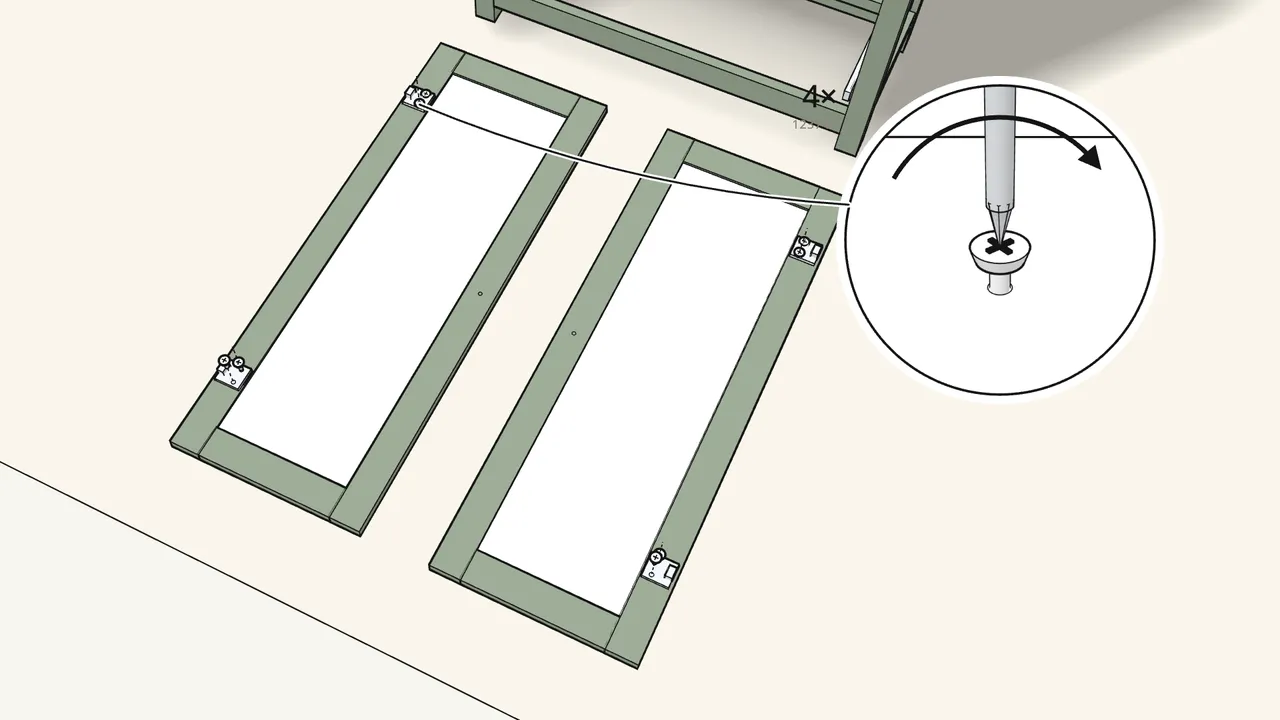

    Step 22 · manual step 58–60

    Lay the doors face down. Screw on the 4 hinges.

    Hinges 123746 on one door, 123772 on the other — see the manual, step 59.

    ▶ Watch this step (2:42)

23.

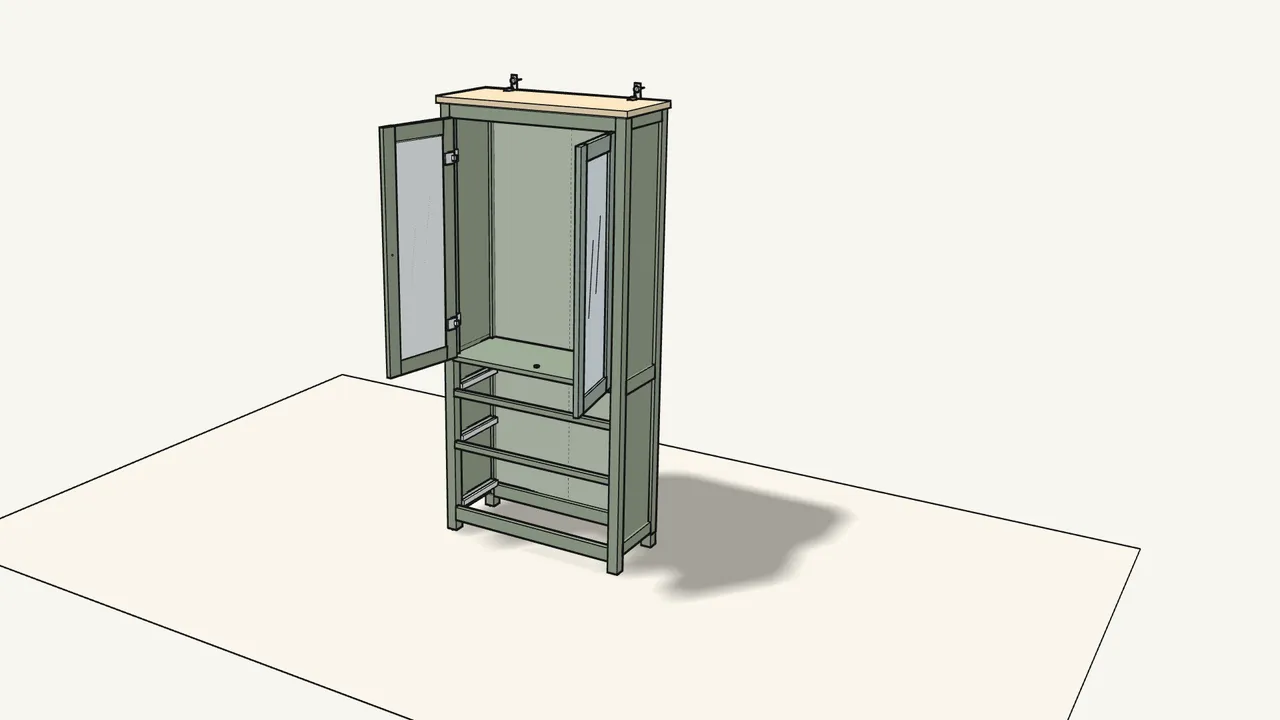

    Step 23 · manual step 61

    Hang the doors: click the hinges onto the plates.

    Press each hinge onto its plate until it clicks.

    ▶ Watch this step (2:49)

24.

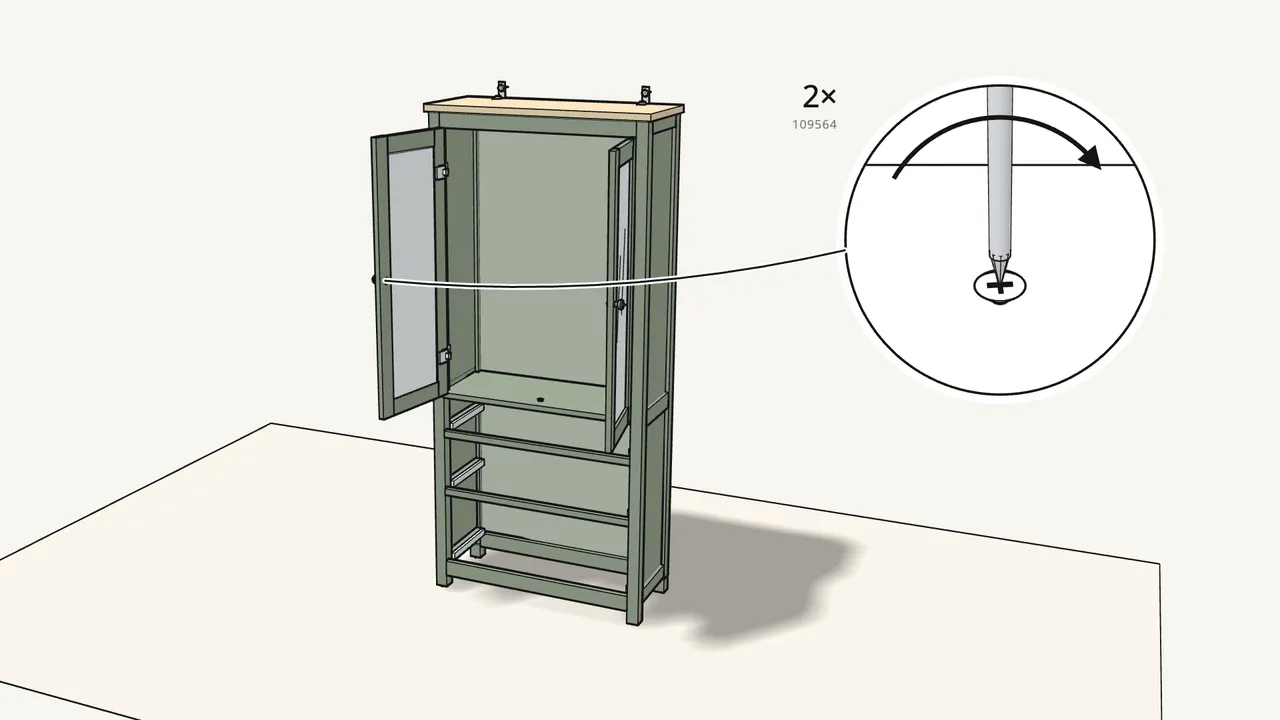

    Step 24 · manual step 62

    Fit a knob (10122514) on each door with screw 109564.

    ▶ Watch this step (2:57)

25.

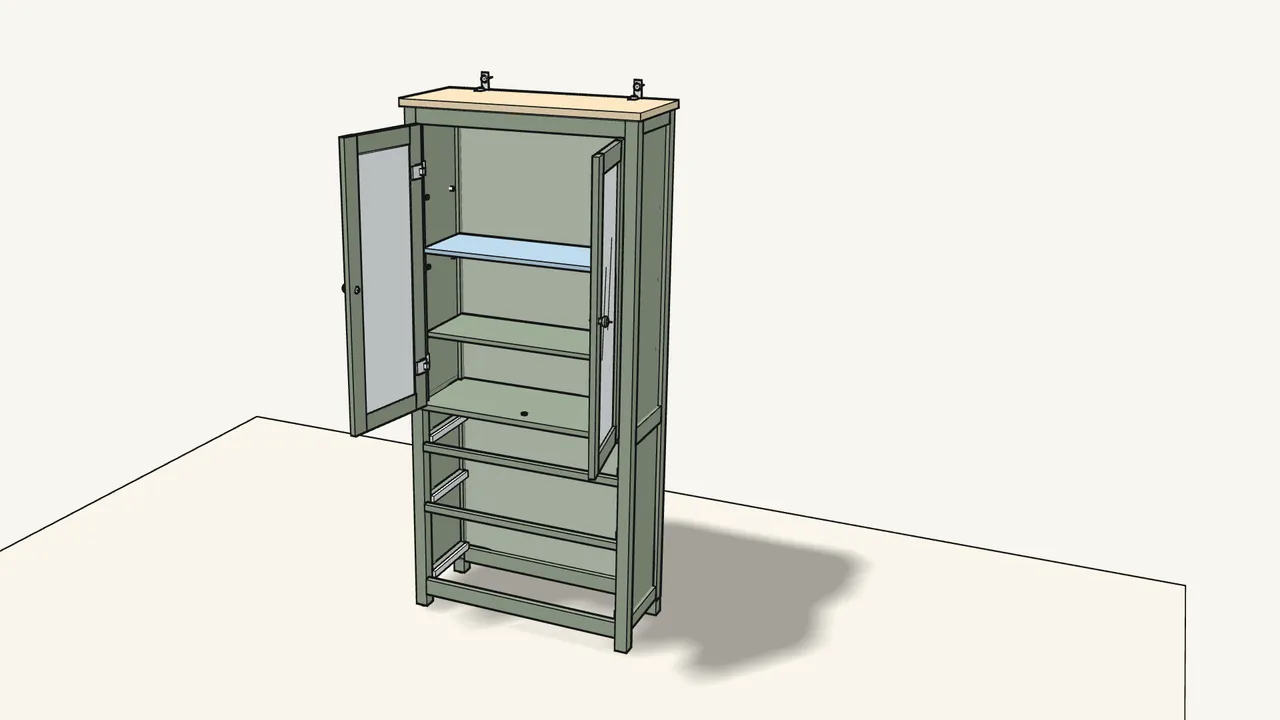

    Step 25 · manual step 63–65

    Press in the pins and supports. Lay in the 3 shelves.

    6 pins (104171), 6 supports (106414) — holes: see the manual, step 63.

    ▶ Watch this step (3:02)

26.

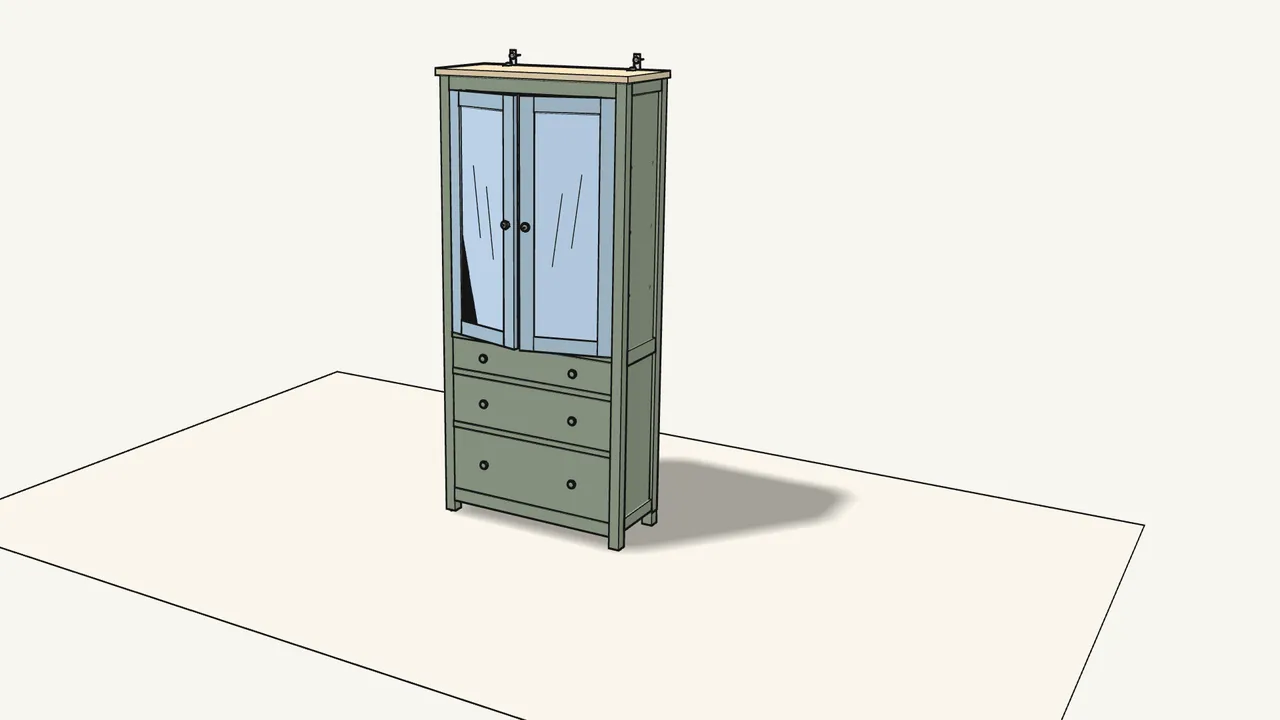

    Step 26 · manual step 66

    Slide the 3 drawers in onto the runners.

    Close the doors.

    ▶ Watch this step (3:10)
