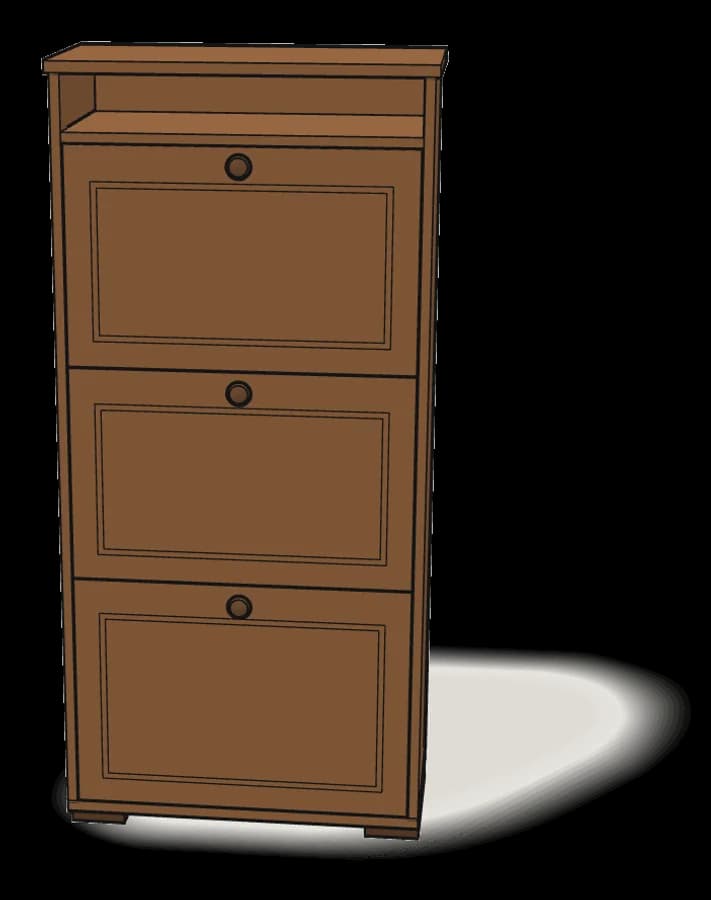

How to Assemble IKEA BRUSALI Shoe Cabinet with 3 Compartments

Step-by-step assembly

1.

   Step 1

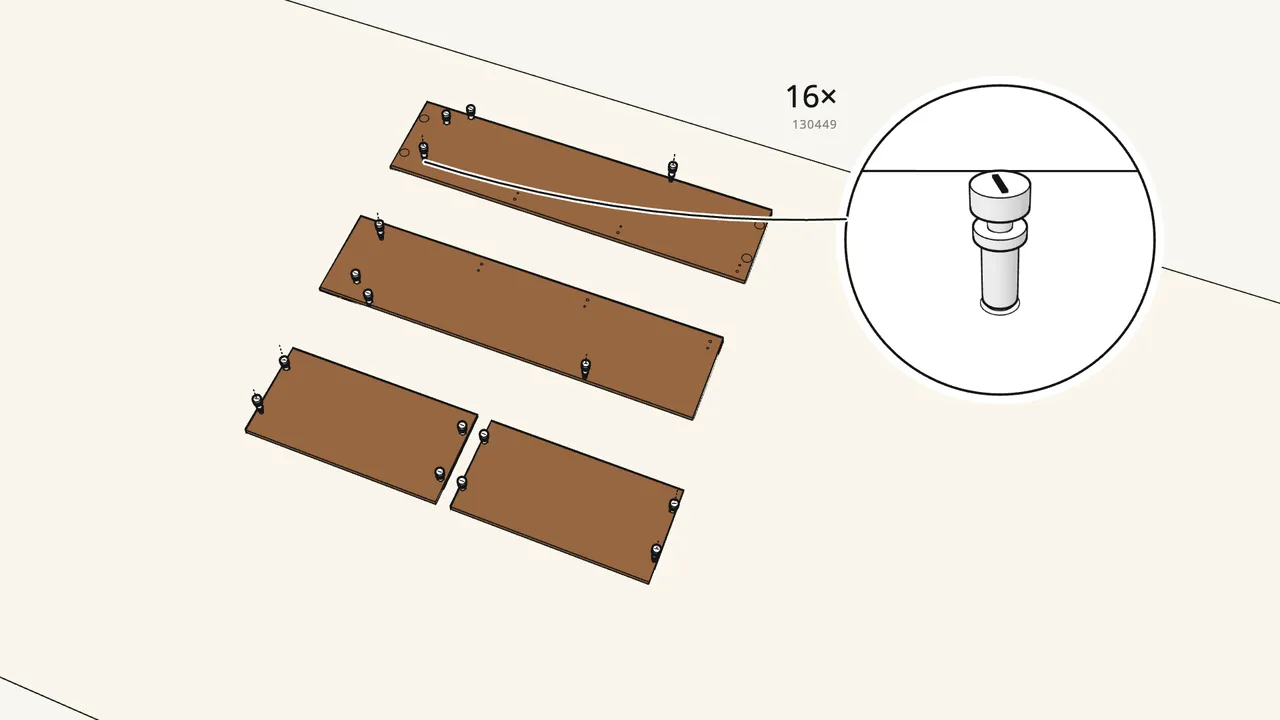

   Screw 16 cam bolts (130449) into the panels.

   4 in each side panel, 4 in the top and 4 in the bottom panel.

   ▶ Watch this step (0:18)

2.

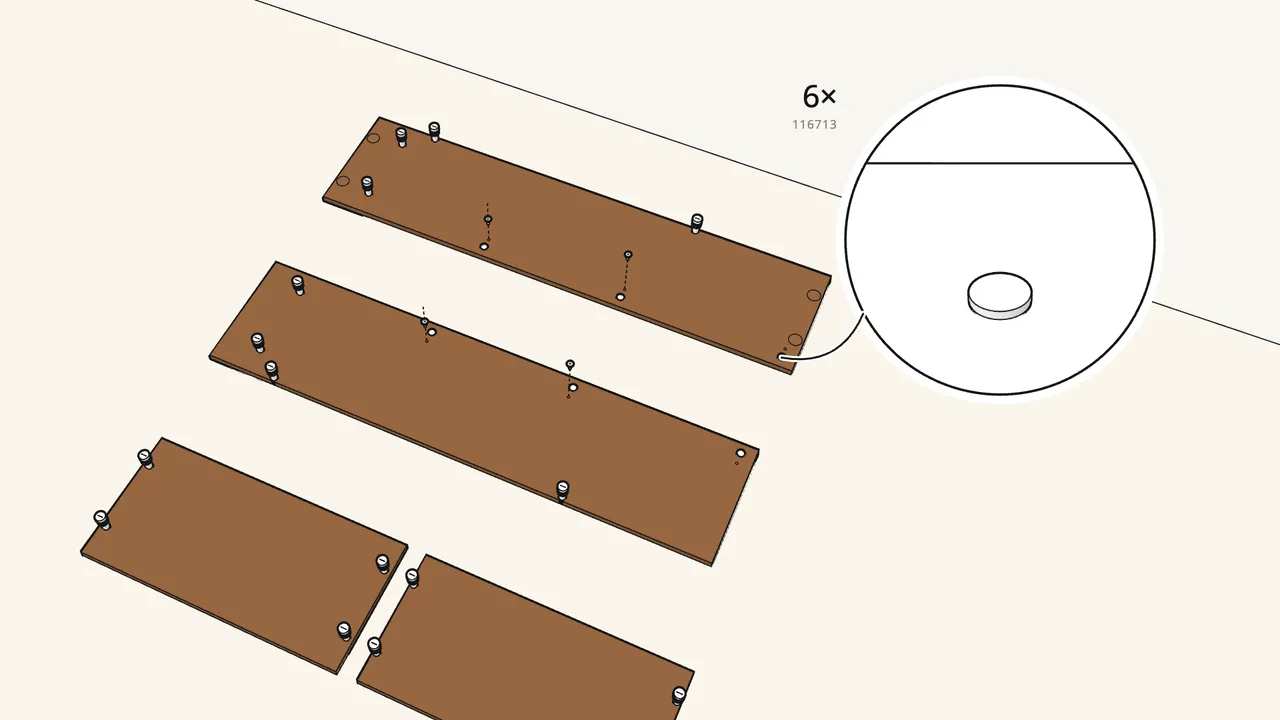

   Step 2

   Tap 6 pivot pins (116713) into the side panels.

   Then fix each one with a screw 100365 — not 112792.

   ▶ Watch this step (0:25)

3.

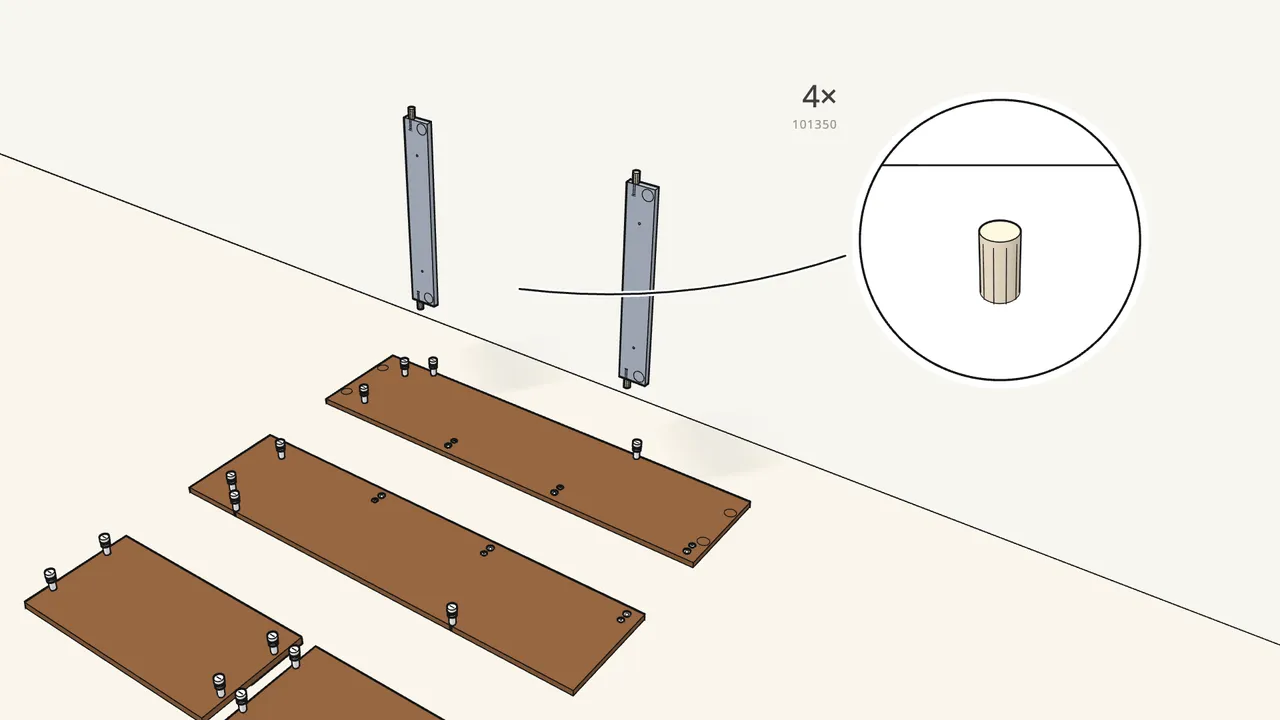

   Step 3

   Push 4 dowels (101350) into the rails and set them on the side.

   ▶ Watch this step (0:33)

4.

   Step 4

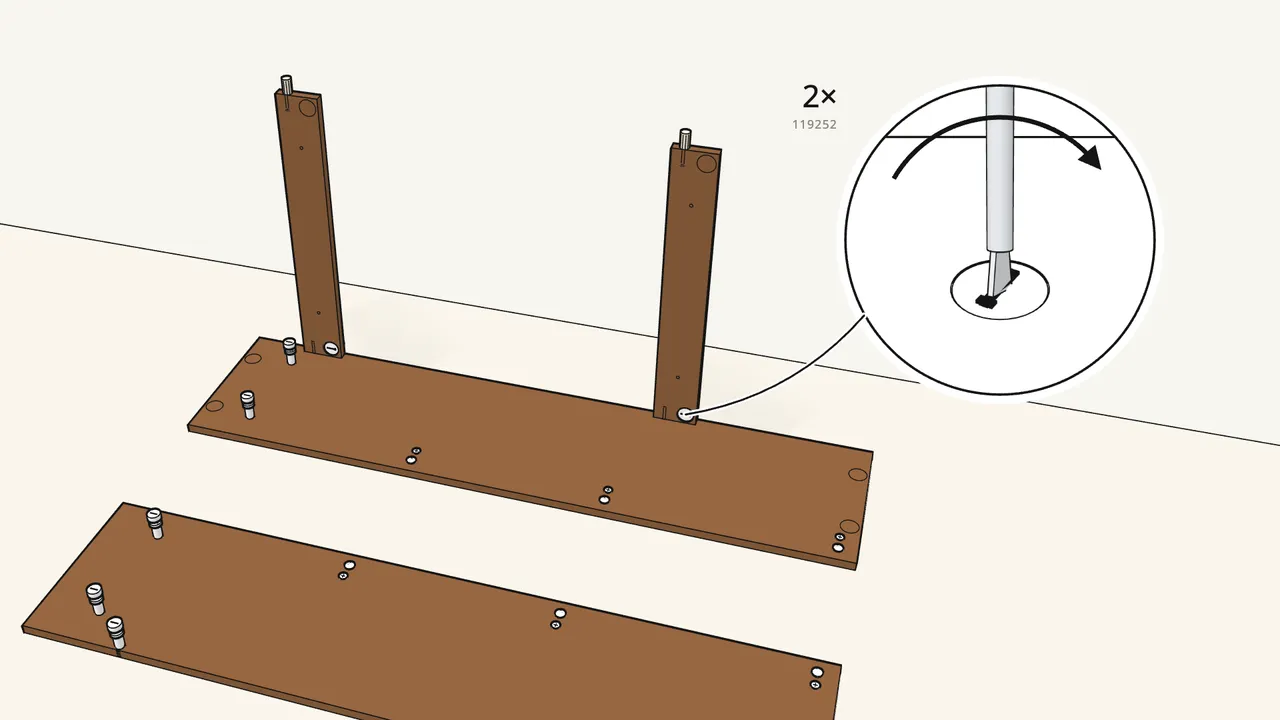

   Insert 2 cam locks and turn them clockwise.

   One at the lower end of each rail.

   ▶ Watch this step (0:40)

5.

   Step 5 · manual step 5–6

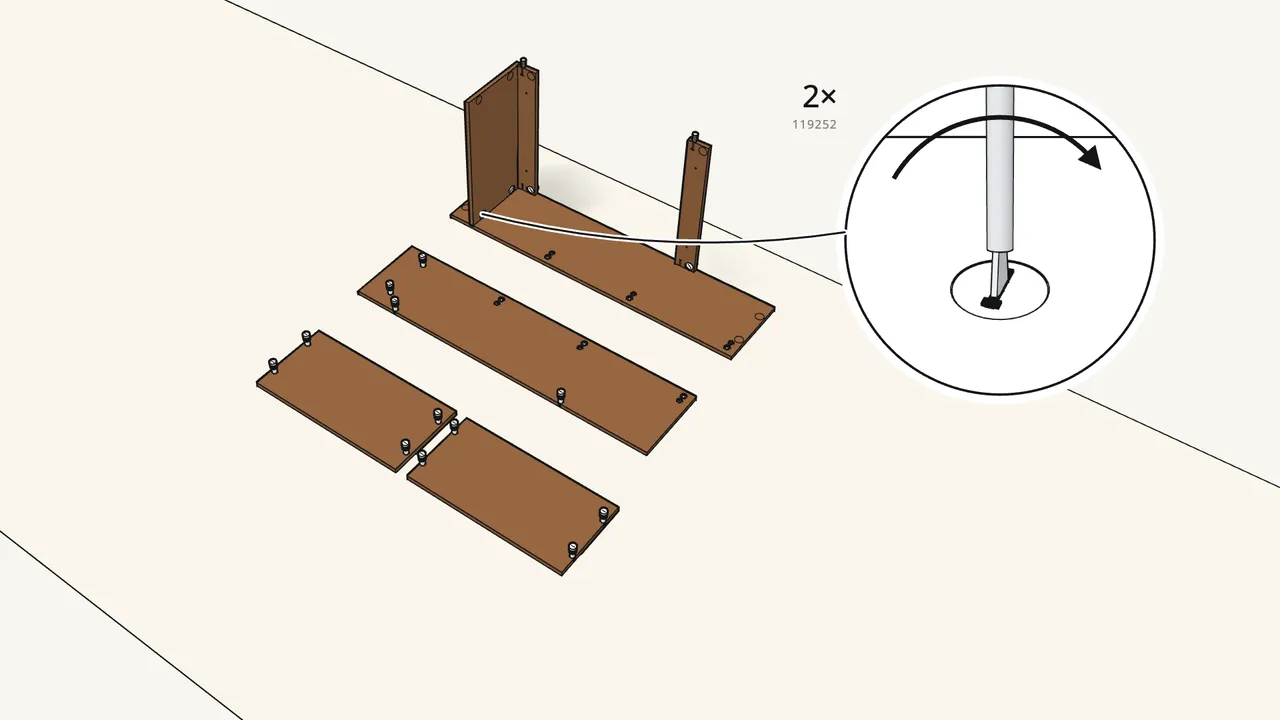

   Slide the shelf down next to the upper rail and lock it.

   2 cam locks, turned clockwise.

   ▶ Watch this step (0:46)

6.

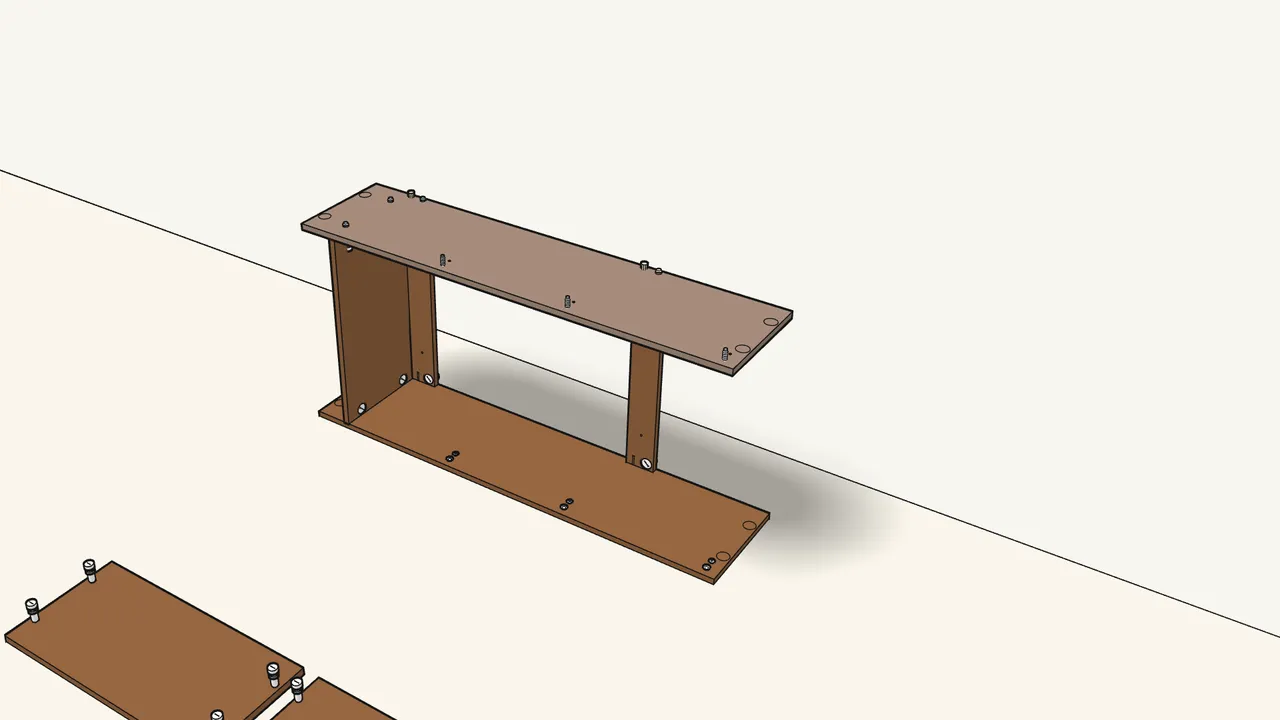

   Step 6 · manual step 7

   Lay the other side panel on top.

   Its bolts go into the rails and the shelf.

   ▶ Watch this step (0:54)

7.

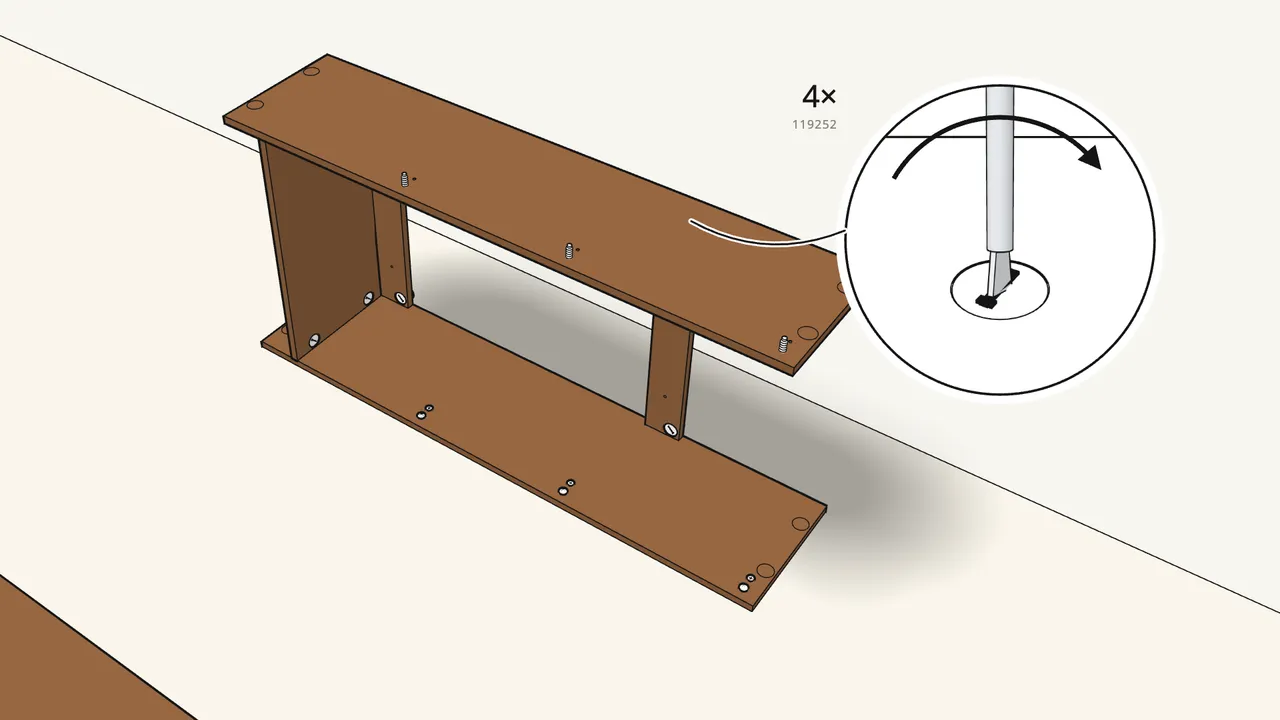

   Step 7 · manual step 8

   Insert 4 cam locks at this side and turn them clockwise.

   ▶ Watch this step (1:00)

8.

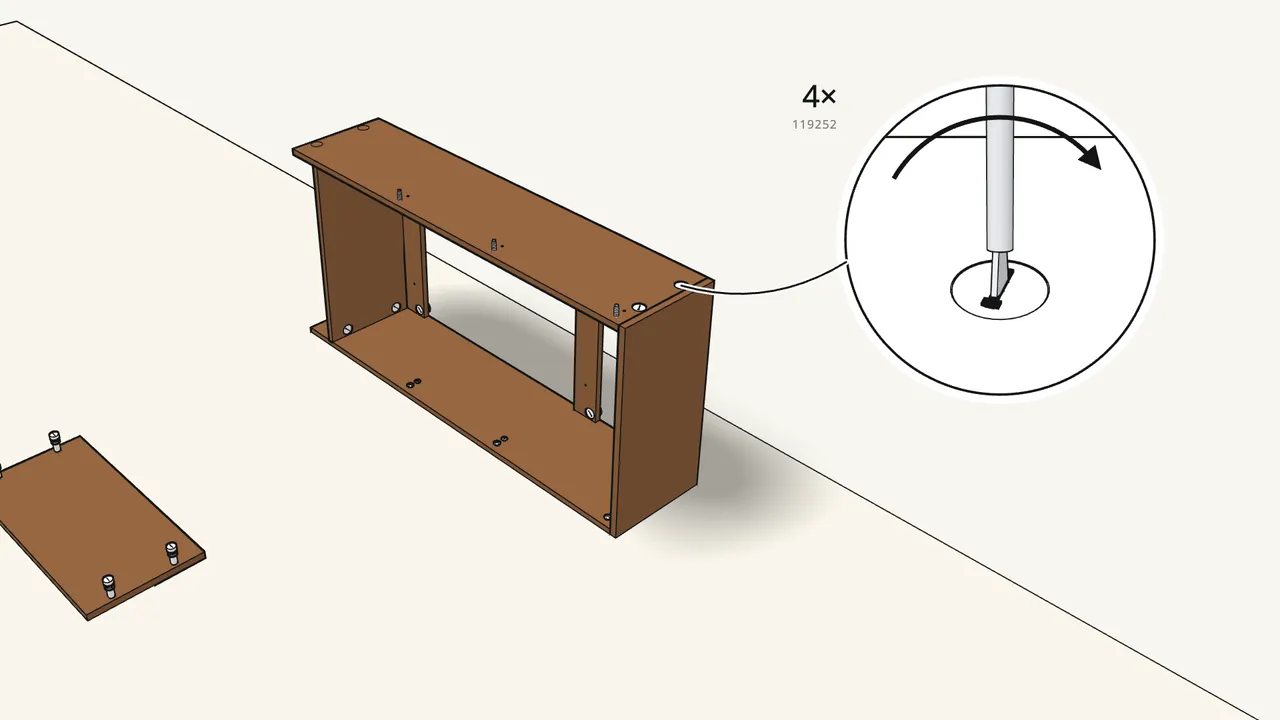

   Step 8 · manual step 9–10

   Fit the bottom panel and lock it with 4 cam locks.

   ▶ Watch this step (1:07)

9.

   Step 9 · manual step 11

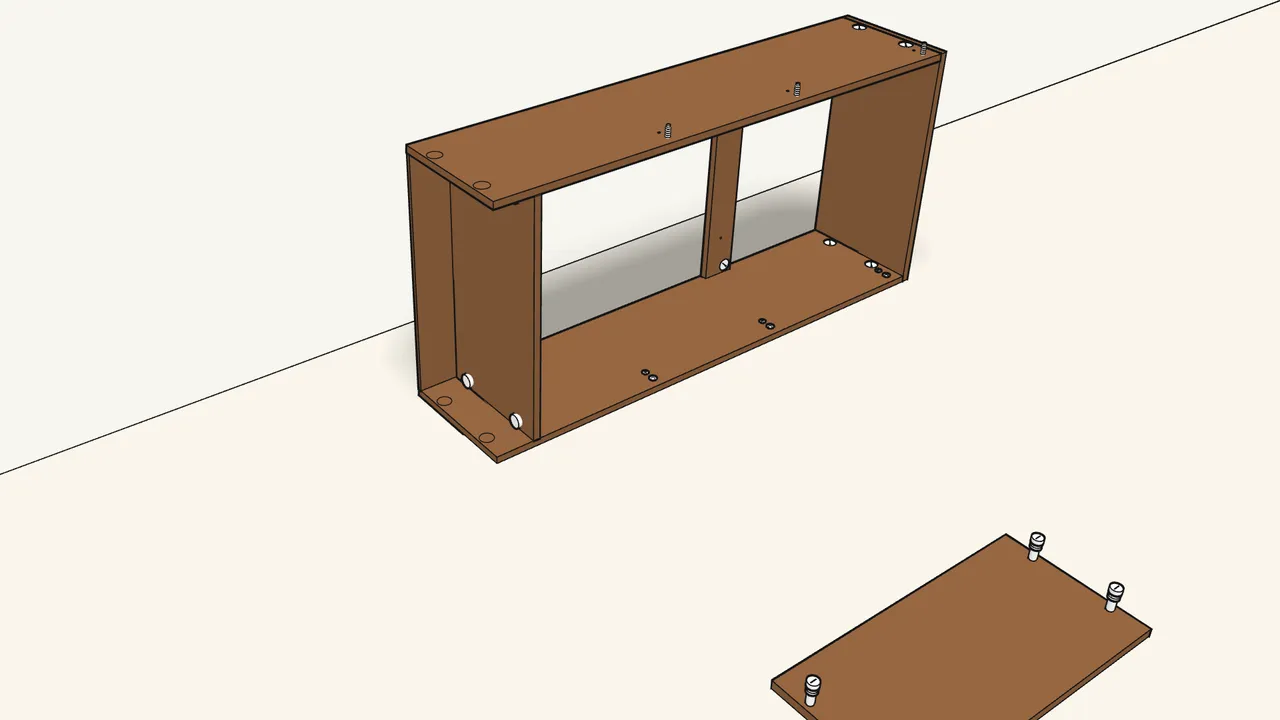

   Slide the narrow panel into the grooves at the top end.

   ▶ Watch this step (1:15)

10.

    Step 10 · manual step 12–13

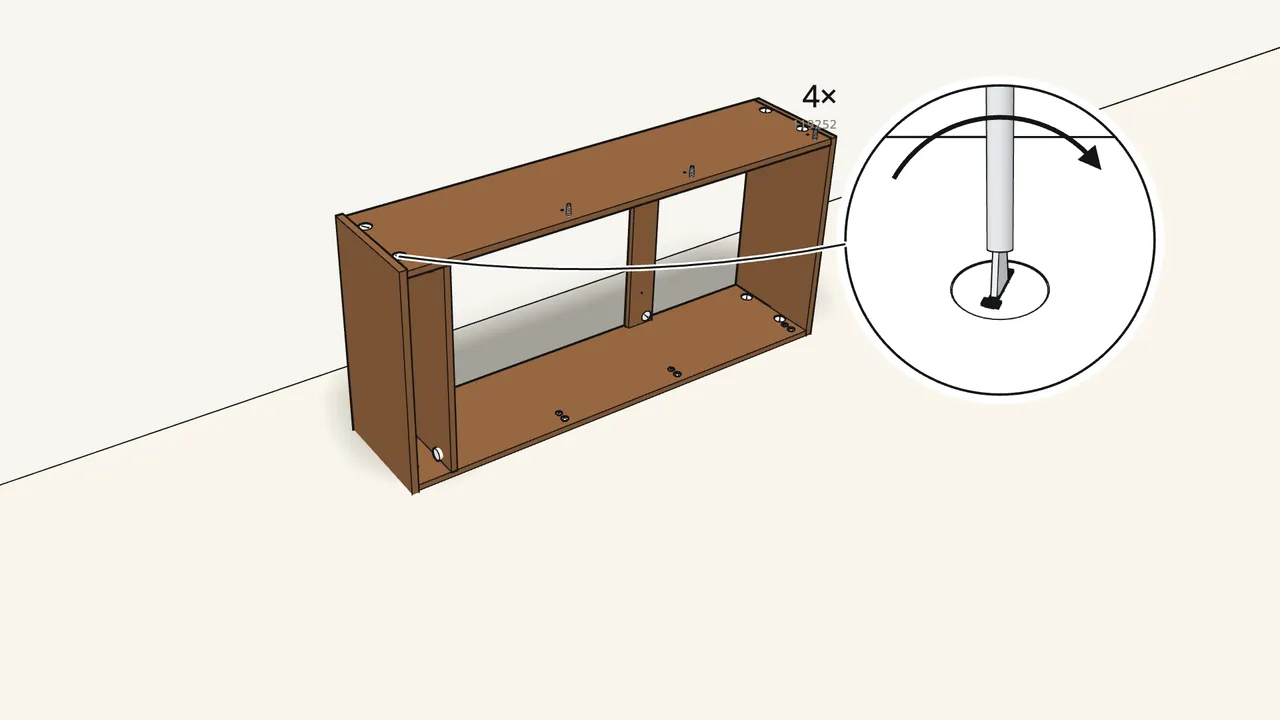

    Fit the top panel and lock it with 4 cam locks.

    ▶ Watch this step (1:20)

11.

    Step 11 · manual step 14–15

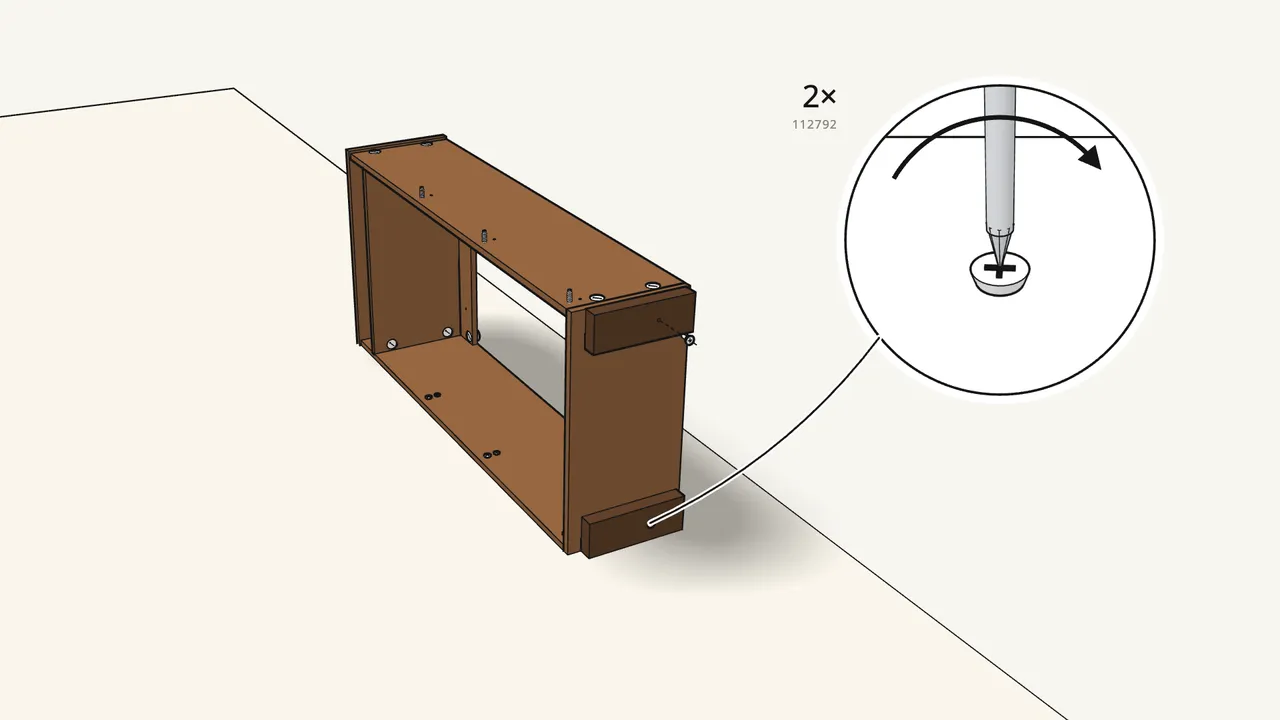

    Fit the 2 feet under the bottom panel.

    A dowel (101350) in each foot, then 1 screw 112792 each.

    ▶ Watch this step (1:28)

12.

    Step 12 · manual step 16

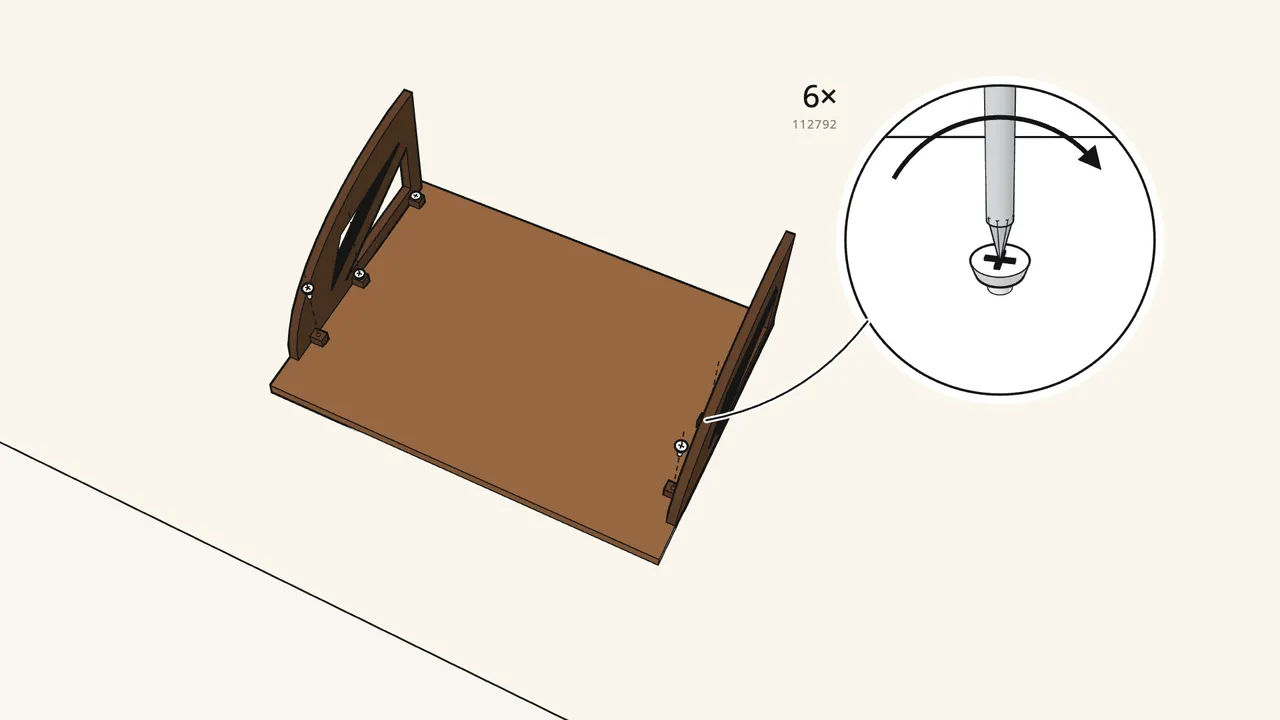

    Screw the 2 brackets to the back of a door.

    3 screws 112792 each — not 100365.

    ▶ Watch this step (1:36)

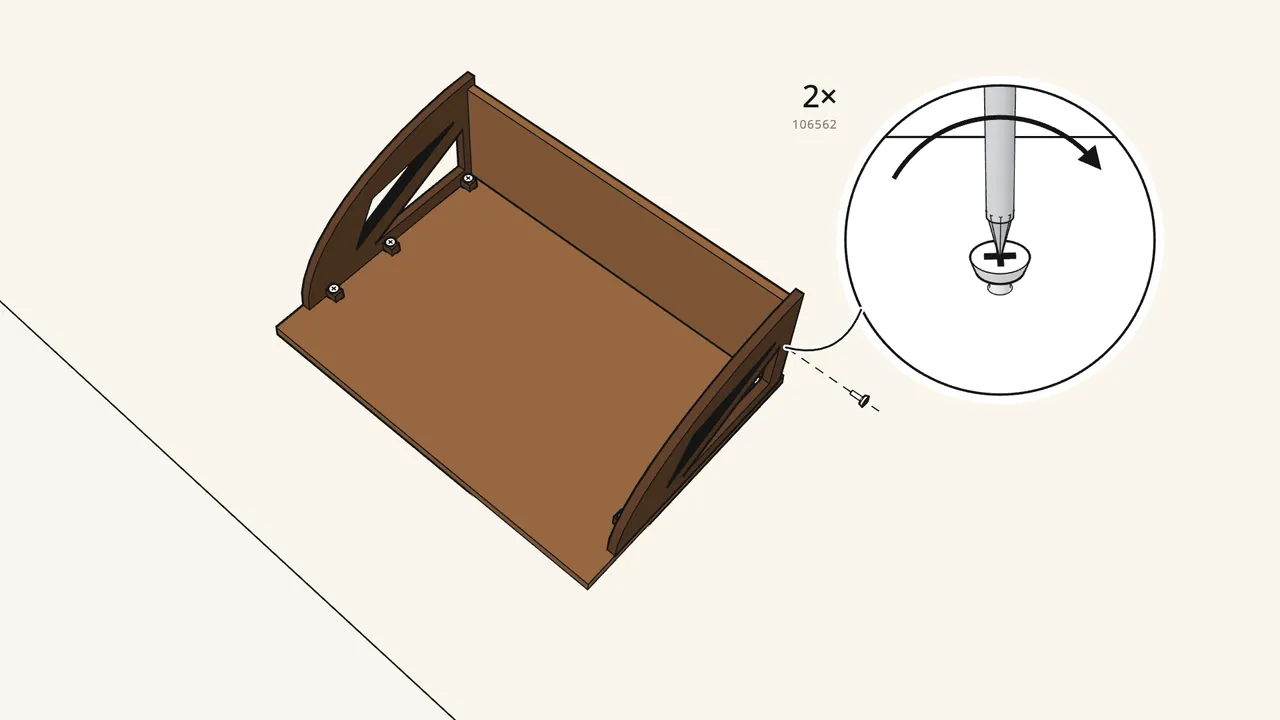

13.

    Step 13 · manual step 17–18

    Slide the widest board into the brackets.

    Fix it with 2 screws 106562.

    ▶ Watch this step (1:44)

14.

    Step 14 · manual step 19–20

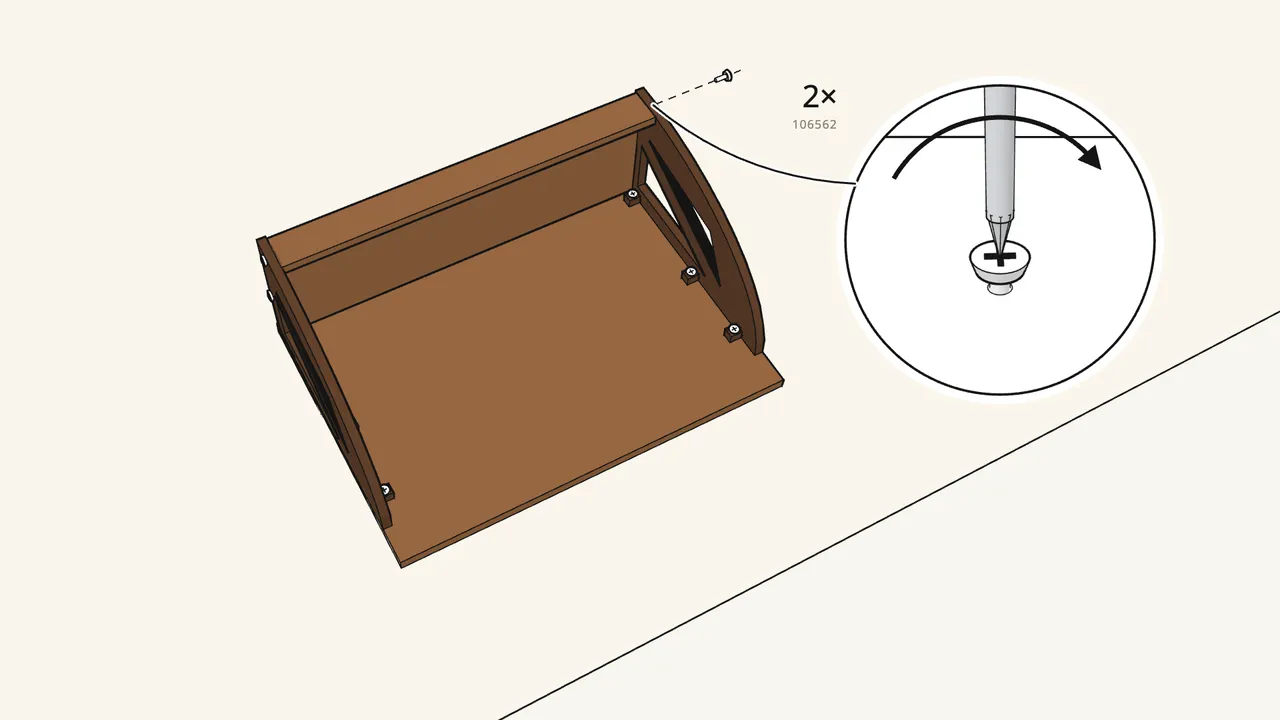

    Clip the narrowest board into the bracket tips.

    Fix it with 2 screws 106562.

    ▶ Watch this step (1:51)

15.

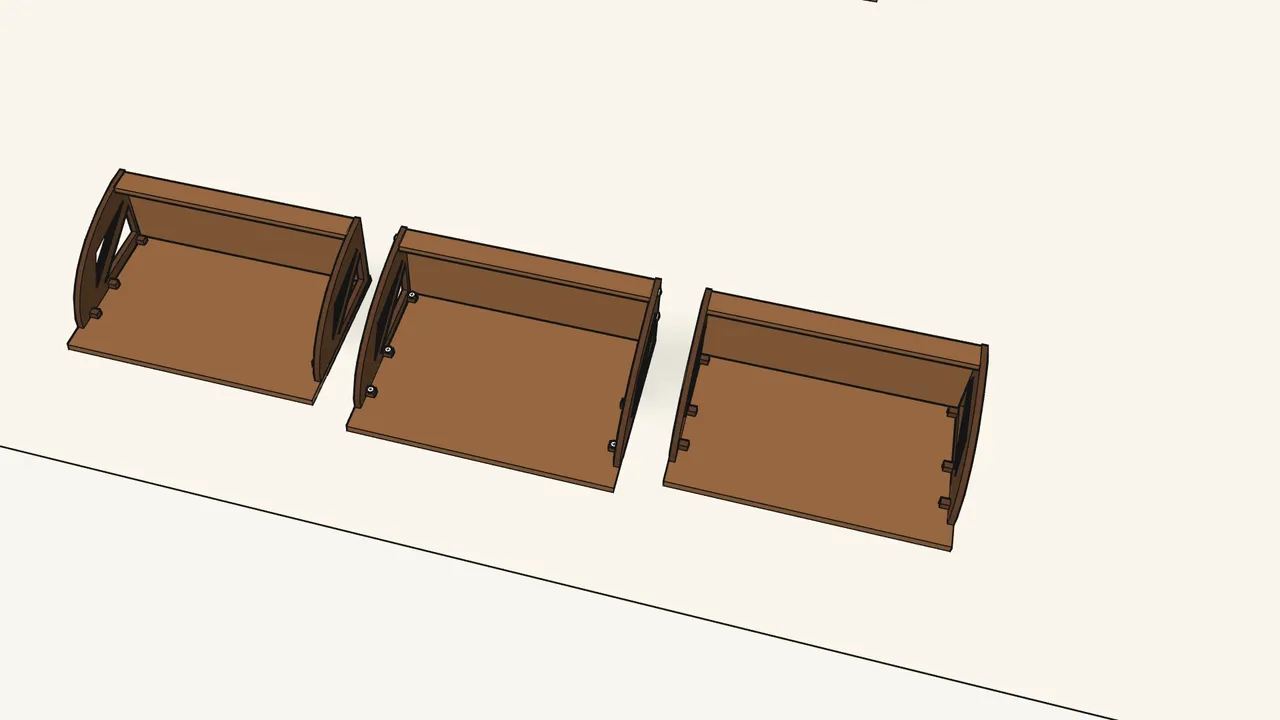

    Step 15 · manual step 16–20

    Build the other 2 compartments the same way.

    Keep the middle-size board of each set for step 25.

    ▶ Watch this step (1:58)

16.

    Step 16 · manual step 21

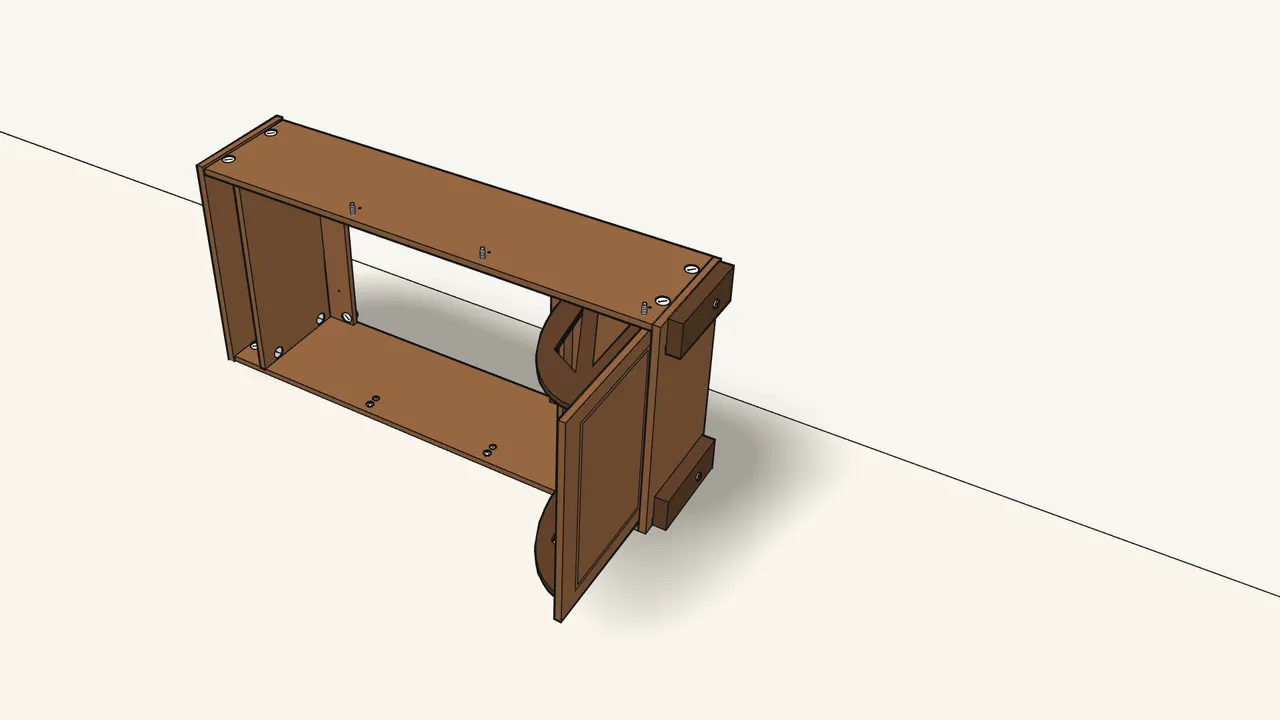

    Hook the lowest compartment onto its 2 pivot pins.

    ▶ Watch this step (2:03)

17.

    Step 17 · manual step 22

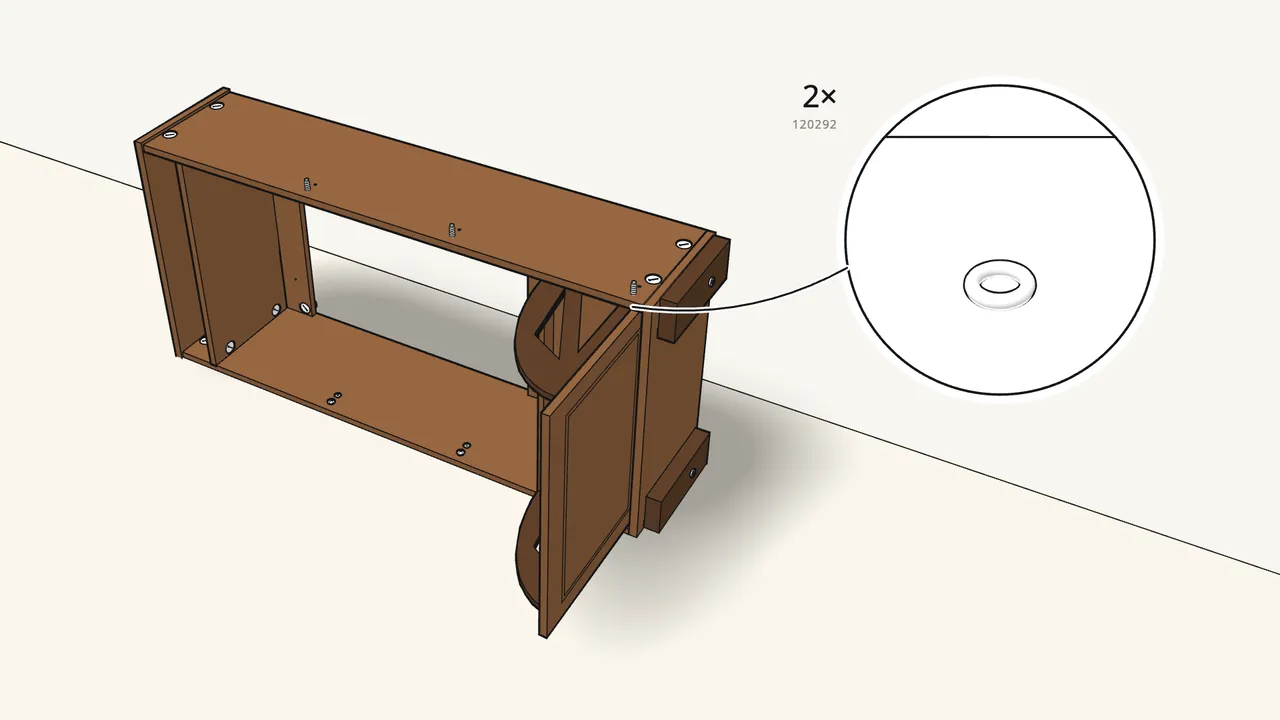

    Put a bushing (120292) over each pivot pin.

    2 per compartment.

    ▶ Watch this step (2:09)

18.

    Step 18 · manual step 22

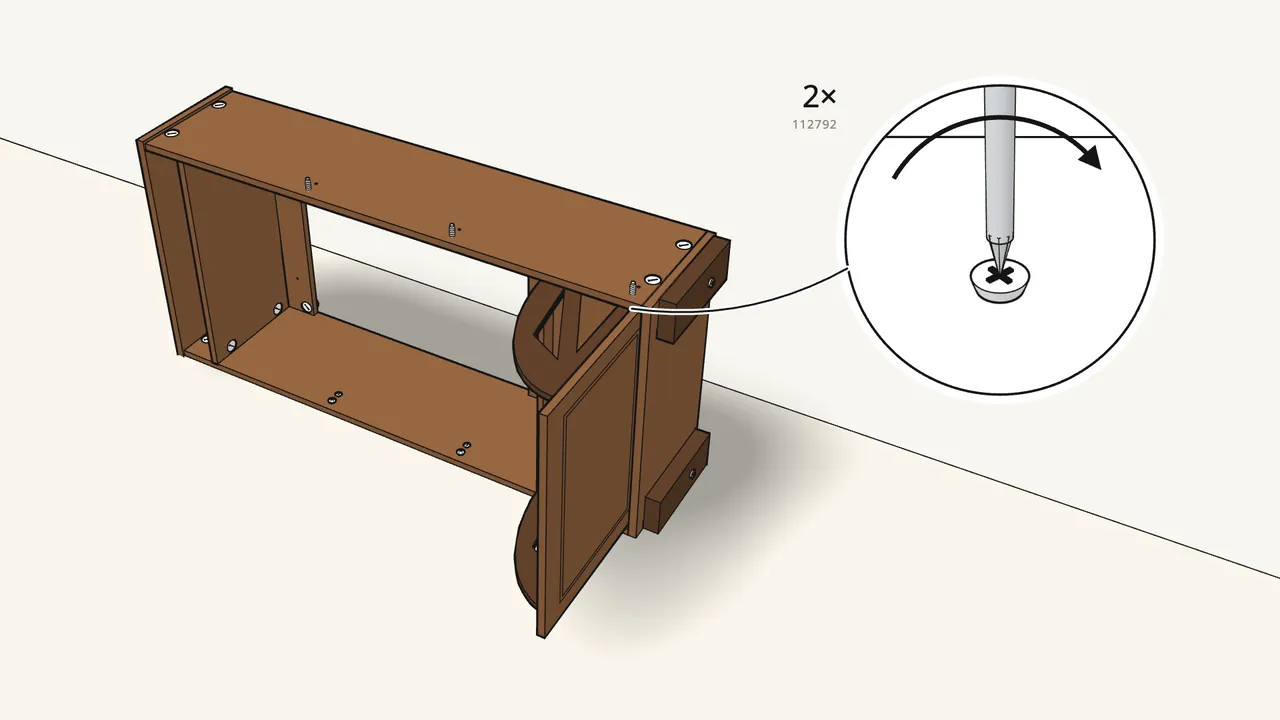

    Fix each bushing with a screw 112792 — by hand, no power drill.

    Not screw 100365.

    ▶ Watch this step (2:14)

19.

    Step 19 · manual step 23

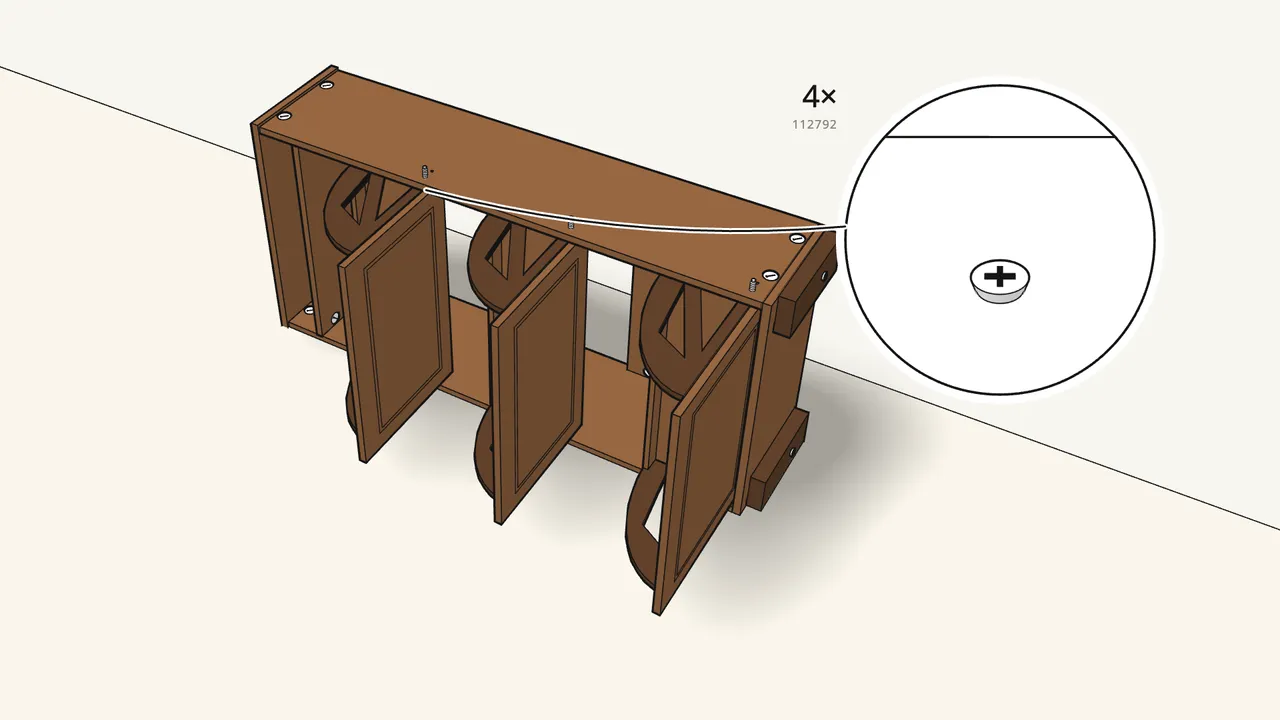

    Hang the other 2 compartments the same way, then close them.

    2 bushings and 2 screws 112792 on each.

    ▶ Watch this step (2:20)

20.

    Step 20 · manual step 24

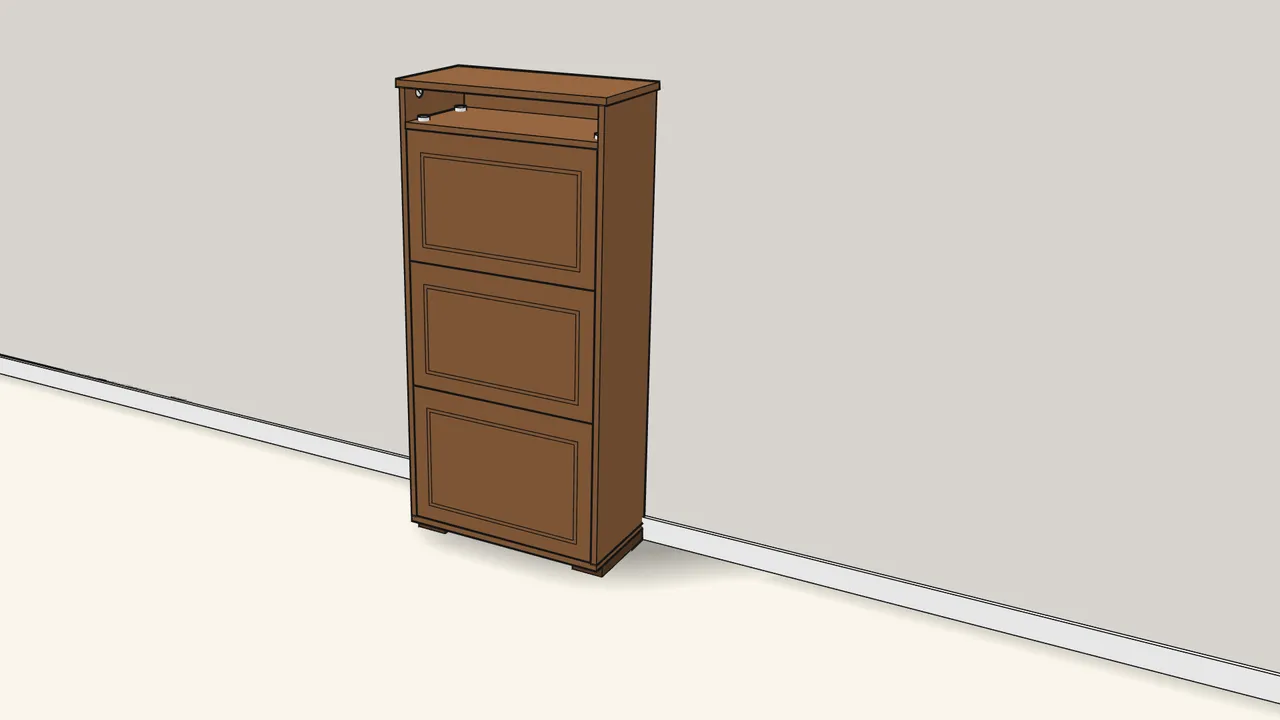

    Stand the cabinet upright against the wall.

    ▶ Watch this step (2:30)

21.

    Step 21 · manual step 24

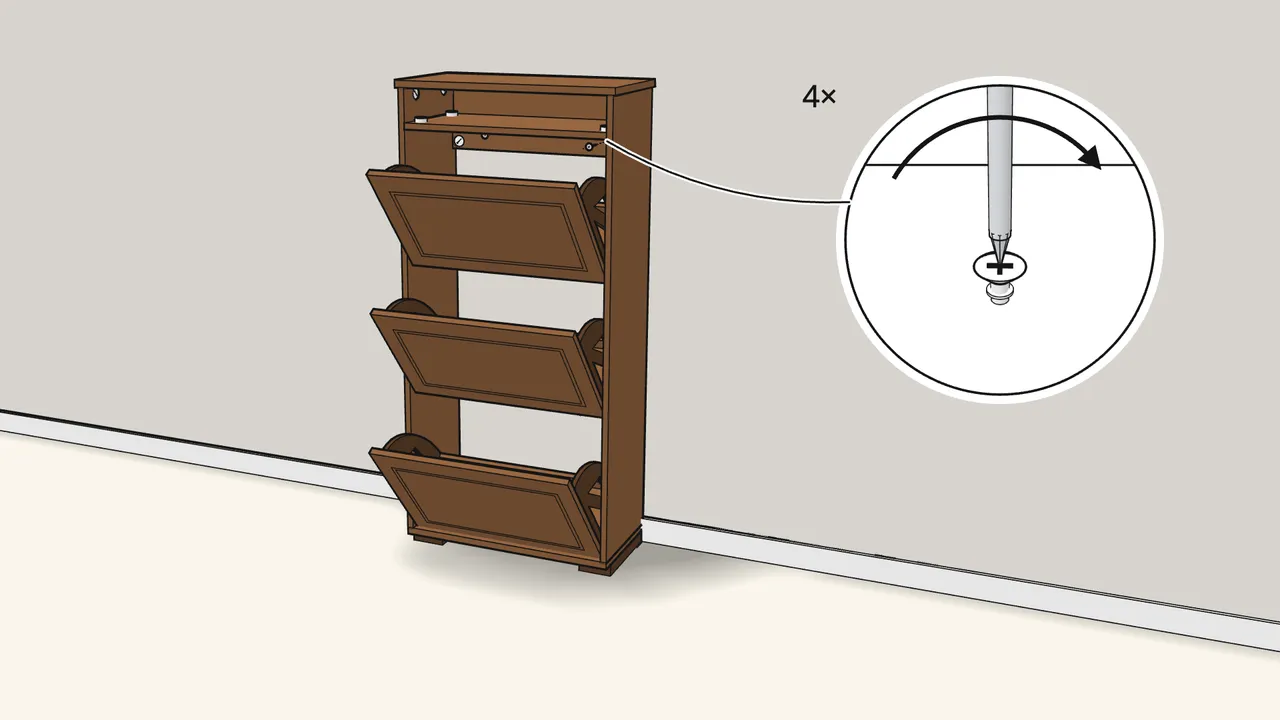

    Open the doors and screw the rails to the wall — 4 screws.

    Screws and plugs are not included — use ones suited to your wall.

    ▶ Watch this step (2:36)

22.

    Step 22 · manual step 25

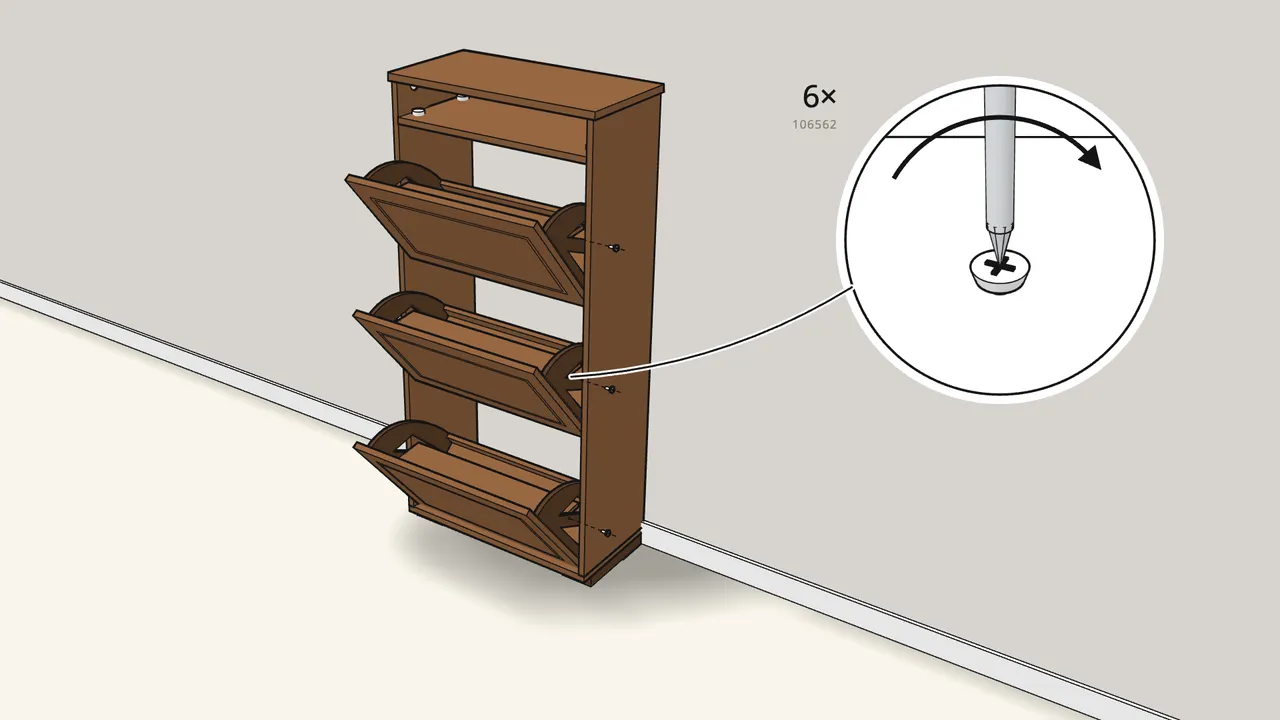

    Fit the middle-size board in each compartment.

    Choose the angle shown in the manual, step 25. 2 screws 106562 each.

    ▶ Watch this step (2:45)

23.

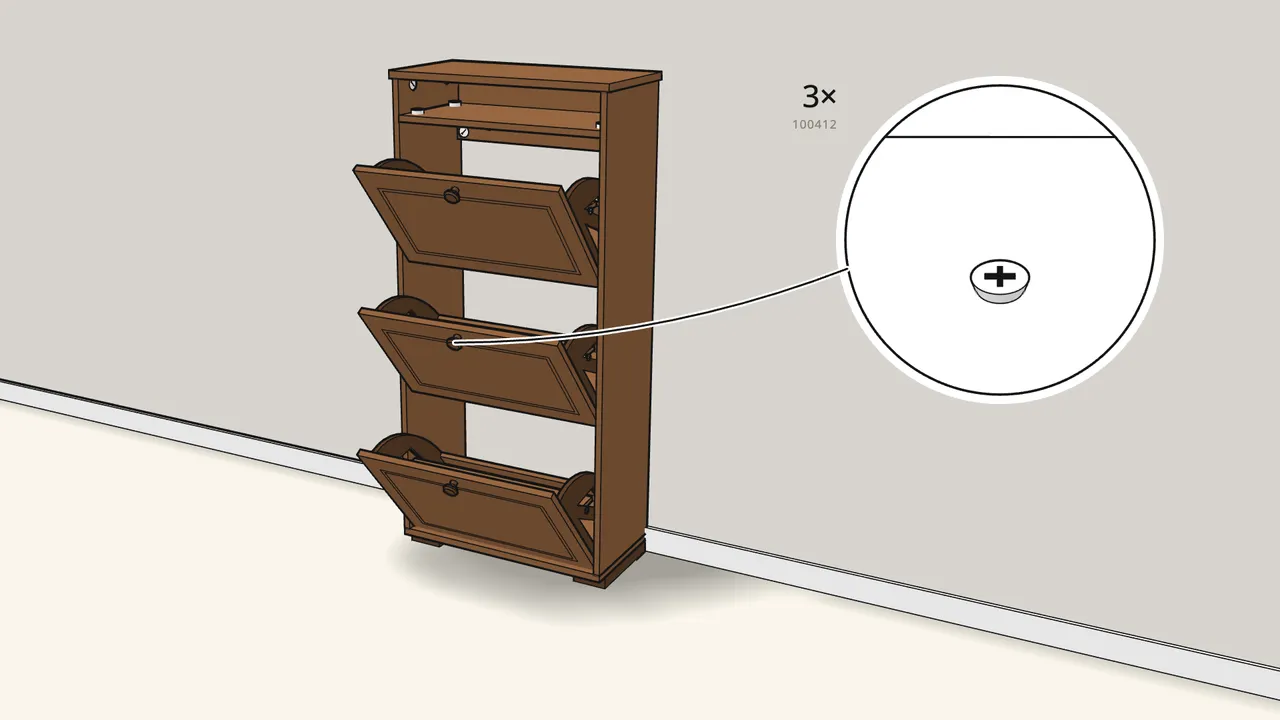

    Step 23 · manual step 26

    Fit the 3 knobs (130440) with screws 100412.

    The screw goes through the door from the inside.

    ▶ Watch this step (2:54)
