How to Assemble IKEA HYLLIS Shelf Unit
Step-by-step IKEA HYLLIS shelf unit assembly: 13 illustrated steps, an animated video, the hardware list and the tools you need — following the official instructions (AA-2092349-7).
- 13 illustrated steps
- 5 steps in the manual
- 1:51 video
- 60×27×74 cm
What you need
Tools
- Phillips screwdriver
You’ll need: a Phillips screwdriver.
Hardware in the box
| Part no. (as printed in the manual) | Qty |
|---|---|
| 190018 | 24× |
| 157476 | 4× |
Step-by-step assembly
Step 1

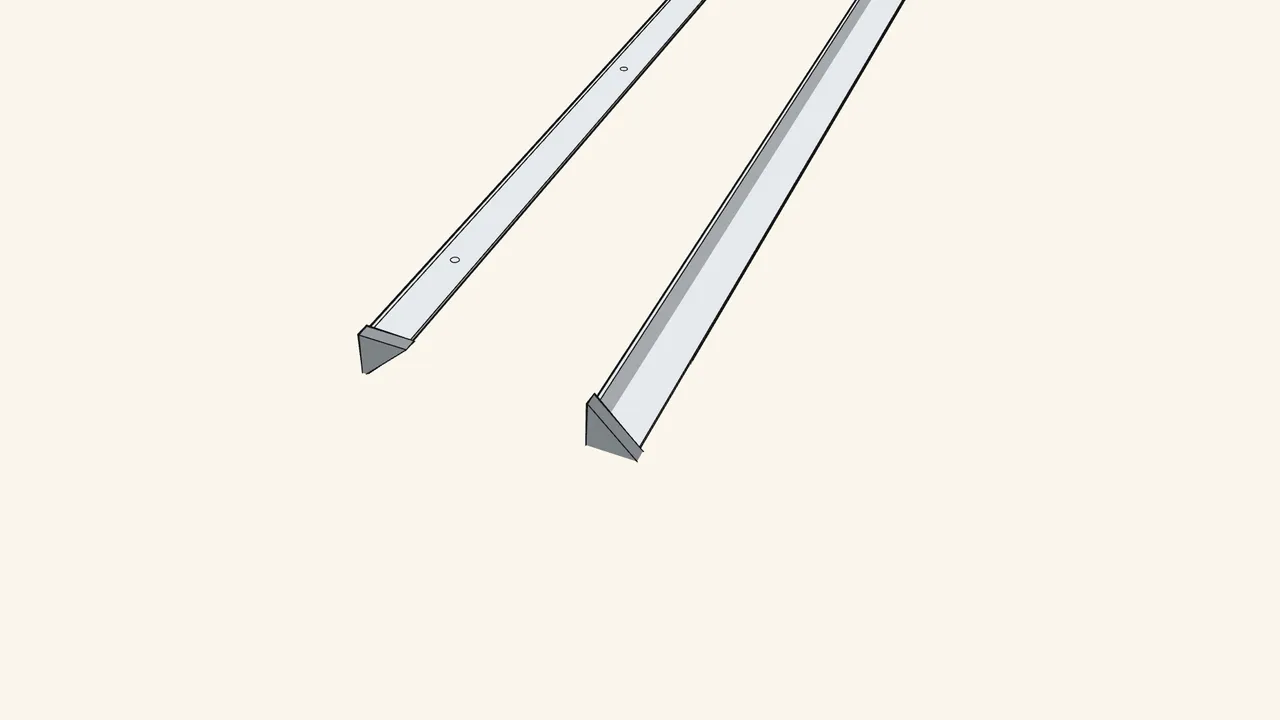

Push a plastic foot (157476) onto the end of each post.
It fits into the inside corner of the angle.
Step 2 · manual step 1

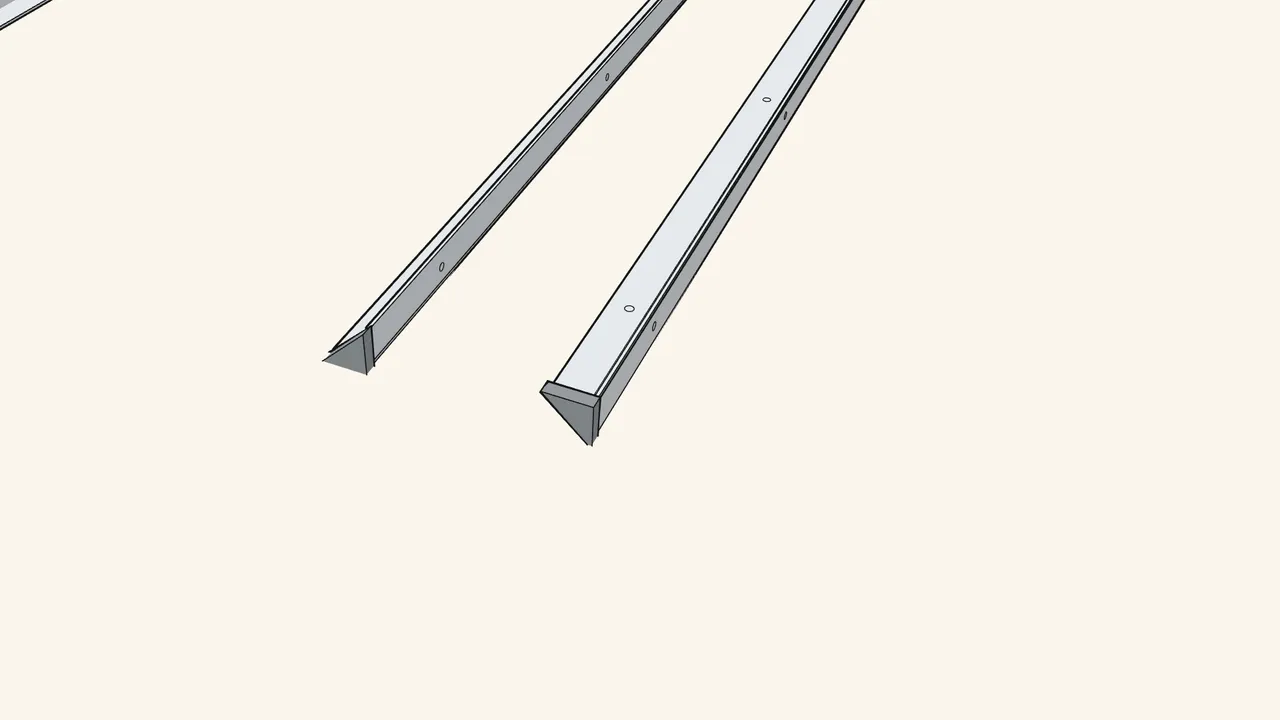

Do the same on the other 2 posts — 4 feet in total.
Step 3 · manual step 2

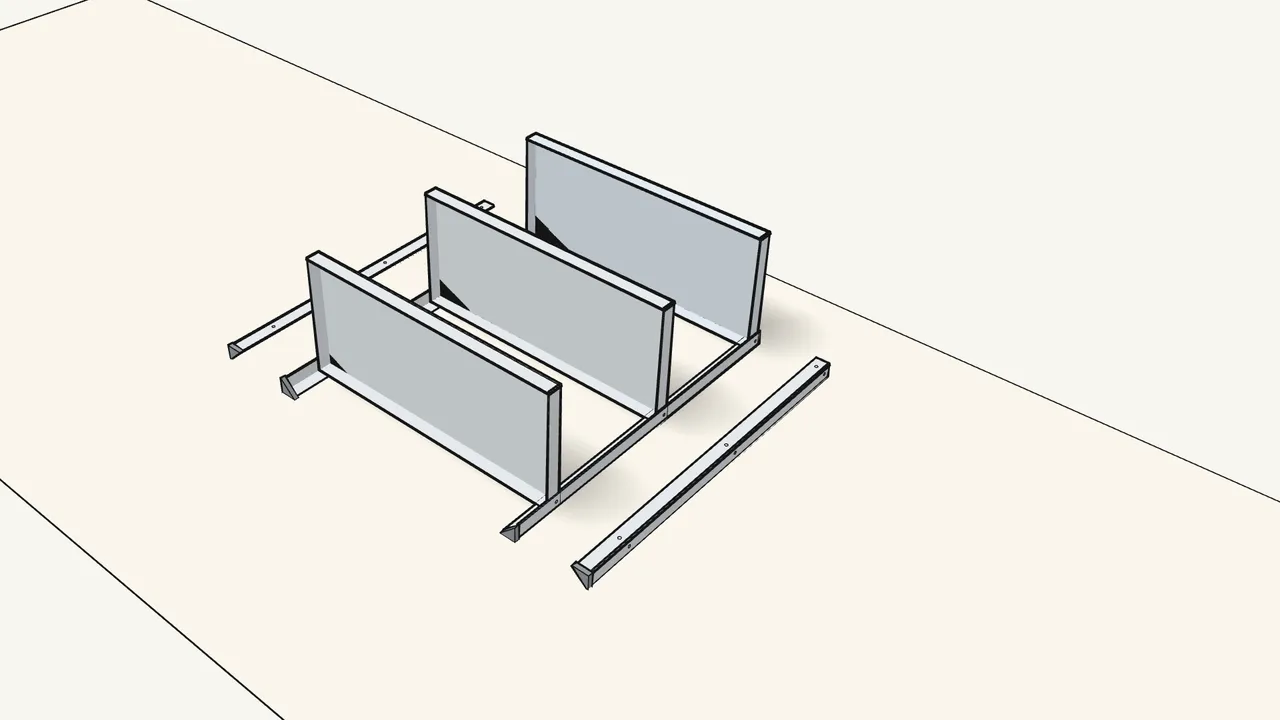

Stand the 3 shelves up between 2 posts lying on the floor.
Line up the holes in the posts with the holes in the shelves.
Step 4 · manual step 2

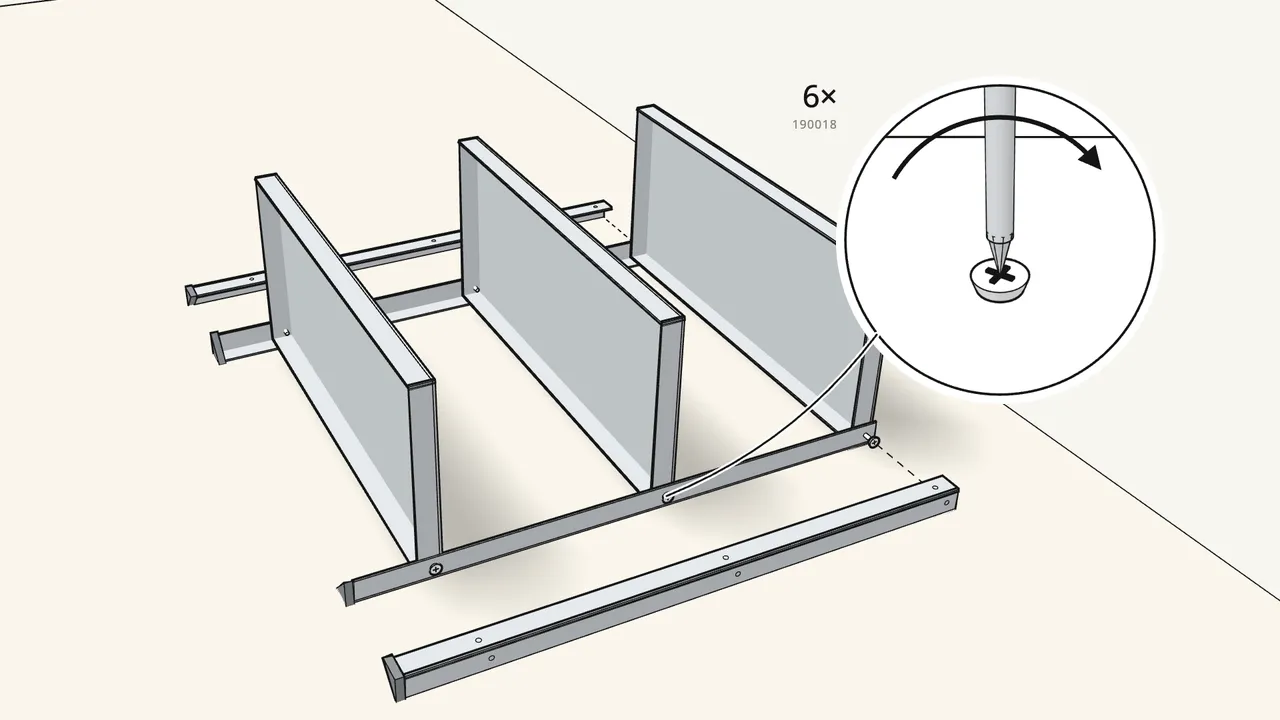

Screw each shelf to both posts — 6 screws (190018).
Step 5 · manual step 3

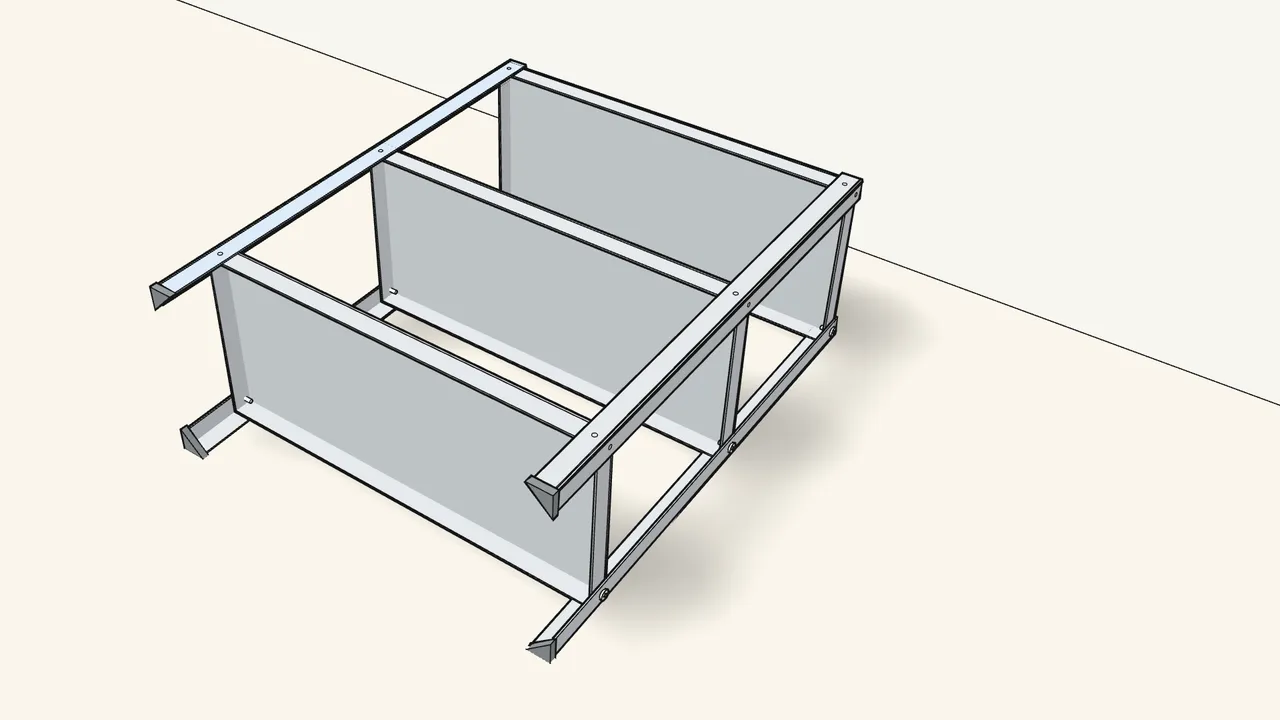

Place the other 2 posts on top of the shelves.
Step 6 · manual step 3
Screw these posts to each shelf from the top — 6 screws (190018).
Step 7 · manual step 3

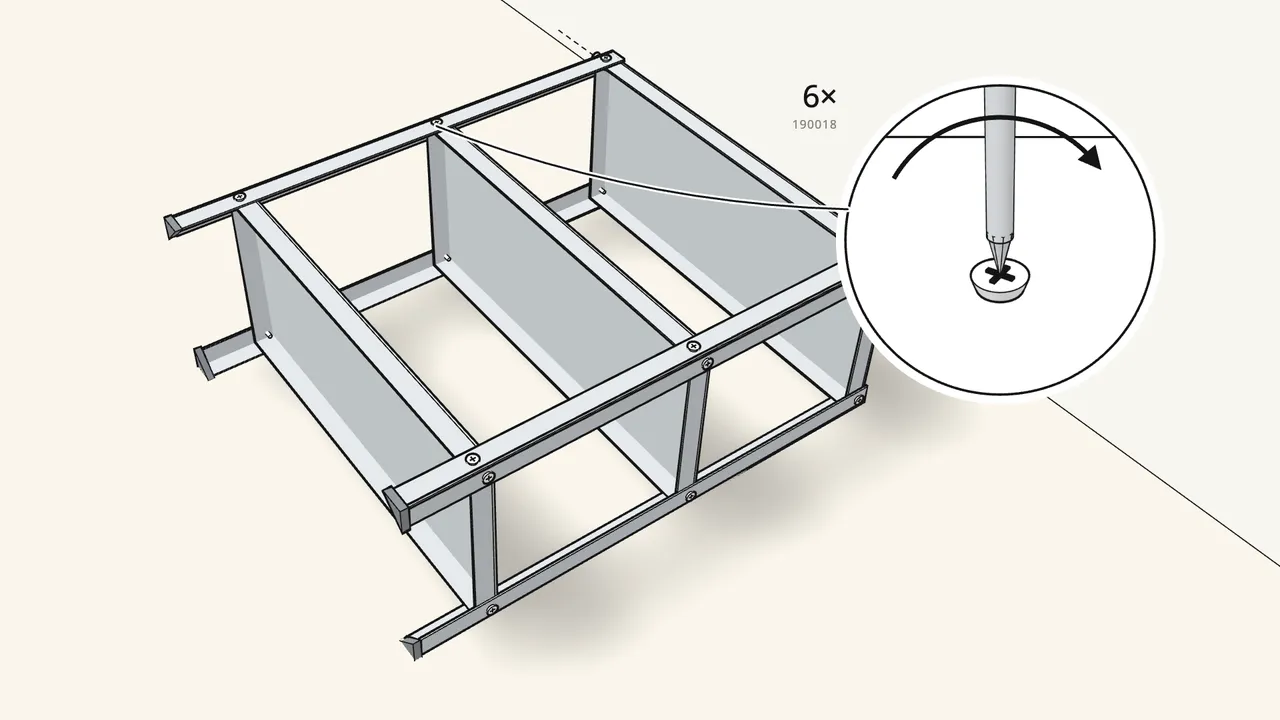

Then 6 more screws (190018) into the sides.
The manual’s close-up shows a screw from the top and one into the side at each corner.
Step 8 · manual step 4

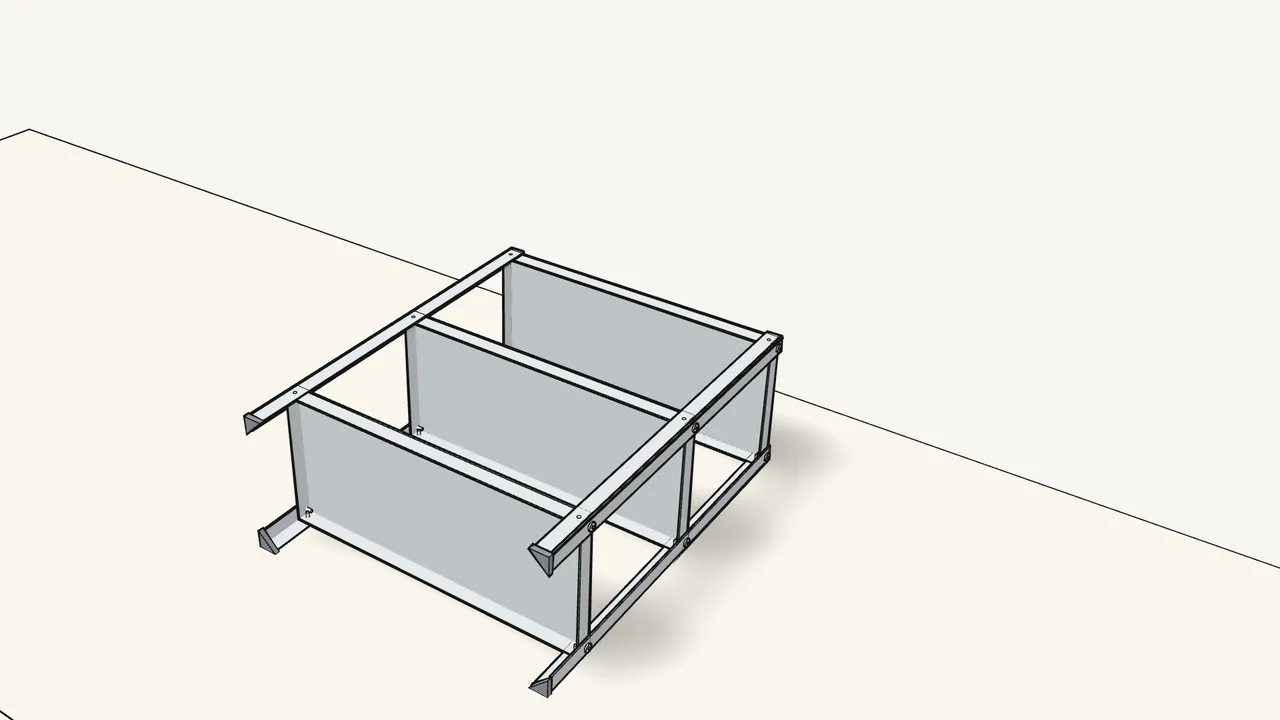

Turn the unit over.
Step 9 · manual step 4

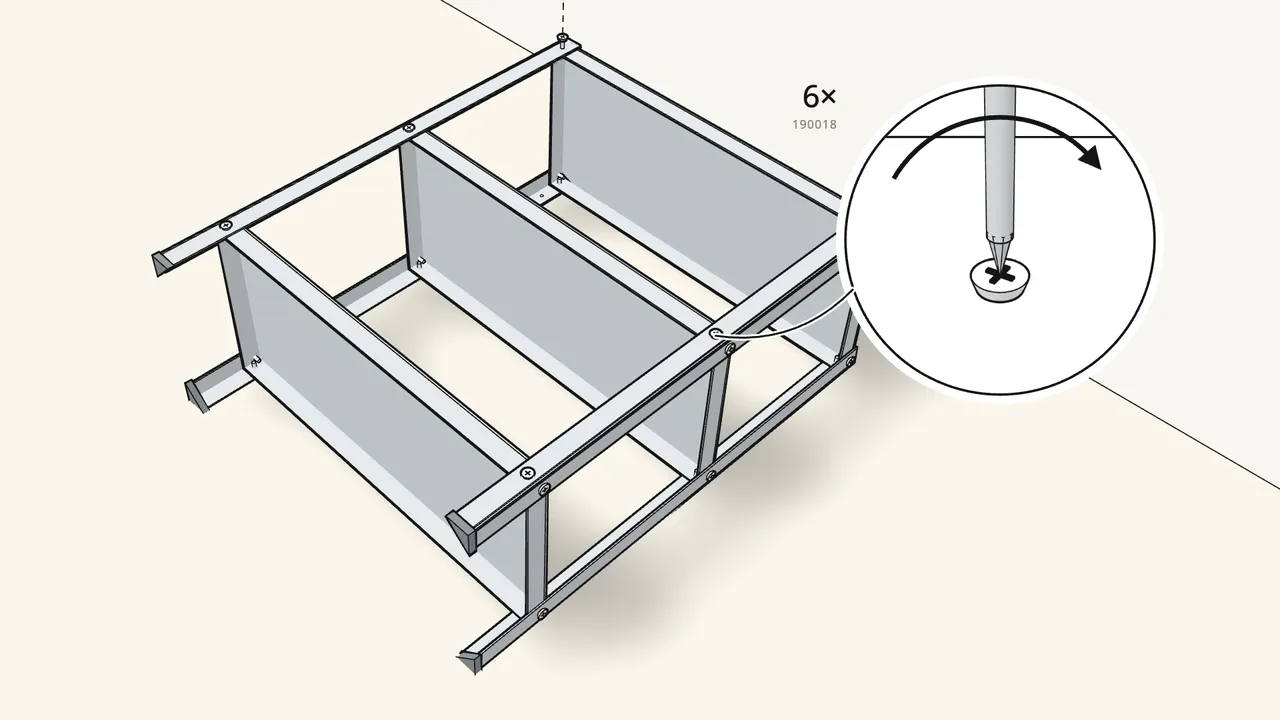

Screw the posts to the shelves on this side too — 6 screws (190018).
Step 10 · manual step 5

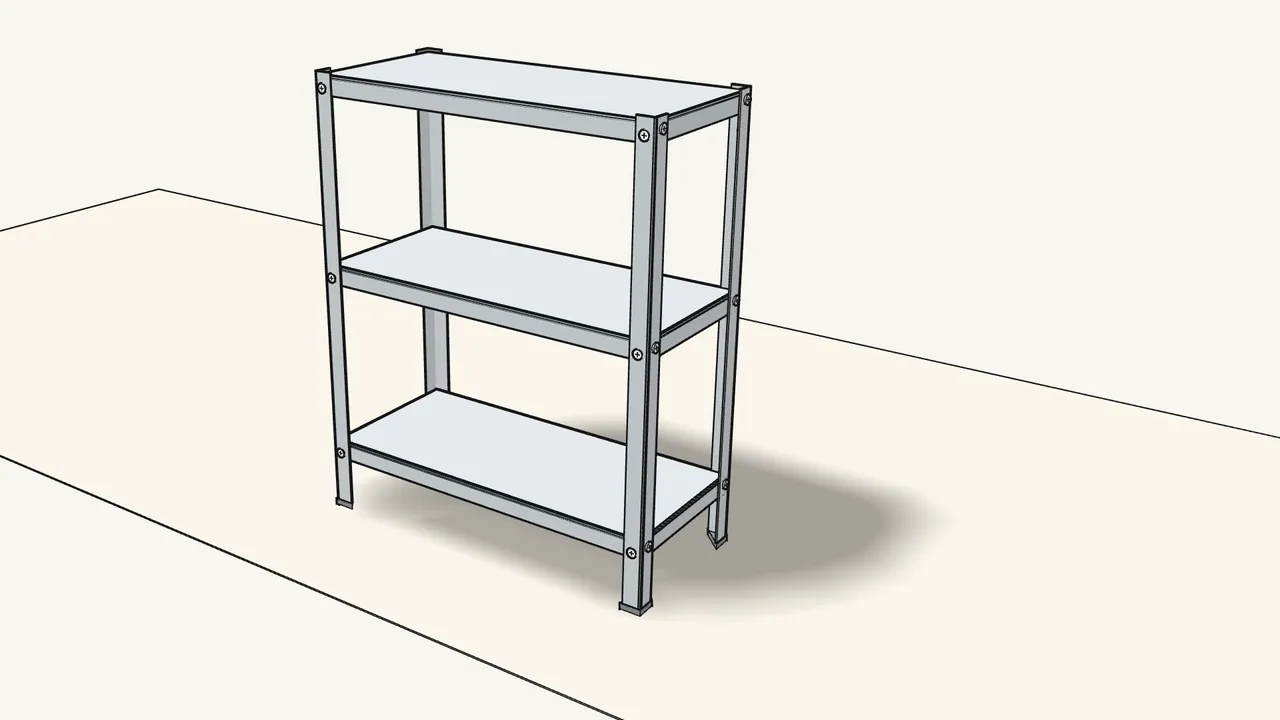

Stand the shelf unit upright.
Step 11 · manual step 5

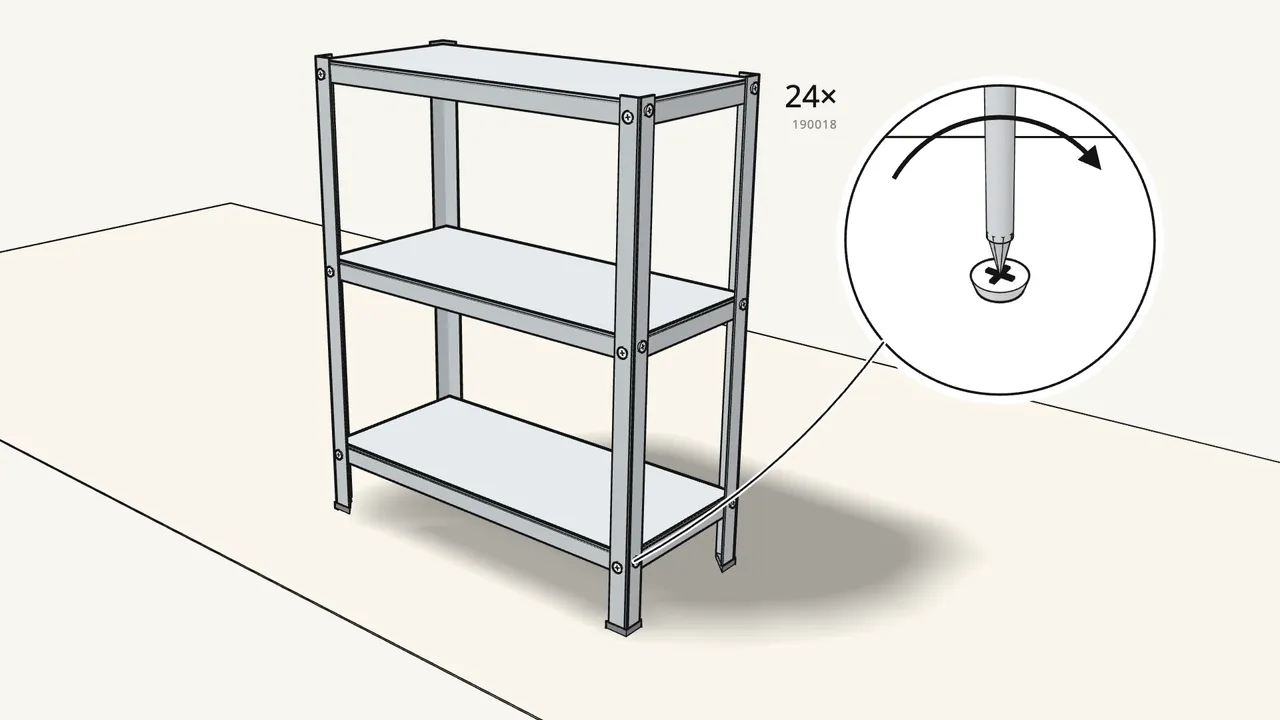

Tighten all 24 screws.
Step 12 · manual step 5

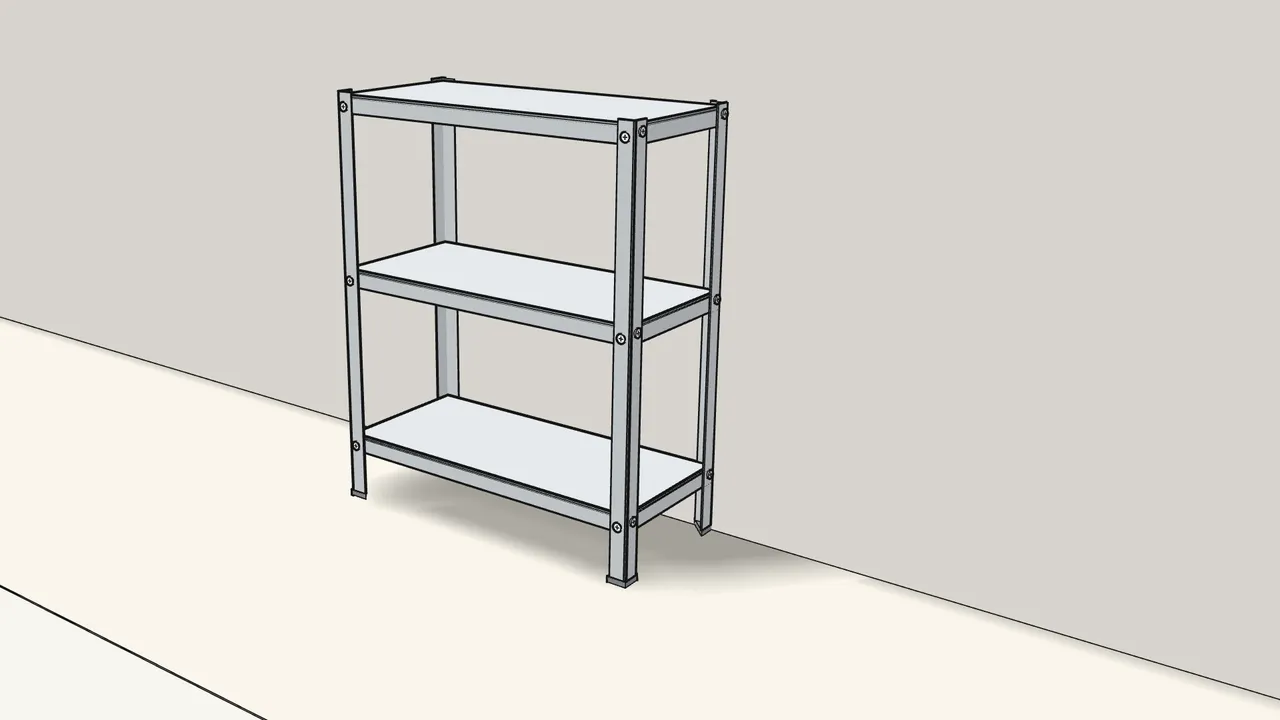

Place the shelf unit against the wall.
To prevent tip-over, it must be fixed to the wall.
Step 13 · manual step 5

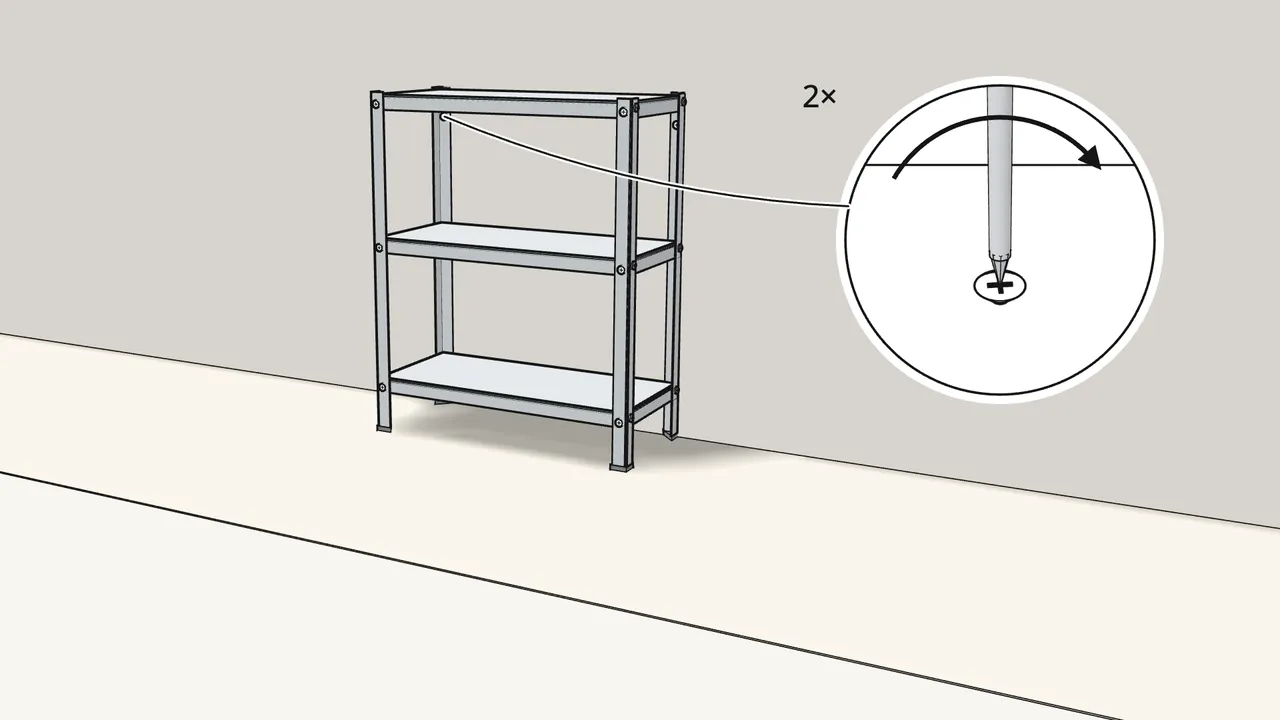

Screw both back posts to the wall near the top — 2 screws.
Wall screws and plugs are not included — use ones suited to your wall.
Tips & safety
- Always fix HYLLIS to the wall. Furniture tip-over can cause serious or fatal crushing injuries. If unsure which screws and plugs suit your wall, ask a specialist.
- Missing a part or unsure about a step? The manual asks you to contact your IKEA store for help.
Official instructions
This guide follows IKEA's official assembly instructions (AA-2092349-7). Keep the printed manual to hand — if anything differs, the manual is right.
