How to Assemble IKEA HEMNES Bookcase

Step-by-step assembly

1.

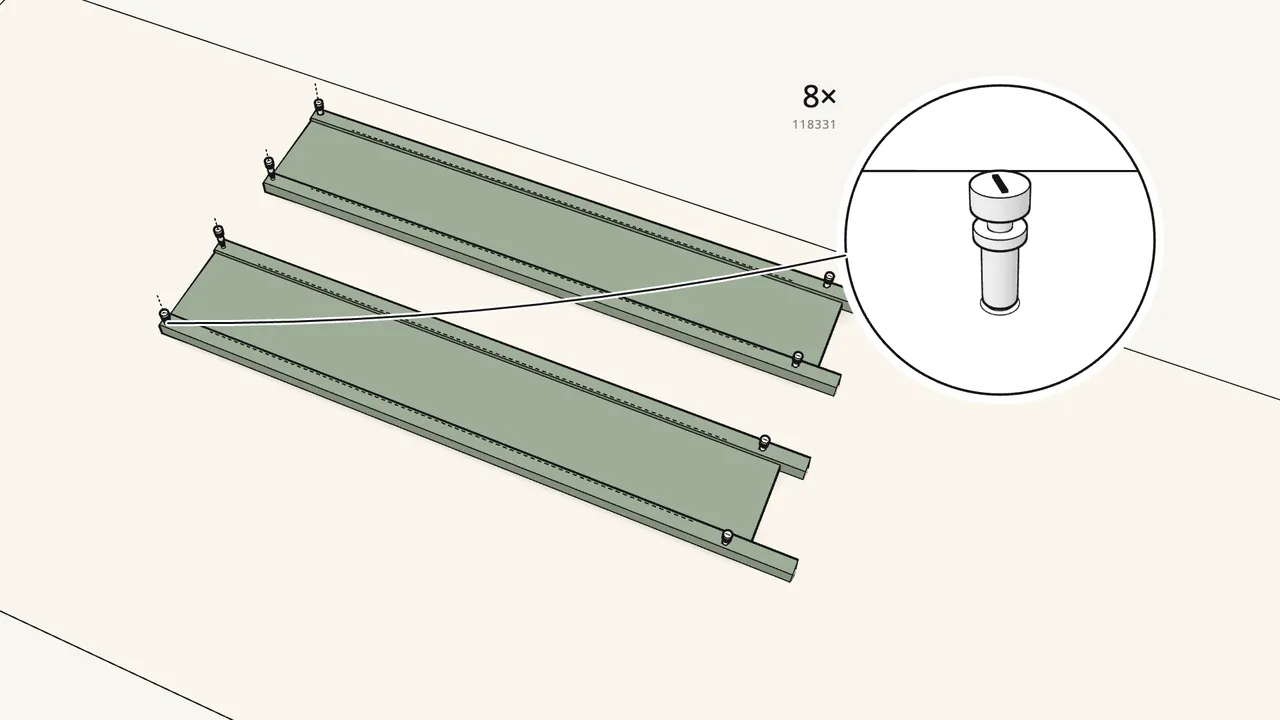

   Step 1

   Lay both side frames flat. Screw in 8 cam bolts (118331).

   Two at each end of each side, turned in with a Phillips screwdriver.

   ▶ Watch this step (0:18)

2.

   Step 2

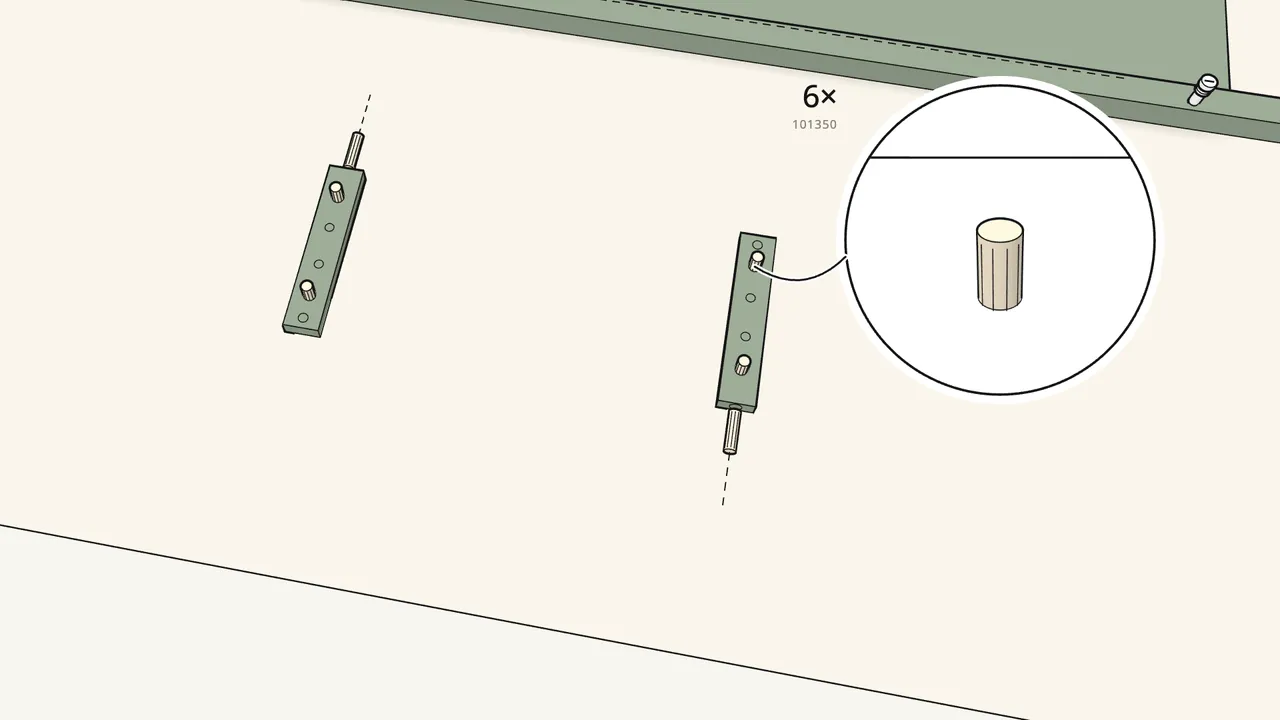

   Push 6 dowels (101350) into the 2 middle rails.

   2 on the face and 1 in the end of each rail.

   ▶ Watch this step (0:25)

3.

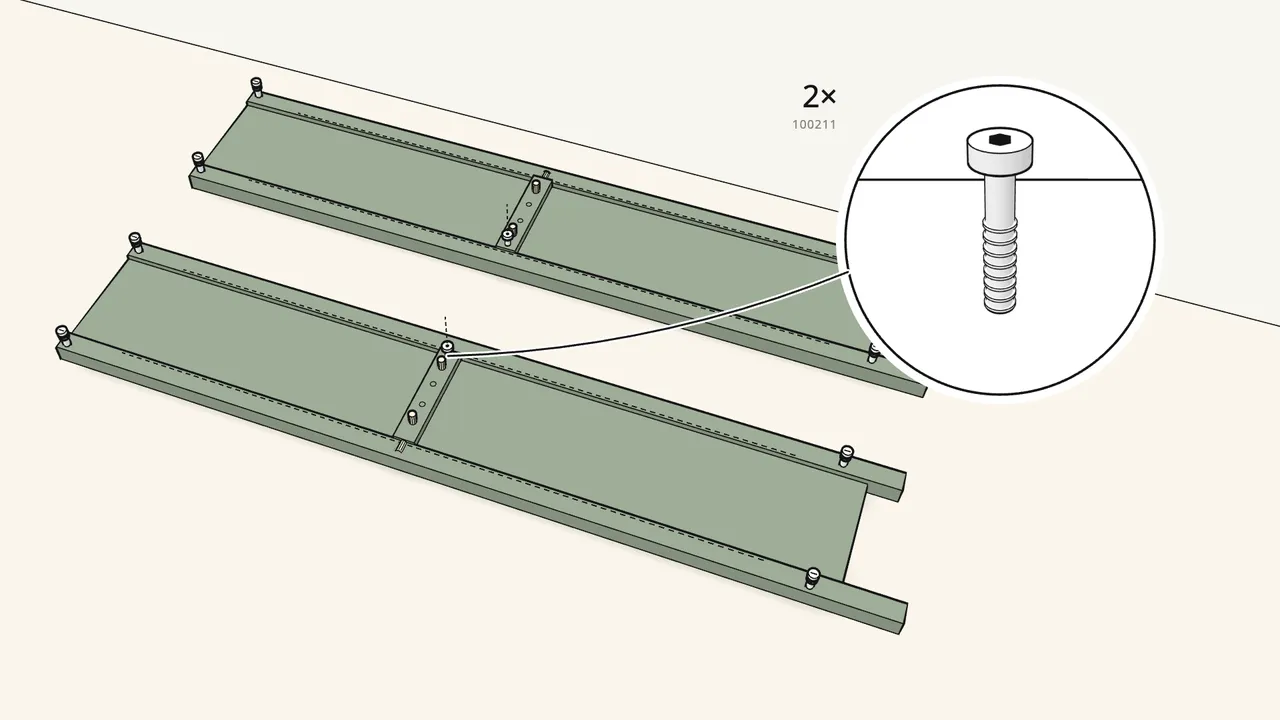

   Step 3

   Fit a middle rail into each side. Fix each with 1 screw (100211).

   Tighten with the Allen key (100001).

   ▶ Watch this step (0:31)

4.

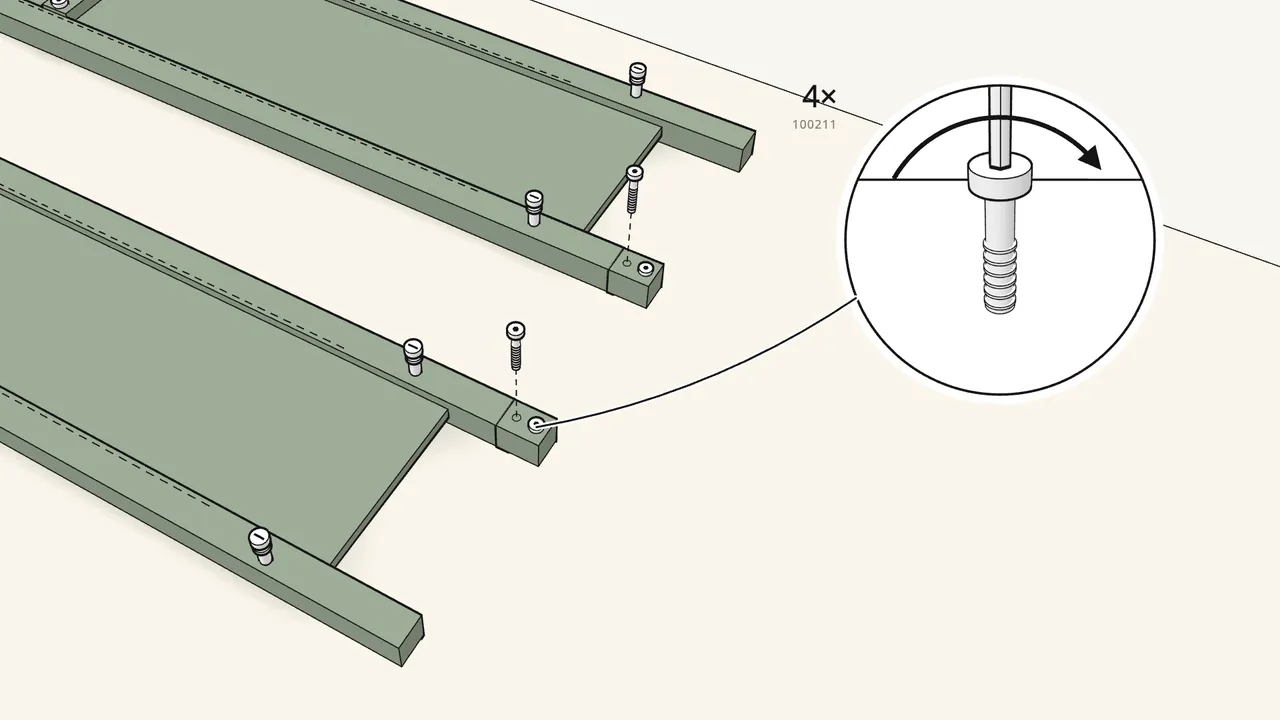

   Step 4

   Screw a foot block onto the bottom end of each side.

   2 screws (100211) per block, with the Allen key.

   ▶ Watch this step (0:39)

5.

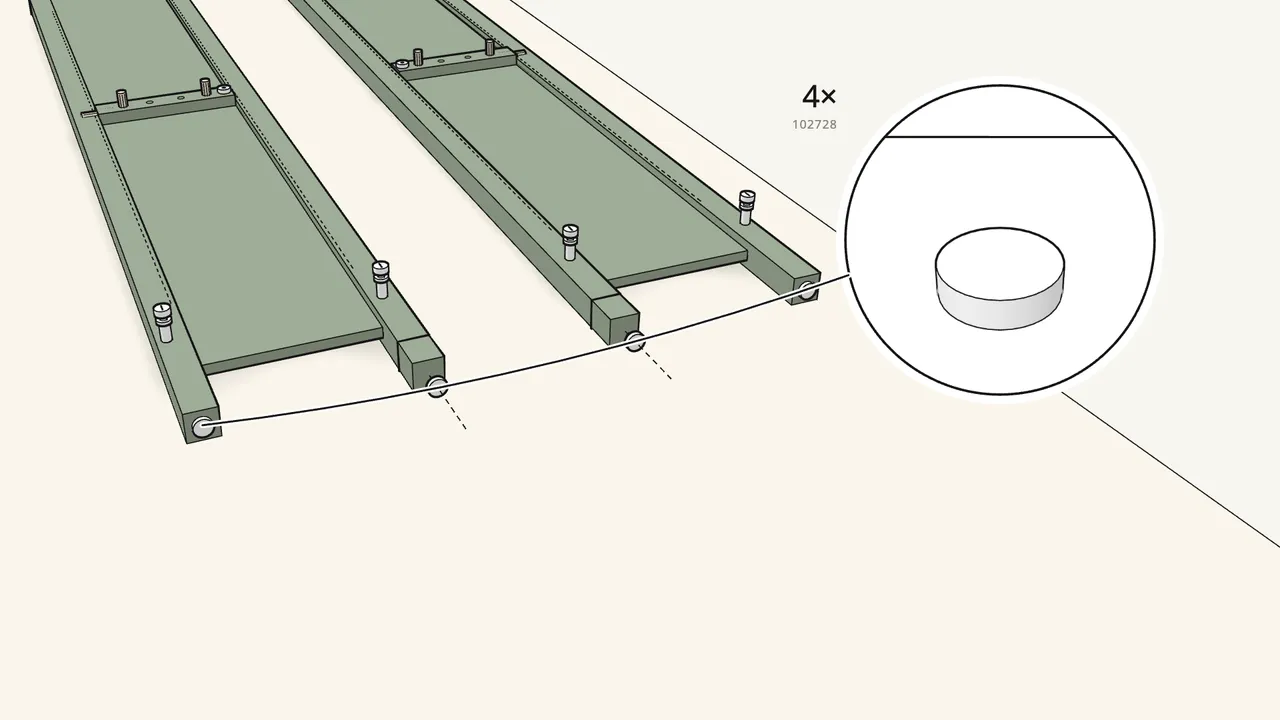

   Step 5

   Screw the 4 adjustable feet (102728) into the leg ends.

   ▶ Watch this step (0:46)

6.

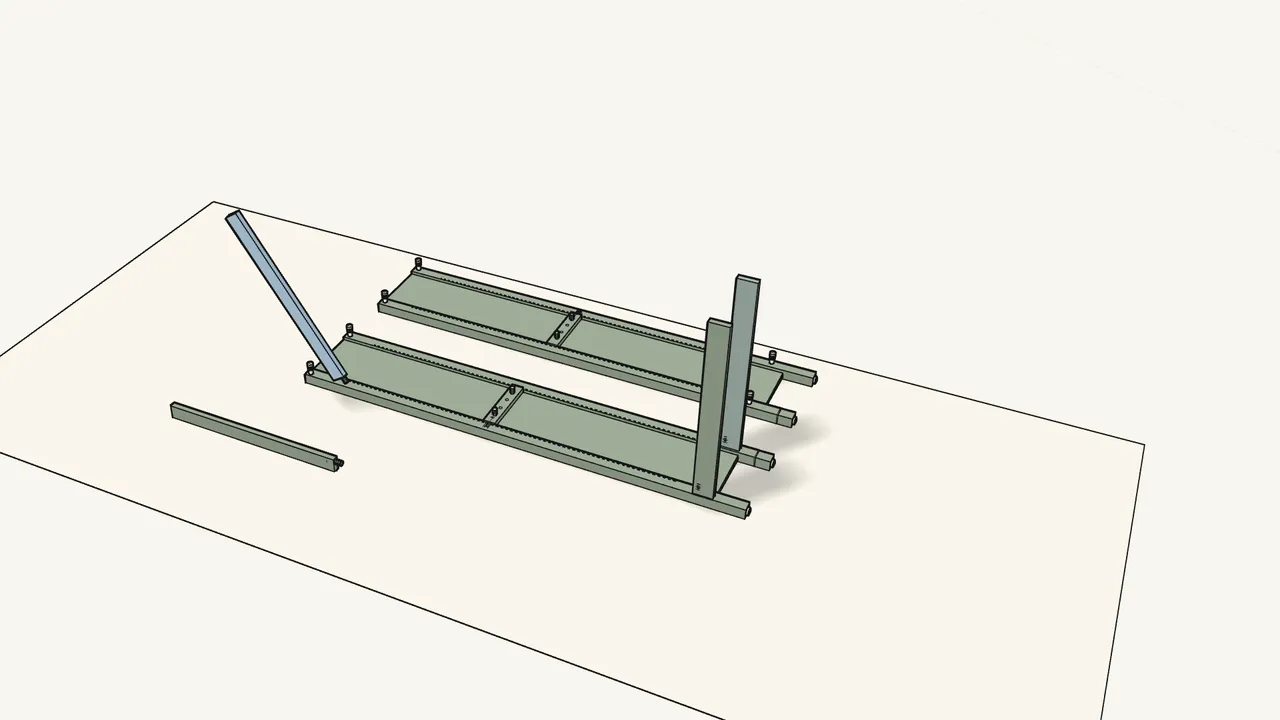

   Step 6 · manual step 6–8

   Push a dowel (101350) into each rail and stand the 4 rails on the side.

   Check which rail goes where — see the manual, steps 6–8.

   ▶ Watch this step (0:51)

7.

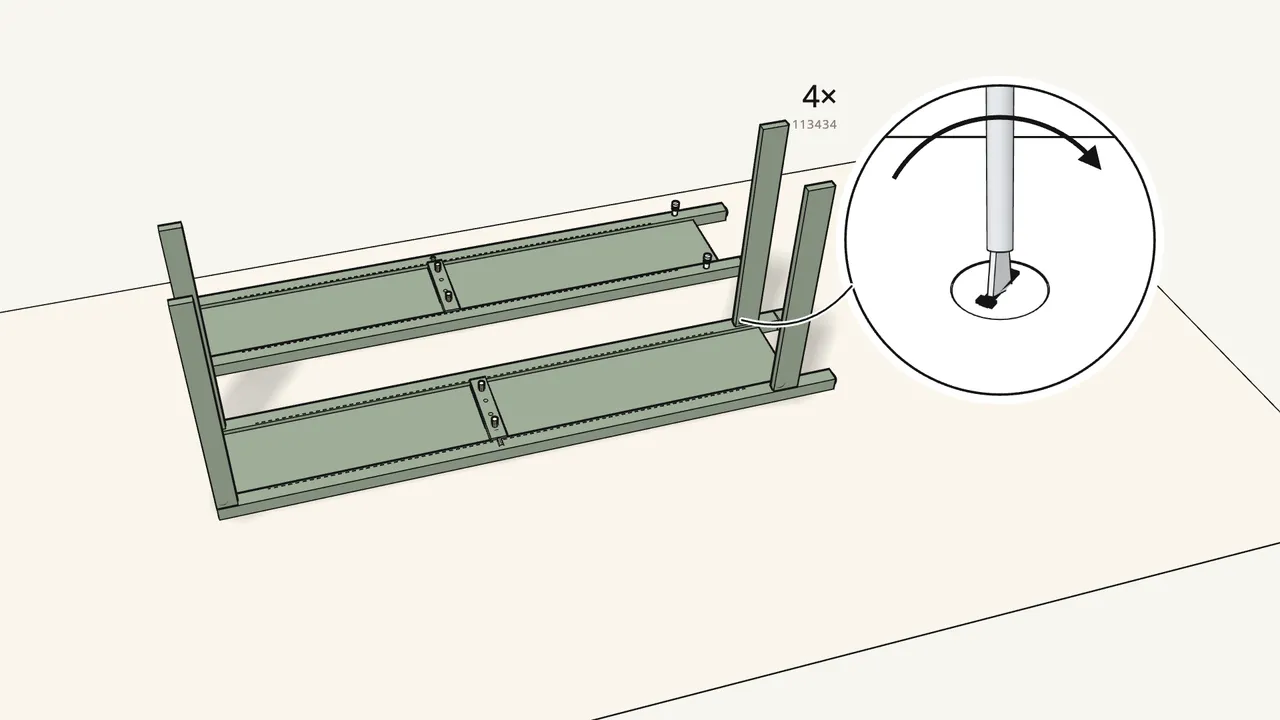

   Step 7 · manual step 9

   Insert 4 cam locks (113434) and turn them clockwise.

   Use the flat-head screwdriver.

   ▶ Watch this step (1:00)

8.

   Step 8 · manual step 10

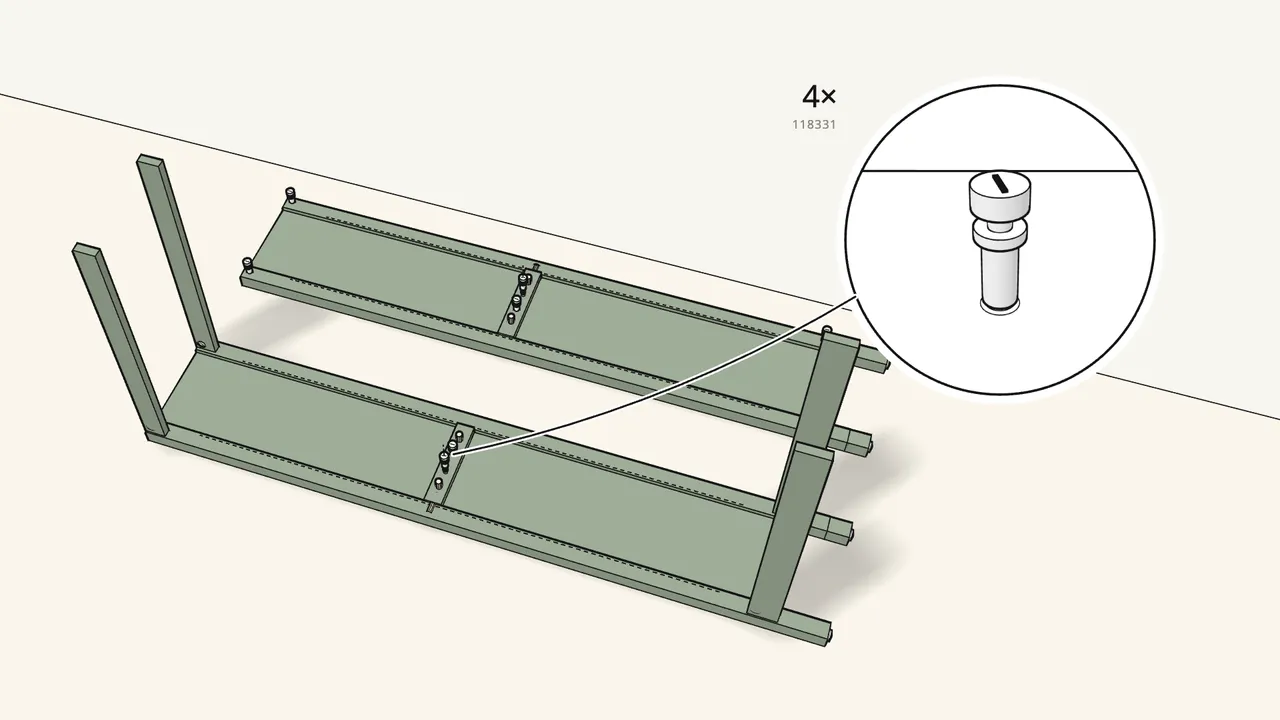

   Screw 4 cam bolts (118331) into the middle rails.

   2 in each rail.

   ▶ Watch this step (1:07)

9.

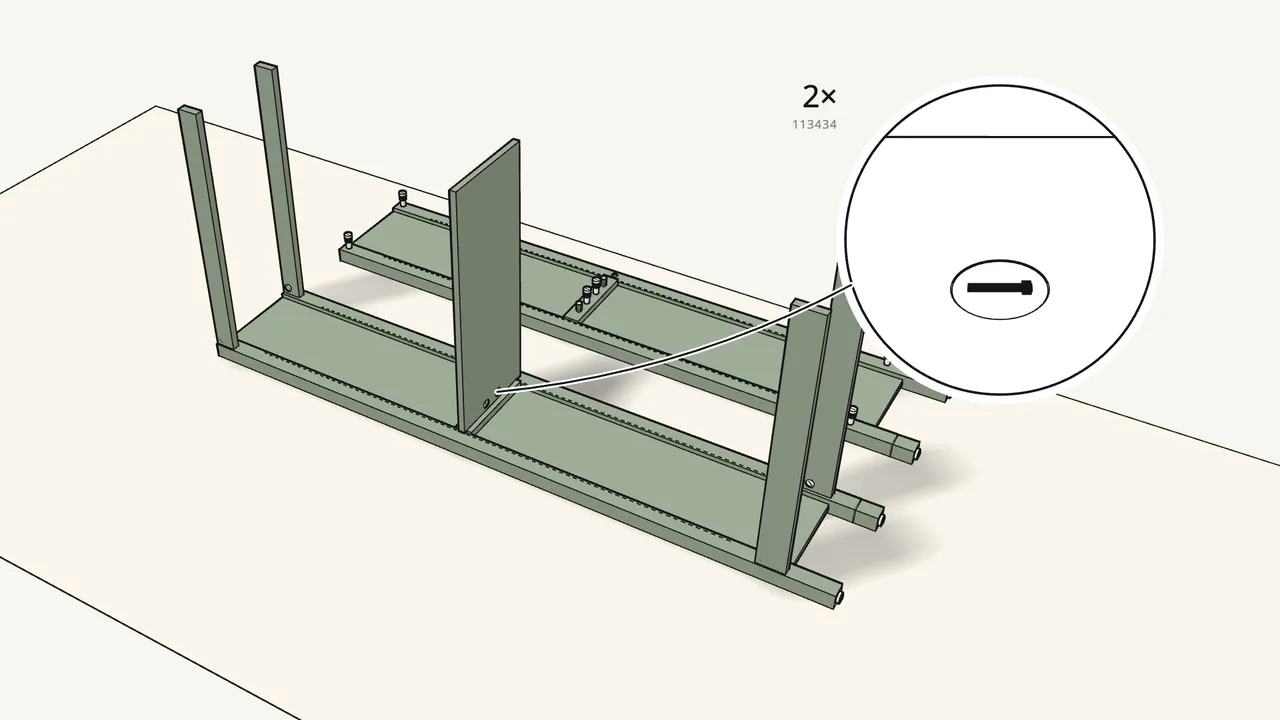

   Step 9 · manual step 11

   Stand the fixed shelf on the middle rail. Lock it with 2 cam locks.

   Cam locks 113434, turned clockwise.

   ▶ Watch this step (1:13)

10.

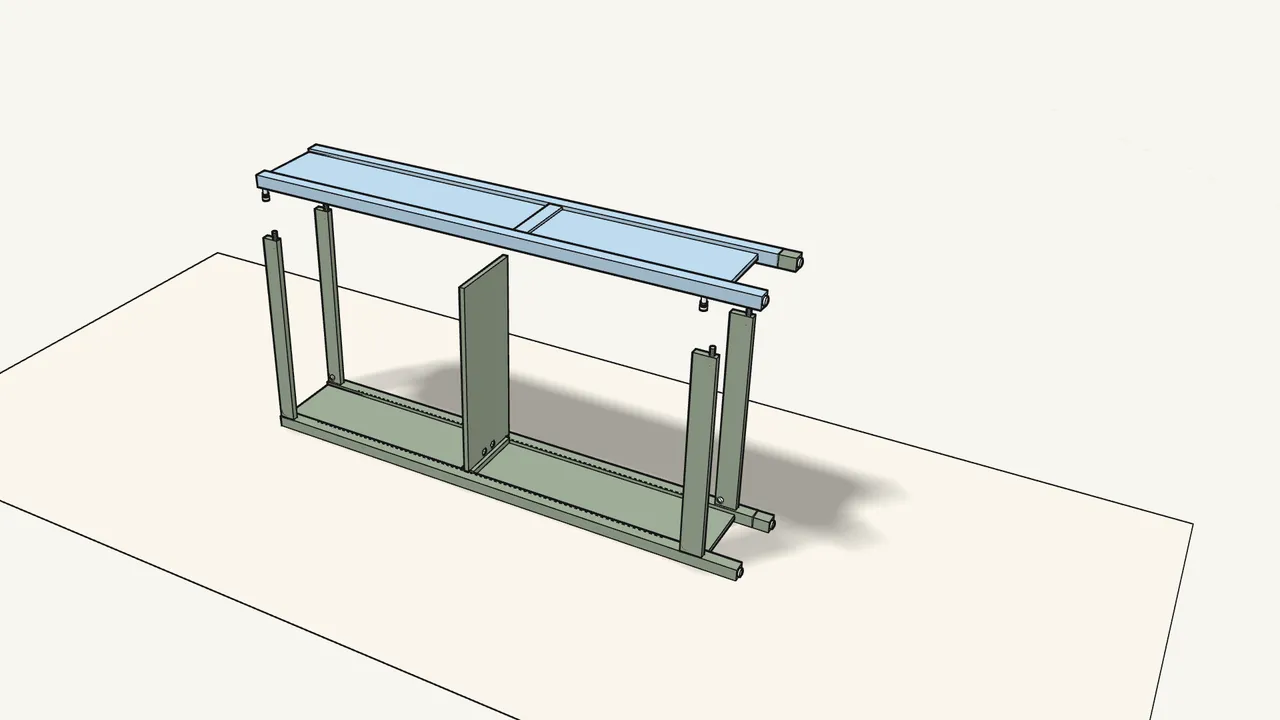

    Step 10 · manual step 12

    Push 4 dowels (101350) into the rail ends. Lay the other side on top.

    The bolts and dowels go into the holes of the rails and the fixed shelf.

    ▶ Watch this step (1:21)

11.

    Step 11 · manual step 13

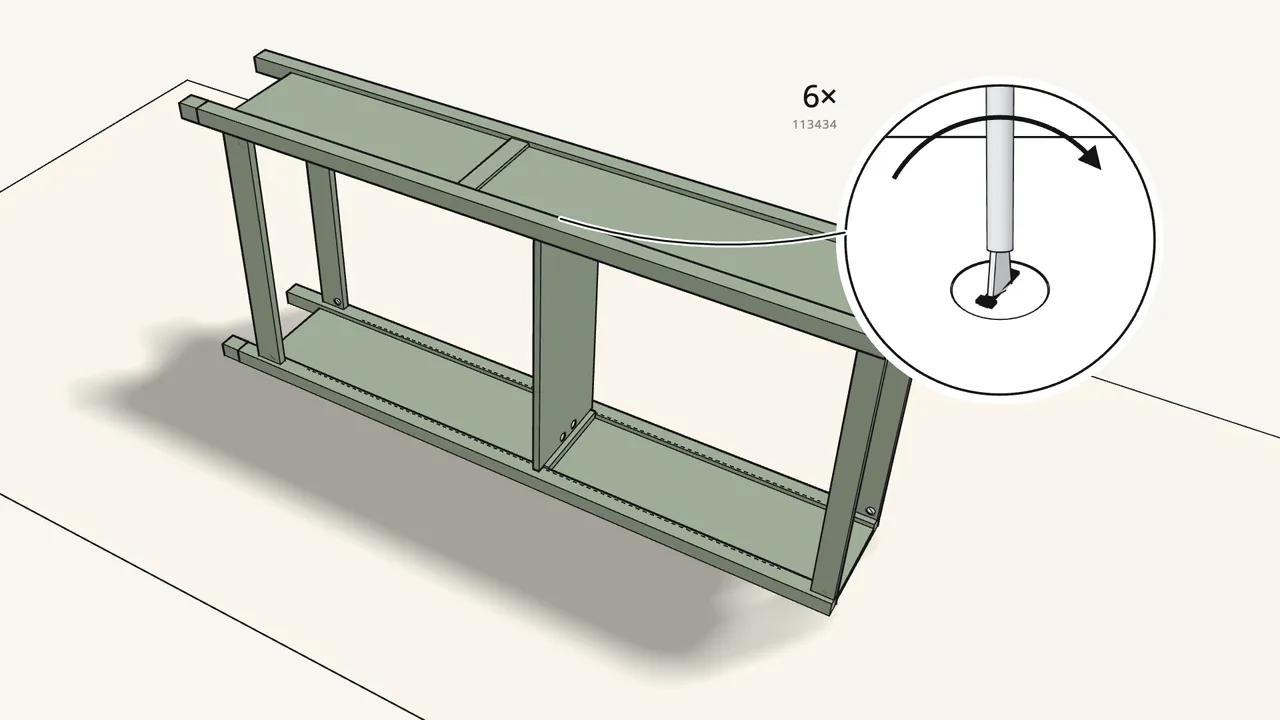

    Insert 6 cam locks (113434) and turn them clockwise.

    Four in the rails and two in the fixed shelf.

    ▶ Watch this step (1:30)

12.

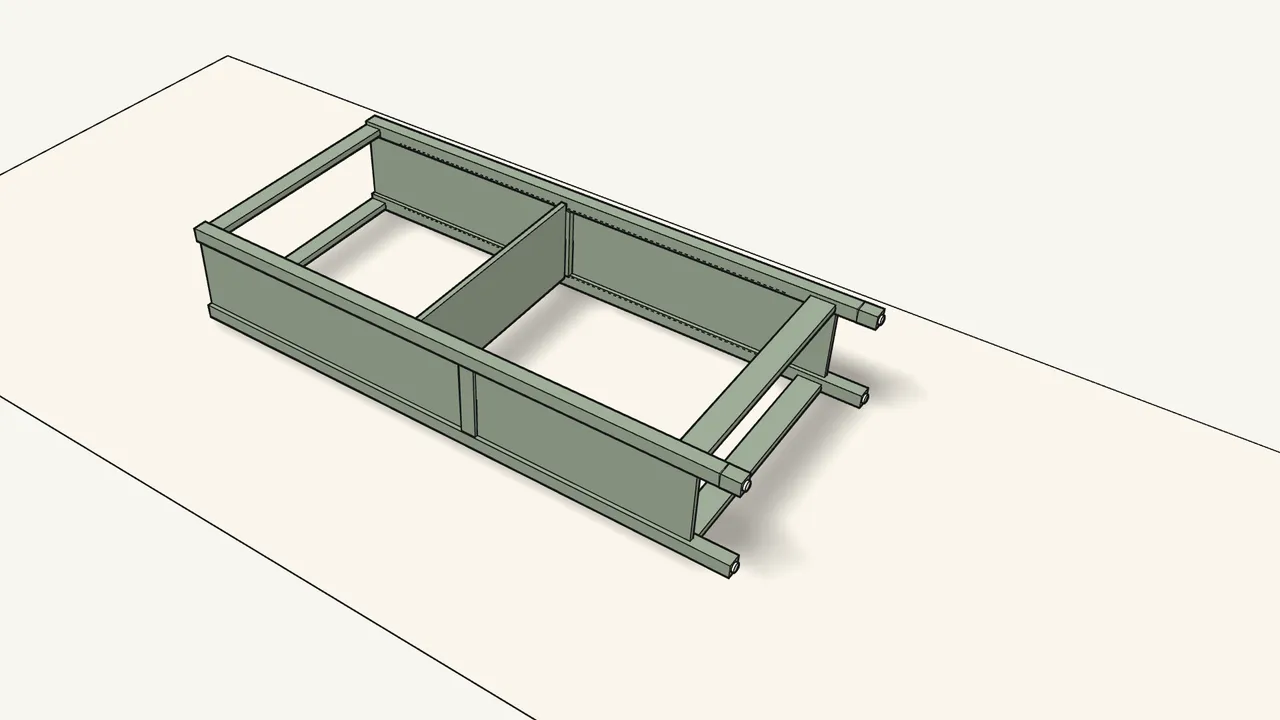

    Step 12 · manual step 13

    Turn the frame over so it lies flat.

    Get help — it is long.

    ▶ Watch this step (1:37)

13.

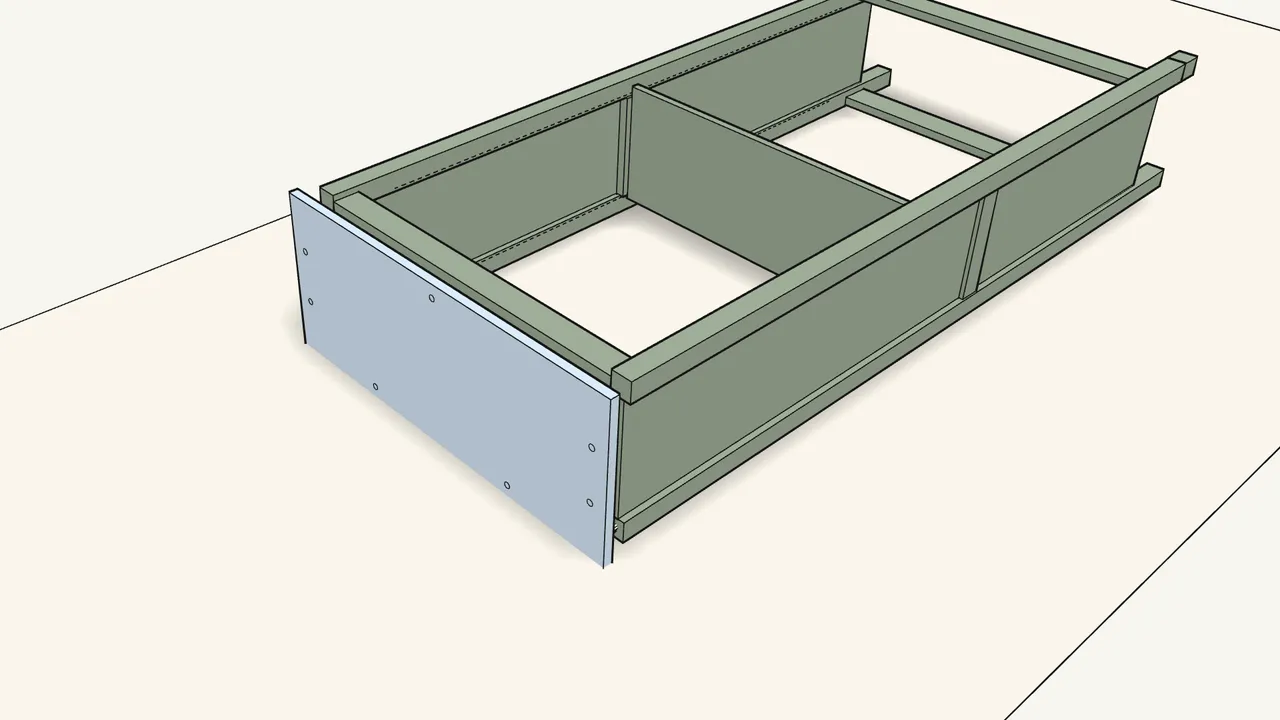

    Step 13 · manual step 14

    Push 2 dowels (101350) into the top end. Fit the top.

    ▶ Watch this step (1:42)

14.

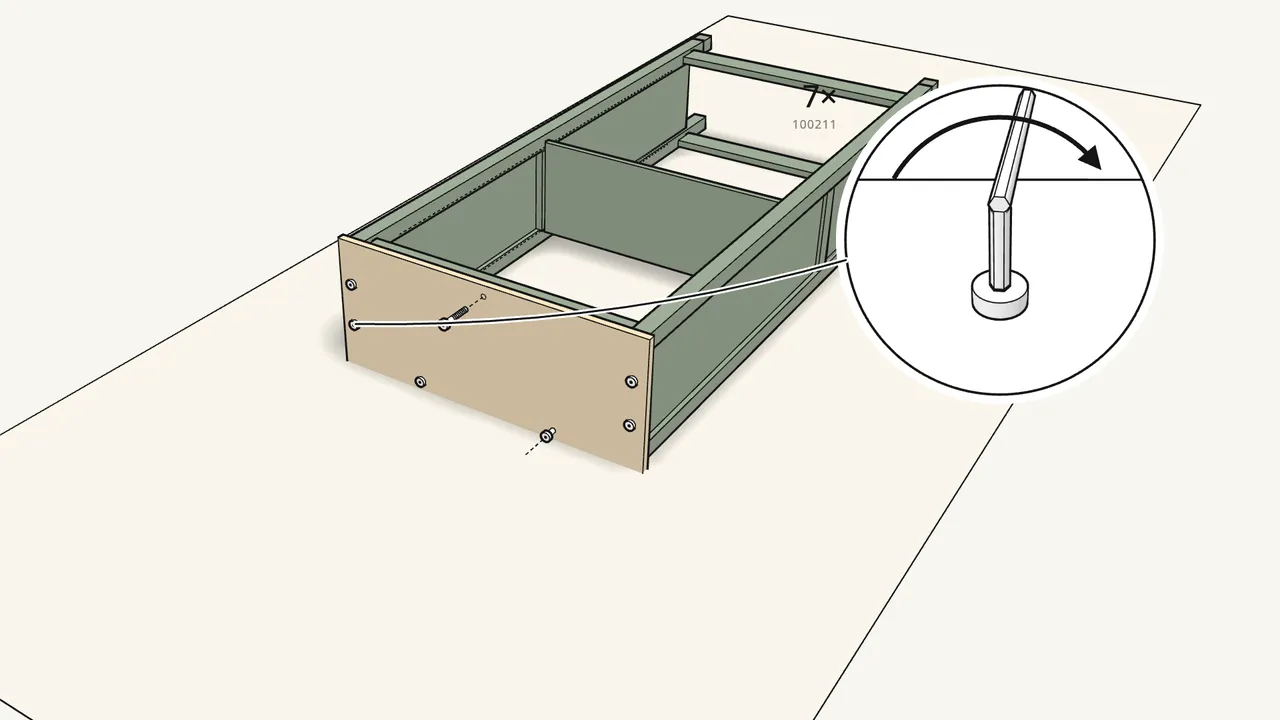

    Step 14 · manual step 15

    Fix the top with 7 screws (100211) and the Allen key.

    ▶ Watch this step (1:49)

15.

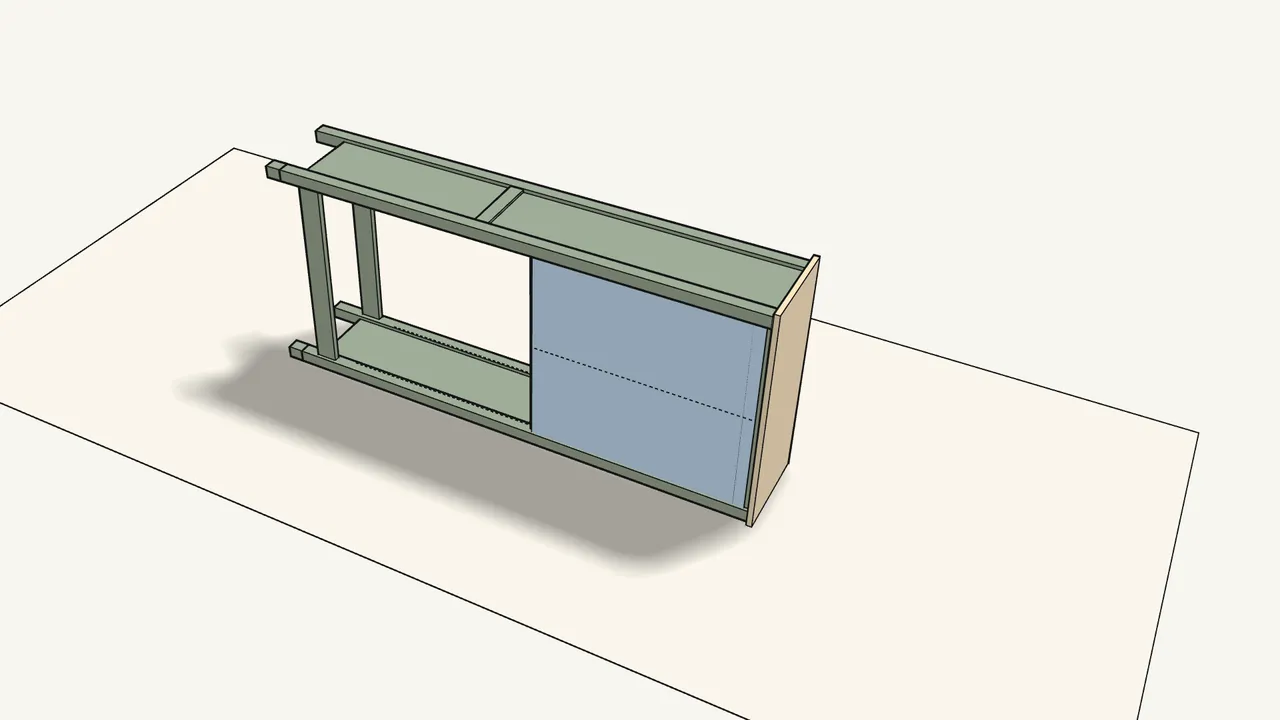

    Step 15 · manual step 16–17

    Turn the frame onto its side. Slide in the upper back panel.

    Push it into the grooves, then up into the groove under the top.

    ▶ Watch this step (1:55)

16.

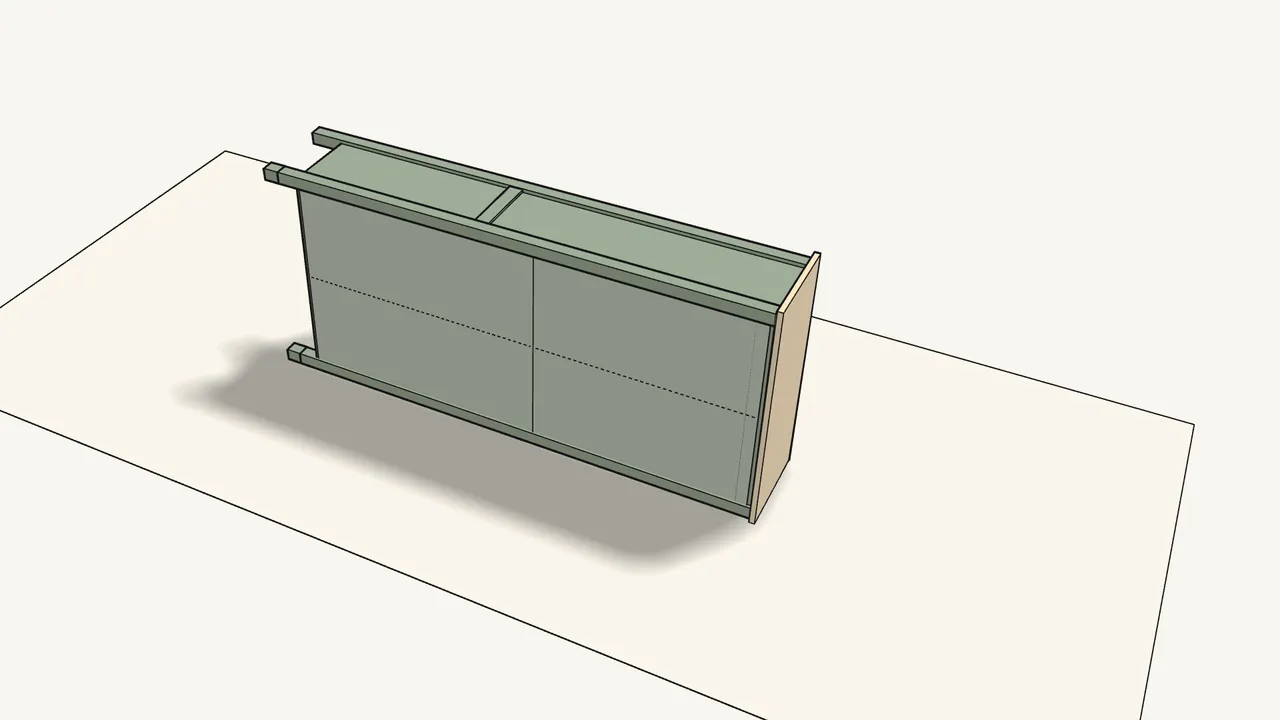

    Step 16 · manual step 18–19

    Slide in the lower back panel the same way.

    It meets the upper panel at the fixed shelf.

    ▶ Watch this step (2:03)

17.

    Step 17 · manual step 20–21

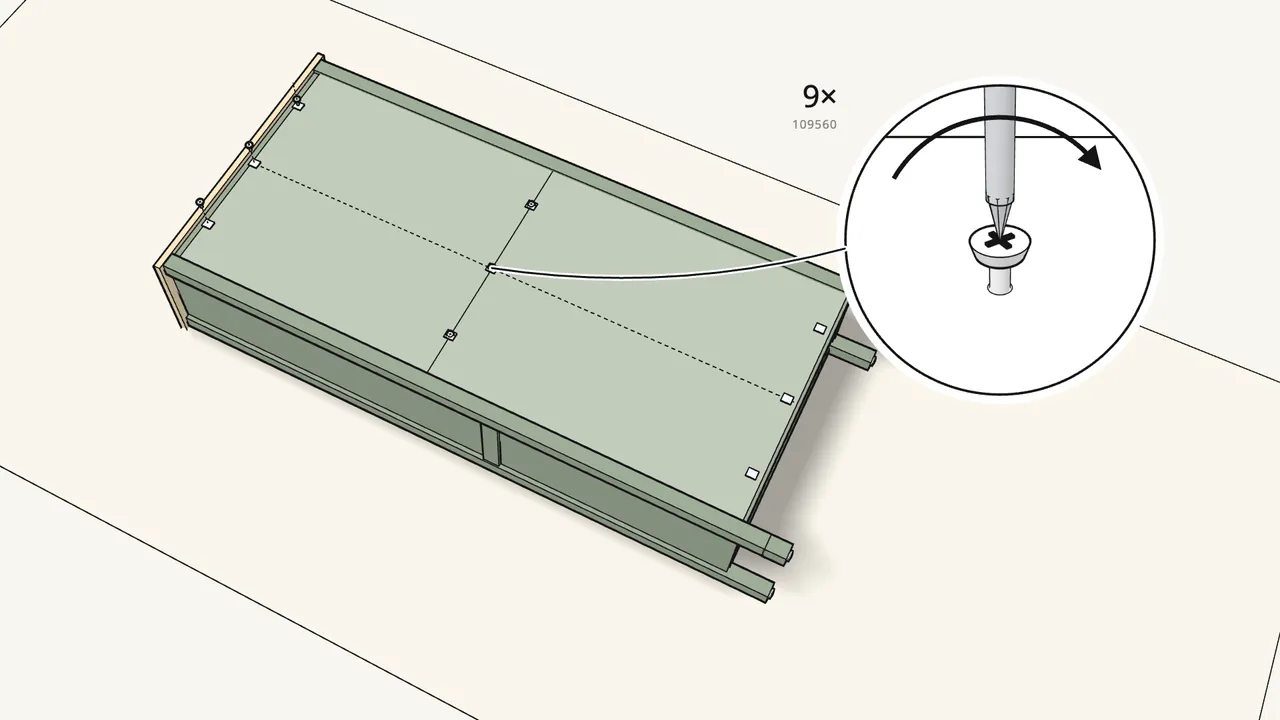

    Lay it on its front. Fix the back with 9 clips (122723) and screws (109560).

    3 along the fixed shelf, 3 at the top and 3 at the bottom.

    ▶ Watch this step (2:10)

18.

    Step 18 · manual step 22

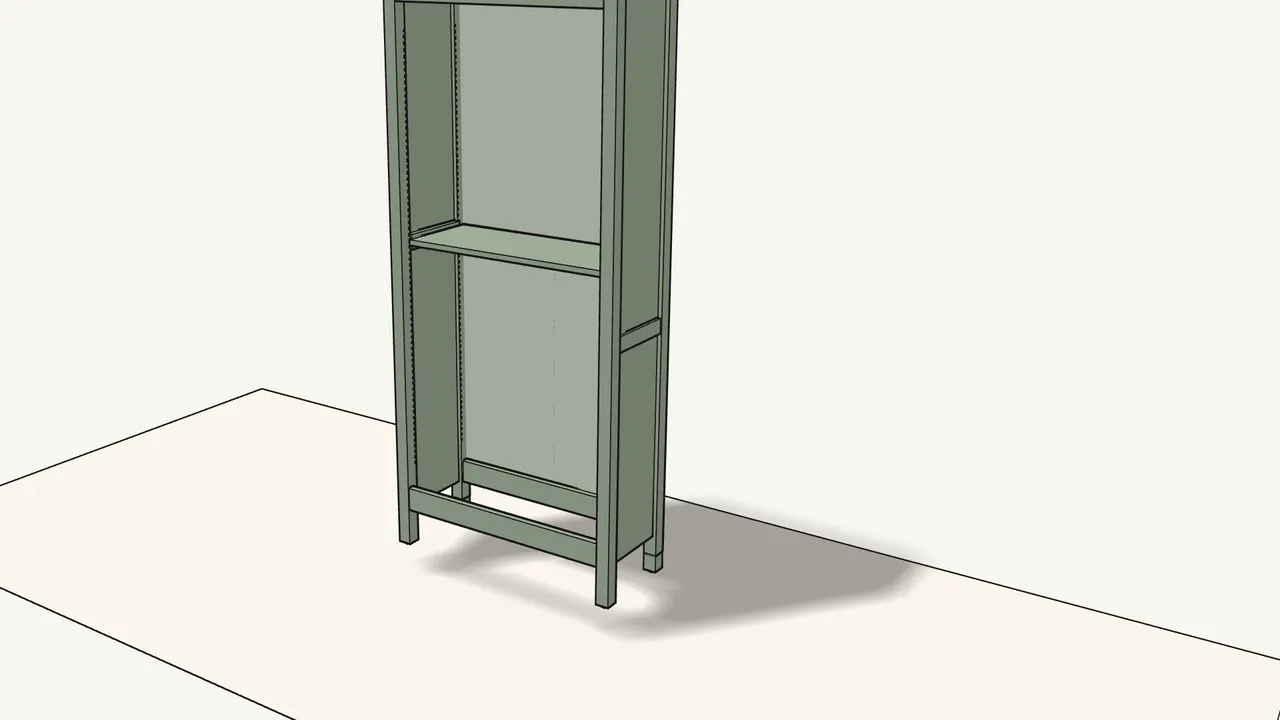

    Stand the bookcase upright.

    It takes two people.

    ▶ Watch this step (2:19)

19.

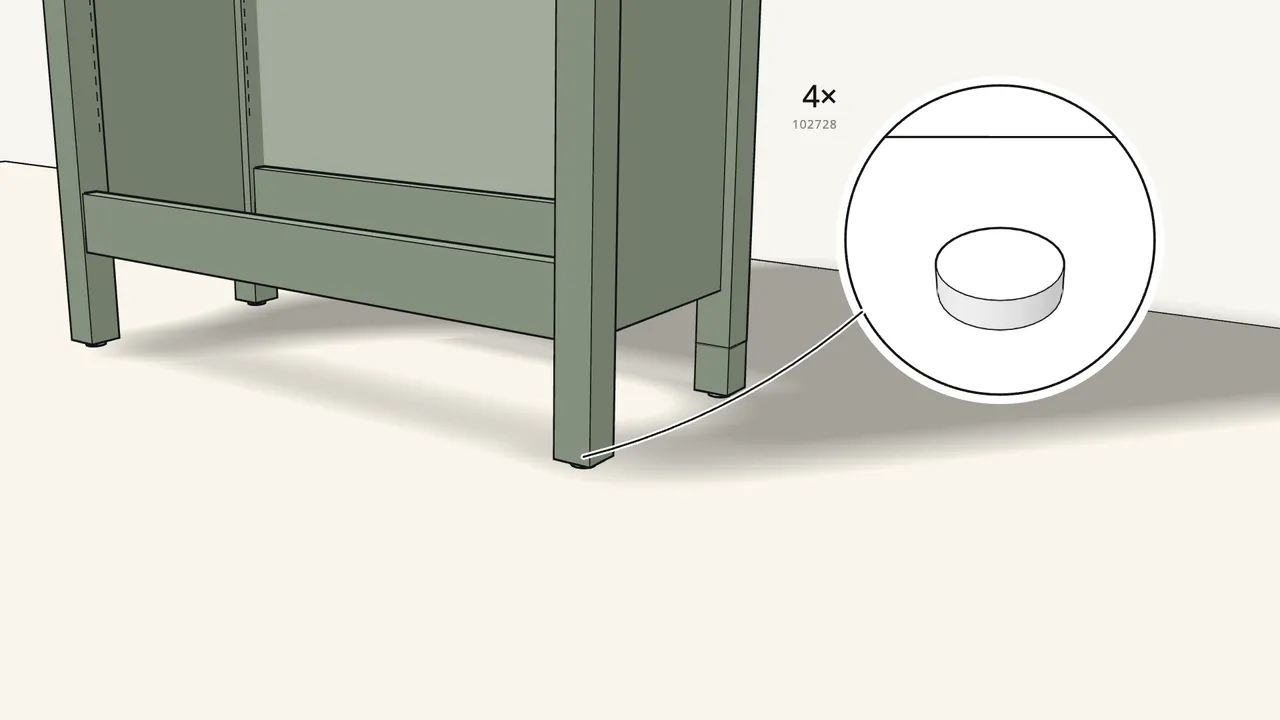

    Step 19 · manual step 22

    Turn the feet to make the bookcase stand level.

    ▶ Watch this step (2:25)

20.

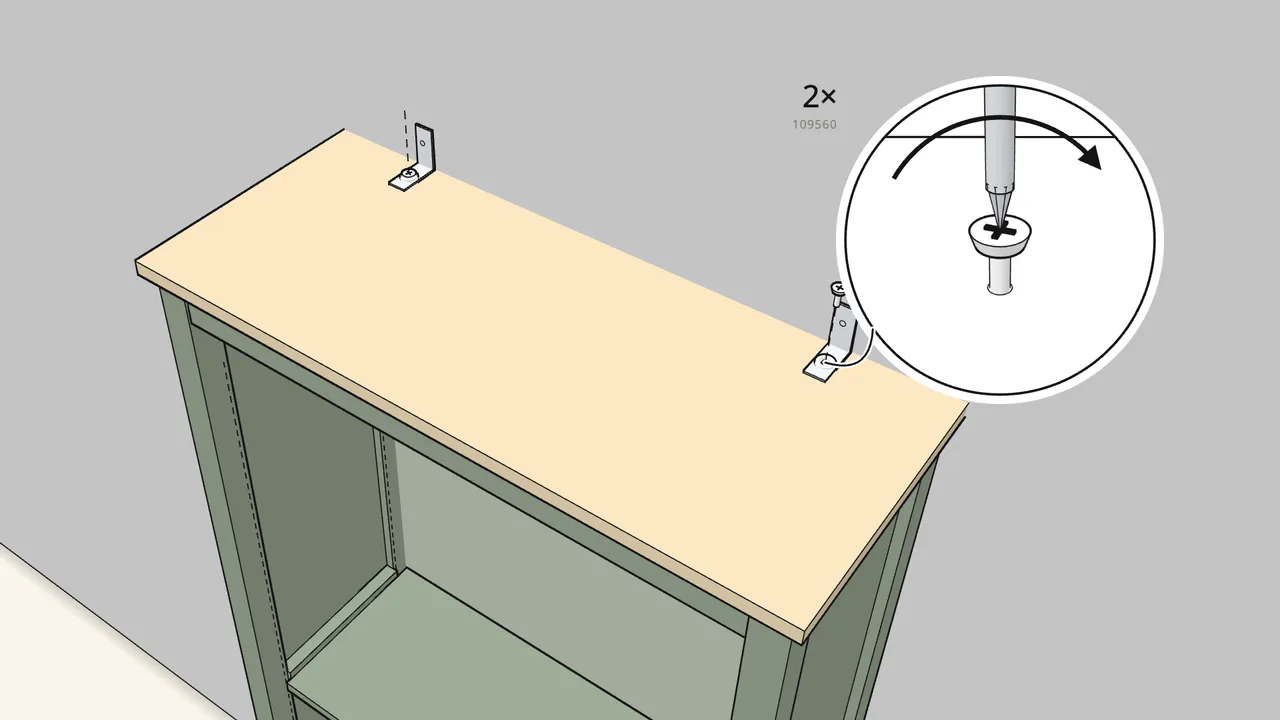

    Step 20 · manual step 23

    Screw 2 wall brackets (119256) onto the top.

    Each with a screw (109560) and a washer (100823).

    ▶ Watch this step (2:30)

21.

    Step 21 · manual step 23

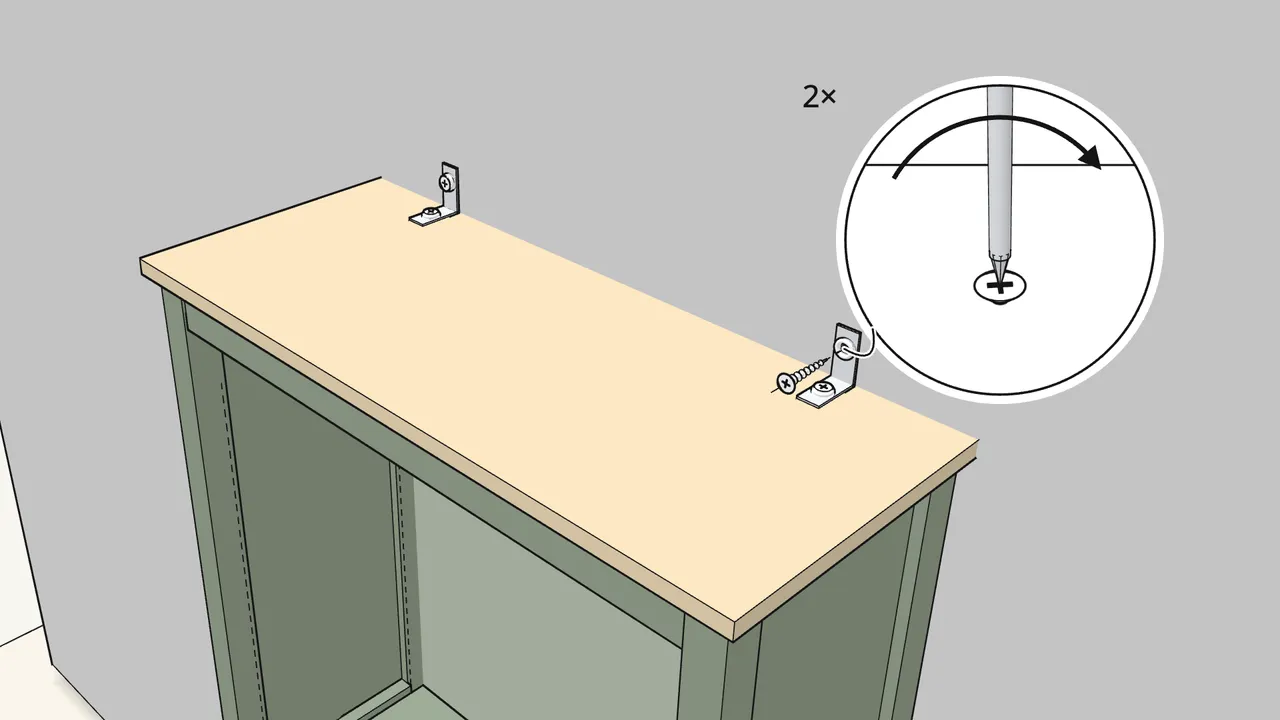

    Fix the brackets to the wall.

    Use a washer (100823) and a wall screw — screws and plugs for the wall are not included.

    ▶ Watch this step (2:38)

22.

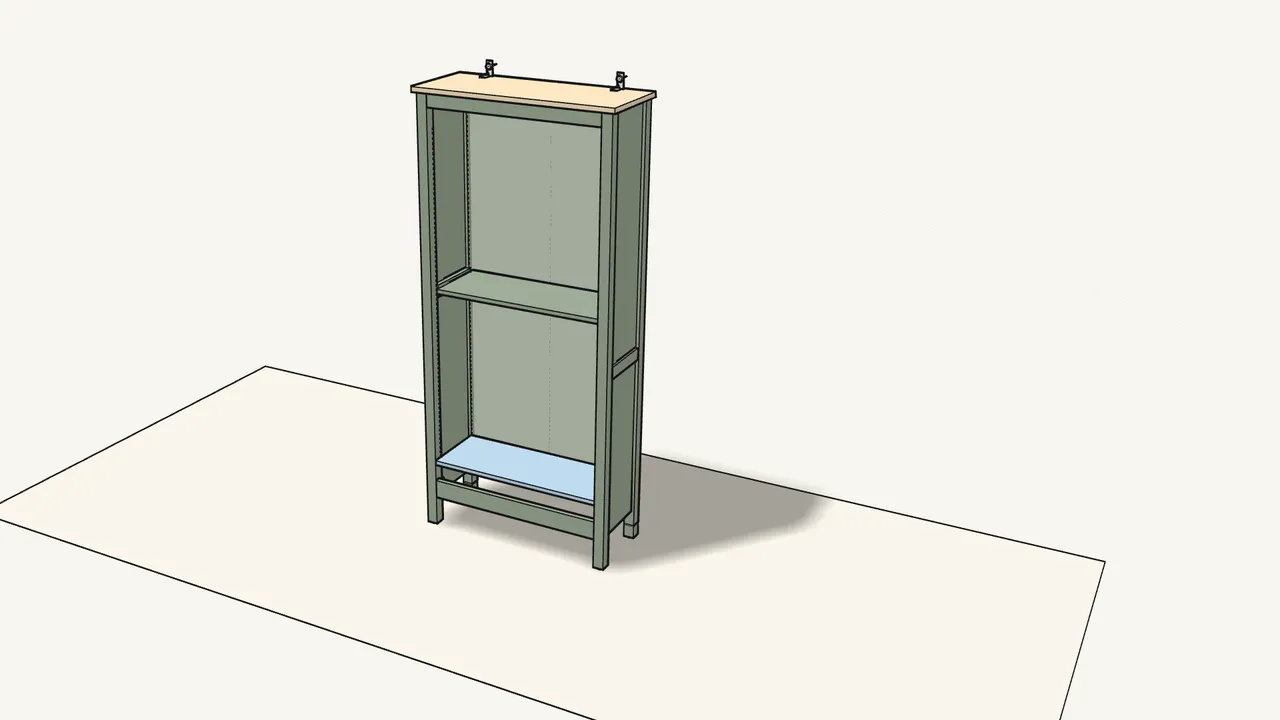

    Step 22 · manual step 24–25

    Press in 4 shelf pins (104171). Lay the bottom shelf on them.

    Check which way the bottom shelf goes — see the manual, step 25.

    ▶ Watch this step (2:45)

23.

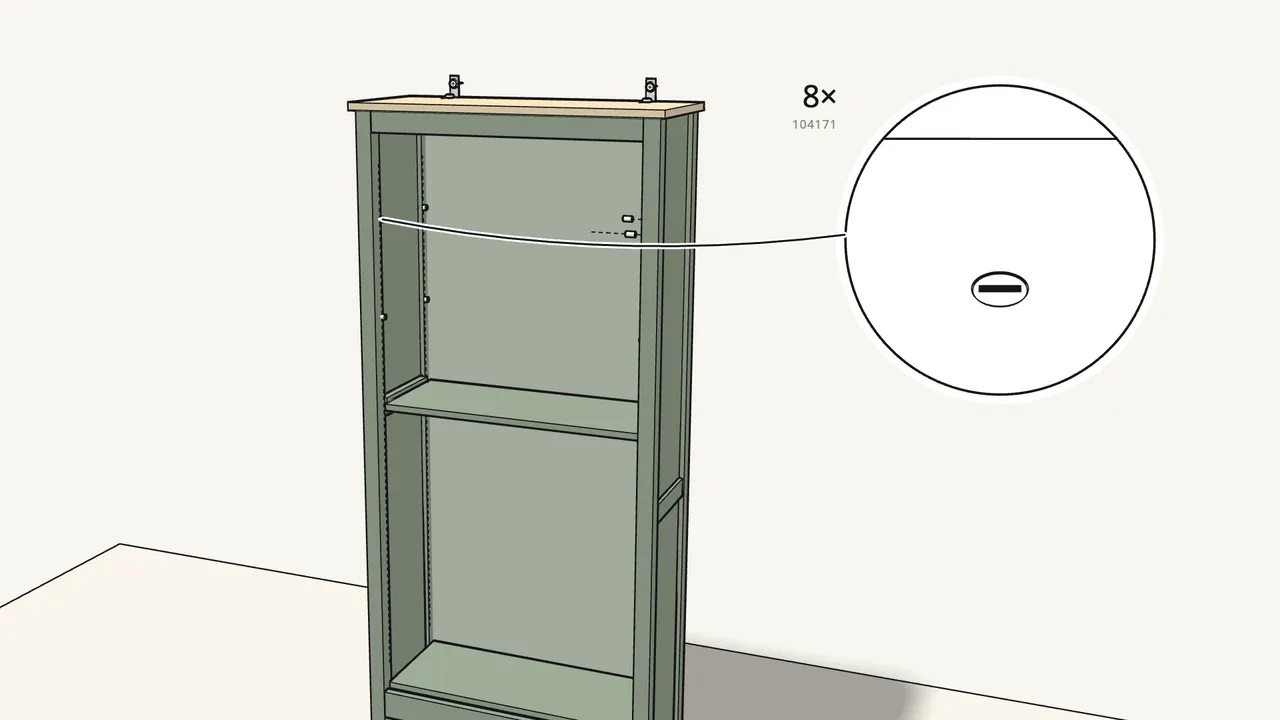

    Step 23 · manual step 26

    Press 8 shelf pins (104171) into the upper section.

    Two shelves above the fixed shelf — see the manual, step 26, for the holes.

    ▶ Watch this step (2:53)

24.

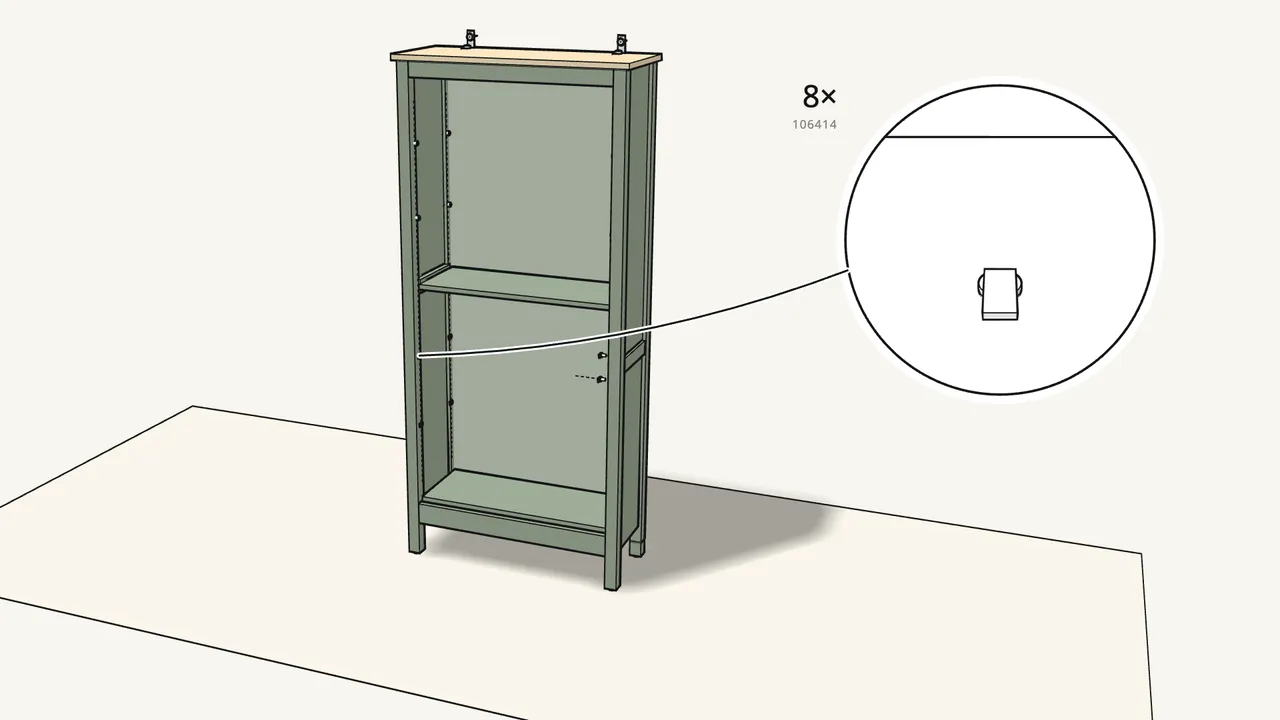

    Step 24 · manual step 26

    Press 8 shelf supports (106414) into the lower section.

    Two shelves below the fixed shelf — see the manual, step 26, for the holes.

    ▶ Watch this step (2:58)

25.

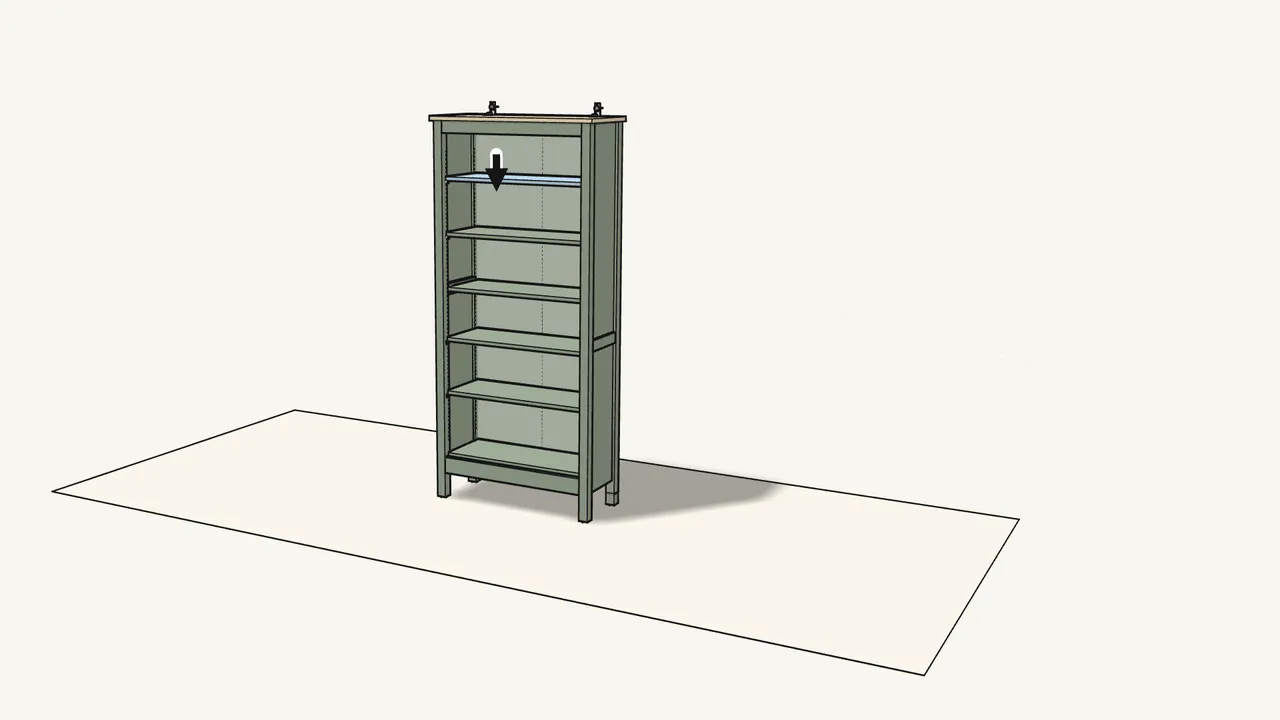

    Step 25 · manual step 27

    Lay the 4 shelves on the pins and supports and press them down.

    Slide each shelf in, lower it, then press down until it locks.

    ▶ Watch this step (3:03)
