How to Assemble IKEA BAGGEBO Shelf Unit
Step-by-step IKEA BAGGEBO shelf unit assembly: 13 illustrated steps, an animated video, the hardware list and the tools you need — following the official instructions (AA-2235400-4).
- 13 illustrated steps
- 7 steps in the manual
- 1:59 video
- 60×25×116 cm
What you need
Tools
- Phillips screwdriver
You’ll need: a screwdriver.
Hardware in the box
| Part no. (as printed in the manual) | Qty |
|---|---|
| 10003068 | 4× |
| 10119123 | 38× |
| 100827 | 2× |
| 10062215 | 2× |
Step-by-step assembly

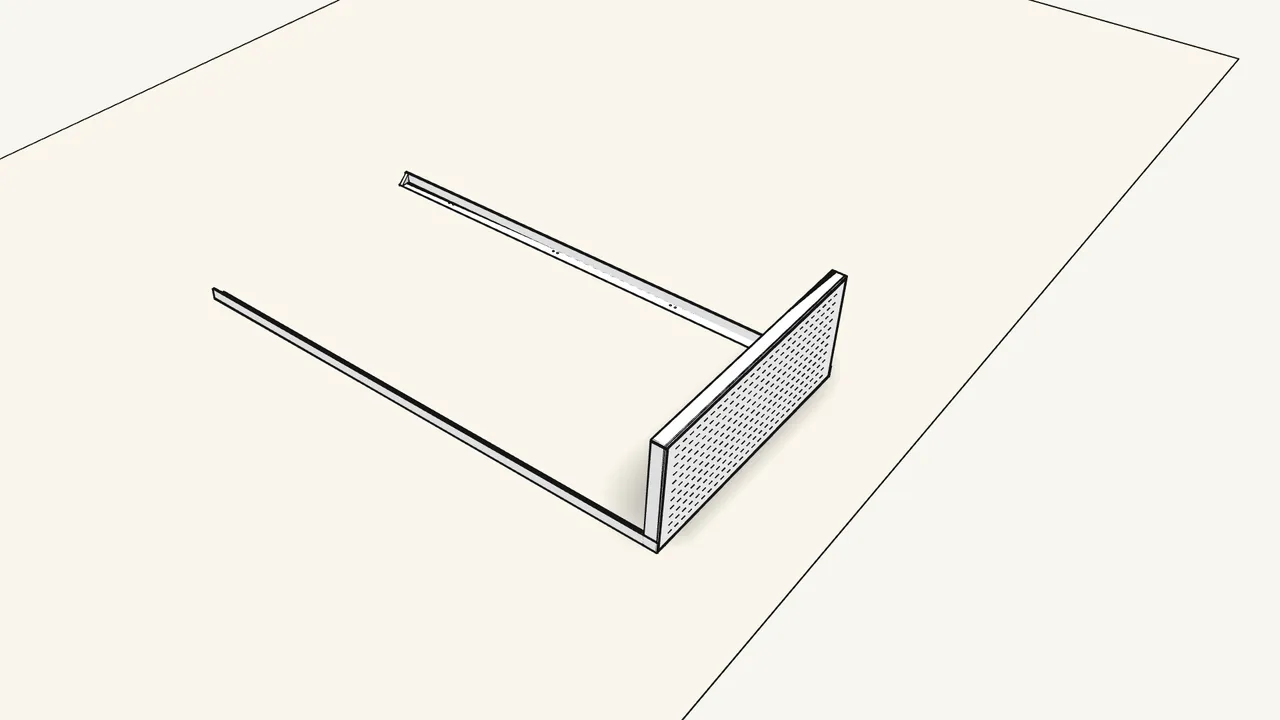

Step 1
Lay 2 legs on the floor and stand a shelf between their ends.
Use the leg ends without the threaded foot holes — the feet go there in step 5.

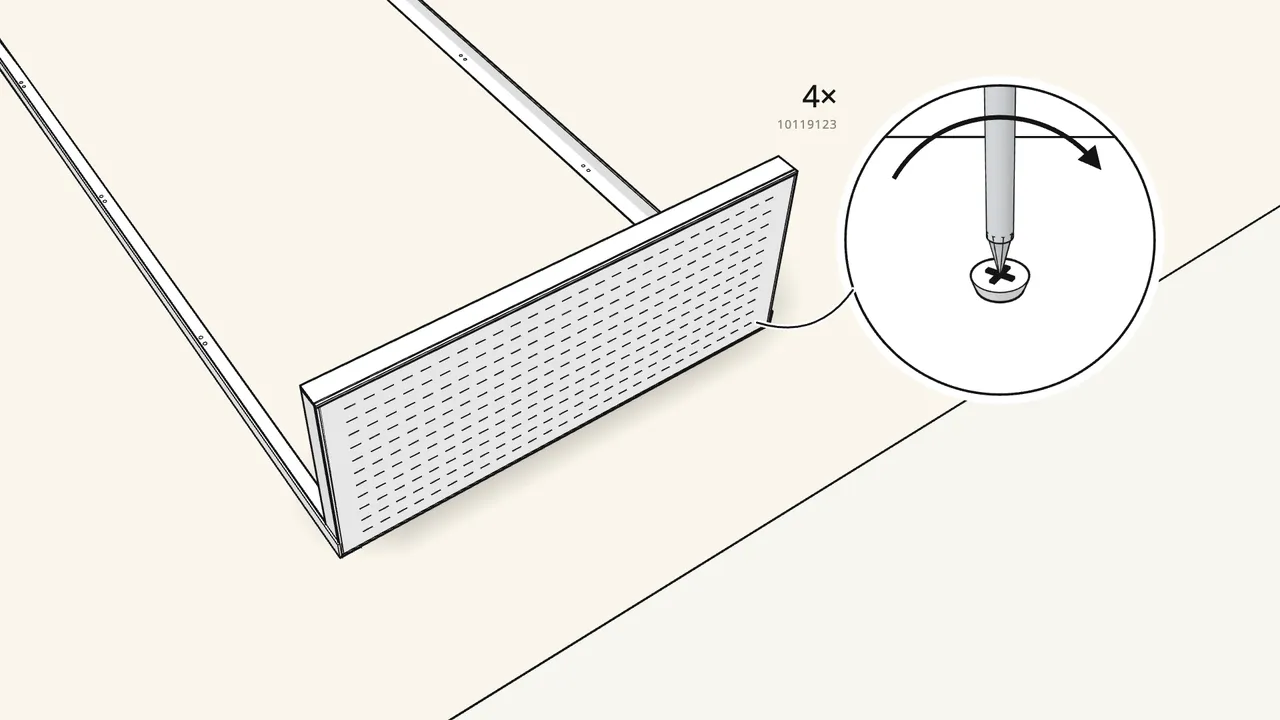

Step 2 · manual step 1
Screw the shelf to both legs — 4 screws (10119123).
2 screws at each end.

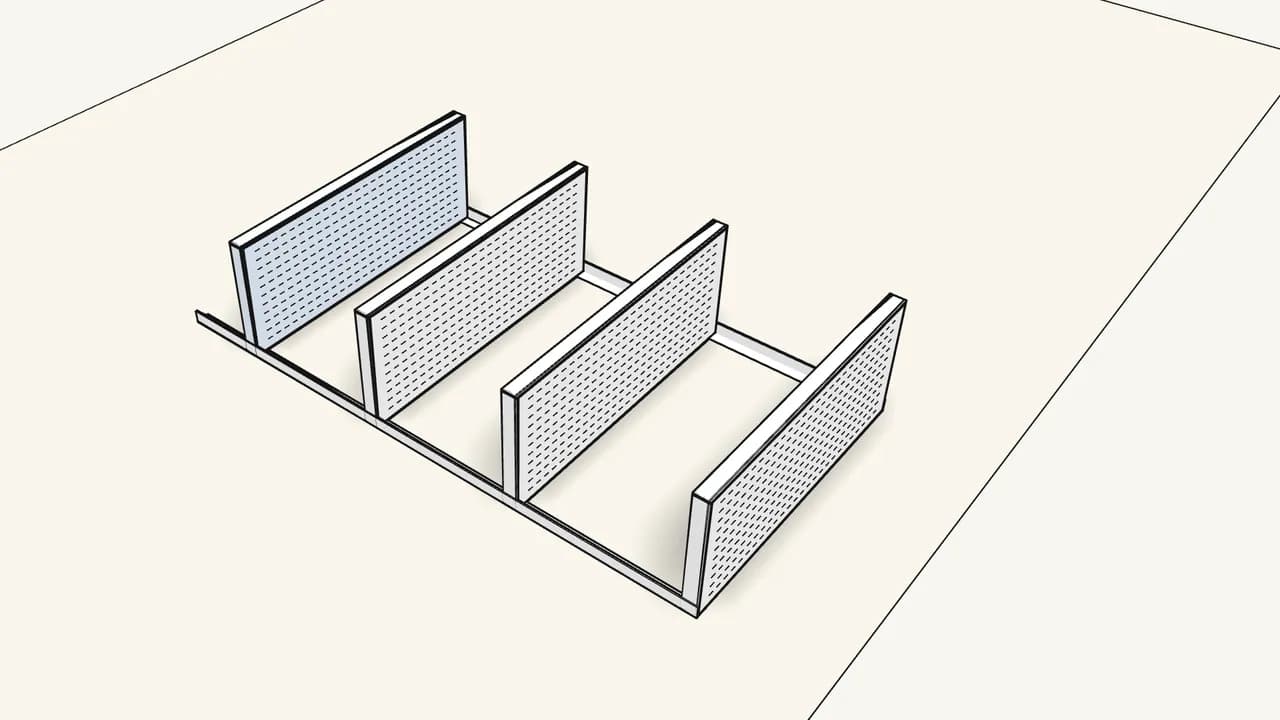

Step 3 · manual step 2
Stand the other 3 shelves up at the pairs of holes in the legs.

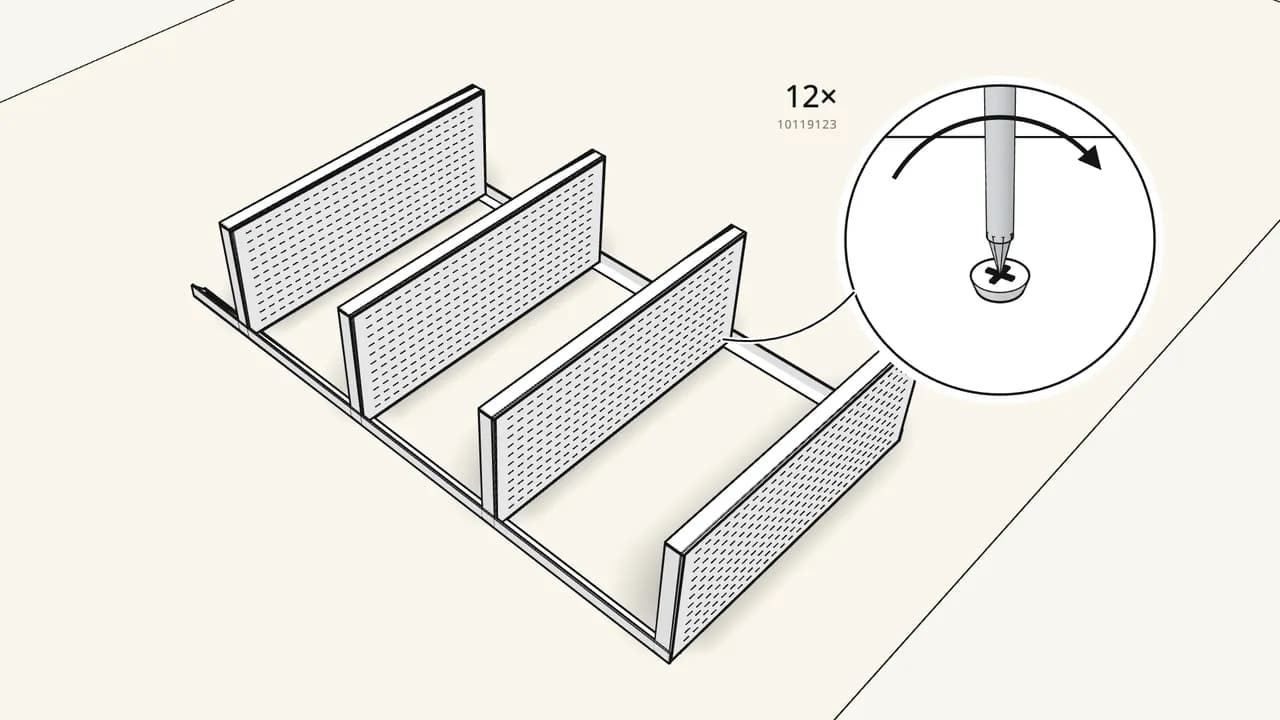

Step 4 · manual step 2
Screw them on the same way — 12 screws (10119123).
2 screws at each end of each shelf.
Step 5 · manual step 3

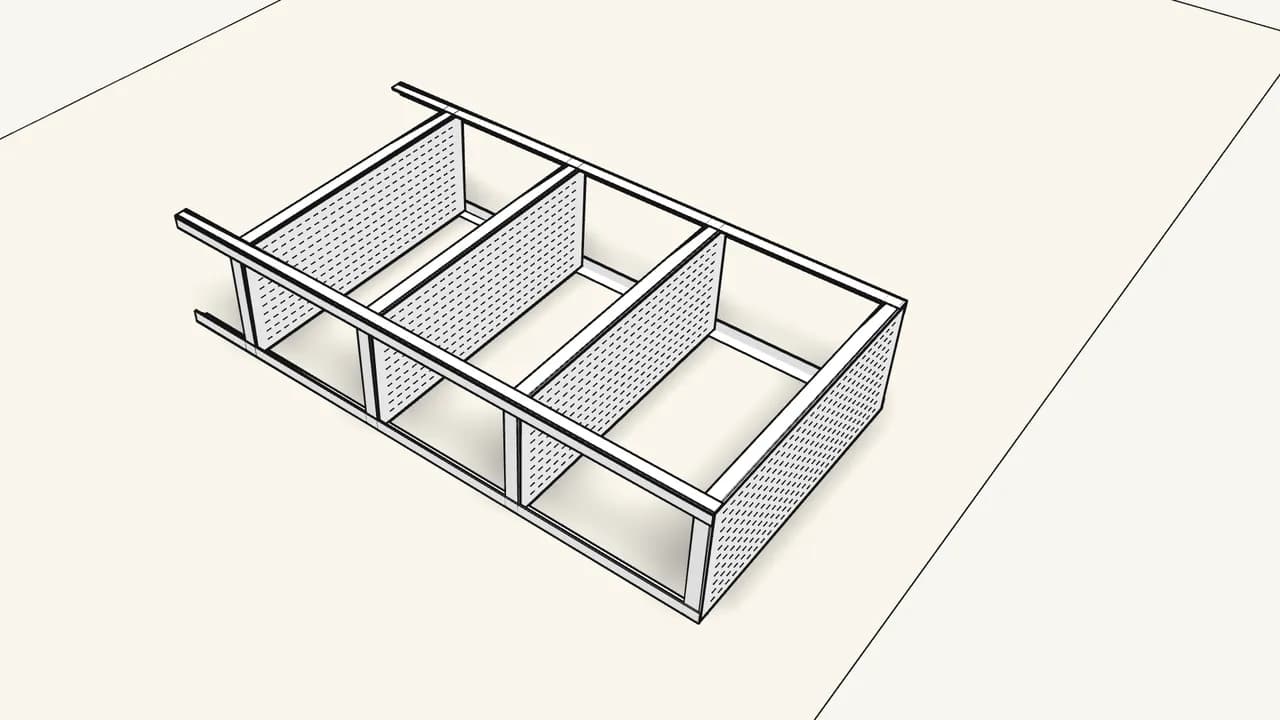

Lay the other 2 legs on top of the shelves.
Step 6 · manual step 3

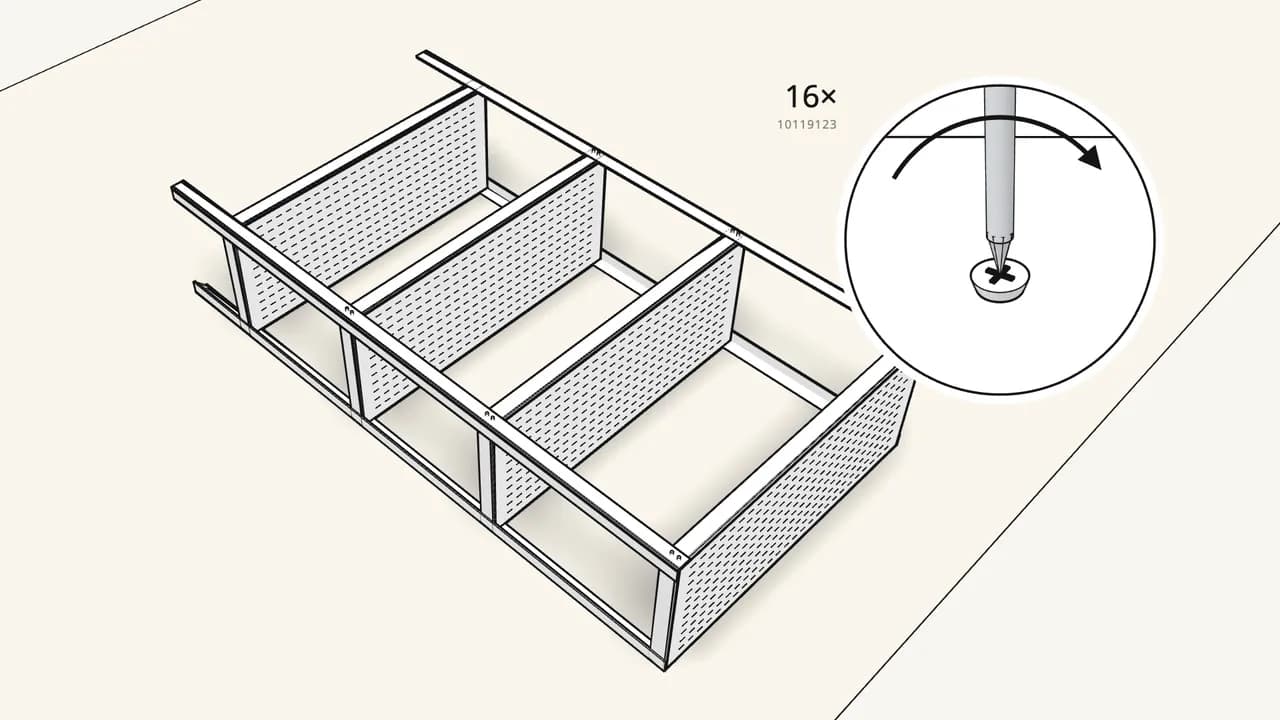

Screw them to all 4 shelves — 16 screws (10119123).
Screw in from inside the unit, 2 at each corner.
Step 7 · manual step 4

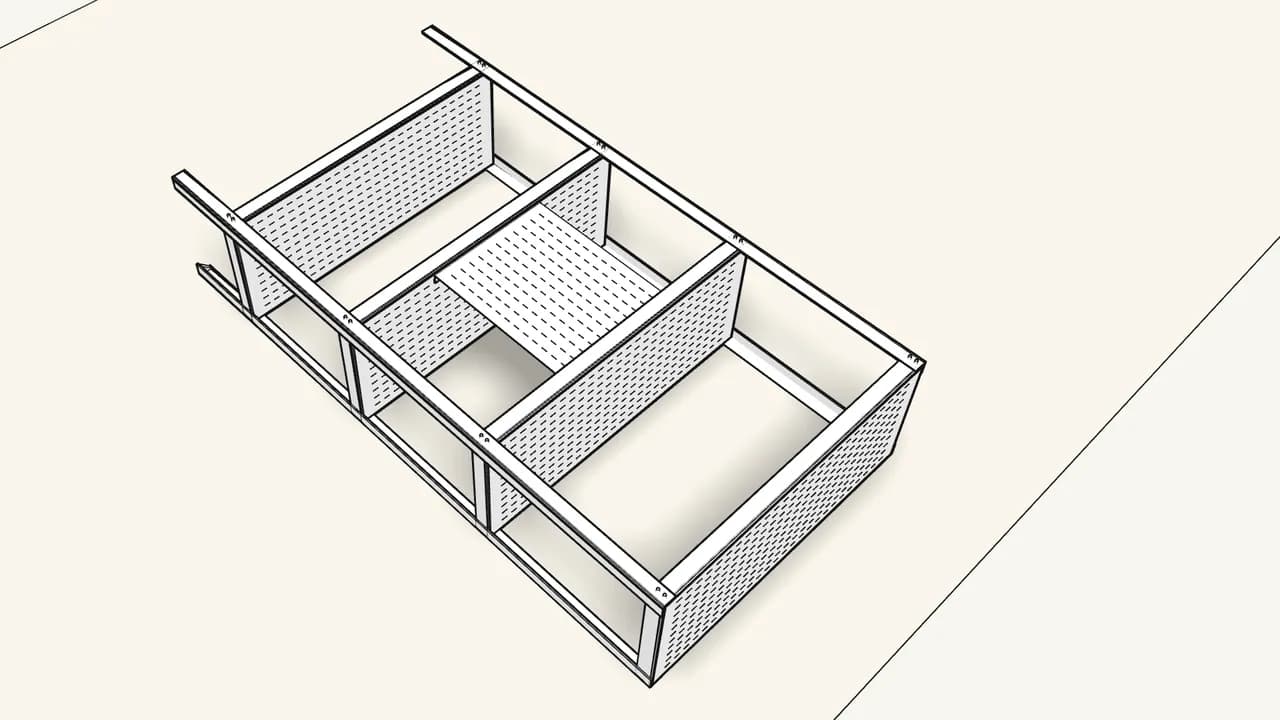

Place the mesh back panel in the middle compartment.
Check its position in the manual, step 4.

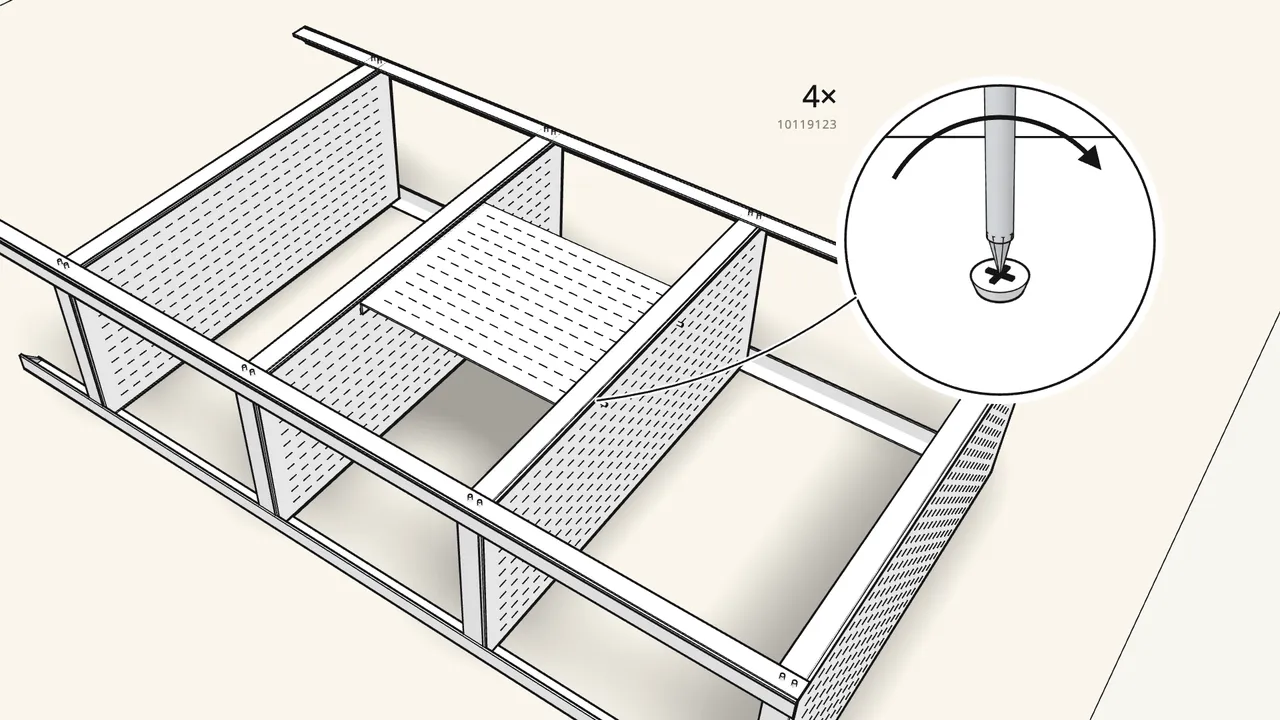

Step 8 · manual step 4
Fix the panel with 4 screws (10119123).
2 into each of the two shelves.
Step 9 · manual step 5

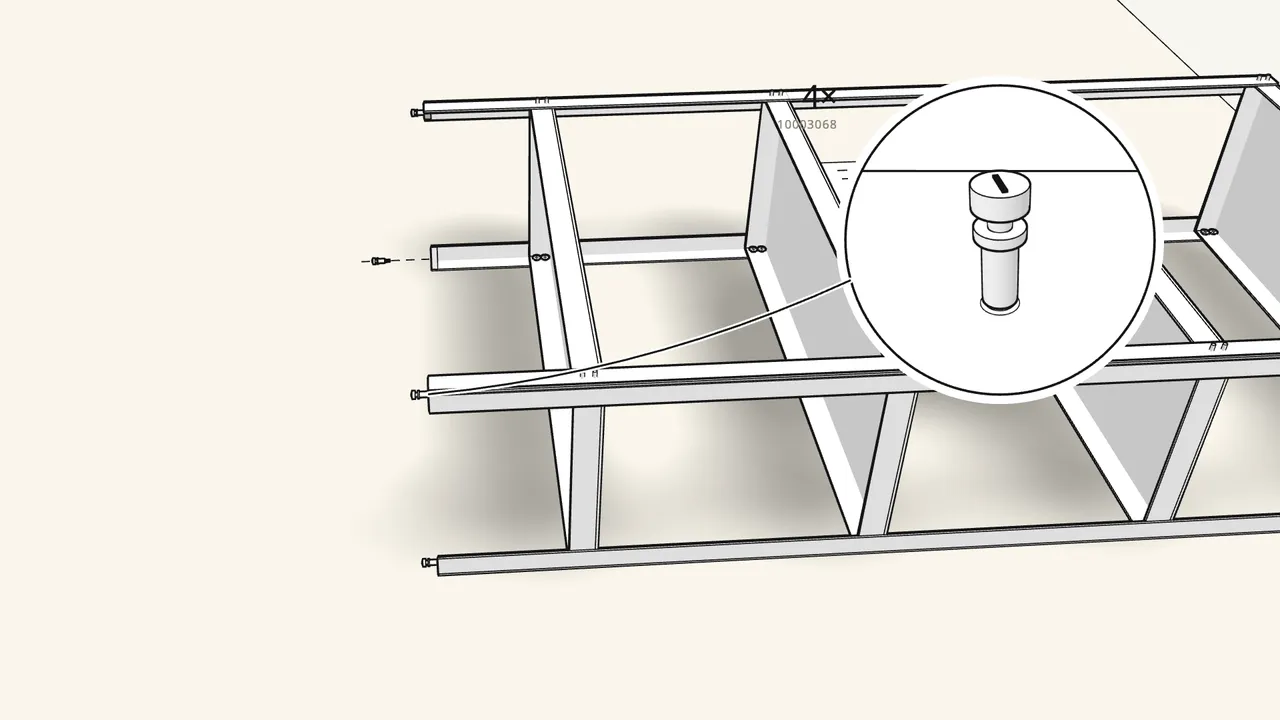

Screw an adjustable foot (10003068) into the end of each leg.
Step 10 · manual step 6

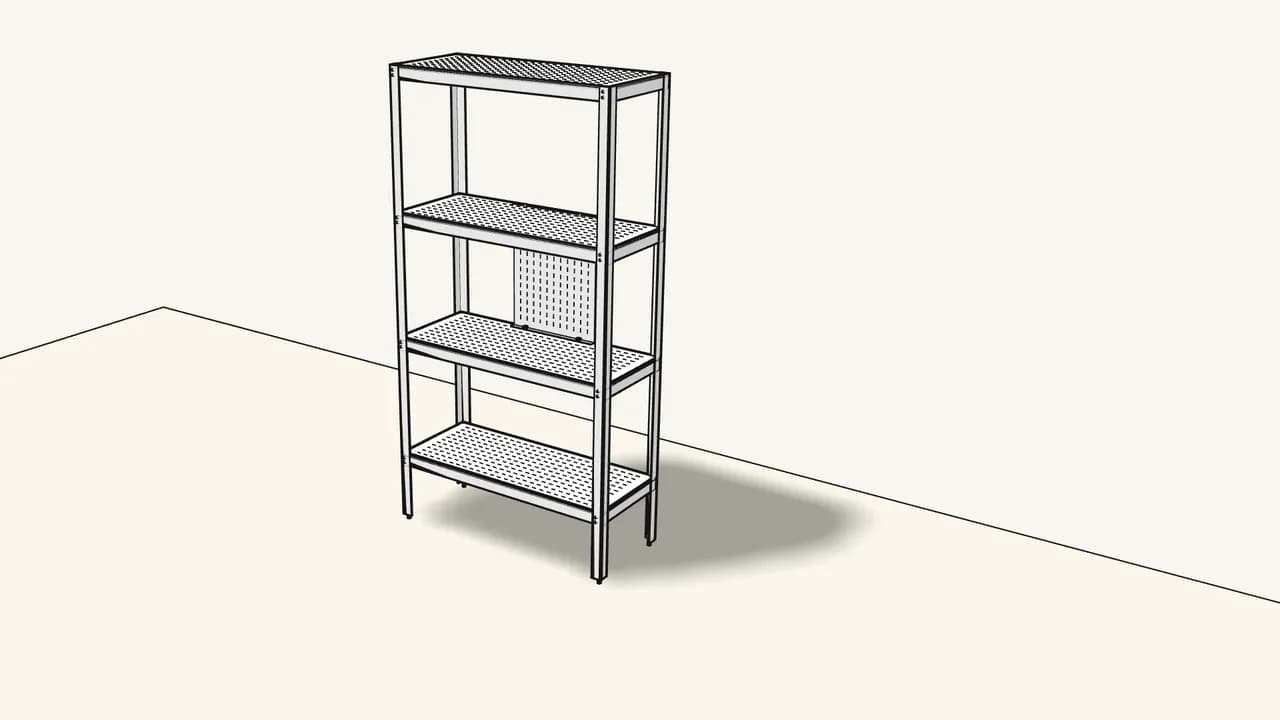

Stand the shelf unit upright.

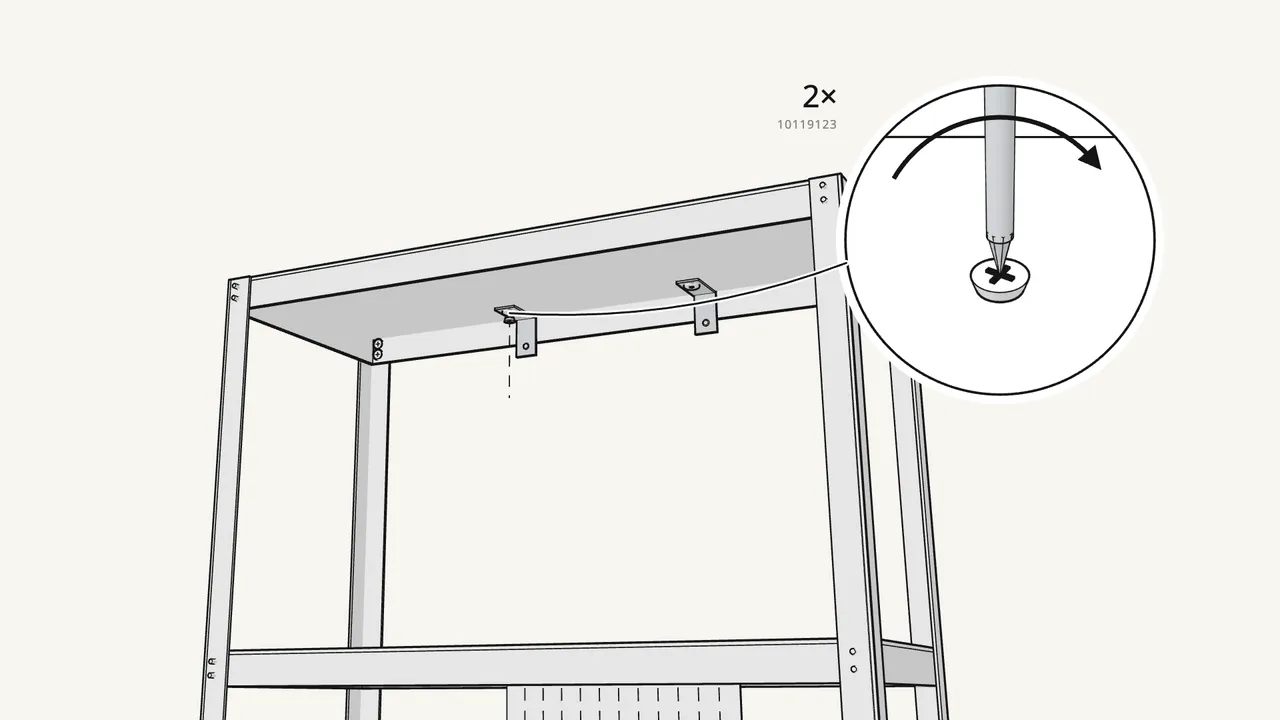

Step 11 · manual step 6
Fit the 2 wall brackets (10062215) under the top shelf.
Each with a washer (100827) and a screw (10119123) — the washer must not be left out.
Step 12 · manual step 7

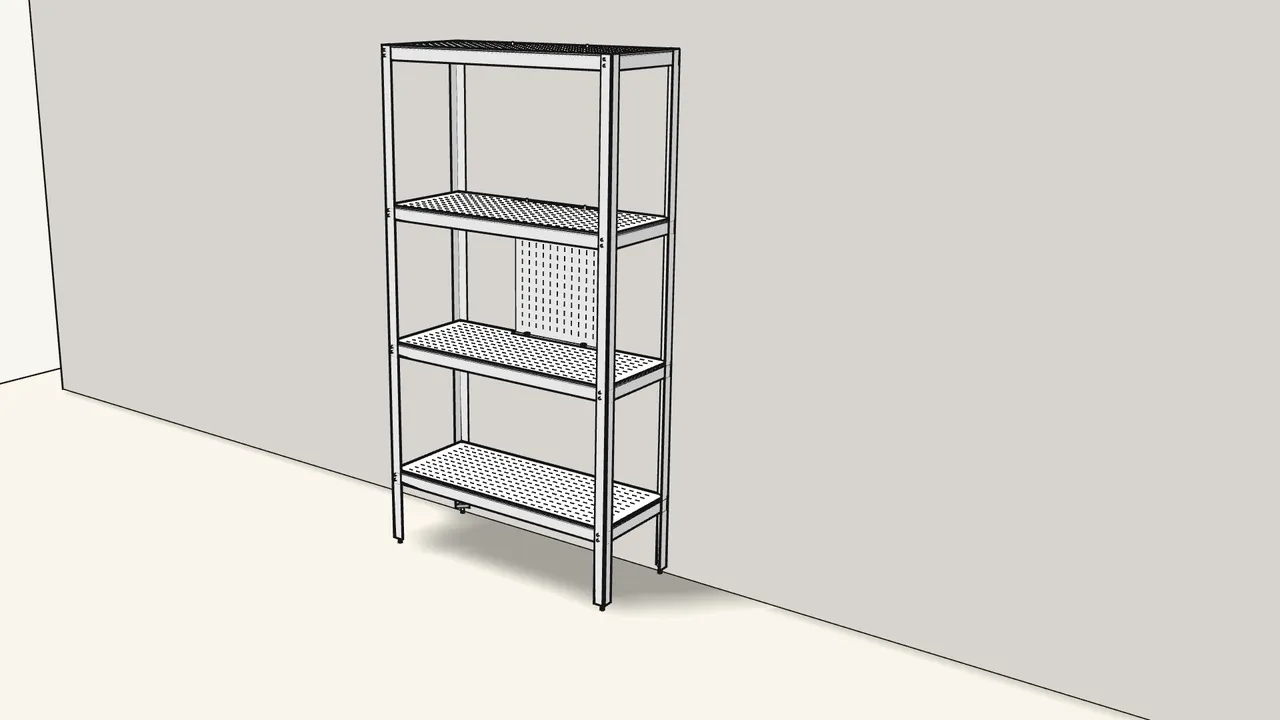

Place the shelf unit against the wall.
To prevent tip-over, it must be fixed to the wall.

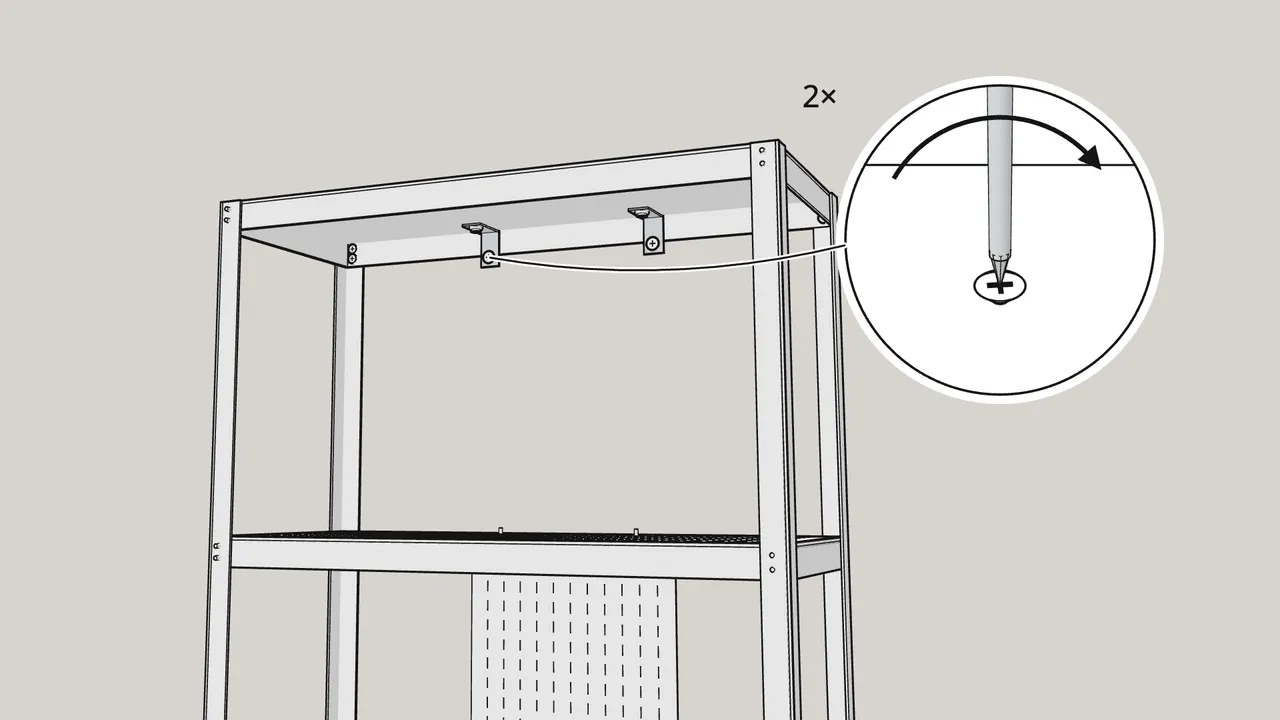

Step 13 · manual step 7
Screw both brackets to the wall.
Wall screws and plugs are not included — use ones suited to your wall.
Tips & safety
- Always fix BAGGEBO to the wall. Furniture tip-over can cause serious or fatal crushing injuries. If unsure which screws and plugs suit your wall, ask a specialist.
- Missing a part or unsure about a step? The manual asks you to contact your IKEA store for help.
Official instructions
This guide follows IKEA's official assembly instructions (AA-2235400-4). Keep the printed manual to hand — if anything differs, the manual is right.
