How to Assemble IKEA TARVA Bed Frame

Step-by-step assembly

1.

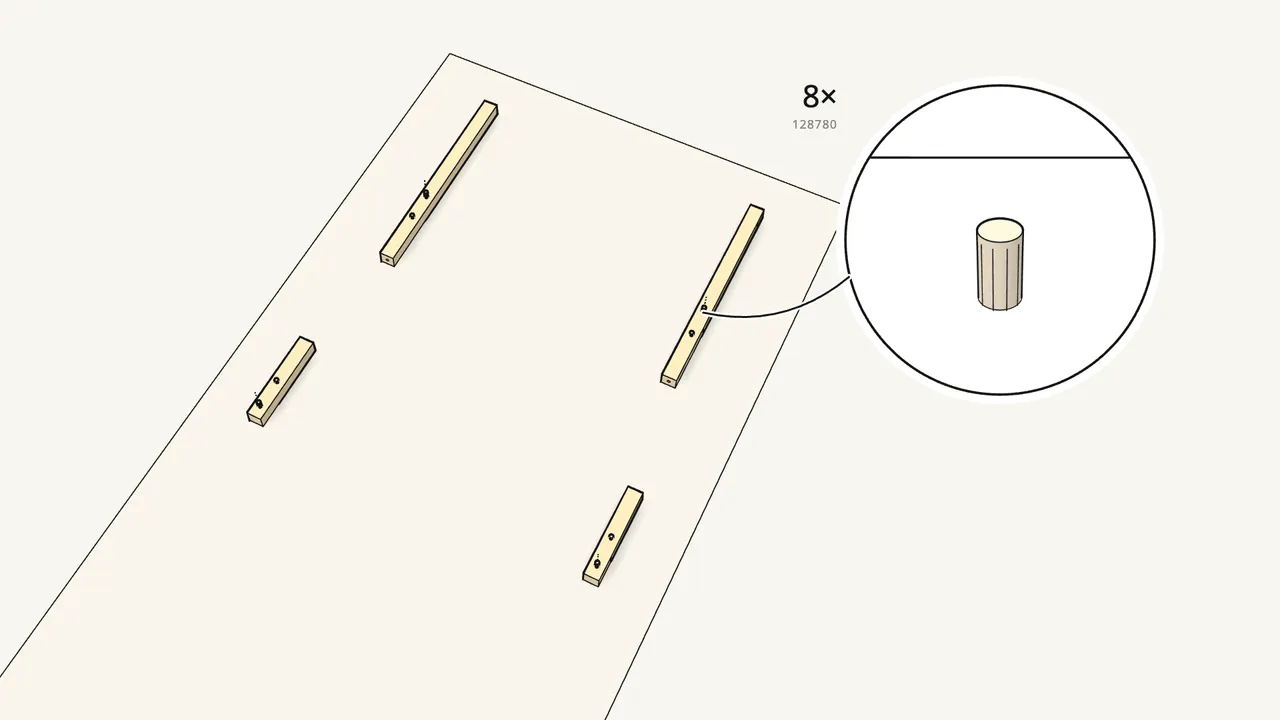

   Step 1

   Tap 8 long dowels (128780) into the four legs.

   Two per leg, on the inner side. Stop when 20 mm still sticks out.

   ▶ Watch this step (0:17)

2.

   Step 2

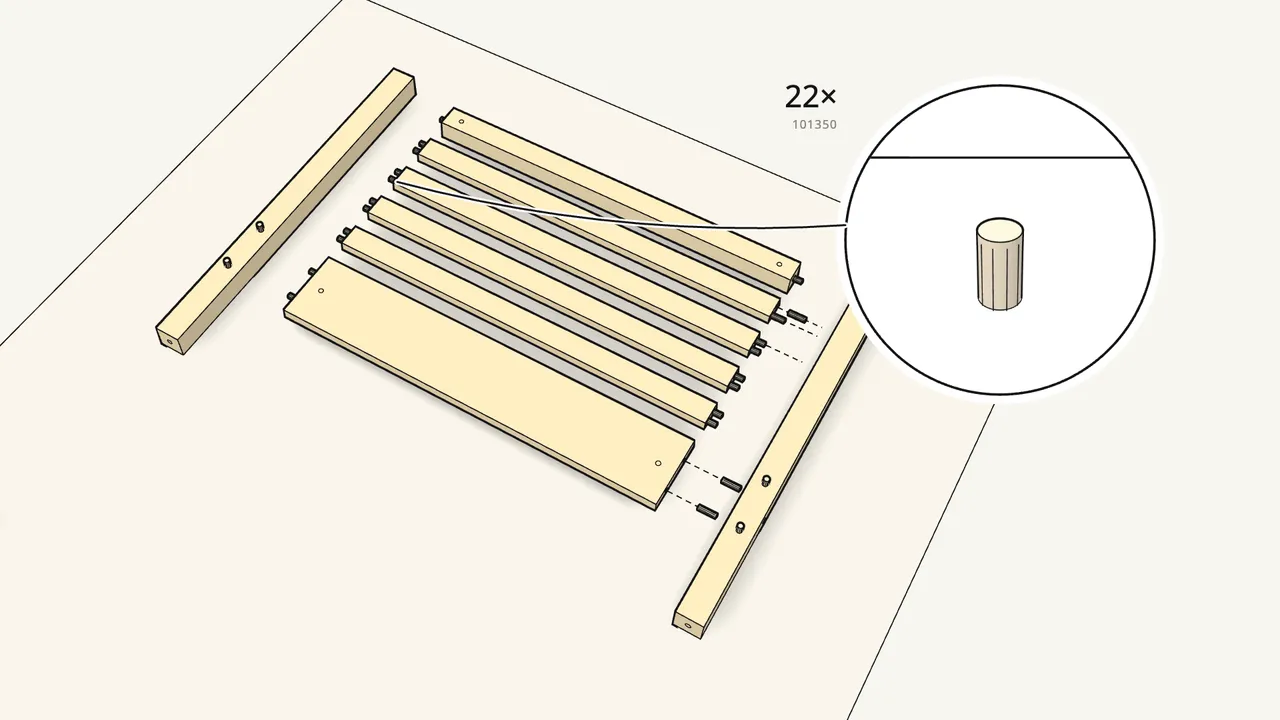

   Push 22 dowels (101350) into the headboard rails and board.

   The board’s hole faces up — as shown in the manual.

   ▶ Watch this step (0:25)

3.

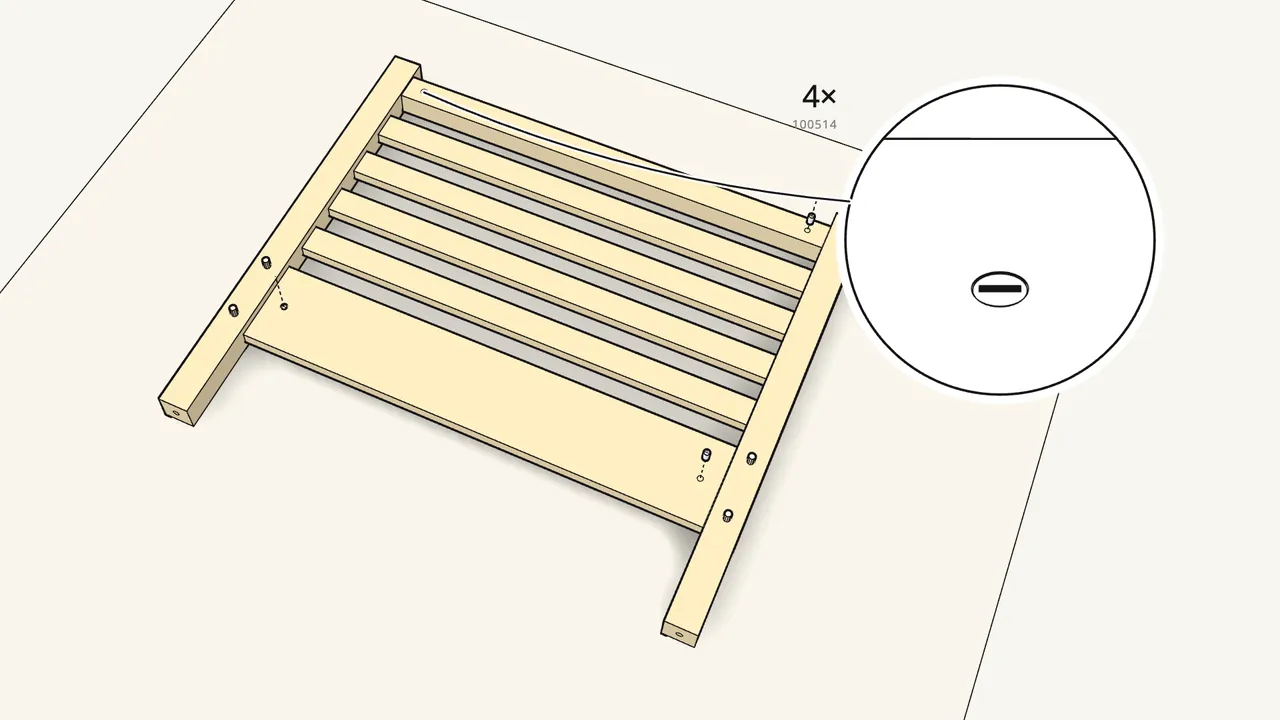

   Step 3

   Fit both headboard legs and insert 4 barrel nuts (100514).

   Turn the slot with a flat screwdriver so it lines up with the bolt hole.

   ▶ Watch this step (0:33)

4.

   Step 4 · manual step 3

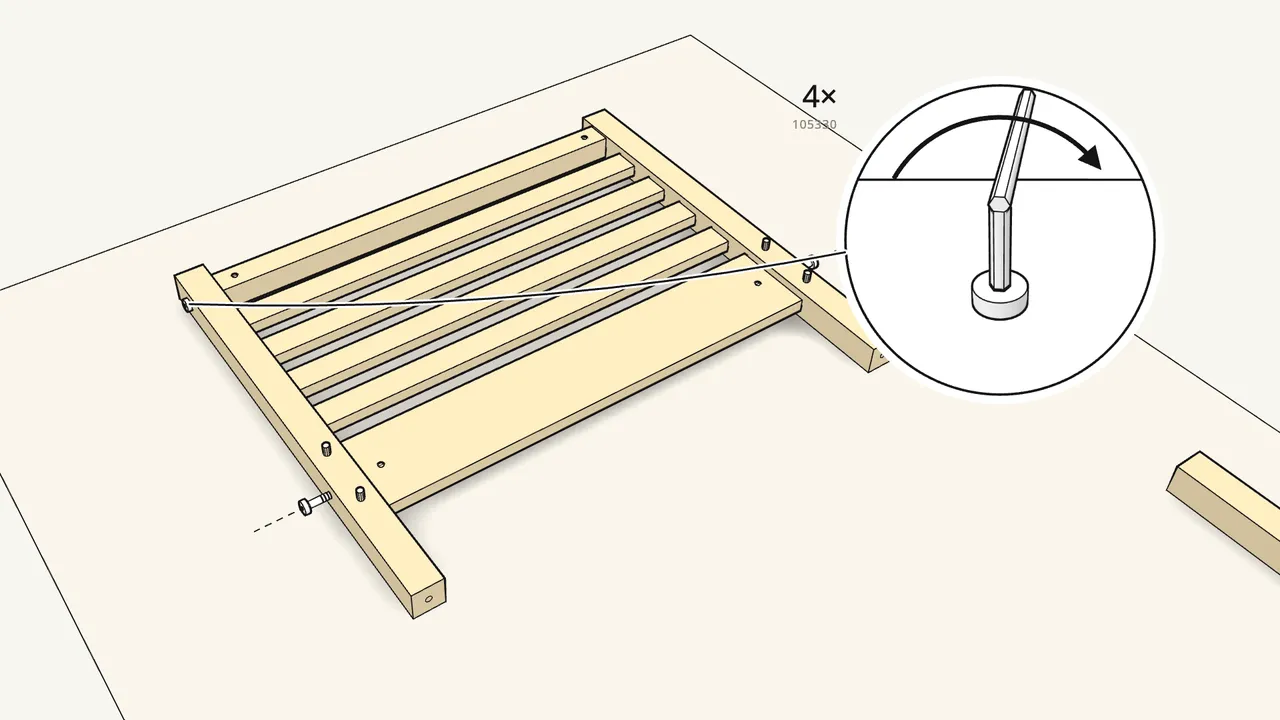

   Tighten 4 bolts (105330) with the Allen key.

   ▶ Watch this step (0:41)

5.

   Step 5 · manual step 4

   Push 4 dowels (101350) into the ends of the footboard.

   ▶ Watch this step (0:48)

6.

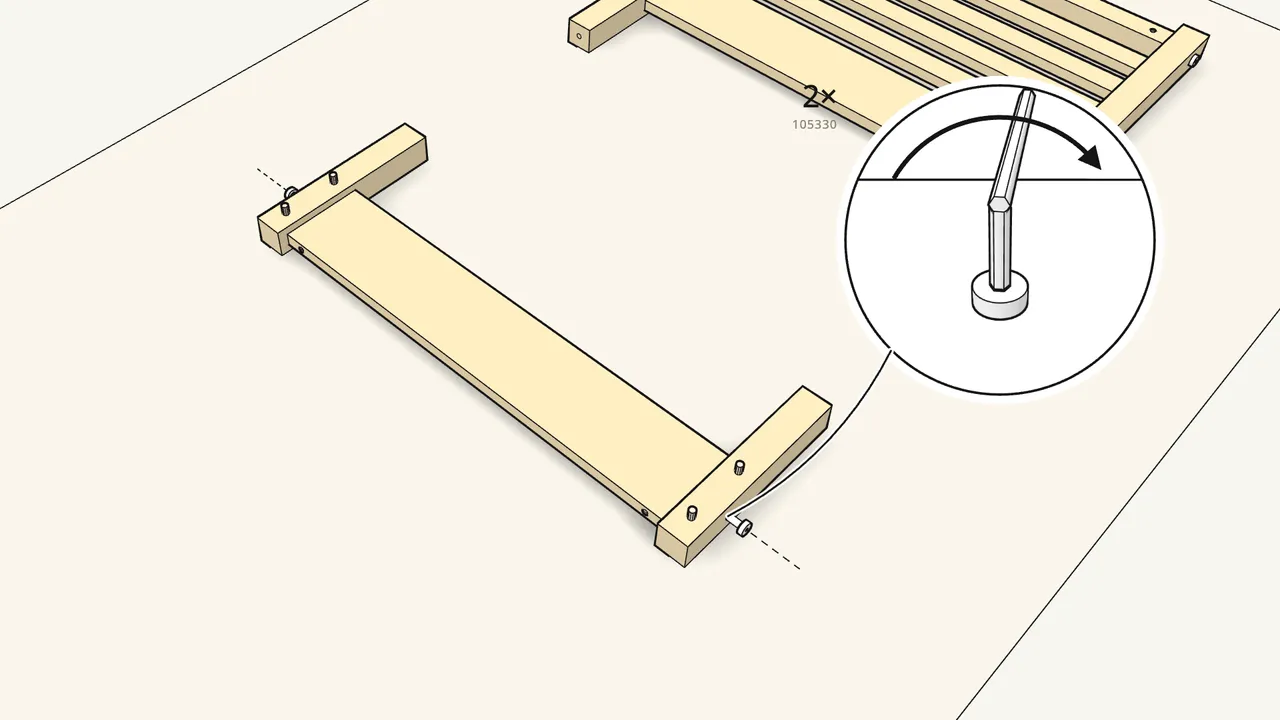

   Step 6 · manual step 5

   Fit the footboard legs with 2 barrel nuts and 2 bolts.

   Barrel nuts (100514) in from the top edge, bolts (105330) through the legs.

   ▶ Watch this step (0:54)

7.

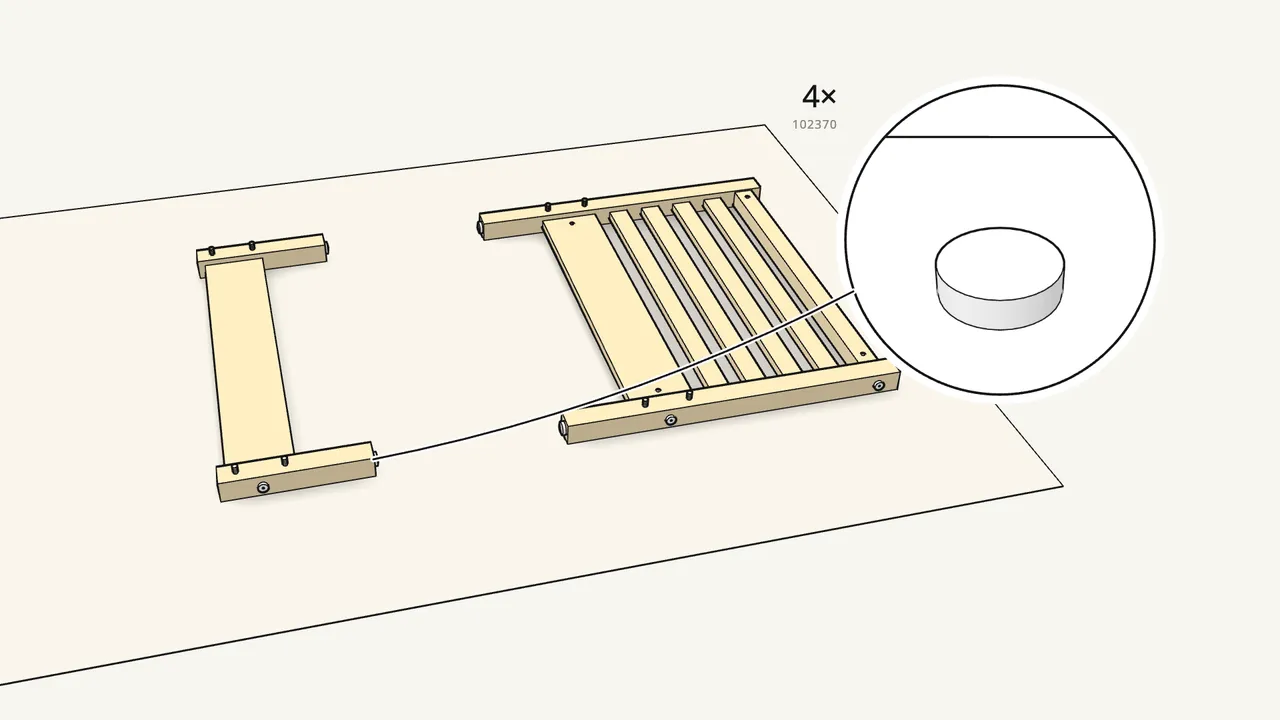

   Step 7 · manual step 6

   Hammer a glide (102370) into the bottom of each leg.

   4 glides — one per leg.

   ▶ Watch this step (1:03)

8.

   Step 8 · manual step 7

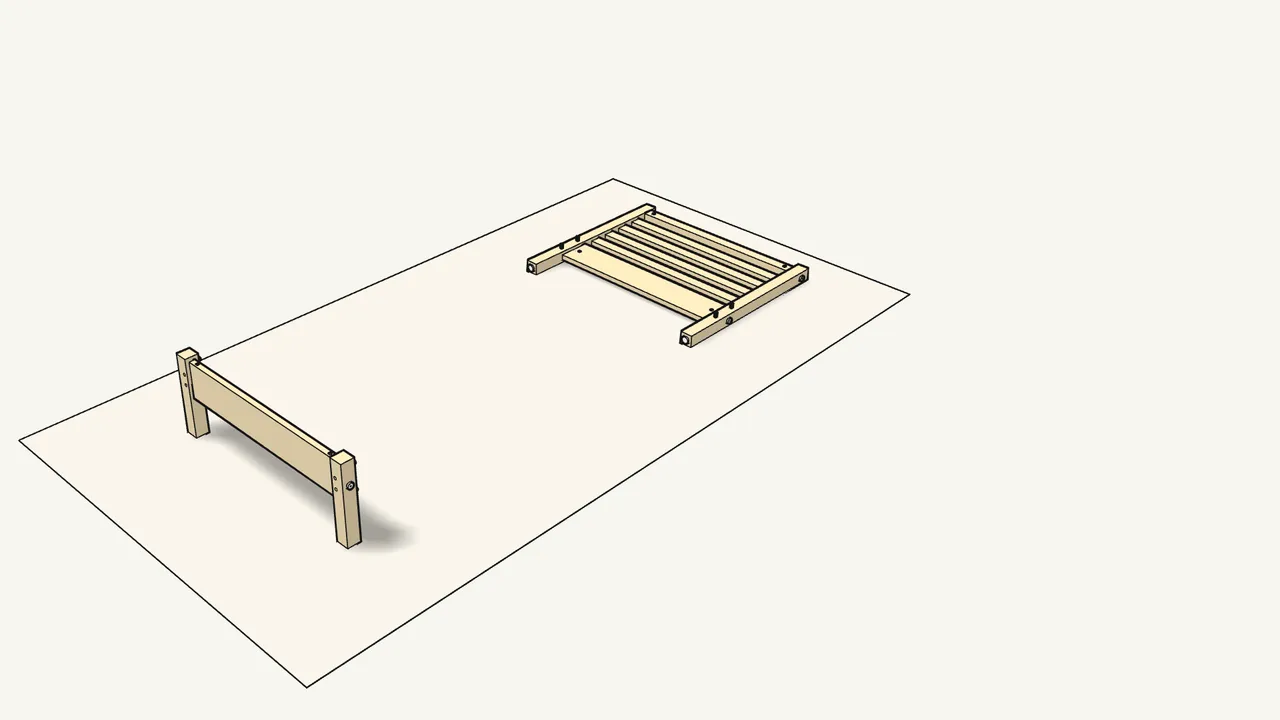

   Stand the footboard up.

   ▶ Watch this step (1:10)

9.

   Step 9 · manual step 7

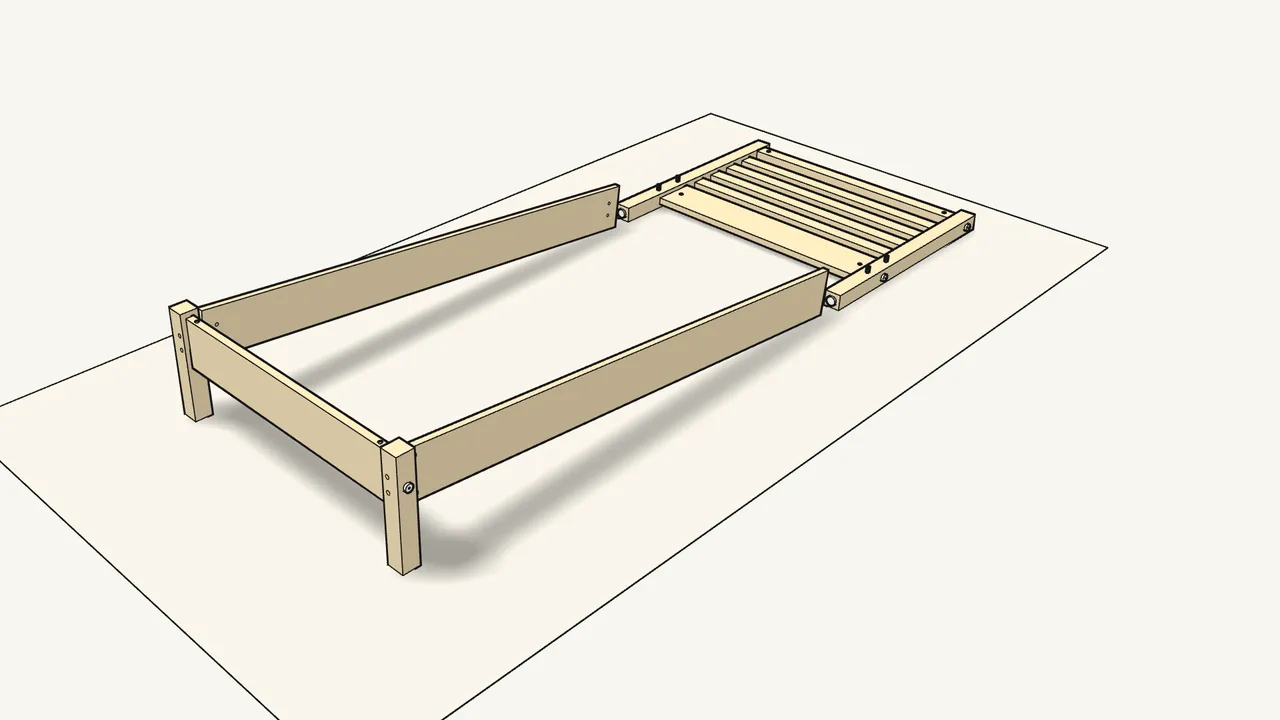

   Push both side rails onto the footboard dowels.

   Small screw holes on the inside, near the bottom edge — not the top.

   ▶ Watch this step (1:14)

10.

    Step 10 · manual step 8

    Fix the rails to the footboard: 4 barrel nuts, 4 bolts.

    Line up the nut slots with a flat screwdriver, then tighten the bolts with the Allen key.

    ▶ Watch this step (1:21)

11.

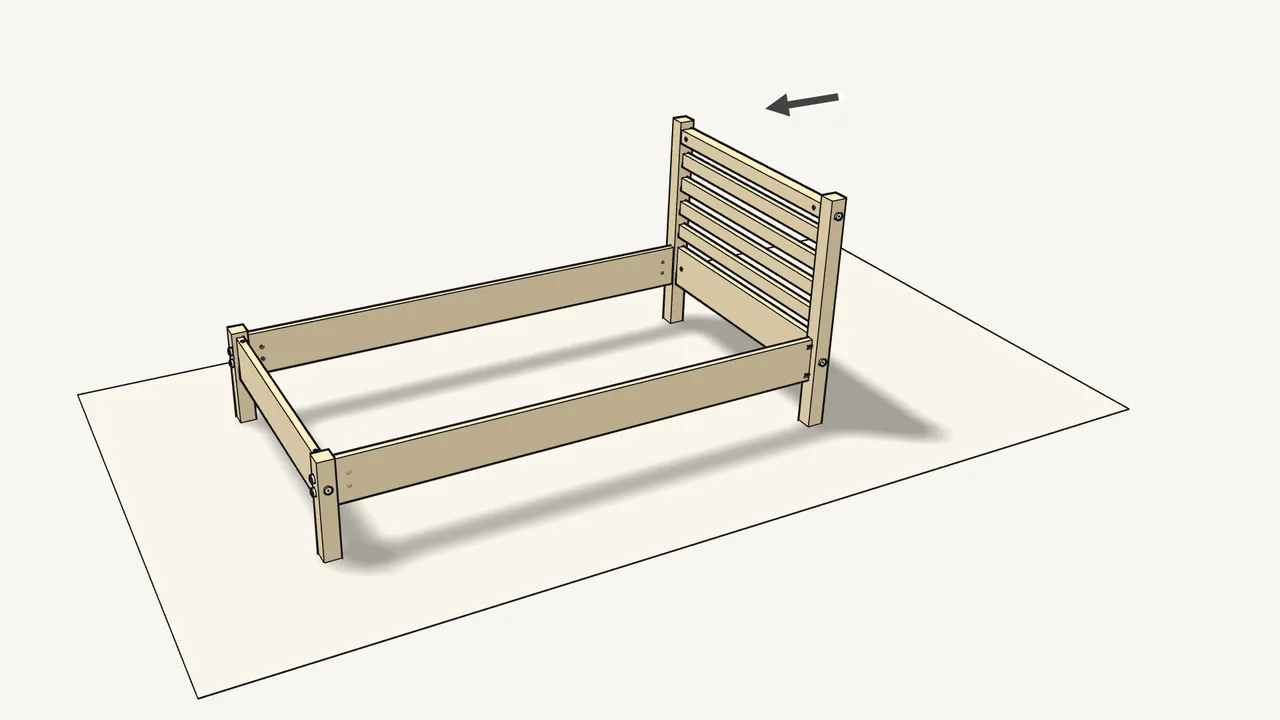

    Step 11 · manual step 9

    Stand the headboard up and push it onto the rails.

    The rail ends slide over its dowels. Two people make this easier.

    ▶ Watch this step (1:30)

12.

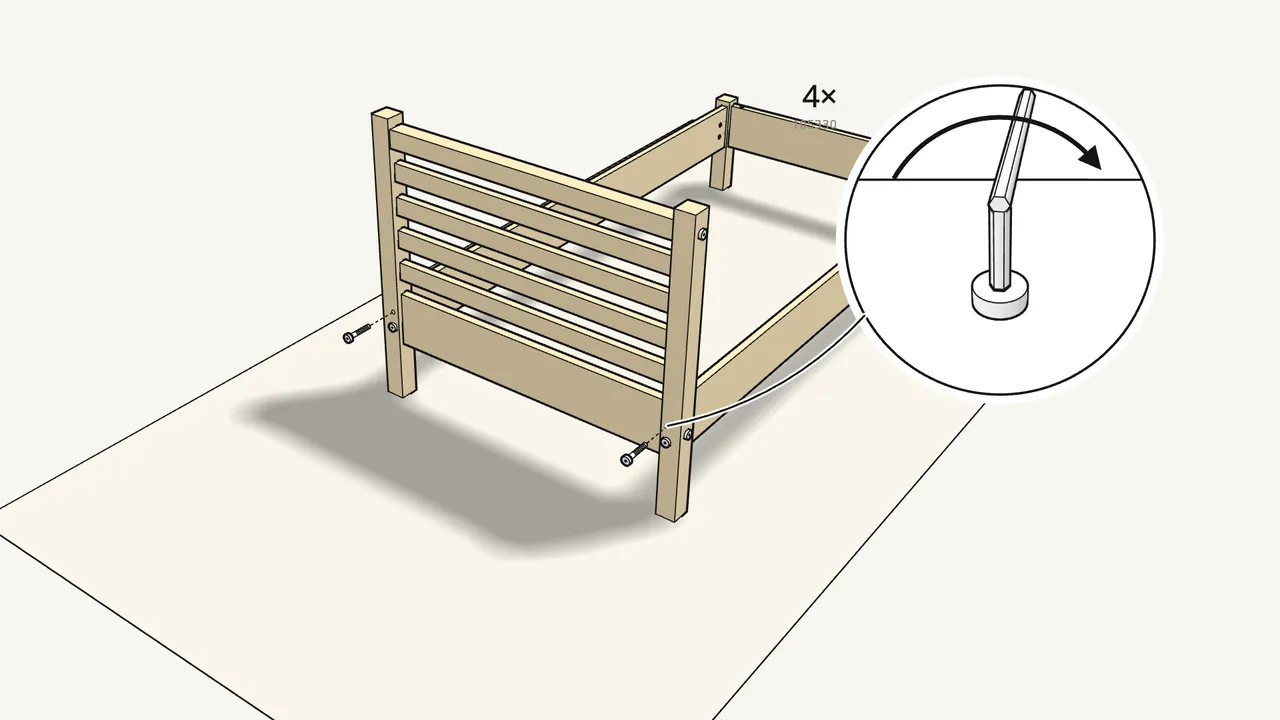

    Step 12 · manual step 10

    Fix the headboard: 4 barrel nuts and 4 bolts.

    Same as step 8 — nut slots lined up, bolts tightened with the Allen key.

    ▶ Watch this step (1:38)

13.

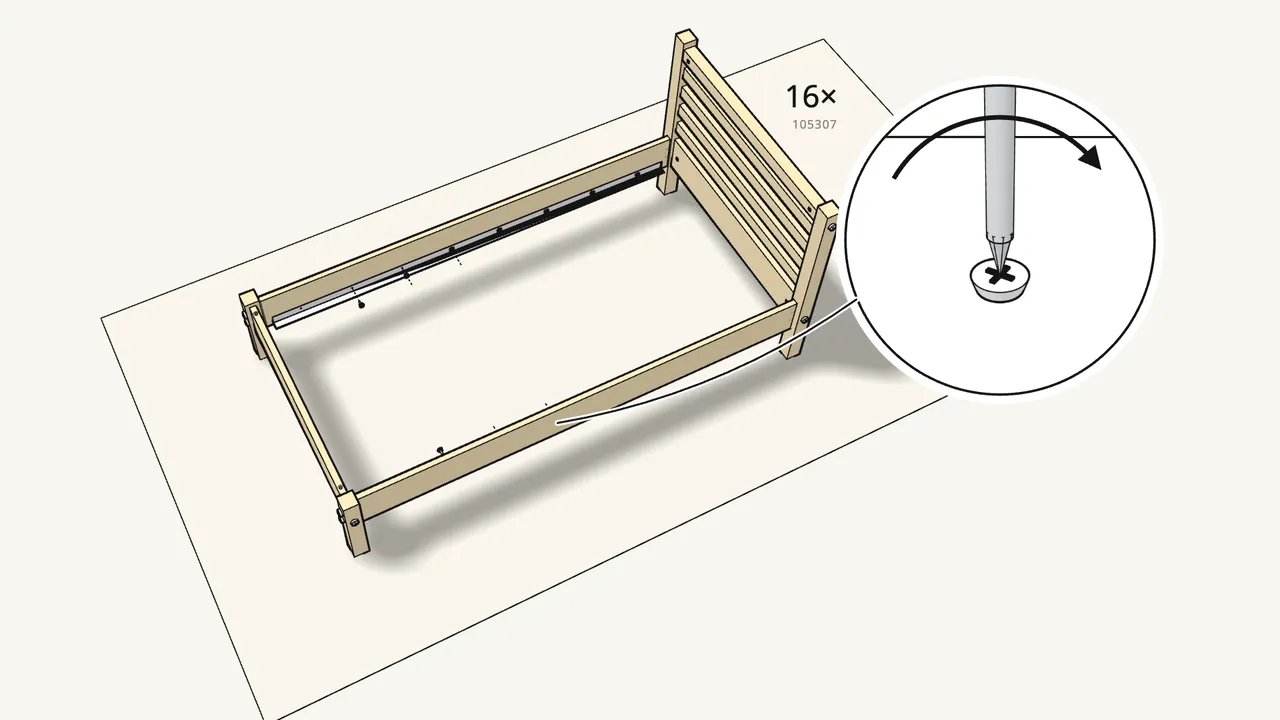

    Step 13 · manual step 11

    Screw the metal rails inside the side rails: 16 screws.

    8 screws (105307) per side, with the Phillips screwdriver.

    ▶ Watch this step (1:47)

14.

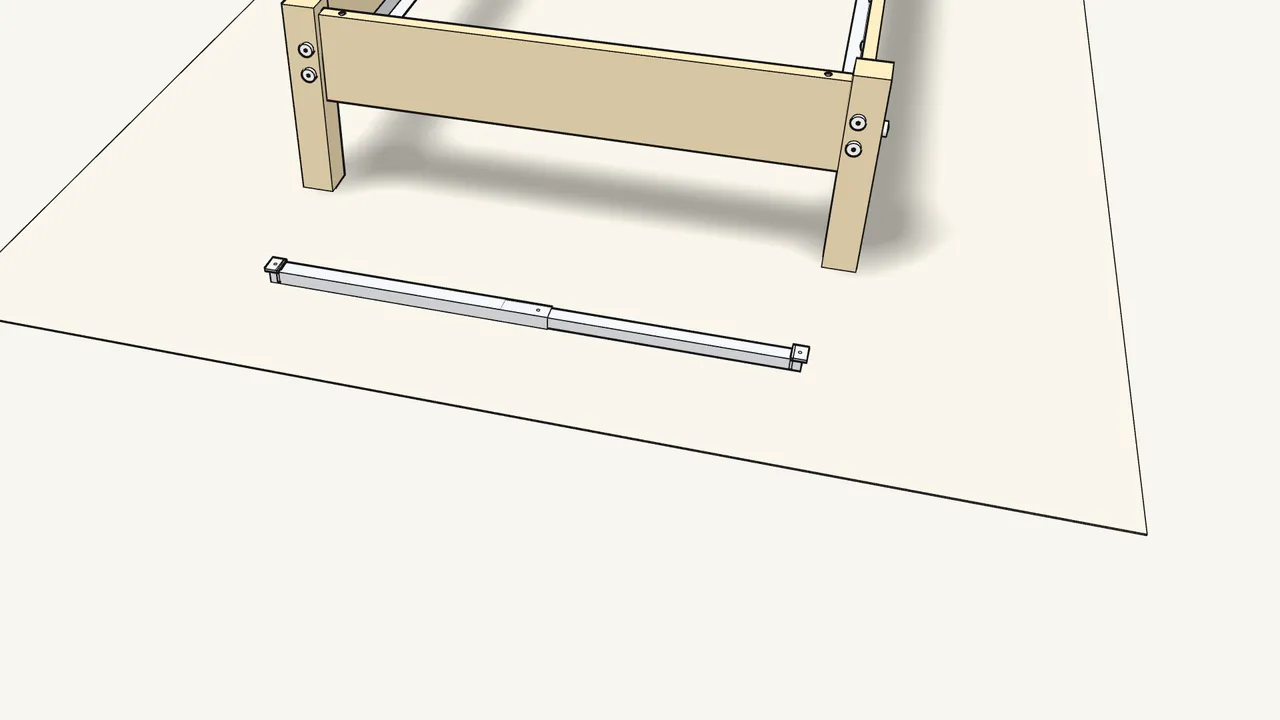

    Step 14 · manual step 12

    Pull the centre beam out to its full length.

    ▶ Watch this step (1:56)

15.

    Step 15 · manual step 13

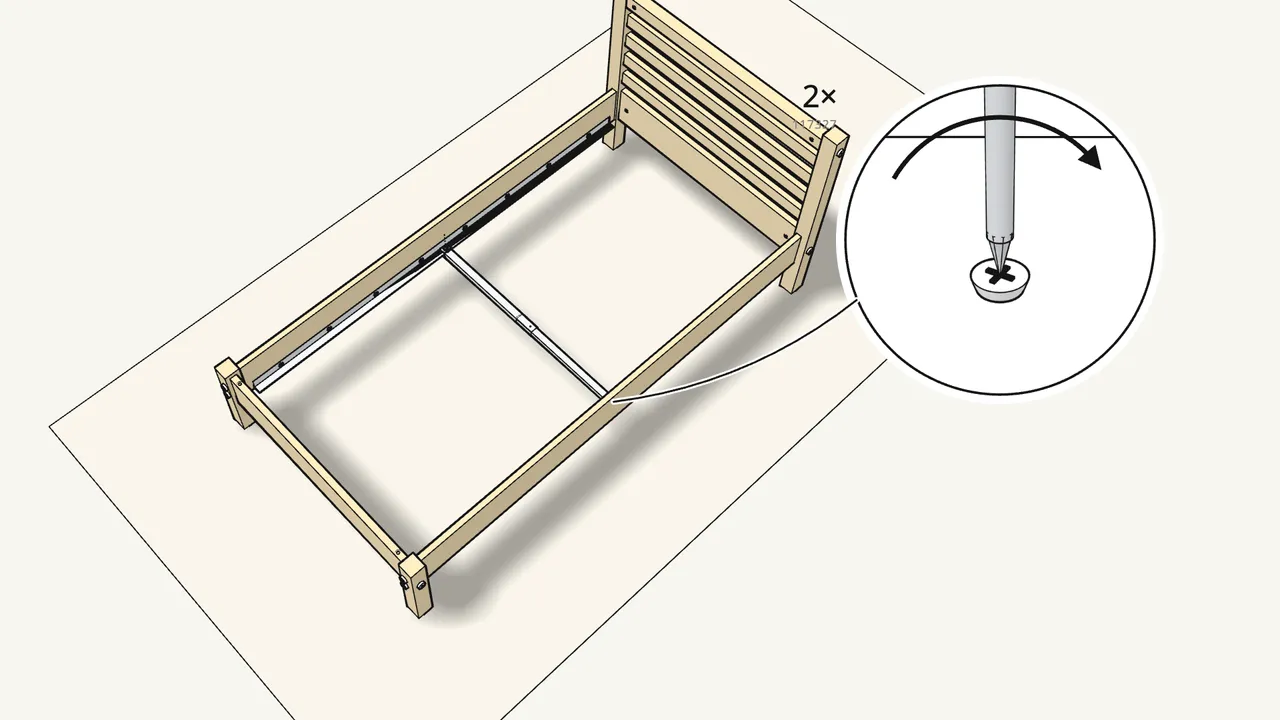

    Hook the beam onto the metal rails, across the middle.

    Fix each end with a screw (117327) — 2 in total.

    ▶ Watch this step (2:01)

16.

    Step 16 · manual step 14

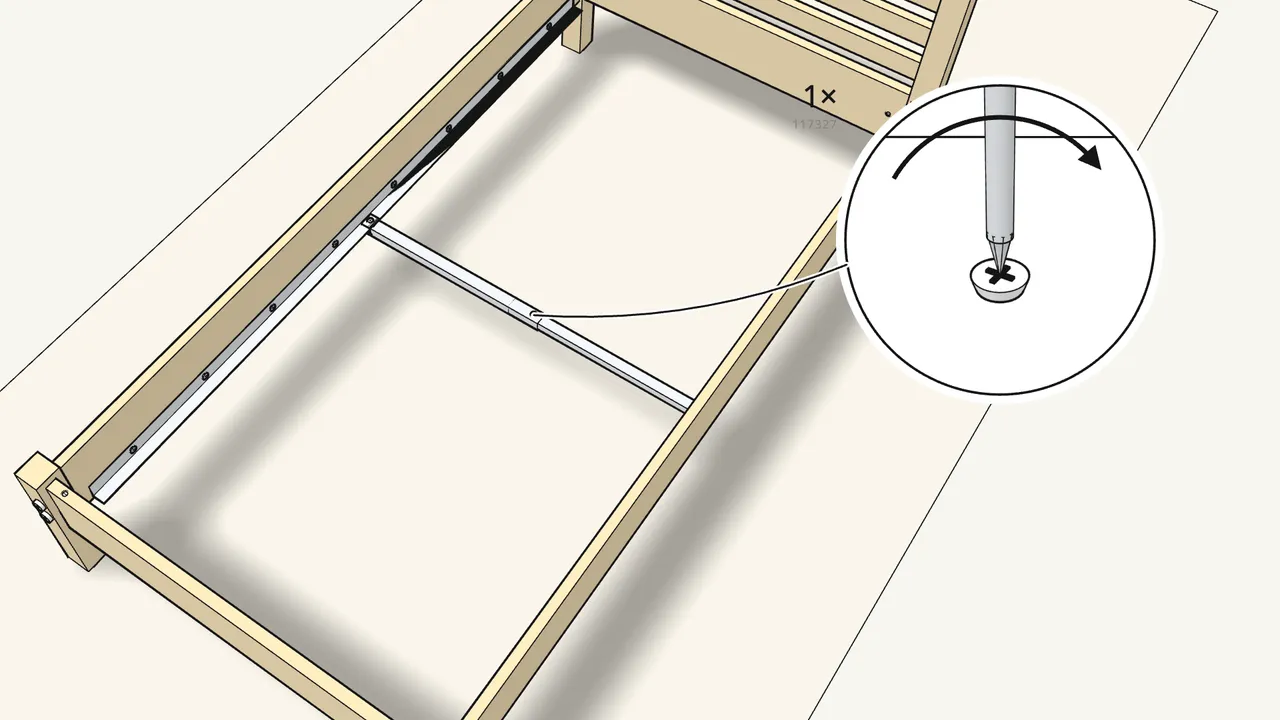

    Lock the beam length with 1 screw (117327).

    ▶ Watch this step (2:09)

17.

    Step 17 · manual step 15

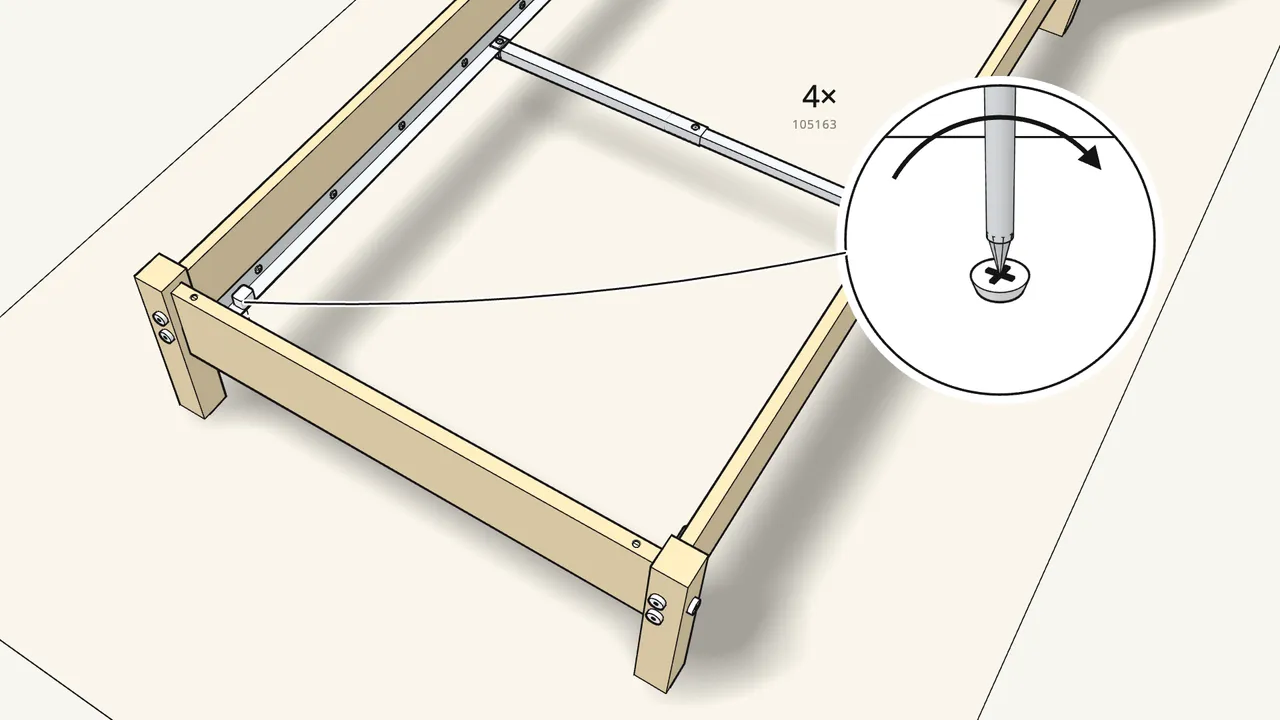

    Roll-out slats: fit 4 stops (10096286) with screws (105163).

    They keep the slats in place. Not used with a framed slatted base or a sprung base.

    ▶ Watch this step (2:15)
