How to Assemble IKEA BRIMNES Bed Frame with Storage

Step-by-step assembly

1.

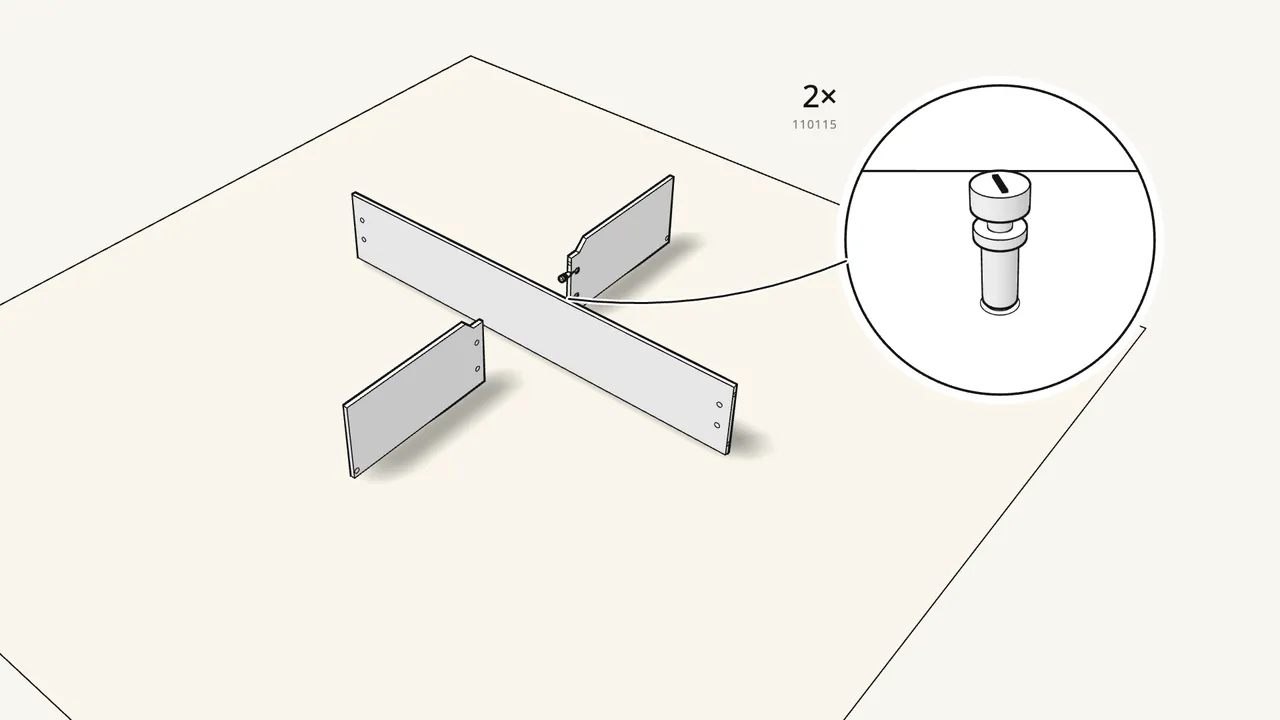

   Step 1

   Fit 2 cam locks (110630) and 2 connector bolts (110115).

   Both go into the end of one divider half. Turn the cam locks with the flat screwdriver.

   ▶ Watch this step (0:23)

2.

   Step 2 · manual step 2–3

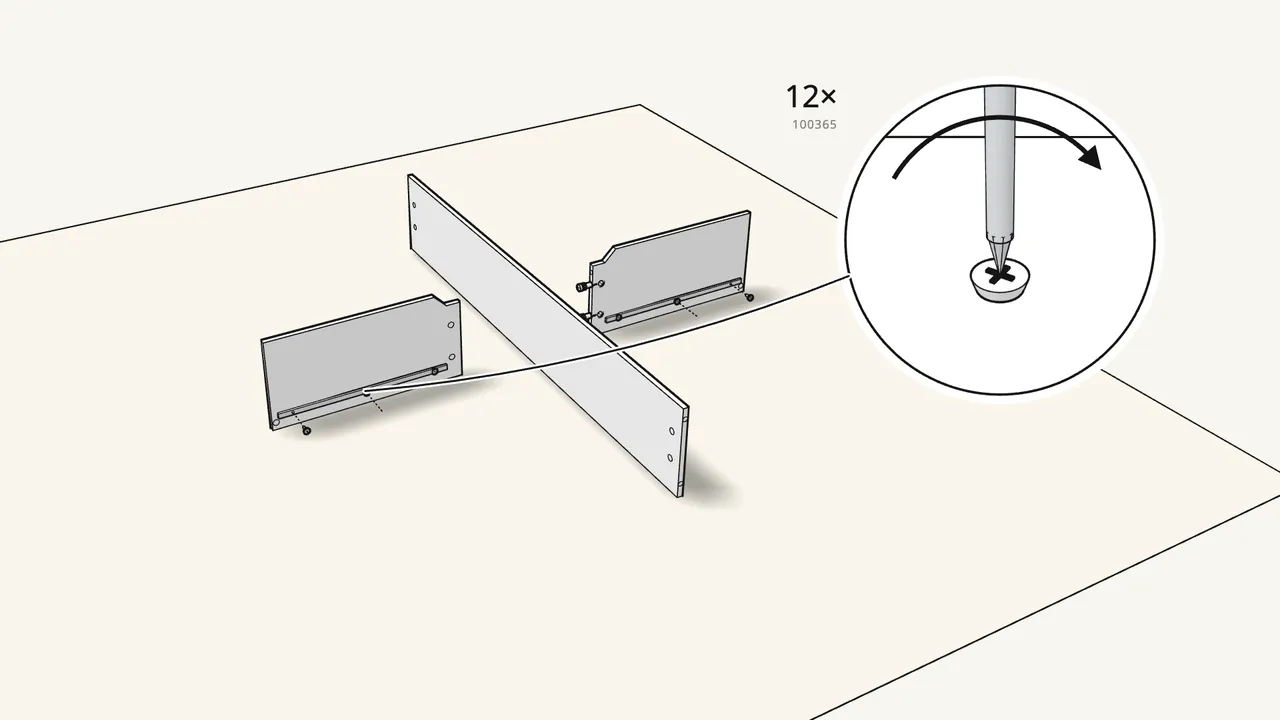

   Screw a drawer runner (139505) onto each face of both dividers.

   3 screws (100365) per runner — not the 100359 ones.

   ▶ Watch this step (0:29)

3.

   Step 3 · manual step 4

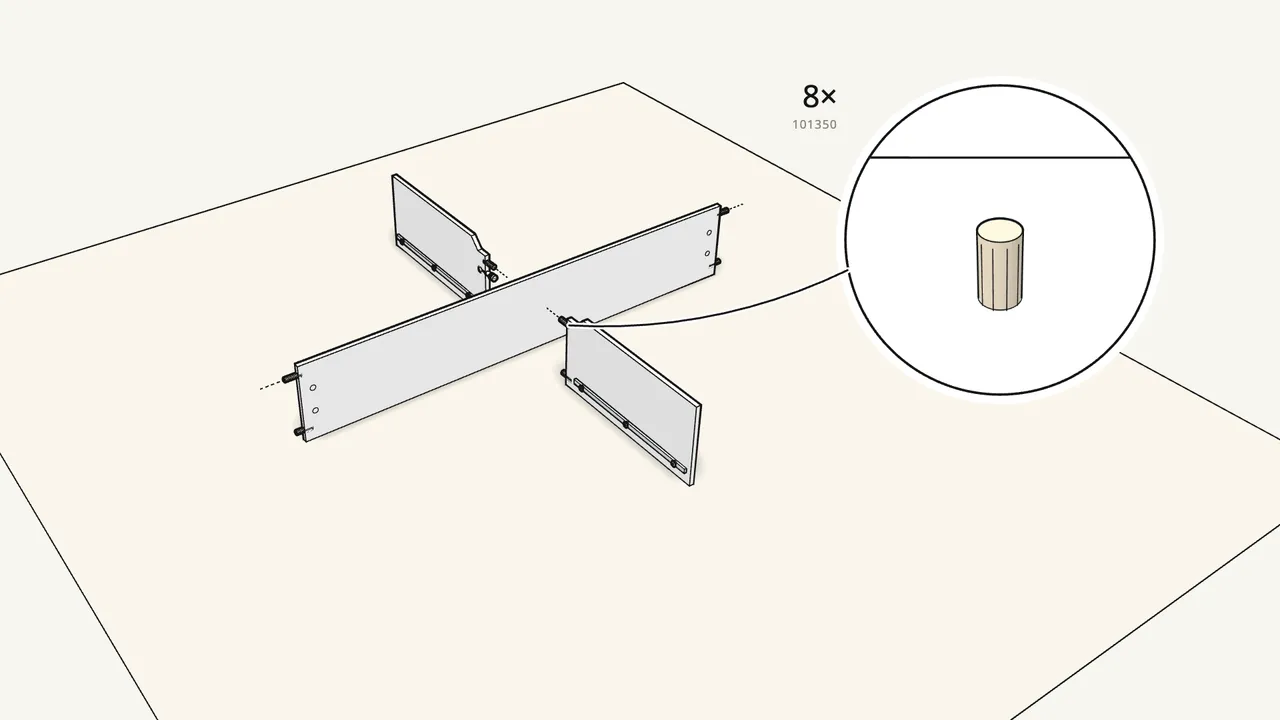

   Push 8 dowels (101350) into the divider and spine ends.

   Use 101350 here — not 101345 or 101359.

   ▶ Watch this step (0:35)

4.

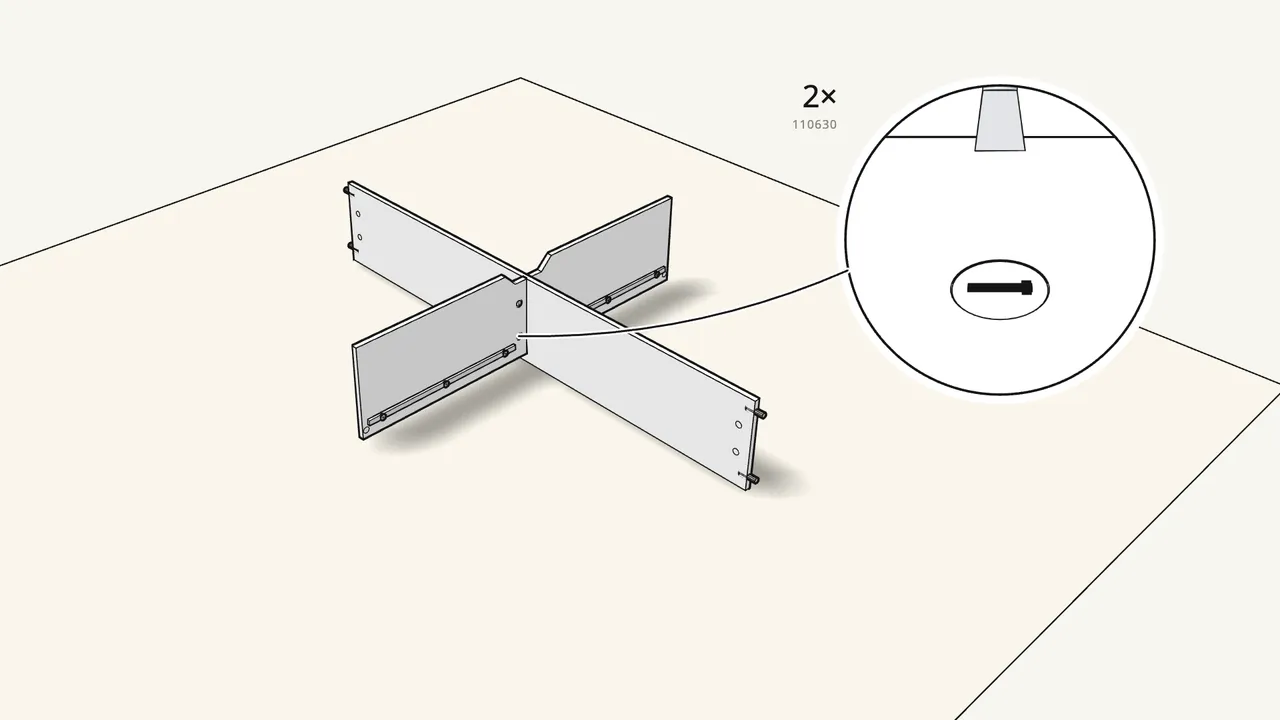

   Step 4 · manual step 5–6

   Slide both divider halves onto the spine, then lock 2 cam locks.

   The connector bolts pass through the spine. Cam locks 110630.

   ▶ Watch this step (0:41)

5.

   Step 5 · manual step 7–9

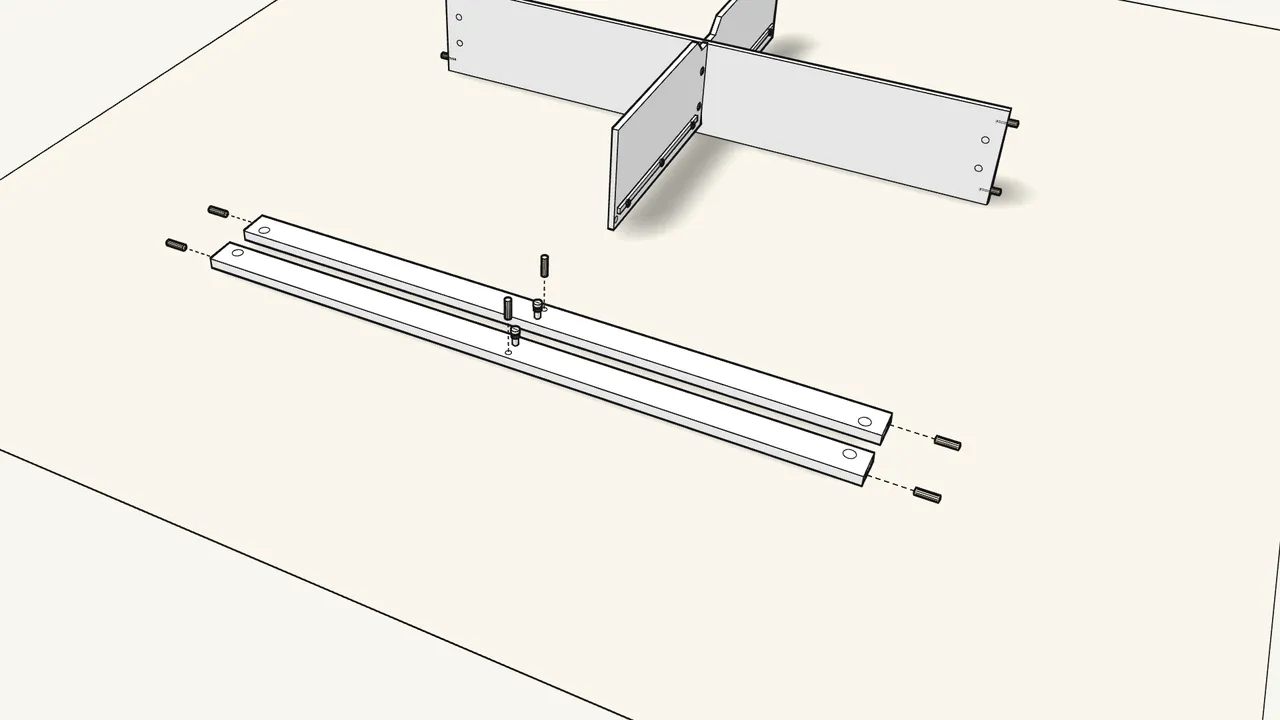

   Floor rails: tap in a felt pad (122628), add a cam bolt and 3 dowels.

   One pad underneath each rail. Then per rail: 1 cam bolt (118331) and 3 dowels (101345).

   ▶ Watch this step (0:48)

6.

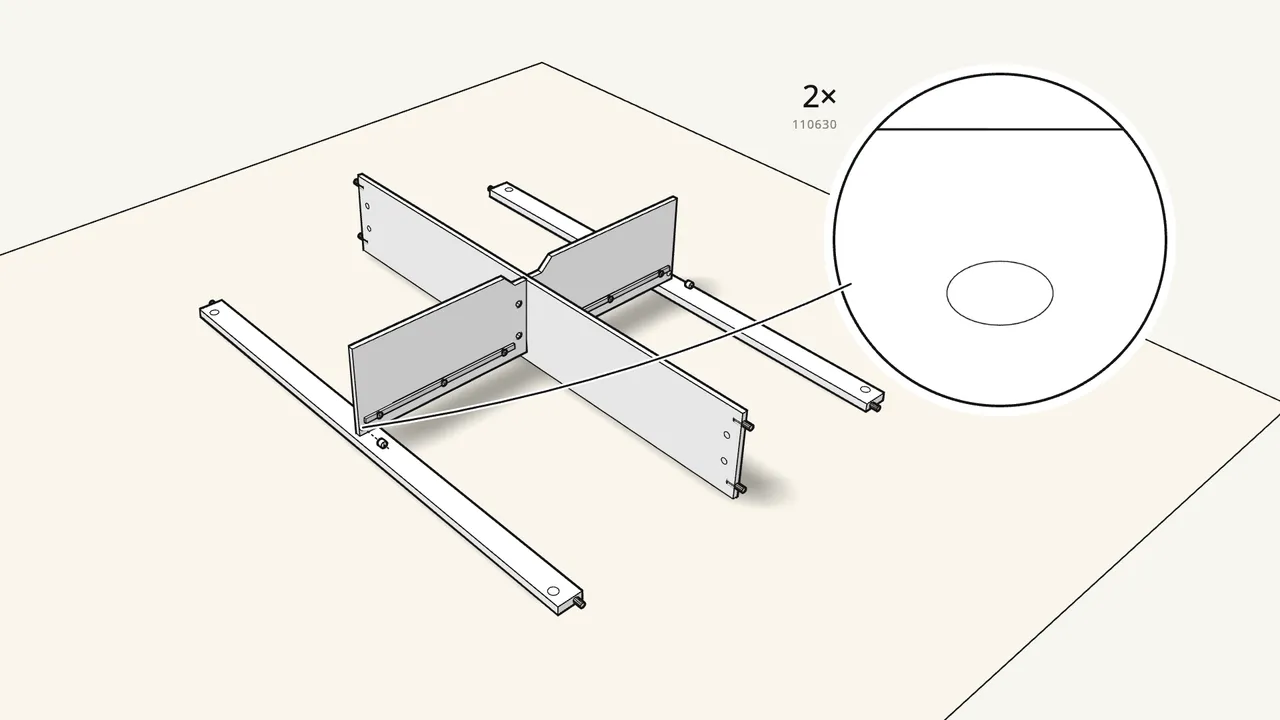

   Step 6 · manual step 10–11

   Set the cross onto the floor rails and lock 2 cam locks.

   The bolts go up into the bottom of the dividers. Cam locks 110630.

   ▶ Watch this step (0:57)

7.

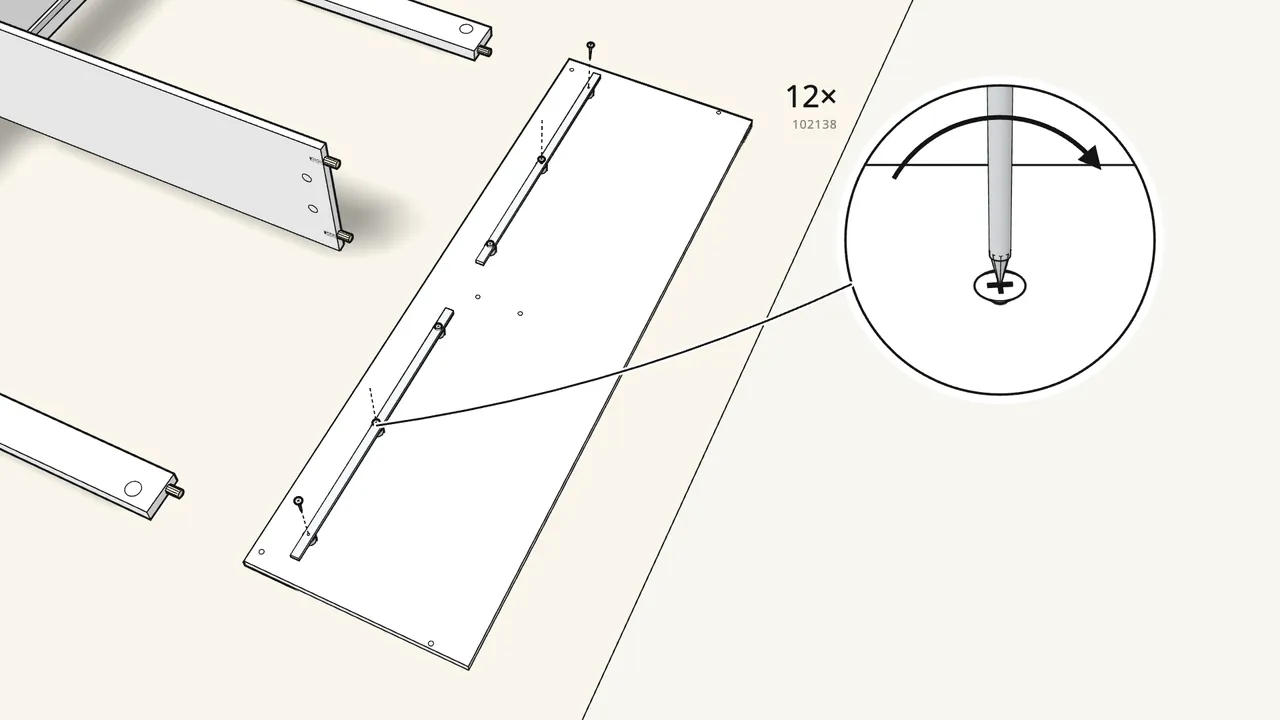

   Step 7 · manual step 12

   Screw 2 drawer runners inside the head and foot panels.

   12 long screws (102138), each through a spacer (110646). Check the CR/CL marks.

   ▶ Watch this step (1:05)

8.

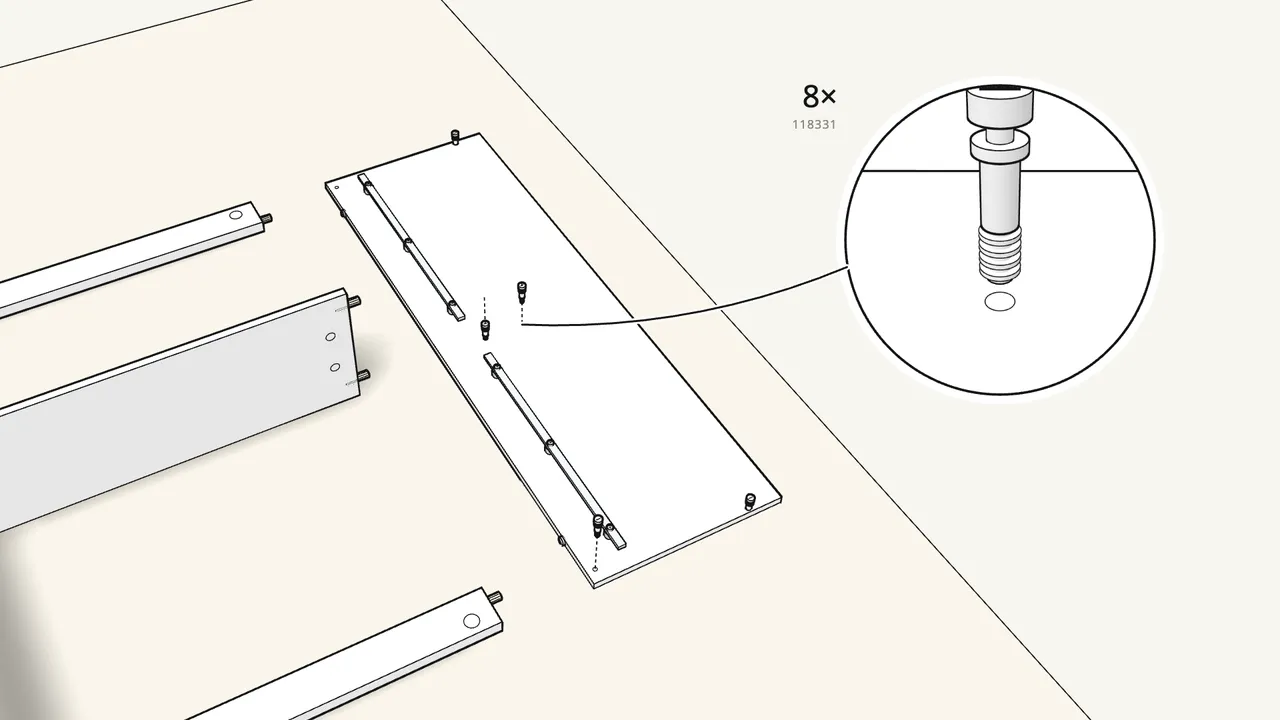

   Step 8 · manual step 13–15

   Add felt pads, 114671 bolts and cam bolts to both end panels.

   4 felt pads (122628) in the bottom edges, 4 bolts (114671) and 8 cam bolts (118331) in the inner faces.

   ▶ Watch this step (1:11)

9.

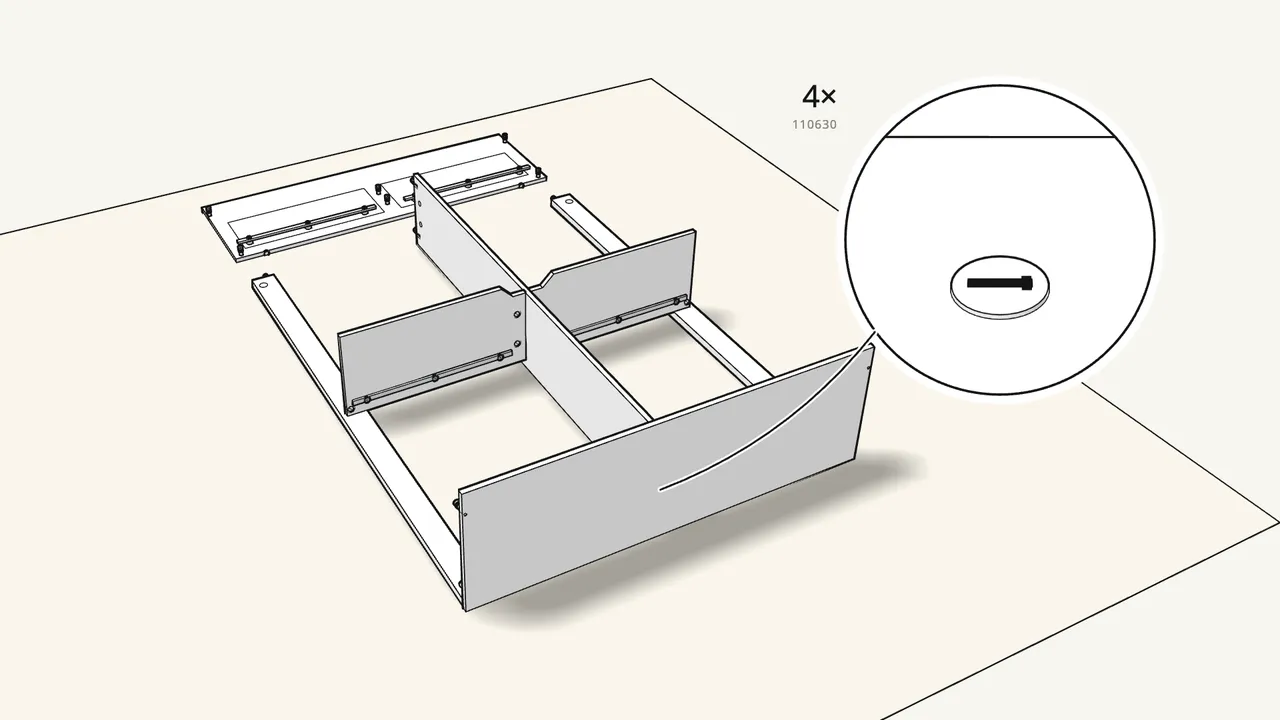

   Step 9 · manual step 16–17

   Stand the head panel up and push it onto the spine and rails.

   Lock 4 cam locks (110630) in the spine and floor rails.

   ▶ Watch this step (1:19)

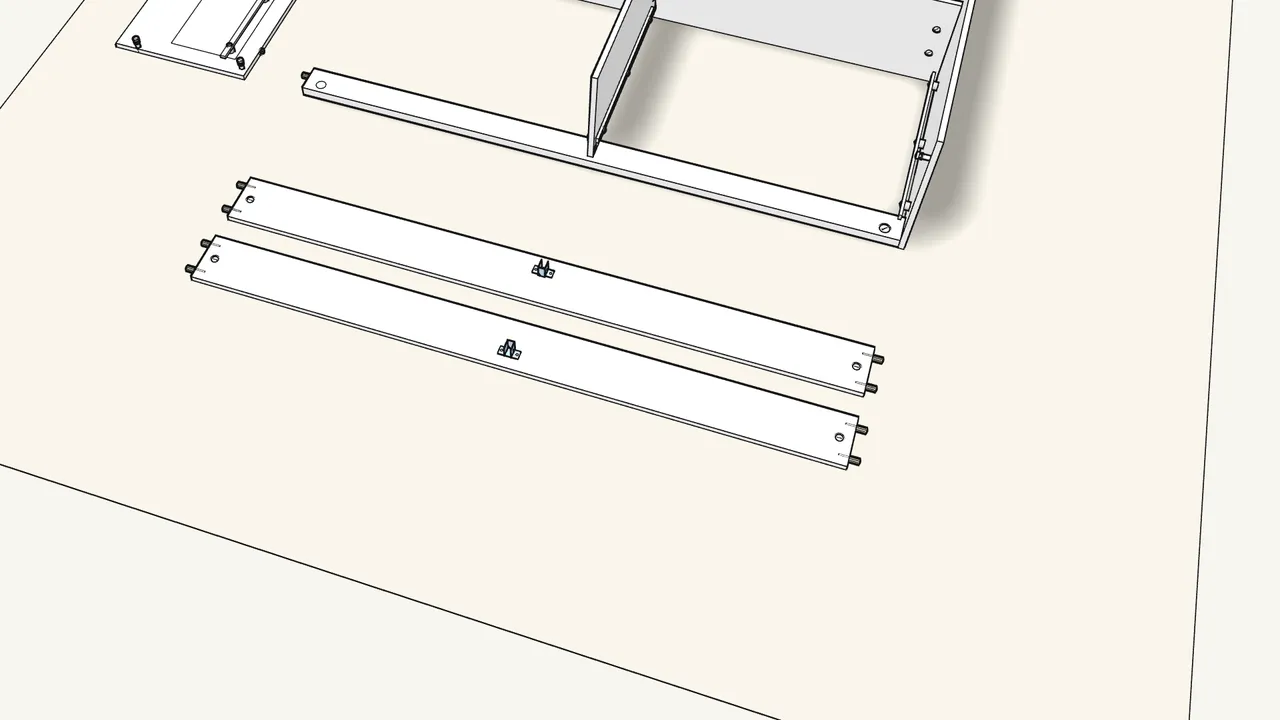

10.

    Step 10 · manual step 18–20

    Prepare both side rails: cam locks, dowels and a bracket.

    Per rail: 2 cam locks (114670), 4 dowels (101359) and bracket 121370 with 2 screws (100365).

    ▶ Watch this step (1:27)

11.

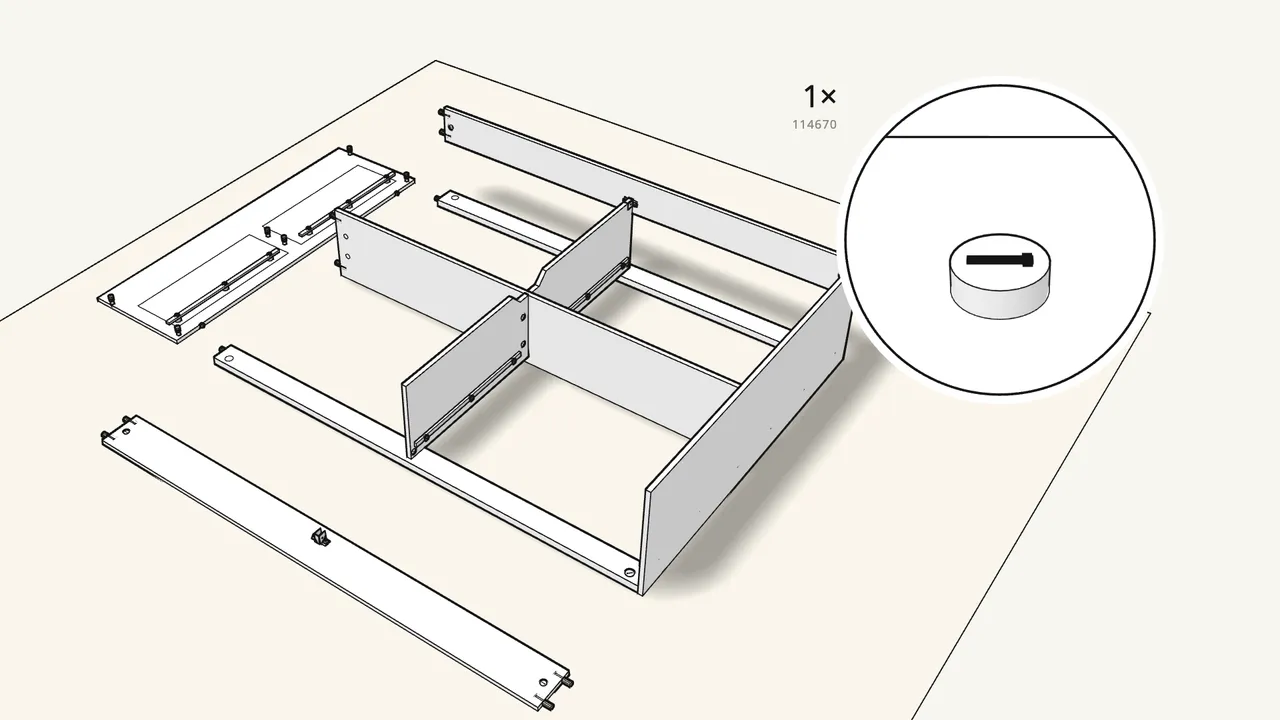

    Step 11 · manual step 21–23

    Fit the far side rail and lock it with the Allen key.

    Turn the cam lock at the head end, then fix the bracket to the divider with 1 screw (100365).

    ▶ Watch this step (1:35)

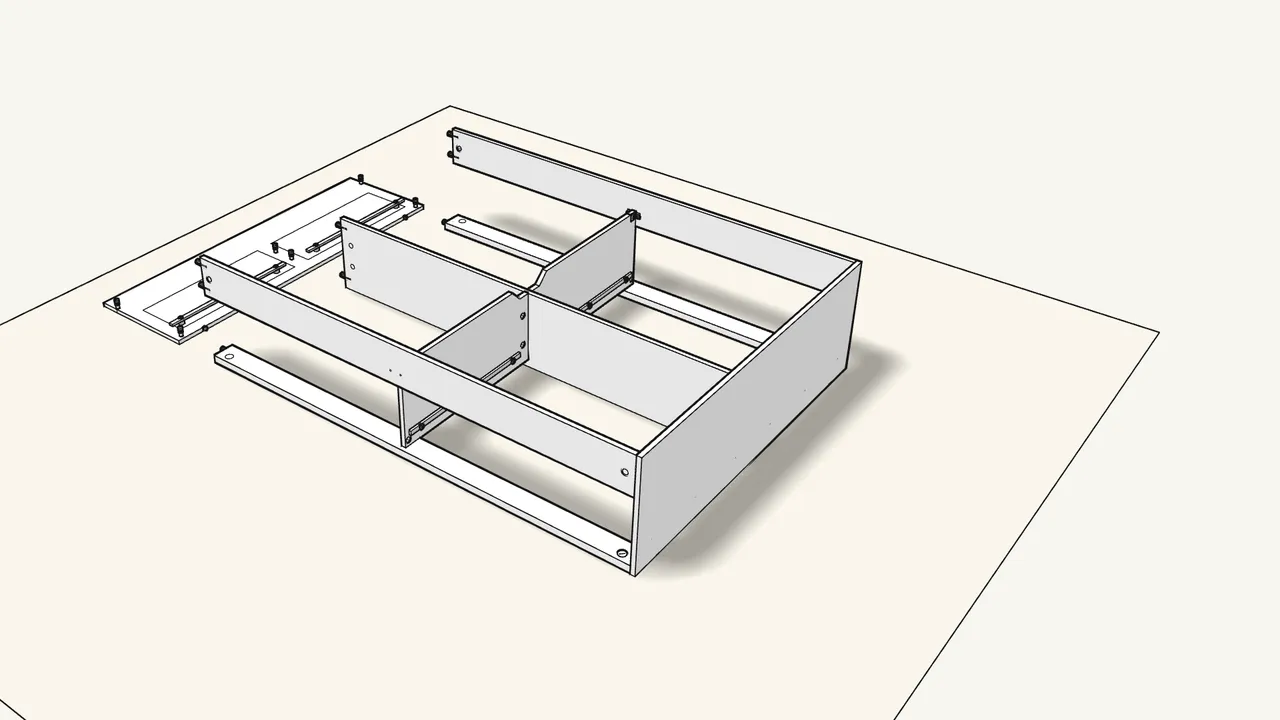

12.

    Step 12 · manual step 24–26

    Fit the near side rail the same way.

    Lock the cam lock at the head end and screw the bracket to the divider (100365).

    ▶ Watch this step (1:42)

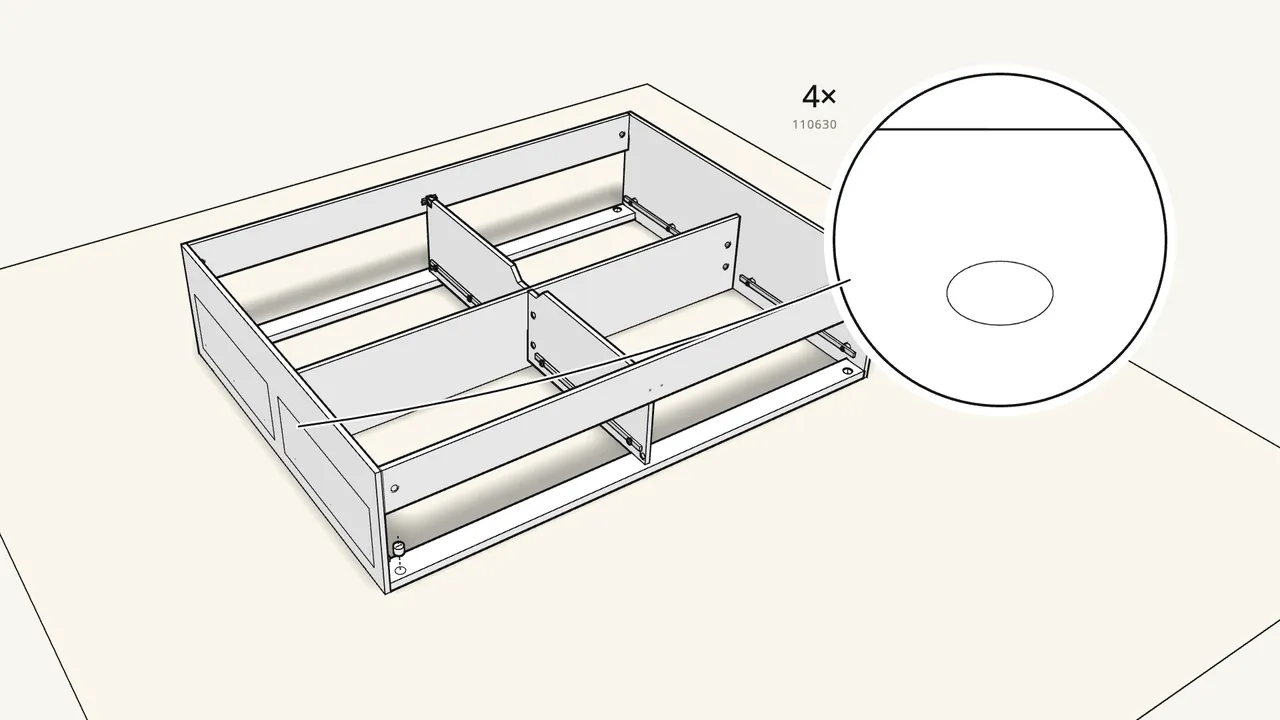

13.

    Step 13 · manual step 27–29

    Push the foot panel on and lock all its joints.

    2 cam locks (114670) in the side rails with the Allen key, 4 cam locks (110630) in the spine and floor rails.

    ▶ Watch this step (1:49)

14.

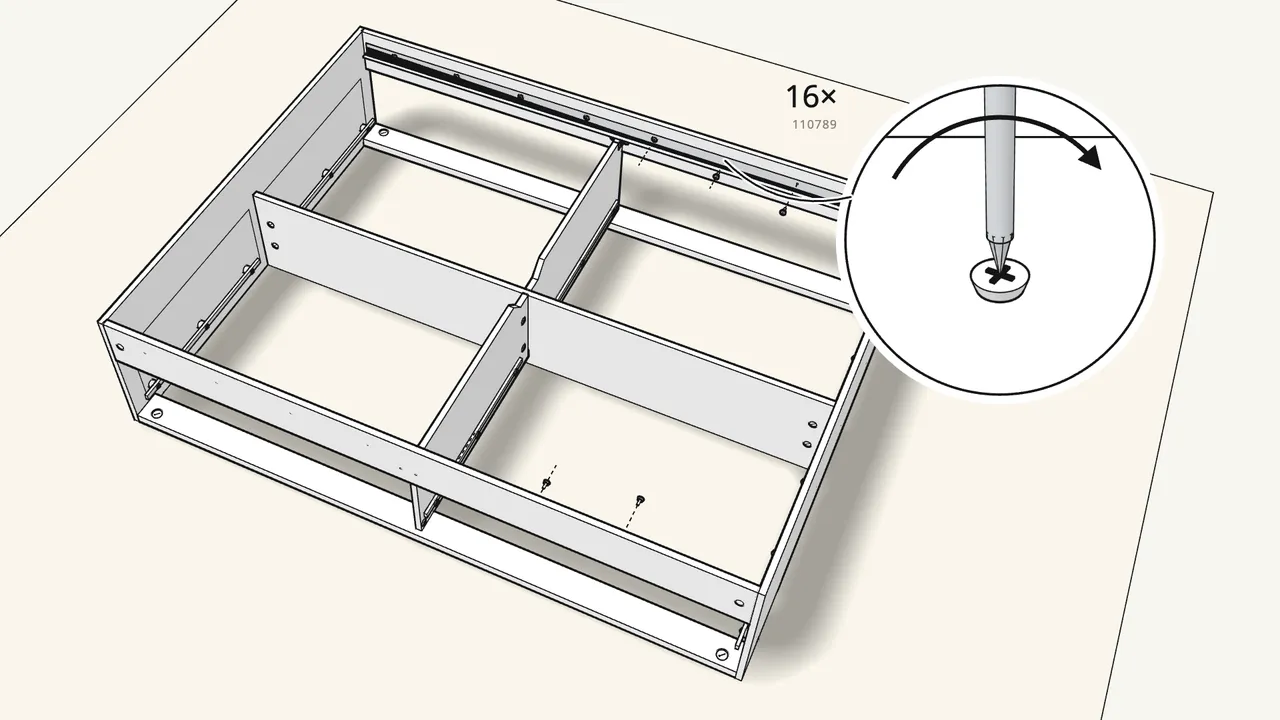

    Step 14 · manual step 30

    Screw the slat supports inside both side rails: 16 screws (110789).

    The mattress should sit inside the frame — pick the support height to suit it (manual p. 25).

    ▶ Watch this step (1:57)

15.

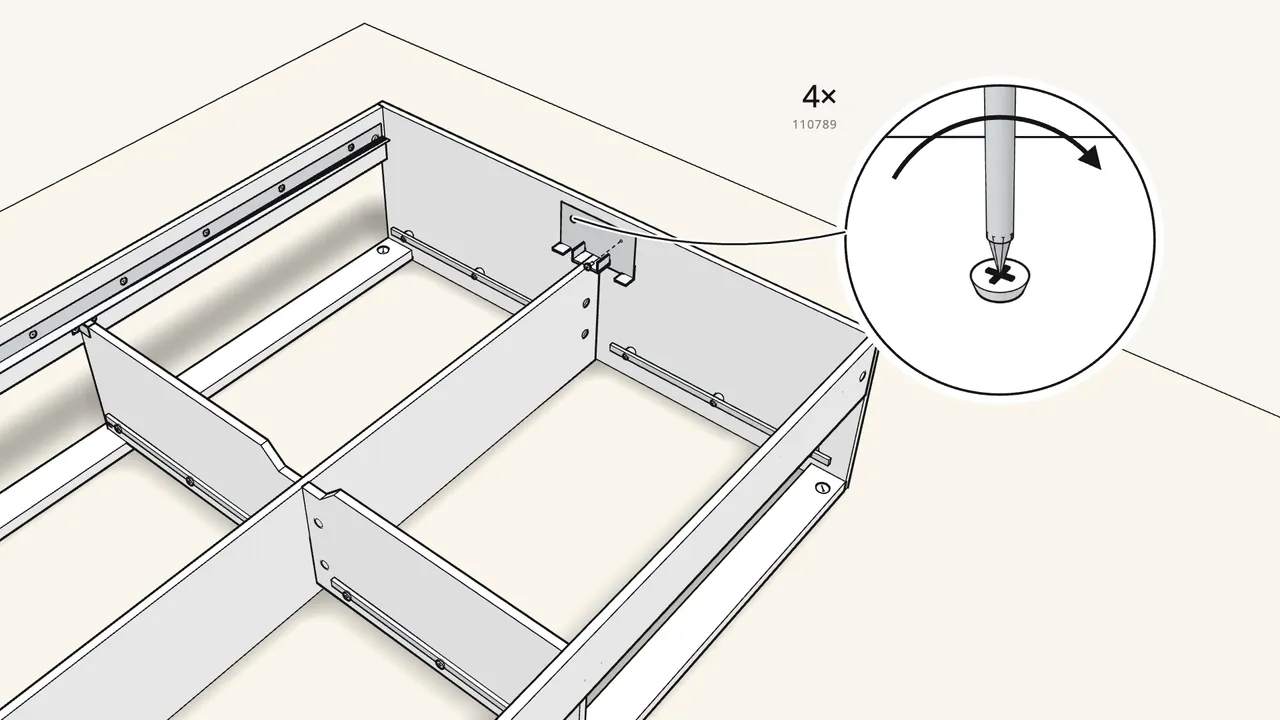

    Step 15 · manual step 31

    Screw a beam bracket (116791) inside each end panel.

    2 screws (110789) each, centred.

    ▶ Watch this step (2:03)

16.

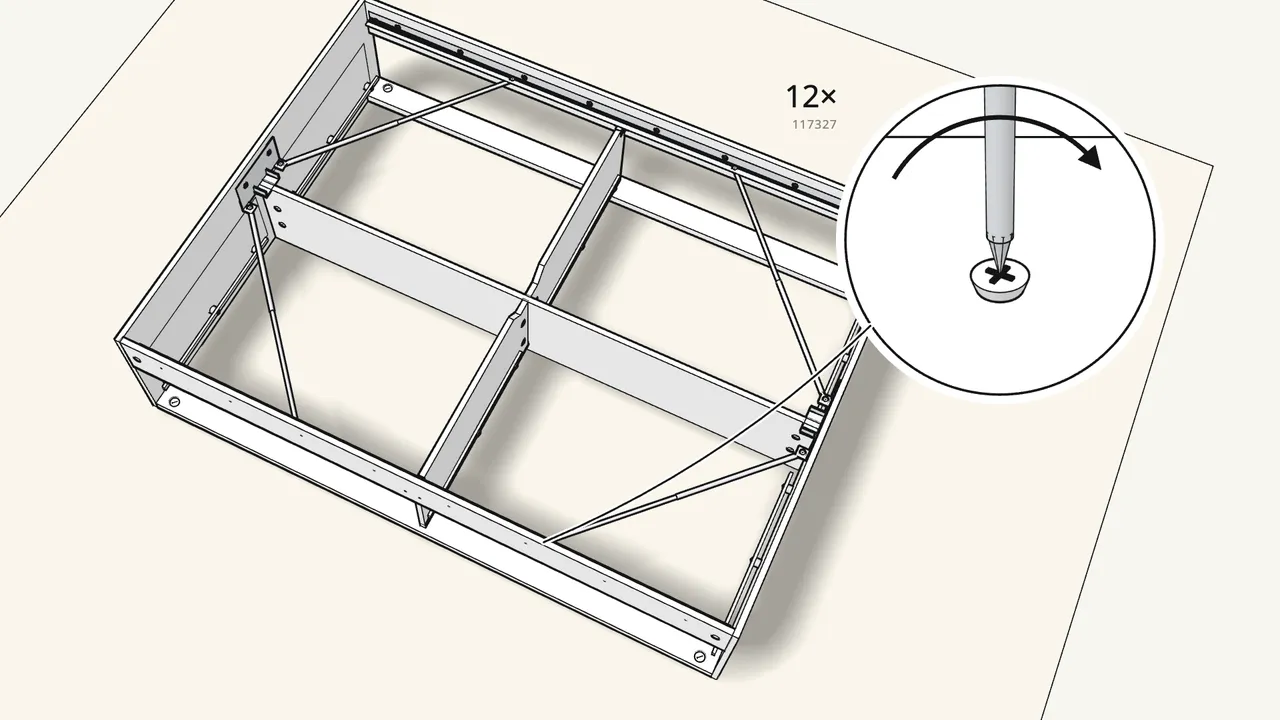

    Step 16 · manual step 32–33

    Fit the 4 rods (117228), check the frame is square, then lock them.

    8 screws (117327) at the rod ends, then 4 more in the middles. The sides must not bow.

    ▶ Watch this step (2:09)

17.

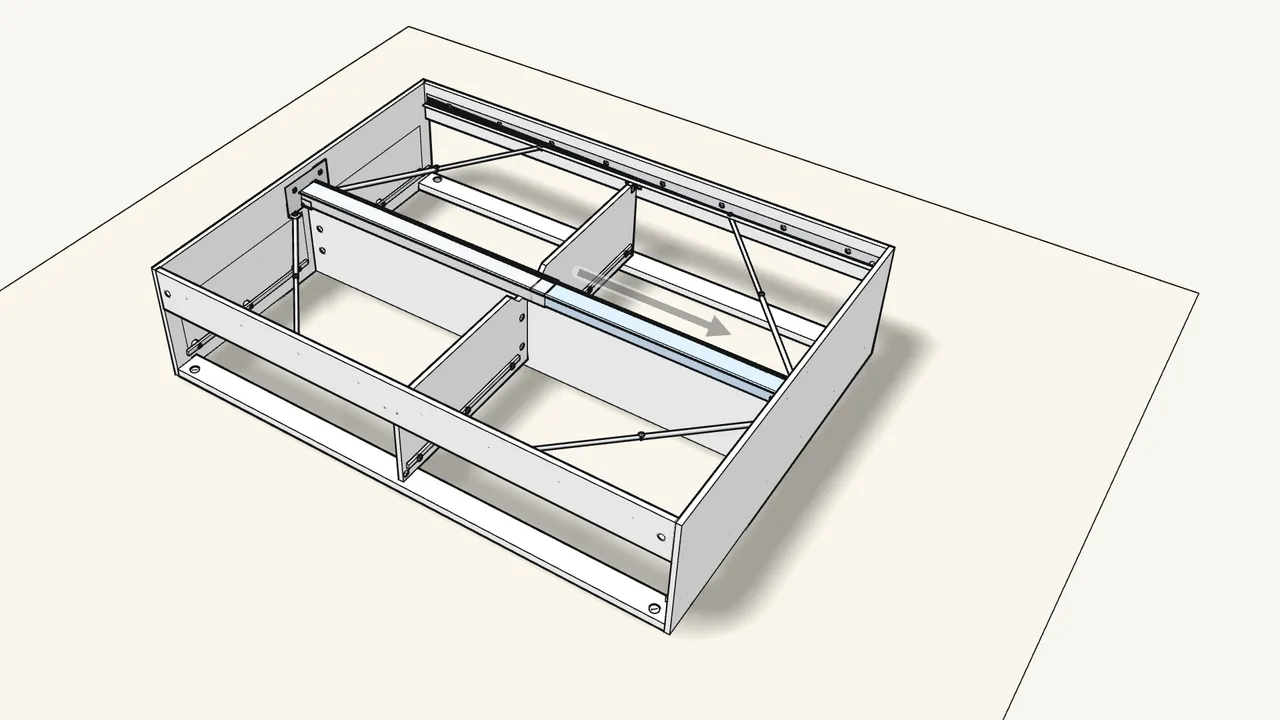

    Step 17 · manual step 34–35

    Lay the centre beam on the brackets and pull it out to full length.

    ▶ Watch this step (2:16)

18.

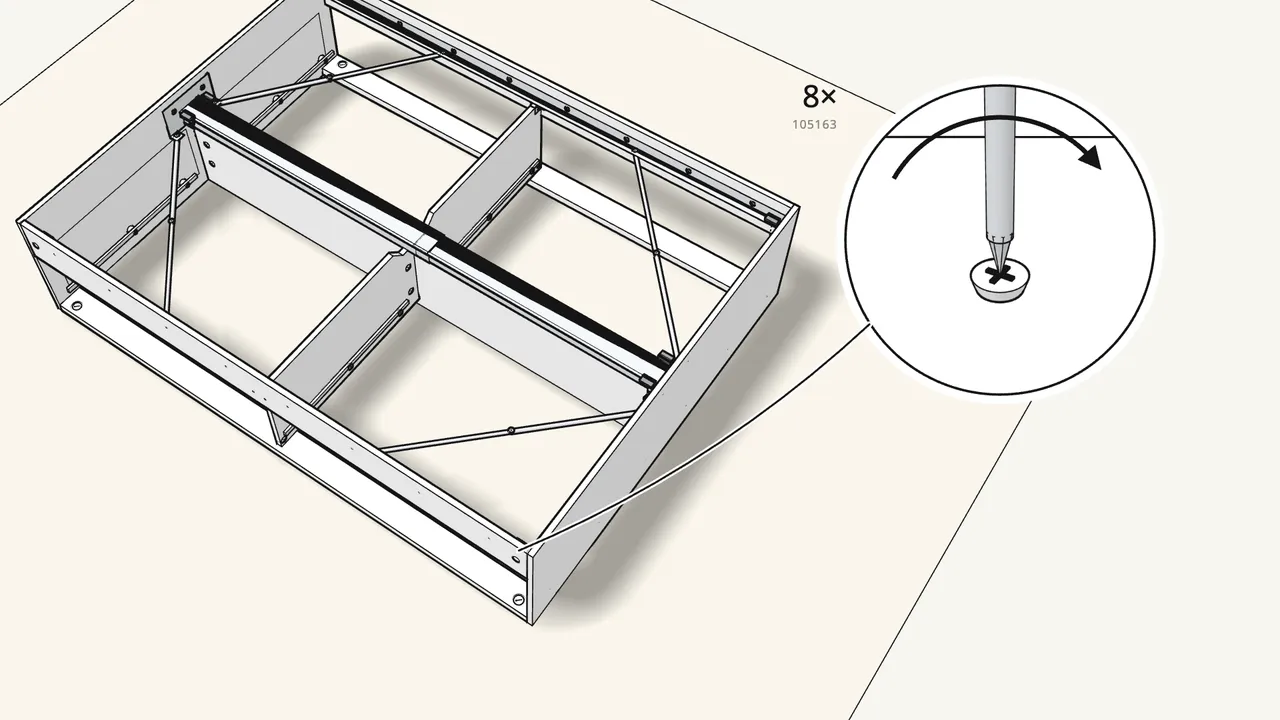

    Step 18 · manual step 36

    Fix 8 slat clips (191315) with 8 screws (105163).

    At both ends of each slat support and of the beam. Skip them for a framed slatted base (p. 30).

    ▶ Watch this step (2:22)

19.

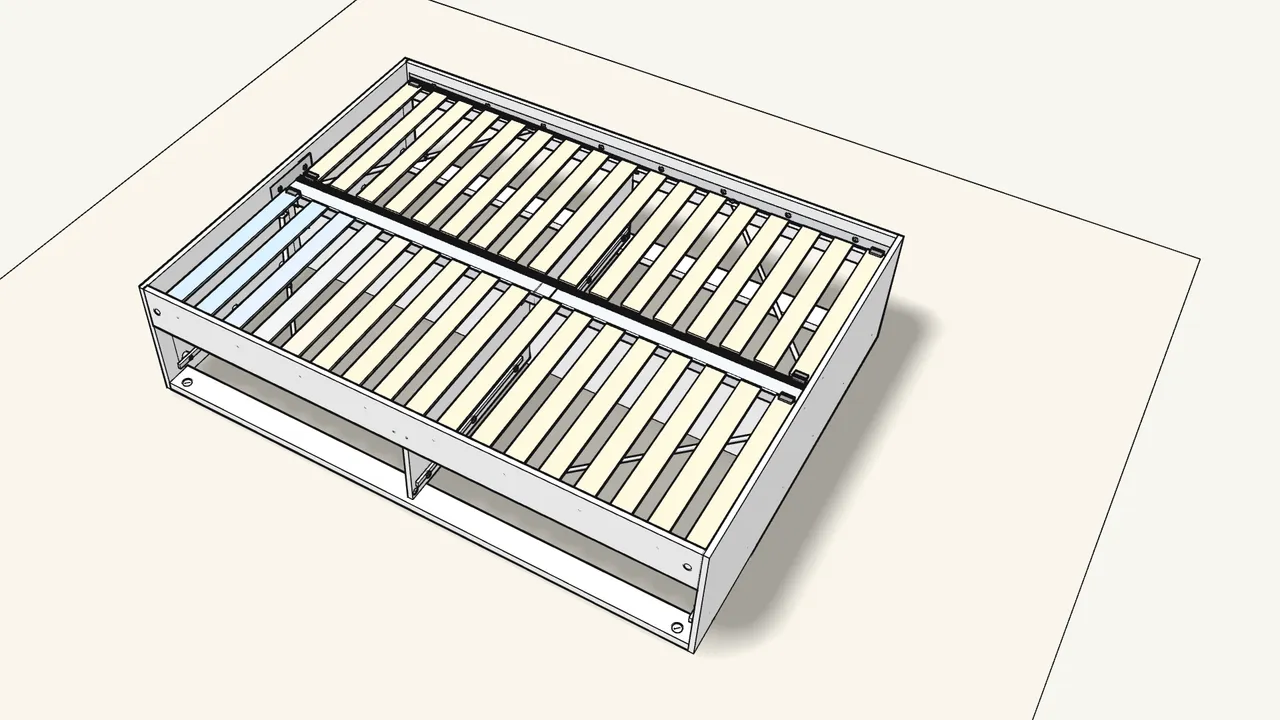

    Step 19 · manual step 37

    Roll out the slats and tuck their ends under the clips.

    One roll each side of the centre beam.

    ▶ Watch this step (2:28)

20.

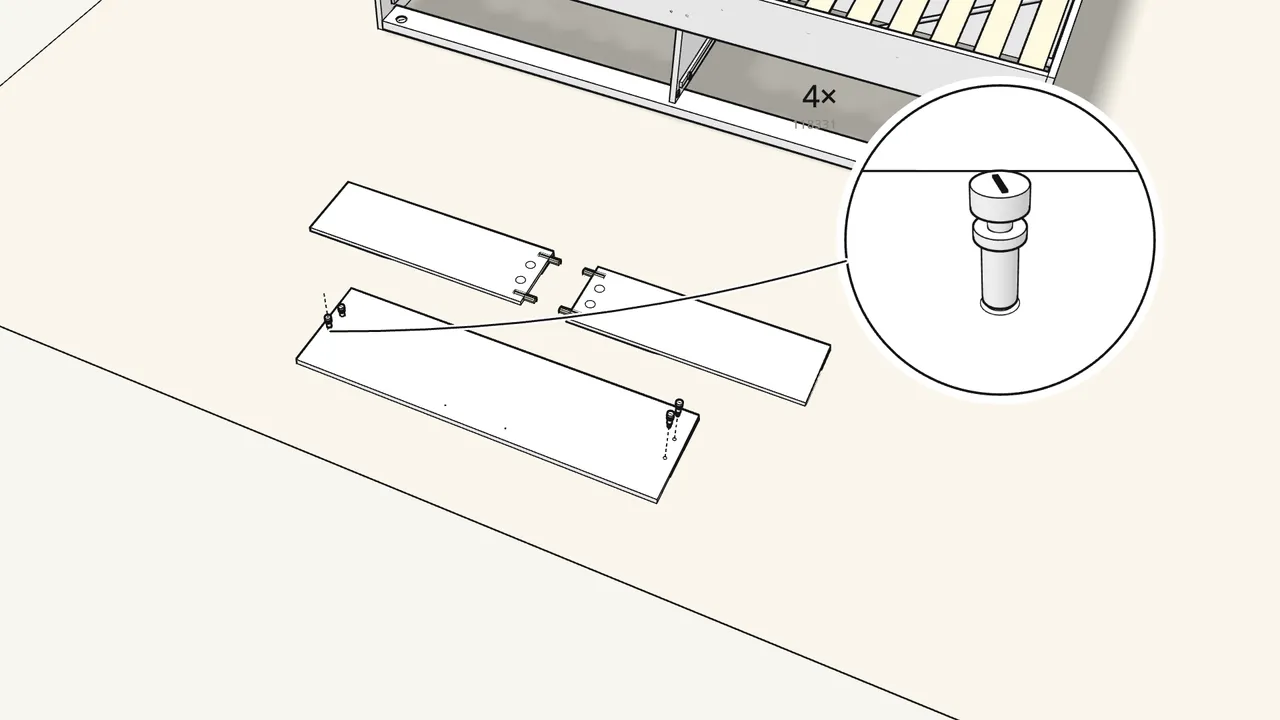

    Step 20 · manual step 38–39

    Now a drawer: 4 dowels (101345) in the sides, 4 cam bolts in the front.

    Lay the front face-down on the rug. Cam bolts 118331.

    ▶ Watch this step (2:34)

21.

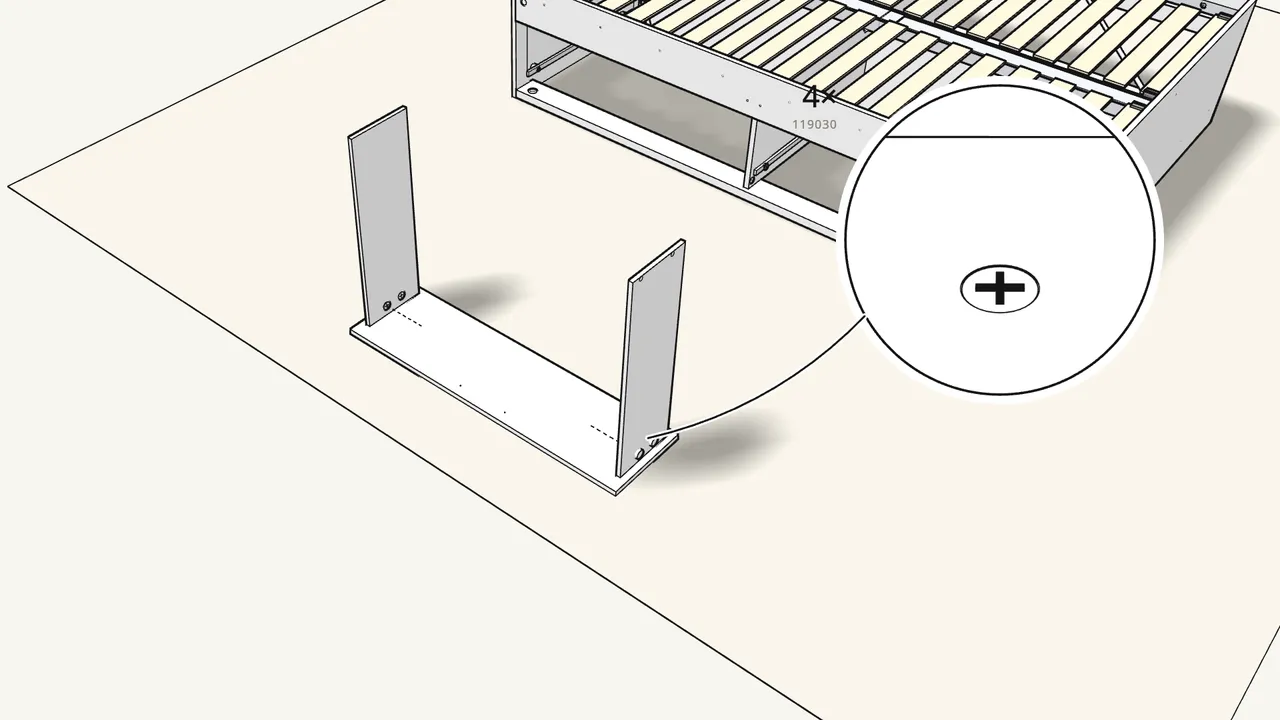

    Step 21 · manual step 40–41

    Stand the sides on the front and lock 4 cam locks (119030).

    Use 119030/118224 here — not 110630.

    ▶ Watch this step (2:41)

22.

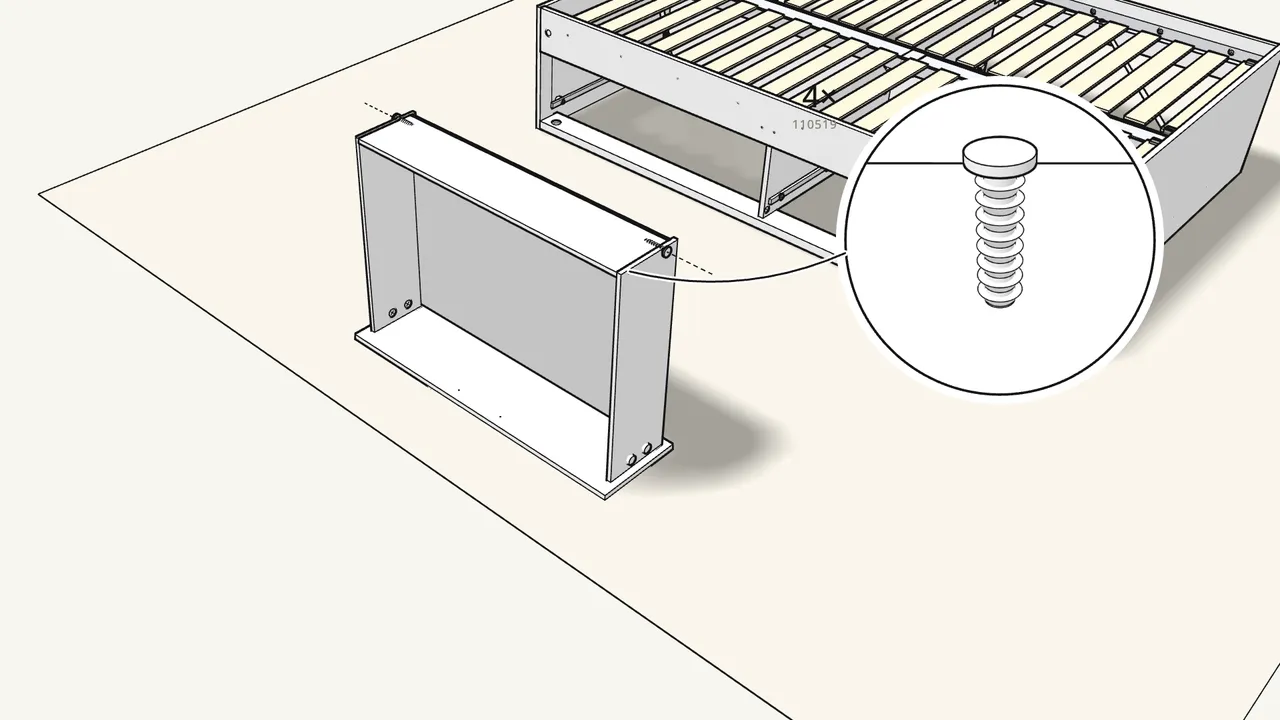

    Step 22 · manual step 42–44

    Slide in the bottom, add the back, tap in 4 screw-dowels (110519).

    The bottom goes into the grooves. Hammer the screw-dowels through the sides into the back.

    ▶ Watch this step (2:47)

23.

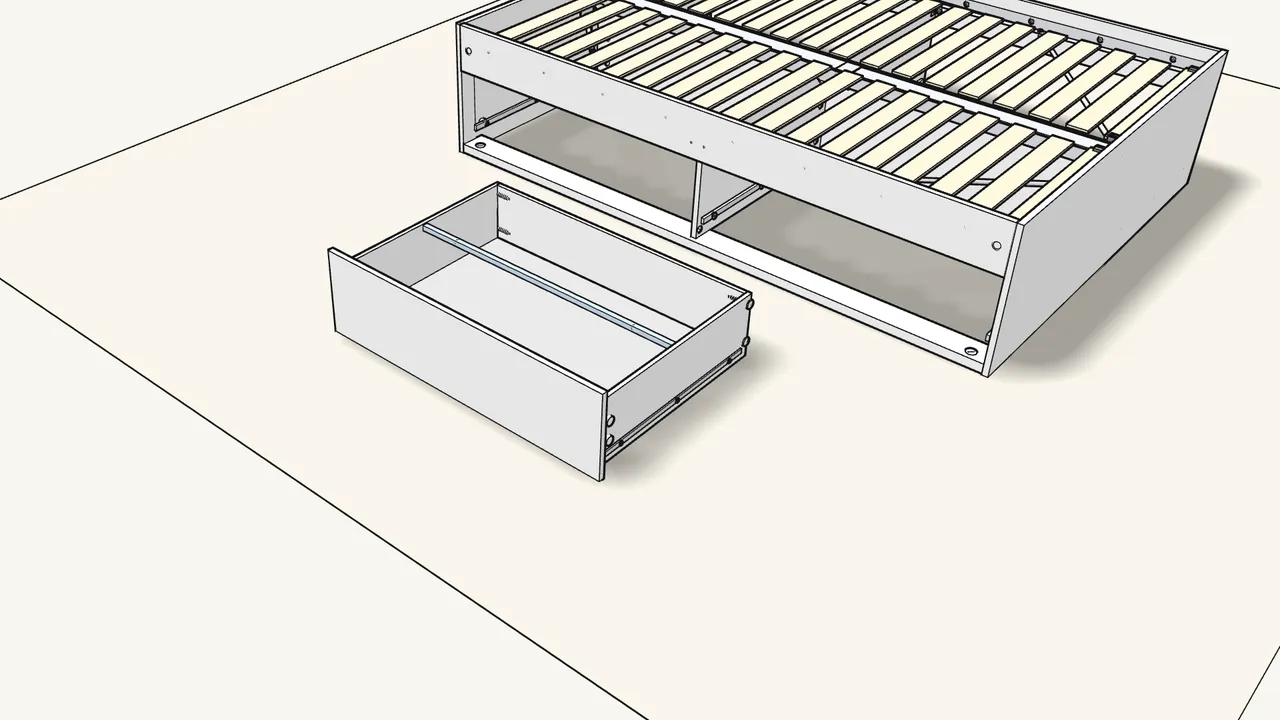

    Step 23 · manual step 45–47

    Turn it over; fit the runners, the rod and the handle.

    Runners: 6 screws (100365). Rod 118301: 2 screws (100359). Handle: 2 screws (109567).

    ▶ Watch this step (2:54)

24.

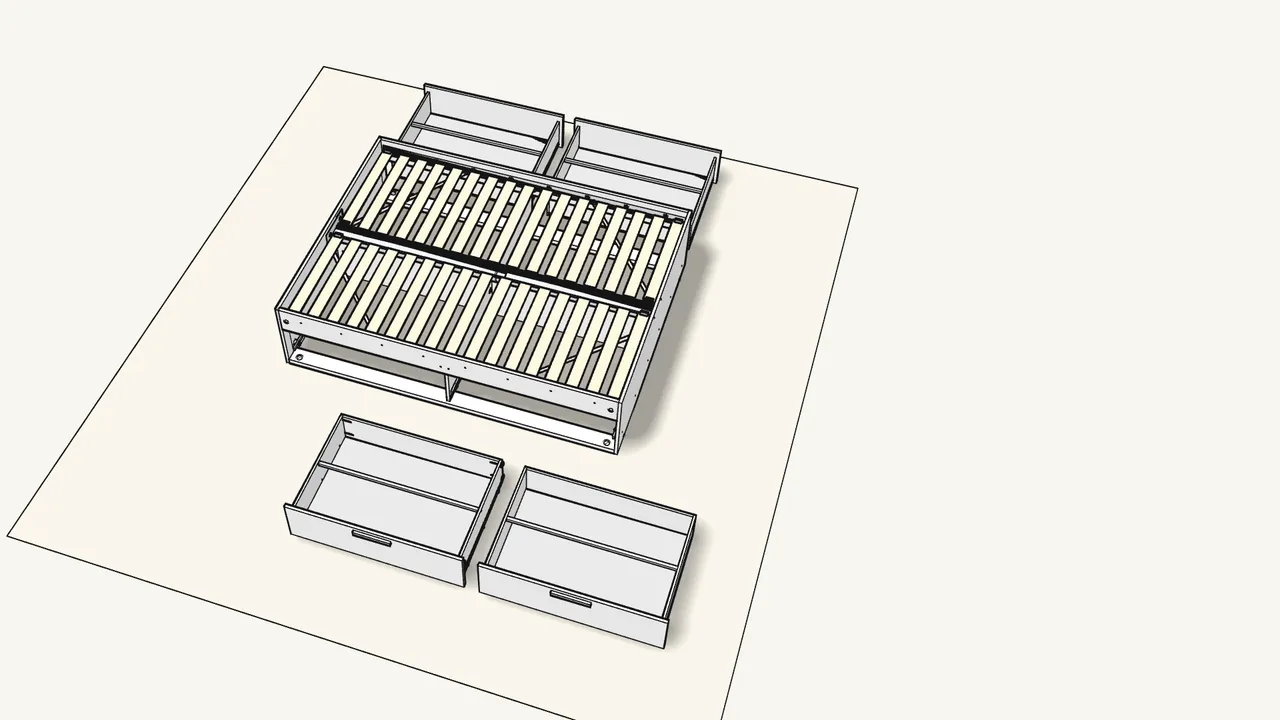

    Step 24 · manual step 38–47

    Build all four drawers the same way.

    ▶ Watch this step (3:02)

25.

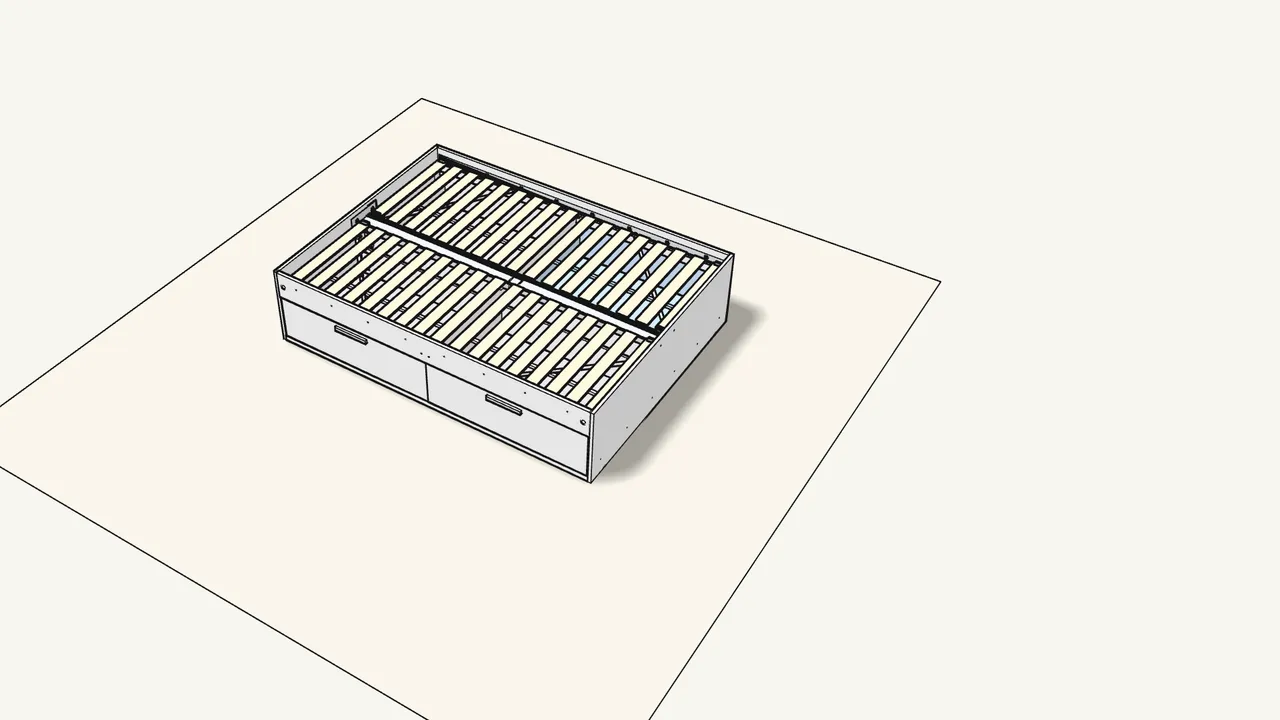

    Step 25 · manual step 48

    Slide the drawers into the bed — two on each side.

    ▶ Watch this step (3:06)
