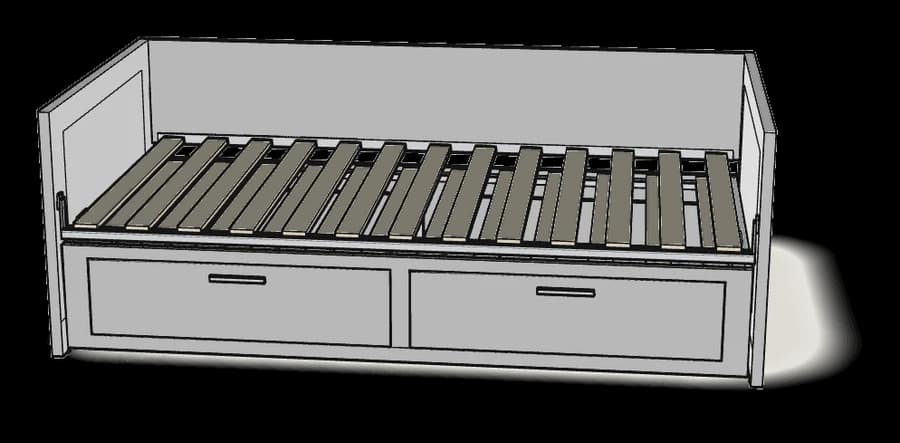

How to Assemble IKEA BRIMNES Daybed Frame with 2 Drawers

Step-by-step assembly

1.

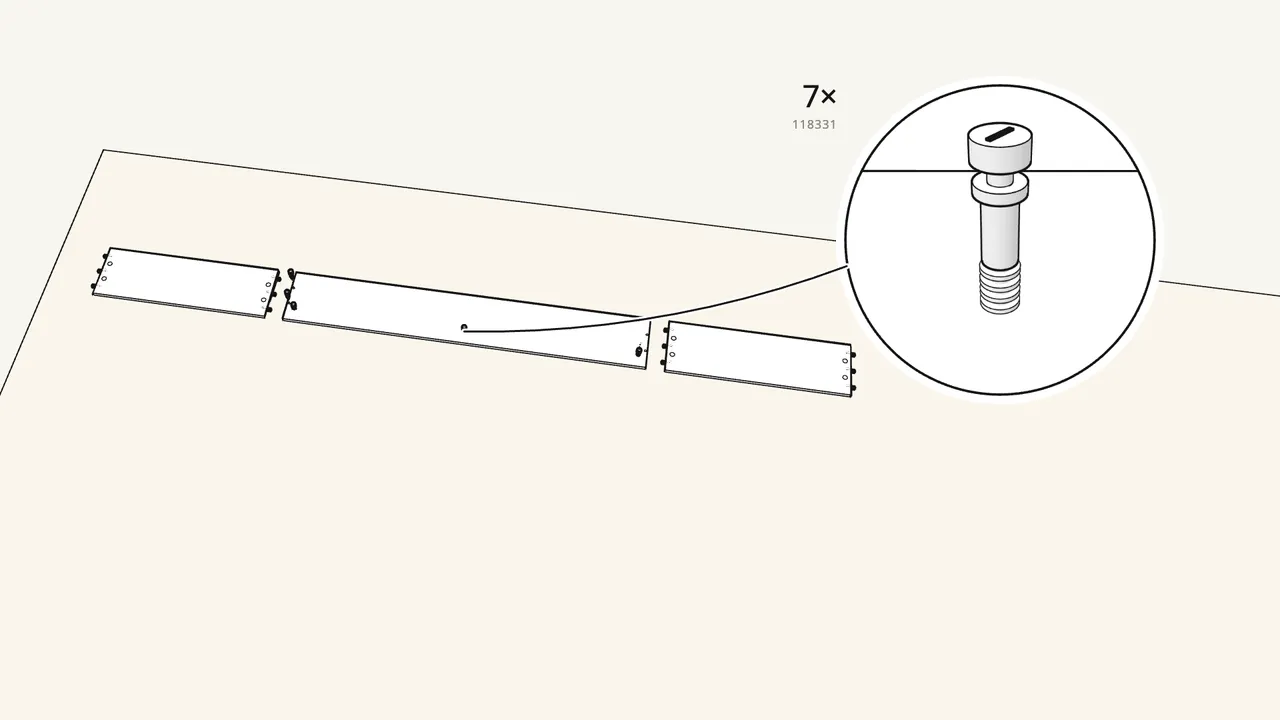

   Step 1 · manual step 1–2

   Section 1 · pull-out bed. 12 dowels, then 7 cam bolts.

   Dowels (101345) in the two end panels, cam bolts (118331) in the long panel.

   ▶ Watch this step (0:19)

2.

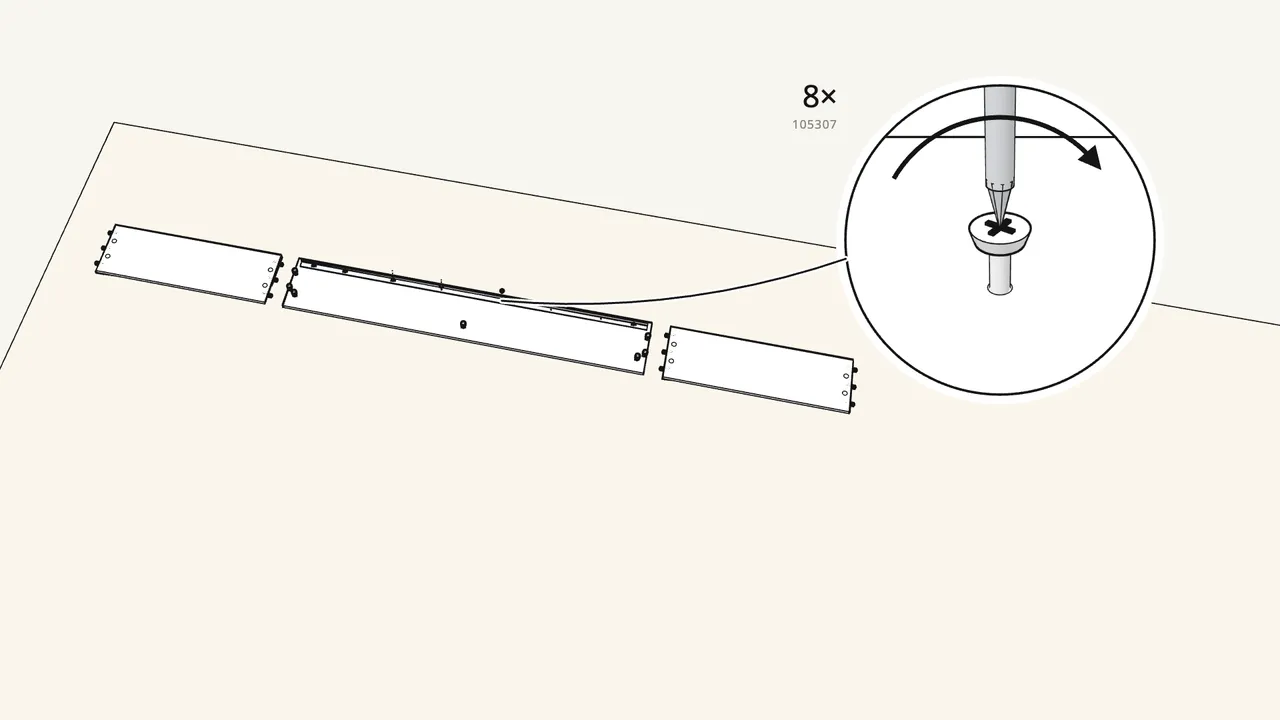

   Step 2 · manual step 3–4

   Screw the slat rail (112976) along the long panel.

   8 screws (105307) — not 102138 or 100372.

   ▶ Watch this step (0:25)

3.

   Step 3 · manual step 5–7

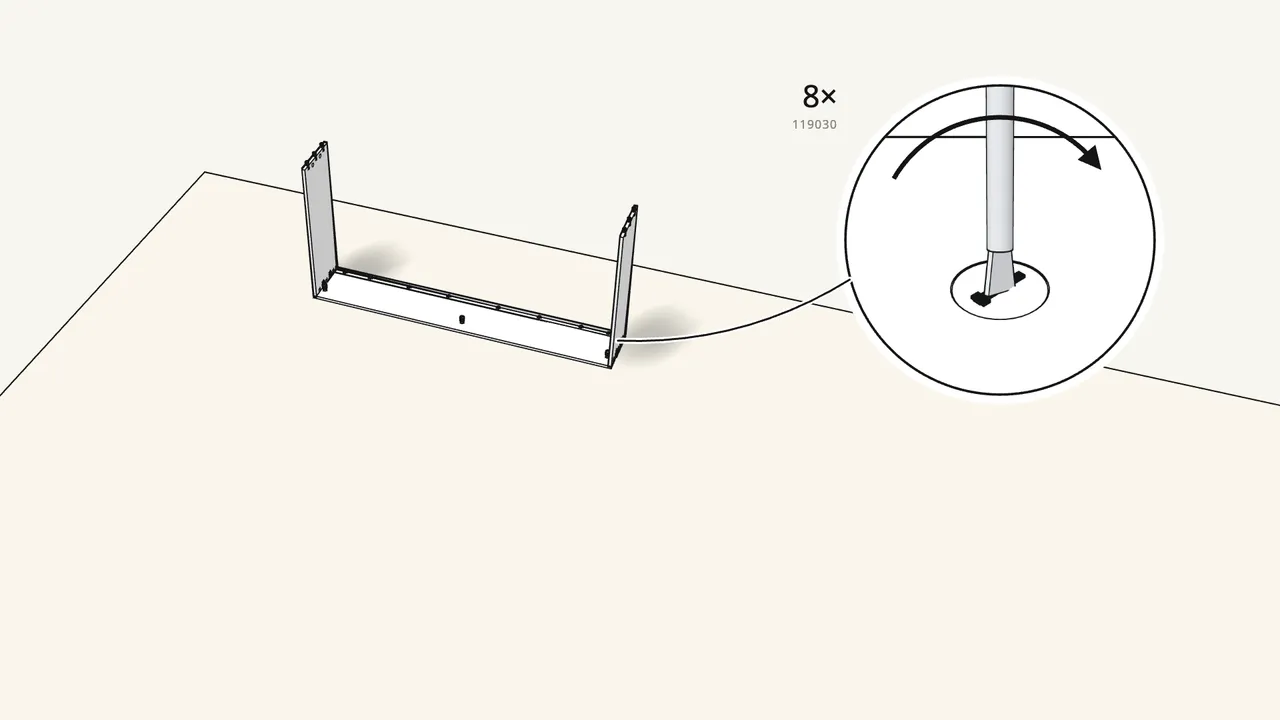

   Stand both end panels up on the long panel. Lock 4 cam locks.

   Cam locks 119030. Put 4 more into the other ends — don’t turn those yet.

   ▶ Watch this step (0:30)

4.

   Step 4 · manual step 8–11

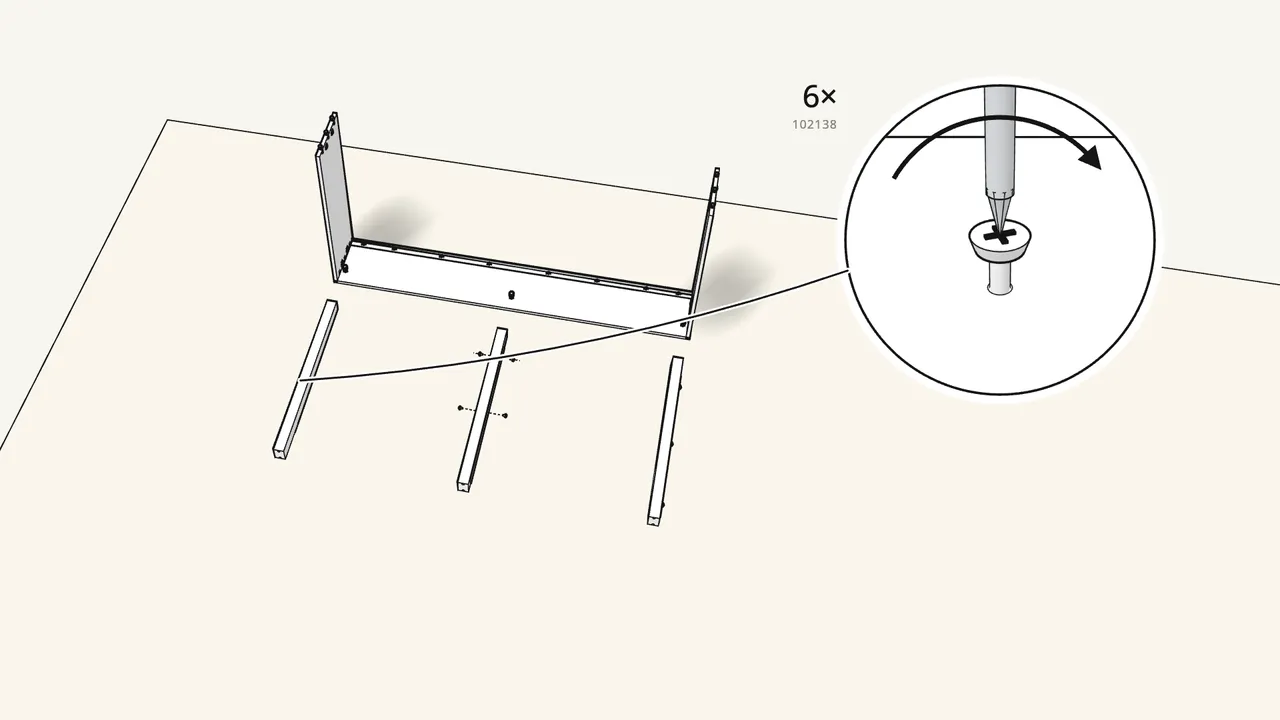

   Screw the drawer runners (139505) onto the 3 beams.

   Mind CR / CL. 2 go on with spacers (110646) + screws 102138, 2 with screws 100372.

   ▶ Watch this step (0:37)

5.

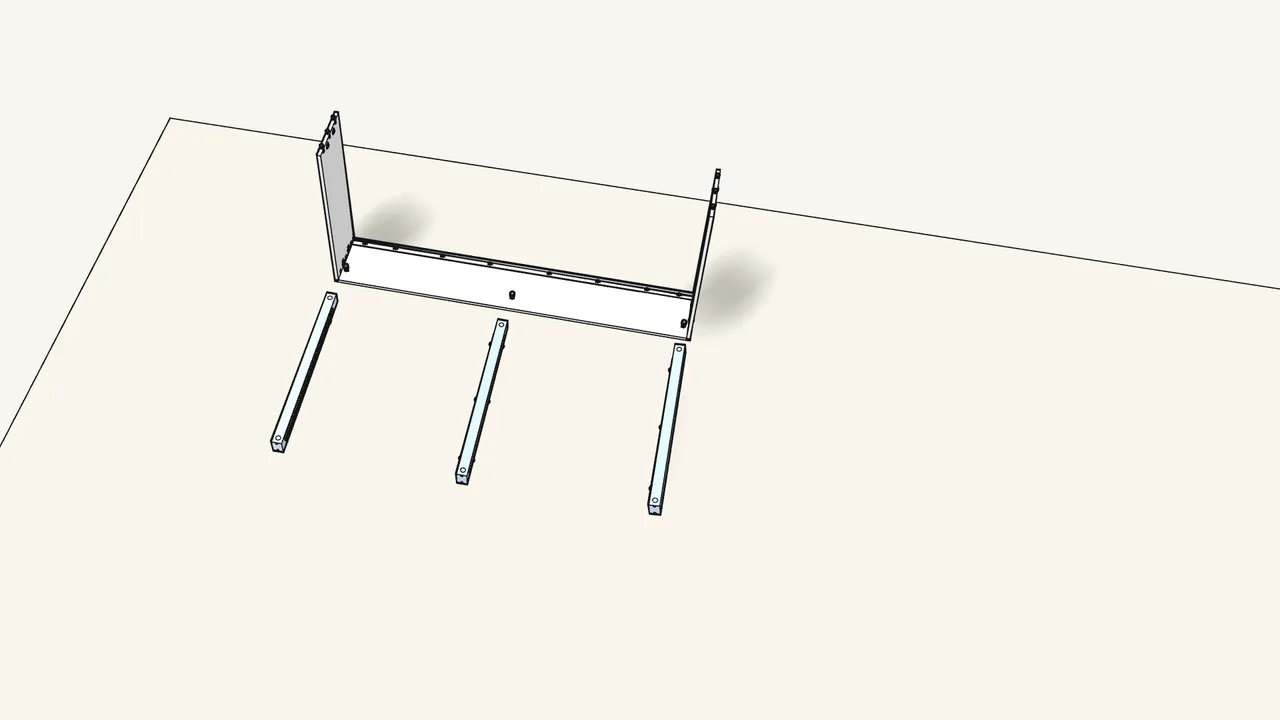

   Step 5 · manual step 12–13

   Screw 2 castors (111401) under each beam, turn them over.

   12 screws (109567). Then push 12 dowels (101345) into the beam ends.

   ▶ Watch this step (0:44)

6.

   Step 6 · manual step 14–15

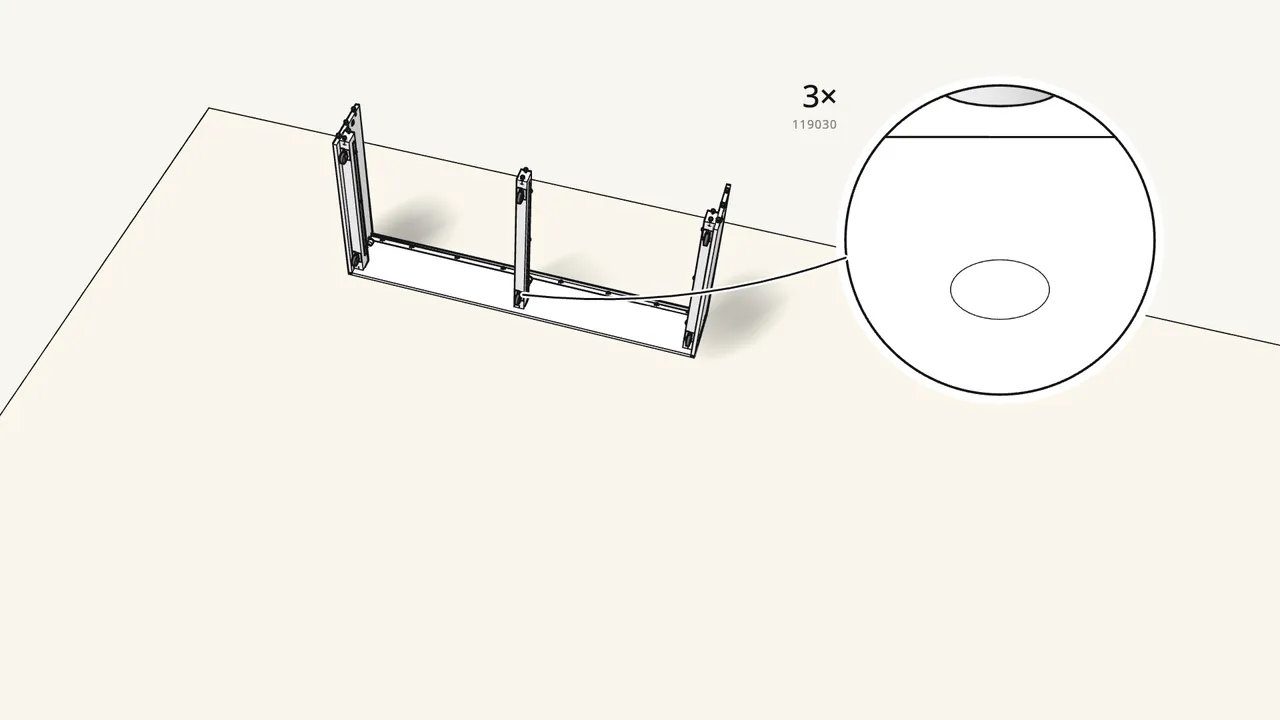

   Stand the 3 beams up on the long panel. Lock 3 cam locks.

   Cam locks 119030 — turn them clockwise with the flat screwdriver.

   ▶ Watch this step (0:51)

7.

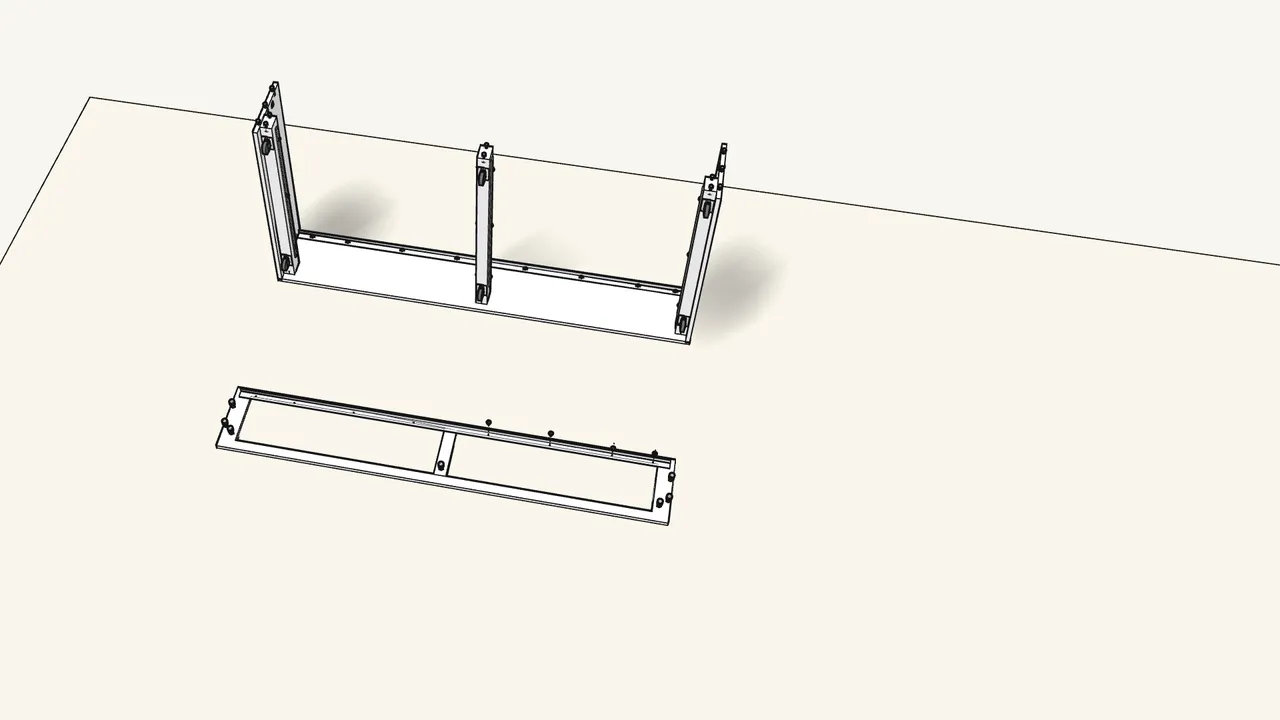

   Step 7 · manual step 16–18

   Face frame: 7 cam bolts (118331), then the second slat rail.

   The rail (112976) takes 8 screws (105307).

   ▶ Watch this step (0:57)

8.

   Step 8 · manual step 19–21

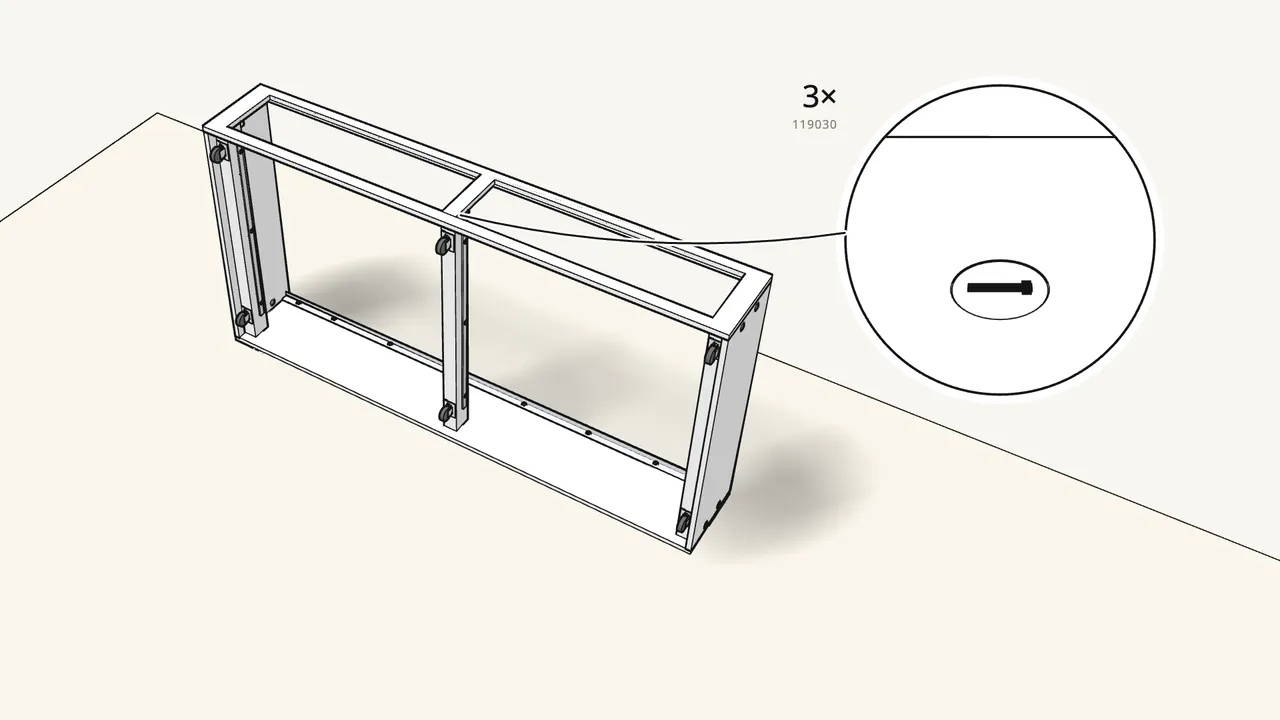

   Turn the face frame over onto the unit. Lock the cam locks.

   Turn the 4 in the end panels, then add and turn 3 more (119030) in the beams.

   ▶ Watch this step (1:03)

9.

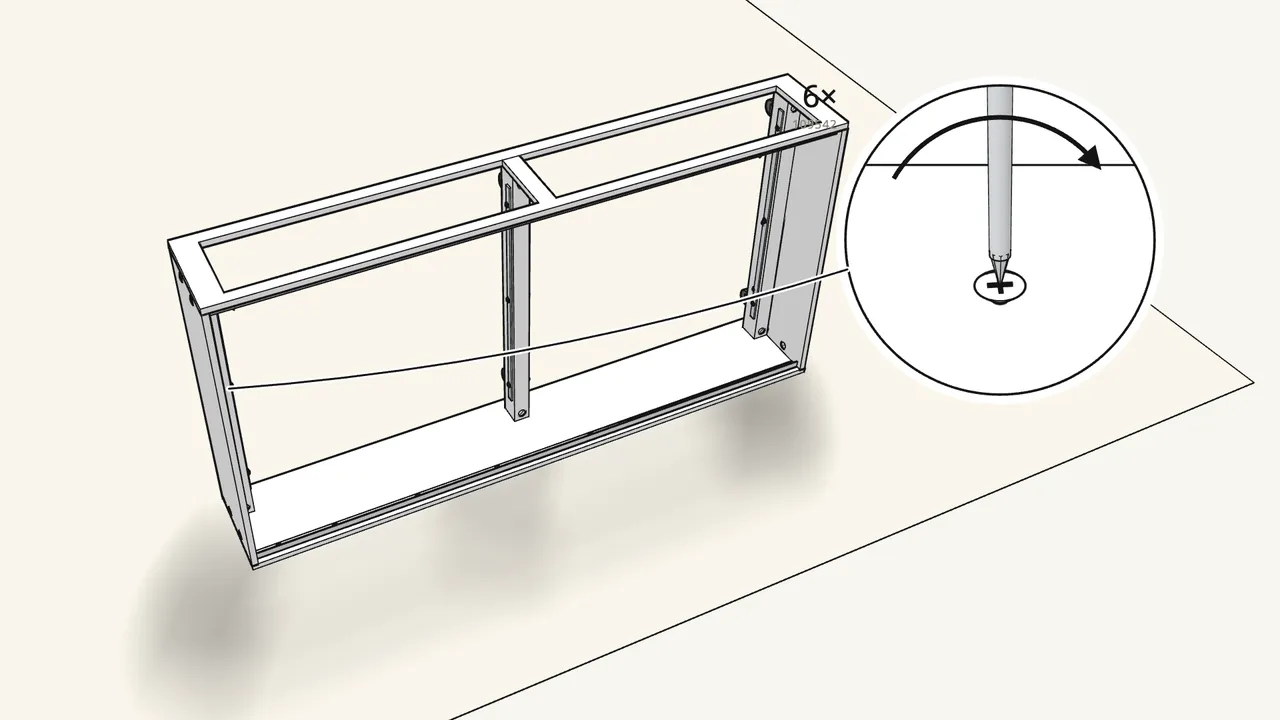

   Step 9 · manual step 22

   Screw the two outer beams to the end panels.

   6 long screws (109542), 3 per side.

   ▶ Watch this step (1:11)

10.

    Step 10 · manual step 23

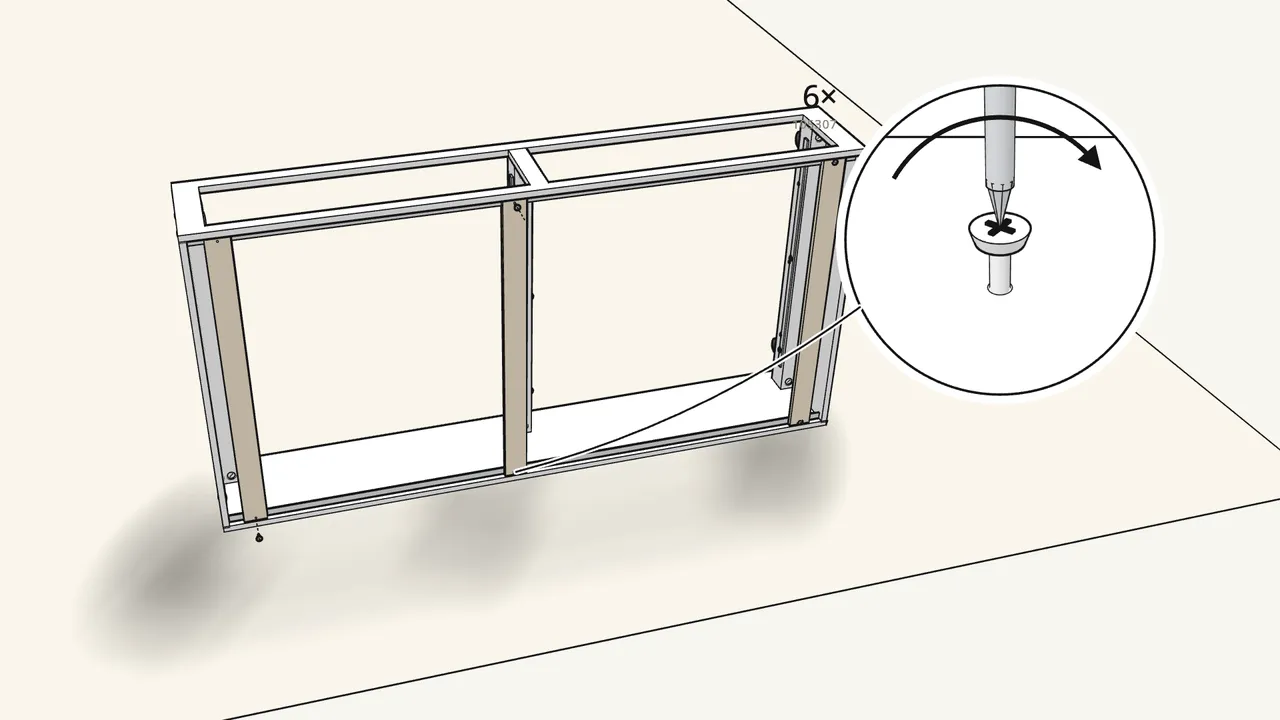

    Screw 3 of the 12 shorter slats onto the rails.

    6 screws (105307). The 13 longer slats are for the frame.

    ▶ Watch this step (1:15)

11.

    Step 11 · manual step 24–25

    Stand the pull-out bed up. Pin the other 9 slats and lay them in.

    18 pins (110525) go into the holes in the slat rails.

    ▶ Watch this step (1:20)

12.

    Step 12 · manual step 26–27

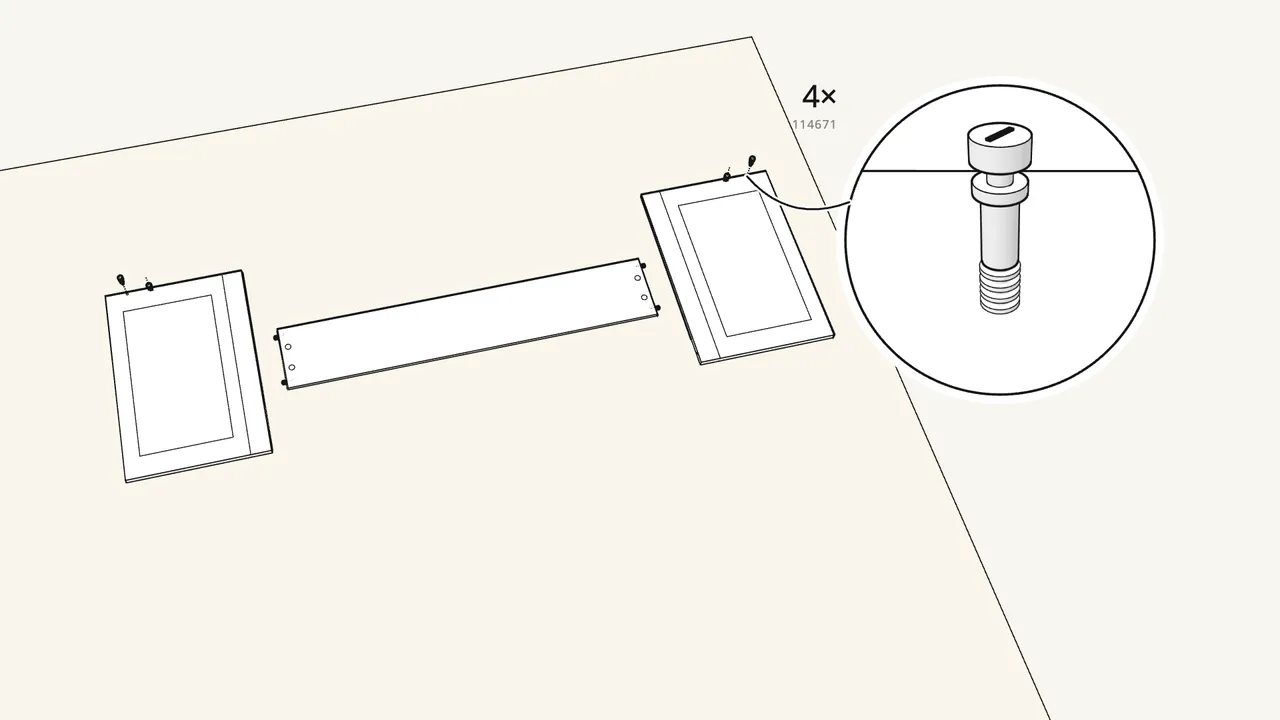

    Section 2 · frame. 4 dowels in the back panel, 4 bolts in the ends.

    Dowels 101359; screw the bolts (114671) in by hand.

    ▶ Watch this step (1:28)

13.

    Step 13 · manual step 28–29

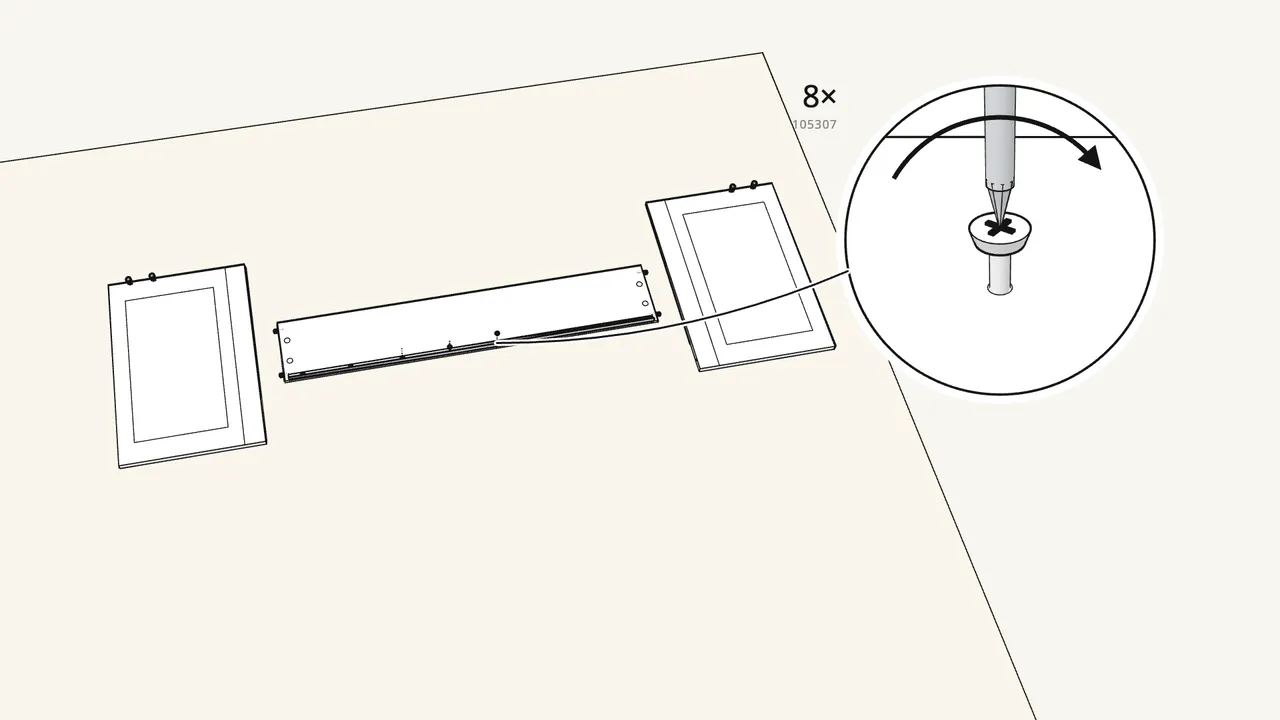

    Screw the slat rail (112976) to the back panel.

    2 + 6 screws (105307).

    ▶ Watch this step (1:34)

14.

    Step 14 · manual step 30–31

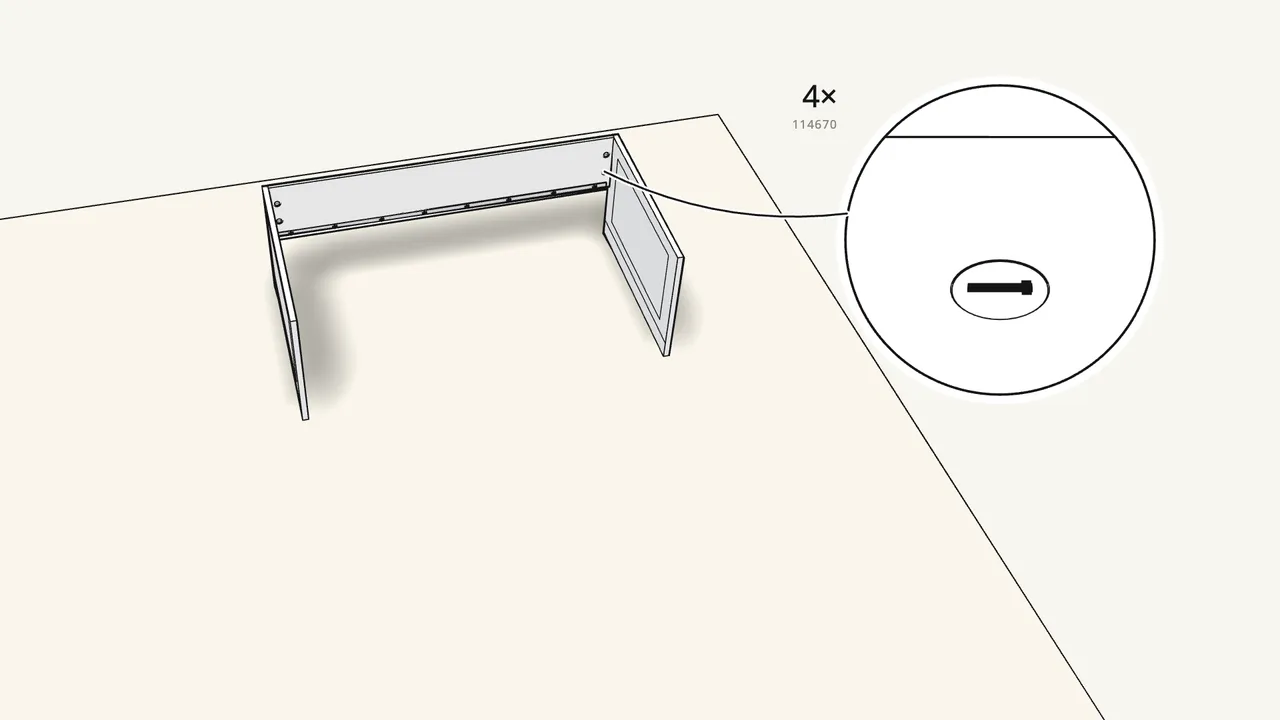

    Fit 4 connectors (114670), join the panels, tighten.

    Tighten the connectors with the Allen key 100049 in the order shown in the manual.

    ▶ Watch this step (1:39)

15.

    Step 15 · manual step 32–33

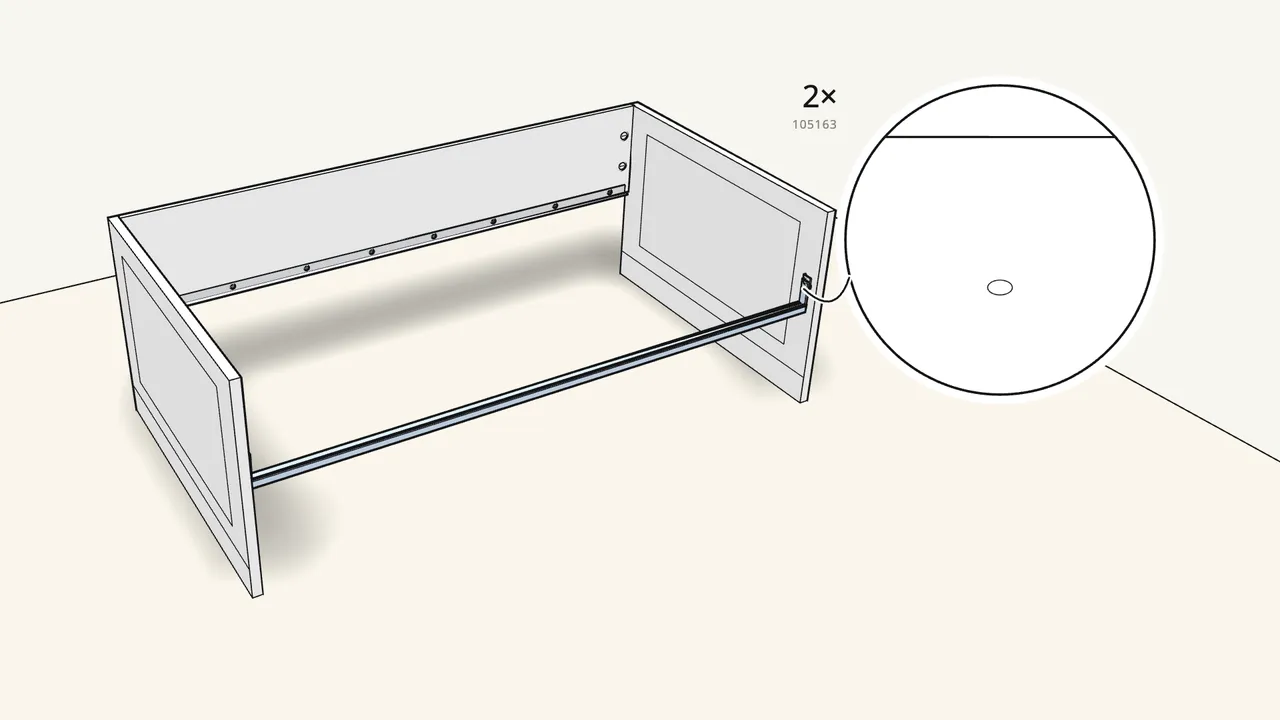

    Screw on 2 brackets (130485) and hang the front bar in them.

    Brackets: 105307. Bar (112978): 2 screws 105163 + connectors 100602 — Allen key 108490.

    ▶ Watch this step (1:47)

16.

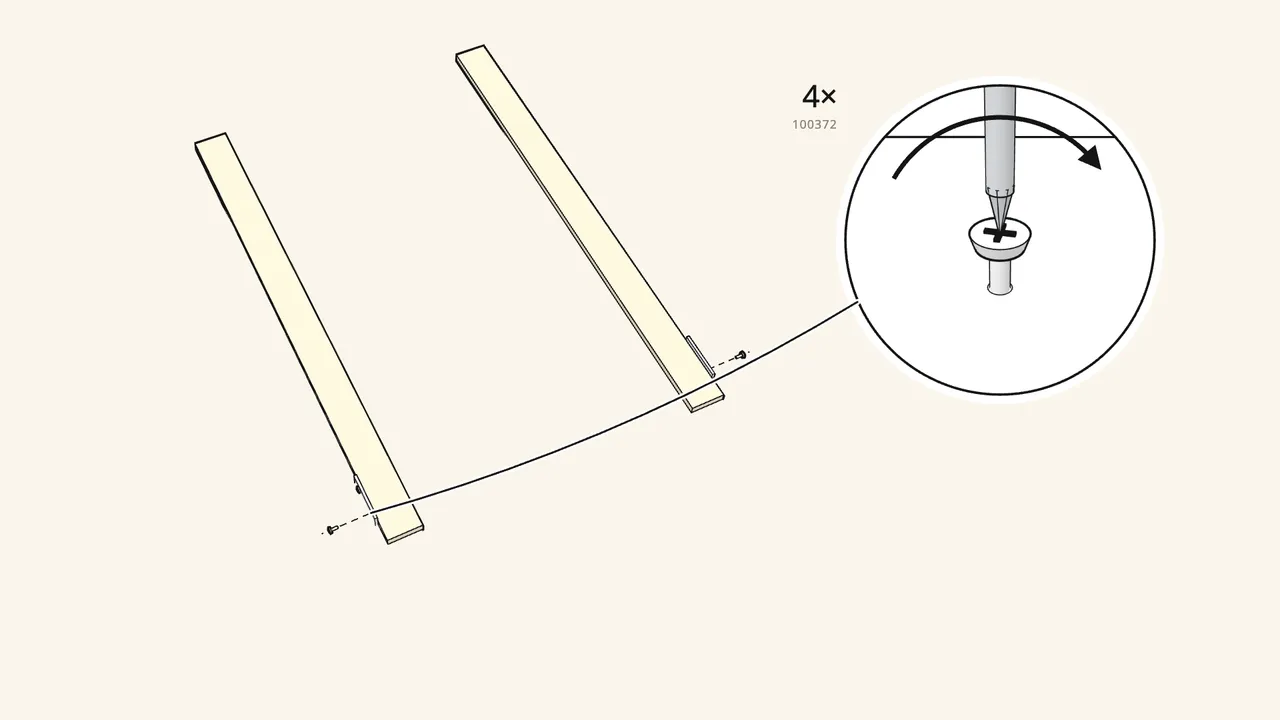

    Step 16 · manual step 34

    Screw a bracket (123660) onto 2 of the long slats.

    2 screws (100372) per bracket — not 105307 or 105163.

    ▶ Watch this step (1:53)

17.

    Step 17 · manual step 35

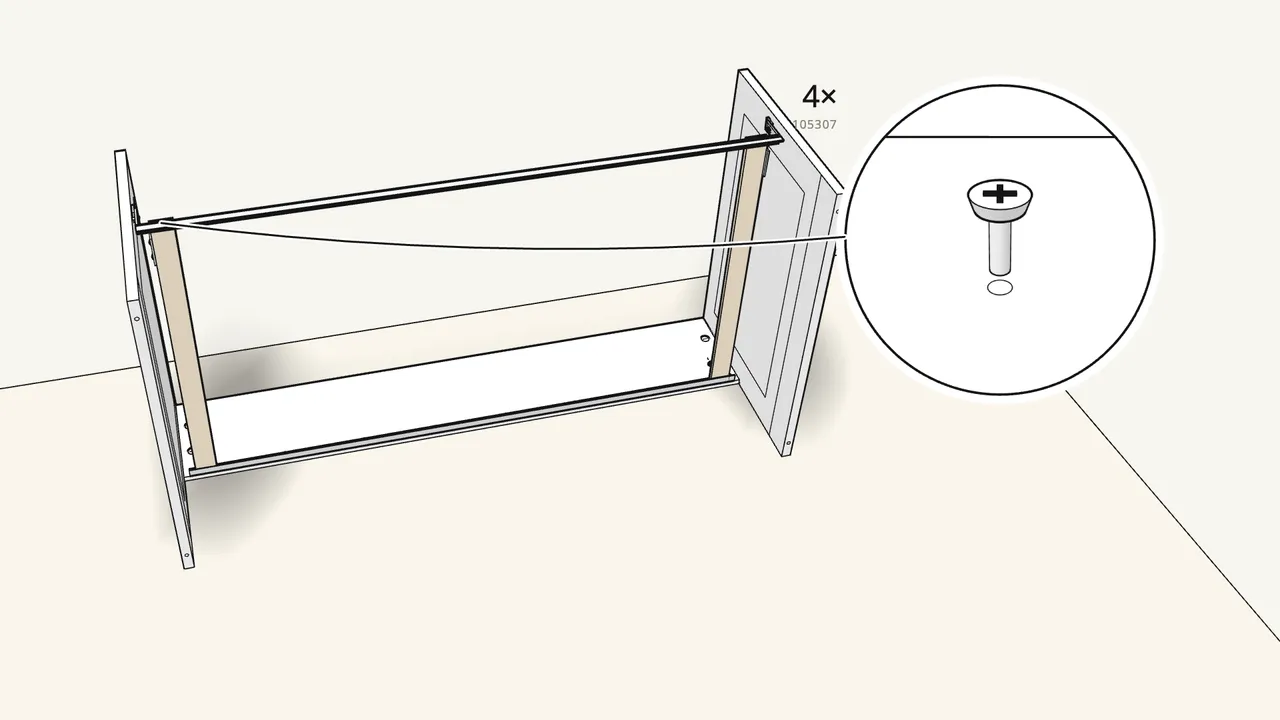

    Lay the frame on its back. Fit the 2 slats at the ends.

    4 screws (105307): 2 into the back rail, 2 into the front bar.

    ▶ Watch this step (1:58)

18.

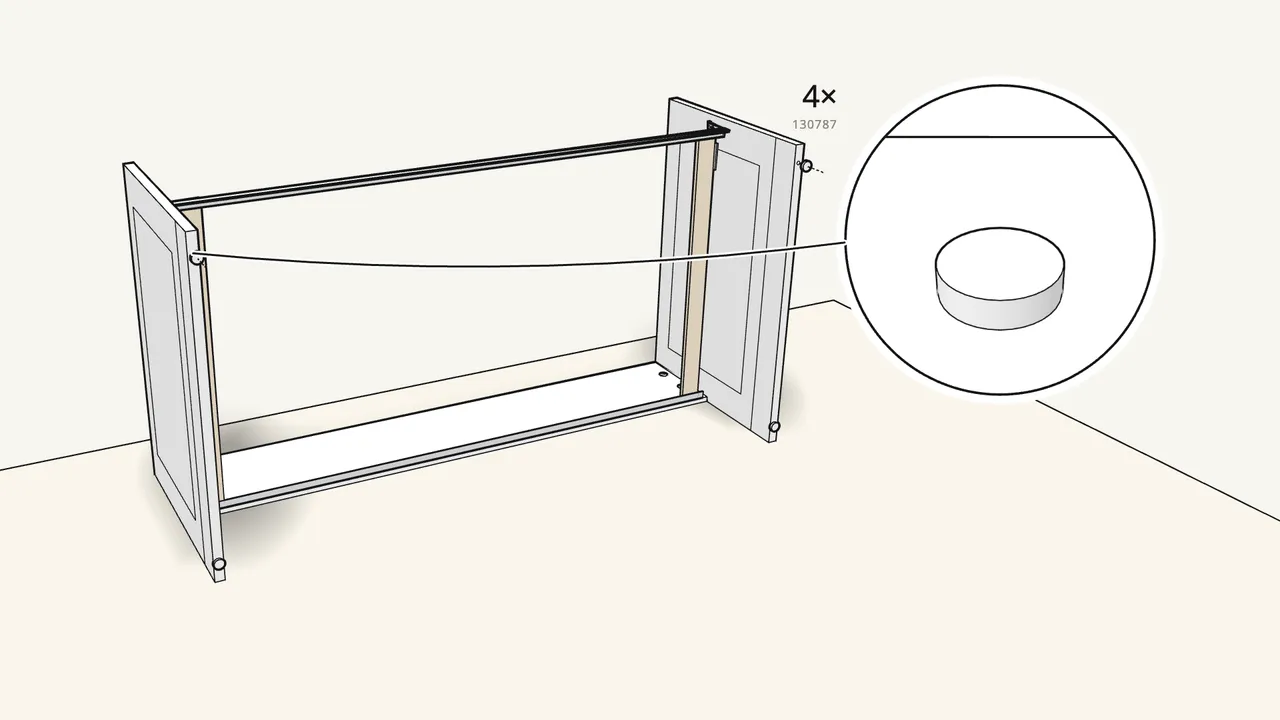

    Step 18 · manual step 36

    Tap 4 glides (130787) into the end panels with the hammer.

    ▶ Watch this step (2:05)

19.

    Step 19 · manual step 37–38

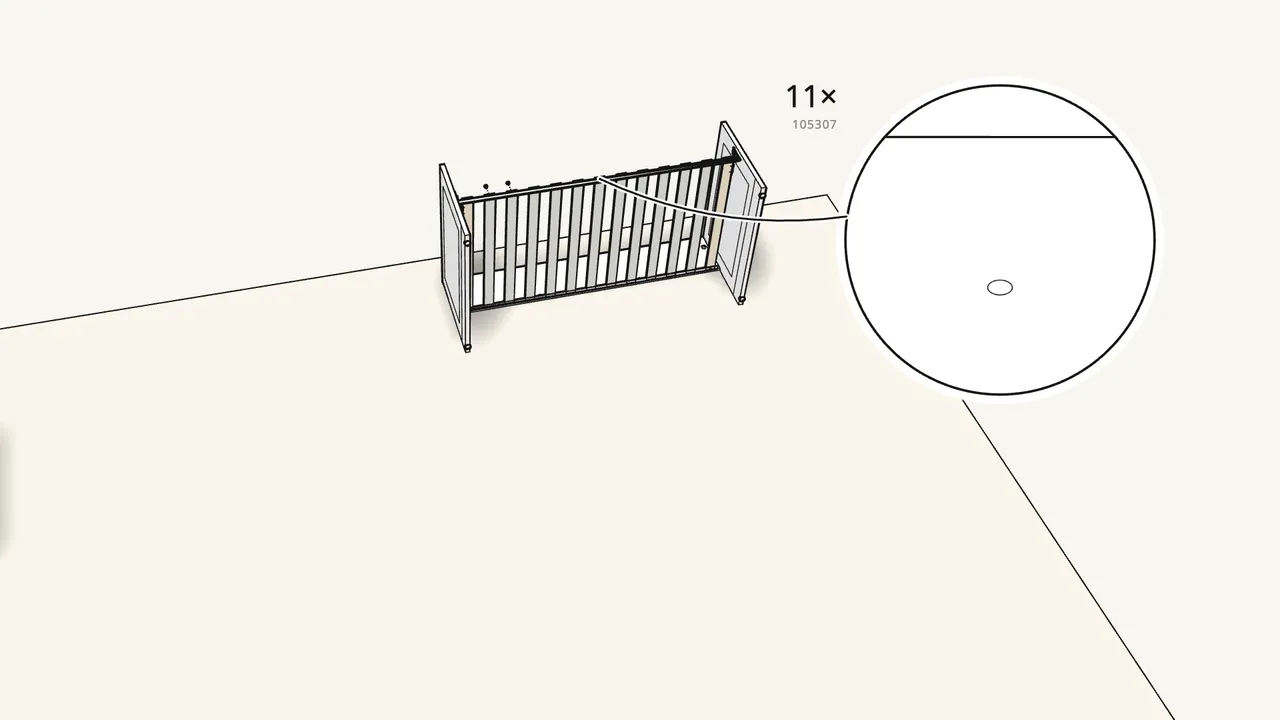

    Push a pin (110525) into 11 slats. Fit them, 11 screws (105307).

    The pins go into the back rail, the screws into the front bar.

    ▶ Watch this step (2:10)

20.

    Step 20 · manual step 39

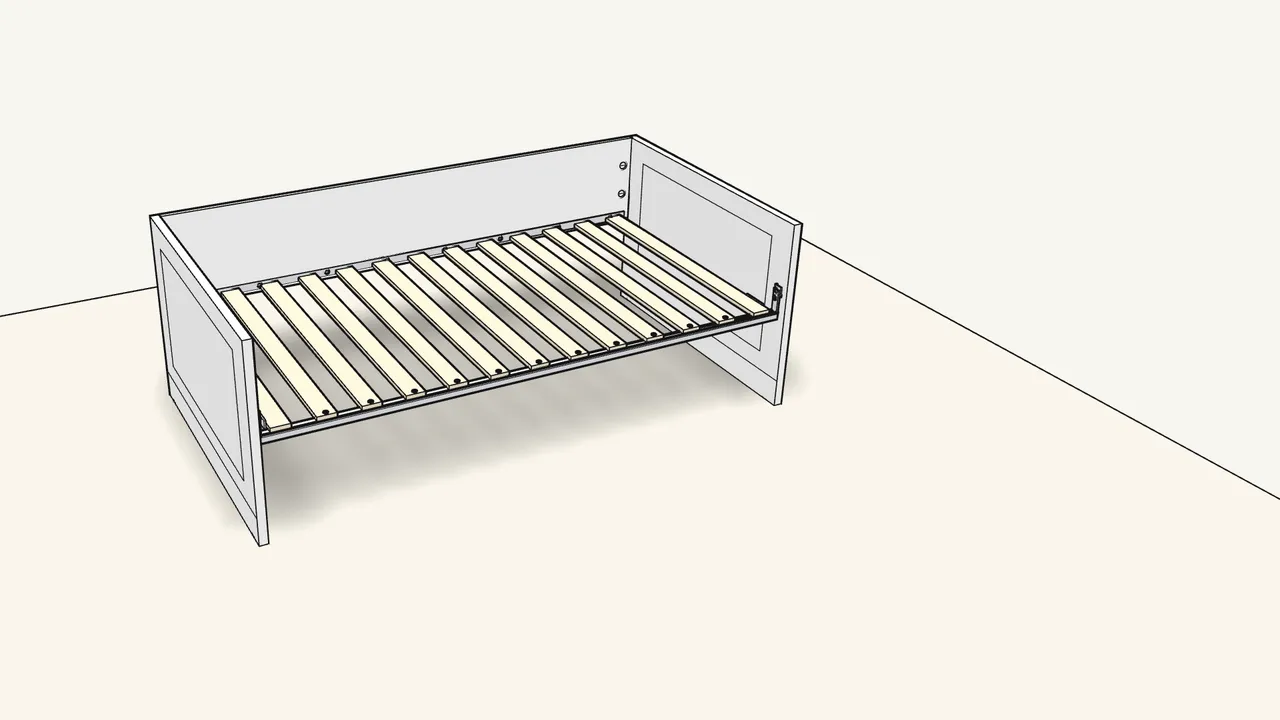

    With 2 people, stand the frame up.

    See the manual, step 39.

    ▶ Watch this step (2:17)

21.

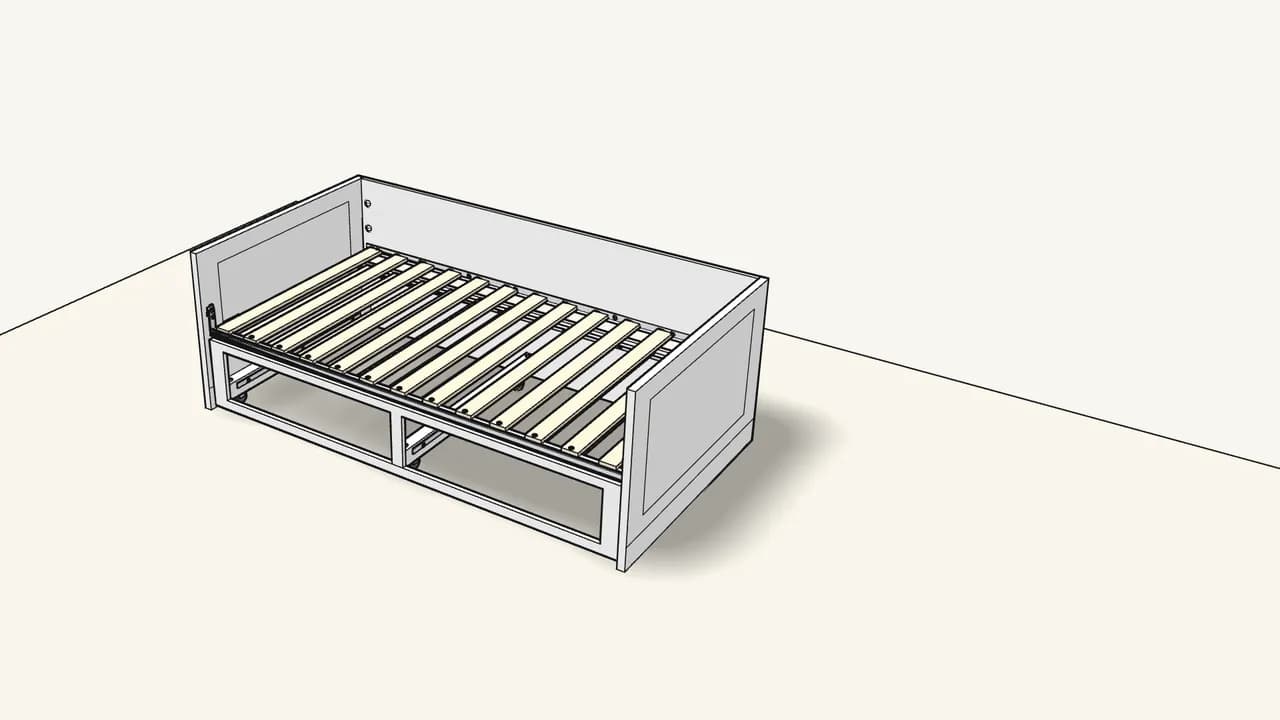

    Step 21 · manual step 39

    Lift the frame over the pull-out bed and lower it down.

    The pull-out bed ends up under the frame.

    ▶ Watch this step (2:21)

22.

    Step 22 · manual step 40–41

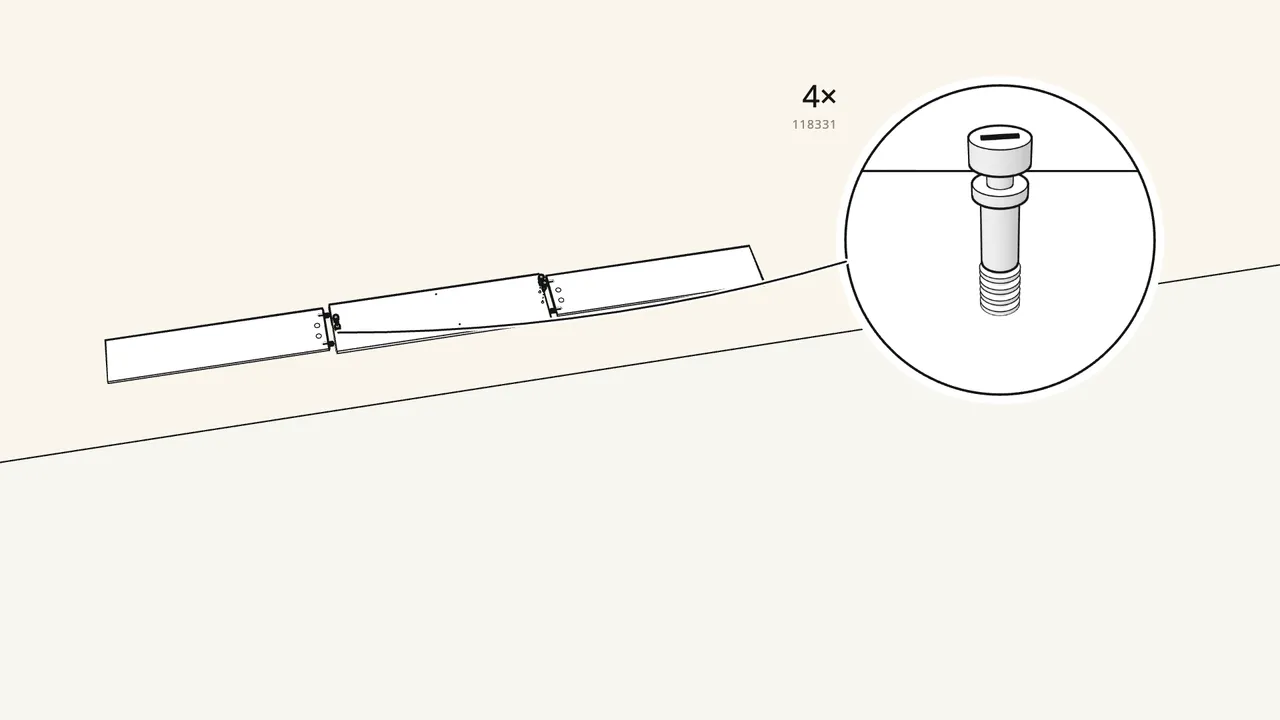

    Section 3 · drawers. 4 dowels (101345), 4 cam bolts (118331).

    Dowels in the sides, cam bolts in the drawer front. One drawer shown.

    ▶ Watch this step (2:27)

23.

    Step 23 · manual step 42–43

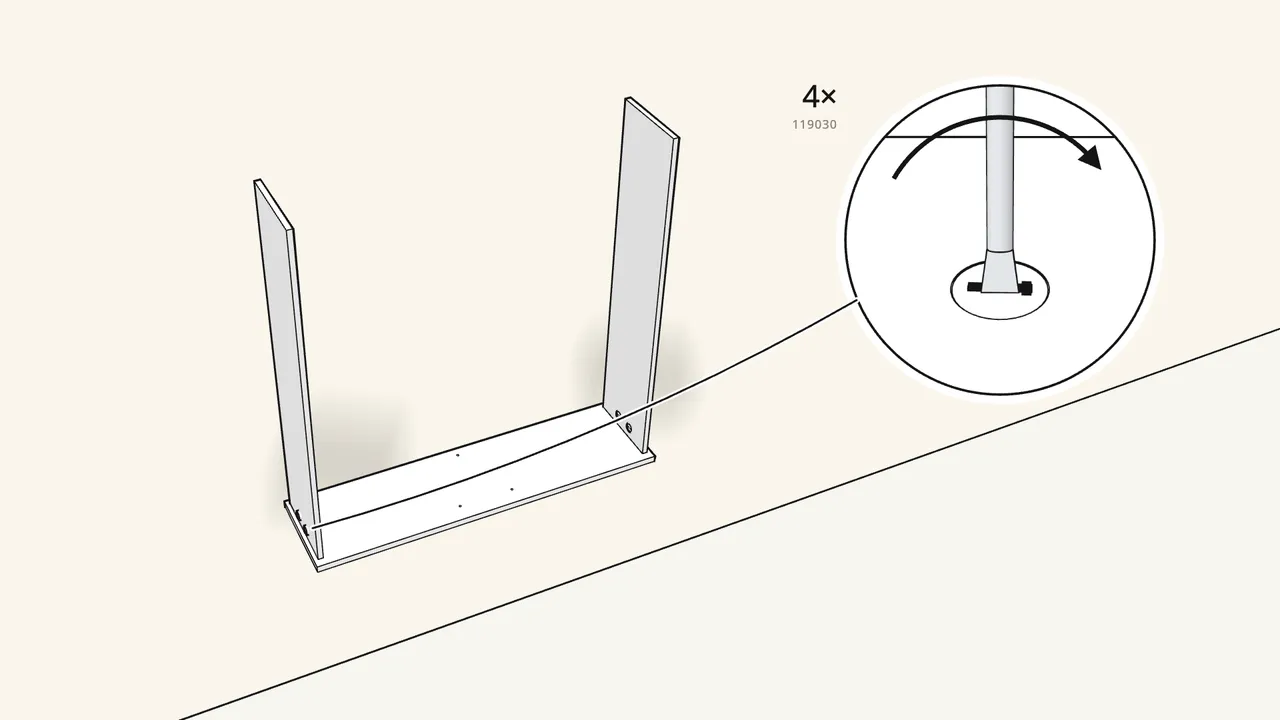

    Put the sides onto the front. Lock 4 cam locks (119030).

    ▶ Watch this step (2:32)

24.

    Step 24 · manual step 44–46

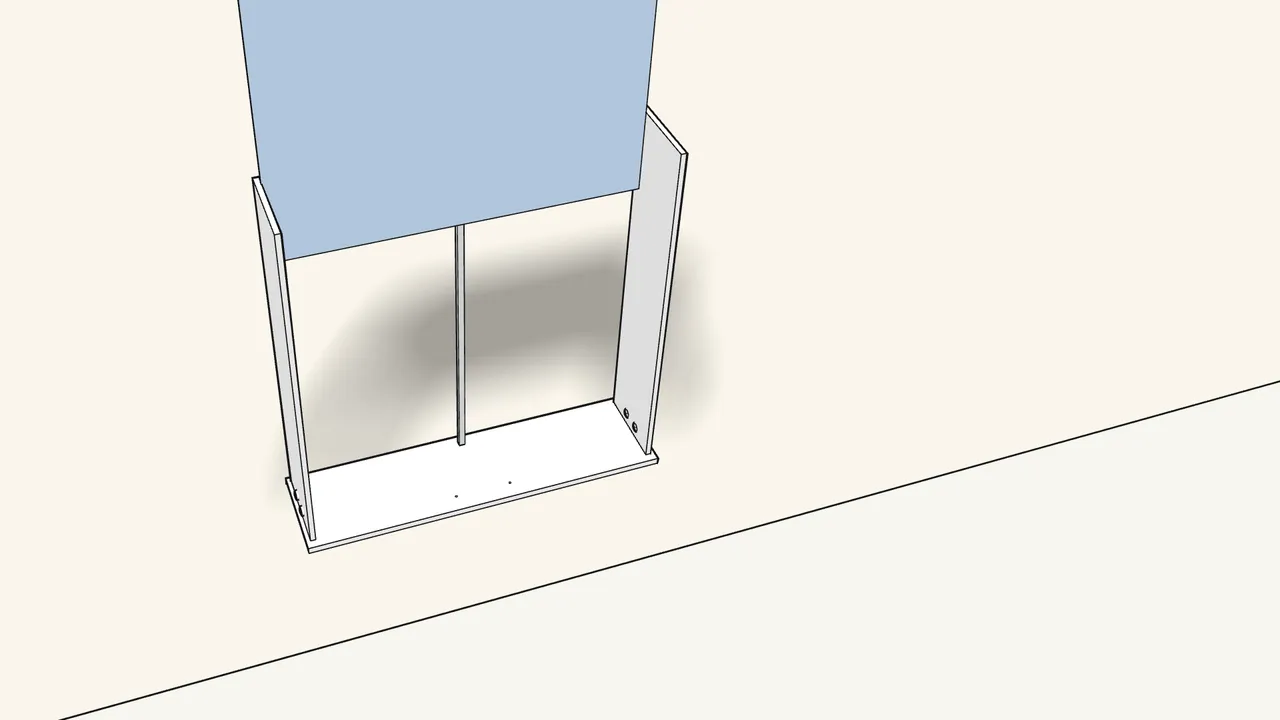

    Screw 1 screw (100359) into the front, hook on the bar (118301).

    Leave a small gap under the screw head. Then slide the bottom in.

    ▶ Watch this step (2:38)

25.

    Step 25 · manual step 47–49

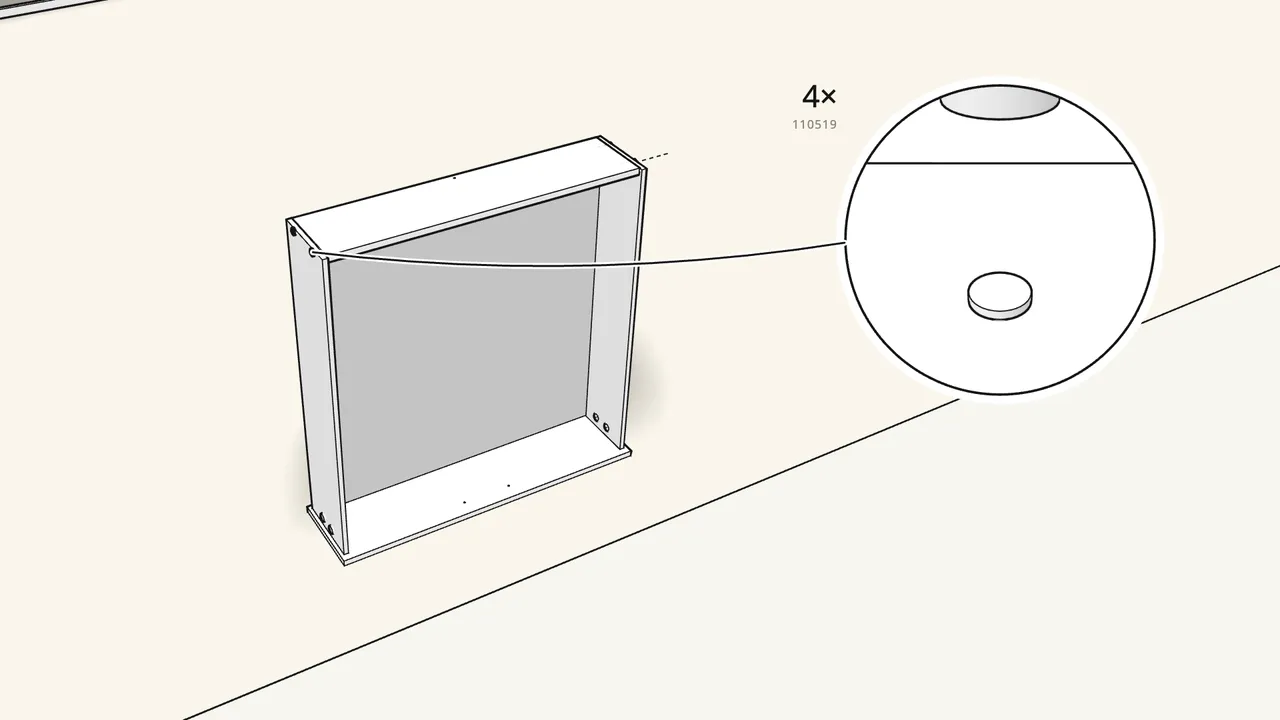

    Fit the back. Tap in 4 screw dowels (110519), add 1 screw (100359).

    ▶ Watch this step (2:45)

26.

    Step 26 · manual step 50

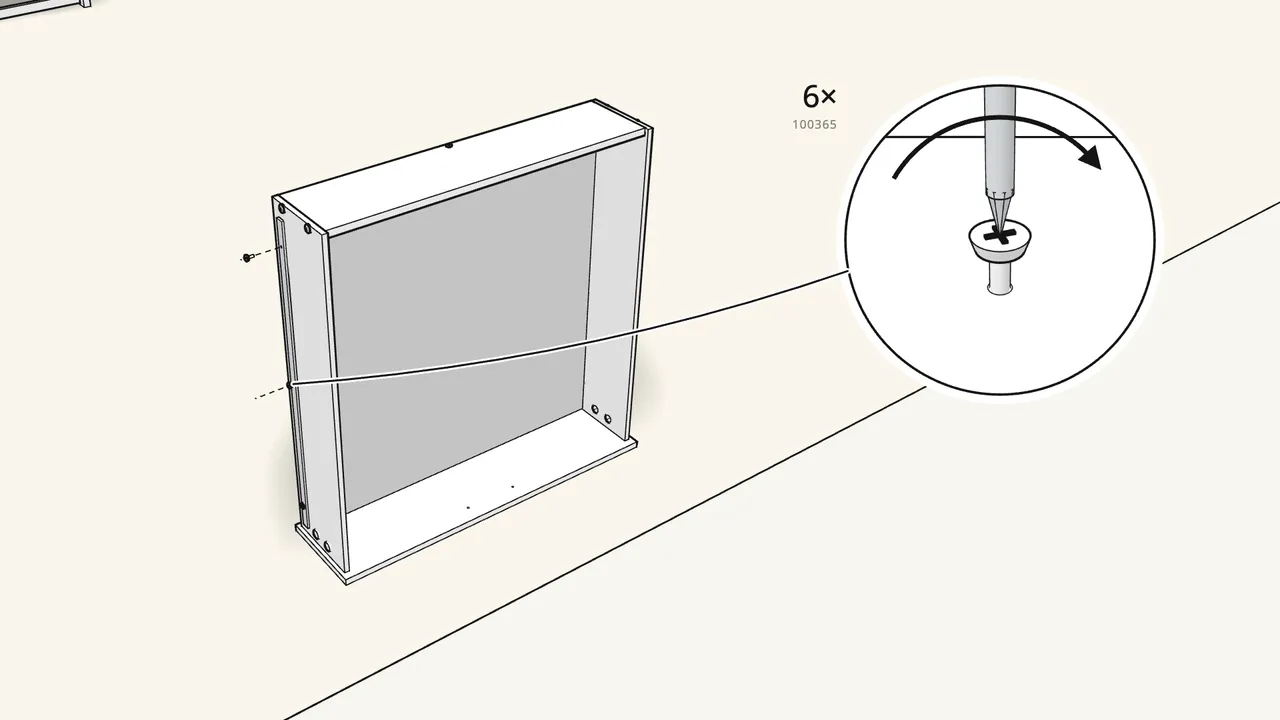

    Screw the runners DR and DL onto the drawer sides.

    3 screws (100365) each.

    ▶ Watch this step (2:52)

27.

    Step 27 · manual step 51

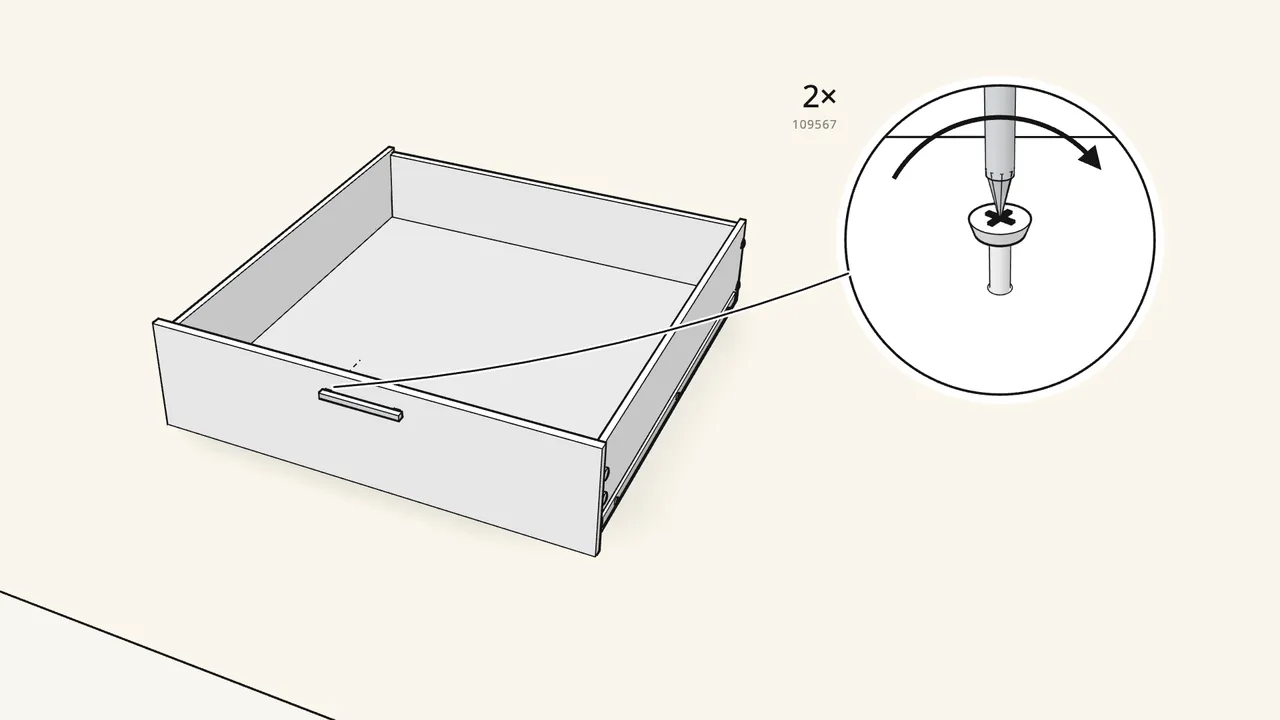

    Turn the drawer over. Fit the handle (124328) with 2 screws (109567).

    ▶ Watch this step (2:57)

28.

    Step 28 · manual step 40–51

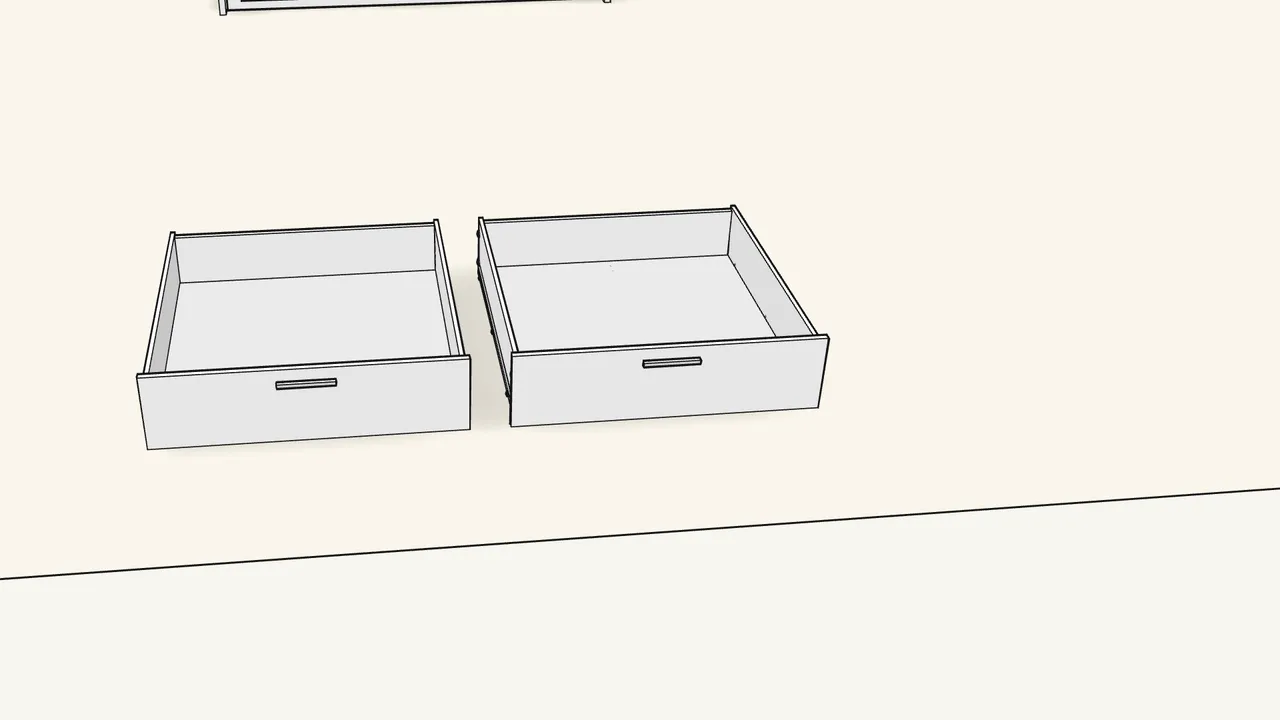

    Build the second drawer the same way.

    ▶ Watch this step (3:03)

29.

    Step 29 · manual step 52

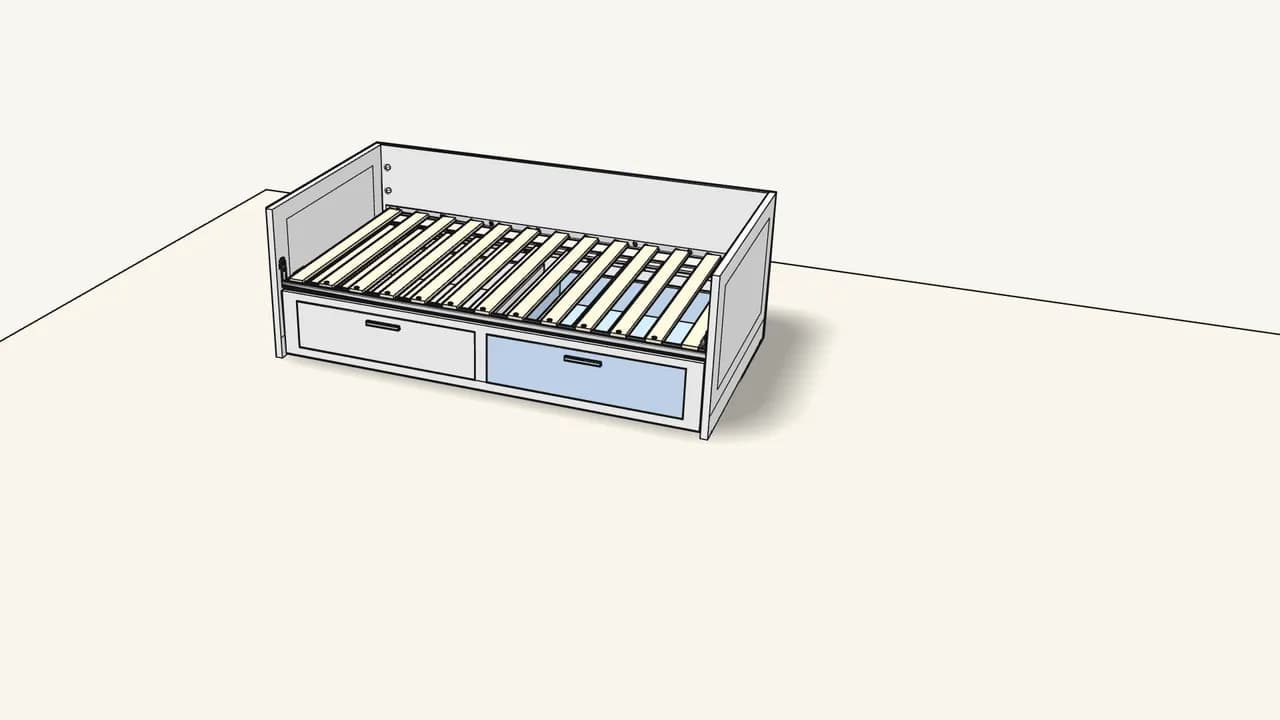

    Slide both drawers into the pull-out bed.

    ▶ Watch this step (3:06)
